Information server prototype for GFIS


Published on

Presentation of information needs and tehcnical options for a Global Forest Information Service GFIS.
Authors: Saarikko J., R. Päivinen, T. Richards and M. Sini.
Event: Forestry Information Systems 2000 workshop, 16-20 May, Hyytiälä, Finland organized by the JOINT FAO/ECE/ILO - COMMITTEE ON FOREST TECHNOLOGY, MANAGEMENT AND TRAINING.

Published in: Technology, Business
  • Be the first to comment

  • Be the first to like this

No Downloads
Total views
On SlideShare
From Embeds
Number of Embeds
Embeds 0
No embeds

No notes for slide
  • Information server prototype for GFIS

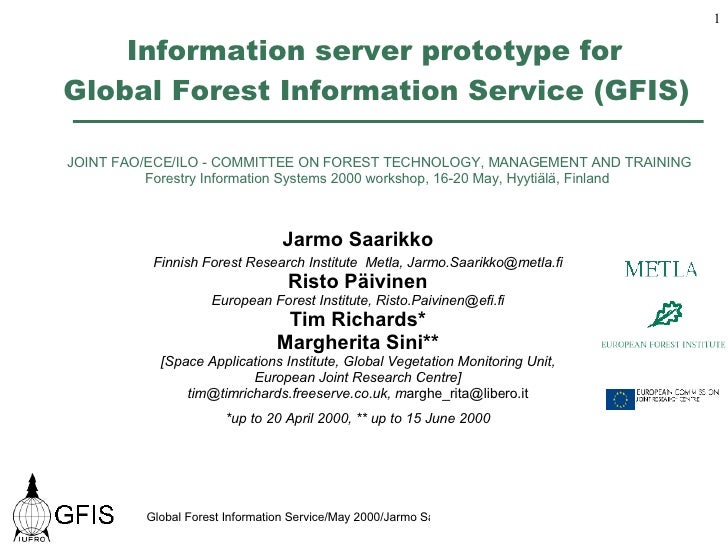

    1. 1. Information server prototype for Global Forest Information Service (GFIS) JOINT FAO/ECE/ILO - COMMITTEE ON FOREST TECHNOLOGY, MANAGEMENT AND TRAINING Forestry Information Systems 2000 workshop, 16-20 May, Hyytiälä, Finland Jarmo Saarikko Finnish Forest Research Institute Metla, Risto Päivinen European Forest Institute, Tim Richards* Margherita Sini** [Space Applications Institute, Global Vegetation Monitoring Unit, European Joint Research Centre], m [email_address] *up to 20 April 2000, ** up to 15 June 2000
    2. 2. Global information needs <ul><ul><li>Increasing need for relevant up-to-date information on decision making dealing with forests </li></ul></ul><ul><ul><li>Countries with limited or slow access to latest scientific information on forests </li></ul></ul><ul><ul><li>Need to disseminate scientific information in these countries </li></ul></ul><ul><ul><li>Chapter 41, Agenda 21 </li></ul></ul><ul><ul><li>Intergovernmental Forum on Forests </li></ul></ul>
    3. 3. Common vision for GFIS <ul><ul><li>Intergovernmental approach </li></ul></ul><ul><ul><li>User orientation </li></ul></ul><ul><ul><li>Focus on countries with the greatest needs </li></ul></ul><ul><ul><ul><li>Specific target audiences </li></ul></ul></ul><ul><ul><li>Content – wide range </li></ul></ul><ul><ul><li>Catalogue approach </li></ul></ul><ul><ul><ul><li>no central collection of data </li></ul></ul></ul>
    4. 4. Use of Internet <ul><ul><li>WWW has affected the ways we work </li></ul></ul><ul><ul><li>Information access and exchange </li></ul></ul><ul><ul><li>From the global level to the local </li></ul></ul><ul><ul><li>The full impact on the way we work and on society is still unknown </li></ul></ul>
    5. 5. Advantages <ul><ul><li>Permanence of 24-hours per day </li></ul></ul><ul><ul><li>Immediacy of information discovery </li></ul></ul><ul><ul><li>Content diversity </li></ul></ul><ul><ul><li>Accessibility from almost anywhere </li></ul></ul><ul><ul><li>De-centralised approaches allowing content owners to maintain full rights </li></ul></ul><ul><ul><li>Value for money with low-cost solutions </li></ul></ul>
    6. 6. General search engines <ul><ul><li>No more able to cover the whole net </li></ul></ul><ul><ul><li>The next generation of search tools will contain more specialised and targeted services, </li></ul></ul><ul><ul><li>More and more services will be provided to registered clients </li></ul></ul><ul><ul><li>User interfaces can be modified according to personal requirements </li></ul></ul>
    7. 7. Low search engine coverage <ul><li>a Coverage with respect to the combined coverage of all engines; b Coverage with respect to the estimated size of the web. </li></ul><ul><li>Relative coverage. 1,050 queries used, 25–28 February 1999. These estimates are of relative coverage for real queries, which may differ from the number of pages actually indexed because of different indexing and retrieval techniques. </li></ul><ul><li>[ Lawrence & Giles 1999 |NATURE|VOL 400|8 JULY 1999|Fig 2|page 108|] </li></ul>
    8. 8. Providers compete for users <ul><ul><li>One user usually cannot effectively use but a few different services </li></ul></ul><ul><ul><li>Most services on the internet have been free, their funding is often based on advertising </li></ul></ul><ul><ul><li>Research information in forestry is often non-competetive </li></ul></ul><ul><ul><li>However, if the target audience is the general public the information producer enters the same competitive field as described above </li></ul></ul>
    9. 9. GFIS structure <ul><li>1. Information Server </li></ul><ul><li>2. Locator </li></ul><ul><li>3. Metadata </li></ul><ul><li>4. Web-sites of information providers </li></ul><ul><ul><li>Harmonised data </li></ul></ul><ul><ul><li>Harmonised metadata </li></ul></ul><ul><ul><li>Open-ended system </li></ul></ul><ul><ul><li>Collection policy </li></ul></ul>
    10. 10. Principle of the Global Forest Information Service
    11. 11. Linking the regional and thematic nodes into GFIS
    12. 12. GFIS Nodes <ul><ul><li>GFIS Information Server </li></ul></ul><ul><ul><ul><li>Coordinates the house-keeping functions of the GFIS node network </li></ul></ul></ul><ul><ul><ul><li>Allows the user community to define content </li></ul></ul></ul><ul><ul><li>GFIS Node </li></ul></ul><ul><ul><ul><li>The first contact point for those accessing GFIS will be the existing web-site of a GFIS partner or node. From there, the user will be able to search all participating metadata catalogues for desired information. </li></ul></ul></ul><ul><ul><li>GFIS-affiliated node </li></ul></ul><ul><ul><ul><li>Forest-related web-site that does not provide catalogue searching but which will be linked to the GFIS Information Server. </li></ul></ul></ul>
    13. 13. Information resources <ul><li>Information Server </li></ul><ul><ul><li>GFIS background and info </li></ul></ul><ul><ul><li>Discussion forums </li></ul></ul><ul><ul><li>List server </li></ul></ul><ul><ul><li>User registration </li></ul></ul><ul><ul><li>Organisational registration </li></ul></ul><ul><ul><li>Resource registration </li></ul></ul><ul><li>Node metadata </li></ul><ul><ul><li>People </li></ul></ul><ul><ul><li>Organisations </li></ul></ul><ul><ul><li>Services </li></ul></ul><ul><ul><li>Products/Services </li></ul></ul><ul><ul><li>Events </li></ul></ul><ul><ul><li>Documents </li></ul></ul><ul><ul><li>Datasets </li></ul></ul>
    14. 14. Network of nodes
    15. 15. Initial phase of GFIS <ul><ul><li>Designing and carrying-out limited feasibility studies. </li></ul></ul><ul><ul><li>Developing the “collection policy” </li></ul></ul><ul><ul><li>Developing budgets, including identifying possible revenue streams and expenses </li></ul></ul><ul><ul><li>Identifying and resolving technical and legal issues. </li></ul></ul><ul><ul><li>Identifying candidate institutions for hosting thematic or regional nodes </li></ul></ul>
    16. 16. Collection policy <ul><ul><li>Subject coverage </li></ul></ul><ul><ul><li>Target audience </li></ul></ul><ul><ul><li>Types of eligible information resources </li></ul></ul><ul><ul><li>Metadata standard used </li></ul></ul><ul><ul><li>Quality of eligible resources </li></ul></ul><ul><ul><li>Boundaries to other services (what will not be included etc.) </li></ul></ul><ul><ul><li>Submission procedure </li></ul></ul><ul><ul><li>Maintenance arrangements </li></ul></ul>
    17. 17. GFIS Technical recommendation <ul><ul><li>GFIS Metadata recommendation: Dublin Core </li></ul></ul><ul><ul><li>GFIS valid key word list: applied Cabi Thesaurus </li></ul></ul><ul><ul><li>Interoperability protocol: Z39.50 </li></ul></ul><ul><ul><li>Central GFIS information server: GIST </li></ul></ul><ul><ul><ul><li>Member registration </li></ul></ul></ul><ul><ul><ul><li>Rsource registration </li></ul></ul></ul><ul><ul><ul><li>Search HGS </li></ul></ul></ul><ul><ul><ul><li>E-mail </li></ul></ul></ul><ul><ul><ul><li>Website links </li></ul></ul></ul><ul><ul><li>Network of regional nodes (ACP project) </li></ul></ul>
    18. 18. GIST based information server
    19. 19. What does GIST do? <ul><li>GIST makes it easier to build an Information Server by providing the software components required for common tasks. In particular GIST provides facilities for: </li></ul><ul><ul><li>submission of information by members of a user community </li></ul></ul><ul><ul><li>modification and deletion of information </li></ul></ul><ul><ul><li>presentation of information </li></ul></ul><ul><ul><li>search and browse </li></ul></ul><ul><ul><li>user registration and user interface configuration </li></ul></ul><ul><ul><li>user authentication and authorisation </li></ul></ul><ul><ul><li>automatic validation of user input </li></ul></ul><ul><ul><li>server configuration and definition of policy rules </li></ul></ul><ul><ul><ul><ul><ul><li>Source: Overview </li></ul></ul></ul></ul></ul>
    20. 20. GIST features <ul><ul><li>All the utilities and Web (CGI) applications can be run from the command line. </li></ul></ul><ul><ul><li>Small core set of applications to deal with the objects created: </li></ul></ul><ul><ul><ul><li>submission, alteration, and deletion of objects </li></ul></ul></ul><ul><ul><ul><li>facilities to search, show, lock and unlock objects. </li></ul></ul></ul><ul><ul><li>Input translated from various formats including GET, POST, MIME (POST encoding) and XML </li></ul></ul><ul><ul><li>Object modelling </li></ul></ul><ul><ul><li>Geographic searching, etc. </li></ul></ul>
    21. 21. GIST Features <ul><ul><ul><ul><ul><li>Source: </li></ul></ul></ul></ul></ul>
    22. 22. GIST installation <ul><ul><li>Platforms </li></ul></ul><ul><ul><ul><li>AT compatible PC running a recent version of Linux (GIST has been used on RedHat Linux versions 5.1 - 6.1) </li></ul></ul></ul><ul><ul><ul><li>Sun SPARC running SunOS 5.5.1 </li></ul></ul></ul><ul><ul><ul><li>Compaq Alpha running OSF1 (Digital Unix) 4.x </li></ul></ul></ul><ul><ul><li>100MB free hard disk for the system, excluding data </li></ul></ul><ul><ul><li>64MB RAM (128MB is better) and a network card </li></ul></ul><ul><ul><li>Installation: </li></ul></ul><ul><ul><ul><li>install GIST software (Systems Administrator) </li></ul></ul></ul><ul><ul><ul><li>define and implement the data model (Database Admin.) </li></ul></ul></ul><ul><ul><ul><li>define and implement the user interface (HTML author) </li></ul></ul></ul><ul><ul><ul><ul><ul><li>Source: Overview </li></ul></ul></ul></ul></ul>
    23. 23. GFIS prototype - start
    24. 24. GFIS prototype - add an object
    25. 25. FISE prototype
    26. 26. HGS General characteristics <ul><li>Geospatial search </li></ul><ul><ul><ul><li>Simplest case: bounding rectangle (Lat, Lon) </li></ul></ul></ul><ul><li>Temporal searching </li></ul><ul><ul><ul><li>Time range: start date, end date </li></ul></ul></ul><ul><ul><ul><li>Fuzzy: Before/After date </li></ul></ul></ul><ul><li>Text searching </li></ul><ul><ul><ul><li>Free text query </li></ul></ul></ul>
    27. 27. HGS Implementation <ul><ul><li>Clients discover databases through the directory structure </li></ul></ul><ul><ul><li>Clients can search selected databases </li></ul></ul><ul><ul><ul><li>Via a Web proxy server. Route searches to HGS servers. </li></ul></ul></ul><ul><ul><ul><li>Directly through JAVA URLclass. </li></ul></ul></ul><ul><ul><li>Clients can support ExplainURI’s </li></ul></ul><ul><ul><li>Independent Agents can be written in JAVA. </li></ul></ul>CEO Programme Joint Research Centre - Space Applications Institute DGXII D4 - Space Unit
    28. 28. HGS Protocol - Search <ul><li>Standard Search URL ( level 1) </li></ul><ul><ul><li>http://www.dbas.yyy/ </li></ul></ul><ul><ul><li>Standard Reply (Text) </li></ul></ul>URI: Name: EWSE Version: 1.0 Engine HGS Experimental 1.00 Name: AVHRR data Europe URI: http://www.esa.esrin/ Coverage: 24.0 30.0 15.0 22.3 Name: SAR ERS-1 URI: Coverage: 22.6 33.2 18.6 25.7 ............ CEO Programme Joint Research Centre - Space Applications Institute DGXII D4 - Space Unit EUROPEAN COMMISSION ISPRS Joint Workshop 7-9 October 1997 Slide
    29. 29. HGS Protocol - Discover <ul><li>Level 0 supports a distributed directory. </li></ul>Version 1.0 Name: DLR ISIS Catalogue URI: Description: The ISIS catalogue contains ...... Name: AVHRR database 1 SearchURI: Name: AVHRR database 2 SearchURI: Version 1.0 Name: Collection of HGS directories URI: Name: ISIS DLR Germany Description: German EO catalogue holdings DirectoryURI: ExplainURI: .......
    30. 30. HGS Protocol - Explain <ul><ul><ul><li>Level 3 allows for search attribute extensions beyond Space and time using defined set of options - ExplainURI: </li></ul></ul></ul>Attribute ID Parent ID Object Name Guide URL (Optional) 100 100 Cloud Cover 101 100 0 - 10 % 102 100 10-25% 103 100 25-50% 104 100 50-75 % 105 100 75-100% 200 200 Sensor 210 200 IR Spectrometer 220 200 UV Spectrometer 230 210 Band A 240 210 Band B 250 220 Filter 1 260 220 Filter 2 CEO Programme Joint Research Centre - Space Applications Institute DGXII D4 - Space Unit
    31. 31. IUFRO Task Force <ul><ul><li>The mission of the Task Force is to develop a strategy and implementation for an Internet-based metadata system that provides co-ordinated world-wide access to forest information to assist meeting national and international efforts in achieving sustainable forests </li></ul></ul><ul><ul><li>Started in September 1998 </li></ul></ul><ul><ul><li>Volunteer based participants from international organisations </li></ul></ul><ul><ul><li>EU funded project for LAC countries with IUFRO SPCD coordination and staff at FAO, Rome. </li></ul></ul><ul><ul><li>http:// /iufro/taskforce/hptfgfis.htm </li></ul></ul>
    32. 32. <ul><li>The Intergovernmental Panel on Forests, 1997 </li></ul><ul><li>&quot;Emphasised the need to review and improve information systems. Attention should be given to world-wide access to information systems that would encourage effective implementation of national forest programmes, increased private-sector investment, efficient development and transfer of appropriate technologies, and improved co-operation&quot;. </li></ul><ul><li>IUFRO, 1998 </li></ul><ul><li>Established a Task Force ‘Global Forest Information Service’, with aim to </li></ul><ul><li>'develop an Internet-based service that will provide co-ordinated access to </li></ul><ul><li>forest information’. </li></ul><ul><li>International Consultation on Research and Information Systems in Forestry (ICRIS) , 1998 </li></ul><ul><li>Acknowledged the urgent need to improve access to information at all levels. </li></ul><ul><li>Recommended to endorse the development of GFIS. </li></ul><ul><li>IFF Intergovernmental Forum on Forest , 3rd meeting Geneve, May 1999 </li></ul><ul><li>ITFF Inter-Agency Task Force on Forests at IFF4 New York, Feb 2000 </li></ul>History & global mandate
    33. 33. Follow-up phase of GFIS <ul><ul><li>Designing pilot programs </li></ul></ul><ul><ul><ul><li>Demonstration at IUFRO XXI World Congress, Kuala Lumpur, Malaysia, August 2000 </li></ul></ul></ul><ul><ul><li>Advising and assisting with regional node activities including technical and financial needs. </li></ul></ul><ul><ul><li>Conducting activities necessary for promotion and use of the system. </li></ul></ul><ul><ul><li>Monitoring and reporting on the progress of the service </li></ul></ul>
    34. 34. ACP-project (EU) <ul><ul><li>Serving as liaison within region for acquiring linkages to relevant information and data sets </li></ul></ul><ul><ul><li>Developing and enforcing regional collection policy and metadata standards </li></ul></ul><ul><ul><li>Conducting workshops and conferences and other educational </li></ul></ul><ul><ul><li>Promoting GFIS to potential users within region </li></ul></ul><ul><ul><li>Maintaining institutional and technological arrangements with GFIS managers and other regional nodes. </li></ul></ul><ul><ul><li>Writing and distributing appropriate documentation for GFIS regional users and information providers including, collection policy, user’s manual. </li></ul></ul><ul><ul><li>Coordination by IUFRO/SPDC, staff at FAO/Rome </li></ul></ul>
    35. 35. Related metadata-services <ul><li>Global Environmental Information Locator Service </li></ul><ul><ul><ul><li> (Working example of GIST technology) </li></ul></ul></ul><ul><li>Global Change Master Directory (GCMD by NASA) </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>The Federal Geographic Data Committee (FGDC) </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>Canadian NFIS Metadata Infrastructure Project </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>Global Forest Watch (World Resources Institute) </li></ul><ul><ul><ul><li> </li></ul></ul></ul>
    36. 36. The Vision “GFIS 5 years from now” <ul><li>User </li></ul><ul><ul><li>The user should be able to easily find the information be able to evaluate the quality and relevance of it for his/her purpose. </li></ul></ul><ul><li>The image </li></ul><ul><ul><li>GFIS will be the 'one stop shop' for forest information on the globe </li></ul></ul><ul><li>Information providers </li></ul><ul><ul><li>GFIS will help the provider make their information more accessible to a broader audience with minimal effort </li></ul></ul><ul><li>Finances </li></ul><ul><ul><li>A group of donors have funded the establishment phase of the service. Progressively, as service becomes known the service may fund itself through advertisements, for example </li></ul></ul><ul><li>Decentralisation </li></ul><ul><ul><li>There are a number of geographically or thematically oriented ‘nodes’ facilitating the GFIS activities in their special field </li></ul></ul><ul><ul><ul><ul><ul><li>Source: Päivinen et al. 1999 </li></ul></ul></ul></ul></ul>
    37. 37. GFIS web-site <ul><li> </li></ul>
    38. 38. Test sites <ul><li>GFIS prototype </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>FISE prototype </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>GIST </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>GEM </li></ul><ul><ul><ul><li> </li></ul></ul></ul><ul><li>HGS </li></ul><ul><ul><ul><li> (java application) </li></ul></ul></ul>
    39. 39. An application of GIST Global Educational Multimedia
    40. 40.
