Infinit filesystem, Reactor reloaded

  1. 1. Infinit filesystem Reactor reloaded mefyl quentin.hocquet@infinit.io Version 1.2-5-g4a755e6

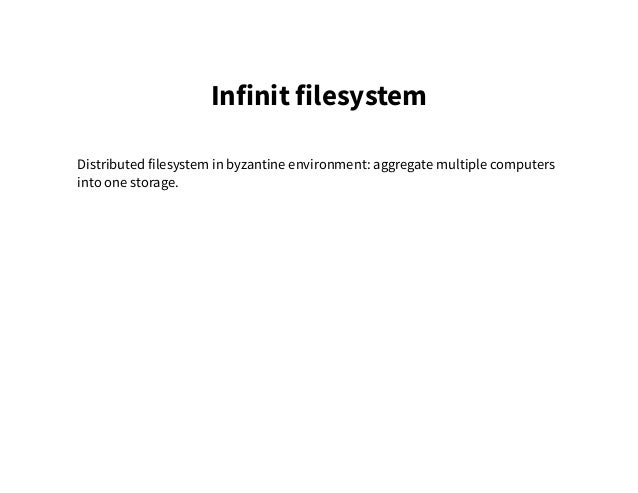

  2. 2. Infinit filesystem Distributed filesystem in byzantine environment: aggregate multiple computers into one storage.

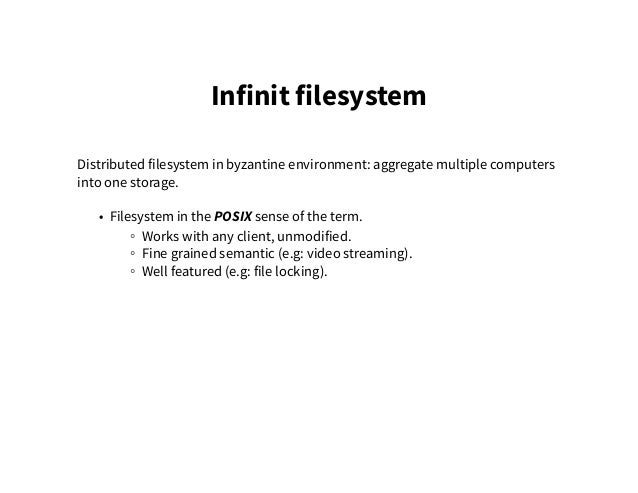

  3. 3. Infinit filesystem Distributed filesystem in byzantine environment: aggregate multiple computers into one storage. • Filesystem in the POSIX sense of the term. ◦ Works with any client, unmodified. ◦ Fine grained semantic (e.g: video streaming). ◦ Well featured (e.g: file locking).
  4. 4. Infinit filesystem Distributed filesystem in byzantine environment: aggregate multiple computers into one storage. • Filesystem in the POSIX sense of the term. ◦ Works with any client, unmodified. ◦ Fine grained semantic (e.g: video streaming). ◦ Well featured (e.g: file locking). • Distributed: no computer as any specific authority or role. ◦ Availability: no SPOF, network failure resilient. ◦ No admin. As in, no janitor and no tyran. ◦ Scalability flexibility.

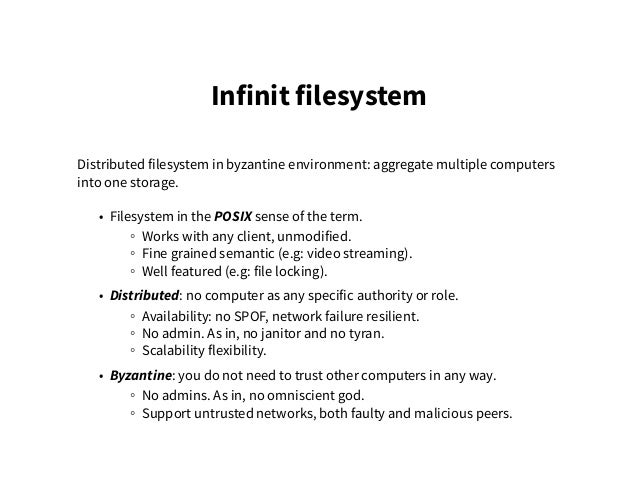

  5. 5. Infinit filesystem Distributed filesystem in byzantine environment: aggregate multiple computers into one storage. • Filesystem in the POSIX sense of the term. ◦ Works with any client, unmodified. ◦ Fine grained semantic (e.g: video streaming). ◦ Well featured (e.g: file locking). • Distributed: no computer as any specific authority or role. ◦ Availability: no SPOF, network failure resilient. ◦ No admin. As in, no janitor and no tyran. ◦ Scalability flexibility. • Byzantine: you do not need to trust other computers in any way. ◦ No admins. As in, no omniscient god. ◦ Support untrusted networks, both faulty and malicious peers.

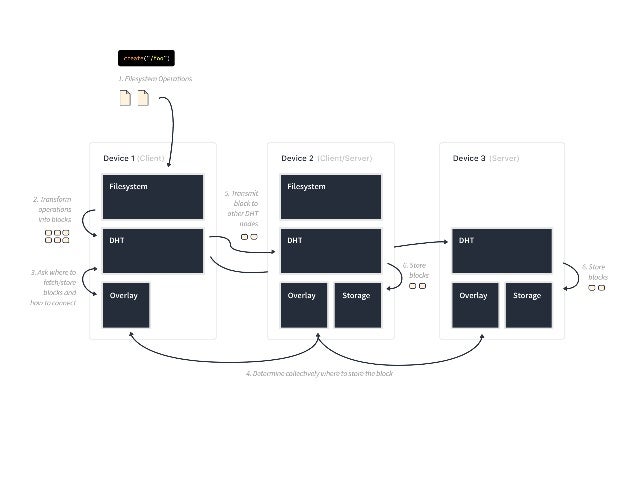

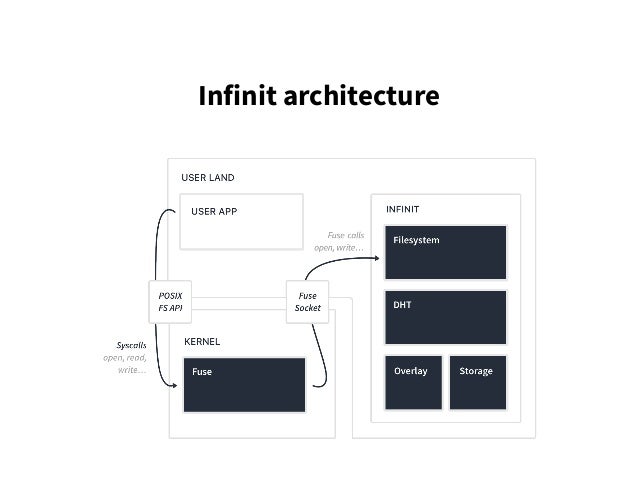

  6. 6. Infinit architecture

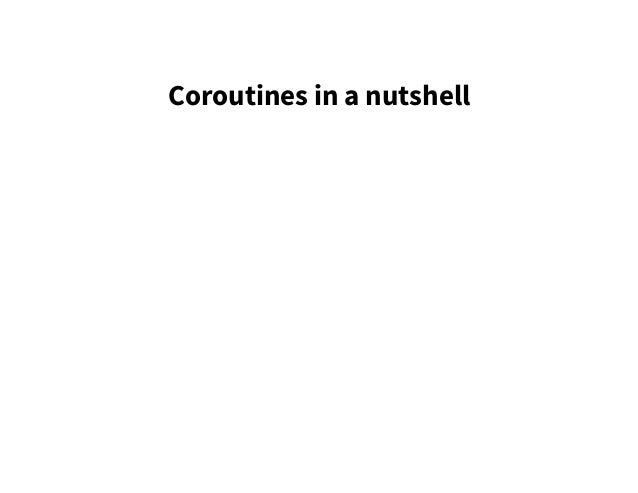

  7. 7. Coroutines in a nutshell

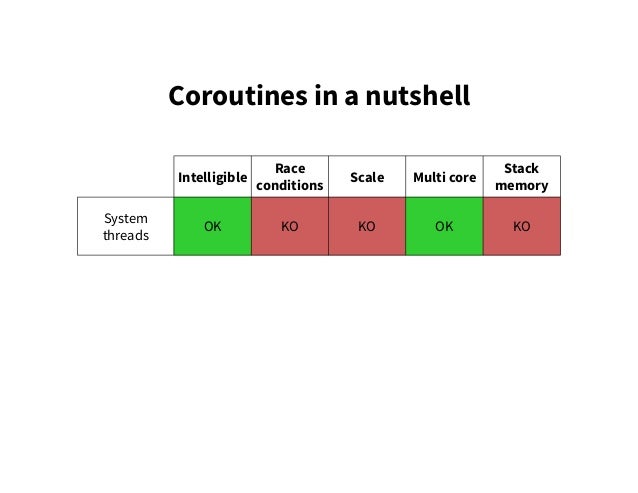

  8. 8. Coroutines in a nutshell Intelligible Race conditions Scale Multi core Stack memory System threads OK KO KO OK KO

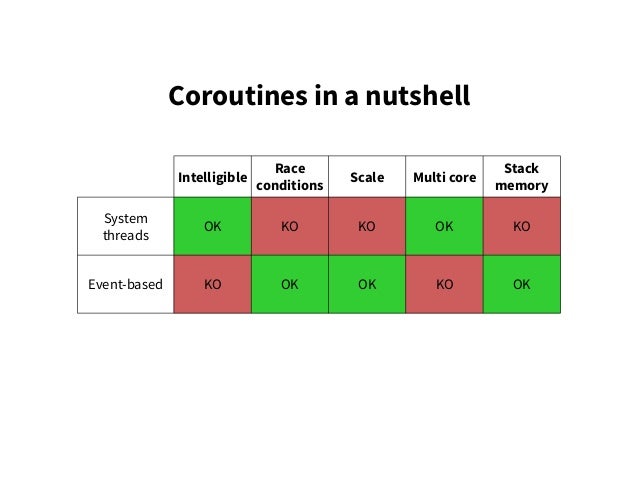

  9. 9. Coroutines in a nutshell Intelligible Race conditions Scale Multi core Stack memory System threads OK KO KO OK KO Event-based KO OK OK KO OK
  10. 10. Coroutines in a nutshell Intelligible Race conditions Scale Multi core Stack memory System threads OK KO KO OK KO Event-based KO OK OK KO OK System Coroutines OK OK OK KO KO
  11. 11. Coroutines in a nutshell Intelligible Race conditions Scale Multi core Stack memory System threads OK KO KO OK KO Event-based KO OK OK KO OK System Coroutines OK OK OK KO KO Stackless Coroutines Meh OK OK KO OK

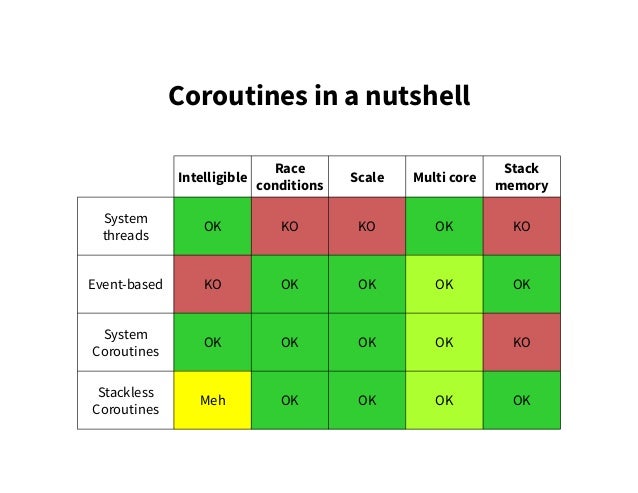

  12. 12. Coroutines in a nutshell Intelligible Race conditions Scale Multi core Stack memory System threads OK KO KO OK KO Event-based KO OK OK OK OK System Coroutines OK OK OK OK KO Stackless Coroutines Meh OK OK OK OK

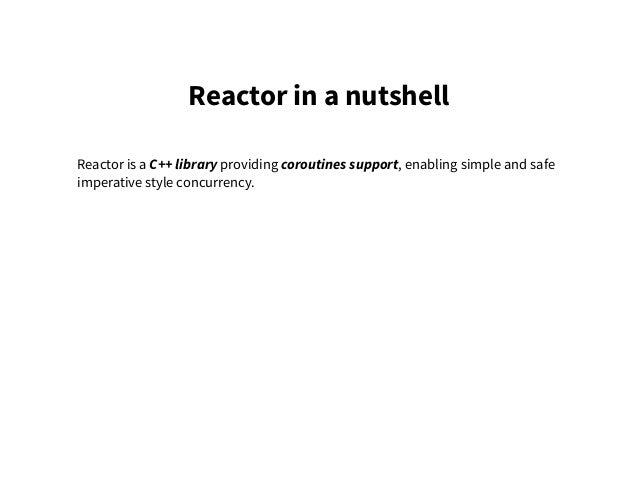

  13. 13. Reactor in a nutshell Reactor is a C++ library providing coroutines support, enabling simple and safe imperative style concurrency.
  14. 14. Reactor in a nutshell Reactor is a C++ library providing coroutines support, enabling simple and safe imperative style concurrency. while (true) { auto socket = tcp_server.accept(); new Thread([socket] { try { while (true) socket->write(socket->read_until("n")); } catch (reactor::network::Error const&) {} }); }

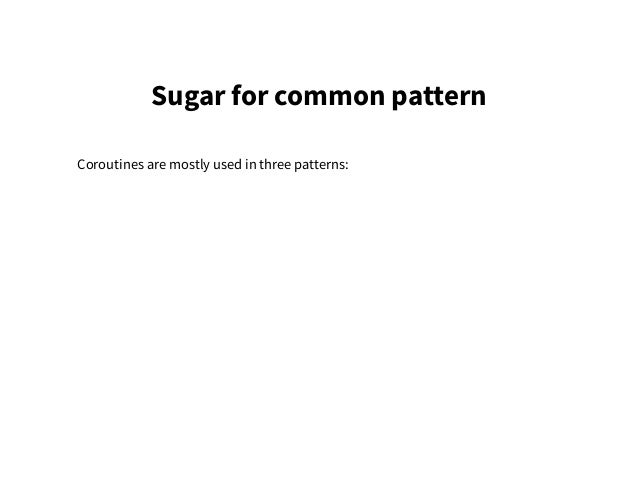

  15. 15. Sugar for common pattern Coroutines are mostly used in three patterns:

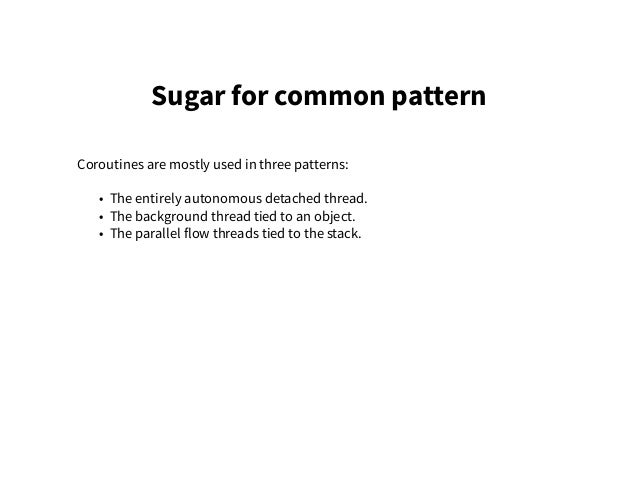

  16. 16. Sugar for common pattern Coroutines are mostly used in three patterns: • The entirely autonomous detached thread. • The background thread tied to an object. • The parallel flow threads tied to the stack.

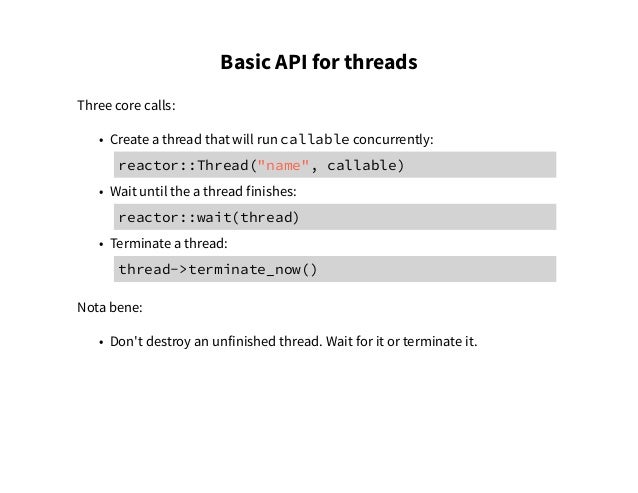

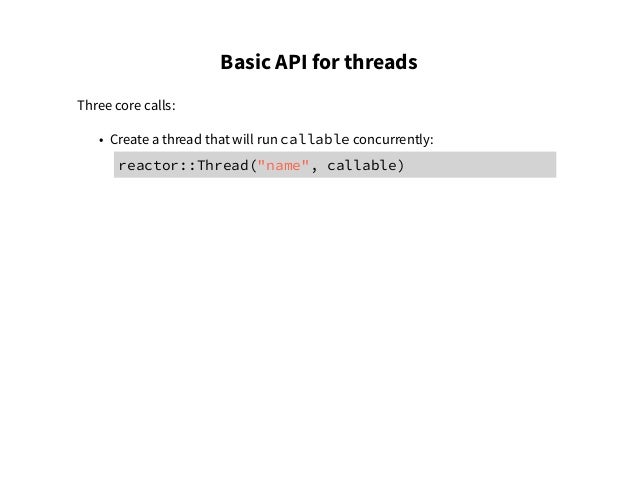

  17. 17. Basic API for threads Three core calls: • Create a thread that will run callable concurrently: reactor::Thread("name", callable)
  18. 18. Basic API for threads Three core calls: • Create a thread that will run callable concurrently: reactor::Thread("name", callable) • Wait until the a thread finishes: reactor::wait(thread)

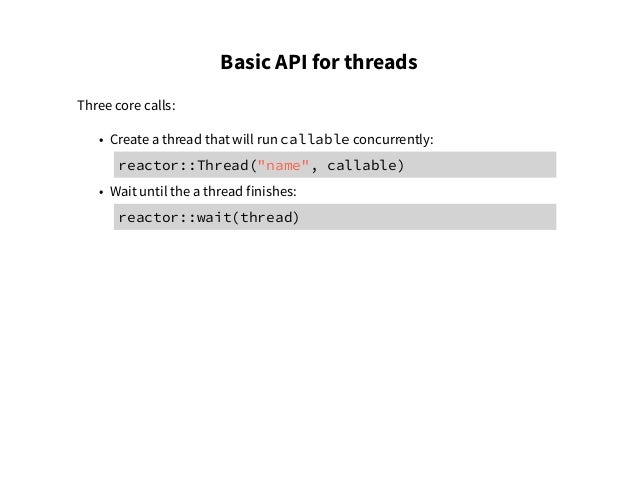

  19. 19. Basic API for threads Three core calls: • Create a thread that will run callable concurrently: reactor::Thread("name", callable) • Wait until the a thread finishes: reactor::wait(thread) • Terminate a thread: thread->terminate_now()
  20. 20. Basic API for threads Three core calls: • Create a thread that will run callable concurrently: reactor::Thread("name", callable) • Wait until the a thread finishes: reactor::wait(thread) • Terminate a thread: thread->terminate_now() Nota bene: • Don't destroy an unfinished thread. Wait for it or terminate it.
  21. 21. Basic API for threads Three core calls: • Create a thread that will run callable concurrently: reactor::Thread("name", callable) • Wait until the a thread finishes: reactor::wait(thread) • Terminate a thread: thread->terminate_now() Nota bene: • Don't destroy an unfinished thread. Wait for it or terminate it. • Exceptions escaping a thread terminate the whole scheduler.

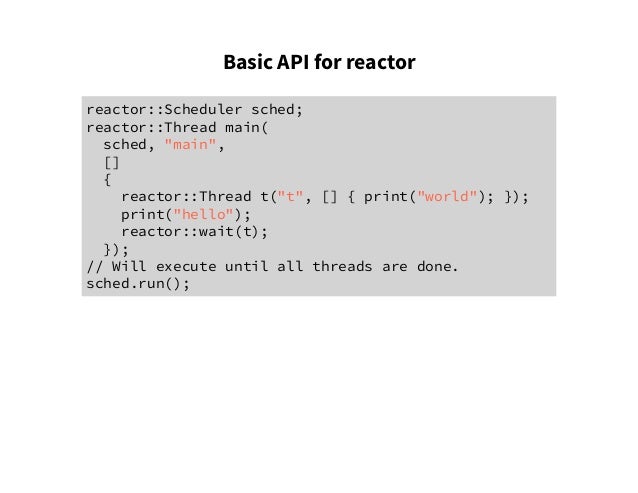

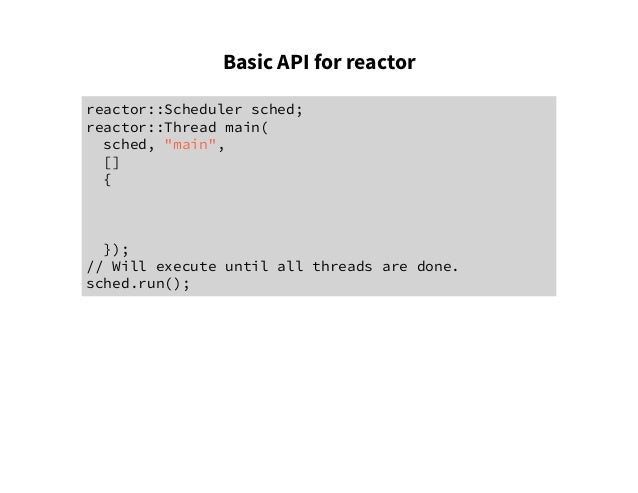

  22. 22. Basic API for reactor reactor::Scheduler sched; reactor::Thread main( sched, "main", [] { }); // Will execute until all threads are done. sched.run();
  23. 23. Basic API for reactor reactor::Scheduler sched; reactor::Thread main( sched, "main", [] { reactor::Thread t("t", [] { print("world"); }); print("hello"); }); // Will execute until all threads are done. sched.run();

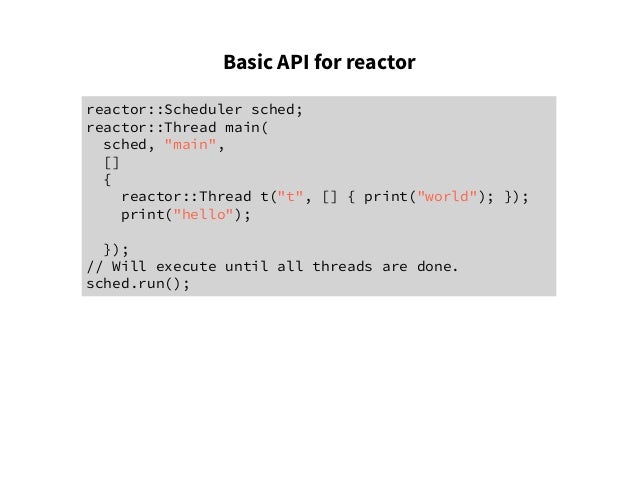

  24. 24. Basic API for reactor reactor::Scheduler sched; reactor::Thread main( sched, "main", [] { reactor::Thread t("t", [] { print("world"); }); print("hello"); reactor::wait(t); }); // Will execute until all threads are done. sched.run();

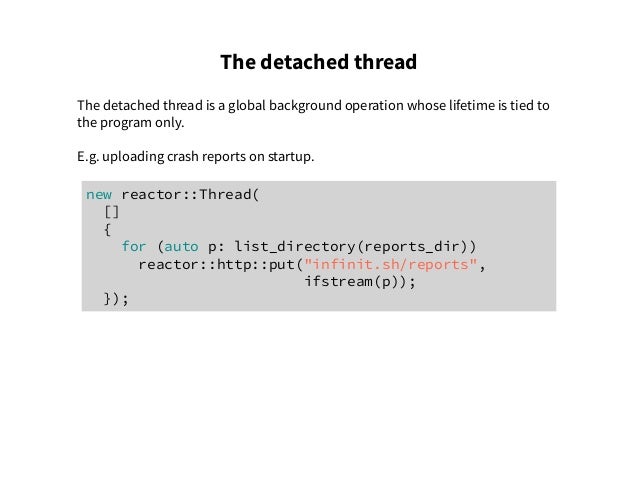

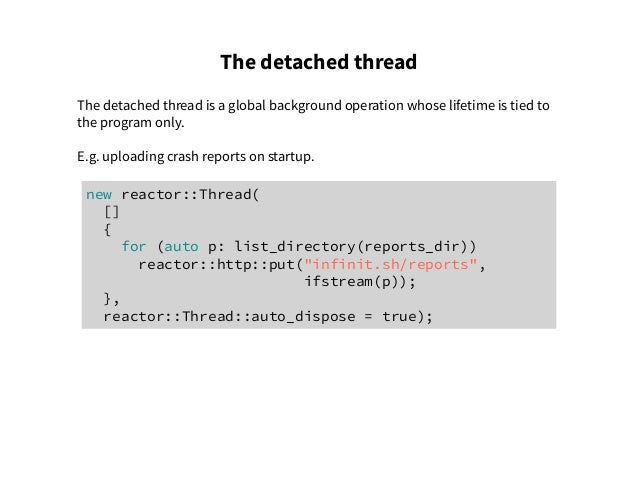

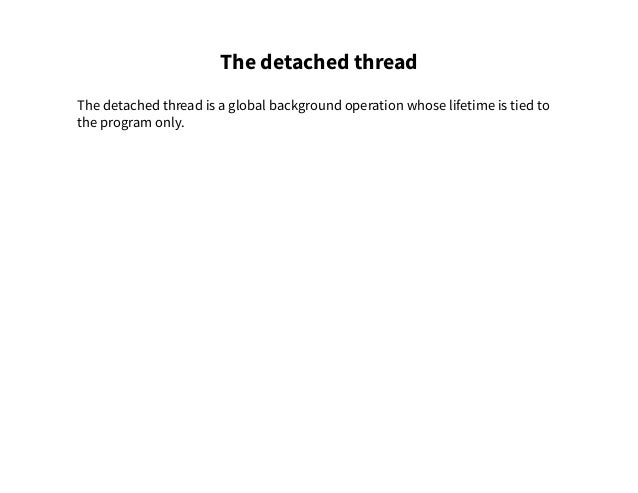

  25. 25. The detached thread The detached thread is a global background operation whose lifetime is tied to the program only.

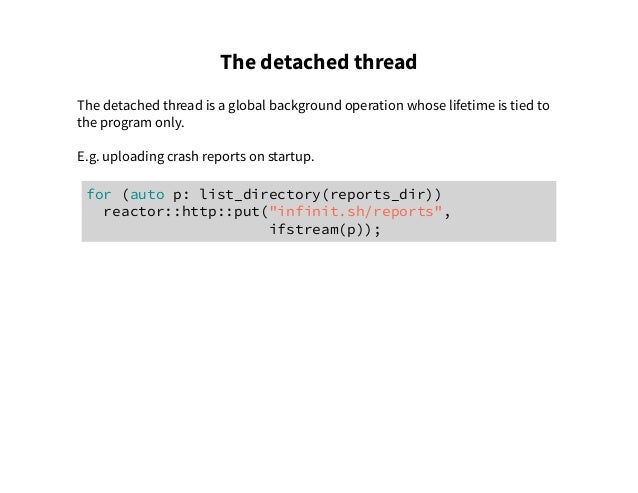

  26. 26. The detached thread The detached thread is a global background operation whose lifetime is tied to the program only. E.g. uploading crash reports on startup. for (auto p: list_directory(reports_dir)) reactor::http::put("infinit.sh/reports", ifstream(p));
  27. 27. The detached thread The detached thread is a global background operation whose lifetime is tied to the program only. E.g. uploading crash reports on startup. new reactor::Thread( [] { for (auto p: list_directory(reports_dir)) reactor::http::put("infinit.sh/reports", ifstream(p)); });
  28. 28. The detached thread The detached thread is a global background operation whose lifetime is tied to the program only. E.g. uploading crash reports on startup. new reactor::Thread( [] { for (auto p: list_directory(reports_dir)) reactor::http::put("infinit.sh/reports", ifstream(p)); }, reactor::Thread::auto_dispose = true);

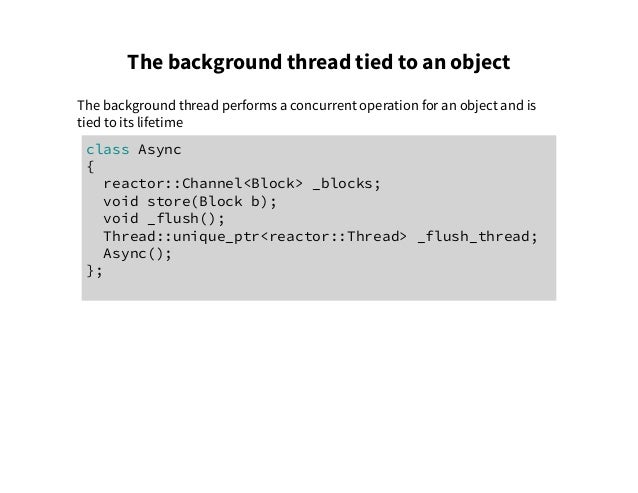

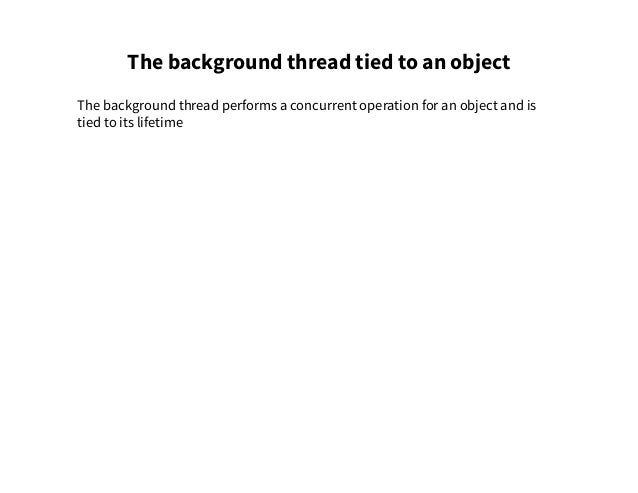

  29. 29. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime
  30. 30. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime class Async { reactor::Channel<Block> _blocks; void store(Block b) { this->_blocks->put(b); } void _flush() { while (true) this->_store(this->_blocks.get()); } };
  31. 31. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime class Async { reactor::Channel<Block> _blocks; void store(Block b); void _flush(); std::unique_ptr<reactor::Thread> _flush_thread; Async() : _flush_thread(new reactor::Thread( [this] { this->_flush(); })) {} };
  32. 32. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime class Async { reactor::Channel<Block> _blocks; void store(Block b); void _flush(); std::unique_ptr<reactor::Thread> _flush_thread; Async(); ~Async() { this->_flush_thread->terminate_now(); } };
  33. 33. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime class Async { reactor::Channel<Block> _blocks; void store(Block b); void _flush(); Thread::unique_ptr<reactor::Thread> _flush_thread; Async(); };

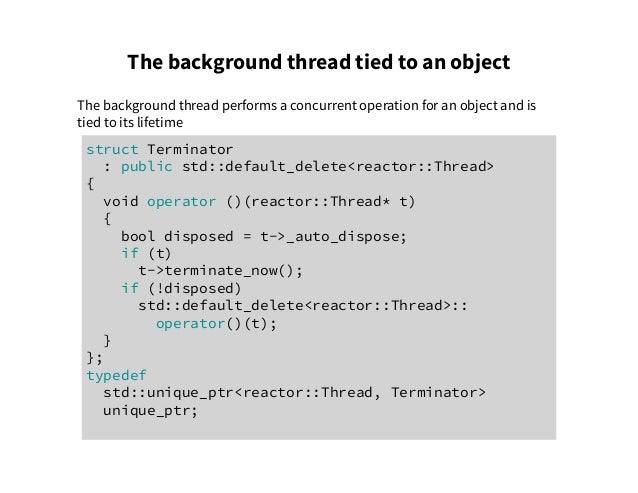

  34. 34. The background thread tied to an object The background thread performs a concurrent operation for an object and is tied to its lifetime struct Terminator : public std::default_delete<reactor::Thread> { void operator ()(reactor::Thread* t) { bool disposed = t->_auto_dispose; if (t) t->terminate_now(); if (!disposed) std::default_delete<reactor::Thread>:: operator()(t); } }; typedef std::unique_ptr<reactor::Thread, Terminator> unique_ptr;

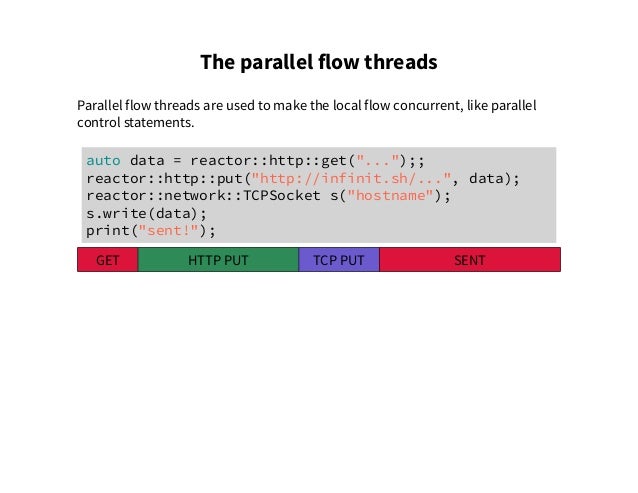

  35. 35. The parallel flow threads Parallel flow threads are used to make the local flow concurrent, like parallel control statements. auto data = reactor::http::get("...");; reactor::http::put("http://infinit.sh/...", data); reactor::network::TCPSocket s("hostname"); s.write(data); print("sent!"); GET HTTP PUT TCP PUT SENT
  36. 36. The parallel flow threads auto data = reactor::http::get("..."); reactor::Thread http_put( [&] { reactor::http::put("http://infinit.sh/...", data); }); reactor::Thread tcp_put( [&] { reactor::network::TCPSocket s("hostname"); s.write(data); }); reactor::wait({http_put, tcp_put}); print("sent!"); GET SENT HTTP PUT TCP PUT
  37. 37. The parallel flow threads auto data = reactor::http::get("..."); std::exception_ptr exn; reactor::Thread http_put([&] { try { reactor::http::put("http://...", data); } catch (...) { exn = std::current_exception(); } }); reactor::Thread tcp_put([&] { try { reactor::network::TCPSocket s("hostname"); s.write(data); } catch (...) { exn = std::current_exception(); } }); reactor::wait({http_put, tcp_put}); if (exn) std::rethrow_exception(exn); print("sent!");

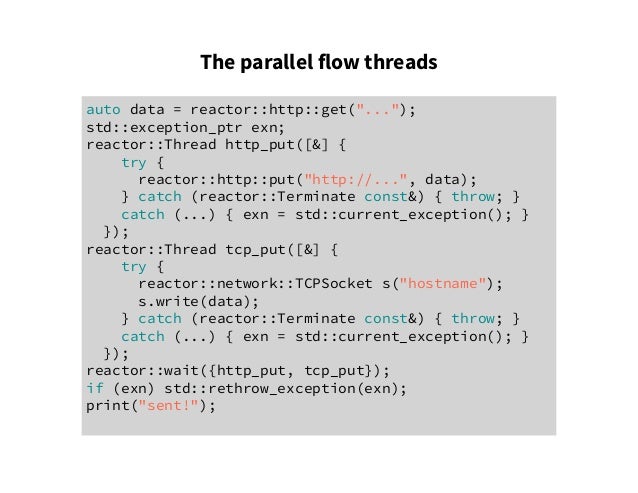

  38. 38. The parallel flow threads auto data = reactor::http::get("..."); std::exception_ptr exn; reactor::Thread http_put([&] { try { reactor::http::put("http://...", data); } catch (reactor::Terminate const&) { throw; } catch (...) { exn = std::current_exception(); } }); reactor::Thread tcp_put([&] { try { reactor::network::TCPSocket s("hostname"); s.write(data); } catch (reactor::Terminate const&) { throw; } catch (...) { exn = std::current_exception(); } }); reactor::wait({http_put, tcp_put}); if (exn) std::rethrow_exception(exn); print("sent!");

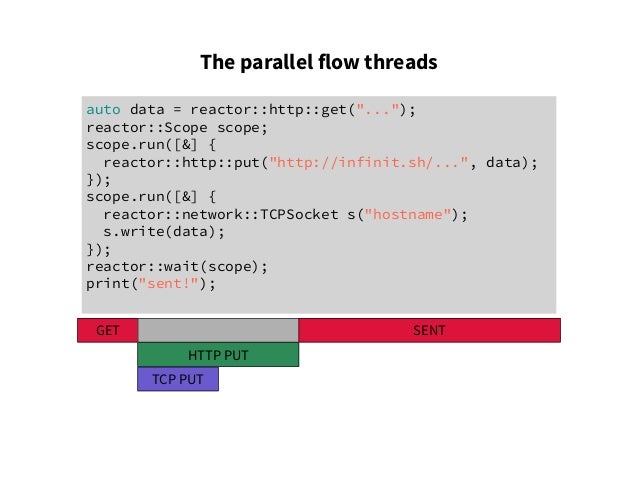

  39. 39. The parallel flow threads auto data = reactor::http::get("..."); reactor::Scope scope; scope.run([&] { reactor::http::put("http://infinit.sh/...", data); }); scope.run([&] { reactor::network::TCPSocket s("hostname"); s.write(data); }); reactor::wait(scope); print("sent!"); GET SENT HTTP PUT TCP PUT

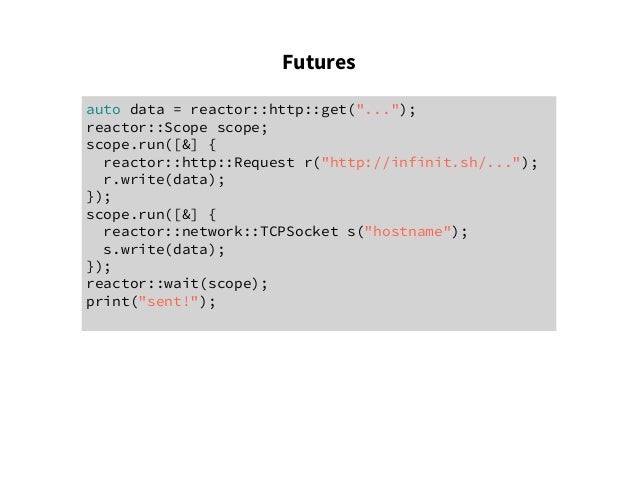

  40. 40. Futures auto data = reactor::http::get("..."); reactor::Scope scope; scope.run([&] { reactor::http::Request r("http://infinit.sh/..."); r.write(data); }); scope.run([&] { reactor::network::TCPSocket s("hostname"); s.write(data); }); reactor::wait(scope); print("sent!");

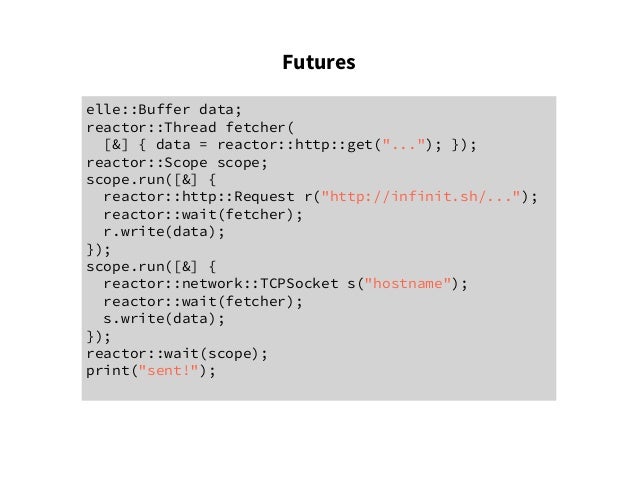

  41. 41. Futures elle::Buffer data; reactor::Thread fetcher( [&] { data = reactor::http::get("..."); }); reactor::Scope scope; scope.run([&] { reactor::http::Request r("http://infinit.sh/..."); reactor::wait(fetcher); r.write(data); }); scope.run([&] { reactor::network::TCPSocket s("hostname"); reactor::wait(fetcher); s.write(data); }); reactor::wait(scope); print("sent!");
  42. 42. Futures reactor::Future<elle::Buffer> data( [&] { data = reactor::http::get("..."); }); reactor::Scope scope; scope.run([&] { reactor::http::Request r("http://infinit.sh/..."); r.write(data.get()); }); scope.run([&] { reactor::network::TCPSocket s("hostname"); s.write(data.get()); }); reactor::wait(scope); print("sent!");

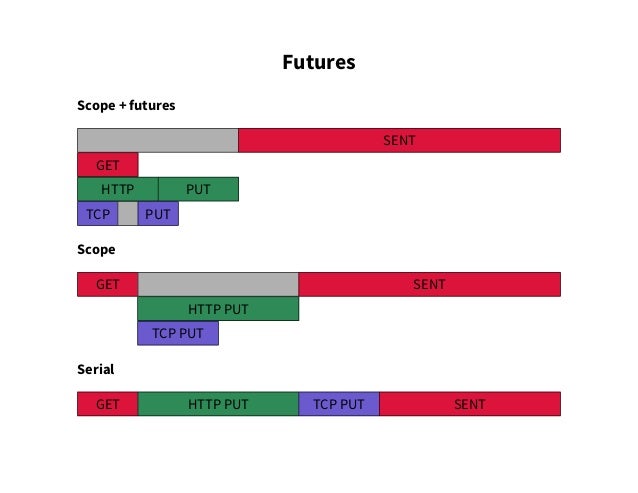

  43. 43. Futures Scope + futures SENT GET HTTP PUT TCP PUT Scope GET SENT HTTP PUT TCP PUT Serial GET HTTP PUT TCP PUT SENT
  44. 44. Concurrent iteration The final touch. std::vector<Host> hosts; reactor::Scope scope; for (auto const& host: hosts) scope.run([] (Host h) { h->send(block); }); reactor::wait(scope);

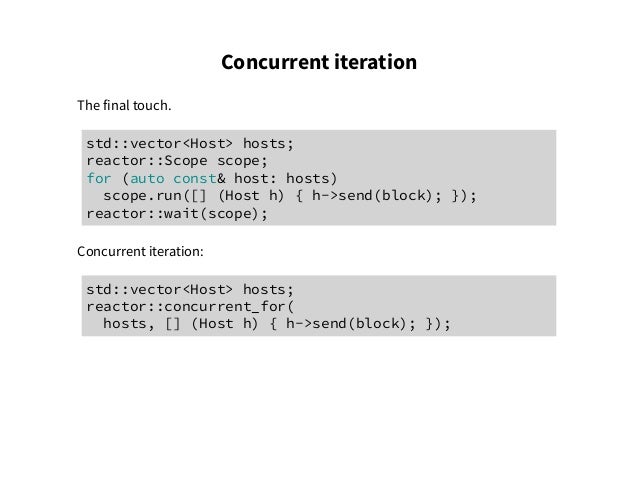

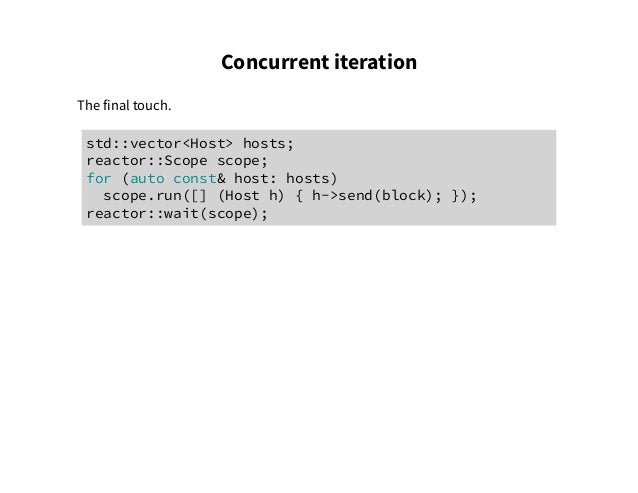

  45. 45. Concurrent iteration The final touch. std::vector<Host> hosts; reactor::Scope scope; for (auto const& host: hosts) scope.run([] (Host h) { h->send(block); }); reactor::wait(scope); Concurrent iteration: std::vector<Host> hosts; reactor::concurrent_for( hosts, [] (Host h) { h->send(block); });

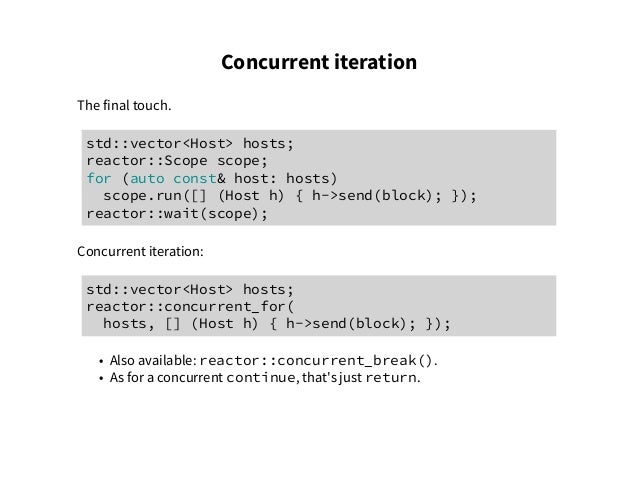

  46. 46. Concurrent iteration The final touch. std::vector<Host> hosts; reactor::Scope scope; for (auto const& host: hosts) scope.run([] (Host h) { h->send(block); }); reactor::wait(scope); Concurrent iteration: std::vector<Host> hosts; reactor::concurrent_for( hosts, [] (Host h) { h->send(block); }); • Also available: reactor::concurrent_break(). • As for a concurrent continue, that's just return.

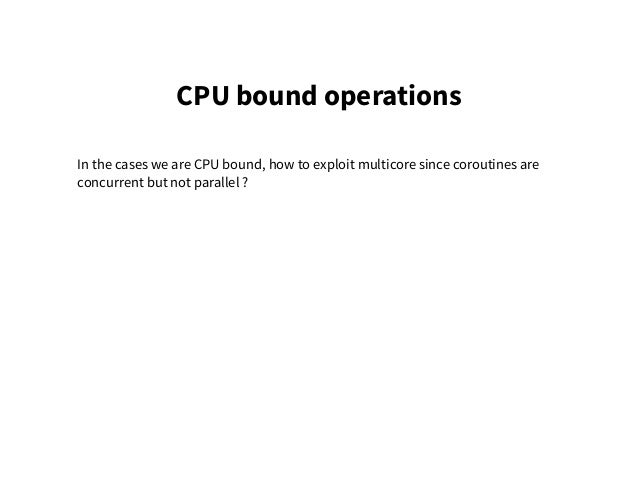

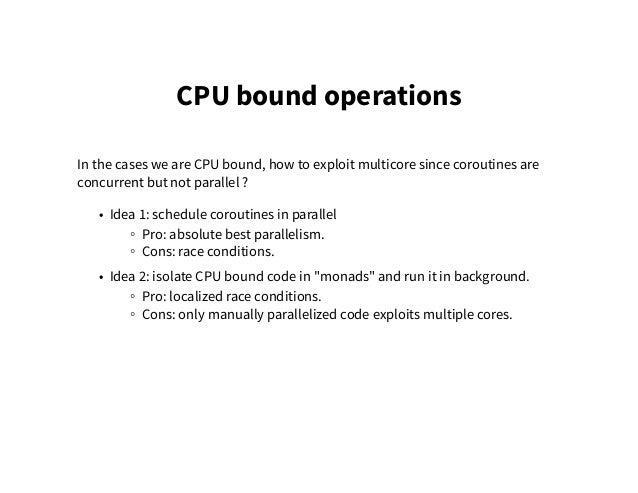

  47. 47. CPU bound operations In the cases we are CPU bound, how to exploit multicore since coroutines are concurrent but not parallel ?
  48. 48. CPU bound operations In the cases we are CPU bound, how to exploit multicore since coroutines are concurrent but not parallel ? • Idea 1: schedule coroutines in parallel ◦ Pro: absolute best parallelism. ◦ Cons: race conditions.

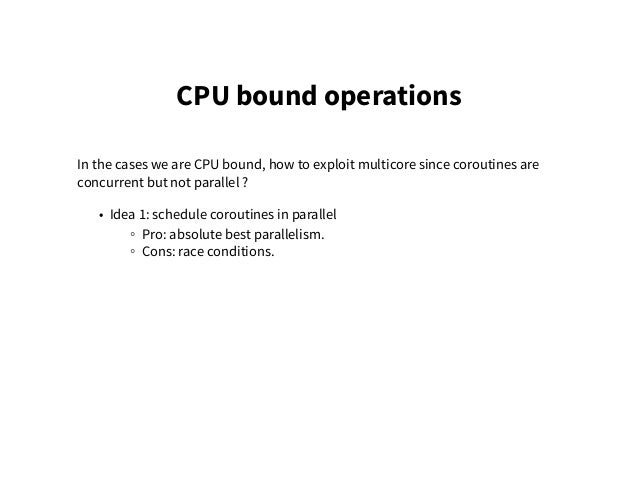

  49. 49. CPU bound operations In the cases we are CPU bound, how to exploit multicore since coroutines are concurrent but not parallel ? • Idea 1: schedule coroutines in parallel ◦ Pro: absolute best parallelism. ◦ Cons: race conditions. • Idea 2: isolate CPU bound code in "monads" and run it in background. ◦ Pro: localized race conditions. ◦ Cons: only manually parallelized code exploits multiple cores.

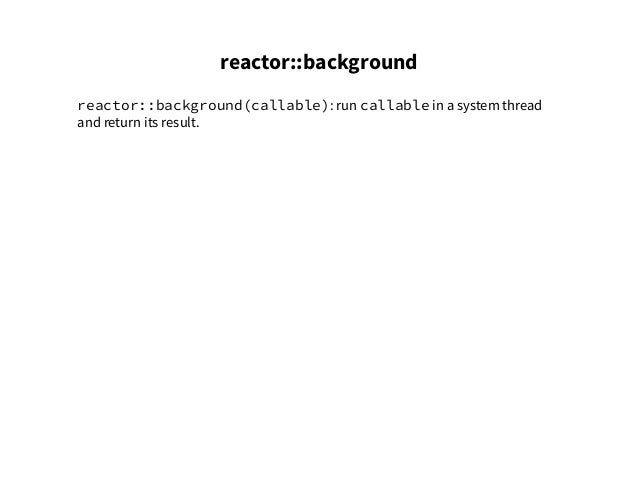

  50. 50. reactor::background reactor::background(callable): run callable in a system thread and return its result.
  51. 51. reactor::background reactor::background(callable): run callable in a system thread and return its result. Behind the scene: • A boost::asio_service whose run method is called in as many threads as there are cores. • reactor::background posts the action to Asio and waits for completion.

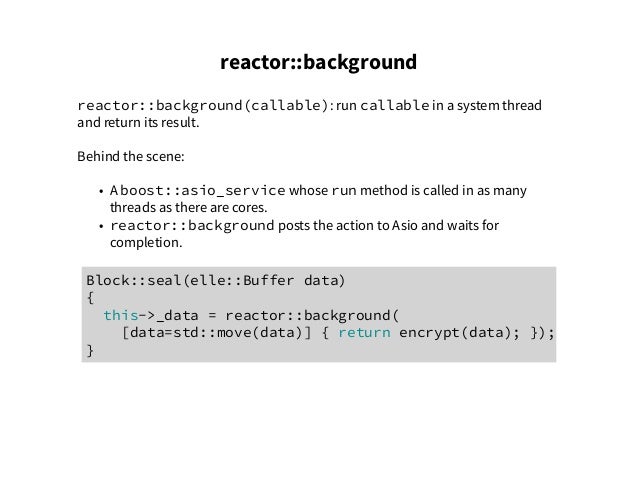

  52. 52. reactor::background reactor::background(callable): run callable in a system thread and return its result. Behind the scene: • A boost::asio_service whose run method is called in as many threads as there are cores. • reactor::background posts the action to Asio and waits for completion. Block::seal(elle::Buffer data) { this->_data = reactor::background( [data=std::move(data)] { return encrypt(data); }); }

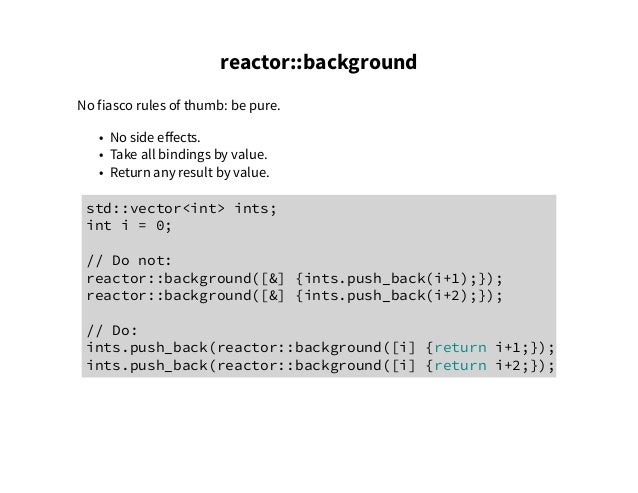

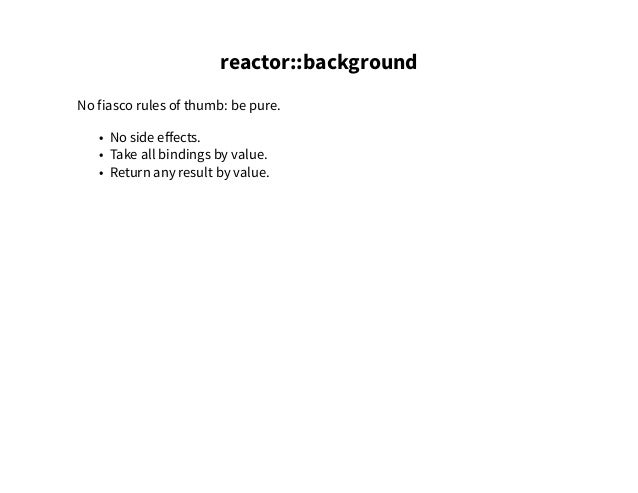

  53. 53. reactor::background No fiasco rules of thumb: be pure. • No side effects. • Take all bindings by value. • Return any result by value.
  54. 54. reactor::background No fiasco rules of thumb: be pure. • No side effects. • Take all bindings by value. • Return any result by value. std::vector<int> ints; int i = 0; // Do not: reactor::background([&] {ints.push_back(i+1);}); reactor::background([&] {ints.push_back(i+2);}); // Do: ints.push_back(reactor::background([i] {return i+1;}); ints.push_back(reactor::background([i] {return i+2;});

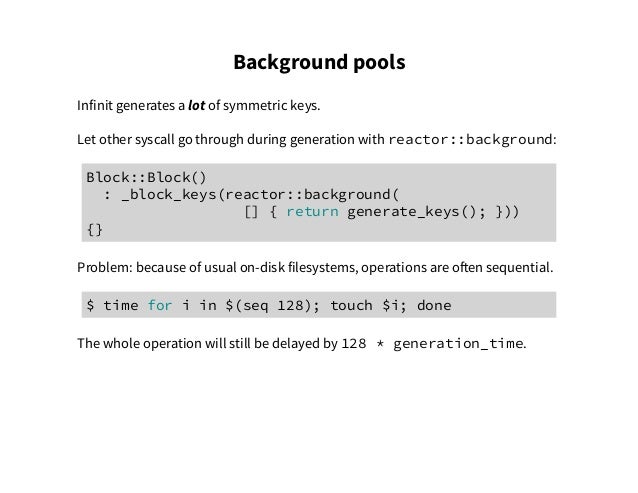

  55. 55. Background pools Infinit generates a lot of symmetric keys. Let other syscall go through during generation with reactor::background: Block::Block() : _block_keys(reactor::background( [] { return generate_keys(); })) {}

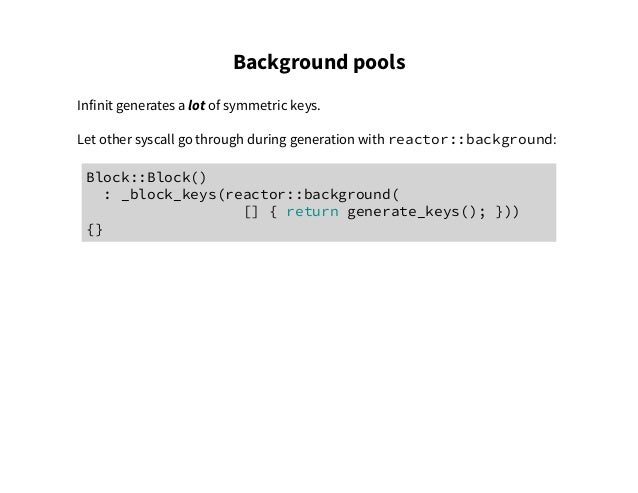

  56. 56. Background pools Infinit generates a lot of symmetric keys. Let other syscall go through during generation with reactor::background: Block::Block() : _block_keys(reactor::background( [] { return generate_keys(); })) {} Problem: because of usual on-disk filesystems, operations are often sequential. $ time for i in $(seq 128); touch $i; done The whole operation will still be delayed by 128 * generation_time.

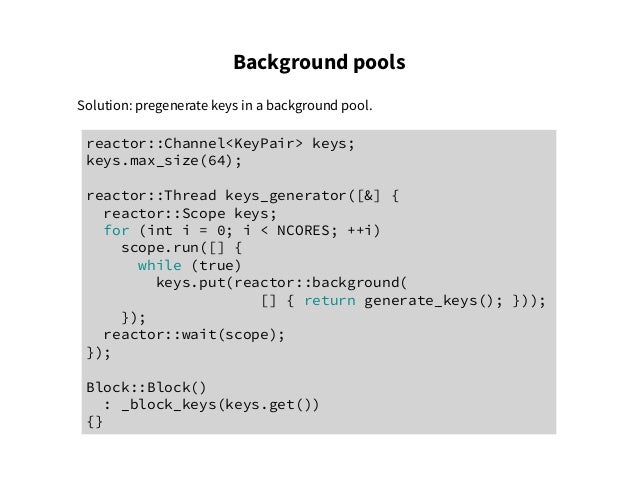

  57. 57. Background pools Solution: pregenerate keys in a background pool. reactor::Channel<KeyPair> keys; keys.max_size(64); reactor::Thread keys_generator([&] { reactor::Scope keys; for (int i = 0; i < NCORES; ++i) scope.run([] { while (true) keys.put(reactor::background( [] { return generate_keys(); })); }); reactor::wait(scope); }); Block::Block() : _block_keys(keys.get()) {}

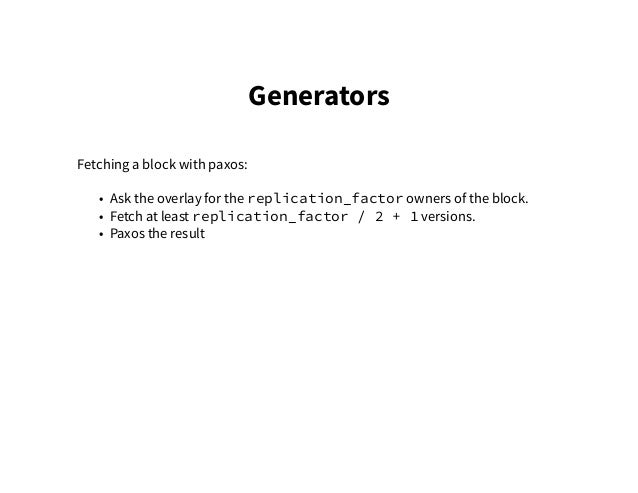

  58. 58. Generators Fetching a block with paxos: • Ask the overlay for the replication_factor owners of the block. • Fetch at least replication_factor / 2 + 1 versions. • Paxos the result

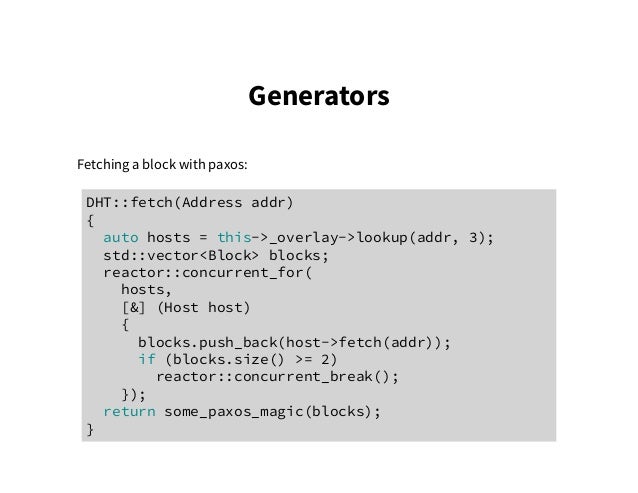

  59. 59. Generators Fetching a block with paxos: DHT::fetch(Address addr) { auto hosts = this->_overlay->lookup(addr, 3); std::vector<Block> blocks; reactor::concurrent_for( hosts, [&] (Host host) { blocks.push_back(host->fetch(addr)); if (blocks.size() >= 2) reactor::concurrent_break(); }); return some_paxos_magic(blocks); }

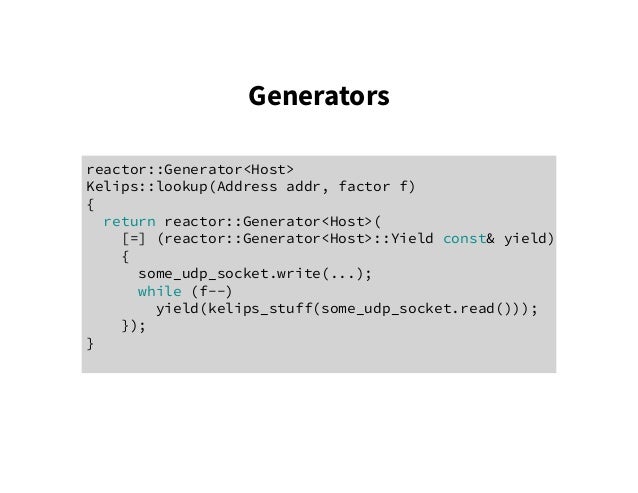

  60. 60. Generators reactor::Generator<Host> Kelips::lookup(Address addr, factor f) { return reactor::Generator<Host>( [=] (reactor::Generator<Host>::Yield const& yield) { some_udp_socket.write(...); while (f--) yield(kelips_stuff(some_udp_socket.read())); }); }

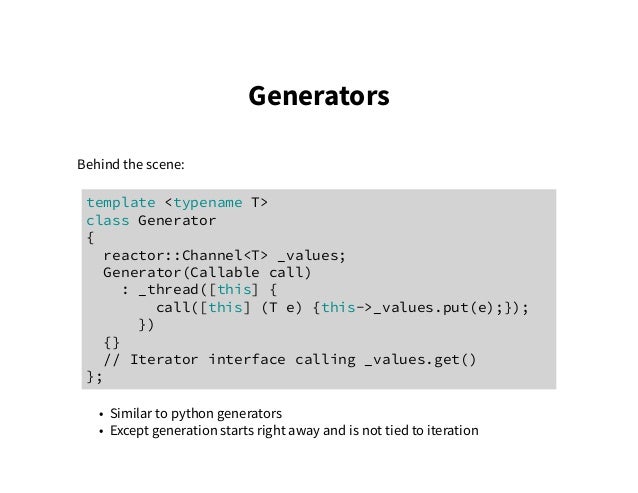

  61. 61. Generators Behind the scene: template <typename T> class Generator { reactor::Channel<T> _values; Generator(Callable call) : _thread([this] { call([this] (T e) {this->_values.put(e);}); }) {} // Iterator interface calling _values.get() }; • Similar to python generators • Except generation starts right away and is not tied to iteration
  62. 62. Questions?

×
