Highly concurrent yet natural programming

  1. 1. Highly concurrent yet natural programming mefyl quentin.hocquet@infinit.io Version 1.2

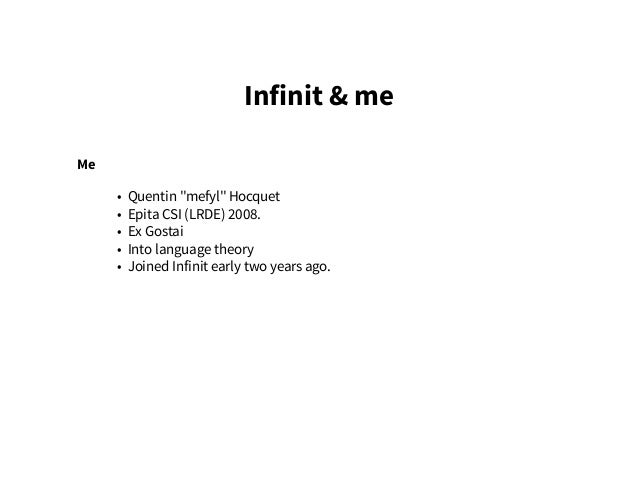

  2. 2. Infinit & me Me • Quentin "mefyl" Hocquet • Epita CSI (LRDE) 2008. • Ex Gostai • Into language theory • Joined Infinit early two years ago.

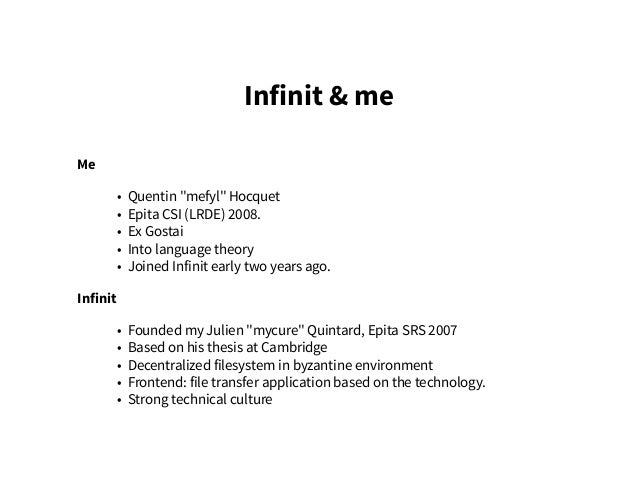

  3. 3. Infinit & me Me • Quentin "mefyl" Hocquet • Epita CSI (LRDE) 2008. • Ex Gostai • Into language theory • Joined Infinit early two years ago. Infinit • Founded my Julien "mycure" Quintard, Epita SRS 2007 • Based on his thesis at Cambridge • Decentralized filesystem in byzantine environment • Frontend: file transfer application based on the technology. • Strong technical culture
  4. 4. Concurrent and parallel programming

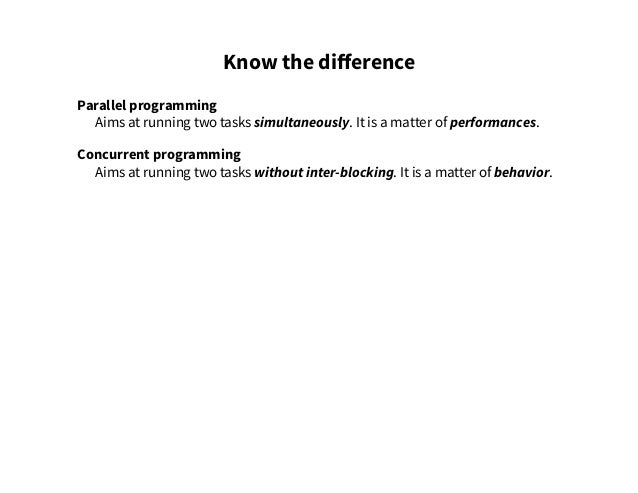

  5. 5. Know the difference Parallel programming Aims at running two tasks simultaneously. It is a matter of performances. Concurrent programming Aims at running two tasks without inter-blocking. It is a matter of behavior.

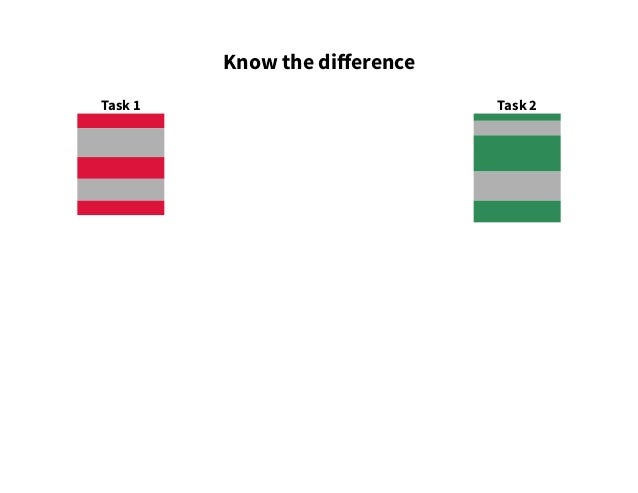

  6. 6. Task 1 Task 2 Know the difference

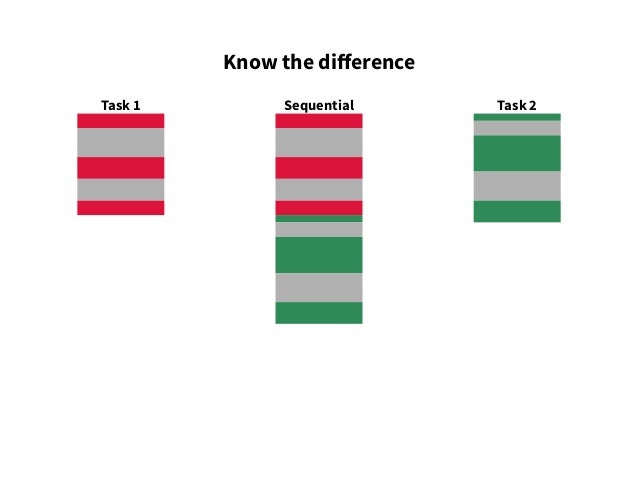

  7. 7. Task 1 Task 2 Know the difference Sequential

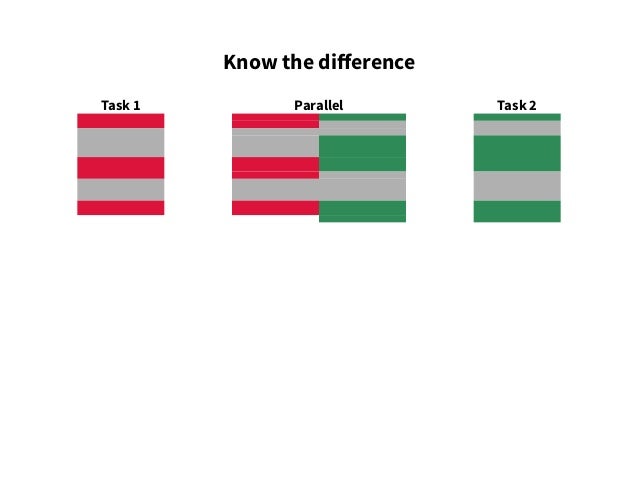

  8. 8. Task 1 Task 2 Know the difference Parallel

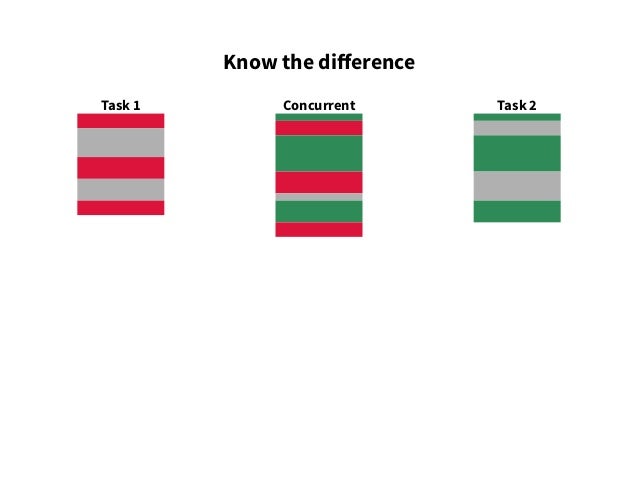

  9. 9. Task 1 Task 2 Know the difference Concurrent

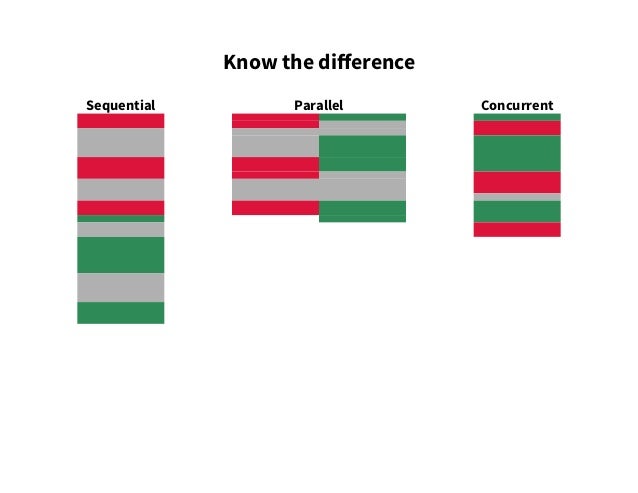

  10. 10. Sequential Concurrent Know the difference Parallel
  11. 11. Sequential Concurrent Know the difference Parallel Sequential Concurrent Parallel CPU usage N N N Execution time Long Short Shorter

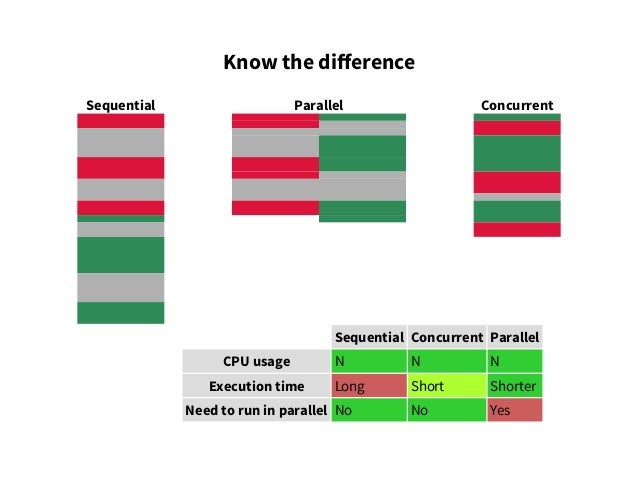

  12. 12. Sequential Concurrent Know the difference Parallel Sequential Concurrent Parallel CPU usage N N N Execution time Long Short Shorter Need to run in parallel No No Yes

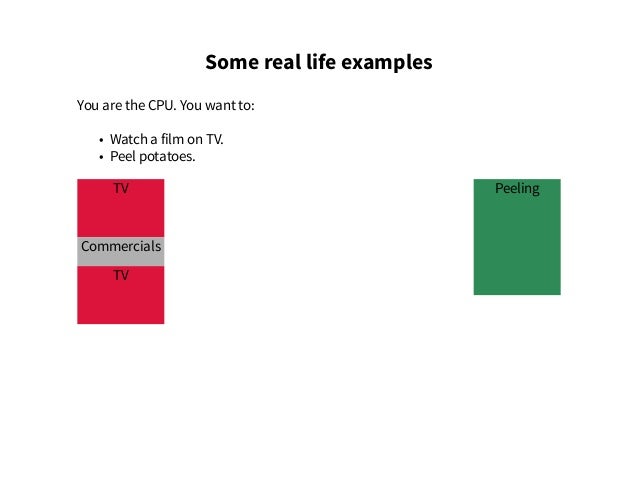

  13. 13. TV Commercials TV Peeling Some real life examples You are the CPU. You want to: • Watch a film on TV. • Peel potatoes.

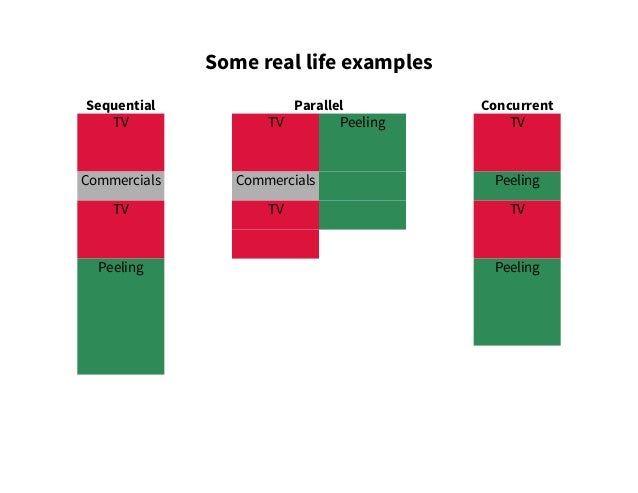

  14. 14. Sequential TV Commercials TV Peeling Concurrent TV Peeling TV Peeling Some real life examples Parallel TV Peeling Commercials TV

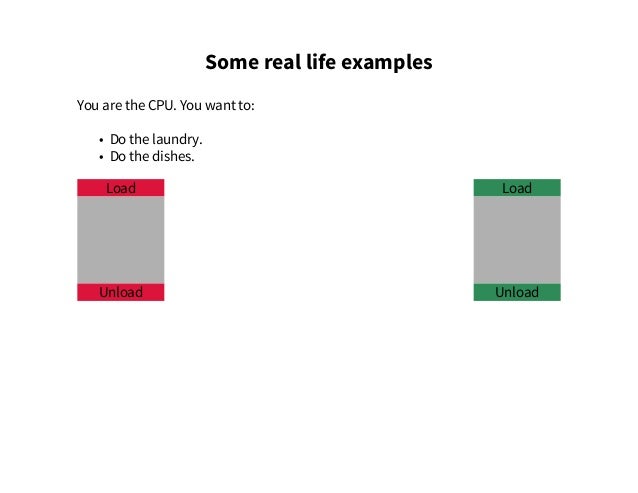

  15. 15. Load Unload Load Unload Some real life examples You are the CPU. You want to: • Do the laundry. • Do the dishes.

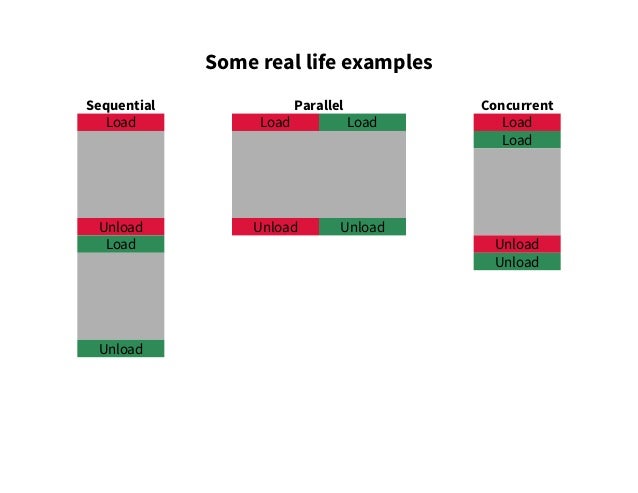

  16. 16. Sequential Load Unload Load Unload Concurrent Load Load Unload Unload Some real life examples Parallel Load Load Unload Unload

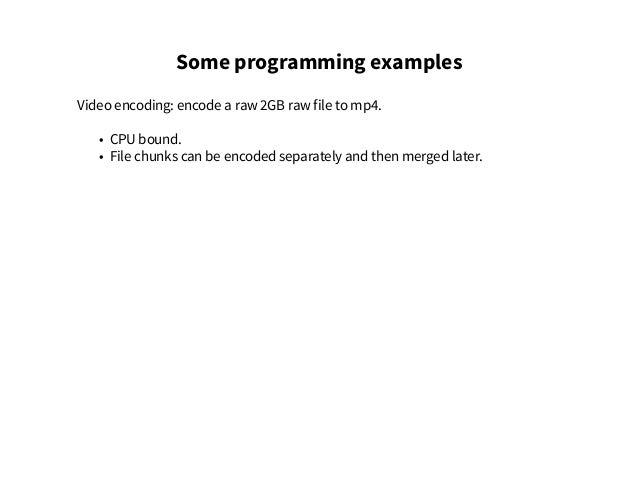

  17. 17. Some programming examples Video encoding: encode a raw 2GB raw file to mp4. • CPU bound. • File chunks can be encoded separately and then merged later.

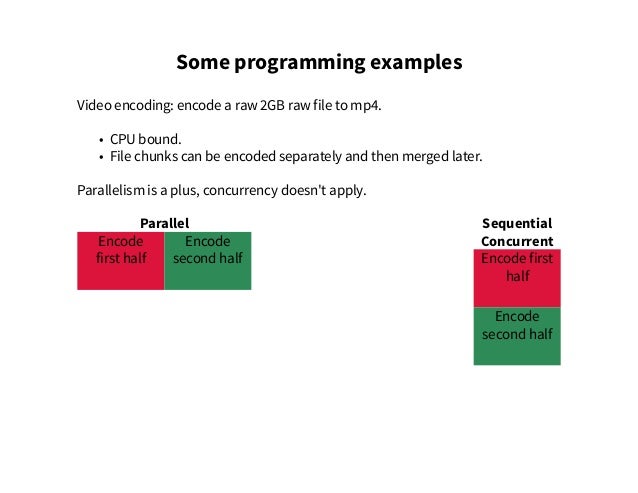

  18. 18. Parallel Encode first half Encode second half Sequential Concurrent Encode first half Encode second half Some programming examples Video encoding: encode a raw 2GB raw file to mp4. • CPU bound. • File chunks can be encoded separately and then merged later. Parallelism is a plus, concurrency doesn't apply.
  19. 19. Some programming examples An IRC server: handle up to 50k IRC users chatting. • IO bound. • A huge number of clients that must be handled concurrently and mostly waiting.
  20. 20. Concurrent Parallel Some programming examples An IRC server: handle up to 50k IRC users chatting. • IO bound. • A huge number of clients that must be handled concurrently and mostly waiting. Concurrency is needed, parallelism is superfluous.
  21. 21. Know the difference Parallelism • Is never needed for correctness. • Is about performances, not correct behavior. • Is about exploiting multi-core and multi-CPU architectures. Concurrent programming • Can be needed for correctness. • Is about correct behavior, sometimes about performances too. • Is about multiple threads being responsive in concurrent.

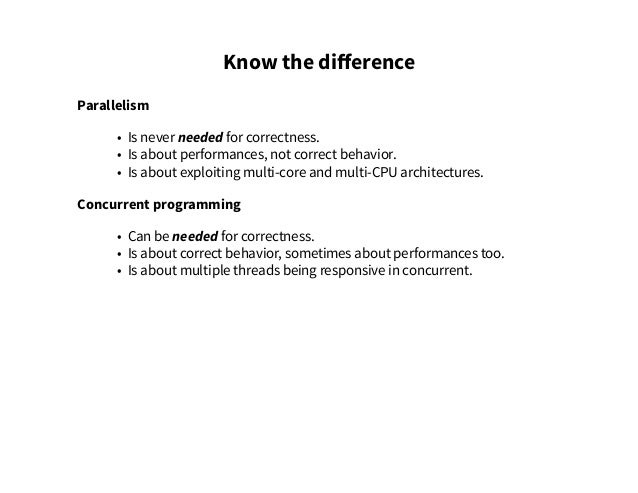

  22. 22. Know the difference Parallelism • Is never needed for correctness. • Is about performances, not correct behavior. • Is about exploiting multi-core and multi-CPU architectures. Concurrent programming • Can be needed for correctness. • Is about correct behavior, sometimes about performances too. • Is about multiple threads being responsive in concurrent. A good video encoding app: • Encodes 4 times faster on a 4-core CPU. That's parallelism.

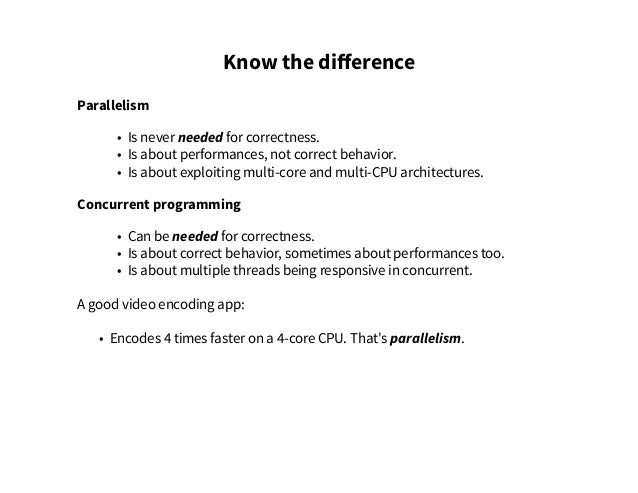

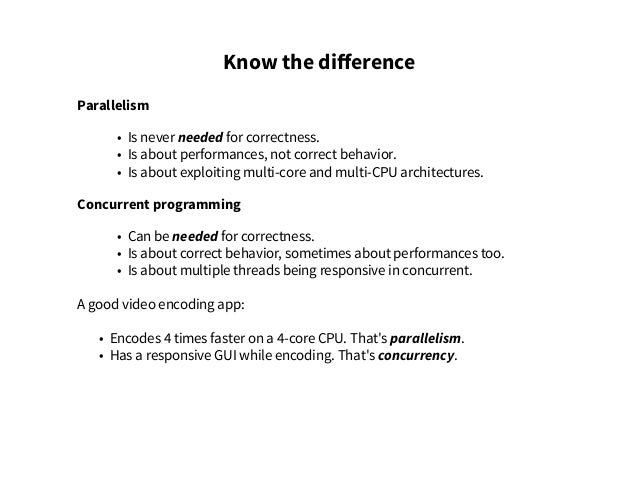

  23. 23. Know the difference Parallelism • Is never needed for correctness. • Is about performances, not correct behavior. • Is about exploiting multi-core and multi-CPU architectures. Concurrent programming • Can be needed for correctness. • Is about correct behavior, sometimes about performances too. • Is about multiple threads being responsive in concurrent. A good video encoding app: • Encodes 4 times faster on a 4-core CPU. That's parallelism. • Has a responsive GUI while encoding. That's concurrency.
  24. 24. Who's best ? If you are parallel, you are concurrent. So why bother ?

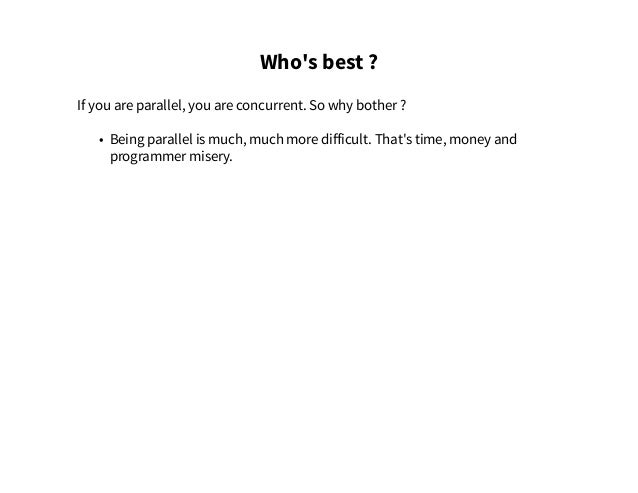

  25. 25. Who's best ? If you are parallel, you are concurrent. So why bother ? • Being parallel is much, much more difficult. That's time, money and programmer misery.

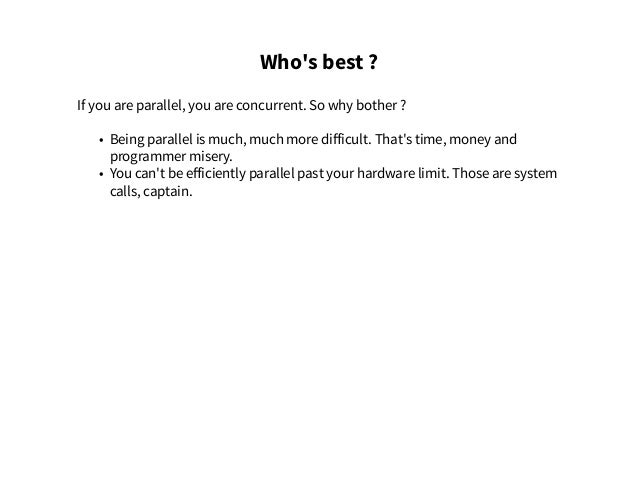

  26. 26. Who's best ? If you are parallel, you are concurrent. So why bother ? • Being parallel is much, much more difficult. That's time, money and programmer misery. • You can't be efficiently parallel past your hardware limit. Those are system calls, captain.

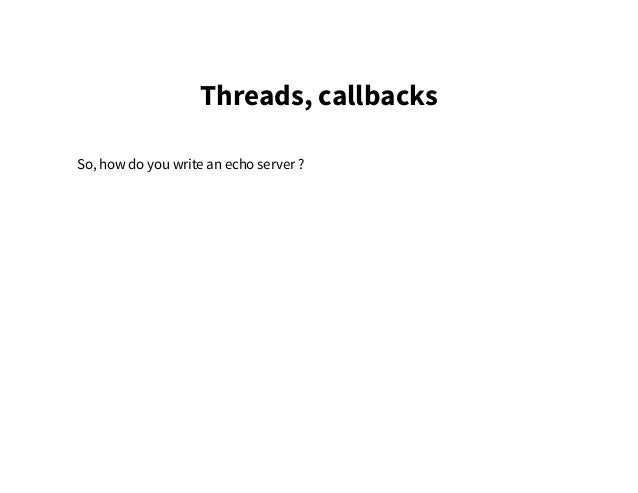

  27. 27. Threads, callbacks So, how do you write an echo server ?
  28. 28. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); }

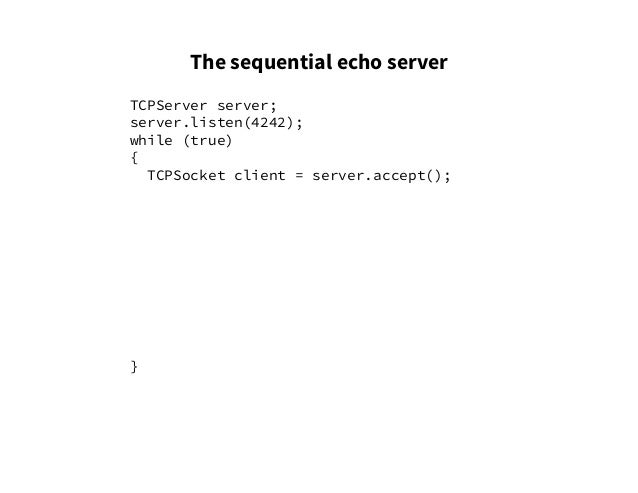

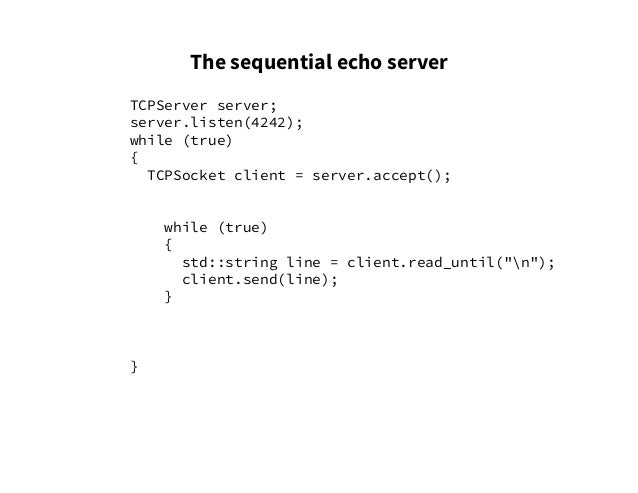

  29. 29. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); while (true) { std::string line = client.read_until("n"); client.send(line); } }
  30. 30. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); try { while (true) { std::string line = client.read_until("n"); client.send(line); } } catch (ConnectionClosed const&) {} }

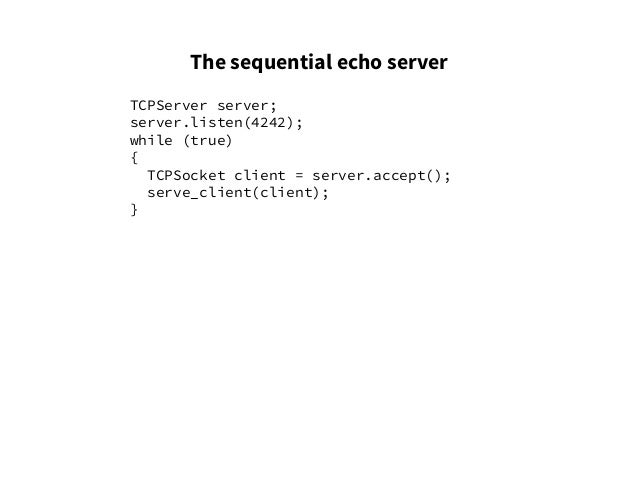

  31. 31. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); serve_client(client); }

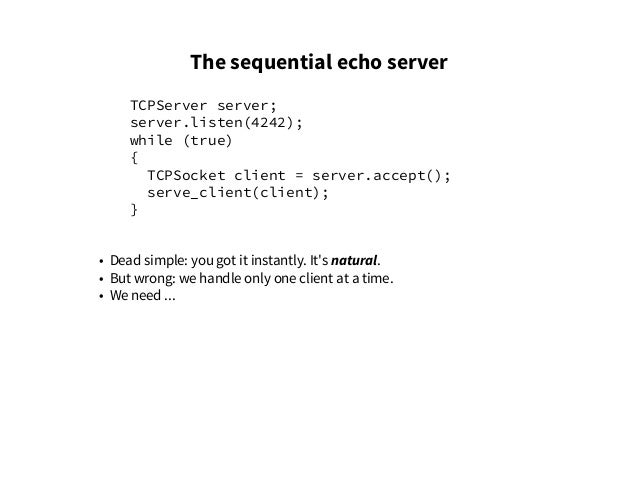

  32. 32. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); serve_client(client); } • Dead simple: you got it instantly. It's natural. • But wrong: we handle only one client at a time. • We need ...

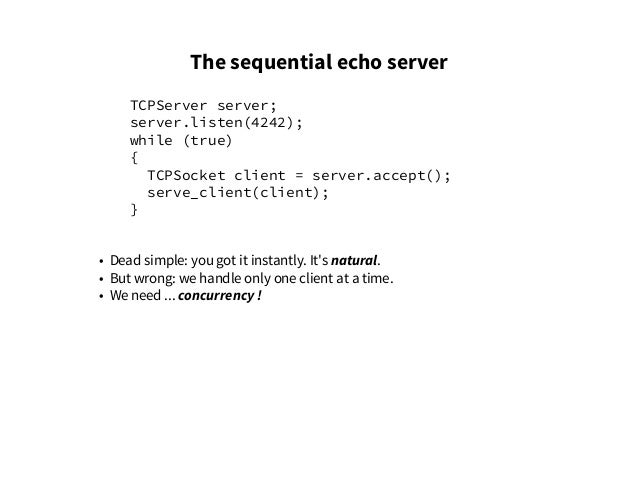

  33. 33. The sequential echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); serve_client(client); } • Dead simple: you got it instantly. It's natural. • But wrong: we handle only one client at a time. • We need ... concurrency !

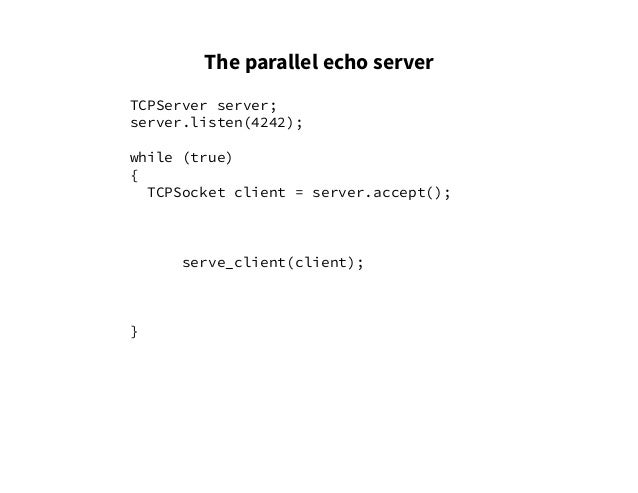

  34. 34. The parallel echo server TCPServer server; server.listen(4242); while (true) { TCPSocket client = server.accept(); serve_client(client); }

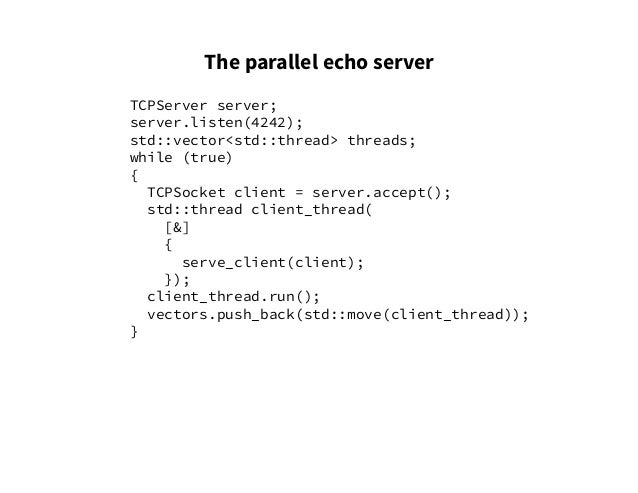

  35. 35. The parallel echo server TCPServer server; server.listen(4242); std::vector<std::thread> threads; while (true) { TCPSocket client = server.accept(); std::thread client_thread( [&] { serve_client(client); }); client_thread.run(); vectors.push_back(std::move(client_thread)); }

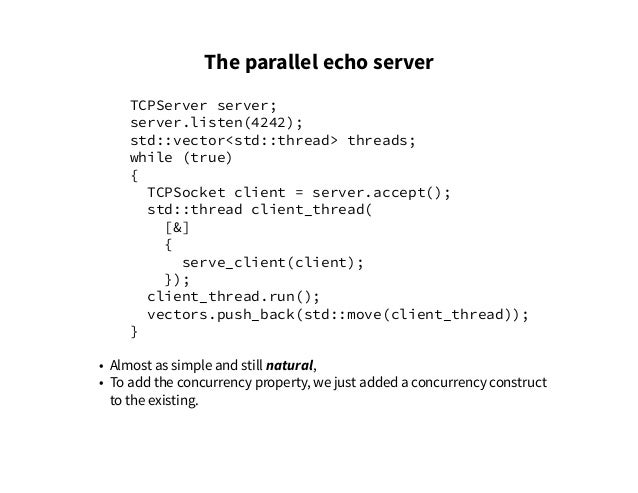

  36. 36. The parallel echo server TCPServer server; server.listen(4242); std::vector<std::thread> threads; while (true) { TCPSocket client = server.accept(); std::thread client_thread( [&] { serve_client(client); }); client_thread.run(); vectors.push_back(std::move(client_thread)); } • Almost as simple and still natural, • To add the concurrency property, we just added a concurrency construct to the existing.

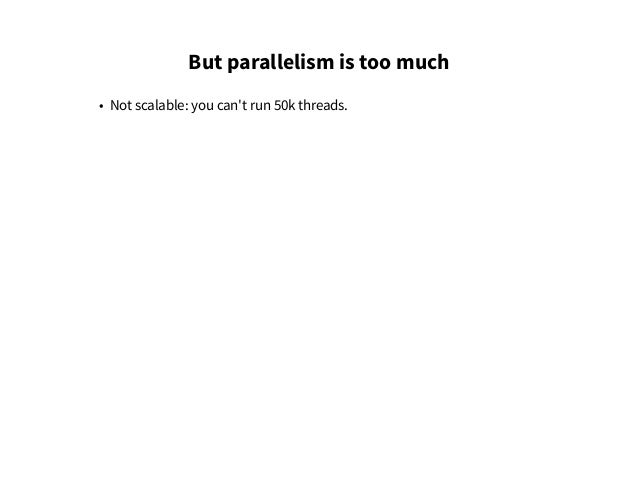

  37. 37. But parallelism is too much • Not scalable: you can't run 50k threads.

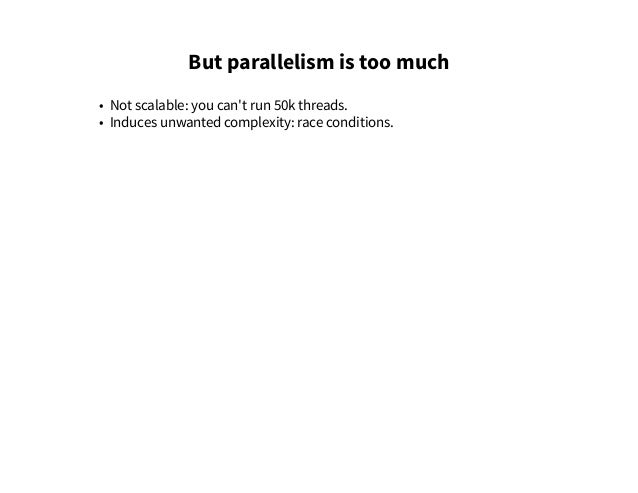

  38. 38. But parallelism is too much • Not scalable: you can't run 50k threads. • Induces unwanted complexity: race conditions.

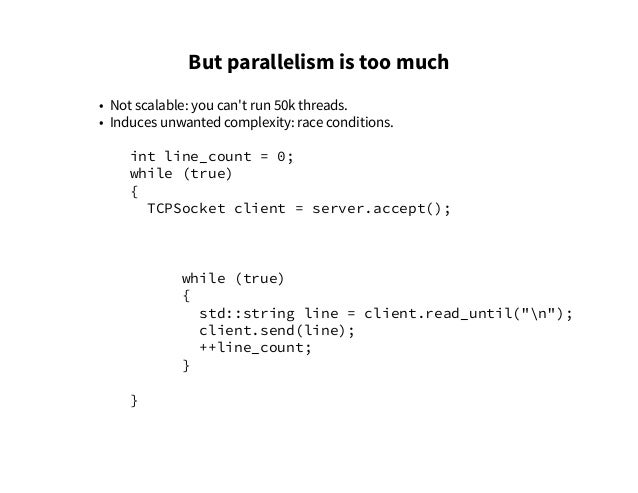

  39. 39. But parallelism is too much • Not scalable: you can't run 50k threads. • Induces unwanted complexity: race conditions. int line_count = 0; while (true) { TCPSocket client = server.accept(); while (true) { std::string line = client.read_until("n"); client.send(line); ++line_count; } }

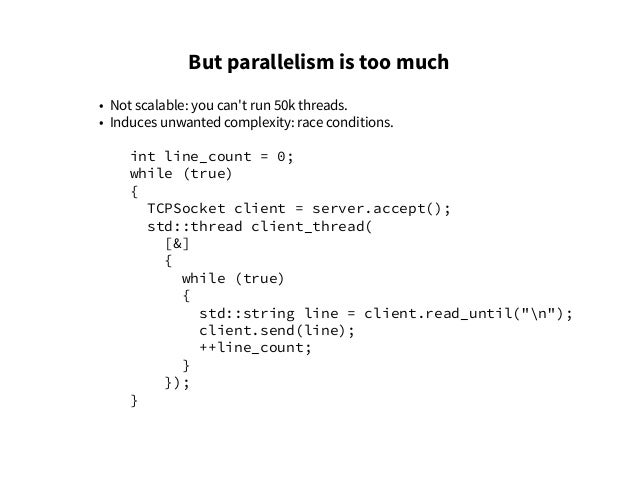

  40. 40. But parallelism is too much • Not scalable: you can't run 50k threads. • Induces unwanted complexity: race conditions. int line_count = 0; while (true) { TCPSocket client = server.accept(); std::thread client_thread( [&] { while (true) { std::string line = client.read_until("n"); client.send(line); ++line_count; } }); }

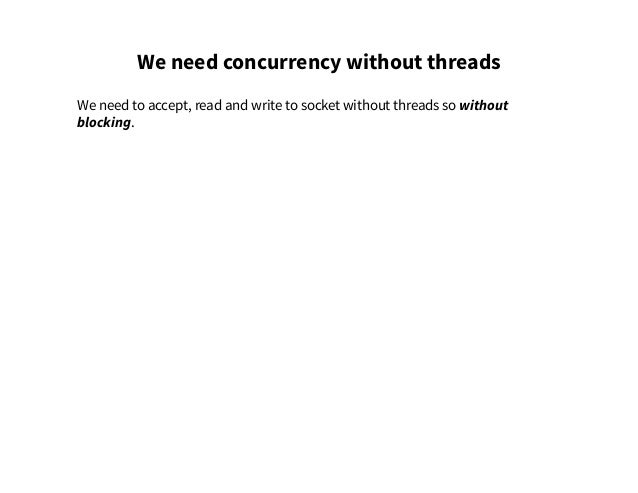

  41. 41. We need concurrency without threads We need to accept, read and write to socket without threads so without blocking.

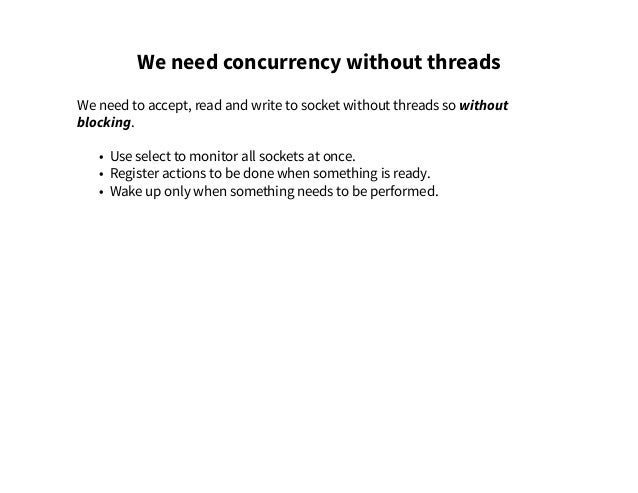

  42. 42. We need concurrency without threads We need to accept, read and write to socket without threads so without blocking. • Use select to monitor all sockets at once. • Register actions to be done when something is ready. • Wake up only when something needs to be performed.

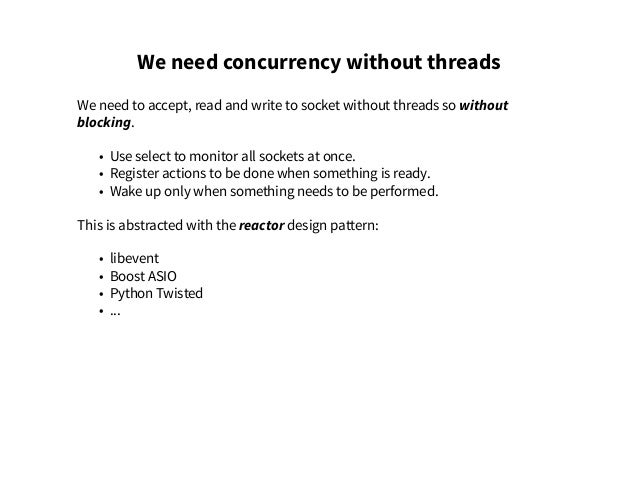

  43. 43. We need concurrency without threads We need to accept, read and write to socket without threads so without blocking. • Use select to monitor all sockets at once. • Register actions to be done when something is ready. • Wake up only when something needs to be performed. This is abstracted with the reactor design pattern: • libevent • Boost ASIO • Python Twisted • ...

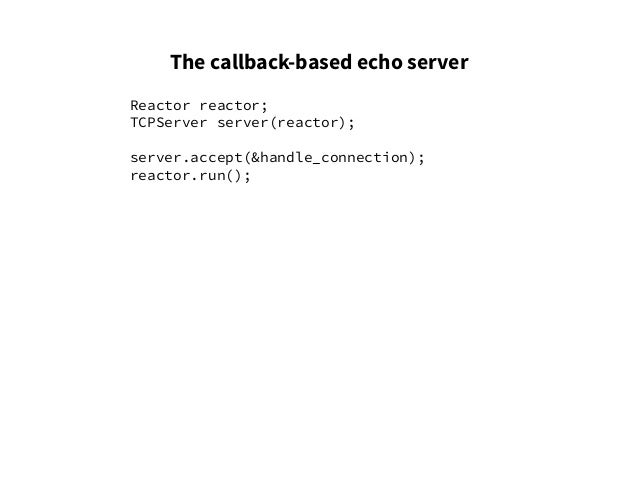

  44. 44. The callback-based echo server Reactor reactor; TCPServer server(reactor); server.accept(&handle_connection); reactor.run();

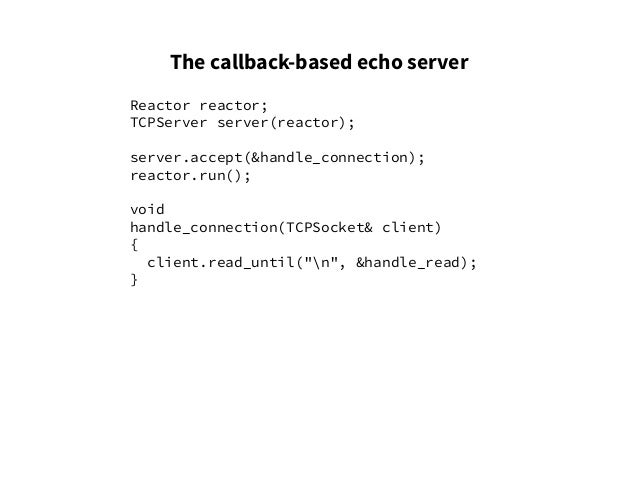

  45. 45. The callback-based echo server Reactor reactor; TCPServer server(reactor); server.accept(&handle_connection); reactor.run(); void handle_connection(TCPSocket& client) { client.read_until("n", &handle_read); }

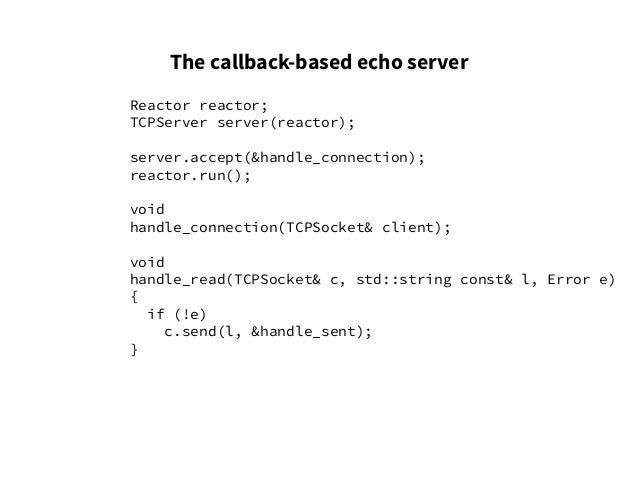

  46. 46. The callback-based echo server Reactor reactor; TCPServer server(reactor); server.accept(&handle_connection); reactor.run(); void handle_connection(TCPSocket& client); void handle_read(TCPSocket& c, std::string const& l, Error e) { if (!e) c.send(l, &handle_sent); }

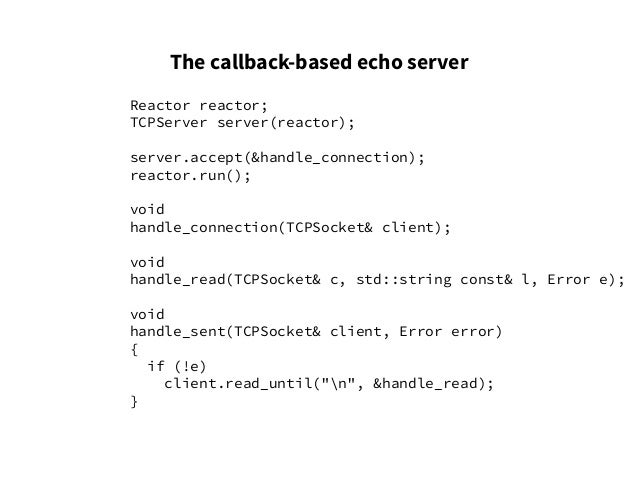

  47. 47. The callback-based echo server Reactor reactor; TCPServer server(reactor); server.accept(&handle_connection); reactor.run(); void handle_connection(TCPSocket& client); void handle_read(TCPSocket& c, std::string const& l, Error e); void handle_sent(TCPSocket& client, Error error) { if (!e) client.read_until("n", &handle_read); }

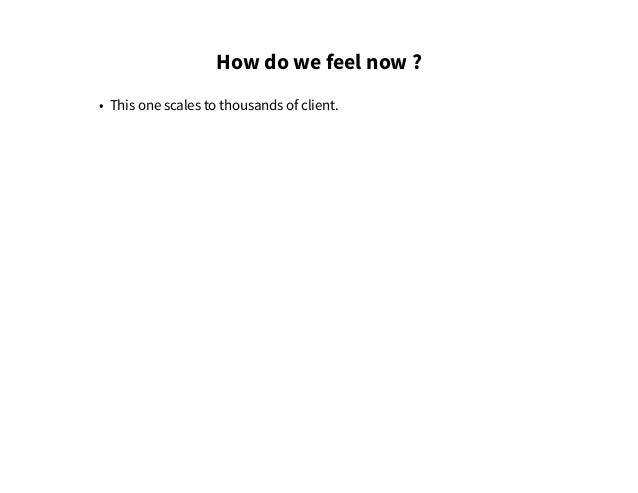

  48. 48. How do we feel now ? • This one scales to thousands of client.

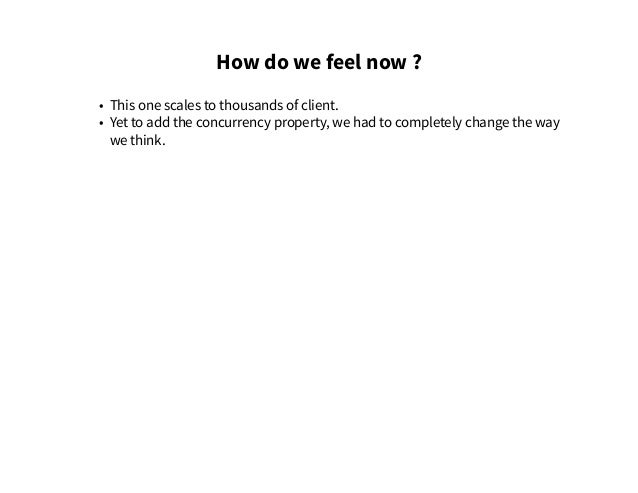

  49. 49. How do we feel now ? • This one scales to thousands of client. • Yet to add the concurrency property, we had to completely change the way we think.

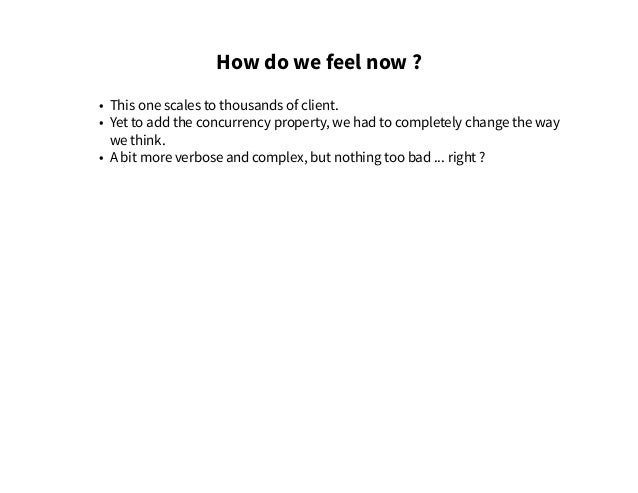

  50. 50. How do we feel now ? • This one scales to thousands of client. • Yet to add the concurrency property, we had to completely change the way we think. • A bit more verbose and complex, but nothing too bad ... right ?

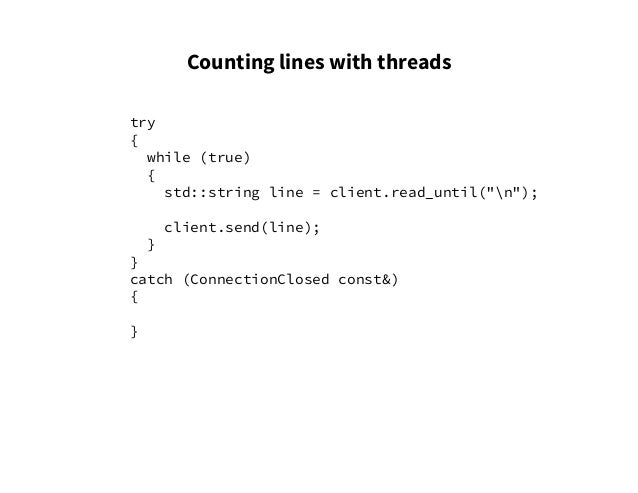

  51. 51. Counting lines with threads try { while (true) { std::string line = client.read_until("n"); client.send(line); } } catch (ConnectionClosed const&) { }
  52. 52. Counting lines with threads int lines_count = 0; try { while (true) { std::string line = client.read_until("n"); ++lines_count; client.send(line); } } catch (ConnectionClosed const&) { std::cerr << "Client sent " << lines_count << "linesn"; }

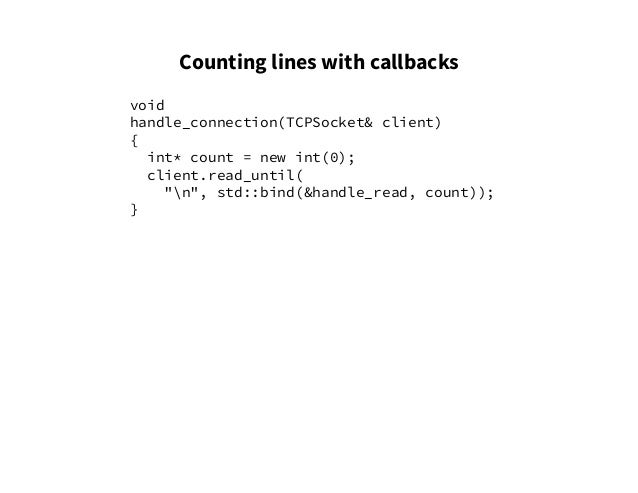

  53. 53. Counting lines with callbacks void handle_connection(TCPSocket& client) { int* count = new int(0); client.read_until( "n", std::bind(&handle_read, count)); }

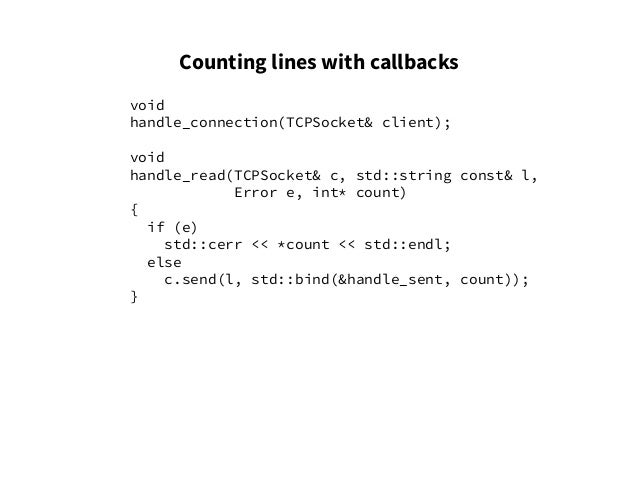

  54. 54. Counting lines with callbacks void handle_connection(TCPSocket& client); void handle_read(TCPSocket& c, std::string const& l, Error e, int* count) { if (e) std::cerr << *count << std::endl; else c.send(l, std::bind(&handle_sent, count)); }
  55. 55. Counting lines with callbacks void handle_connection(TCPSocket& client); void handle_read(TCPSocket& c, std::string const& l, Error e, int* count); void handle_sent(TCPSocket& client, Error error, int* count) { if (e) std::cerr << *count << std::endl; else client.read_until( "n", std::bind(&handle_read, count)); }

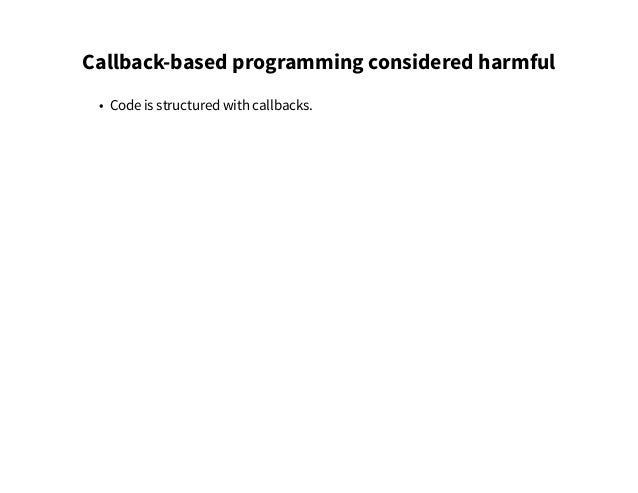

  56. 56. Callback-based programming considered harmful • Code is structured with callbacks.

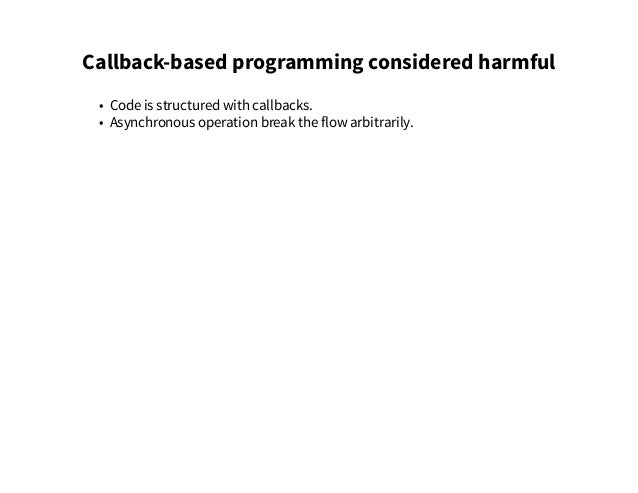

  57. 57. Callback-based programming considered harmful • Code is structured with callbacks. • Asynchronous operation break the flow arbitrarily.

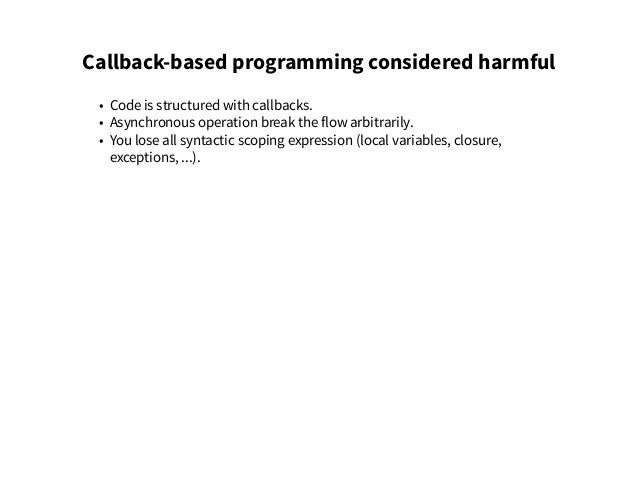

  58. 58. Callback-based programming considered harmful • Code is structured with callbacks. • Asynchronous operation break the flow arbitrarily. • You lose all syntactic scoping expression (local variables, closure, exceptions, ...).

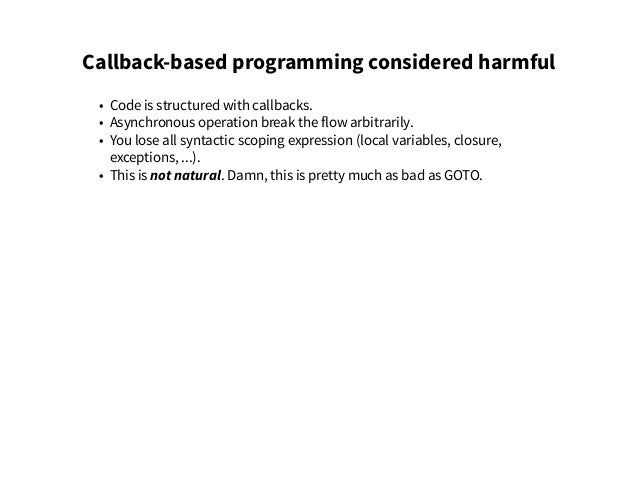

  59. 59. Callback-based programming considered harmful • Code is structured with callbacks. • Asynchronous operation break the flow arbitrarily. • You lose all syntactic scoping expression (local variables, closure, exceptions, ...). • This is not natural. Damn, this is pretty much as bad as GOTO.

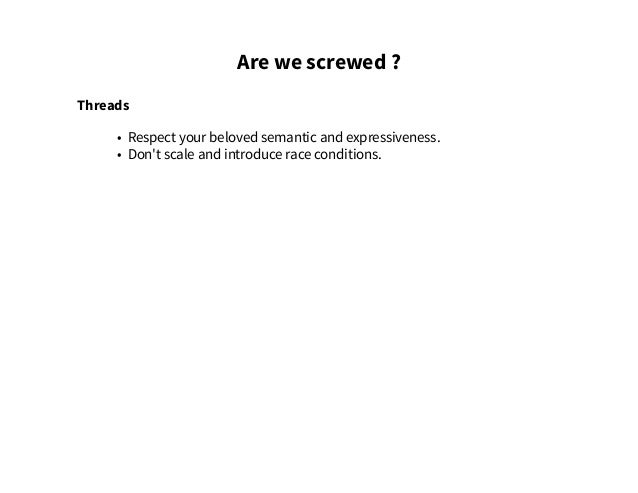

  60. 60. Are we screwed ? Threads • Respect your beloved semantic and expressiveness. • Don't scale and introduce race conditions.

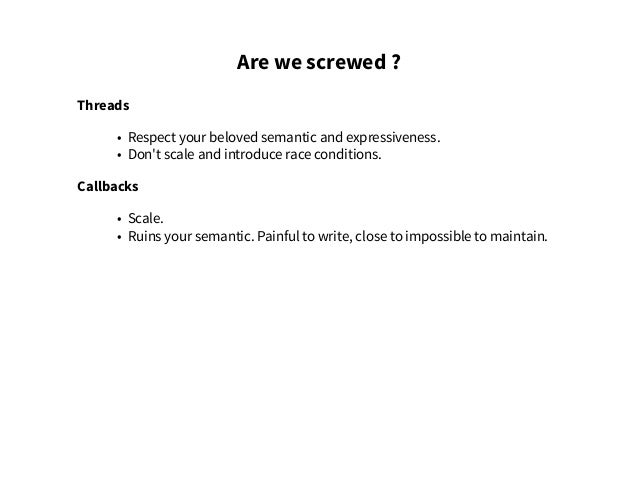

  61. 61. Are we screwed ? Threads • Respect your beloved semantic and expressiveness. • Don't scale and introduce race conditions. Callbacks • Scale. • Ruins your semantic. Painful to write, close to impossible to maintain.
  62. 62. Are we screwed ? Threads • Respect your beloved semantic and expressiveness. • Don't scale and introduce race conditions. Callbacks • Scale. • Ruins your semantic. Painful to write, close to impossible to maintain. I lied when I said: we need concurrency without threads.

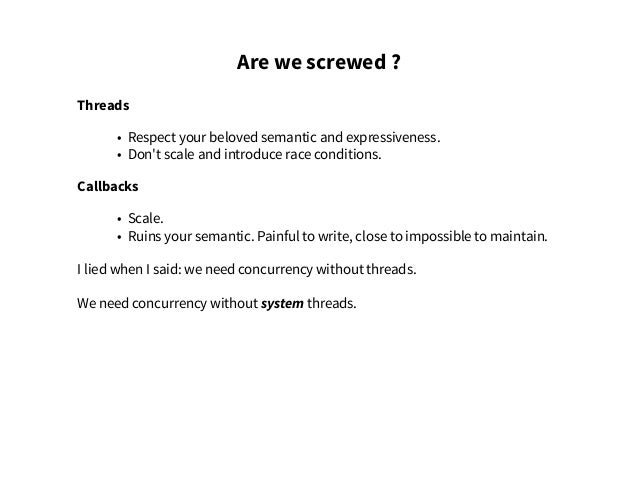

  63. 63. Are we screwed ? Threads • Respect your beloved semantic and expressiveness. • Don't scale and introduce race conditions. Callbacks • Scale. • Ruins your semantic. Painful to write, close to impossible to maintain. I lied when I said: we need concurrency without threads. We need concurrency without system threads.

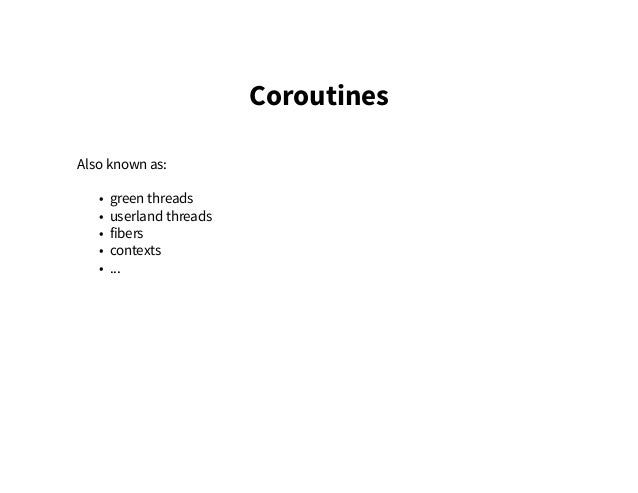

  64. 64. Coroutines Also known as: • green threads • userland threads • fibers • contexts • ...
  65. 65. Coroutines • Separate execution contexts like system threads. • Userland: no need to ask the kernel. • Non-parallel. • Cooperative instead of preemptive: they yield to each other.

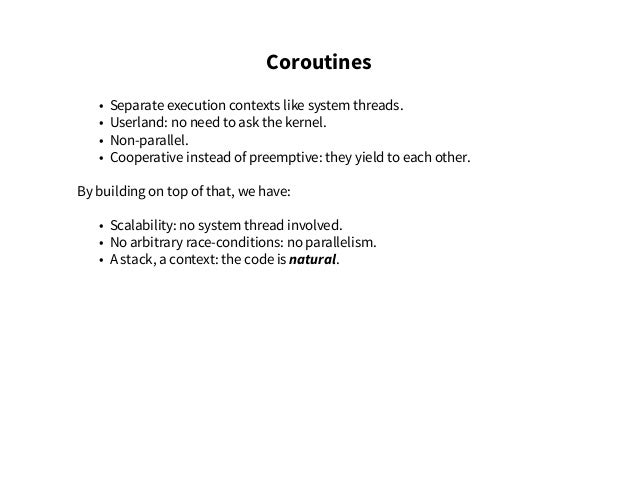

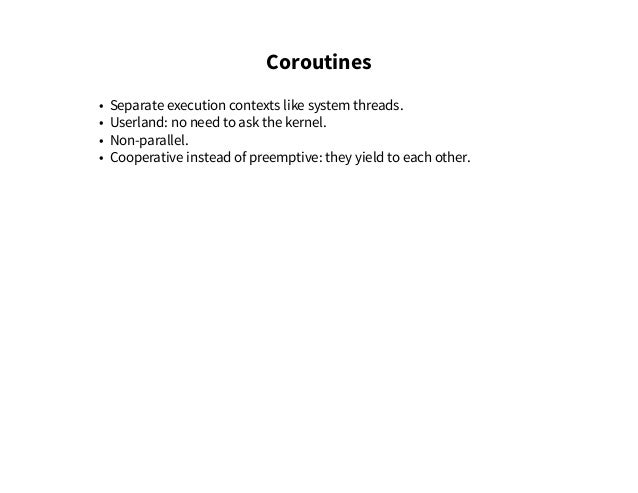

  66. 66. Coroutines • Separate execution contexts like system threads. • Userland: no need to ask the kernel. • Non-parallel. • Cooperative instead of preemptive: they yield to each other. By building on top of that, we have: • Scalability: no system thread involved. • No arbitrary race-conditions: no parallelism. • A stack, a context: the code is natural.

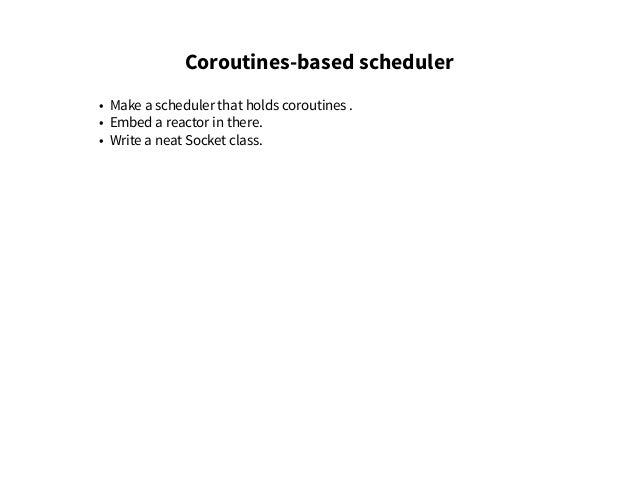

  67. 67. Coroutines-based scheduler • Make a scheduler that holds coroutines . • Embed a reactor in there. • Write a neat Socket class.

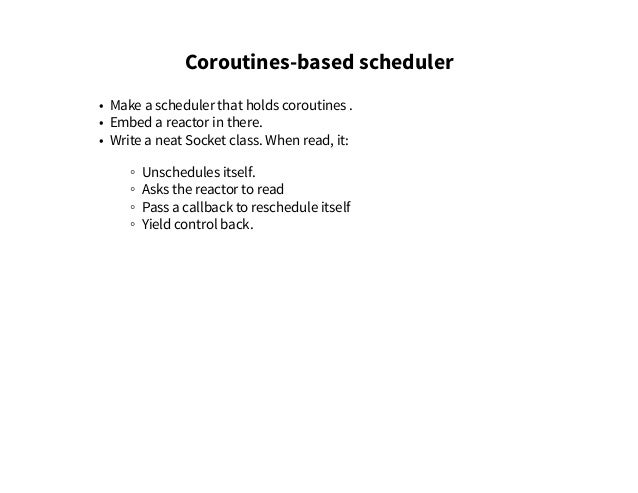

  68. 68. Coroutines-based scheduler • Make a scheduler that holds coroutines . • Embed a reactor in there. • Write a neat Socket class. When read, it: ◦ Unschedules itself. ◦ Asks the reactor to read ◦ Pass a callback to reschedule itself ◦ Yield control back.

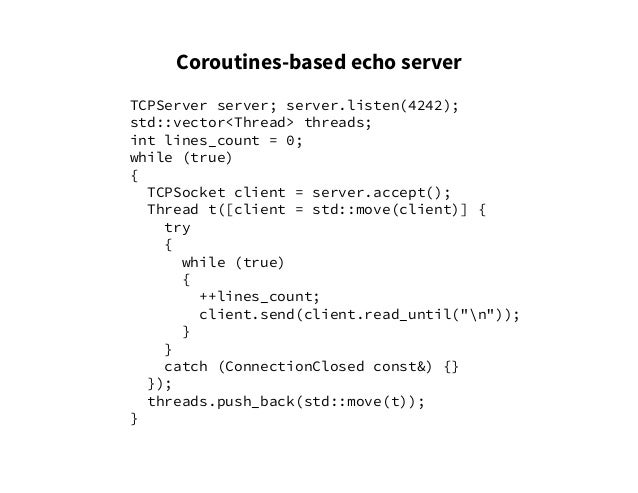

  69. 69. Coroutines-based echo server TCPServer server; server.listen(4242); std::vector<Thread> threads; int lines_count = 0; while (true) { TCPSocket client = server.accept(); Thread t([client = std::move(client)] { try { while (true) { ++lines_count; client.send(client.read_until("n")); } } catch (ConnectionClosed const&) {} }); threads.push_back(std::move(t)); }

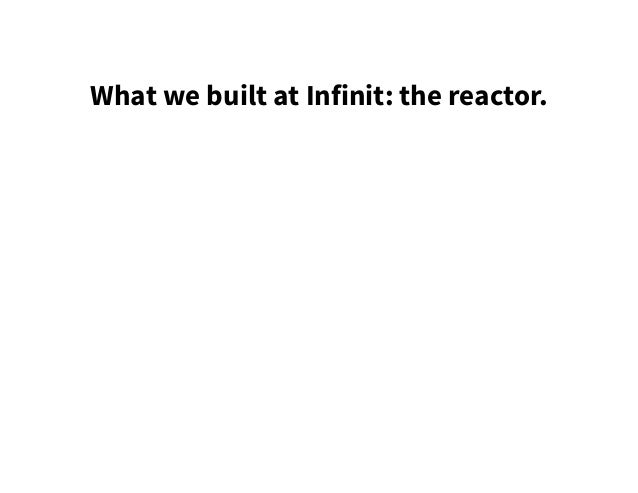

  70. 70. What we built at Infinit: the reactor.

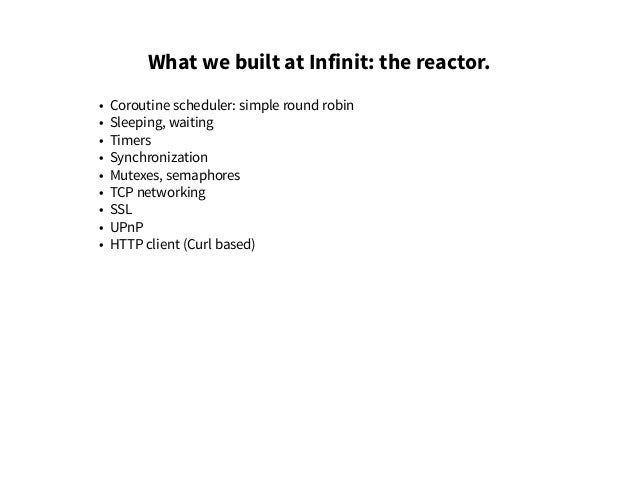

  71. 71. What we built at Infinit: the reactor. • Coroutine scheduler: simple round robin • Sleeping, waiting • Timers • Synchronization • Mutexes, semaphores • TCP networking • SSL • UPnP • HTTP client (Curl based)

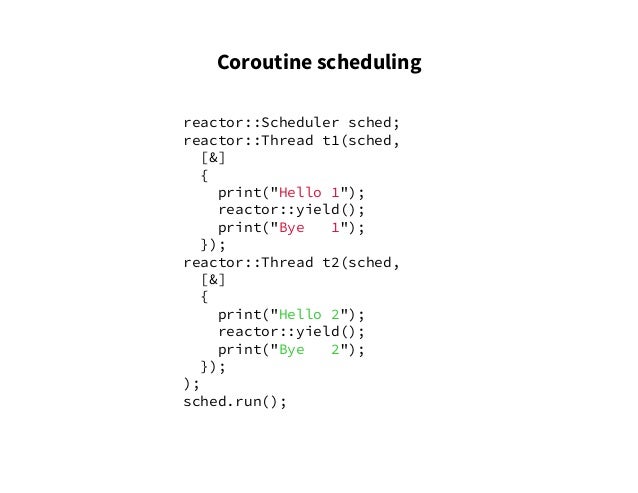

  72. 72. Coroutine scheduling reactor::Scheduler sched; reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::yield(); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("Bye 2"); }); ); sched.run();
  73. 73. Coroutine scheduling reactor::Scheduler sched; reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::yield(); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("Bye 2"); }); ); sched.run(); Hello 1 Hello 2 Bye 1 Bye 2
  74. 74. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::yield(); print("Bye 2"); }); );

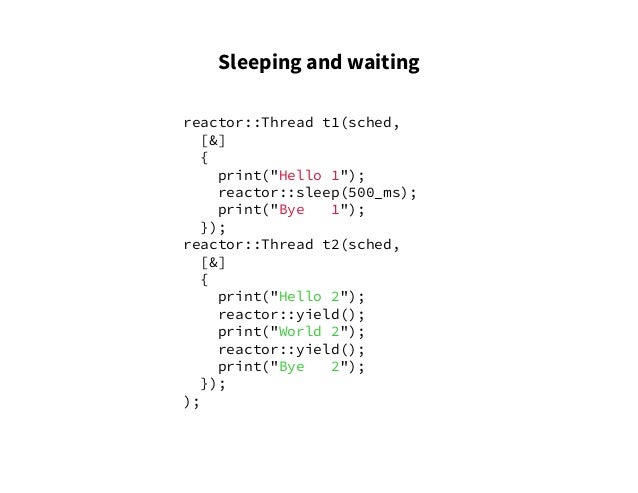

  75. 75. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::yield(); print("Bye 2"); }); ); Hello 1 Hello 2 World 2 Bye 2
  76. 76. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::yield(); print("Bye 2"); }); ); Hello 1 Hello 2 World 2 Bye 2 Bye 1
  77. 77. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::wait(t1); // Wait print("Bye 2"); }); );

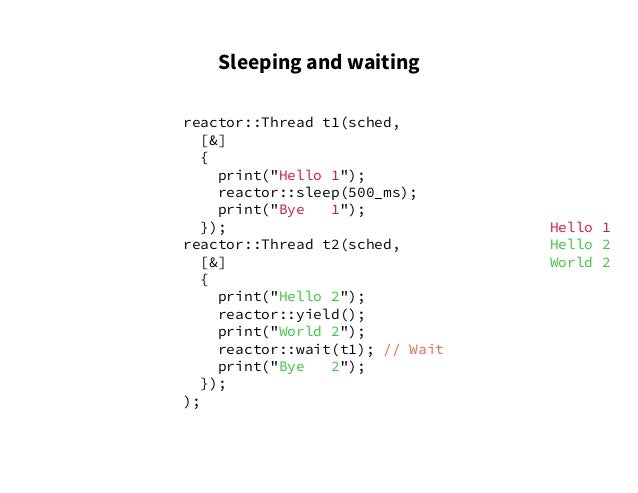

  78. 78. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::wait(t1); // Wait print("Bye 2"); }); ); Hello 1 Hello 2 World 2

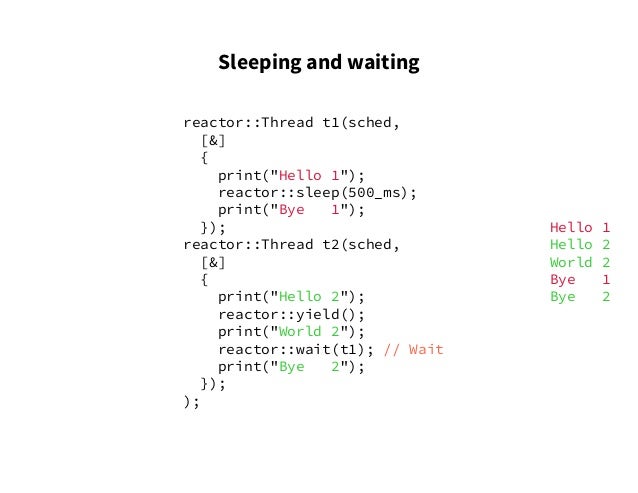

  79. 79. Sleeping and waiting reactor::Thread t1(sched, [&] { print("Hello 1"); reactor::sleep(500_ms); print("Bye 1"); }); reactor::Thread t2(sched, [&] { print("Hello 2"); reactor::yield(); print("World 2"); reactor::wait(t1); // Wait print("Bye 2"); }); ); Hello 1 Hello 2 World 2 Bye 1 Bye 2

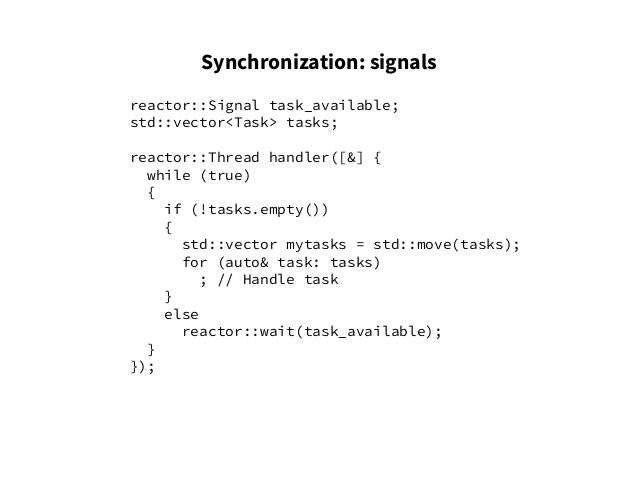

  80. 80. Synchronization: signals reactor::Signal task_available; std::vector<Task> tasks; reactor::Thread handler([&] { while (true) { if (!tasks.empty()) { std::vector mytasks = std::move(tasks); for (auto& task: tasks) ; // Handle task } else reactor::wait(task_available); } });
  81. 81. Synchronization: signals reactor::Signal task_available; std::vector<Task> tasks; reactor::Thread handler([&] { while (true) { if (!tasks.empty()) { std::vector mytasks = std::move(tasks); for (auto& task: tasks) ; // Handle task } else reactor::wait(task_available); } }); tasks.push_back(...); task_available.signal();

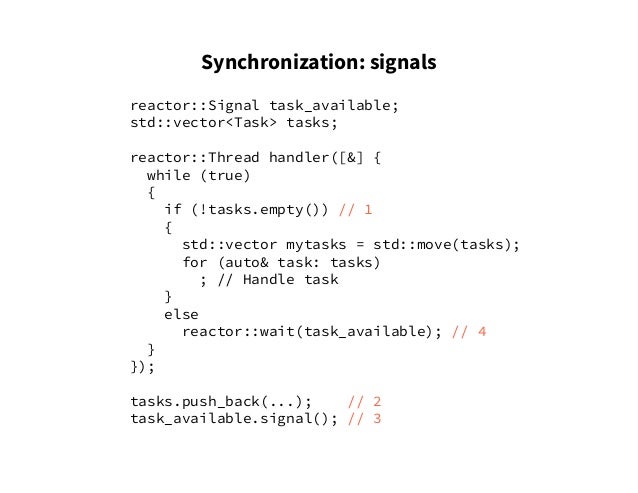

  82. 82. Synchronization: signals reactor::Signal task_available; std::vector<Task> tasks; reactor::Thread handler([&] { while (true) { if (!tasks.empty()) // 1 { std::vector mytasks = std::move(tasks); for (auto& task: tasks) ; // Handle task } else reactor::wait(task_available); // 4 } }); tasks.push_back(...); // 2 task_available.signal(); // 3

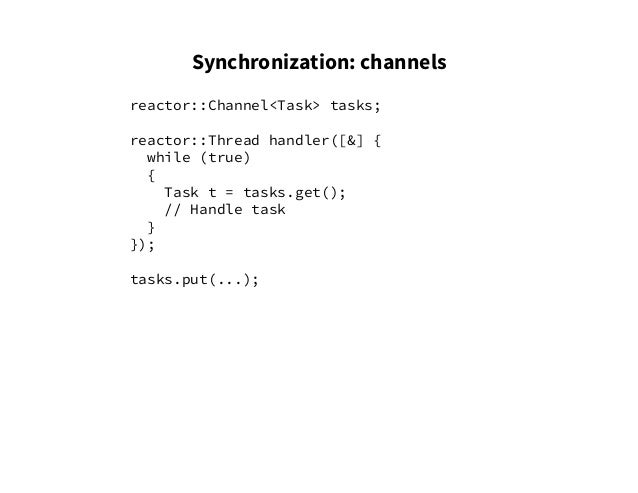

  83. 83. Synchronization: channels reactor::Channel<Task> tasks; reactor::Thread handler([&] { while (true) { Task t = tasks.get(); // Handle task } }); tasks.put(...);

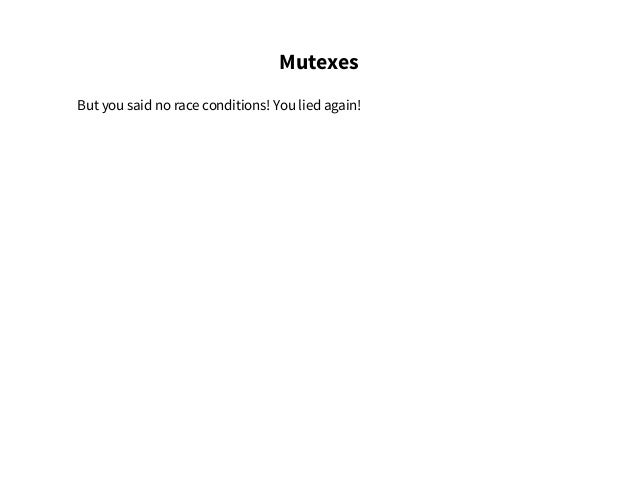

  84. 84. Mutexes But you said no race conditions! You lied again!
  85. 85. Mutexes But you said no race conditions! You lied again! reactor::Thread t([&] { while (true) { for (auto& socket: sockets) socket.send("YO"); } }); { socket.push_back(...); }

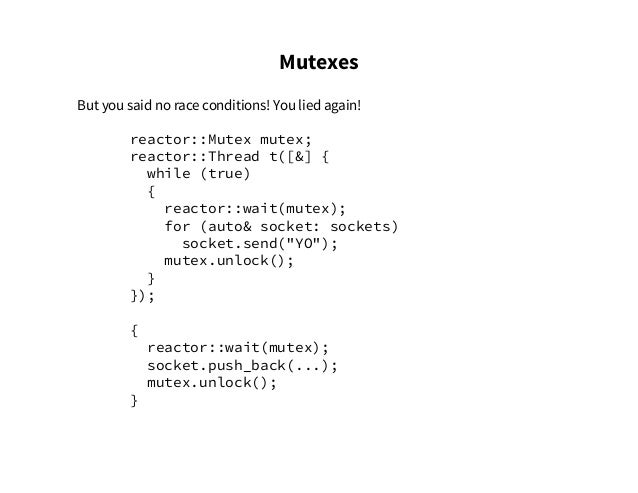

  86. 86. Mutexes But you said no race conditions! You lied again! reactor::Mutex mutex; reactor::Thread t([&] { while (true) { reactor::wait(mutex); for (auto& socket: sockets) socket.send("YO"); mutex.unlock(); } }); { reactor::wait(mutex); socket.push_back(...); mutex.unlock(); }

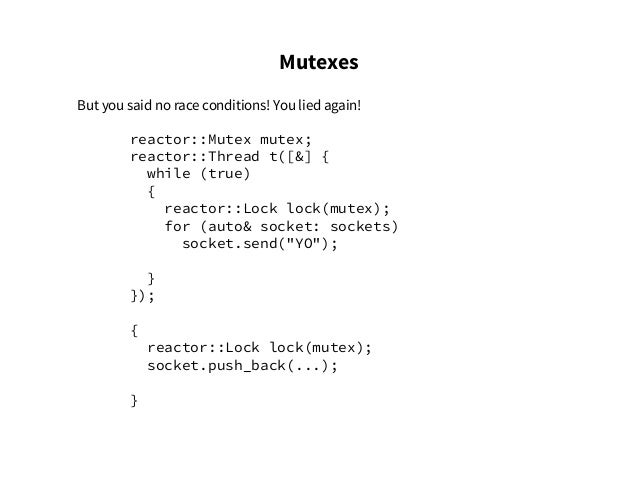

  87. 87. Mutexes But you said no race conditions! You lied again! reactor::Mutex mutex; reactor::Thread t([&] { while (true) { reactor::Lock lock(mutex); for (auto& socket: sockets) socket.send("YO"); } }); { reactor::Lock lock(mutex); socket.push_back(...); }

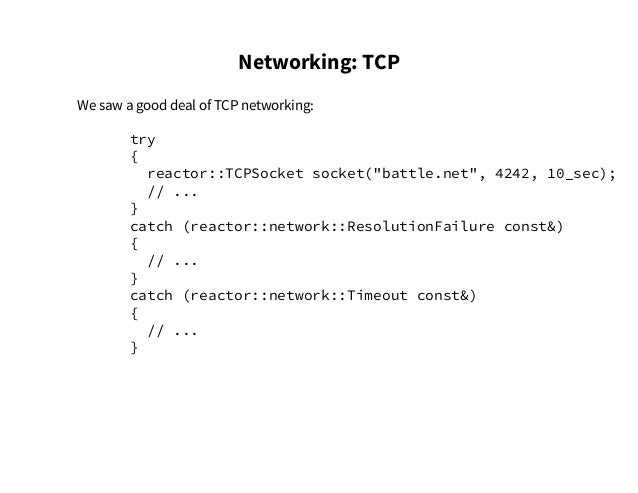

  88. 88. Networking: TCP We saw a good deal of TCP networking: try { reactor::TCPSocket socket("battle.net", 4242, 10_sec); // ... } catch (reactor::network::ResolutionFailure const&) { // ... } catch (reactor::network::Timeout const&) { // ... }

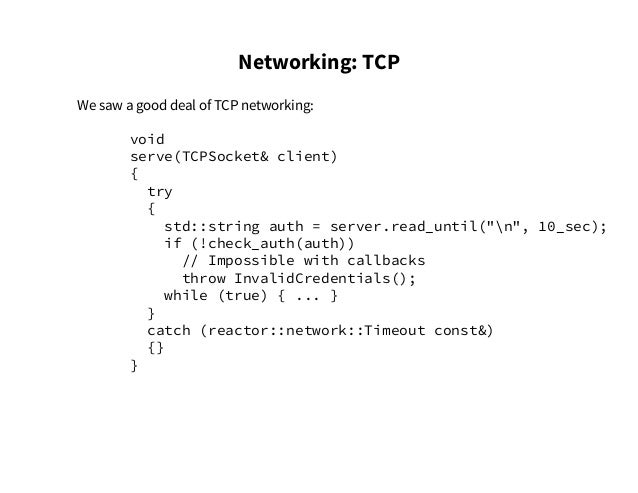

  89. 89. Networking: TCP We saw a good deal of TCP networking: void serve(TCPSocket& client) { try { std::string auth = server.read_until("n", 10_sec); if (!check_auth(auth)) // Impossible with callbacks throw InvalidCredentials(); while (true) { ... } } catch (reactor::network::Timeout const&) {} }

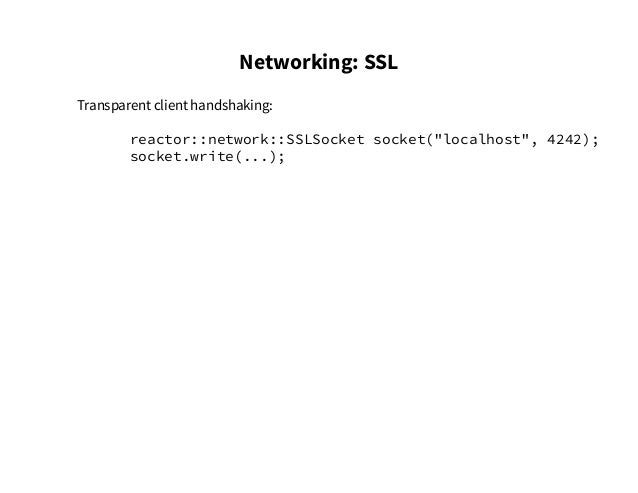

  90. 90. Networking: SSL Transparent client handshaking: reactor::network::SSLSocket socket("localhost", 4242); socket.write(...);

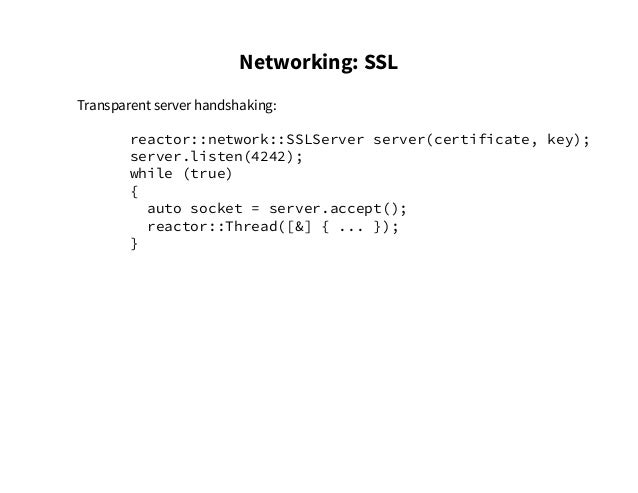

  91. 91. Networking: SSL Transparent server handshaking: reactor::network::SSLServer server(certificate, key); server.listen(4242); while (true) { auto socket = server.accept(); reactor::Thread([&] { ... }); }

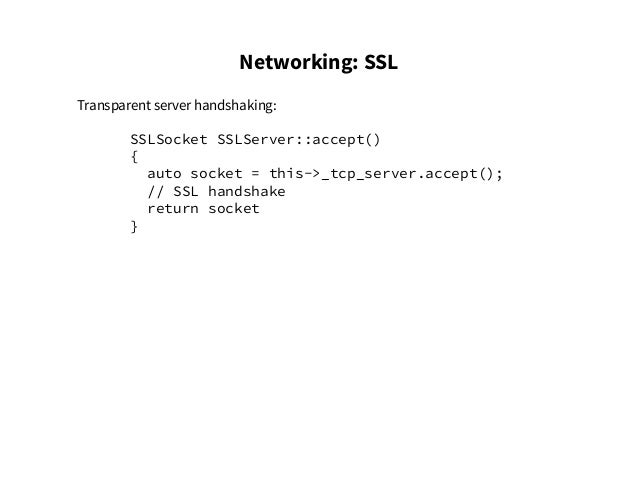

  92. 92. Networking: SSL Transparent server handshaking: SSLSocket SSLServer::accept() { auto socket = this->_tcp_server.accept(); // SSL handshake return socket }

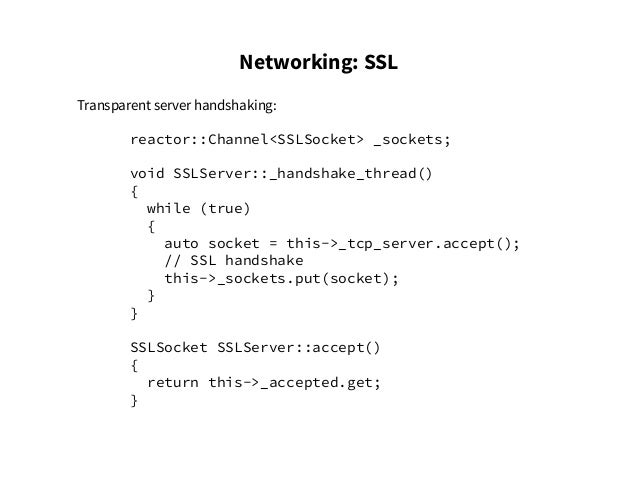

  93. 93. Networking: SSL Transparent server handshaking: reactor::Channel<SSLSocket> _sockets; void SSLServer::_handshake_thread() { while (true) { auto socket = this->_tcp_server.accept(); // SSL handshake this->_sockets.put(socket); } } SSLSocket SSLServer::accept() { return this->_accepted.get; }

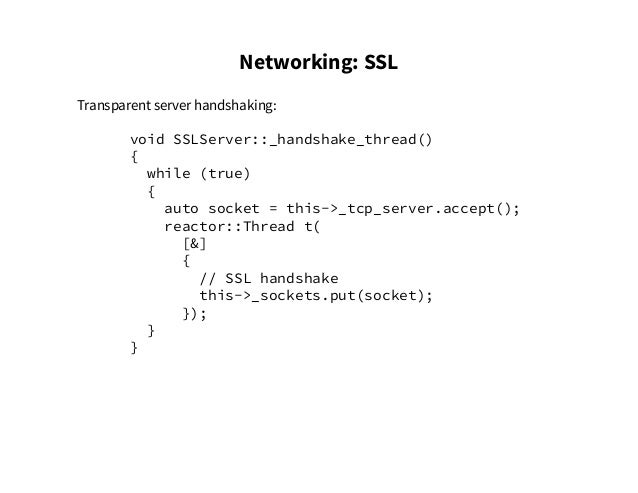

  94. 94. Networking: SSL Transparent server handshaking: void SSLServer::_handshake_thread() { while (true) { auto socket = this->_tcp_server.accept(); reactor::Thread t( [&] { // SSL handshake this->_sockets.put(socket); }); } }

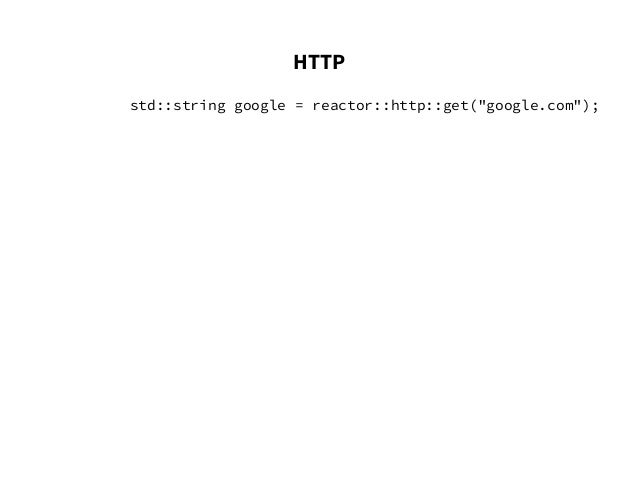

  95. 95. HTTP std::string google = reactor::http::get("google.com");

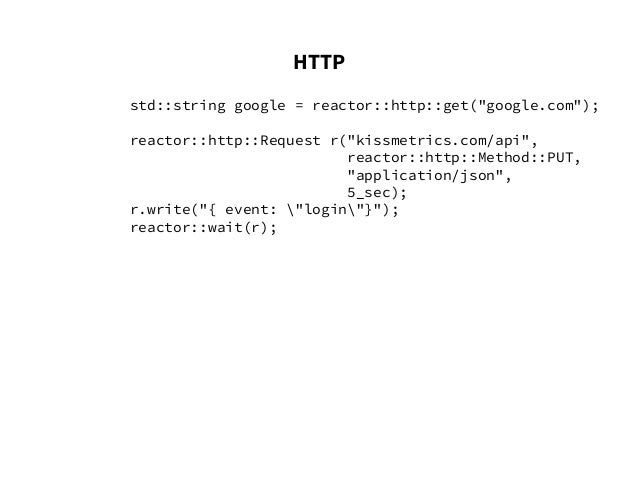

  96. 96. HTTP std::string google = reactor::http::get("google.com"); reactor::http::Request r("kissmetrics.com/api", reactor::http::Method::PUT, "application/json", 5_sec); r.write("{ event: "login"}"); reactor::wait(r);
  97. 97. HTTP std::string google = reactor::http::get("google.com"); reactor::http::Request r("kissmetrics.com/api", reactor::http::Method::PUT, "application/json", 5_sec); r.write("{ event: "login"}"); reactor::wait(r); • Chunking • Cookies • Custom headers • Upload/download progress • ... pretty much anything Curl supports (i.e., everything)
  98. 98. HTTP streaming std::string content = reactor::http::get( "my-api.infinit.io/transactions"); auto json = json::parse(content);

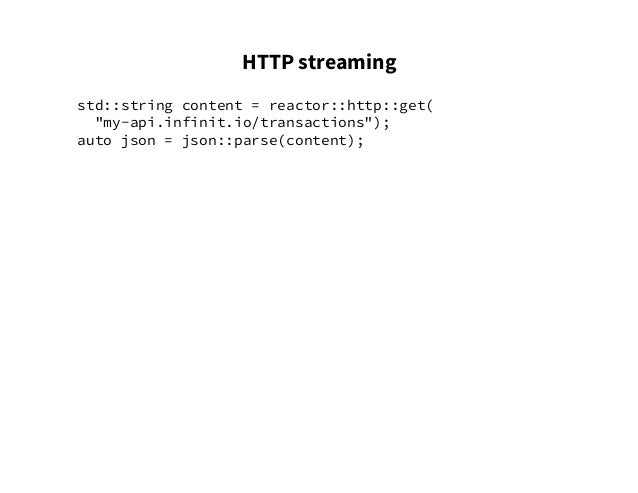

  99. 99. HTTP streaming std::string content = reactor::http::get( "my-api.infinit.io/transactions"); auto json = json::parse(content); reactor::http::Request r( "my-api.production.infinit.io/transactions"); assert(r.status() == reactor::http::Status::OK); // JSON is parsed on the fly; auto json = json::parse(r);

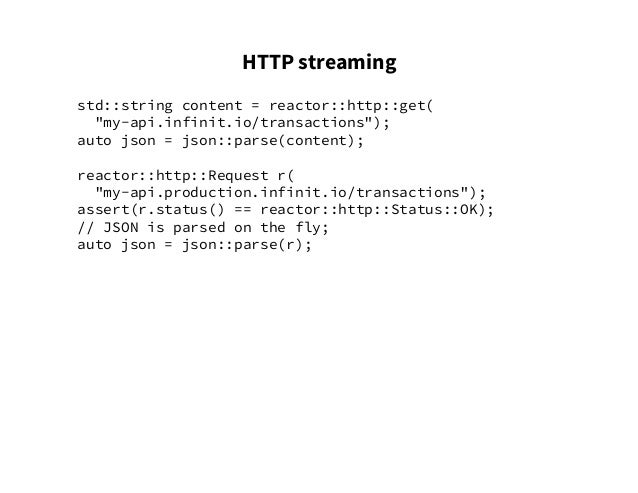

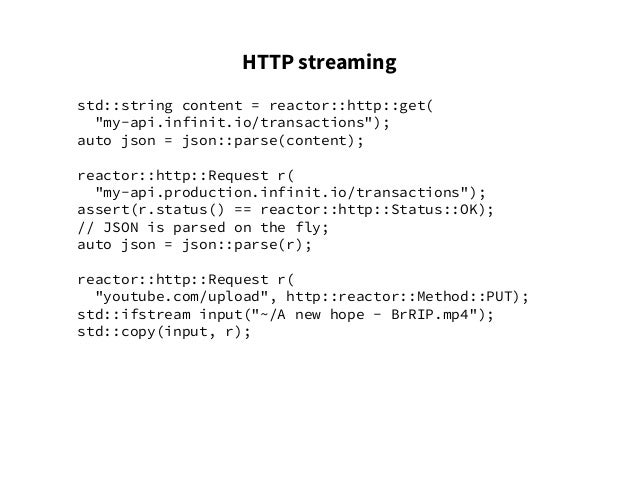

  100. 100. HTTP streaming std::string content = reactor::http::get( "my-api.infinit.io/transactions"); auto json = json::parse(content); reactor::http::Request r( "my-api.production.infinit.io/transactions"); assert(r.status() == reactor::http::Status::OK); // JSON is parsed on the fly; auto json = json::parse(r); reactor::http::Request r( "youtube.com/upload", http::reactor::Method::PUT); std::ifstream input("~/A new hope - BrRIP.mp4"); std::copy(input, r);

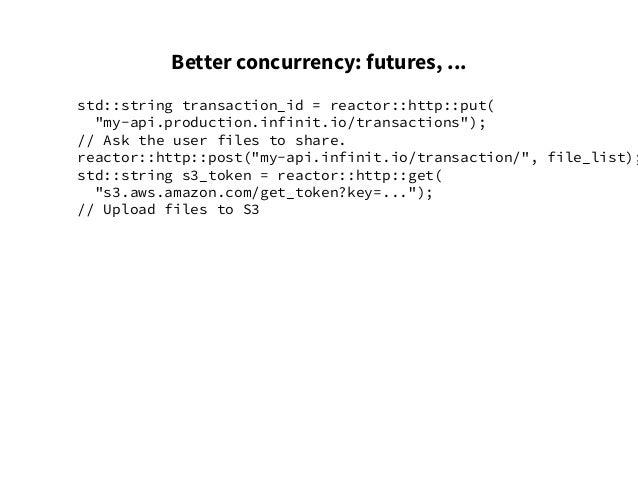

  101. 101. Better concurrency: futures, ... std::string transaction_id = reactor::http::put( "my-api.production.infinit.io/transactions"); // Ask the user files to share. reactor::http::post("my-api.infinit.io/transaction/", file_list); std::string s3_token = reactor::http::get( "s3.aws.amazon.com/get_token?key=..."); // Upload files to S3

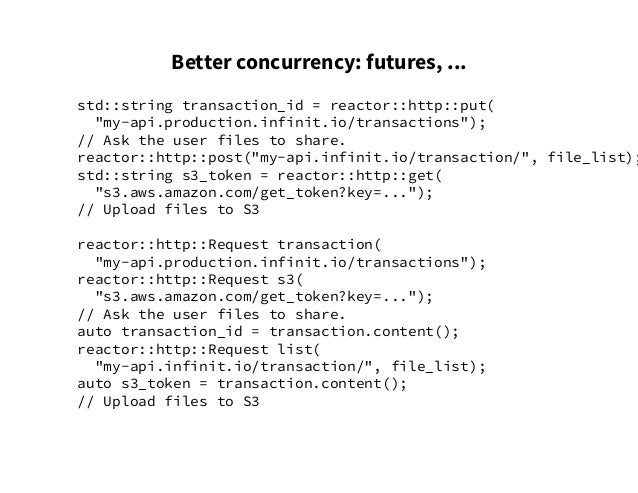

  102. 102. Better concurrency: futures, ... std::string transaction_id = reactor::http::put( "my-api.production.infinit.io/transactions"); // Ask the user files to share. reactor::http::post("my-api.infinit.io/transaction/", file_list); std::string s3_token = reactor::http::get( "s3.aws.amazon.com/get_token?key=..."); // Upload files to S3 reactor::http::Request transaction( "my-api.production.infinit.io/transactions"); reactor::http::Request s3( "s3.aws.amazon.com/get_token?key=..."); // Ask the user files to share. auto transaction_id = transaction.content(); reactor::http::Request list( "my-api.infinit.io/transaction/", file_list); auto s3_token = transaction.content(); // Upload files to S3

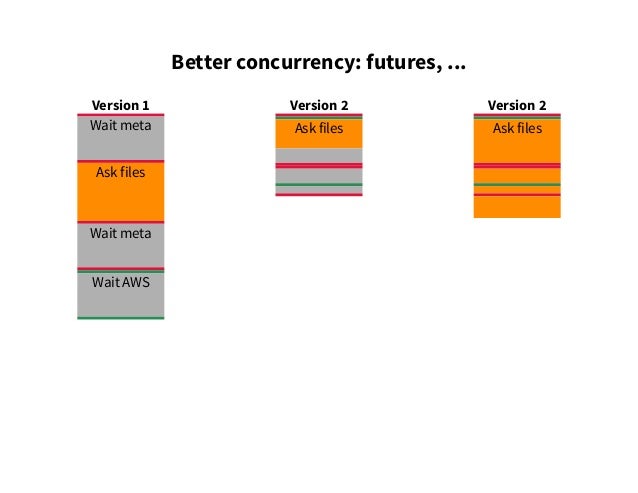

  103. 103. Version 1 Wait meta Ask files Wait meta Wait AWS Version 2 Ask files Better concurrency: futures, ... Version 2 Ask files

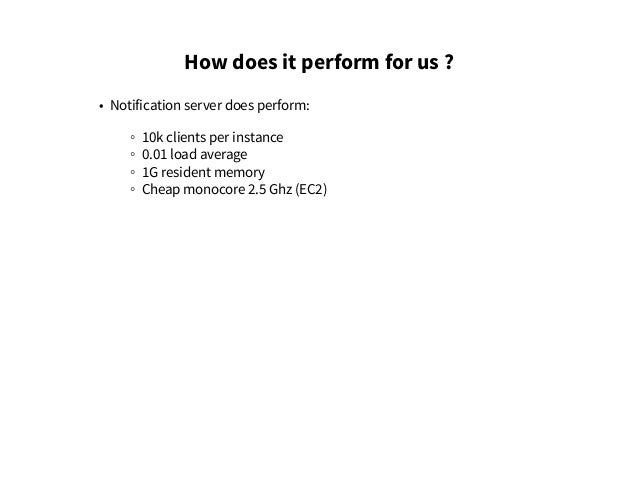

  104. 104. How does it perform for us ? • Notification server does perform: ◦ 10k clients per instance ◦ 0.01 load average ◦ 1G resident memory ◦ Cheap monocore 2.5 Ghz (EC2)

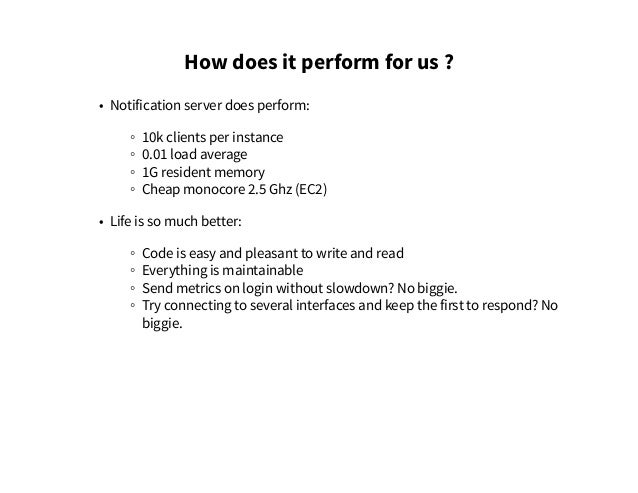

  105. 105. How does it perform for us ? • Notification server does perform: ◦ 10k clients per instance ◦ 0.01 load average ◦ 1G resident memory ◦ Cheap monocore 2.5 Ghz (EC2) • Life is so much better: ◦ Code is easy and pleasant to write and read ◦ Everything is maintainable ◦ Send metrics on login without slowdown? No biggie. ◦ Try connecting to several interfaces and keep the first to respond? No biggie.
  106. 106. Questions ?

×
