SIEPON Alignment withBroadband Forum Requirements                  q            EPON Workshop        Prague – April 20 201...
BBF DomainBBF Mission StatementWe develop multi-service broadband packet networking specifications addressinginteroperabil...
BBF DomainBBF Mission StatementWe develop multi-service broadband packet networking specifications addressinginteroperabil...
BBF Domain             Aggregation             A      ti     Access                           A                           ...
BBF Domain                                Aggregation                                A      ti        Access              ...
TR-101, Migration to Ethernet-Based Broadband Aggregation                             TR-101 contains specifications for  ...
TR-200, Using EPON in the Context of TR-101    “EPON Access”                                                             T...
TR-200, Using EPON in the Context of TR-101    “EPON Aggregation”                                        TR-200 contains s...
TR-200, Using EPON in the Context of TR-101EPON Data Path (EDP)An EPON Data Path is a traffic bearing object within an EPO...
TR-200, Using EPON in the Context of TR-101EPON Data Path (EDP)An EPON Data Path is a traffic bearing object within an EPO...
A Modern EPON ONU SoCMultiple PON Interfaces               Synchronization Transport                Standards             ...
SIEPON OLT Reference Architecture (Figure 5.7)                                                 12
SIEPON ONU Reference Architecture: sL-ONU (Figure 5.3)                                                    13
Definition of EDPs (Appendix 7A)     Figure 7A-4: Provisioning of multiple EDPs using the Service-SLA mode                ...
TR-200, Using EPON in the Context of TR-101EPON Data Path (EDP)An EPON Data Path is a traffic bearing object within an EPO...
ONU Reference Architecture: mL-ONU (Figure 5.4)                                                  16
Definition of EDPs (Appendix 7A)   Figure 7A-5: Provisioning of multiple EDPs using the Multiple-Line-ONUs mode           ...
TR-200, Using EPON in the Context of TR-101EPON Data Path (EDP)An EPON Data Path is a traffic bearing object within an EPO...
Summary The P1904.1 SIEPON standard maps current BBF service-layer functionality onto an  abstract model containing suffi...
Summary The P1904.1 SIEPON standard maps current BBF service-layer functionality onto an  abstract model containing suffi...
Summary The P1904.1 SIEPON standard maps current BBF service-layer functionality onto an  abstract model containing suffi...
Summary The P1904.1 SIEPON standard maps current BBF service-layer functionality onto an  abstract model containing suffi...
Thank You!             23
Upcoming SlideShare
Loading in …5
×

SIEPON Alignment with Broadband Forum Requirements

1,211 views

Published on

Presentation from SIEPON Seminar on 20 April in Czech Republic, sponsored by IEEE-SA & CAG. Opinions presented by the speakers in this presentation are their own, and not necessarily those of their employers or of IEEE.

Published in: Technology, Business
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
1,211
On SlideShare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
34
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

SIEPON Alignment with Broadband Forum Requirements

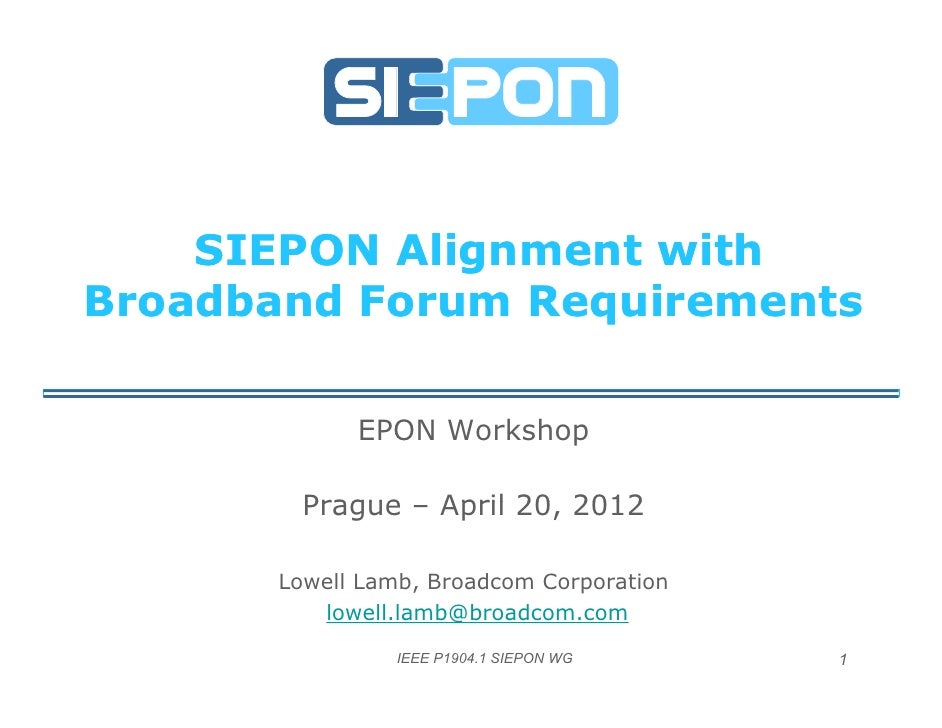

  1. 1. SIEPON Alignment withBroadband Forum Requirements q EPON Workshop Prague – April 20 2012 20, Lowell Lamb, Broadcom Corporation p lowell.lamb@broadcom.com IEEE P1904.1 SIEPON WG 1
