y3dips hacking priv8 network

  1. 1. Hacking into Bank priv8 Network y3dips@echo.or.id | y3dips.echo.or.id

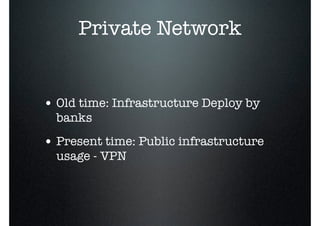

  2. 2. Private Network • Old time: Infrastructure Deploy by banks • Present time: Public infrastructure usage - VPN

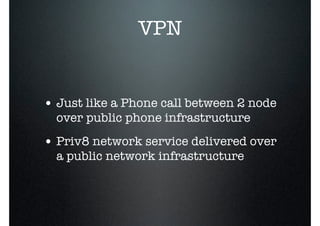

  3. 3. VPN • Just like a Phone call between 2 node over public phone infrastructure • Priv8 network service delivered over a public network infrastructure

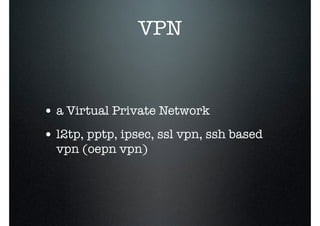

  4. 4. VPN • a Virtual Private Network • l2tp, pptp, ipsec, ssl vpn, ssh based vpn (oepn vpn)

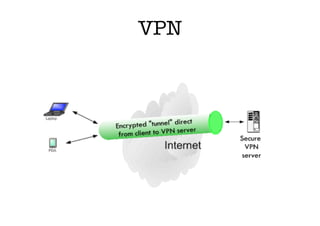

  5. 5. VPNVPN

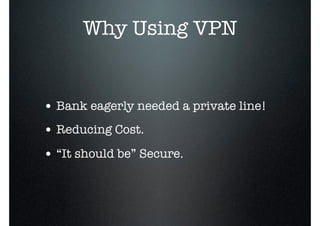

  6. 6. Why Using VPN • Bank eagerly needed a private line! • Reducing Cost. • “It should be” Secure.

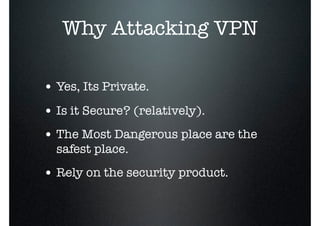

  7. 7. Why Attacking VPN • Yes, Its Private. • Is it Secure? (relatively). • The Most Dangerous place are the safest place. • Rely on the security product.

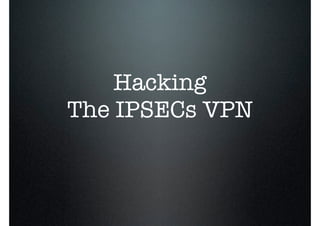

  8. 8. Hacking The IPSECs VPN

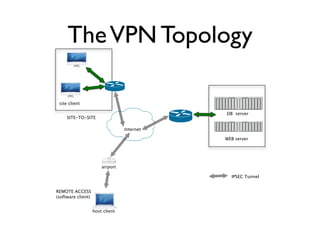

  9. 9. TheVPN Topology host client site client WEB server airport DB server Internet IPSEC Tunnel SITE-TO-SITE REMOTE ACCESS (software client)

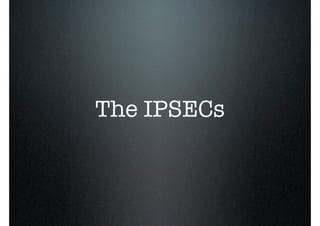

  10. 10. The IPSECs

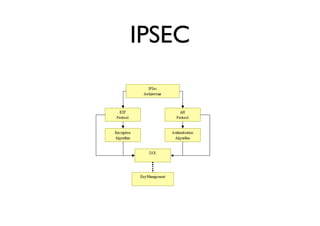

  11. 11. IPSEC

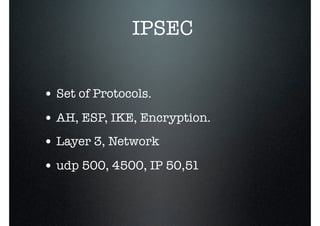

  12. 12. IPSEC • Set of Protocols. • AH, ESP, IKE, Encryption. • Layer 3, Network • udp 500, 4500, IP 50,51

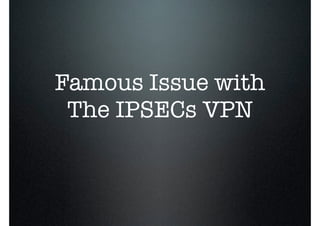

  13. 13. Famous Issue with The IPSECs VPN

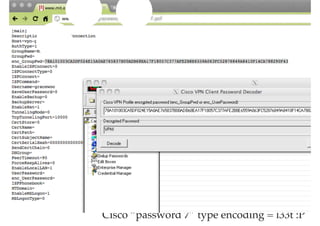

  14. 14. Cisco “password 7” type encoding = l33t :P

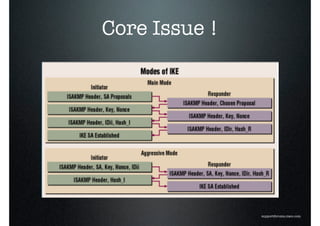

  15. 15. Core Issue ! supportforums.cisco.com
  16. 16. Aggressive Mode Issue • Quick Handshake. • Hash in Plaintext. • Dedicated IP not a mandatory. • User (ID) not a mandatory.

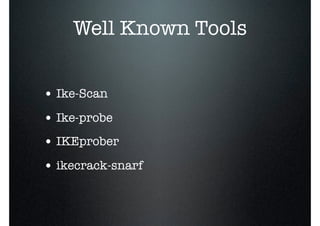

  17. 17. Well Known Tools • Ike-Scan • Ike-probe • IKEprober • ikecrack-snarf

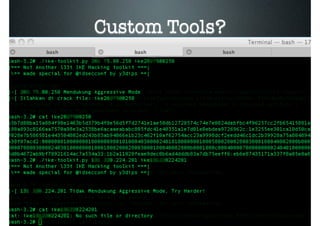

  18. 18. Custom Tools?
  19. 19. How it works

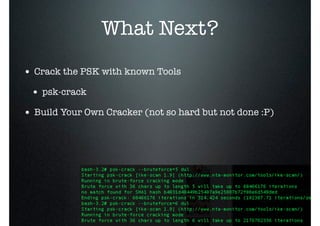

  20. 20. What Next? • Crack the PSK with known Tools • psk-crack • Build Your Own Cracker (not so hard but not done :P)

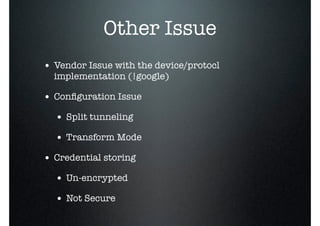

  21. 21. Other Issue • Vendor Issue with the device/protocl implementation (!google) • Configuration Issue • Split tunneling • Transform Mode • Credential storing • Un-encrypted • Not Secure

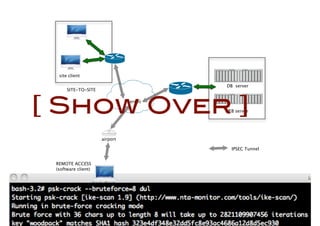

  22. 22. host client site client WEB server airport DB server Internet IPSEC Tunnel SITE-TO-SITE REMOTE ACCESS (software client) [ Show Over ]

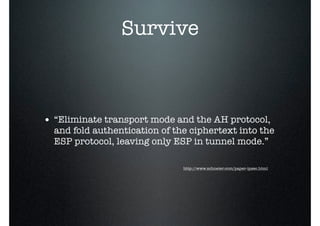

  23. 23. Survive • “Eliminate transport mode and the AH protocol, and fold authentication of the ciphertext into the ESP protocol, leaving only ESP in tunnel mode.” http://www.schneier.com/paper-ipsec.html

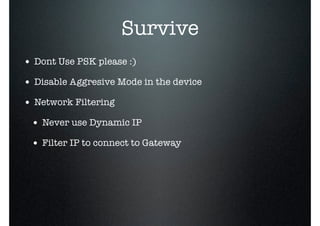

  24. 24. Survive • Dont Use PSK please :) • Disable Aggresive Mode in the device • Network Filtering • Never use Dynamic IP • Filter IP to connect to Gateway

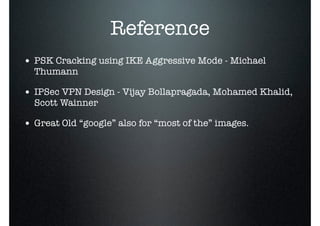

  25. 25. Reference • PSK Cracking using IKE Aggressive Mode - Michael Thumann • IPSec VPN Design - Vijay Bollapragada, Mohamed Khalid, Scott Wainner • Great Old “google” also for “most of the” images.

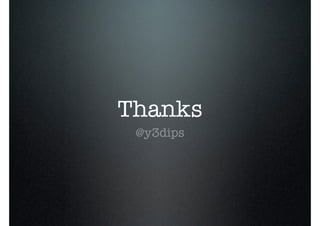

  26. 26. Thanks @y3dips

×
