All Things Open - Spark & Storm - Where & When?

  1. 1. Spark & Storm: When & Where?

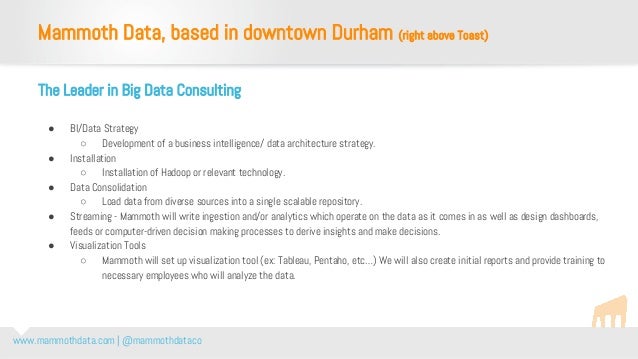

  2. 2. www.mammothdata.com | @mammothdataco The Leader in Big Data Consulting ● BI/Data Strategy ○ Development of a business intelligence/ data architecture strategy. ● Installation ○ Installation of Hadoop or relevant technology. ● Data Consolidation ○ Load data from diverse sources into a single scalable repository. ● Streaming - Mammoth will write ingestion and/or analytics which operate on the data as it comes in as well as design dashboards, feeds or computer-driven decision making processes to derive insights and make decisions. ● Visualization Tools ○ Mammoth will set up visualization tool (ex: Tableau, Pentaho, etc…) We will also create initial reports and provide training to necessary employees who will analyze the data. Mammoth Data, based in downtown Durham (right above Toast)

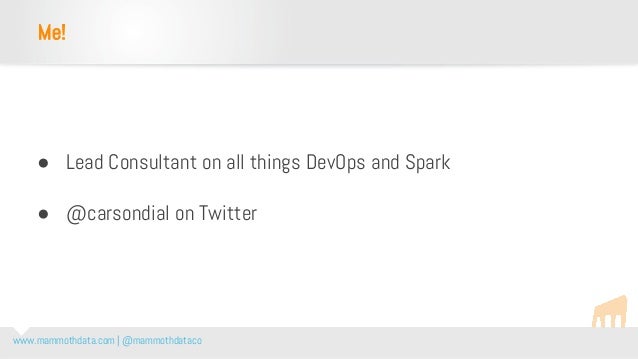

  3. 3. www.mammothdata.com | @mammothdataco ● Lead Consultant on all things DevOps and Spark ● @carsondial on Twitter Me!

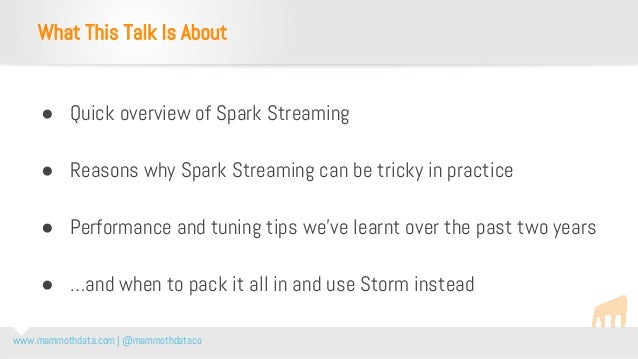

  4. 4. www.mammothdata.com | @mammothdataco ● Quick overview of Spark Streaming ● Reasons why Spark Streaming can be tricky in practice ● Performance and tuning tips we’ve learnt over the past two years ● …and when to pack it all in and use Storm instead What This Talk Is About

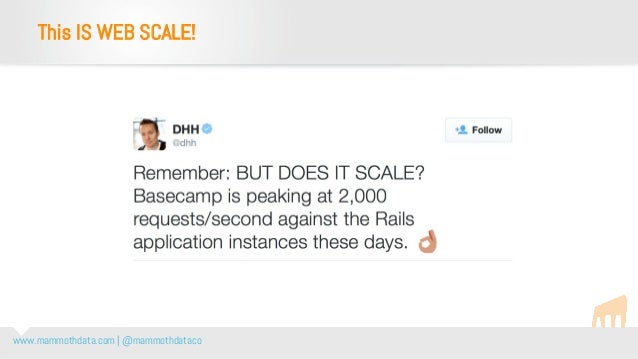

  5. 5. www.mammothdata.com | @mammothdataco This IS WEB SCALE!

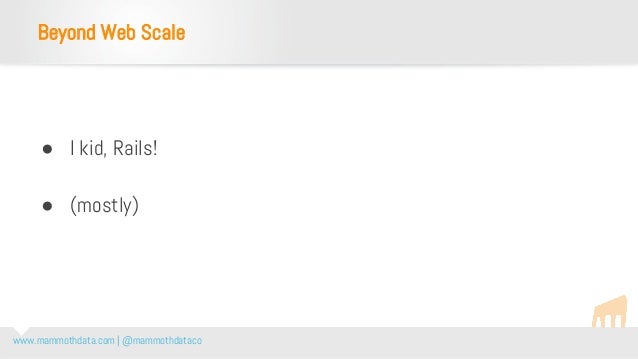

  6. 6. www.mammothdata.com | @mammothdataco ● I kid, Rails! ● (mostly) Beyond Web Scale

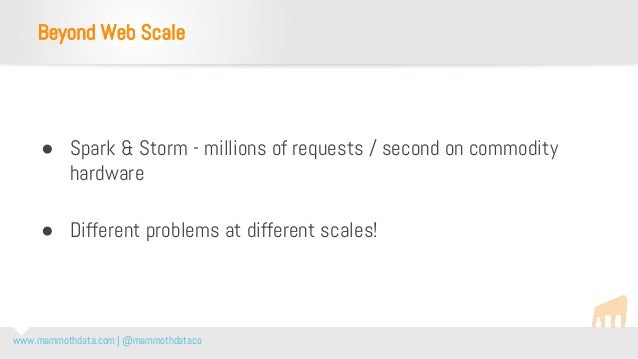

  7. 7. www.mammothdata.com | @mammothdataco ● Spark & Storm - millions of requests / second on commodity hardware ● Different problems at different scales! Beyond Web Scale

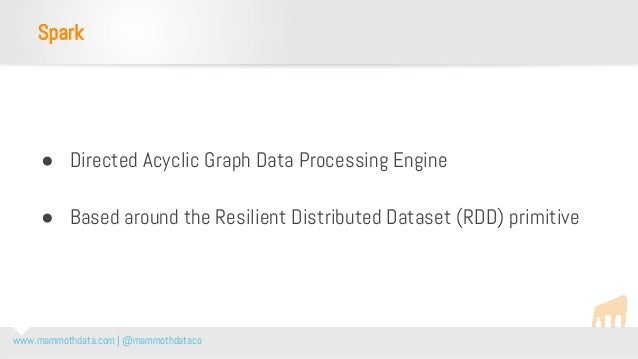

  8. 8. www.mammothdata.com | @mammothdataco ● Directed Acyclic Graph Data Processing Engine ● Based around the Resilient Distributed Dataset (RDD) primitive Spark

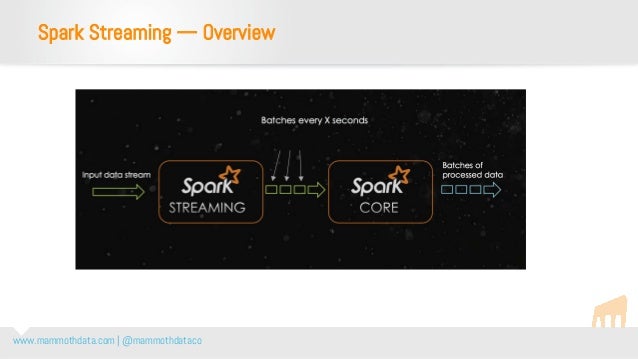

  9. 9. www.mammothdata.com | @mammothdataco Spark Streaming — Overview

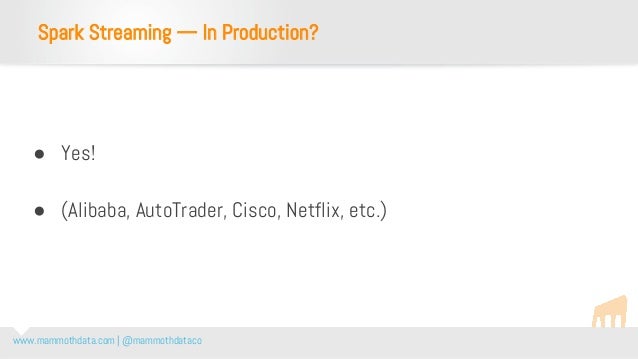

  10. 10. www.mammothdata.com | @mammothdataco Spark Streaming — In Production? ● Yes! ● (Alibaba, AutoTrader, Cisco, Netflix, etc.)
  11. 11. www.mammothdata.com | @mammothdataco ● Streaming by running batches very quickly! ● Batch length: can be as low as 0.5s / batch ● Every X seconds, get Y records (DStream/RDDs) Spark Streaming — Overview

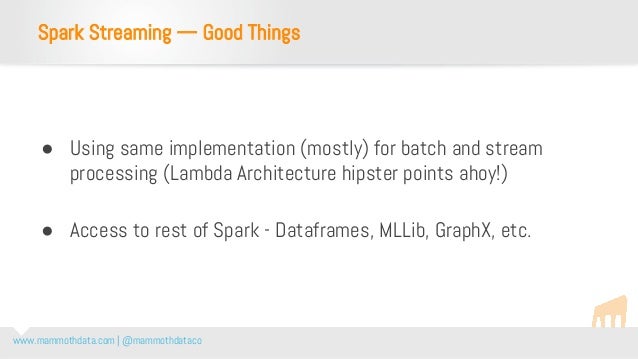

  12. 12. www.mammothdata.com | @mammothdataco ● Using same implementation (mostly) for batch and stream processing (Lambda Architecture hipster points ahoy!) ● Access to rest of Spark - Dataframes, MLLib, GraphX, etc. Spark Streaming — Good Things

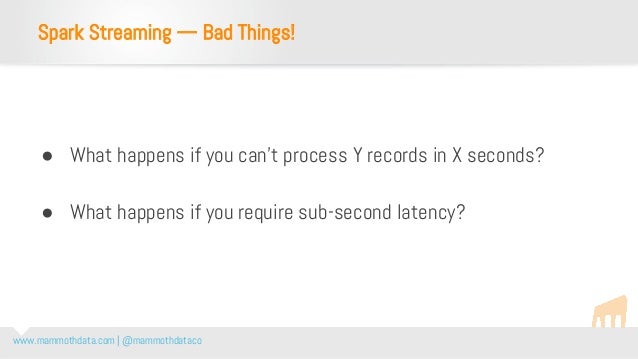

  13. 13. www.mammothdata.com | @mammothdataco ● What happens if you can’t process Y records in X seconds? ● What happens if you require sub-second latency? Spark Streaming — Bad Things!
  14. 14. www.mammothdata.com | @mammothdataco Spark Streaming — I’m so sorry.

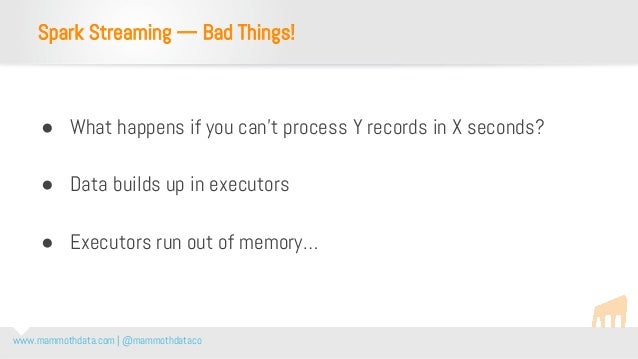

  15. 15. www.mammothdata.com | @mammothdataco ● What happens if you can’t process Y records in X seconds? ● Data builds up in executors ● Executors run out of memory… Spark Streaming — Bad Things!

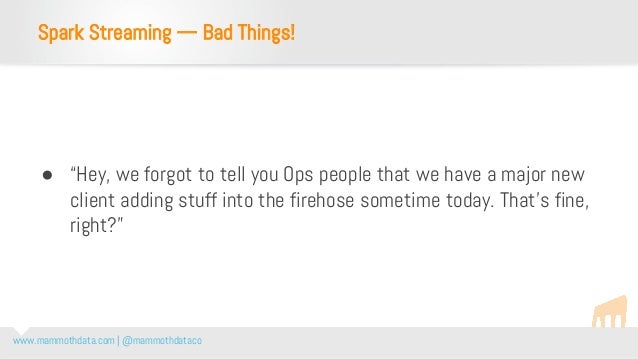

  16. 16. www.mammothdata.com | @mammothdataco ● “Hey, we forgot to tell you Ops people that we have a major new client adding stuff into the firehose sometime today. That’s fine, right?” Spark Streaming — Bad Things!
  17. 17. www.mammothdata.com | @mammothdataco Spark Streaming — It Will Be Okay

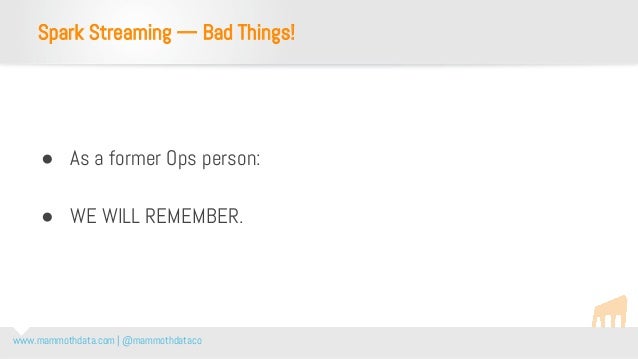

  18. 18. www.mammothdata.com | @mammothdataco ● As a former Ops person: ● WE WILL REMEMBER. Spark Streaming — Bad Things!
  19. 19. www.mammothdata.com | @mammothdataco ● Do you need low-latency? ● If so, a 10-minute nap is advisable! ● Everybody else, let’s dive in… Spark Streaming — Tuning
  20. 20. www.mammothdata.com | @mammothdataco Spark Streaming — Tuning

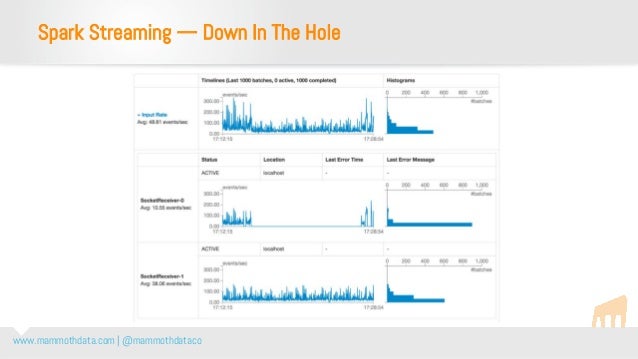

  21. 21. www.mammothdata.com | @mammothdataco Spark Streaming — Down In The Hole

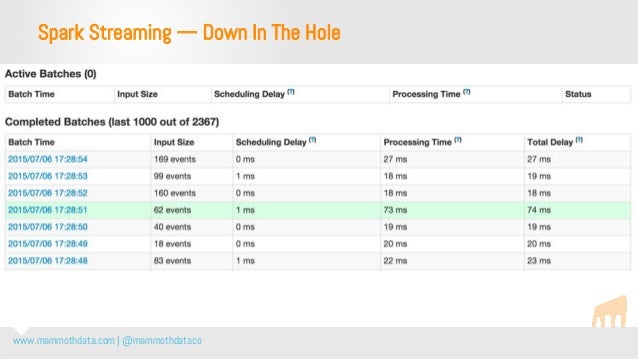

  22. 22. www.mammothdata.com | @mammothdataco Spark Streaming — Down In The Hole

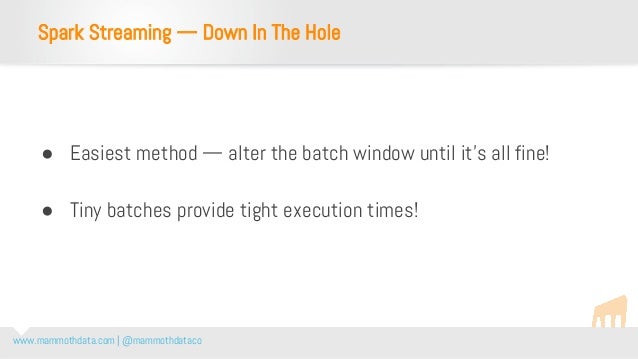

  23. 23. www.mammothdata.com | @mammothdataco ● Easiest method — alter the batch window until it’s all fine! ● Tiny batches provide tight execution times! Spark Streaming — Down In The Hole

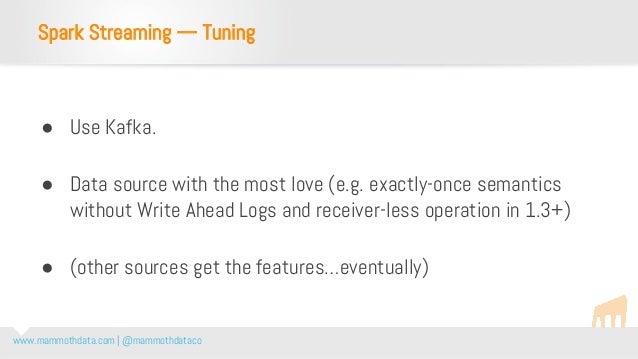

  24. 24. www.mammothdata.com | @mammothdataco ● Use Kafka. ● Data source with the most love (e.g. exactly-once semantics without Write Ahead Logs and receiver-less operation in 1.3+) ● (other sources get the features…eventually) Spark Streaming — Tuning

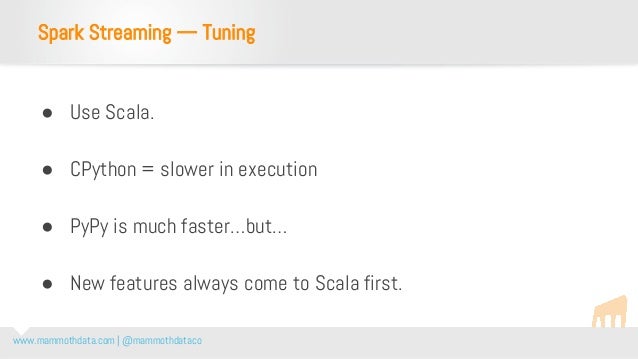

  25. 25. www.mammothdata.com | @mammothdataco ● Use Scala. ● CPython = slower in execution ● PyPy is much faster…but… ● New features always come to Scala first. Spark Streaming — Tuning

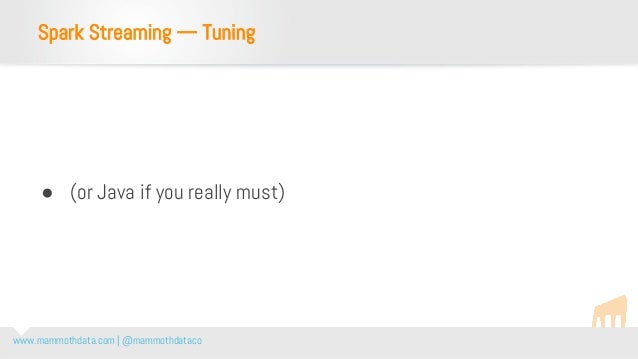

  26. 26. www.mammothdata.com | @mammothdataco ● (or Java if you really must) Spark Streaming — Tuning

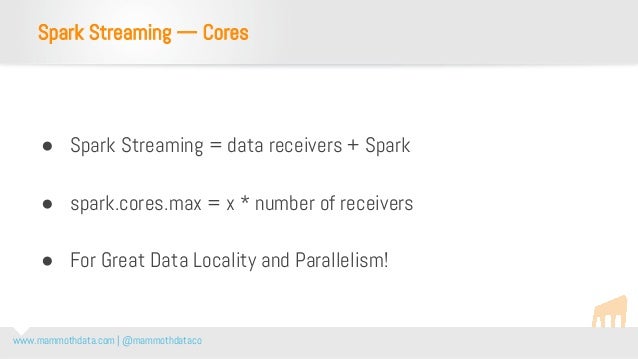

  27. 27. www.mammothdata.com | @mammothdataco ● Spark Streaming = data receivers + Spark ● spark.cores.max = x * number of receivers ● For Great Data Locality and Parallelism! Spark Streaming — Cores

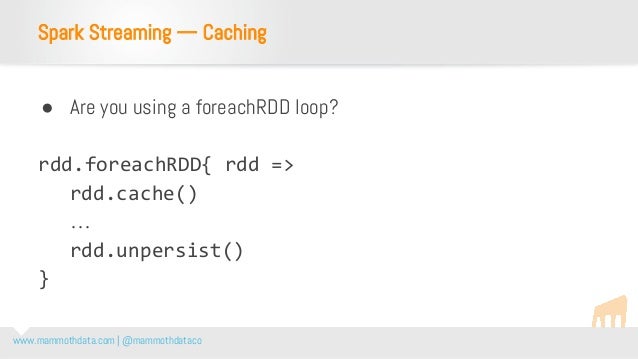

  28. 28. www.mammothdata.com | @mammothdataco ● Are you using a foreachRDD loop? rdd.foreachRDD{ rdd => rdd.cache() … rdd.unpersist() } Spark Streaming — Caching

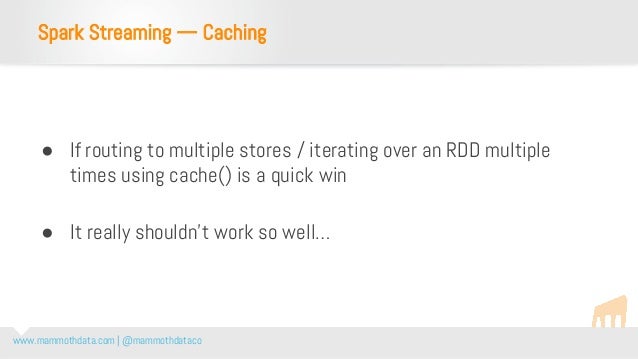

  29. 29. www.mammothdata.com | @mammothdataco ● If routing to multiple stores / iterating over an RDD multiple times using cache() is a quick win ● It really shouldn’t work so well… Spark Streaming — Caching

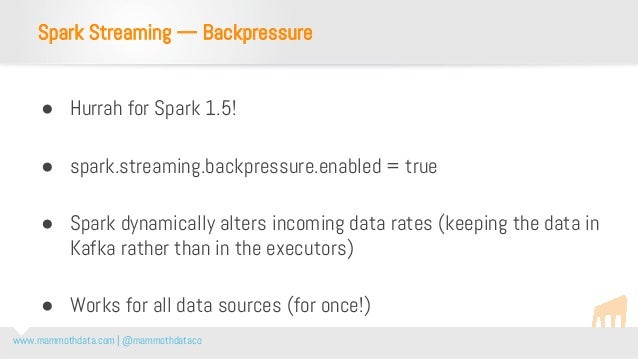

  30. 30. www.mammothdata.com | @mammothdataco ● Hurrah for Spark 1.5! ● spark.streaming.backpressure.enabled = true ● Spark dynamically alters incoming data rates (keeping the data in Kafka rather than in the executors) ● Works for all data sources (for once!) Spark Streaming — Backpressure

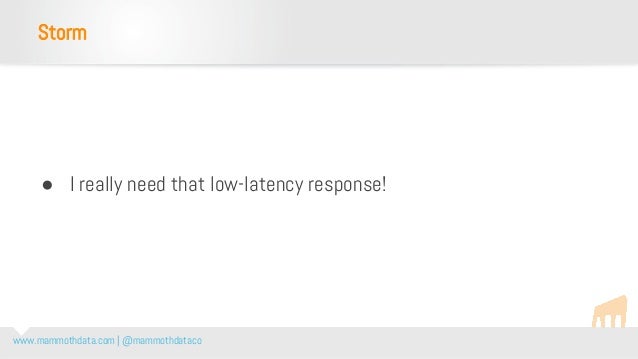

  31. 31. www.mammothdata.com | @mammothdataco ● I really need that low-latency response! Storm

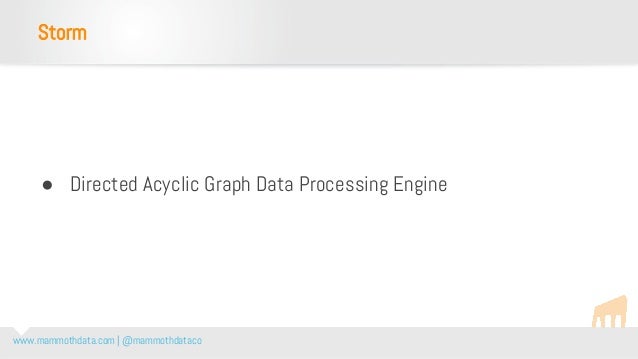

  32. 32. www.mammothdata.com | @mammothdataco ● Directed Acyclic Graph Data Processing Engine Storm
  33. 33. www.mammothdata.com | @mammothdataco Spark “Very Good, Sir”
  34. 34. www.mammothdata.com | @mammothdataco Storm “Here you go!”

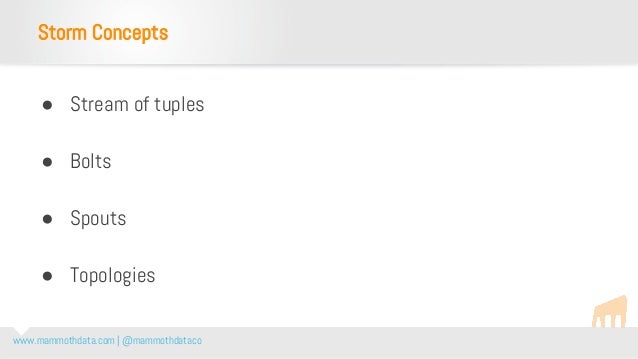

  35. 35. www.mammothdata.com | @mammothdataco ● Stream of tuples ● Bolts ● Spouts ● Topologies Storm Concepts

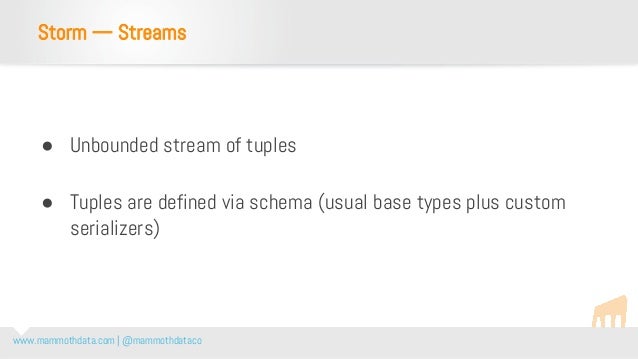

  36. 36. www.mammothdata.com | @mammothdataco ● Unbounded stream of tuples ● Tuples are defined via schema (usual base types plus custom serializers) Storm — Streams

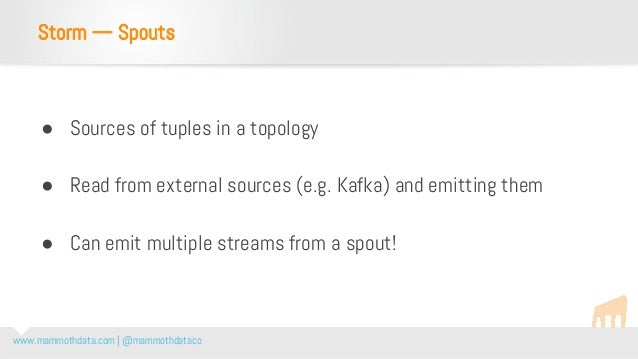

  37. 37. www.mammothdata.com | @mammothdataco ● Sources of tuples in a topology ● Read from external sources (e.g. Kafka) and emitting them ● Can emit multiple streams from a spout! Storm — Spouts

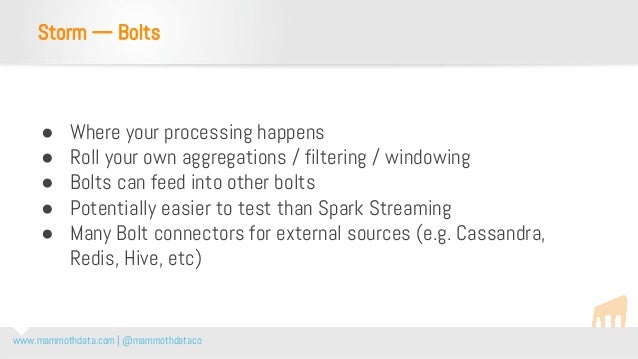

  38. 38. www.mammothdata.com | @mammothdataco ● Where your processing happens ● Roll your own aggregations / filtering / windowing ● Bolts can feed into other bolts ● Potentially easier to test than Spark Streaming ● Many Bolt connectors for external sources (e.g. Cassandra, Redis, Hive, etc) Storm — Bolts

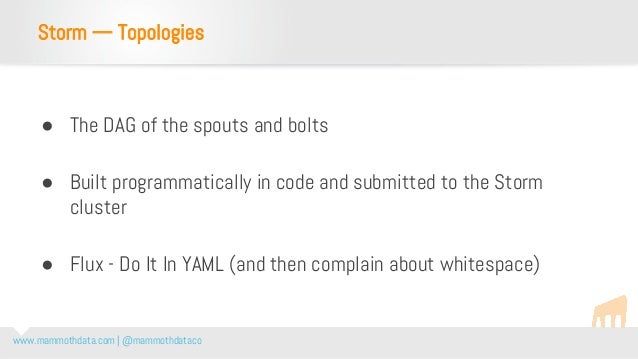

  39. 39. www.mammothdata.com | @mammothdataco ● The DAG of the spouts and bolts ● Built programmatically in code and submitted to the Storm cluster ● Flux - Do It In YAML (and then complain about whitespace) Storm — Topologies

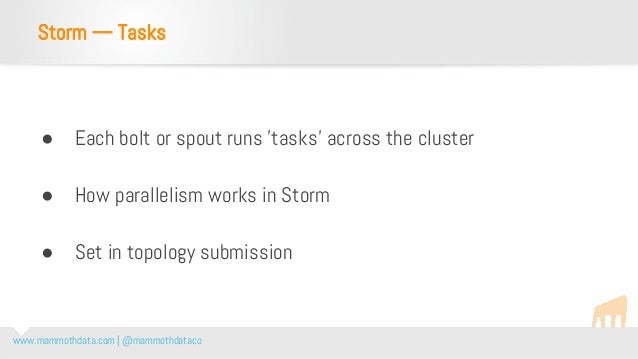

  40. 40. www.mammothdata.com | @mammothdataco ● Each bolt or spout runs 'tasks' across the cluster ● How parallelism works in Storm ● Set in topology submission Storm — Tasks

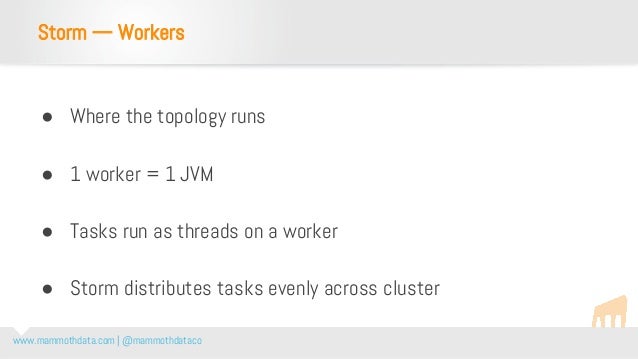

  41. 41. www.mammothdata.com | @mammothdataco ● Where the topology runs ● 1 worker = 1 JVM ● Tasks run as threads on a worker ● Storm distributes tasks evenly across cluster Storm — Workers
  42. 42. www.mammothdata.com | @mammothdataco ● True Streaming ● Tuples processed as they enter topology - low latency ● Scales far beyond Spark Streaming (currently) Storm — Good Things

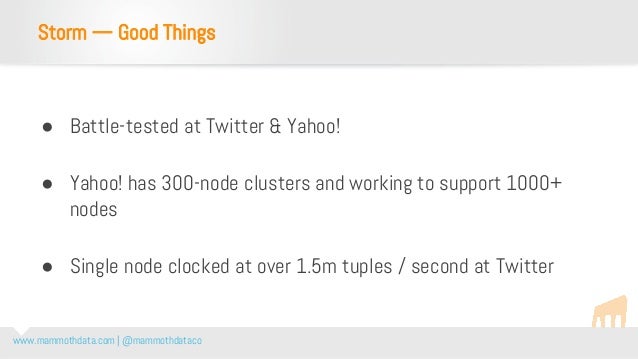

  43. 43. www.mammothdata.com | @mammothdataco ● Battle-tested at Twitter & Yahoo! ● Yahoo! has 300-node clusters and working to support 1000+ nodes ● Single node clocked at over 1.5m tuples / second at Twitter Storm — Good Things

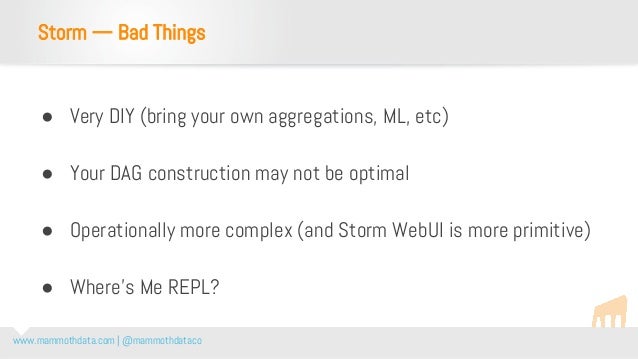

  44. 44. www.mammothdata.com | @mammothdataco ● Very DIY (bring your own aggregations, ML, etc) ● Your DAG construction may not be optimal ● Operationally more complex (and Storm WebUI is more primitive) ● Where’s Me REPL? Storm — Bad Things
  45. 45. www.mammothdata.com | @mammothdataco Spark or Storm?
  46. 46. www.mammothdata.com | @mammothdataco ● SLA on latency? Spark or Storm?

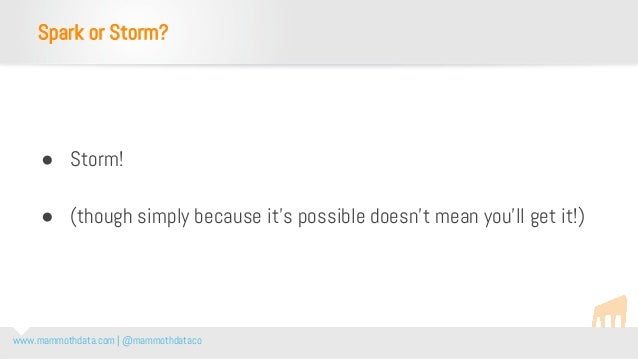

  47. 47. www.mammothdata.com | @mammothdataco ● Storm! ● (though simply because it’s possible doesn’t mean you’ll get it!) Spark or Storm?

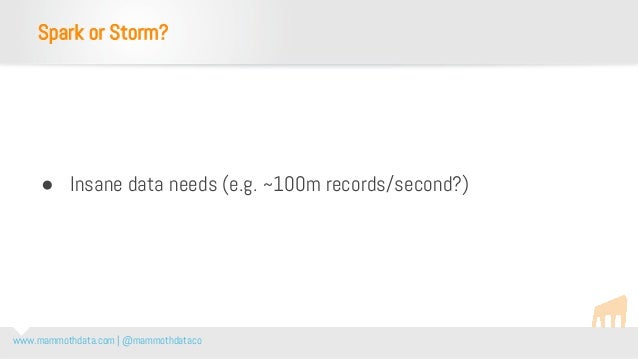

  48. 48. www.mammothdata.com | @mammothdataco ● Insane data needs (e.g. ~100m records/second?) Spark or Storm?

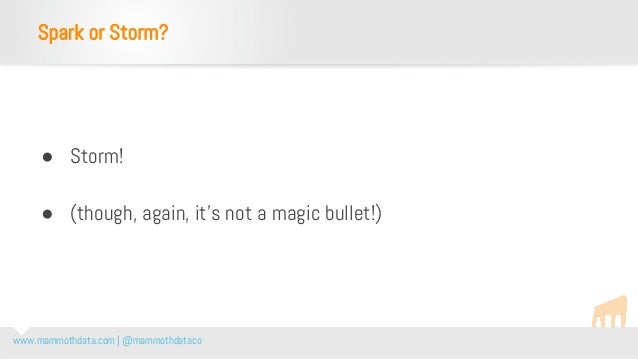

  49. 49. www.mammothdata.com | @mammothdataco ● Storm! ● (though, again, it’s not a magic bullet!) Spark or Storm?

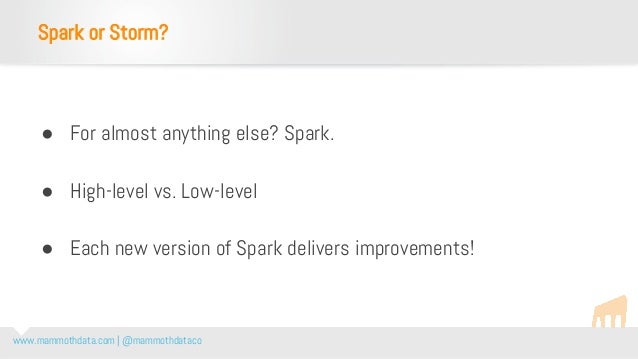

  50. 50. www.mammothdata.com | @mammothdataco ● For almost anything else? Spark. ● High-level vs. Low-level ● Each new version of Spark delivers improvements! Spark or Storm?

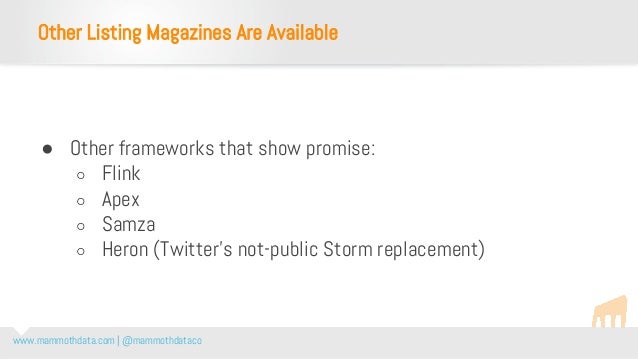

  51. 51. www.mammothdata.com | @mammothdataco ● Other frameworks that show promise: ○ Flink ○ Apex ○ Samza ○ Heron (Twitter’s not-public Storm replacement) Other Listing Magazines Are Available
  52. 52. www.mammothdata.com | @mammothdataco Questions?

×
