How Networking works with Data Science

  1. 1. 從網路封包看待資料 科學的應用 HWCHIU @ RLADIES-TAIPEI

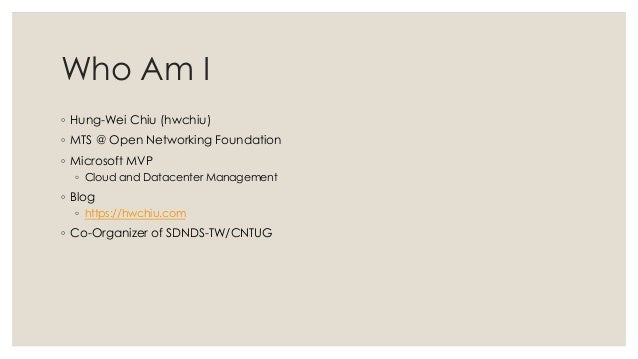

  2. 2. Who Am I ◦ Hung-Wei Chiu (hwchiu) ◦ MTS @ Open Networking Foundation ◦ Microsoft MVP ◦ Cloud and Datacenter Management ◦ Blog ◦ https://hwchiu.com ◦ Co-Organizer of SDNDS-TW/CNTUG

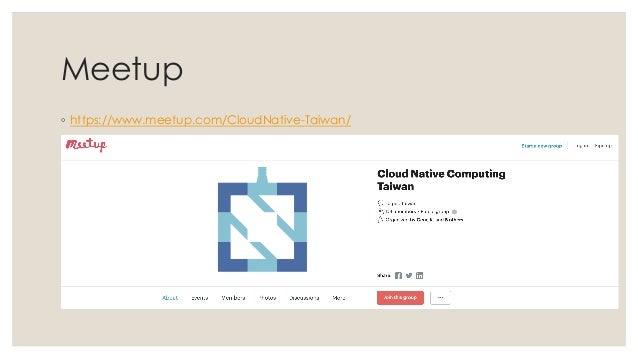

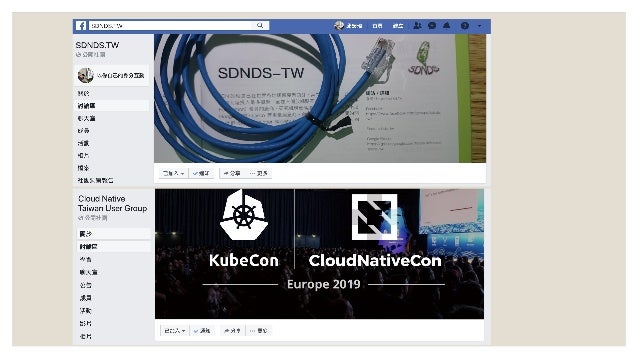

  3. 3. Meetup ◦ https://www.meetup.com/CloudNative-Taiwan/
  4. 4. COSCUP ◦ https://coscup.org/2019/ ◦ 81/17 ◦ SDN x CNTUG x Golang ◦ 180 人會議室

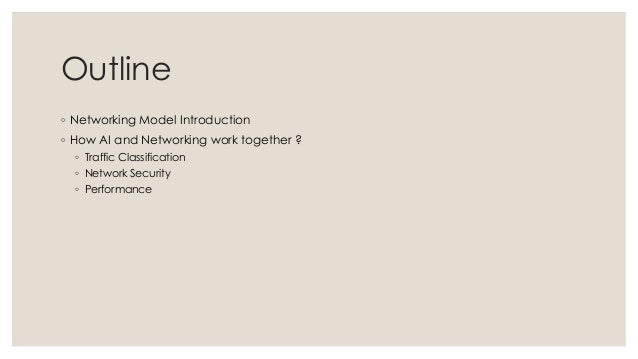

  5. 5. Outline ◦ Networking Model Introduction ◦ How AI and Networking work together ? ◦ Traffic Classification ◦ Network Security ◦ Performance

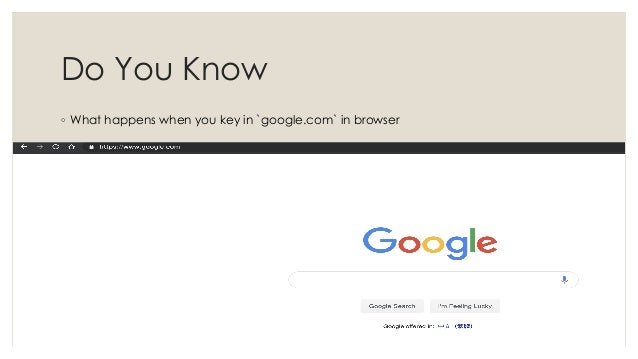

  6. 6. Do You Know ◦ What happens when you key in `google.com` in browser

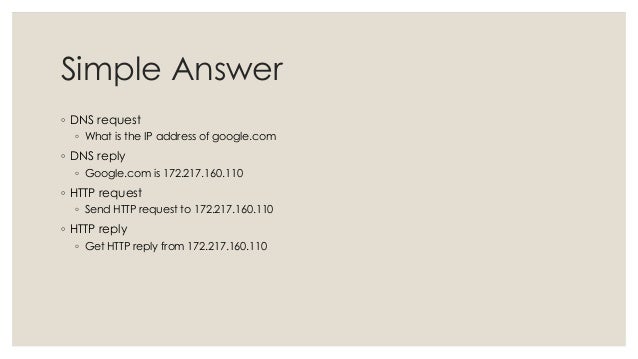

  7. 7. Simple Answer ◦ DNS request ◦ What is the IP address of google.com ◦ DNS reply ◦ Google.com is 172.217.160.110 ◦ HTTP request ◦ Send HTTP request to 172.217.160.110 ◦ HTTP reply ◦ Get HTTP reply from 172.217.160.110
  8. 8. Better Answer ◦ Layer2, MAC ◦ Layer3, ICMP, ARP, IPv4 ◦ Layer4, TCP, port 80 ◦ Layer7, DNS, HTTP ◦ Routing Table ◦ ARP Table ◦ …etc
  9. 9. OSI – TCP/IP https://techdifferences.com/difference-between-tcp-ip-and-osi-model.html Layer1 Layer2 Layer3 Layer4 Layer5 Layer6 Layer7
  10. 10. How it works https://www.javatpoint.com/computer-network-tcp-ip-model Layer1 Layer2 Layer3 Layer4 Layer7
  11. 11. Apps TCP/ UDP IP Layer2 Layer1 Apps TCP/ UDP IP Layer2 Layer1 Layer2 Header Layer2 Data Layer2 Footer Layer3 Header Layer3 Data Layer4 Header Layer4 Data Layer7 Data 01010101010101010101`10111010101010101010111111110100011111111110
  12. 12. Layer4 ◦ TCP/UDP ◦ TCP ◦ Transmission Control Protocol ◦ Reliable Protocol ◦ TCP guarantees the recipient will receive the packets in order by numbering them. ◦ UDP ◦ User Datagram Protocol ◦ Throws all the error-checking stuff out ◦ Is used when speed is desirable and error correction is not necessary.
  13. 13. Layer3 ◦ IPv4/IPv6/ARP/ICMP/IGMP ◦ IPv4 ◦ 32 bit ◦ 140.112.1.1 (8bit * 4), ◦ 255.255.255.255 ◦ IPv6 ◦ 128 bit ◦ 2001:db8:85a3:8d3:1319:8a2e:0370:7348 (4bit * 4 * 8) ◦ HEX format (0-f)
  14. 14. Layer2 ◦ MAC address ◦ 42:00:f5:18:39:01 ◦ VLAN ◦ Switching

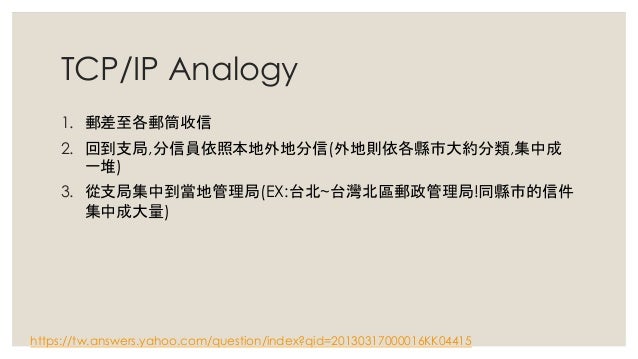

  15. 15. TCP/IP Analogy 1. 郵差至各郵筒收信 2. 回到支局,分信員依照本地外地分信(外地則依各縣市大約分類,集中成 一堆) 3. 從支局集中到當地管理局(EX:台北~台灣北區郵政管理局!同縣市的信件 集中成大量) https://tw.answers.yahoo.com/question/index?qid=20130317000016KK04415

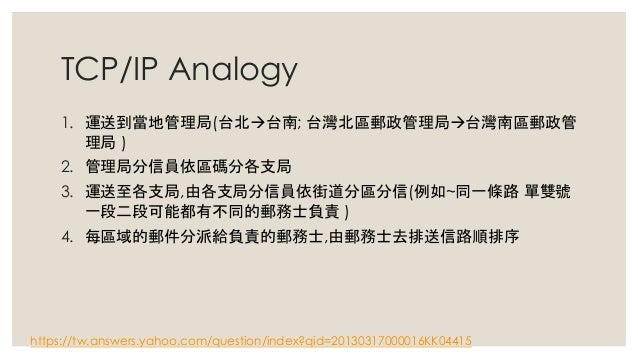

  16. 16. TCP/IP Analogy 1. 運送到當地管理局(台北à台南; 台灣北區郵政管理局à台灣南區郵政管 理局 ) 2. 管理局分信員依區碼分各支局 3. 運送至各支局,由各支局分信員依街道分區分信(例如~同一條路 單雙號 一段二段可能都有不同的郵務士負責 ) 4. 每區域的郵件分派給負責的郵務士,由郵務士去排送信路順排序 https://tw.answers.yahoo.com/question/index?qid=20130317000016KK04415
  17. 17. 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所 車子/飛機/郵輪..等 TCP/IP Analogy

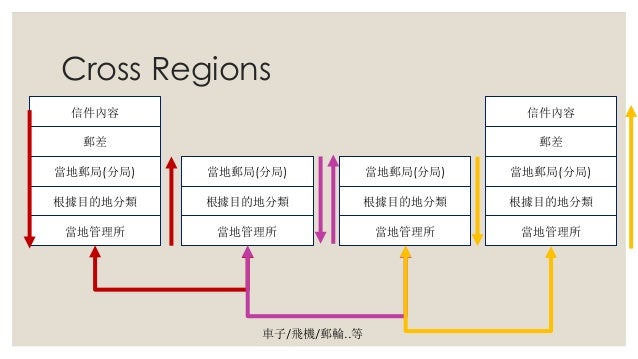

  18. 18. 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所 當地郵局(分局) 根據目的地分類 當地管理所 車子/飛機/郵輪..等 Cross Regions 當地郵局(分局) 根據目的地分類 當地管理所 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所

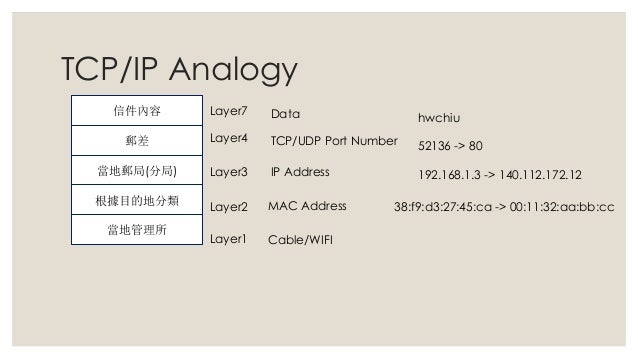

  19. 19. 郵差 當地郵局(分局) 根據目的地分類 信件內容 當地管理所 Cable/WIFI TCP/IP Analogy Layer1 Layer2 Layer3 Layer4 Layer7 MAC Address IP Address TCP/UDP Port Number Data 38:f9:d3:27:45:ca -> 00:11:32:aa:bb:cc 192.168.1.3 -> 140.112.172.12 hwchiu 52136 -> 80

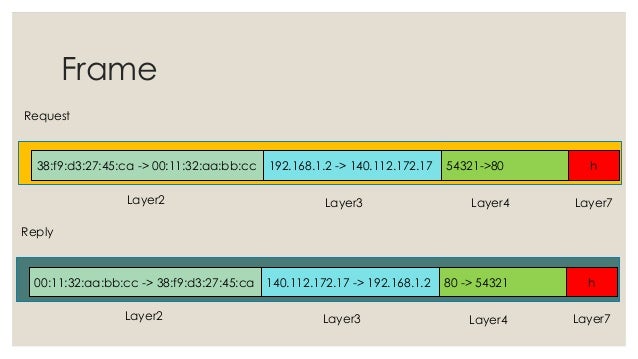

  20. 20. Frame 38:f9:d3:27:45:ca -> 00:11:32:aa:bb:cc h192.168.1.2 -> 140.112.172.17 54321->80 Layer2 Layer3 Layer4 Layer7 Request 00:11:32:aa:bb:cc -> 38:f9:d3:27:45:ca h140.112.172.17 -> 192.168.1.2 80 -> 54321 Layer2 Layer3 Layer4 Layer7 Reply
  21. 21. Demo Example ◦ Download Wirshark ◦ Use the wirshark to capture and analyze packets. ◦ We try to use the telnet to access ptt.cc

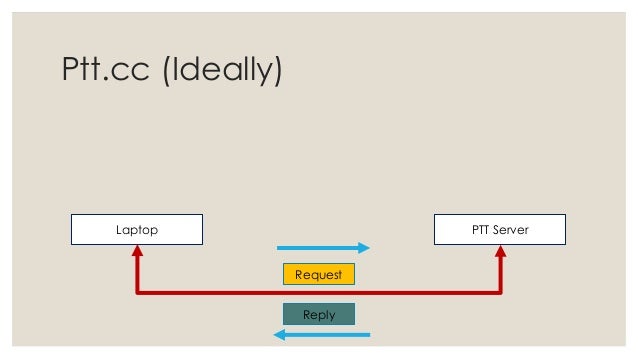

  22. 22. Laptop PTT Server Ptt.cc (Ideally) Request Reply

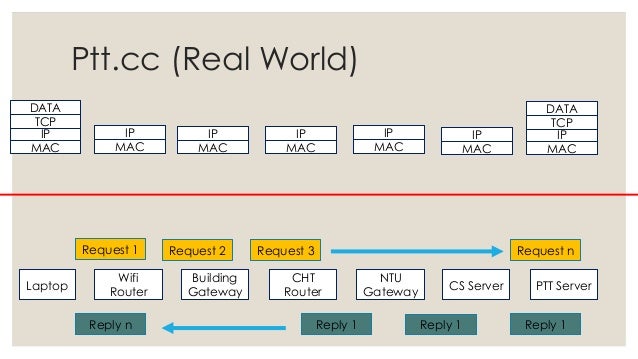

  23. 23. Laptop Wifi Router Ptt.cc (Real World) Request 1 Reply 1 Building Gateway CHT Router NTU Gateway CS Server PTT Server Request 2 Request 3 Request n Reply 1Reply 1Reply n IP MAC IP MAC IP MAC IP MAC IP MAC IP MAC DATA TCP IP MAC DATA TCP

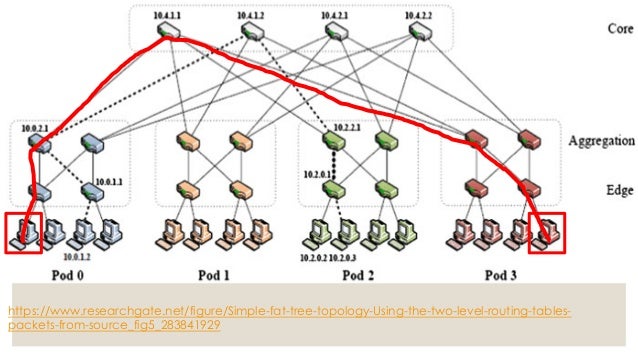

  24. 24. ◦ https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level- routing-tables-packets-from-source_fig5_283841929 https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level-routing-tables- packets-from-source_fig5_283841929
  25. 25. ◦ https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level- routing-tables-packets-from-source_fig5_283841929 https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level-routing-tables- packets-from-source_fig5_283841929
  26. 26. ◦ https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level- routing-tables-packets-from-source_fig5_283841929 https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level-routing-tables- packets-from-source_fig5_283841929
  27. 27. ◦ https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level- routing-tables-packets-from-source_fig5_283841929 https://www.researchgate.net/figure/Simple-fat-tree-topology-Using-the-two-level-routing-tables- packets-from-source_fig5_283841929

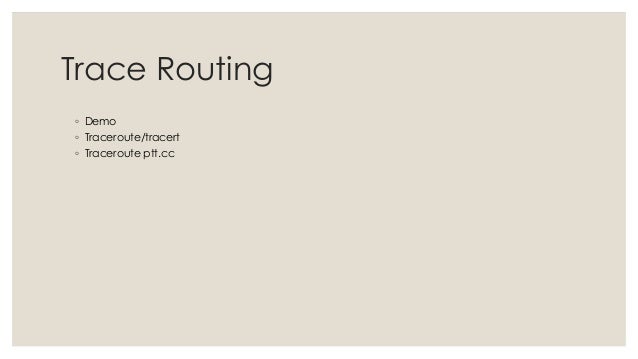

  28. 28. Trace Routing ◦ Demo ◦ Traceroute/tracert ◦ Traceroute ptt.cc
  29. 29. AI & Networking ◦ What kind of the services/functions we used in the networking area ? ◦ Traffic Classification ◦ Security ◦ Performance ◦ Management

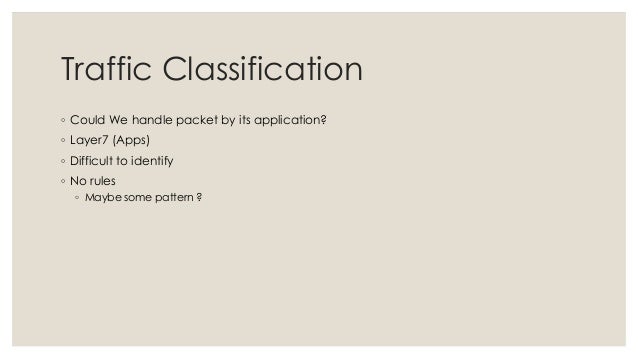

  30. 30. Traffic Classification ◦ Could We handle packet by its application? ◦ Layer7 (Apps) ◦ Difficult to identify ◦ No rules ◦ Maybe some pattern ?

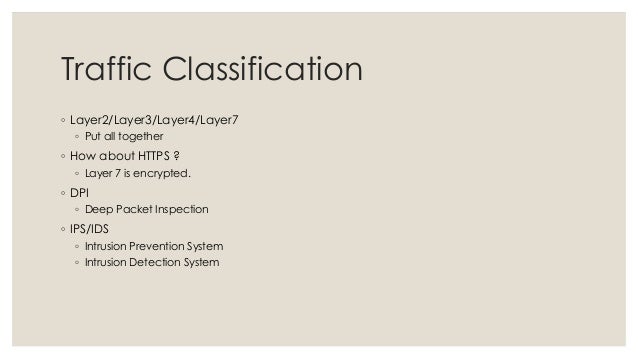

  31. 31. Traffic Classification ◦ Layer2/Layer3/Layer4/Layer7 ◦ Put all together ◦ How about HTTPS ? ◦ Layer 7 is encrypted. ◦ DPI ◦ Deep Packet Inspection ◦ IPS/IDS ◦ Intrusion Prevention System ◦ Intrusion Detection System
  32. 32. Example ◦ DropBox ◦ https://github.com/ntop/nDPI/blob/dev/src/lib/protocols/dropbox.c ◦ Raduis ◦ https://github.com/ntop/nDPI/blob/dev/src/lib/protocols/radius.c ◦ Openvpn ◦ https://github.com/ntop/nDPI/blob/f47be6ef6045a97a20f7a929d15a0354260c0414/src/lib/prot ocols/openvpn.c

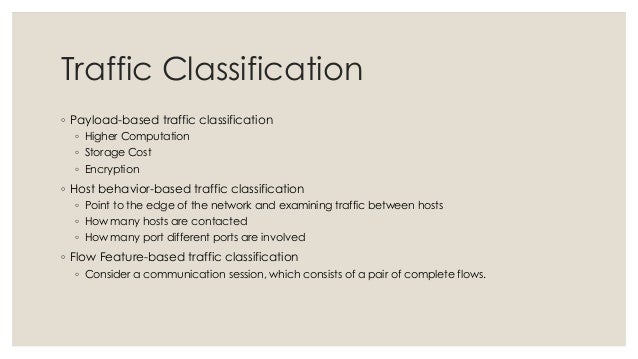

  33. 33. Traffic Classification ◦ Payload-based traffic classification ◦ Higher Computation ◦ Storage Cost ◦ Encryption ◦ Host behavior-based traffic classification ◦ Point to the edge of the network and examining traffic between hosts ◦ How many hosts are contacted ◦ How many port different ports are involved ◦ Flow Feature-based traffic classification ◦ Consider a communication session, which consists of a pair of complete flows.

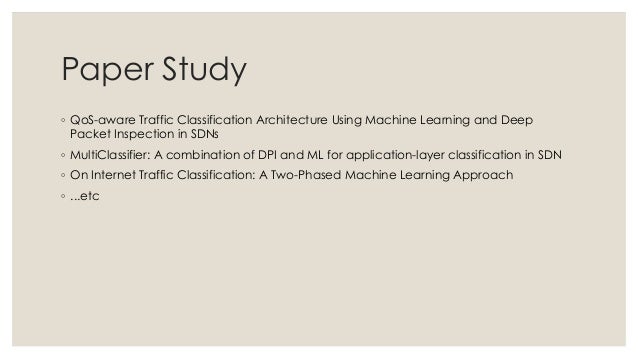

  34. 34. Paper Study ◦ QoS-aware Traffic Classification Architecture Using Machine Learning and Deep Packet Inspection in SDNs ◦ MultiClassifier: A combination of DPI and ML for application-layer classification in SDN ◦ On Internet Traffic Classification: A Two-Phased Machine Learning Approach ◦ ...etc

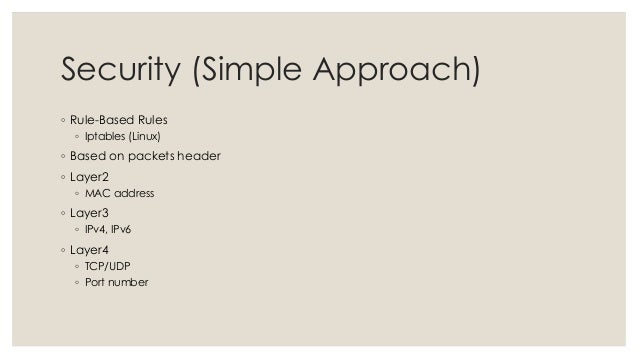

  35. 35. Security (Simple Approach) ◦ Rule-Based Rules ◦ Iptables (Linux) ◦ Based on packets header ◦ Layer2 ◦ MAC address ◦ Layer3 ◦ IPv4, IPv6 ◦ Layer4 ◦ TCP/UDP ◦ Port number

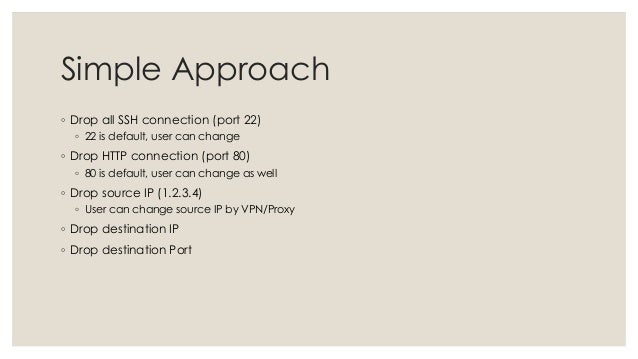

  36. 36. Simple Approach ◦ Drop all SSH connection (port 22) ◦ 22 is default, user can change ◦ Drop HTTP connection (port 80) ◦ 80 is default, user can change as well ◦ Drop source IP (1.2.3.4) ◦ User can change source IP by VPN/Proxy ◦ Drop destination IP ◦ Drop destination Port

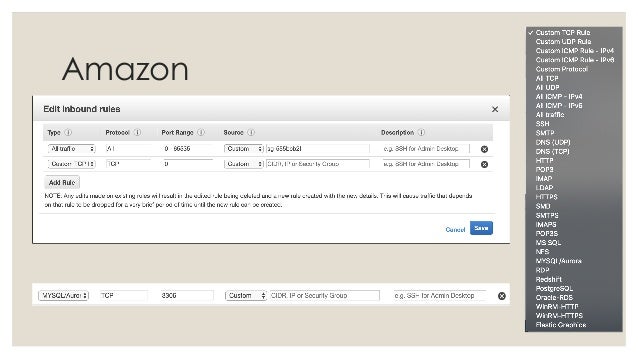

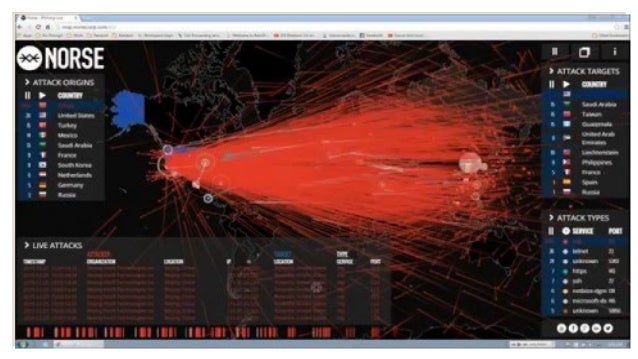

  37. 37. Amazon
  38. 38. Security ◦ Misuse-based intrusion detection ◦ Monitor the network and match the network activities against the expected behavior of an attack ◦ Anomaly-based intrusion detection ◦ Flow feature-based ◦ Payload-based anomaly detection ◦ Deep and reinforcement learning for intrusion detection ◦ Hybrid intrusion detection https://jisajournal.springeropen.com/articles/10.1186/s13174-018-0087-2#Sec49
  39. 39. Paper Study ◦ Artificial Neural Networks for Misuse Detection ◦ HYBRID NEURAL NETWORK AND C4.5 FOR MISUSE DETECTION ◦ Modeling intrusion detection system using hybrid intelligent systems ◦ Network Anomaly Detection by Cascading K-Means Clustering and C4.5 Decision Tree algorithm ◦ …

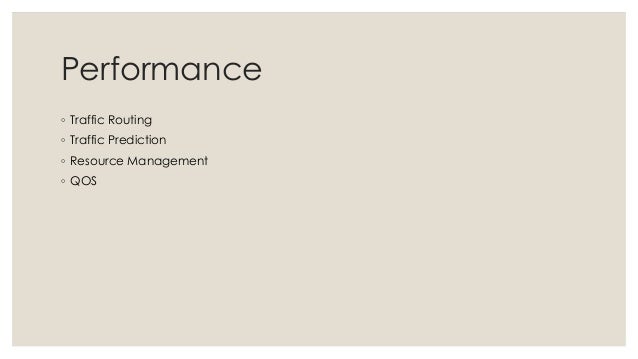

  40. 40. Performance ◦ Traffic Routing ◦ Traffic Prediction ◦ Resource Management ◦ QOS
  41. 41. Traffic Routing ◦ Select a path for packet transmission ◦ Cost minimization ◦ Maximization of link utilization ◦ QoS provisioning https://www.youtube.com/watch?v=3MSYBAK-Y_E
  42. 42. Traffic Routing https://www.youtube.com/watch?v=3MSYBAK-Y_E

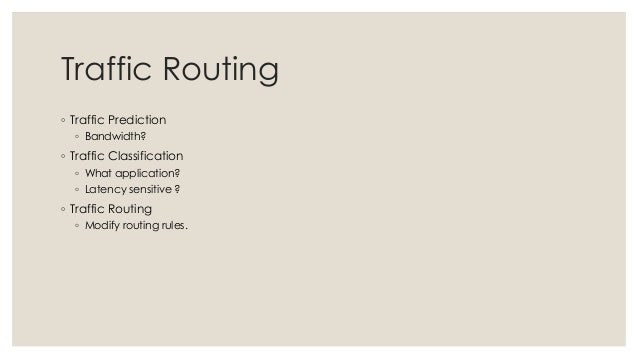

  43. 43. Traffic Routing ◦ Traffic Prediction ◦ Bandwidth? ◦ Traffic Classification ◦ What application? ◦ Latency sensitive ? ◦ Traffic Routing ◦ Modify routing rules.
  44. 44. Project ONAP
  45. 45. Project ONAP
  46. 46. Q&A

×
