Mio

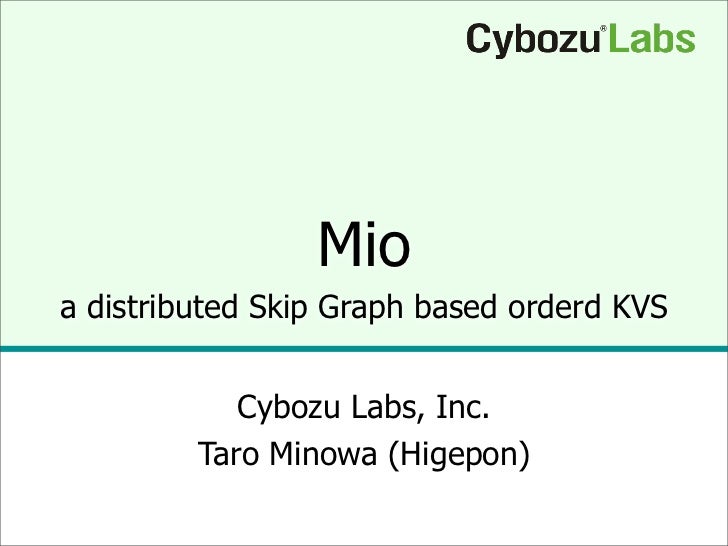

a distributed Skip Graph based orderd KVS


            Cybozu Labs, Inc.
         Taro Minowa (Higepon)
Introduce myself

   @higepon
   Mona OS
         http://www.monaos.org
   Mosh
         A fast Scheme interpreter
  ...
Summary

   Mio is...
         a distributed orderd KVS
         memcached + range search
         Skip Graph based
  ...
Background




Feb 26 2010   Mio - a Skip Graph based ordered KVS   4
RDBMS vs KVS
                                                 Scalability
              KVS   set/get

         volatile

...
RDBMS vs KVS
                                                 Scalability
              KVS   set/get

         volatile

...
Mio
                                       Scalability
              KVS



                                              ...
Mio
                                        Scalability
              KVS   Mio

                    +Range search

      ...
Mio
                                        Scalability
              KVS   Mio

                    +Range search

      ...
Range search?

   Queries
         last 7 days
         prev/next
         Top 10 ranking
   SQL
         SELECT * F...
Mio




Feb 26 2010   Mio - a Skip Graph based ordered KVS   8
The Challenges and Design Decisions

   Range search
         Ordered structure
         Skip Graphs algorithm
   Scal...
Skip Graphs
                  James Aspnes (2003)




Feb 26 2010   Mio - a Skip Graph based ordered KVS   10
Supported operations

   search by key
   insert (join)
   remove
   range search by key1 and key2




Feb 26 2010    ...
Set of sorted doubly linked lists


        Shibuya   Shinjuku    Tamachi              Ueno             Yoyogi


    Same...
Make an express lane
                               Skip
 Express
                  Shinjuku                         Ueno
...
Multiple lanes
 Level 2


 Level 1


 Level 0


              Shibuya   Shinjuku   Tamachi         Ueno                   ...
Search
 Level 2


 Level 1


 Level 0


              Shibuya   Shinjuku   Tamachi         Ueno                   Yoyogi

...
Range Search
 Level 2


 Level 1


 Level 0


              Shibuya   Shinjuku   Tamachi         Ueno                   Yo...
Remove

                                                             B


        A      B        C                        ...
Insert

                      B


          A                      C                     A           B   C




 Insert on...
Easy to implement?

   No
         Really simple, but ...
         We should support concurrent insert/remove
         ...
Our concurrent algorithm

   Lock some nodes
   Please read the source code :)
   Defined three invariants

           ...
Implementation




Feb 26 2010   Mio - a Skip Graph based ordered KVS   21
Written in Erlang

   A station(key, value) is a process
         gen_server process
         Hold left/right on each l...
Performance

   5000 qps on single node
   really slow on multiple nodes
         need less communication between nodes...
Demo




Feb 26 2010   Mio - a Skip Graph based ordered KVS   24
Tips for practical Erlang

   Max process option +P
         Set proper value. Don’t use MAX.
   gerbage_collect()
    ...
Tips for practical Erlang

   Common test
         Coverage
         load test
   gen_server:call is slow
         Us...
Summary, Once more

   Mio is...
         a distributed orderd KVS
         memcached + range search
         Skip Gra...
