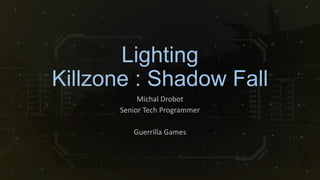

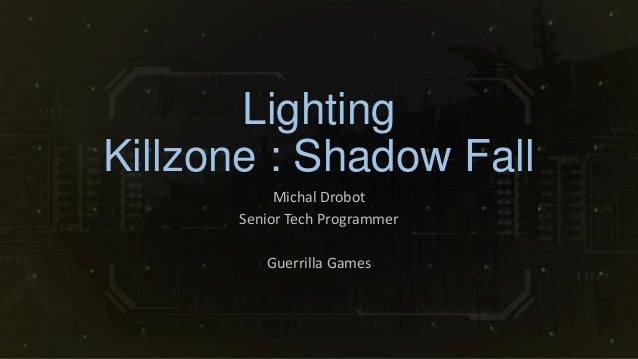

LightingKillzone : Shadow FallMichal DrobotSenior Tech ProgrammerGuerrilla Games
Intro Guerrilla Games is SCEE studio based in Amsterdam Working on two Playstation 4 titles: Killzone: Shadow Fall New...
Focus Physically Based Lighting Physically Based Area Lights Rendering Pipeline
Motivation Killzone 3 Shipped in 2011 Matured PS3 technology Considered one of generation visual benchmark titles Kil...
Generation change
Motivation Physically Based Lighting Easier to achieve hyperrealism / photorealism Consistent look in different HDR env...
Theory

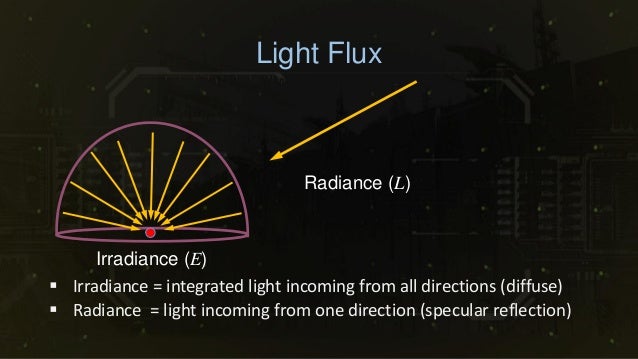

Light Flux Irradiance = integrated light incoming from all directions (diffuse) Radiance = light incoming from one direc...

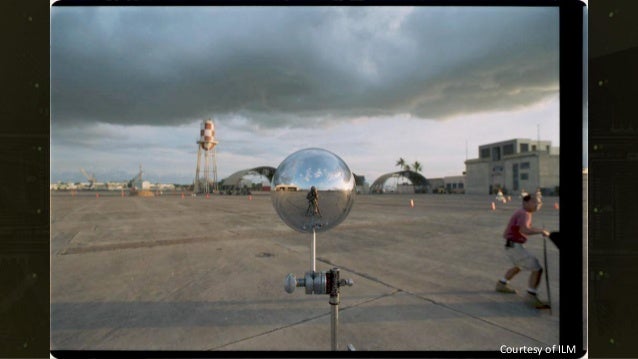

Courtesy of ILMImage Based Lighting (IBL)

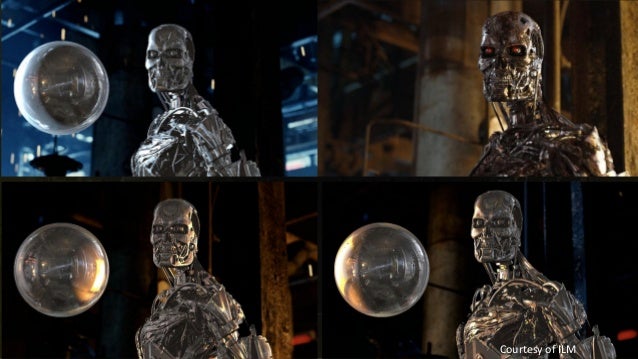

Courtesy of ILM
Courtesy of ILM

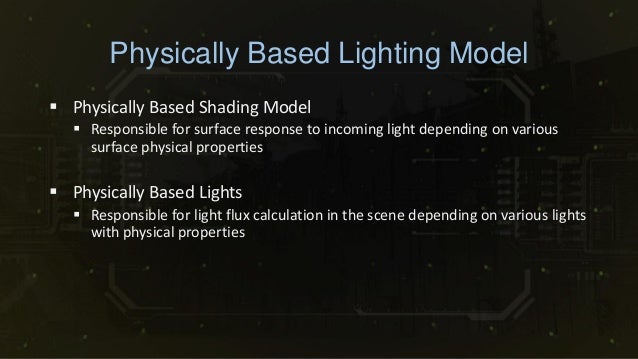

Physically Based Lighting Model Physically Based Shading Model Responsible for surface response to incoming light depend...

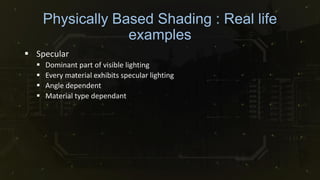

Physically Based Shading : Real lifeexamples Specular Dominant part of visible lighting Every material exhibits specula...

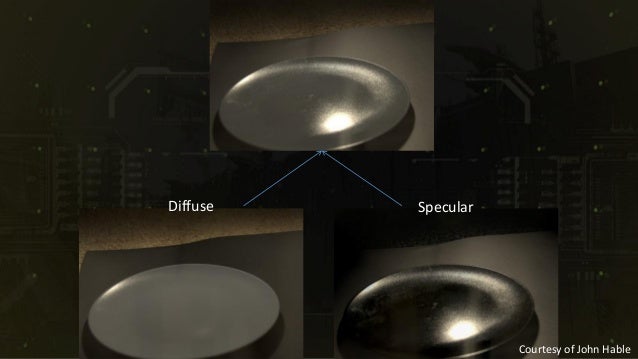

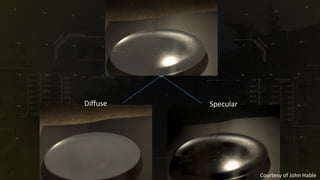

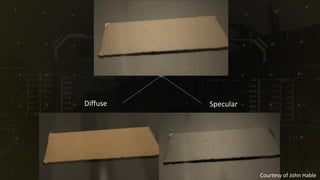

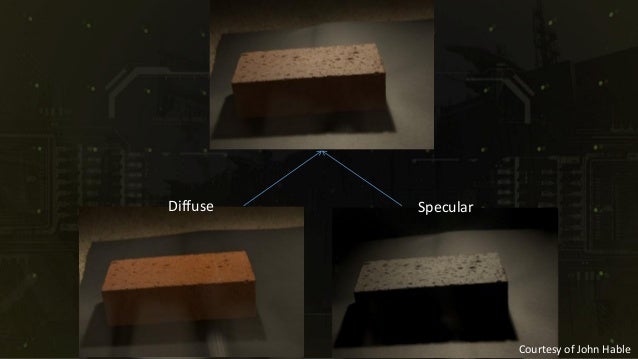

Real life lightingCourtesy of John HableDiffuse Specular
Real life lightingCourtesy of John HableDiffuse Specular
Real life lightingCourtesy of John HableDiffuse Specular
Real life lightingDiffuse Specular+Courtesy of John HableDiffuse Specular

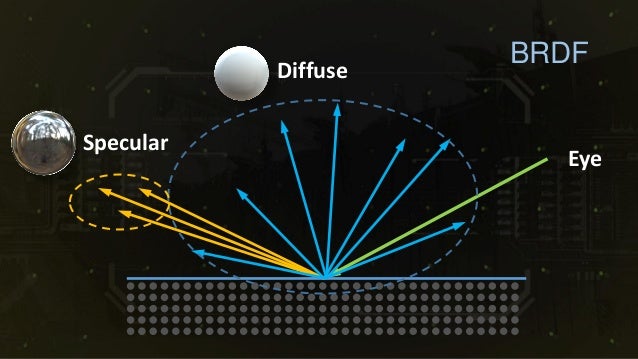

BRDFDiffuseSpecularEye
Fresnel‘Rough’ReflectionRefraction

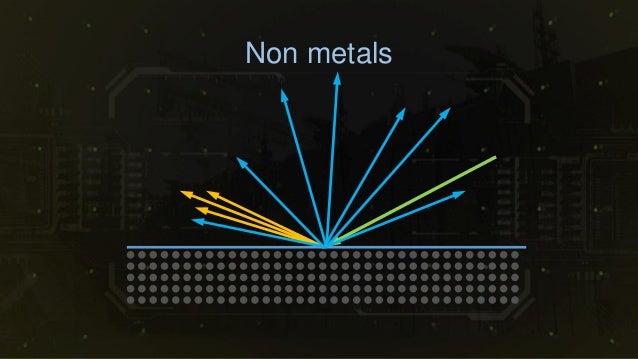

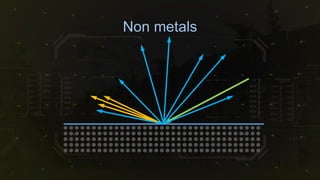

Non metals

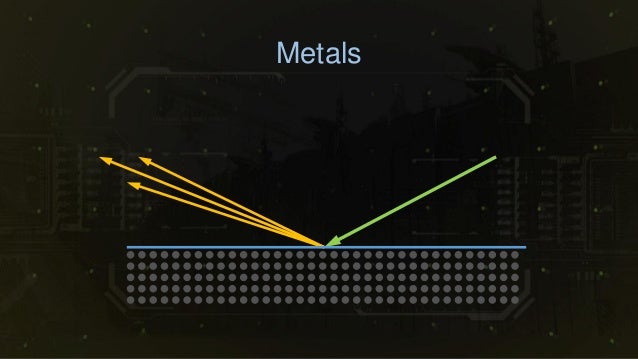

Metals

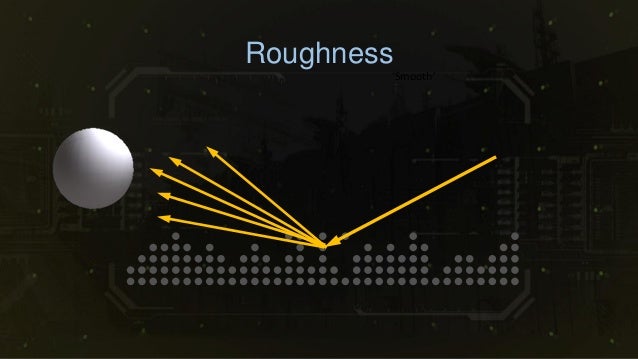

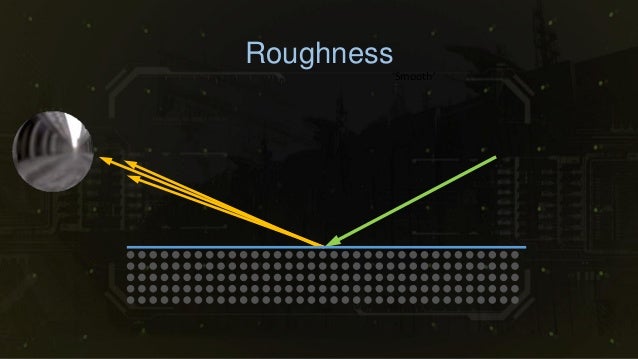

Roughness‘Smooth’‘Rough’
Roughness‘Smooth’

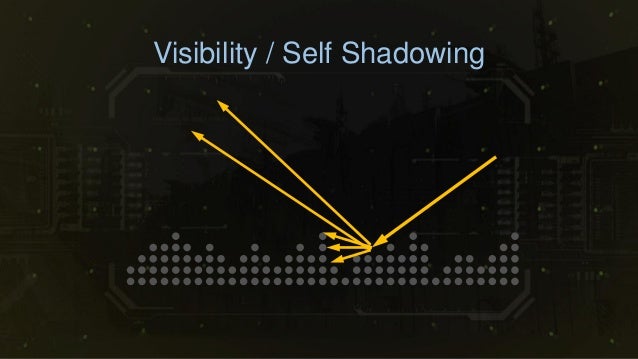

Visibility / Self Shadowing

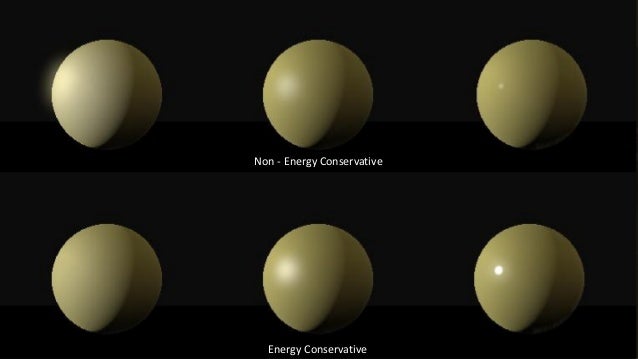

Energy ConservativeNon - Energy Conservative

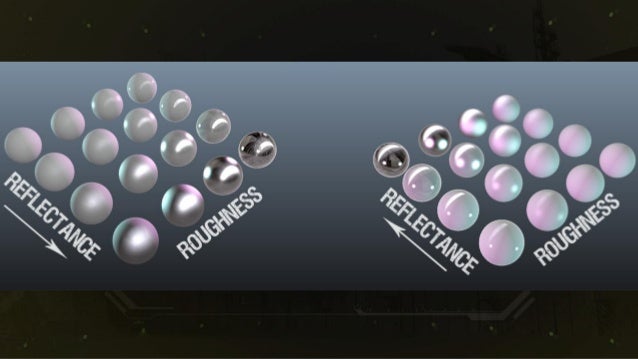

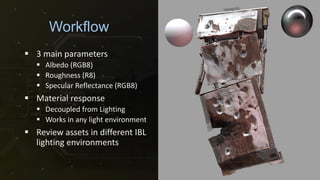

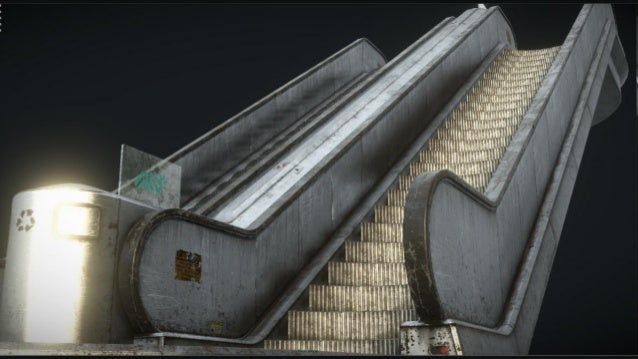

Workflow 3 main parameters Albedo (RGB8) Roughness (R8) Specular Reflectance (RGB8) Material response Decoupled from...

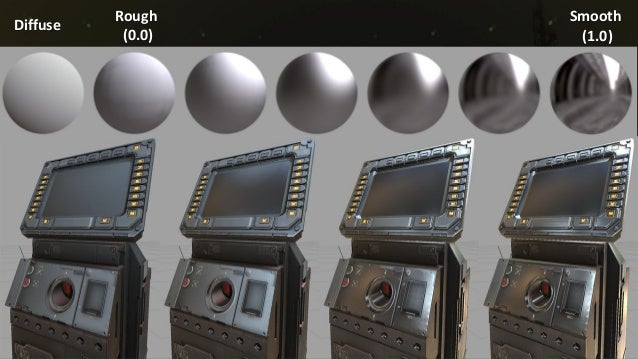

Smooth(1.0)Rough(0.0)Diffuse

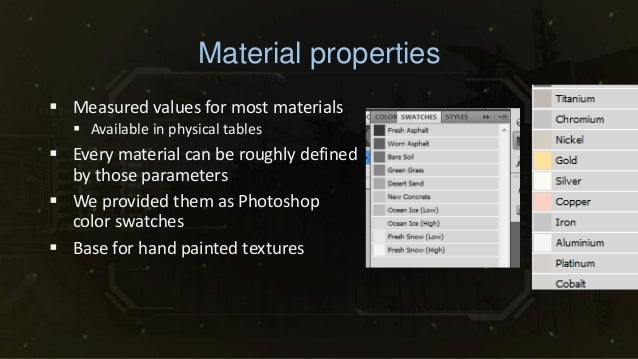

Material properties Measured values for most materials Available in physical tables Every material can be roughly defin...

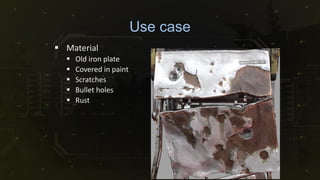

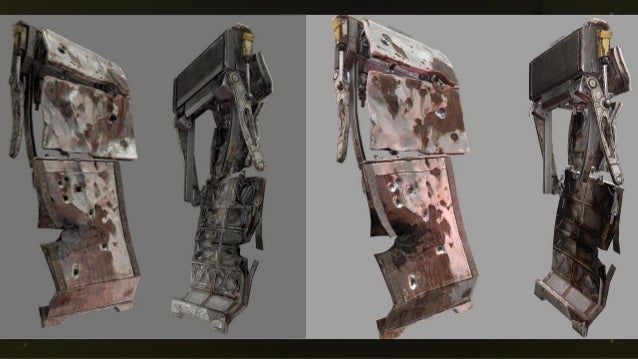

Use case Material Old iron plate Covered in paint Scratches Bullet holes Rust

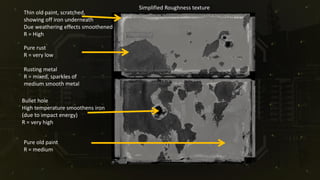

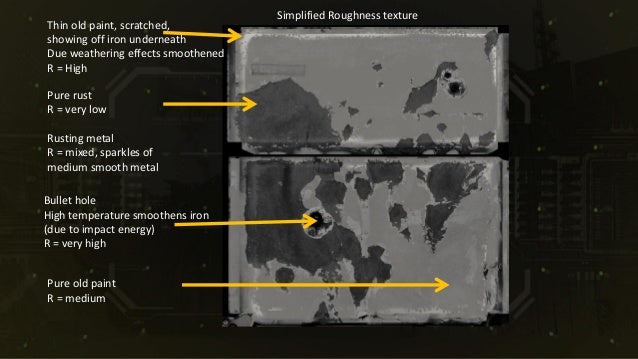

Simplified Roughness textureThin old paint, scratched,showing off iron underneathDue weathering effects smoothenedR = High...

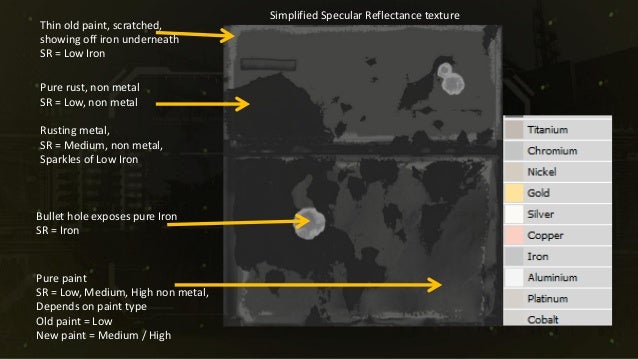

Simplified Specular Reflectance textureThin old paint, scratched,showing off iron underneathSR = Low IronPure rust, non me...

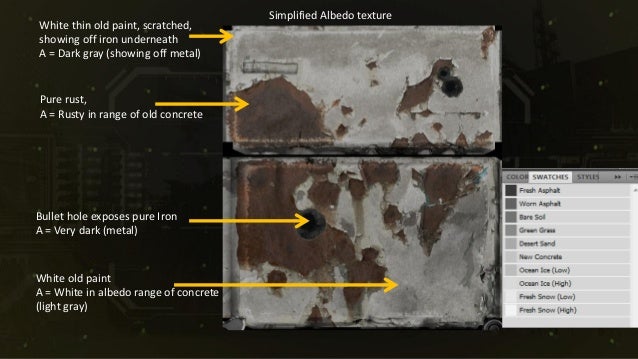

Simplified Albedo textureWhite thin old paint, scratched,showing off iron underneathA = Dark gray (showing off metal)Pure ...

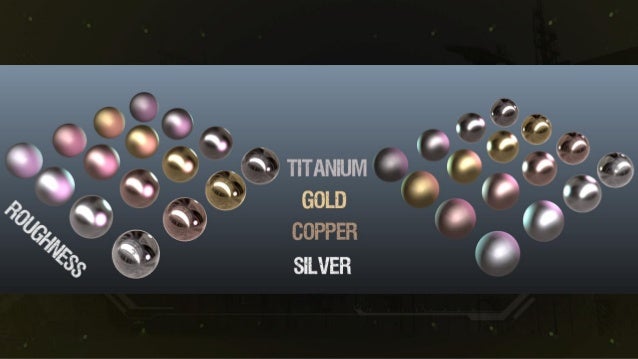

 Shadow Fall BRDF Based on Cook-Torrance Fresnel Smith Schlick Visiblity Function Normalization based onSpecular Refl...
IBL Point Based BRDF

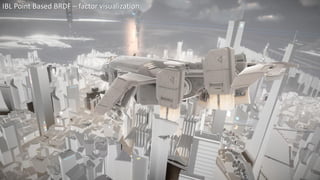

IBL Point Based BRDF – factor visualization

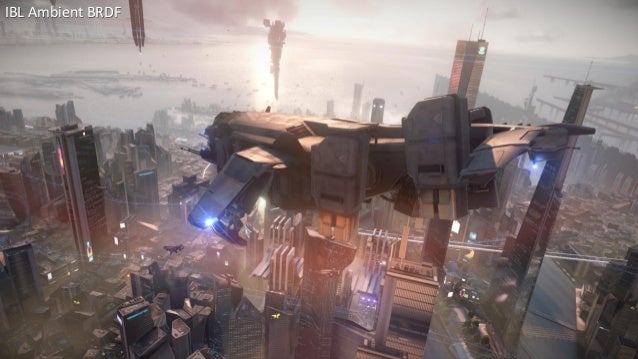

IBL Ambient BRDF – factor visualization
IBL Ambient BRDF

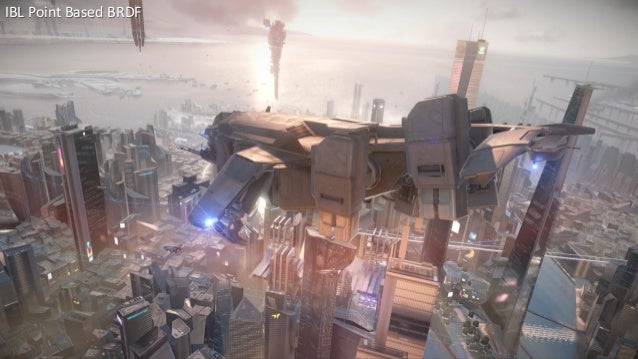

IBL Point Based BRDF
IBL Ambient BRDF

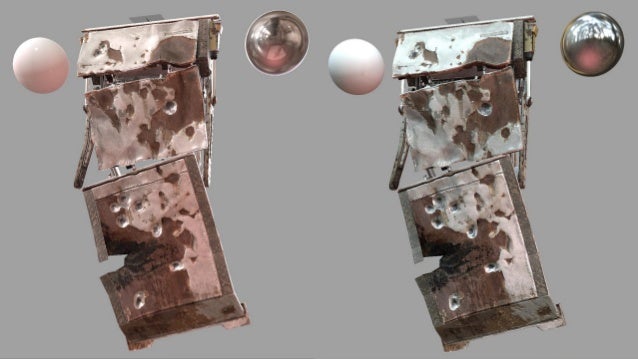

 Big step for the studio Artists had to adapt Training and workshops Production and Quality Win
Physically Based Lights

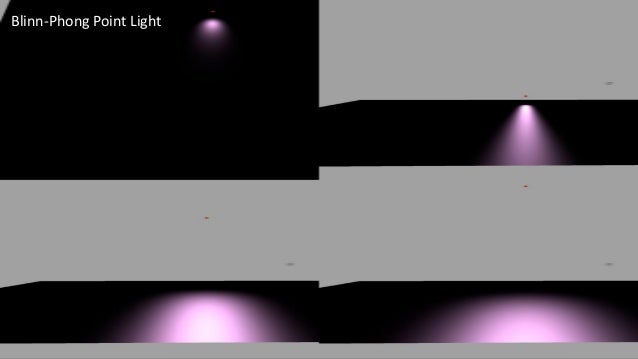

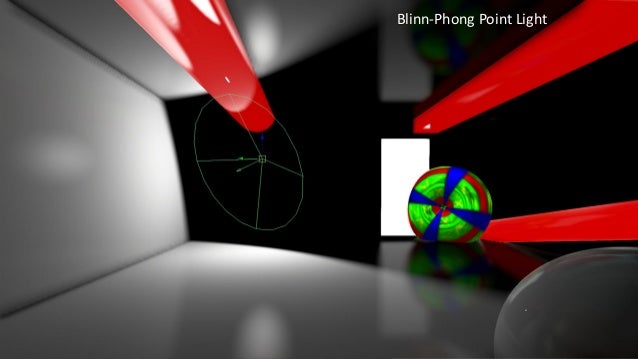

Blinn-Phong Point Light
Blinn-Phong Point Light

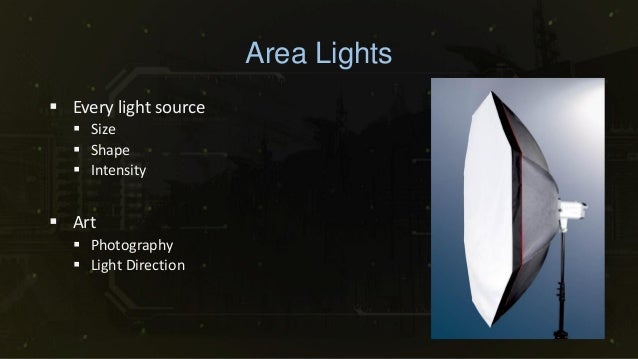

Area Lights Every light source Size Shape Intensity Art Photography Light Direction

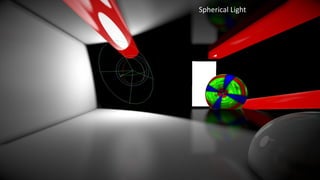

Spherical Light

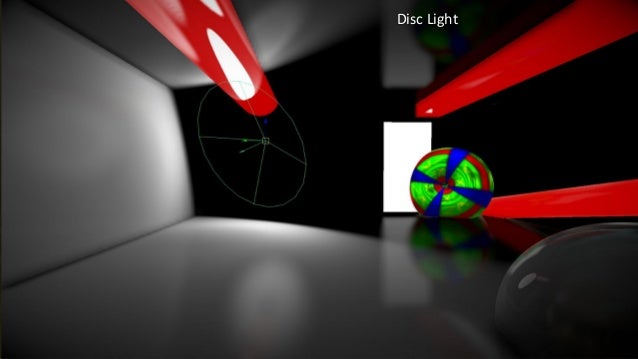

Disc Light

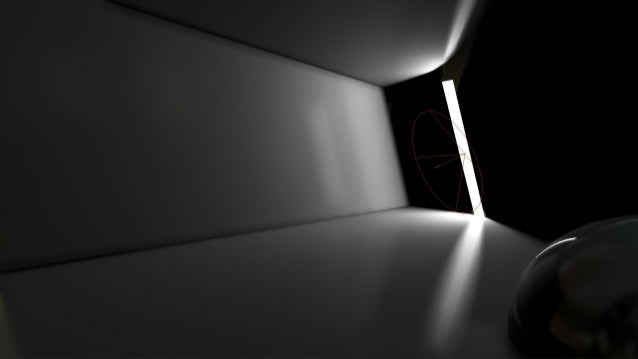

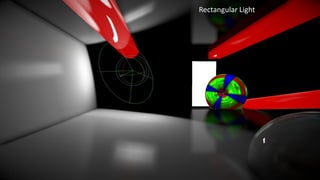

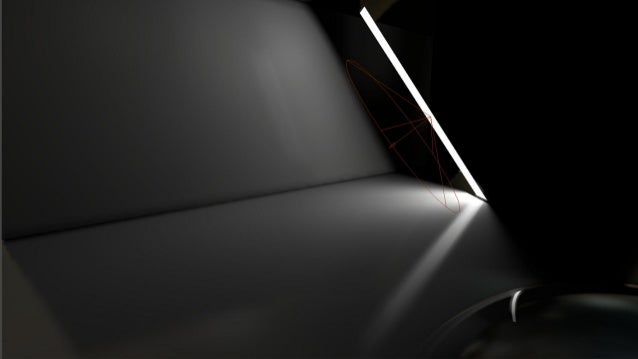

Rectangular Light

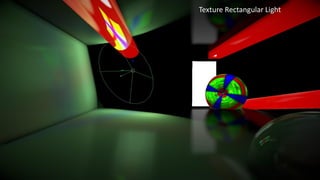

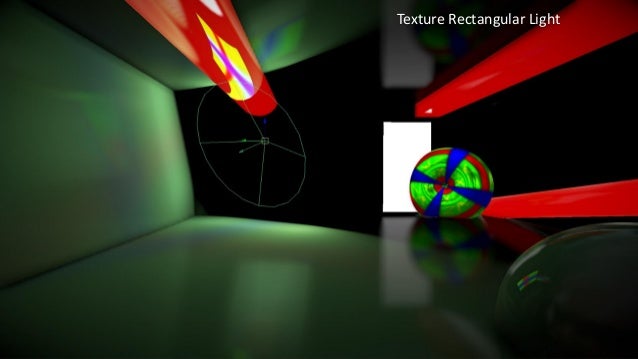

Texture Rectangular Light

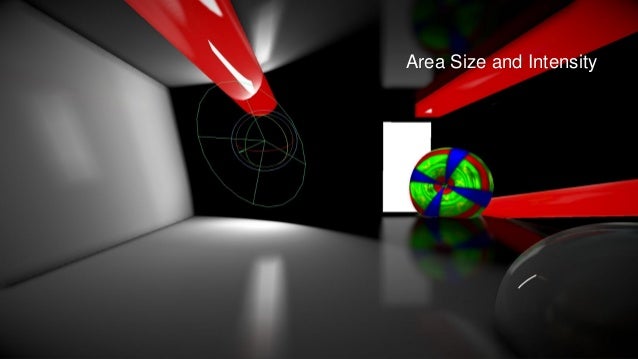

Area Size and Intensity

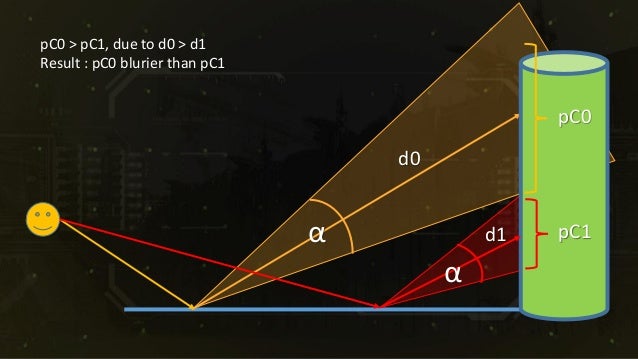

ααpC0pC1d0d1pC0 > pC1, due to d0 > d1Result : pC0 blurier than pC1
Irradiance Integral DA : I(p,n) = Integrate(A) [L * cos(fi) * cos(fo) * dA / d^2] dA – differential area of the light L...

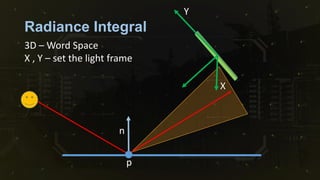

npYX3D – Word SpaceX , Y – set the light frameRadiance Integral

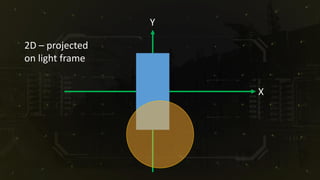

2D – projectedon light frameXY
2D – projectedon light frameXYArea of integration

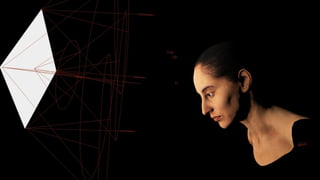

XYPDF to integrateOver Area

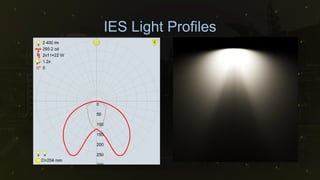

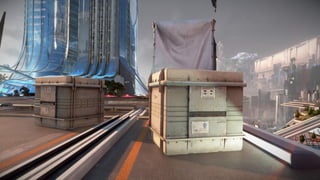

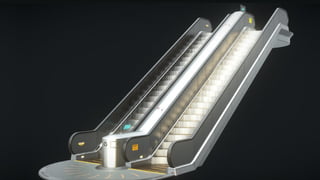

IES Light Profiles
IES Light Profiles
IES Light Profiles
Lighting Pipeline Overview

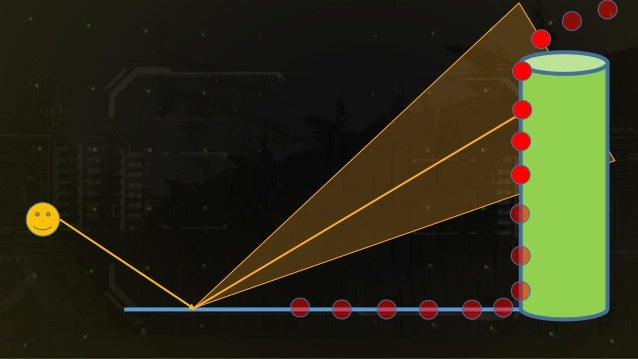

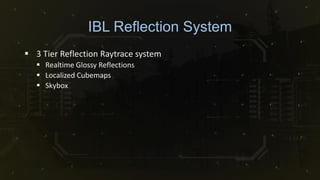

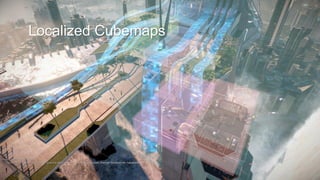

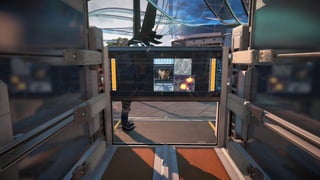

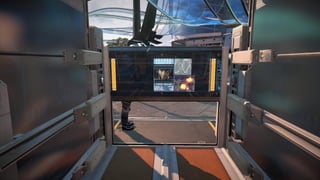

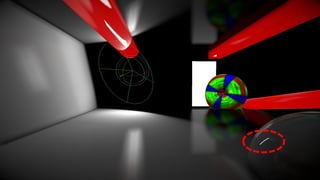

IBL Reflection System 3 Tier Reflection Raytrace system Realtime Glossy Reflections Localized Cubemaps Skybox

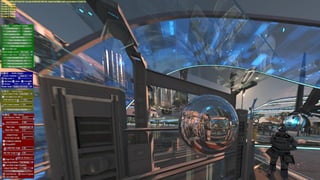

Localized Cubemaps
 Picture of pretty cubemap in cross with mips
 Picture of pretty cubemap in cross with mips

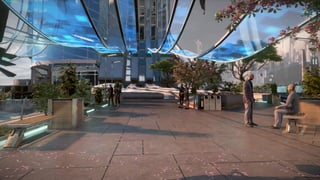

IBL Render PassBreakdown

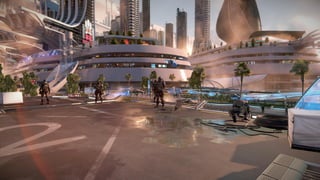

Render Pass BreakdownBaked Lightmaps Diffuse + Dynamic Lights

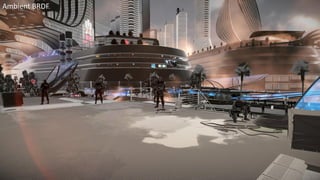

Ambient BRDF

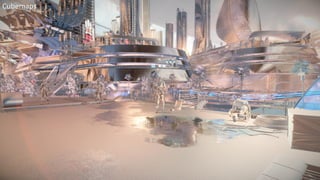

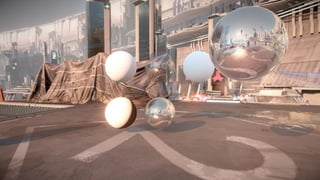

Cubemaps
Lightmap Diffuse + Dynamic Lights + Ambient BRDF * Cubemaps

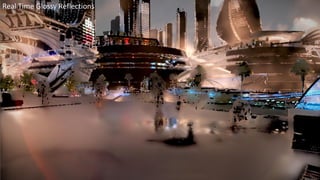

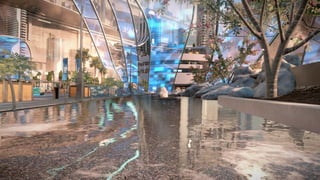

Real Time Glossy Reflections

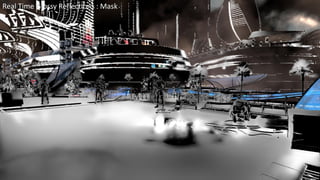

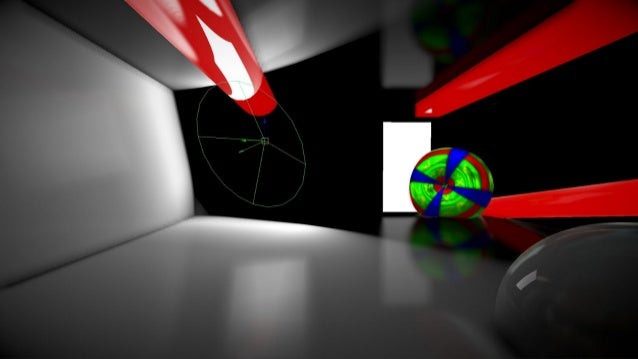

Real Time Glossy Reflections : Mask
Final composite of IBL based lighting

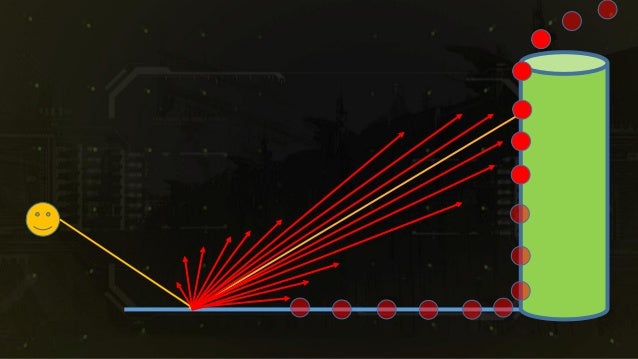

Render Pass Breakdown
Takeaway Physically Based Lighting Higher quality Faster asset production Asset reuse in different environments Physi...
We are hiring!www.guerrilla-games.com/jobs

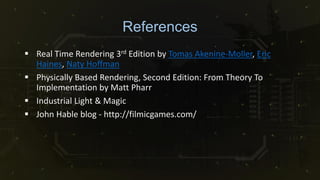

References Real Time Rendering 3rd Edition by Tomas Akenine-Moller, EricHaines, Naty Hoffman Physically Based Rendering,...
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall

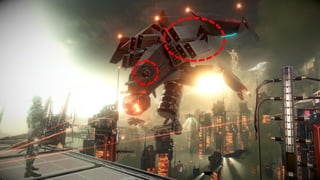

Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall

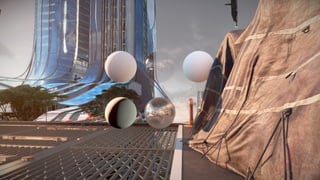

Lighting of Killzone: Shadow Fall

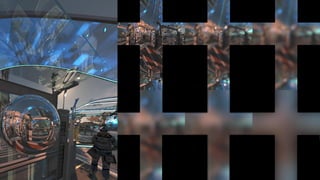

Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Lighting of Killzone: Shadow Fall
Upcoming SlideShare
Loading in …5
×

Lighting of Killzone: Shadow Fall

22,157 views

Published on

The presentation describes Physically Based Lighting Pipeline of Killzone : Shadow Fall - Playstation 4 launch title. The talk covers studio transition to a new asset creation pipeline, based on physical properties. Moreover it describes light rendering systems used in new 3D engine built from grounds up for upcoming Playstation 4 hardware. A novel real time lighting model, simulating physically accurate Area Lights, will be introduced, as well as hybrid - ray-traced / image based reflection system.
We believe that physically based rendering is a viable way to optimize asset creation pipeline efficiency and quality. It also enables the rendering quality to reach a new level that is highly flexible depending on art direction requirements.

  • Hey guys! Who wants to chat with me? More photos with me here 👉 http://www.bit.ly/katekoxx
       Reply
    Are you sure you want to  Yes  No
    Your message goes here

Lighting of Killzone: Shadow Fall

  1. 1. LightingKillzone : Shadow FallMichal DrobotSenior Tech ProgrammerGuerrilla Games

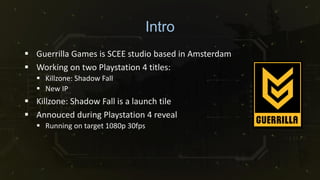

  2. 2. Intro Guerrilla Games is SCEE studio based in Amsterdam Working on two Playstation 4 titles: Killzone: Shadow Fall New IP Killzone: Shadow Fall is a launch tile Annouced during Playstation 4 reveal Running on target 1080p 30fps

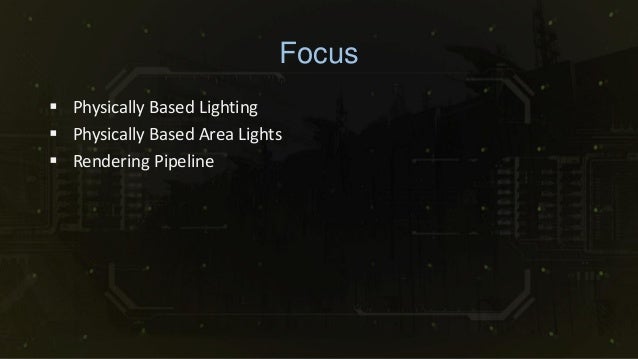

  3. 3. Focus Physically Based Lighting Physically Based Area Lights Rendering Pipeline
  4. 4. Motivation Killzone 3 Shipped in 2011 Matured PS3 technology Considered one of generation visual benchmark titles Killzone : Shadow Fall Next generation launch title How does it compare?

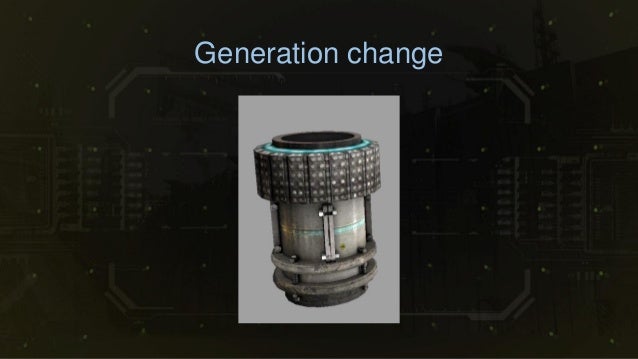

  5. 5. Generation change

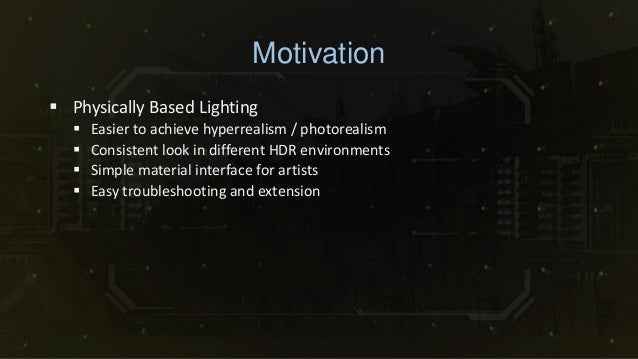

  6. 6. Motivation Physically Based Lighting Easier to achieve hyperrealism / photorealism Consistent look in different HDR environments Simple material interface for artists Easy troubleshooting and extension
  7. 7. Theory
  8. 8. Light Flux Irradiance = integrated light incoming from all directions (diffuse) Radiance = light incoming from one direction (specular reflection)Irradiance (E)Radiance (L)
  9. 9. Courtesy of ILMImage Based Lighting (IBL)
  10. 10. Courtesy of ILM
  11. 11. Courtesy of ILM
  12. 12. Physically Based Lighting Model Physically Based Shading Model Responsible for surface response to incoming light depending on varioussurface physical properties Physically Based Lights Responsible for light flux calculation in the scene depending on various lightswith physical properties
  13. 13. Physically Based Shading : Real lifeexamples Specular Dominant part of visible lighting Every material exhibits specular lighting Angle dependent Material type dependant

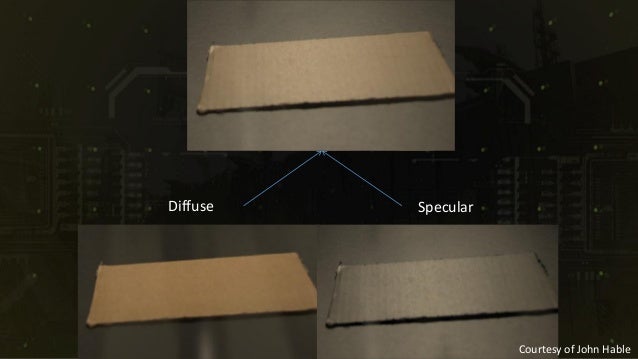

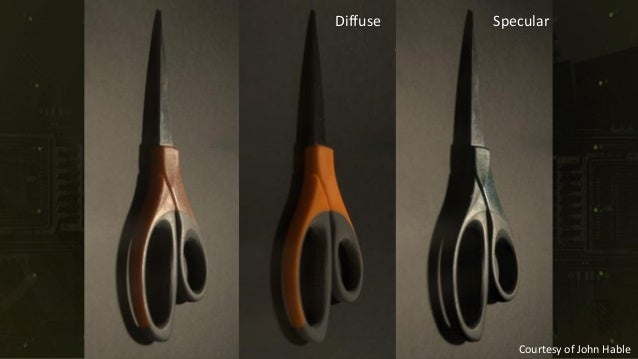

  14. 14. Real life lightingCourtesy of John HableDiffuse Specular
  15. 15. Real life lightingCourtesy of John HableDiffuse Specular
  16. 16. Real life lightingCourtesy of John HableDiffuse Specular
  17. 17. Real life lightingDiffuse Specular+Courtesy of John HableDiffuse Specular
  18. 18. BRDFDiffuseSpecularEye

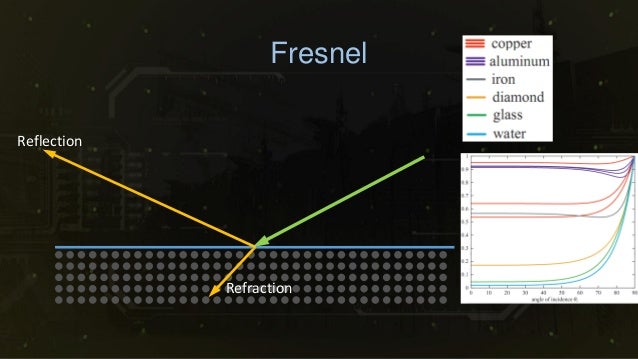

  19. 19. Fresnel‘Rough’ReflectionRefraction
  20. 20. Non metals
  21. 21. Metals
  22. 22. Roughness‘Smooth’‘Rough’
  23. 23. Roughness‘Smooth’
  24. 24. Visibility / Self Shadowing
  25. 25. Energy ConservativeNon - Energy Conservative
  26. 26. Workflow 3 main parameters Albedo (RGB8) Roughness (R8) Specular Reflectance (RGB8) Material response Decoupled from Lighting Works in any light environment Review assets in different IBLlighting environments
  27. 27. Smooth(1.0)Rough(0.0)Diffuse
  28. 28. Material properties Measured values for most materials Available in physical tables Every material can be roughly definedby those parameters We provided them as Photoshopcolor swatches Base for hand painted textures

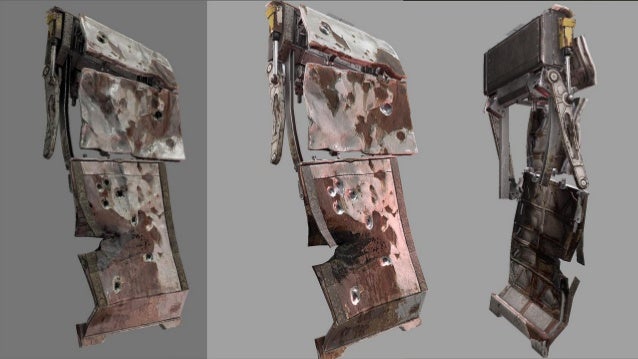

  29. 29. Use case Material Old iron plate Covered in paint Scratches Bullet holes Rust
  30. 30. Simplified Roughness textureThin old paint, scratched,showing off iron underneathDue weathering effects smoothenedR = HighPure rustR = very lowRusting metalR = mixed, sparkles ofmedium smooth metalBullet holeHigh temperature smoothens iron(due to impact energy)R = very highPure old paintR = medium
  31. 31. Simplified Specular Reflectance textureThin old paint, scratched,showing off iron underneathSR = Low IronPure rust, non metalSR = Low, non metalRusting metal,SR = Medium, non metal,Sparkles of Low IronBullet hole exposes pure IronSR = IronPure paintSR = Low, Medium, High non metal,Depends on paint typeOld paint = LowNew paint = Medium / High
  32. 32. Simplified Albedo textureWhite thin old paint, scratched,showing off iron underneathA = Dark gray (showing off metal)Pure rust,A = Rusty in range of old concreteBullet hole exposes pure IronA = Very dark (metal)White old paintA = White in albedo range of concrete(light gray)

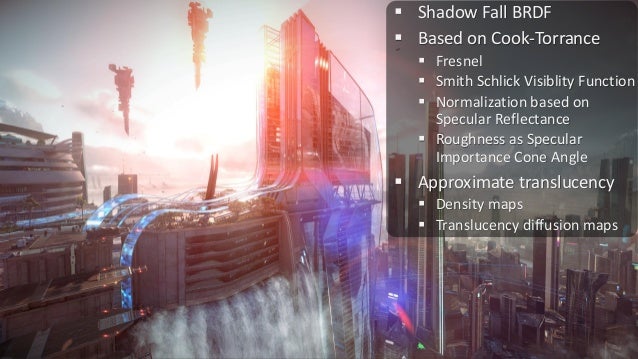

  33. 33.  Shadow Fall BRDF Based on Cook-Torrance Fresnel Smith Schlick Visiblity Function Normalization based onSpecular Reflectance Roughness as SpecularImportance Cone Angle Approximate translucency Density maps Translucency diffusion maps
  34. 34. IBL Point Based BRDF
  35. 35. IBL Point Based BRDF – factor visualization

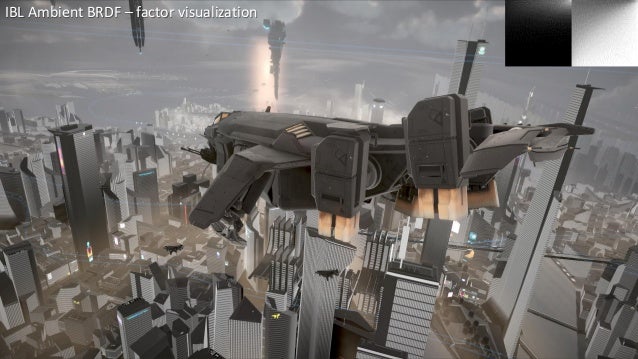

  36. 36. IBL Ambient BRDF – factor visualization
  37. 37. IBL Ambient BRDF
  38. 38. IBL Point Based BRDF
  39. 39. IBL Ambient BRDF
  40. 40.  Big step for the studio Artists had to adapt Training and workshops Production and Quality Win
  41. 41. Physically Based Lights
  42. 42. Blinn-Phong Point Light
  43. 43. Blinn-Phong Point Light
  44. 44. Area Lights Every light source Size Shape Intensity Art Photography Light Direction
  45. 45. Spherical Light
  46. 46. Disc Light
  47. 47. Rectangular Light
  48. 48. Texture Rectangular Light
  49. 49. Area Size and Intensity
  50. 50. ααpC0pC1d0d1pC0 > pC1, due to d0 > d1Result : pC0 blurier than pC1
  51. 51. Irradiance Integral DA : I(p,n) = Integrate(A) [L * cos(fi) * cos(fo) * dA / d^2] dA – differential area of the light L – luminance of light A – Area of the lightnp’pd n’fifo
  52. 52. npYX3D – Word SpaceX , Y – set the light frameRadiance Integral
  53. 53. 2D – projectedon light frameXY

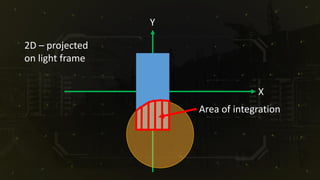

  54. 54. 2D – projectedon light frameXYArea of integration
  55. 55. XYPDF to integrateOver Area

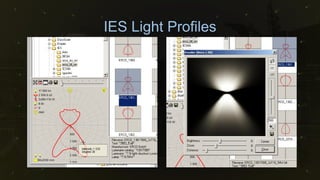

  56. 56. IES Light Profiles
