Secure	Session	Management
OWASP	Tampa
December	10,	2015
December 15,2015

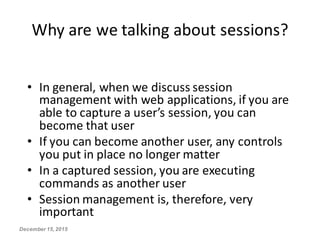

Why	are	we	talking	about	sessions?
• In	general,	when	we	discuss	session
management	with	web	applications,	if	you	are
ab...
What	is	a	session	and	why	is	it
necessary?
• A	session	is	a	series	of	interactions	between	two
end	points	that	occurs	du...
What	needs	to	happen	to	establish	a
session?
• Authentication
• NTLM	– hash	of	windows	credentials	used	to	identify
user...
What	are	some	types	of	HTTP	session
tracking?
• HTTP	– Hypertext	Transfer	Protocol
• Foundation	 for	communication	on	wor...
What	are	some	types	of	session
tracking?	(cont.)
• Cookie-based
• A	user	visits	a	website	and	the	server	responds	with	a	...

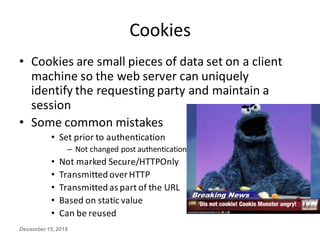

Cookies
• Cookies	are	small	pieces	of	data	set	on	a	client
machine	so	the	web	server	can	uniquely
identify	the	requestin...
Common	security	concerns
• Some	session	tracking	weaknesses	we
commonly	see
• Cookies	not	reset	after	authentication
• Se...
Cookies	set	prior	to	authentication
• When	a	user	visits	a	website,	they	are
presented	with	a	session	cookie
• The	user	h...
Cookies	set	prior	to	authentication
(cont.)
• These	attacks	can	allow	the	attacker	to	duplicate
the	user’s	session	and	p...
Session	not	properly	terminated	on
logout
• When	a	user	logs	out	of	an	application,	the
session	is	not	properly	terminat...
Session	not	properly	terminated	on
logout	(cont.)
• These	attacks	are	another	avenue	that	can
allow	the	attacker	to	dupl...
Cookies	not	random	enough
• When	a	user	visits	an	application,	the	cookies	can
contain	any	of	the	following
• A	timestamp...
Cookies	not	random	enough	(cont.)
• When	a	session	can	be	predicted,	an	attacker
can	gain	access	to	multiple	sessions	tha...
Guidelines	for	secure	cookie	management
• Session	tracking	cookies
• Set	and/or	reset	value	after	authentication
• Remove...
Common	session	management	attacks
• We	will	now	discuss	some	ways	in	which	weak
session	management	is	commonly	exploited
...
Cross-site	scripting	to	exploit	weak	session
management
• Cross-site	scripting
• One	of	the	goals	of	this	style	of	attack...

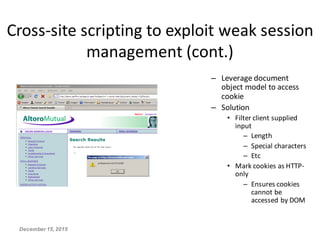

Cross-site	scripting	to	exploit	weak	session
management	(cont.)
– Leverage	document
object	model	to	access
cookie
– Sol...
Other	attacks	leveraging	session
weaknesses
§ Cross-site request forgery
o An attacker can leverage a user’s existing ses...
Other	attacks	leveraging	session
weaknesses	(cont.)
• Session	cloning
• Leverages	session	tracking	weaknesses
– Session	t...
Some	steps	to	help	avoid	attacks
• Filter	client	supplied	input	for	proper	size	and	characters
before	being	processed	by	...
Questions?
December 15,2015
Upcoming SlideShare
Loading in …5
×

Secure Session Management

631 views

Published on

Presentation given by Brian Beaudry at OWASP Tampa Chapter meeting on Thursday, December 10, 2015.

Published in: Technology
  • Be the first to comment

  • Be the first to like this

Secure Session Management

  1. 1. Secure Session Management OWASP Tampa December 10, 2015 December 15,2015
  2. 2. Why are we talking about sessions? • In general, when we discuss session management with web applications, if you are able to capture a user’s session, you can become that user • If you can become another user, any controls you put in place no longer matter • In a captured session, you are executing commands as another user • Session management is, therefore, very important December 15,2015
  3. 3. What is a session and why is it necessary? • A session is a series of interactions between two end points that occurs during the span of a connection • One end point requests a connection with another end point and, if that endpoint agrees, the endpoints exchange data and commands • The session begins when a connection is established and ends when the connection is ended • Since HTTP is a stateless protocol, there needs to be a way of tracking sessions through unique identifiers December 15,2015

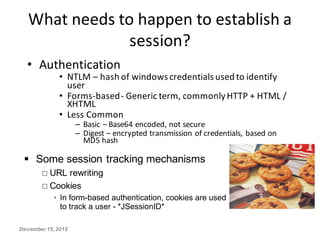

  4. 4. What needs to happen to establish a session? • Authentication • NTLM – hash of windows credentials used to identify user • Forms-based - Generic term, commonly HTTP + HTML / XHTML • Less Common – Basic – Base64 encoded, not secure – Digest – encrypted transmission of credentials, based on MD5 hash § Some session tracking mechanisms o URL rewriting o Cookies • In form-based authentication, cookies are used to track a user - *JSessionID* December 15,2015

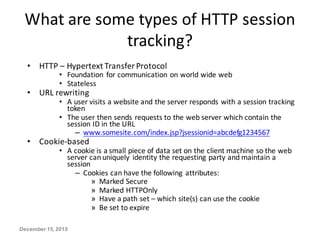

  5. 5. What are some types of HTTP session tracking? • HTTP – Hypertext Transfer Protocol • Foundation for communication on world wide web • Stateless • URL rewriting • A user visits a website and the server responds with a session tracking token • The user then sends requests to the web server which contain the session ID in the URL – www.somesite.com/index.jsp?jsessionid=abcdefg1234567 • Cookie-based • A cookie is a small piece of data set on the client machine so the web server can uniquely identity the requesting party and maintain a session – Cookies can have the following attributes: » Marked Secure » Marked HTTPOnly » Have a path set – which site(s) can use the cookie » Be set to expire December 15,2015

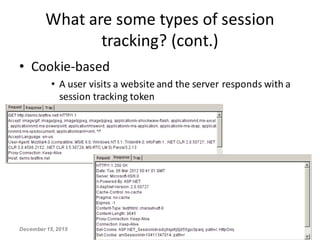

  6. 6. What are some types of session tracking? (cont.) • Cookie-based • A user visits a website and the server responds with a session tracking token December 15,2015
  7. 7. Cookies • Cookies are small pieces of data set on a client machine so the web server can uniquely identify the requesting party and maintain a session • Some common mistakes • Set prior to authentication – Not changed post authentication • Not marked Secure/HTTPOnly • Transmitted over HTTP • Transmitted as part of the URL • Based on static value • Can be reused December 15,2015

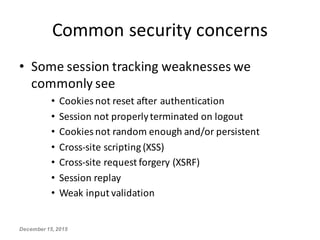

  8. 8. Common security concerns • Some session tracking weaknesses we commonly see • Cookies not reset after authentication • Session not properly terminated on logout • Cookies not random enough and/or persistent • Cross-site scripting (XSS) • Cross-site request forgery (XSRF) • Session replay • Weak input validation December 15,2015

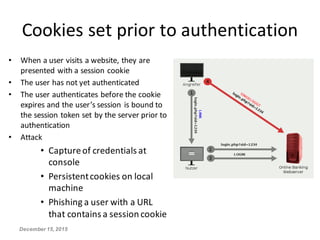

  9. 9. Cookies set prior to authentication • When a user visits a website, they are presented with a session cookie • The user has not yet authenticated • The user authenticates before the cookie expires and the user’s session is bound to the session token set by the server prior to authentication • Attack • Capture of credentials at console • Persistent cookies on local machine • Phishing a user with a URL that contains a session cookie December 15,2015

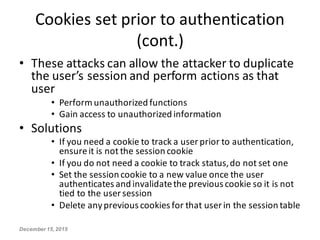

  10. 10. Cookies set prior to authentication (cont.) • These attacks can allow the attacker to duplicate the user’s session and perform actions as that user • Perform unauthorized functions • Gain access to unauthorized information • Solutions • If you need a cookie to track a user prior to authentication, ensure it is not the session cookie • If you do not need a cookie to track status, do not set one • Set the session cookie to a new value once the user authenticates and invalidate the previous cookie so it is not tied to the user session • Delete any previous cookies for that user in the session table December 15,2015
  11. 11. Session not properly terminated on logout • When a user logs out of an application, the session is not properly terminated • Cookie not removed/overwritten on browser • More importantly, cookie not deleted from the session table on the backend server • Attack scenario • A user has logged out of the session but leaves the browser open, walking away from the computer • A malicious user can use the back button to access data and perform transactions • If transmitted in clear-text, once a user logs out, an attacker who was sniffing traffic can re-submit session traffic and gain a cloned session December 15,2015

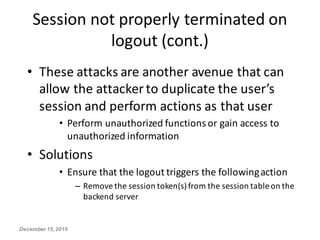

  12. 12. Session not properly terminated on logout (cont.) • These attacks are another avenue that can allow the attacker to duplicate the user’s session and perform actions as that user • Perform unauthorized functions or gain access to unauthorized information • Solutions • Ensure that the logout triggers the following action – Remove the session token(s) from the session table on the backend server December 15,2015

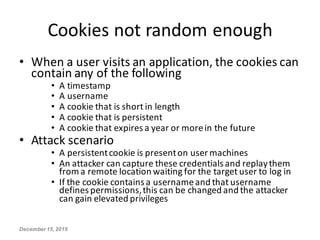

  13. 13. Cookies not random enough • When a user visits an application, the cookies can contain any of the following • A timestamp • A username • A cookie that is short in length • A cookie that is persistent • A cookie that expires a year or more in the future • Attack scenario • A persistent cookie is present on user machines • An attacker can capture these credentials and replay them from a remote location waiting for the target user to log in • If the cookie contains a username and that username defines permissions, this can be changed and the attacker can gain elevated privileges December 15,2015

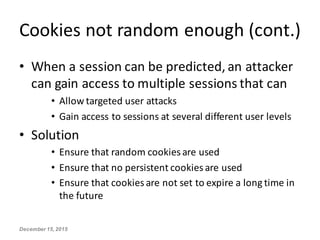

  14. 14. Cookies not random enough (cont.) • When a session can be predicted, an attacker can gain access to multiple sessions that can • Allow targeted user attacks • Gain access to sessions at several different user levels • Solution • Ensure that random cookies are used • Ensure that no persistent cookies are used • Ensure that cookies are not set to expire a long time in the future December 15,2015

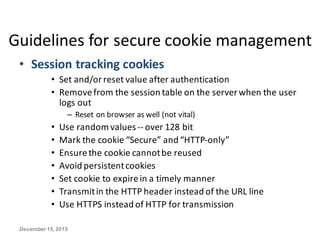

  15. 15. Guidelines for secure cookie management • Session tracking cookies • Set and/or reset value after authentication • Remove from the session table on the server when the user logs out – Reset on browser as well (not vital) • Use random values --over 128 bit • Mark the cookie “Secure” and “HTTP-only” • Ensure the cookie cannot be reused • Avoid persistent cookies • Set cookie to expire in a timely manner • Transmit in the HTTP header instead of the URL line • Use HTTPS instead of HTTP for transmission December 15,2015

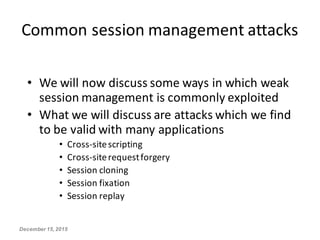

  16. 16. Common session management attacks • We will now discuss some ways in which weak session management is commonly exploited • What we will discuss are attacks which we find to be valid with many applications • Cross-site scripting • Cross-site request forgery • Session cloning • Session fixation • Session replay December 15,2015
  17. 17. Cross-site scripting to exploit weak session management • Cross-site scripting • One of the goals of this style of attack is to gain control of a user’s session • By crafting a special request which contains a script, the attacker can attempt to gain a target user’s session tokens – Simple example – www.somesite.com/home.html?search=<javascript:alert(test123) > • This will cause an alert box to appear with the text “test123” on the user’s desktop • Next we will look at a more complicated attack which can be used to compromise a user’s session December 15,2015
  18. 18. Cross-site scripting to exploit weak session management (cont.) – Leverage document object model to access cookie – Solution • Filter client supplied input – Length – Special characters – Etc • Mark cookies as HTTP- only – Ensures cookies cannot be accessed by DOM December 15,2015

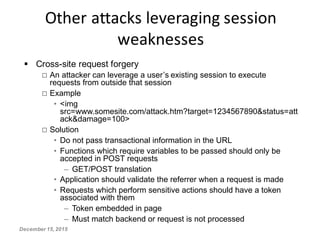

  19. 19. Other attacks leveraging session weaknesses § Cross-site request forgery o An attacker can leverage a user’s existing session to execute requests from outside that session o Example • <img src=www.somesite.com/attack.htm?target=1234567890&status=att ack&damage=100> o Solution • Do not pass transactional information in the URL • Functions which require variables to be passed should only be accepted in POST requests – GET/POST translation • Application should validate the referrer when a request is made • Requests which perform sensitive actions should have a token associated with them – Token embedded in page – Must match backend or request is not processed December 15,2015

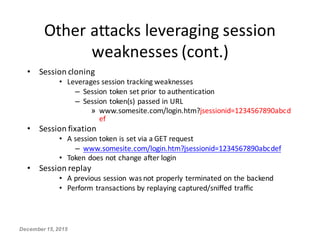

  20. 20. Other attacks leveraging session weaknesses (cont.) • Session cloning • Leverages session tracking weaknesses – Session token set prior to authentication – Session token(s) passed in URL » www.somesite.com/login.htm?jsessionid=1234567890abcd ef • Session fixation • A session token is set via a GET request – www.somesite.com/login.htm?jsessionid=1234567890abcdef • Token does not change after login • Session replay • A previous session was not properly terminated on the backend • Perform transactions by replaying captured/sniffed traffic December 15,2015

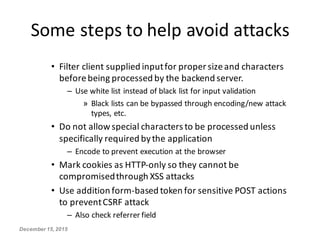

  21. 21. Some steps to help avoid attacks • Filter client supplied input for proper size and characters before being processed by the backend server. – Use white list instead of black list for input validation » Black lists can be bypassed through encoding/new attack types, etc. • Do not allow special characters to be processed unless specifically required by the application – Encode to prevent execution at the browser • Mark cookies as HTTP-only so they cannot be compromised through XSS attacks • Use addition form-based token for sensitive POST actions to prevent CSRF attack – Also check referrer field December 15,2015
  22. 22. Questions? December 15,2015

×
