Presentation1

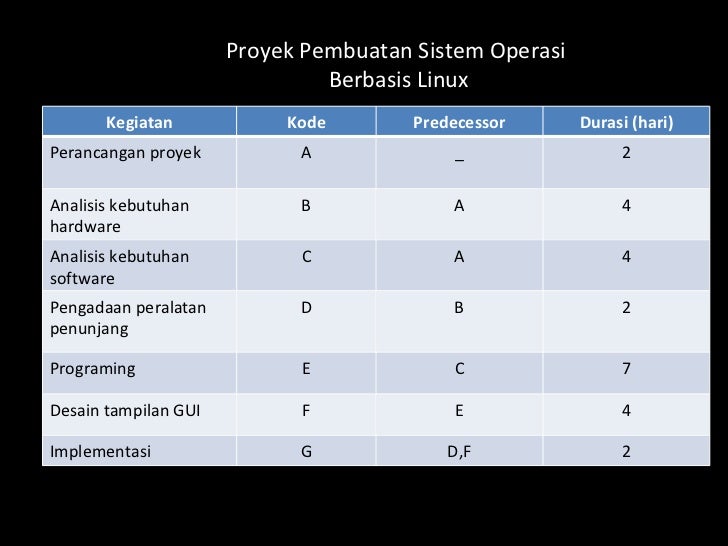

  1. 1. Proyek Pembuatan Sistem Operasi Berbasis Linux Kegiatan Kode Predecessor Durasi (hari) Perancangan proyek A _ 2 Analisis kebutuhan hardware B A 4 Analisis kebutuhan software C A 4 Pengadaan peralatan penunjang D B 2 Programing E C 7 Desain tampilan GUI F E 4 Implementasi G D,F 2
  2. 2. Gantt Chart
  3. 3. Project network diagram A=2 B=4 C=4 D=2 E=7 G=2 1 2 3 4 5 6 7 F=4 0 0 2 2 6 2 14 14 10 10 6 6 16 16
  4. 4. Project network diagram A=2 B=4 C=4 D=2 E=7 G=2 1 2 3 4 5 6 7 F=4 0 0 2 2 6 2 14 14 10 10 6 6 16 16 Critical path Slack
  5. 5. Cost planning

×
