1.
OBSERVABILITY DRIVEN
DEVELOPMENT
GEERT VAN DER CRUIJSEN
@GEERTVDC

2.
GEERT VAN DER CRUIJSEN
@GEERTVDC
CLOUDNATIVEARCHITECT FULLCYCLEDEVELOPERDEVOPSCOACH

3.
I HAVE TO MAKE
A CONFESSION
@GEERTVDC

4.
I HAVE TO MAKE
A CONFESSION
I TEST IN
PRODUCTION
@GEERTVDC

5.
I TEST IN
PRODUCTION
I’M NOT LIKE
THIS GUY THOUGH
@GEERTVDC

6.
TODAY’S PREACH
YOU SHOULD TEST IN
PRODUCTION TOO
@GEERTVDC

7.
YOU SHOULD TEST IN
PRODUCTION TOO
STOP BEING AFRAID
OF PRODUCTION!
@GEERTVDC

8.
WHO’S DOING
AGILE OR DEVOPS?
@GEERTVDC

9.
WHO’S DOING
AGILE OR DEVOPS?
COMMON
AGILE / DEVOPS
MISTAKES
@GEERTVDC

10.
FOCUS ON SPEED?
@GEERTVDC

11.
DO YOU WANT FAST WHEN YOU’RE
NOT GOING IN THE RIGHT DIRECTION?
@GEERTVDC

12.
TEST IN PRODUCTION
USER BEHAVIOR
A/B TESTING
EXPERIMENTS
@GEERTVDC

13.
BEING ABLE TO BRAKE AND STEER
THAT IS WHAT MAKES YOU GO FASTER!
@GEERTVDC

14.
DEVOPS IS THE UNION OF PEOPLE, PROCESS,
AND PRODUCTS TO ENABLE CONTINUOUS
DELIVERY OF VALUE TO OUR END USERS.
DONOVAN BROWN
@GEERTVDC

15.
DEVOPS IS THE UNION OF PEOPLE, PROCESS,
AND PRODUCTS TO ENABLE CONTINUOUS
DELIVERY OF VALUE TO OUR END USERS.
DONOVAN BROWN
@GEERTVDC

16.
VALUE IS ONLY VALUE WHEN
IT’S RUNNING IN PRODUCTION
@GEERTVDC

17.
VALUE IS ONLY VALUE WHEN
IT’S RUNNING IN PRODUCTION
@GEERTVDC

18.
TEST IN PRODUCTION
CANARY RELEASING
RING BASED DEPLOYMENTS
MULTI REGION
CHAOS ENGINEERING
SHADOW TESTING@GEERTVDC

19.
BUT I USE STAGING?@GEERTVDC

20.
BUT I USE STAGING?
DOES STAGING HAVE REAL DATA?
DOES STAGING HAVE REAL USERS?
DOES STAGING REPRESENT PRODUCTION ENOUGH?
HOW MUCH TIME DO YOU SPEND ON STAGING?

21.
WHAT IS KEY TO TESTING ON PROD?
OBSERVABILITY
@GEERTVDC

22.
OBSERVABILITY
“OBSERVABILITY IS A MEASURE OF HOW
WELL INTERNAL STATES OF A SYSTEM CAN
BE INFERRED FROM KNOWLEDGE OF ITS
EXTERNAL OUTPUTS”
CONTROL THEORY
@GEERTVDC

23.
WHAT IS THE DIFFERENCE
WITH MONITORING?
@GEERTVDC

24.
MONITORING
KNOWN UNKNOWNS
OBSERVABILITY
UNKNOWN UNKNOWNS
@GEERTVDC

25.

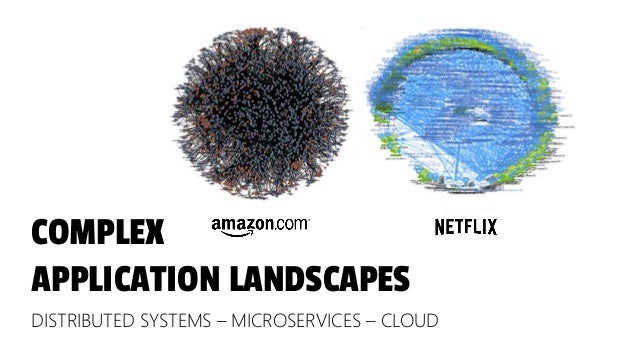

COMPLEX
APPLICATION LANDSCAPES
DISTRIBUTED SYSTEMS – MICROSERVICES – CLOUD

26.
“IN A COMPLEX LANDSCAPE YOUR
APPLICATION IS NEVER FULLY UP”
@GEERTVDC

27.
MICROSERVICES
TRADITIONAL MONITORING
TOOLS ARE DEAD
@GEERTVDC

28.
MEASURE
USER IMPACT
@GEERTVDC

29.
MEASURE
USER IMPACT
https://medium.com/netflix-techblog/sps-the-pulse-of-netflix-streaming-ae4db0e05f8a
@GEERTVDC

30.
RELIABILITY
AVAILABILITY LATENCY
THROUGHPUT
CORRECTNESS
FRESHNESS
COVERAGE
QUALITY
DURABILITY
RELIABILITY
@GEERTVDC

31.
FAIL OPEN
PARTIAL FAILURE MODE
@GEERTVDC

32.
OBSERVABILITY IS THE
KEY TO SOFTWARE
OWNERSHIP
@GEERTVDC

33.
WE’VE TAUGHT OPS TO DEV
SOURCE CONTROL
INFRASTRUCTURE AS CODE
AUTOMATION
SCRIPTING
@GEERTVDC

34.
TIME HAS COME
DEVS GET PROD ACCESS
@GEERTVDC

35.
TIME HAS COME
DEVS GET PROD ACCESS
DEVS TAKE OWNERSHIP
@GEERTVDC

36.
TIME HAS COME
DEVS GET PROD ACCESS
DEVS TAKE OWNERSHIP
DEVS TAKE ON CALL!
@GEERTVDC

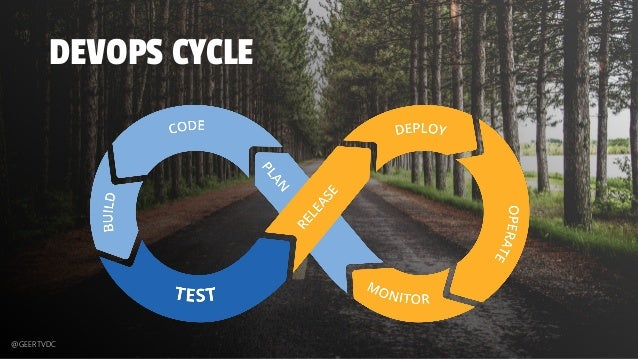

37.
DEVOPS CYCLE
@GEERTVDC

38.
DEVOPS CYCLE
@GEERTVDC

39.
BUSINESS + DEV
IT OPERATIONS
@GEERTVDC

40.
BUSINESS + DEV
IT OPERATIONS
IMPROVE THE COMPANY
@GEERTVDC

41.
OBSERVABILITY
CONNECT DEV TO BUSINESS
OBSERVABILITY
CONNECT DEV TO OPERATIONS
@GEERTVDC

42.
3 PILLARS OF
OBSERVABILITY
@GEERTVDC

43.
3 PILLARS OF
OBSERVABILITY
LOGS METRICS TRACES
@GEERTVDC

44.
LOGGING
EXAMPLE: REQUEST DURATION
SERVICE REQUEST X FOR USER Y
TOOK 50 MILLISECONDS
@GEERTVDC

45.
LOGGING
EASY TO GENERATE, HARD TO QUERY?
@GEERTVDC

46.

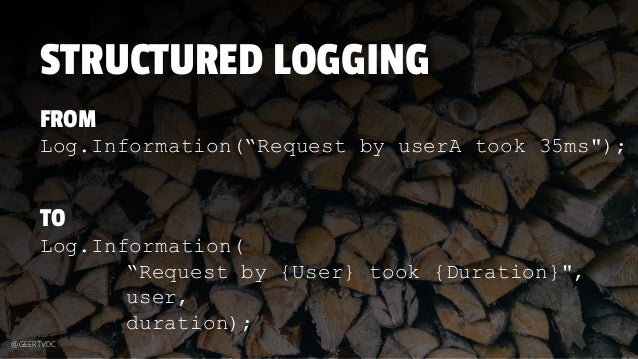

STRUCTURED LOGGING
Log.Information(
“Request by {User} took {Duration}",
user,
duration);
Log.Information(“Request by userA took 35ms");
FROM
TO
@GEERTVDC

47.
STRUCTURED LOGGING
GENERATE LOGS
SERILOG
APPLICATION INSIGHTS
NLOG
@GEERTVDC

48.
STRUCTURED LOGGING
GENERATE LOGS STORE & QUERY LOGS
AZURE
LOG ANALYTICS
SERILOG
APPLICATION INSIGHTS
NLOG
@GEERTVDC

49.
LOGGING
SHOULD YOU SAMPLE?
STORAGE == MONEY
AUDIT LOGS DO NOT SAMPLE
OPERATIONAL LOGS DO SAMPLE
DYNAMIC SAMPLING
@GEERTVDC

50.
METRICS
AGGREGATE INFORMATION INTO TIME SERIES
CREATE REAL TIME GRAPHS OR HISTOGRAPHS
CHEAPER TO STORE
@GEERTVDC

51.
METRICS
EXAMPLE: REQUEST DURATION
50 MILLISECONDS REQUEST IS 15 MILLISECONDS
HIGHER THAN AVERAGE
@GEERTVDC

52.
METRICS
EXAMPLE: REQUEST DURATION
50 MILLISECONDS REQUEST IS 15 MILLISECONDS
HIGHER THAN AVERAGE
IN EDE
ON MONDAYS
PEOPLE WHO BOUGHT PRODUCT Y
@GEERTVDC

53.
DISTRIBUTED TRACING
EXAMPLE: REQUEST DURATION
WHY DID THIS REQUEST TAKE 50
MILLISECONDS -> IT CALLED DB, OTHER
SERVICES?
@GEERTVDC

54.
DISTRIBUTED TRACING
APPLICATION FLOW FROM FRONT TO BACK
USER SESSION
TRANSACTION
AMOUNT OF DATA IN MICROSERVICE
LANDSCAPE?
@GEERTVDC

55.
@GEERTVDC
DISTRIBUTED TRACING

56.
WHAT TO MEASURE?
USE RED
@GEERTVDC
FOCUS ON YOUR USERS
LOG ALL USER EVENTS

57.
USE RED
UTILIZATION
SATURATION
ERROR RATE
RESOURCE SCOPE
@GEERTVDC

58.

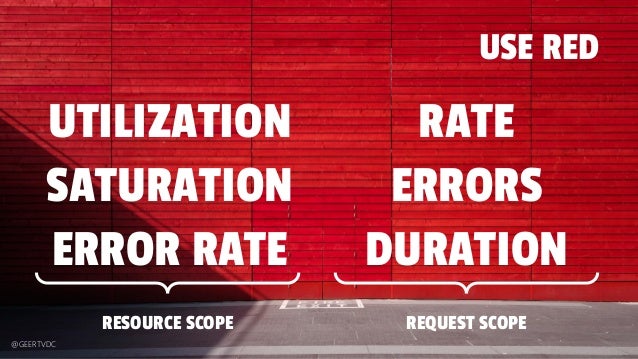

USE RED
UTILIZATION
SATURATION
ERROR RATE
RATE
ERRORS
DURATION
RESOURCE SCOPE REQUEST SCOPE
@GEERTVDC

59.

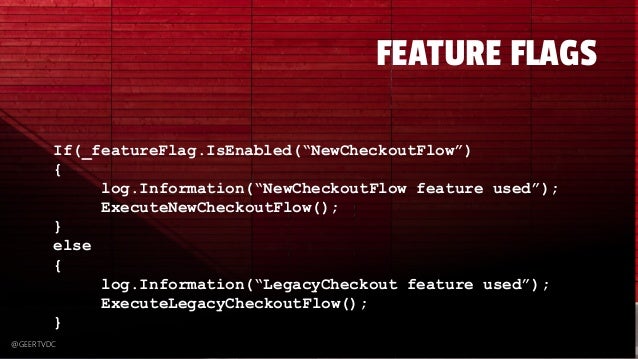

FEATURE FLAGS
If(_featureFlag.IsEnabled(“NewCheckoutFlow”)
{
log.Information(“NewCheckoutFlow feature used”);
ExecuteNewCheckoutFlow();
}
else
{
log.Information(“LegacyCheckout feature used”);
ExecuteLegacyCheckoutFlow();
}
@GEERTVDC

60.
FEATURE FLAGS

61.

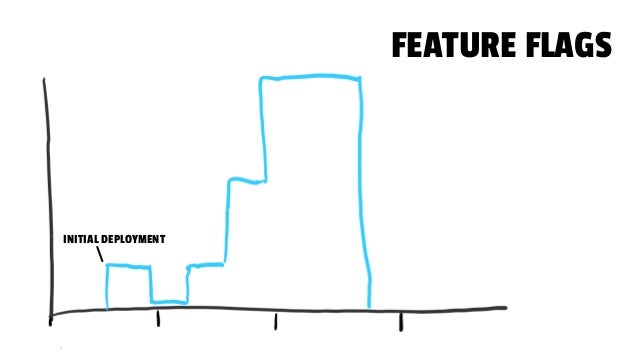

FEATURE FLAGS
INITIAL DEPLOYMENT

62.

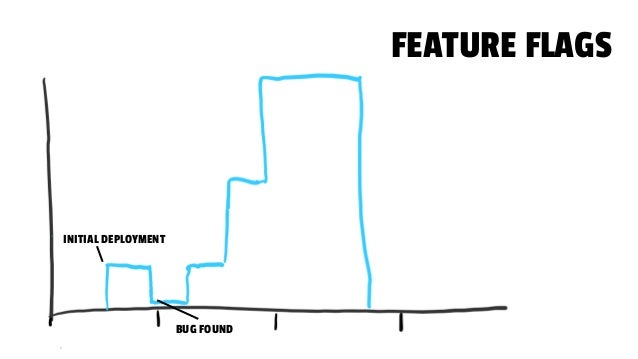

FEATURE FLAGS
INITIAL DEPLOYMENT
BUG FOUND

63.

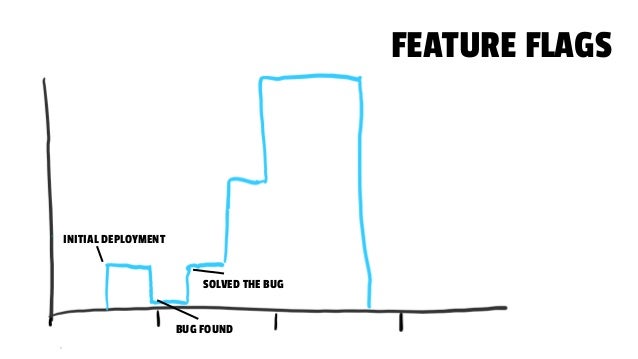

FEATURE FLAGS
INITIAL DEPLOYMENT
BUG FOUND
SOLVED THE BUG

64.

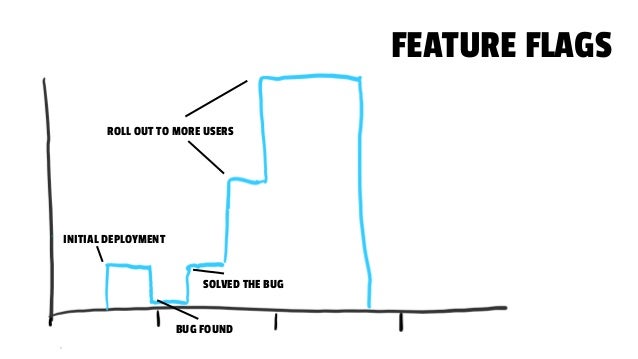

FEATURE FLAGS
INITIAL DEPLOYMENT
BUG FOUND
SOLVED THE BUG
ROLL OUT TO MORE USERS

65.

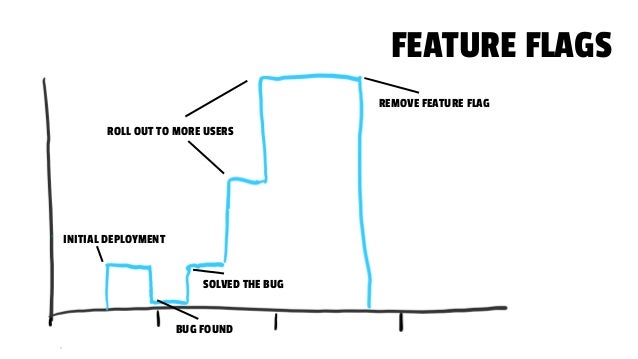

FEATURE FLAGS
INITIAL DEPLOYMENT
BUG FOUND
SOLVED THE BUG
ROLL OUT TO MORE USERS
REMOVE FEATURE FLAG

66.
EXPERIMENT IN PRODUCTION
public bool CanAccess(IUser user)
{
return Scientist.Science<bool>("widget-permissions", experiment =>
{
experiment.Use(() => IsCollaborator(user)); // old way
experiment.Try(() => HasAccess(user)); // new way
}); // returns the control value
}
SCIENTIST.NET
@GEERTVDC https://github.com/scientistproject/Scientist.net

67.
FROM OBSERVABILITY
TO OBSERVABILITY DRIVEN DEVELOPMENT
@GEERTVDC

68.

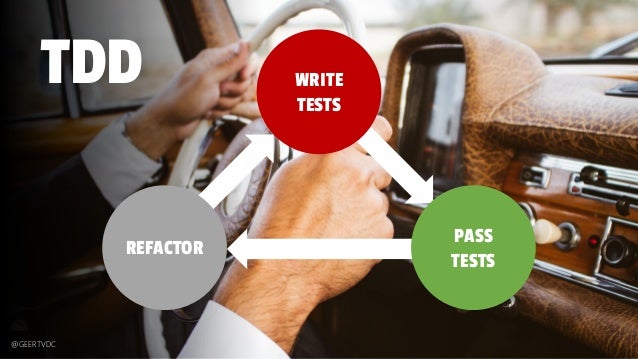

TDD WRITE
TESTS
PASS
TESTS
REFACTOR
@GEERTVDC

69.

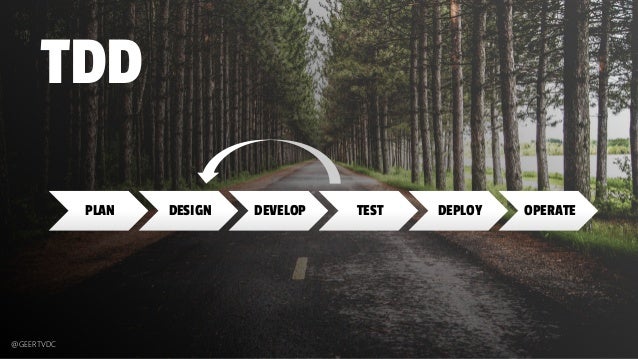

PLAN DESIGN DEVELOP TEST DEPLOY OPERATE
TDD
@GEERTVDC

70.

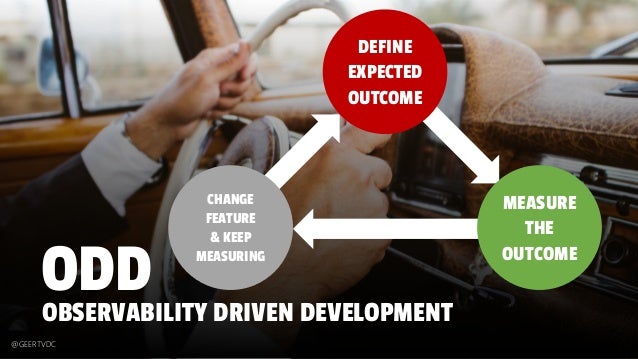

ODDOBSERVABILITY DRIVEN DEVELOPMENT
DEFINE
EXPECTED
OUTCOME
MEASURE
THE
OUTCOME
CHANGE
FEATURE
& KEEP
MEASURING
@GEERTVDC

71.

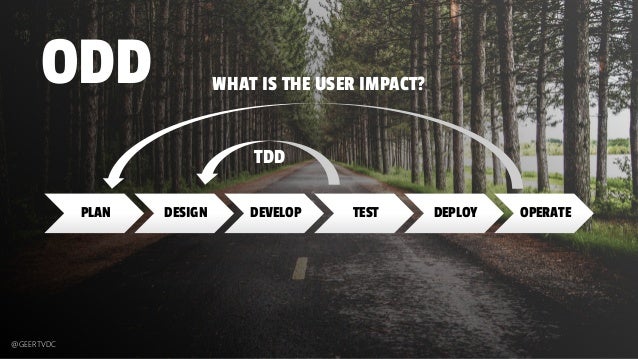

PLAN DESIGN DEVELOP TEST DEPLOY OPERATE
ODD
TDD
WHAT IS THE USER IMPACT?
@GEERTVDC

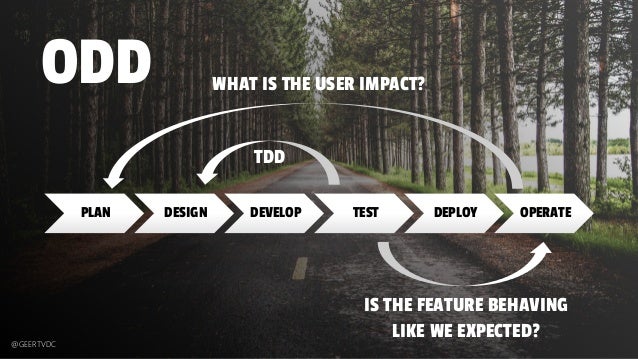

72.
PLAN DESIGN DEVELOP TEST DEPLOY OPERATE
ODD
TDD
WHAT IS THE USER IMPACT?
IS THE FEATURE BEHAVING
LIKE WE EXPECTED?@GEERTVDC

73.

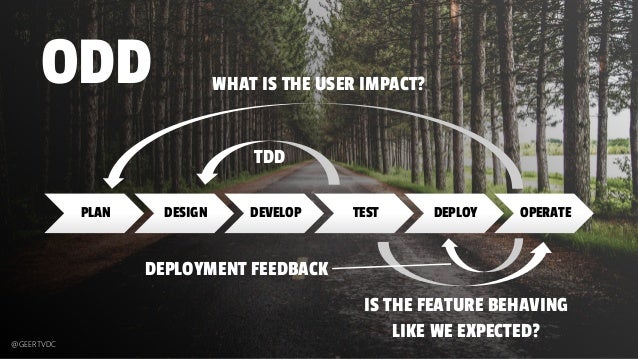

PLAN DESIGN DEVELOP TEST DEPLOY OPERATE
ODD
TDD
WHAT IS THE USER IMPACT?
IS THE FEATURE BEHAVING
LIKE WE EXPECTED?
DEPLOYMENT FEEDBACK
@GEERTVDC

74.
KNOWING HOW OUR SYSTEM
OPERATES SHOULD BE IN
OUR SYSTEM AS DEVELOPERS
WHAT IS NORMAL?
RELEASE GATES TO NEXT STAGE?
@GEERTVDC

75.
SLI
SLO
SLA
@GEERTVDC

76.
SLI
SLO
SLA
SERVICE LEVEL INDICATOR
SERVICE LEVEL OBJECTIVE
SERVICE LEVEL AGREEMENT
@GEERTVDC

77.
SLI SERVICE LEVEL INDICATOR
QUANTITATIVE MEASURE FOR YOUR SERVICE
AVAILABILITY
ERROR RATE
DURATION
LATENCY
FRESHNESS
@GEERTVDC

78.
SLO SERVICE LEVEL OBJECTIVE
TARGET MEASURE FOR A SERVICE
MEASURED BY SLIS
AVAILABILITY OF 99.9% FOR LAST 30 DAYS
@GEERTVDC

79.
SLA SERVICE LEVEL AGREEMENT
CONTRACT WITH USERS WITH
CONSEQUENSES WHEN
MISSING YOUR SLO
10% DISCOUNT FOR EACH 0.1%
BELOW AVAILABILITY SLO
@GEERTVDC

80.
HOW TO DO THIS IN PRACTICE?
@GEERTVDC

81.
HOW TO DO THIS IN PRACTICE?
DEFINE AN SLO
BUILD INDICATORS BY LOGGING / METRICS
BUILD A DASHBOARD – START MEASURING
MAKE CHOICES BASED ON SERVICE LEVEL
LEAVE SLA PART FOR SALES PEOPLE

82.
MAKE IT VISIBLE@GEERTVDC

83.
MAKE IT VISIBLE
SLO
AVAILABILITY
99.9954%
@GEERTVDC

84.
MAKE IT VISIBLE
SLO
AVAILABILITY
99.9954%
RING 0
98%
RING 1
99.91%
RING 2
100%
@GEERTVDC

85.

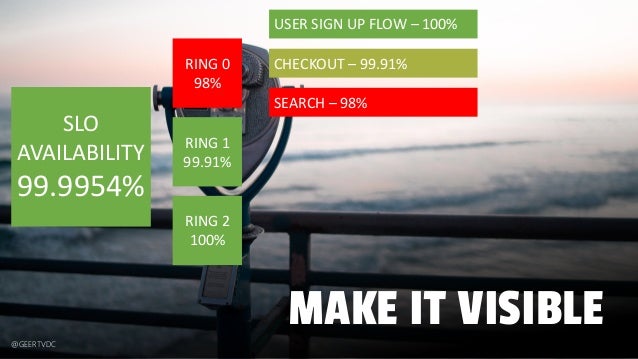

MAKE IT VISIBLE
SLO
AVAILABILITY
99.9954%
RING 0
98%
RING 1
99.91%
RING 2
100%
USER SIGN UP FLOW – 100%
CHECKOUT – 99.91%
SEARCH – 98%
@GEERTVDC

86.
MAKE IT VISIBLE
SLO
AVAILABILITY
99.9954%
RING 0
98%
RING 1
99.91%
RING 2
100%
USER SIGN UP FLOW – 100%
CHECKOUT – 99.91%
SEARCH – 98%
CLIENT A - USER SIGN UP FLOW – 100%
CLIENT A - CHECKOUT – 99.91%
CLIENT A - SEARCH – 90%

87.
TAKEAWAYS
START SMALL AT KEY AREAS OF YOUR APP
EXPLORE TOOLS
EMBRACE TESTING ON PROD!
FOCUS ON CUSTOMERS
TAKE OWNERSHIP OF CODE
@GEERTVDC

88.
@GEERTVDC

89.
GEERT VAN DER CRUIJSEN
@GEERTVDC
THANK YOU!
MOBILEFIRSTCLOUDFIRST.NET
