Politecnico di TorinoDipartimento di Automatica e Informatica                                                           e-...
Home Automation System (HAS)2           Dario Bonino - Home and Building   6/11/2012                  Automation Systems
Home Automation System (HAS)       Home automation           Automation of the home, housework or            household a...
Building Automation System (BAS)4            Dario Bonino - Home and Building   6/11/2012                   Automation Sys...
Building Automation System (BAS)       Building automation           The advanced functionality provided            by t...
Home vs. Building Automation                                                                     Building                 ...
Main goals       Interoperability       Intelligence       Man-Environment        interaction       Accessibility    7...
Technology Overview    Building Automation         RS-485                                                             Home...
Pot-pourri di dispositivi9                e-lite - Smart Buildings   20/04/2012
Network Technology    Bus                              Powerline        MyOpen                           Echelon     ...
Main goals    Interoperability              Abstract high-level    Intelligence                   (semantic) model    ...
Application Area    Automation                                 Entertainment        Real-time Control                  ...
Challenges    Integration        Different electrical requirements        Different interaction modalities        Diff...
Pot-pourri di applicazioni14              e-lite - Smart Buildings   20/04/2012
Intelligent Domotic Environments15             Dario Bonino - Dog 2.3   6/11/2012
System Architecture     User                                                          Mobile, Web, Home Display,       Use...
In Ontology We Trust    Devices and networks exposed by means of a formal,     unique, representation        DogOnt (Ont...
E allora?     Applicazione       Applicazione             Applicazione       Applicazione      D    D    D   D           D...
Una lingua franca     Applicazione       Applicazione             Applicazione       Applicazione                         ...
Architetture orizzontali e aperte     Applicazione          Applicazione               Applicazione         Applicazione  ...
Applicazioni consumanodati e servizi     Applicazione          Applicazione               Applicazione         Applicazion...
Applicazioni controllano     Applicazione          Applicazione               Applicazione         Applicazione       Elab...
DogOnt    DogOnt [ISWC08]    Ontology-based formal modeling of domotic     environments (OWL)        Technology indepen...
Semantic Modeling (DogOnt)                                         RDF                                         OWL        ...
Different Aspects In the same Model    A Lamp is        A thing (BuildingThing)        It is controllable (Controllable...
Different Aspects in the same Model     Building      Thing                                            IsIn / contains    ...
In Practice (Protégé & OWL)               <owl:Class rdf:about="#SimpleLamp">                   <rdfs:comment             ...
Sample Room Model in DogOnt                                                                     OffNotification           ...
DOG - Domotic OSGi Gateway                           http://domoticdog.sourceforge.net/29            e-lite - AmI+DOG     ...
System Architecture                                                      Mobile, Web, Home Display,                       ...
The KNX demo box                               D                               GW31          e-lite - AmI+DOG        26/03...
The Z-Wave demo box                               GW                         D32          e-lite - AmI+DOG        26/03/2010
Texas Intruments eZ430-Chronos33          e-lite - AmI+DOG     26/03/2010
DogEye user interface34           e-lite - AmI+DOG   26/03/2010
DogEye Video35             e-lite - AmI+DOG   26/03/2010
DogEye with an eye tracker36           e-lite - AmI+DOG   26/03/2010
Mobile House Control37           e-lite - AmI+DOG   26/03/2010
System Architecture                                                      Mobile, Web, Home Display,                       ...
OSGi Alliance    Open Services Gateway Initiative        defines open specifications for            Creating and delive...
OSGi definitions        OSGi frameworks            Implementation in JAVA of the OSGi specifications             (equino...
High-Level Architecture    OSGi - based    2 main layers    3 main bundle groups        Core        Drivers        A...
Core                                         DogXMLEndPoint                                     DogRESTEndPoint           ...
Command handling (1)             Application                              Command                   Dog43            Dario...
Command handling (2)                                        Command                                         DogXMLEndPoint...
Notification handling (1)                Application                                Notification                     Dog45...
Notification handling                                    DogXMLEndPoint                               DogRESTEndPoint     ...
In DogOnt we trust (3)                                          Thing                                                     ...
Device Category (structure)                                   Lighting                                                   p...
Device Model (Structure)     public class DogLamp extends DogDevice implements Lamp     {                 public DogLamp(B...
Device Category (Hi-Fi)package it.polito.elite.domotics.model.devicecategory; /*** HiFiCategory - automatically generated ...
Automatic Generation    Template based        Common structure of device categories and device models    Fill “placehol...
Automatic Generation (recipe) Device Categories                         Device Models 1.   GetAllDevicesWithAncestors     ...
Queries (1) - Devices    Get all devices with ancestors        SELECT DISTINCT ?x WHERE { ?x         rdfs:subClassOf dog...
Queries (2) - Commands Non-Parametric Commands                                  Parametric Commands SELECT DISTINCT ?comma...
Queries(3) - States    SELECT ?state WHERE{     dogont:"+deviceClass+" rdfs:subClassOf     [rdf:type owl:Restriction;    ...
Accessibility / Disability56             e-lite - AmI+DOG   26/03/2010
Testing Dog in a Real Home57           e-lite - AmI+DOG   26/03/2010
http://elite.polito.it/spchains      Stream Processing spChains                                                       spCh...
Alcuni esempi di spChains    Ogni spChain è definita in XML    Libreria di spBlock parametrici (13++)    Creazione auto...
60   e-lite - Smart Buildings   20/04/2012
Visual rule builder61               e-lite - AmI+DOG   26/03/2010
Visual Rules Builder: video62            e-lite - AmI+DOG   26/03/2010
SimulationStateCharts   Apache Commons  SPARQL     63         e-lite - AmI+DOG   26/03/2010
Simulation        OffStateValue                       OnStateValue        Lamp Machine Template           Lamp1           ...
Simulation – Bank Door65           e-lite - AmI+DOG   26/03/2010
Intelligence + Security                                          OWL                                          Drools      ...
Rules Generation (DOG1.0)     Query                                        Rule     SELECT DISTINCT ?x ?y ?v ?c ?d        ...
Energy management68            e-lite - AmI+DOG   26/03/2010
In-Home Display videosDFP: Direct Feedback of        GSE: Goal Setting foristantaneous Power             consumed Energy 6...
Energy Awareness70          e-lite - AmI+DOG   26/03/2010
Contacts    Web site:        http://elite.polito.it    Dog2.0 information, documentation and downloads        http://d...
Get involved!    User interfaces / User experience    Artificial intelligence / Semantic modeling    Wireless [sensor] ...
Licenza d’uso    Questa presentazione è rilasciate con la licenza Creative     Commons “Attribuzione-Non commerciale-Cond...
Upcoming SlideShare
Loading in …5
×

Research Activities in Ambient Intelligence

992 views

Published on

Short summary of research activities of the e-Lite research group (http://elite.polito.it) at Politecnico di Torino (Italy) on the topic of Smart Environments and the application of Ontologies and Semantic Computing to Ambient Intelligence.

Published in: Technology, Business
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
992
On SlideShare
0
From Embeds
0
Number of Embeds
3
Actions
Shares
0
Downloads
59
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

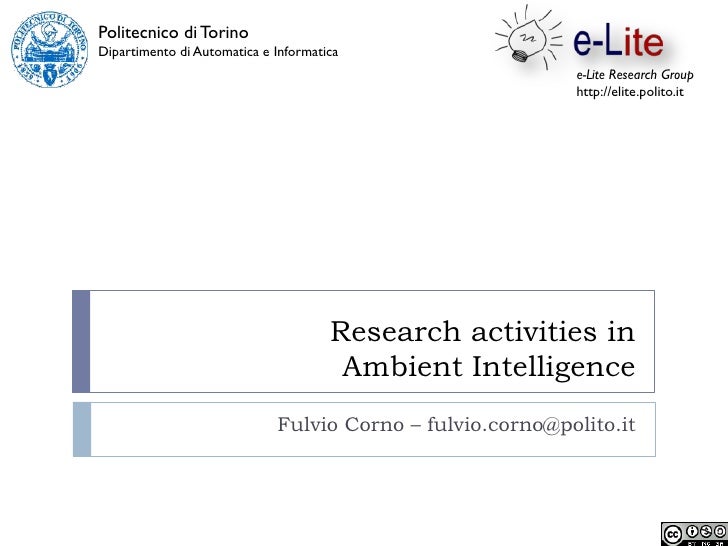

Research Activities in Ambient Intelligence
