Presto - Hadoop Conference Japan 2014

  1. 1. Sadayuki Furuhashi Founder & Software Architect Treasure Data, inc. PrestoInteractive SQL Query Engine for Big Data Hadoop Conference in Japan 2014
  2. 2. A little about me... > Sadayuki Furuhashi > github/twitter: @frsyuki > Treasure Data, Inc. > Founder & Software Architect > Open-source hacker > MessagePack - efficient object serializer > Fluentd - data collection tool > ServerEngine - Ruby framework to build multiprocess servers > LS4 - distributed object storage system > kumofs - distributed key-value data store
  3. 3. 0. Background + Intro

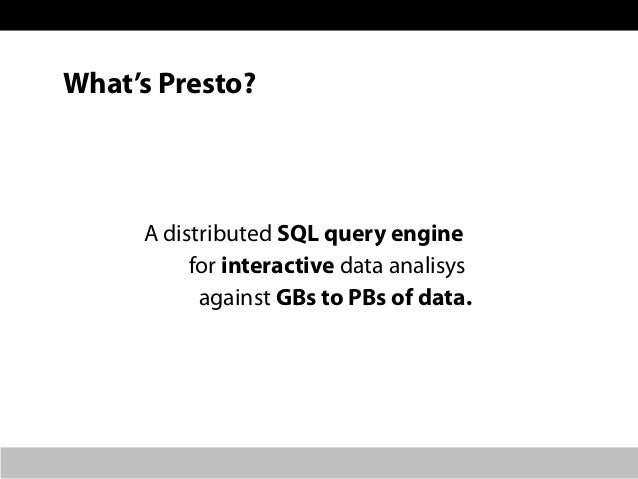

  4. 4. What’s Presto? A distributed SQL query engine for interactive data analisys against GBs to PBs of data.
  5. 5. Presto’s history > 2012 Fall: Project started at Facebook > Designed for interactive query > with speed of commercial data warehouse > and scalability to the size of Facebook > 2013 Winter: Open sourced! > 30+ contributes in 6 months > including people from outside of Facebook

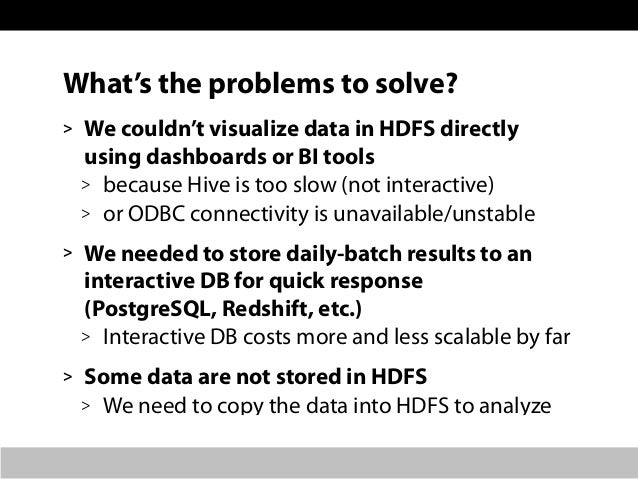

  6. 6. What’s the problems to solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more and less scalable by far > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze
  7. 7. What’s the problems to solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more and less scalable by far > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

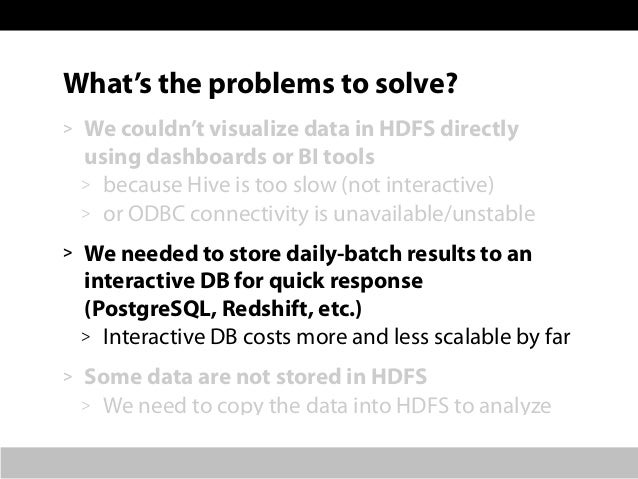

  8. 8. What’s the problems to solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more and less scalable by far > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

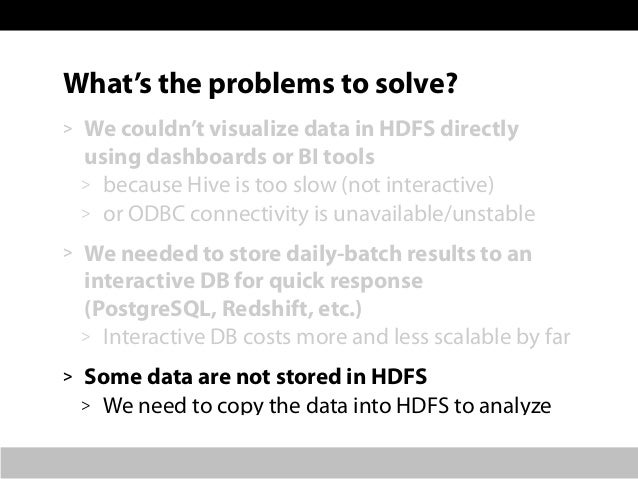

  9. 9. What’s the problems to solve? > We couldn’t visualize data in HDFS directly using dashboards or BI tools > because Hive is too slow (not interactive) > or ODBC connectivity is unavailable/unstable > We needed to store daily-batch results to an interactive DB for quick response (PostgreSQL, Redshift, etc.) > Interactive DB costs more and less scalable by far > Some data are not stored in HDFS > We need to copy the data into HDFS to analyze

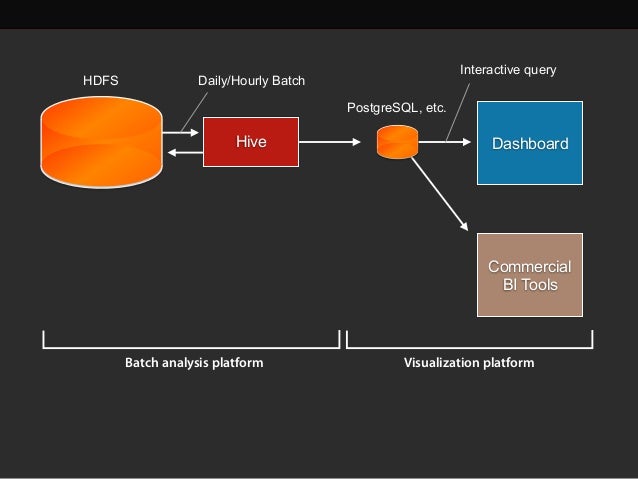

  10. 10. HDFS Hive PostgreSQL, etc. Daily/Hourly Batch Interactive query Commercial BI Tools Batch analysis platform Visualization platform Dashboard

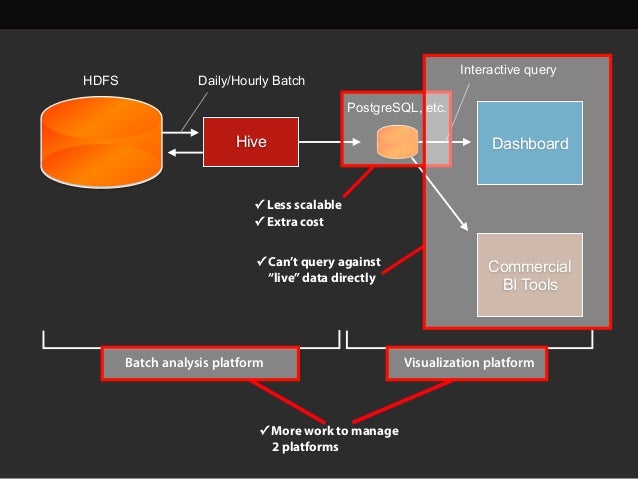

  11. 11. HDFS Hive PostgreSQL, etc. Daily/Hourly Batch Interactive query ✓ Less scalable ✓ Extra cost Commercial BI Tools Dashboard ✓ More work to manage 2 platforms ✓ Can’t query against “live”data directly Batch analysis platform Visualization platform

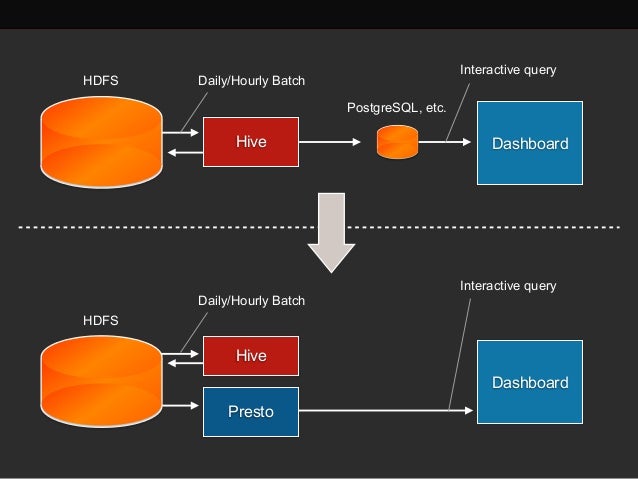

  12. 12. HDFS Hive Dashboard Presto PostgreSQL, etc. Daily/Hourly Batch HDFS Hive Dashboard Daily/Hourly Batch Interactive query Interactive query

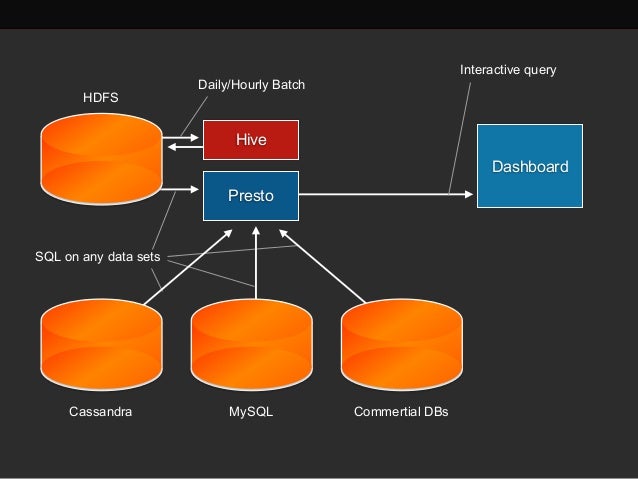

  13. 13. Presto HDFS Hive Dashboard Daily/Hourly Batch Interactive query Cassandra MySQL Commertial DBs SQL on any data sets

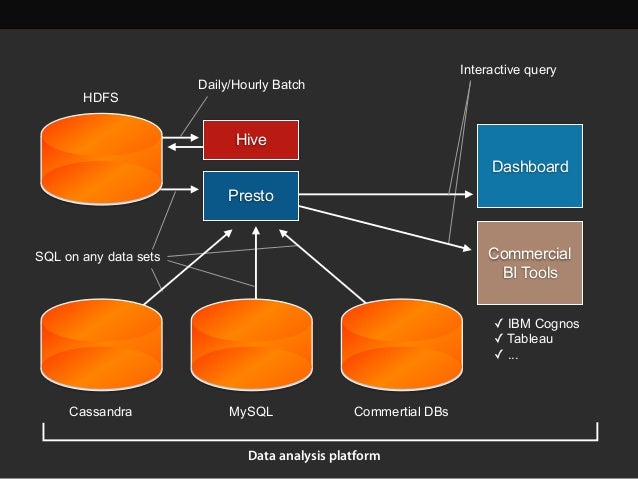

  14. 14. Presto HDFS Hive Dashboard Daily/Hourly Batch Interactive query Cassandra MySQL Commertial DBs SQL on any data sets Commercial BI Tools ✓ IBM Cognos ✓ Tableau ✓ ... Data analysis platform

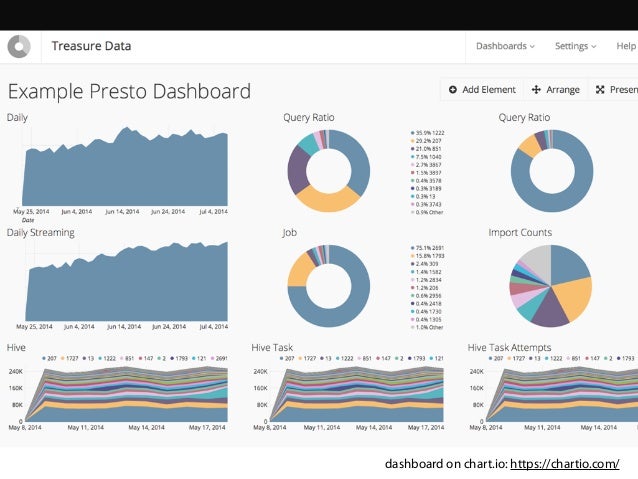

  15. 15. dashboard on chart.io: https://chartio.com/

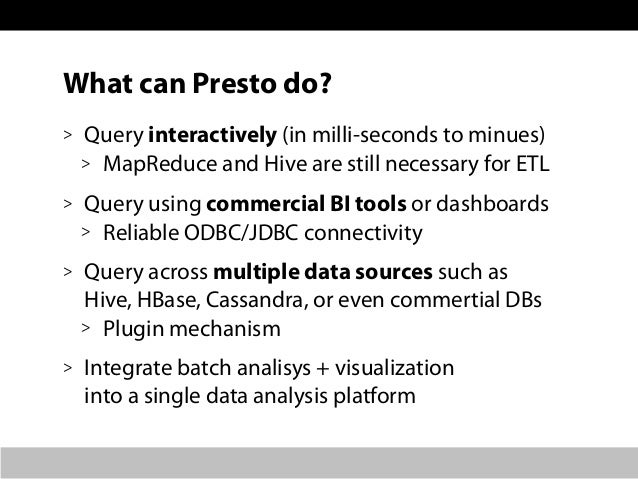

  16. 16. What can Presto do? > Query interactively (in milli-seconds to minues) > MapReduce and Hive are still necessary for ETL > Query using commercial BI tools or dashboards > Reliable ODBC/JDBC connectivity > Query across multiple data sources such as Hive, HBase, Cassandra, or even commertial DBs > Plugin mechanism > Integrate batch analisys + visualization into a single data analysis platform
  17. 17. Presto’s deployment > Facebook > Multiple geographical regions > scaled to 1,000 nodes > actively used by 1,000+ employees > who run 30,000+ queries every day > processing 1PB/day > Netflix, Dropbox, Treasure Data, Airbnb, Qubole > Presto as a Service
  18. 18. Today’s talk 1. Distributed architecture 2. Data visualization - Demo 3. Query Execution - Presto vs. MapReduce 4. Monitoring & Configuration 5. Roadmap - the future

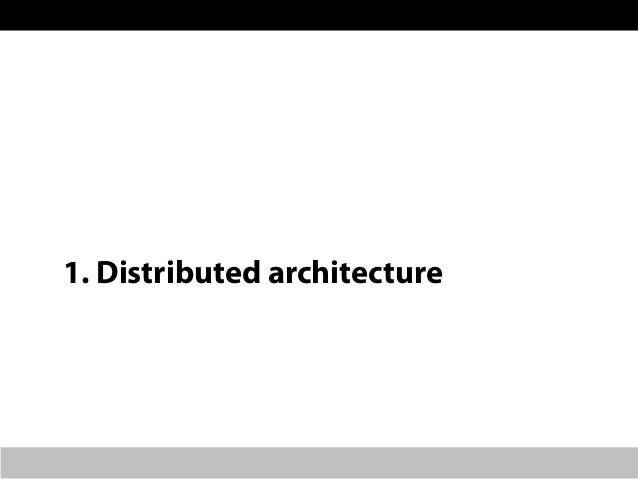

  19. 19. 1. Distributed architecture
  20. 20. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service

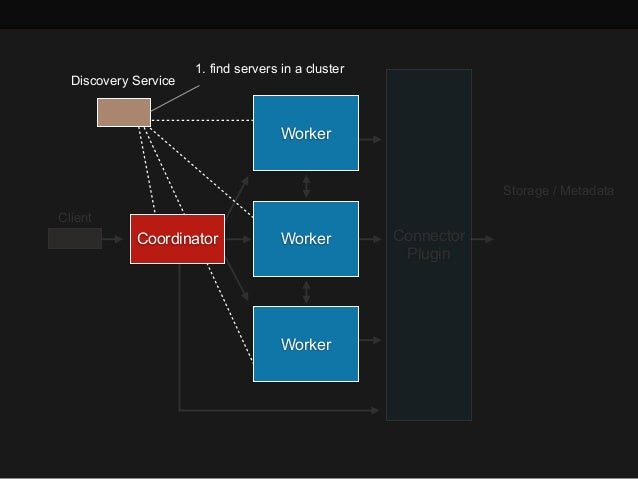

  21. 21. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 1. find servers in a cluster

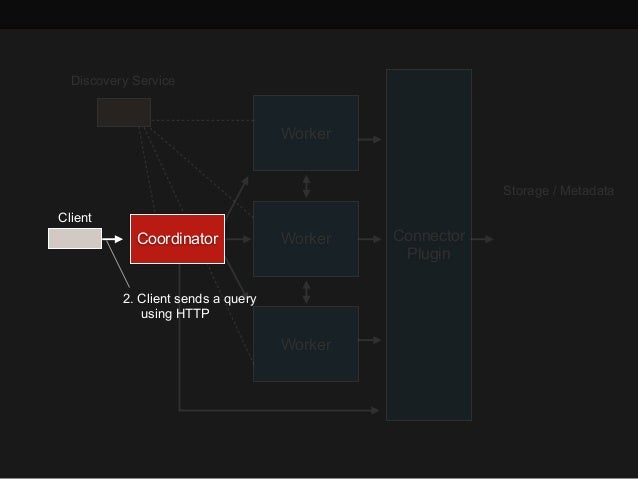

  22. 22. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 2. Client sends a query using HTTP
  23. 23. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 3. Coordinator builds a query plan Connector plugin provides metadata (table schema, etc.)

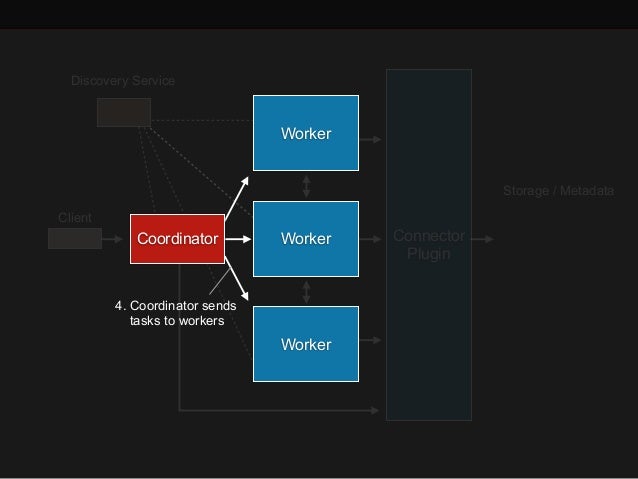

  24. 24. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 4. Coordinator sends tasks to workers

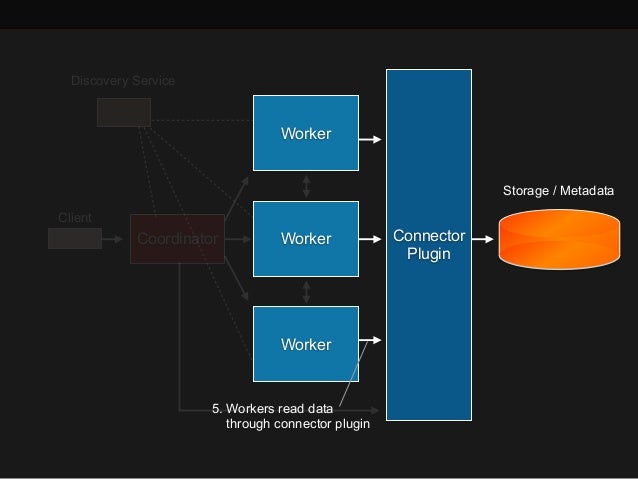

  25. 25. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 5. Workers read data through connector plugin

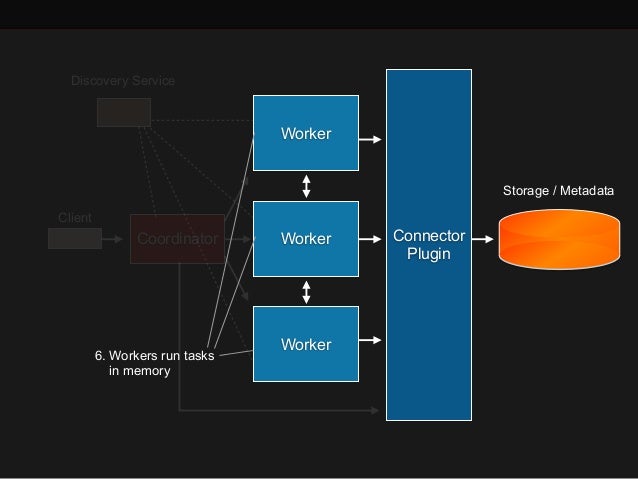

  26. 26. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 6. Workers run tasks in memory

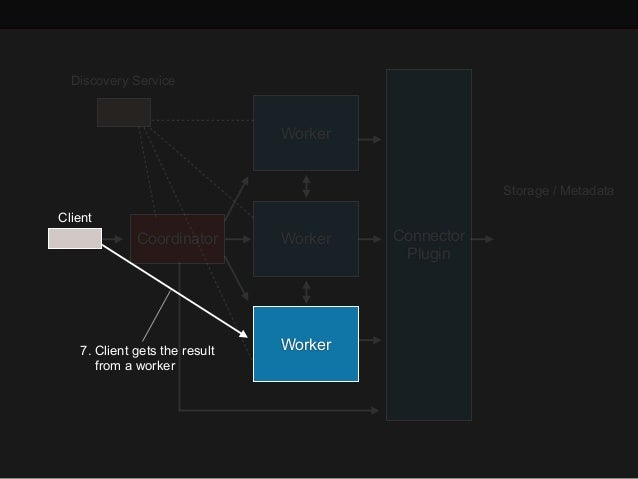

  27. 27. Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service 7. Client gets the result from a worker Client

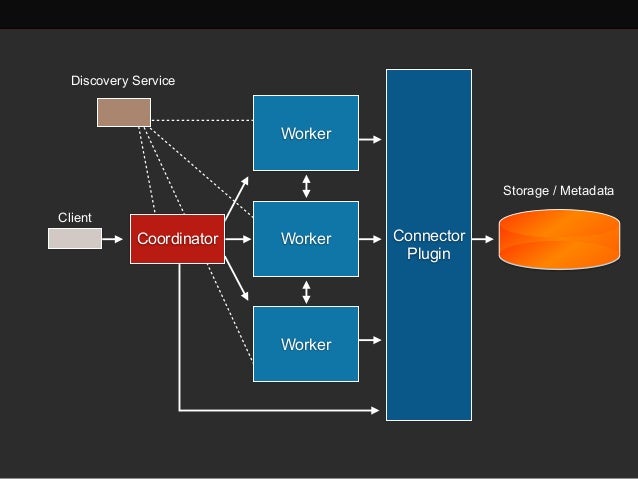

  28. 28. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service

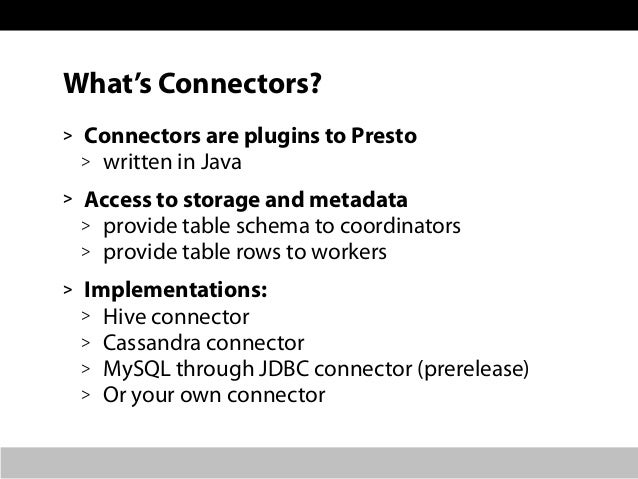

  29. 29. What’s Connectors? > Connectors are plugins to Presto > written in Java > Access to storage and metadata > provide table schema to coordinators > provide table rows to workers > Implementations: > Hive connector > Cassandra connector > MySQL through JDBC connector (prerelease) > Or your own connector
  30. 30. Client Coordinator Hive Connector Worker Worker Worker HDFS, Hive Metastore Discovery Service find servers in a cluster Hive connector

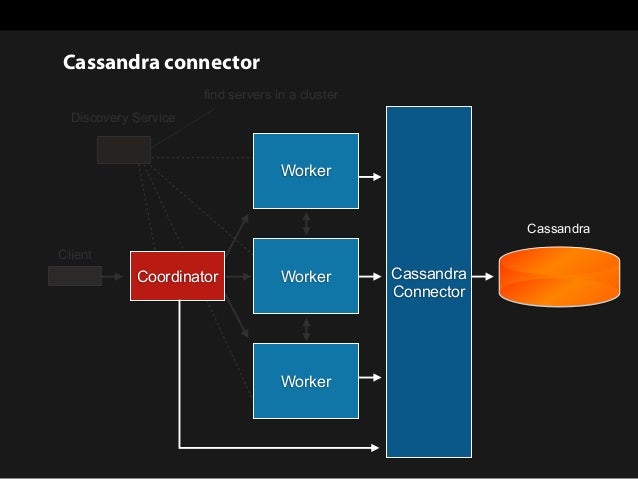

  31. 31. Client Coordinator Cassandra Connector Worker Worker Worker Cassandra Discovery Service find servers in a cluster Cassandra connector

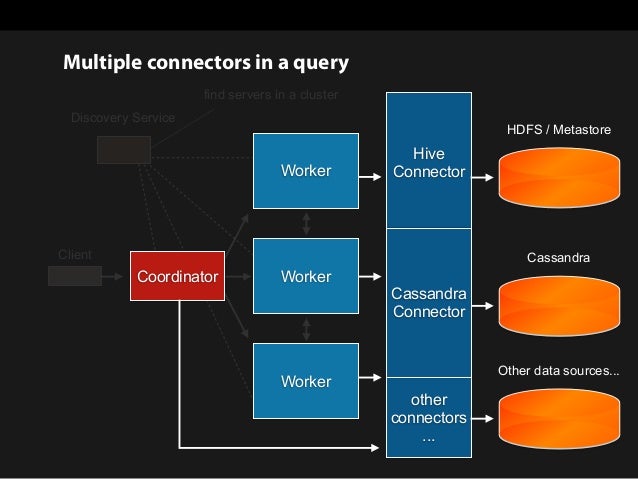

  32. 32. Client Coordinator other connectors ... Worker Worker Worker Cassandra Discovery Service find servers in a cluster Hive Connector HDFS / Metastore Multiple connectors in a query Cassandra Connector Other data sources...

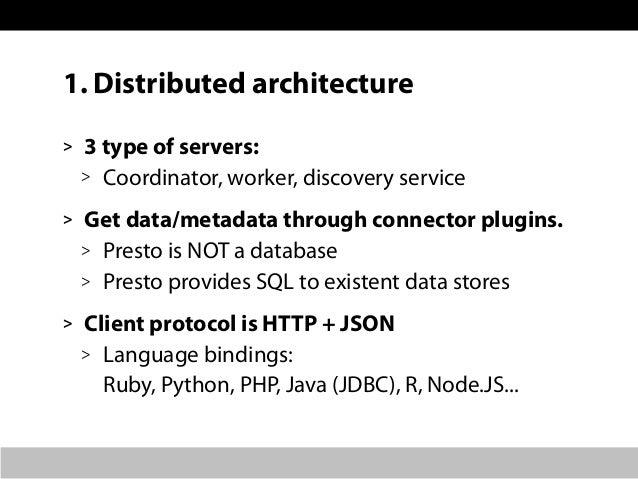

  33. 33. 1. Distributed architecture > 3 type of servers: > Coordinator, worker, discovery service > Get data/metadata through connector plugins. > Presto is NOT a database > Presto provides SQL to existent data stores > Client protocol is HTTP + JSON > Language bindings: Ruby, Python, PHP, Java (JDBC), R, Node.JS...
  34. 34. Client Coordinator Connector Plugin Worker Worker Worker Storage / Metadata Discovery Service Coordinator Coordinator HA
  35. 35. 2. Data visualization

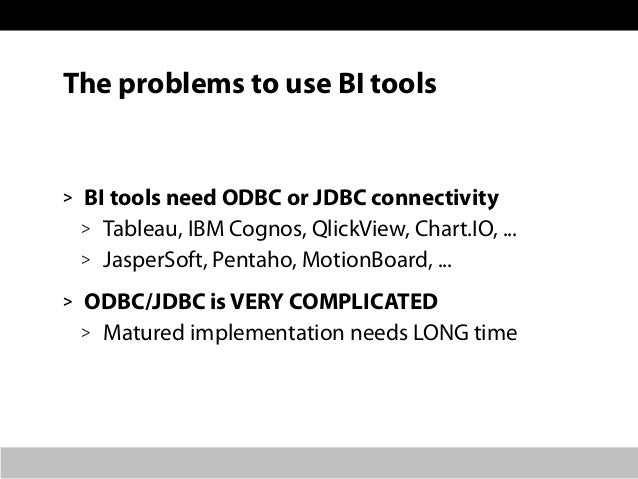

  36. 36. The problems to use BI tools > BI tools need ODBC or JDBC connectivity > Tableau, IBM Cognos, QlickView, Chart.IO, ... > JasperSoft, Pentaho, MotionBoard, ... > ODBC/JDBC is VERY COMPLICATED > Matured implementation needs LONG time

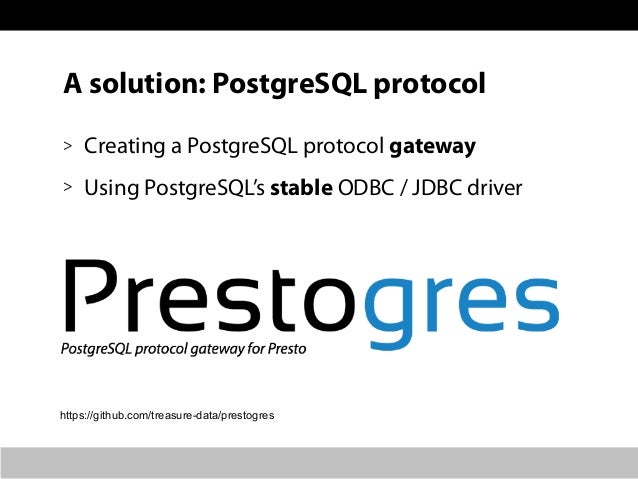

  37. 37. A solution: PostgreSQL protocol > Creating a PostgreSQL protocol gateway > Using PostgreSQL’s stable ODBC / JDBC driver https://github.com/treasure-data/prestogres

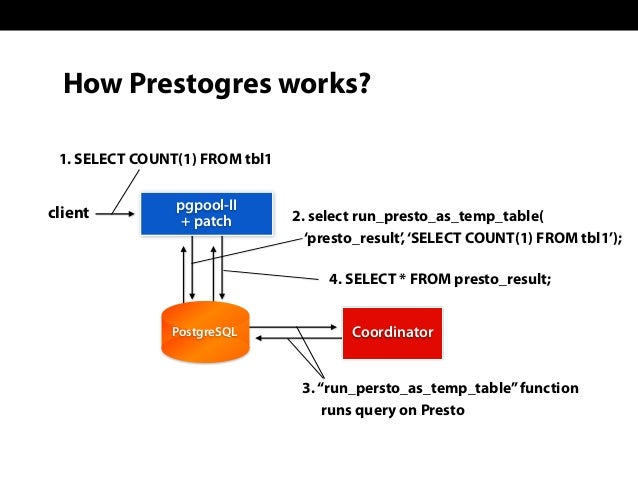

  38. 38. How Prestogres works? 2. select run_presto_as_temp_table( ‘presto_result’,‘SELECT COUNT(1) FROM tbl1’); pgpool-II + patchclient 1. SELECT COUNT(1) FROM tbl1 4. SELECT * FROM presto_result; PostgreSQL 3.“run_persto_as_temp_table”function runs query on Presto Coordinator

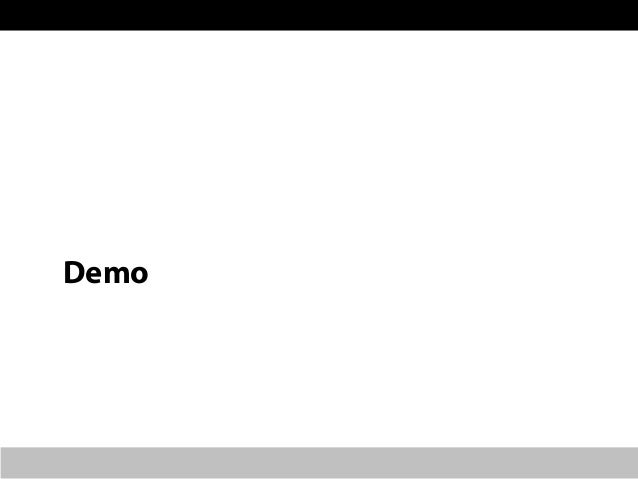

  39. 39. Demo

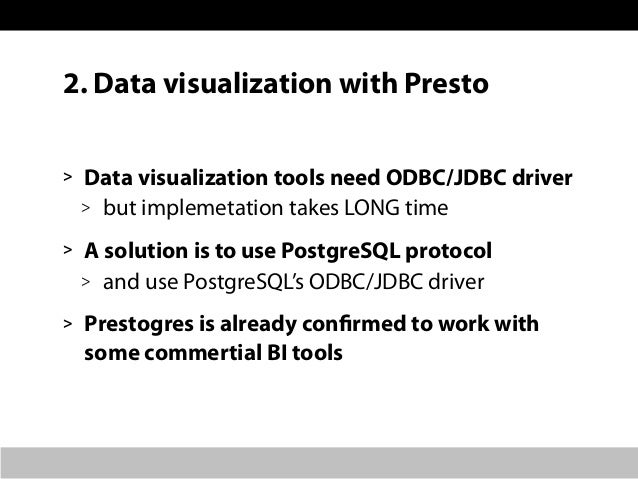

  40. 40. 2. Data visualization with Presto > Data visualization tools need ODBC/JDBC driver > but implemetation takes LONG time > A solution is to use PostgreSQL protocol > and use PostgreSQL’s ODBC/JDBC driver > Prestogres is already confirmed to work with some commertial BI tools

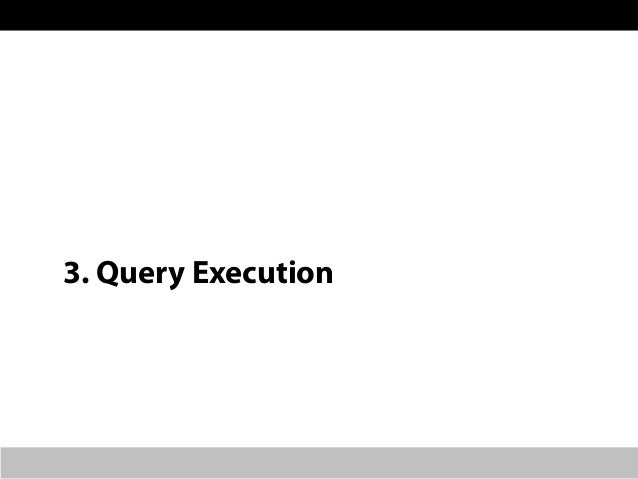

  41. 41. 3. Query Execution

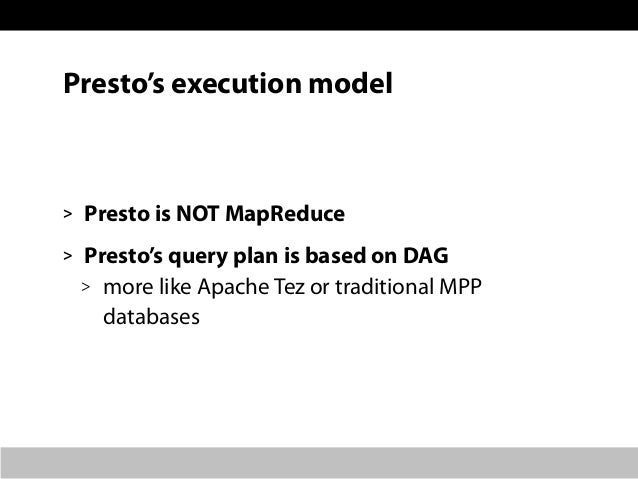

  42. 42. Presto’s execution model > Presto is NOT MapReduce > Presto’s query plan is based on DAG > more like Apache Tez or traditional MPP databases
  43. 43. How query runs? > Coordinator > SQL Parser > Query Planner > Execution planner > Workers > Task execution scheduler

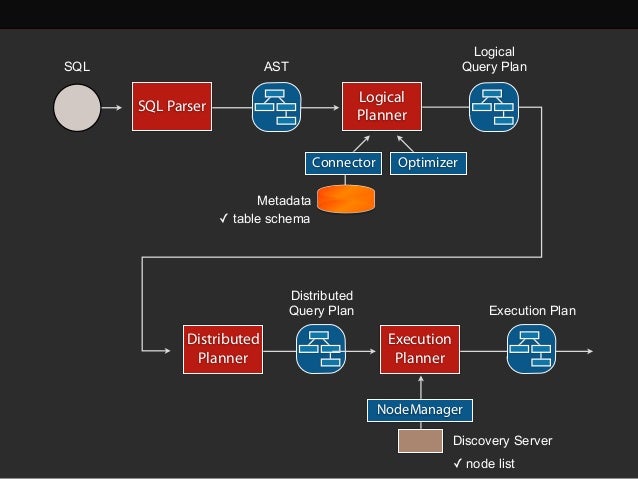

  44. 44. SQL SQL Parser AST Logical Planner Distributed Planner Logical Query Plan Execution Planner Discovery Server Connector Distributed Query Plan Execution Plan Optimizer NodeManager ✓ node list ✓ table schema Metadata

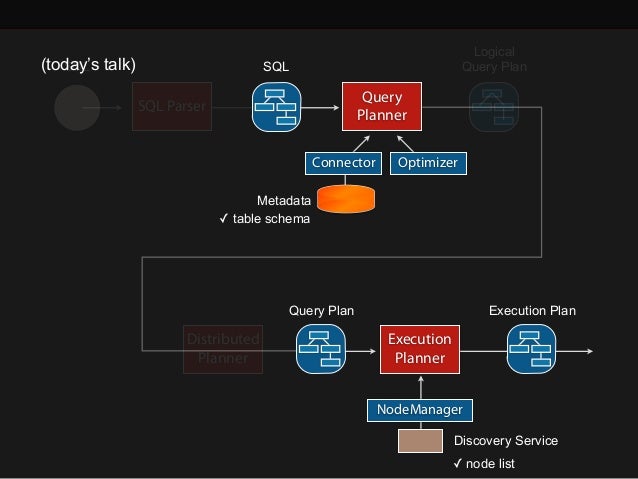

  45. 45. SQL SQL Parser SQL Distributed Planner Logical Query Plan Execution Planner Discovery Service Connector Query Plan Execution Plan Optimizer NodeManager ✓ node list ✓ table schema Metadata (today’s talk) Query Planner
  46. 46. Query Planner SELECT name, count(*) AS c FROM impressions GROUP BY name SQL impressions ( name varchar time bigint ) Table schema Table scan (name:varchar) GROUP BY (name, count(*)) Output (name, c) + Sink Final aggregation Exchange Sink Partial aggregation Table scan Output Exchange Logical query plan Distributed query plan

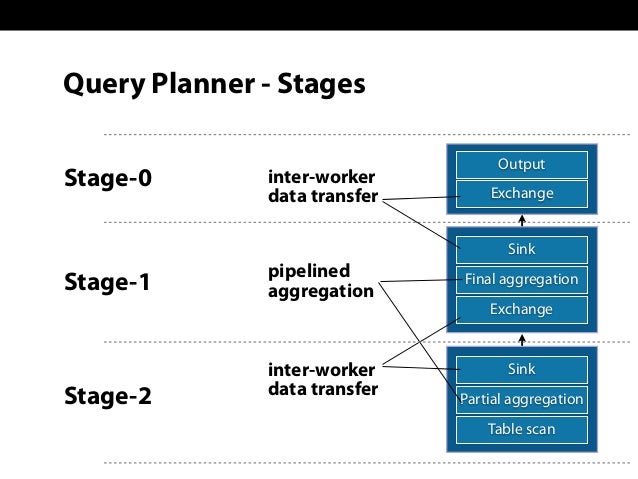

  47. 47. Query Planner - Stages Sink Final aggregation Exchange Sink Partial aggregation Table scan Output Exchange inter-worker data transfer pipelined aggregation inter-worker data transfer Stage-0 Stage-1 Stage-2
  48. 48. Sink Partial aggregation Table scan Sink Partial aggregation Table scan Execution Planner + Node list ✓ 2 workers Sink Final aggregation Exchange Output Exchange Sink Final aggregation Exchange Sink Final aggregation Exchange Sink Partial aggregation Table scan Output Exchange Worker 1 Worker 2
  49. 49. Execution Planner - Tasks Sink Final aggregation Exchange Sink Partial aggregation Table scan Sink Final aggregation Exchange Sink Partial aggregation Table scan Task 1 task / worker / stage ✓ All tasks in parallel Output Exchange Worker 1 Worker 2
  50. 50. Execution Planner - Split Sink Final aggregation Exchange Sink Partial aggregation Table scan Sink Final aggregation Exchange Sink Partial aggregation Table scan Output Exchange Split many splits / task = many threads / worker (table scan) 1 split / task = 1 thread / worker Worker 1 Worker 2 1 split / worker = 1 thread / worker
  51. 51. All stages are pipe-lined ✓ No wait time ✓ No fault-tolerance MapReduce vs. Presto MapReduce Presto map map reduce reduce task task task task task task memory-to-memory data transfer ✓ No disk IO ✓ Data chunk must fit in memory task disk map map reduce reduce disk disk Write data to disk Wait between stages

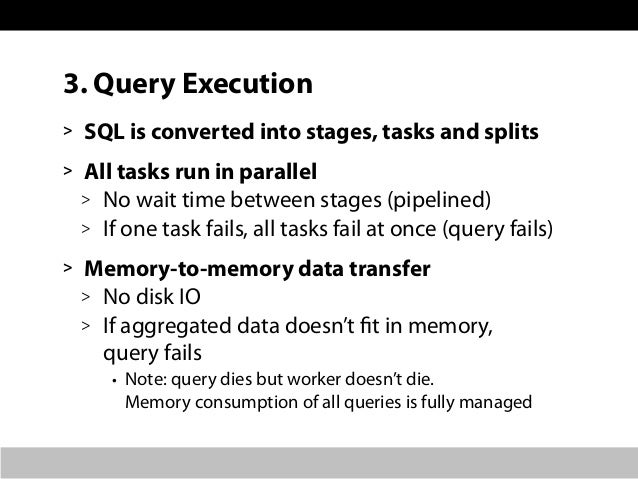

  52. 52. 3. Query Execution > SQL is converted into stages, tasks and splits > All tasks run in parallel > No wait time between stages (pipelined) > If one task fails, all tasks fail at once (query fails) > Memory-to-memory data transfer > No disk IO > If aggregated data doesn’t fit in memory, query fails • Note: query dies but worker doesn’t die. Memory consumption of all queries is fully managed
  53. 53. 4. Monitoring & Configuration

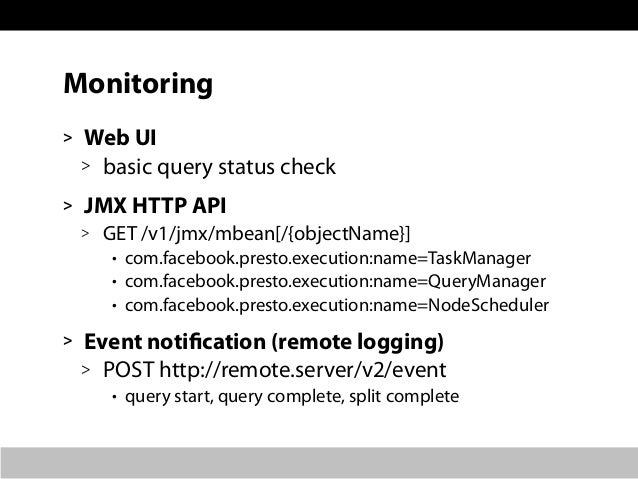

  54. 54. Monitoring > Web UI > basic query status check > JMX HTTP API > GET /v1/jmx/mbean[/{objectName}] • com.facebook.presto.execution:name=TaskManager • com.facebook.presto.execution:name=QueryManager • com.facebook.presto.execution:name=NodeScheduler > Event notification (remote logging) > POST http://remote.server/v2/event • query start, query complete, split complete

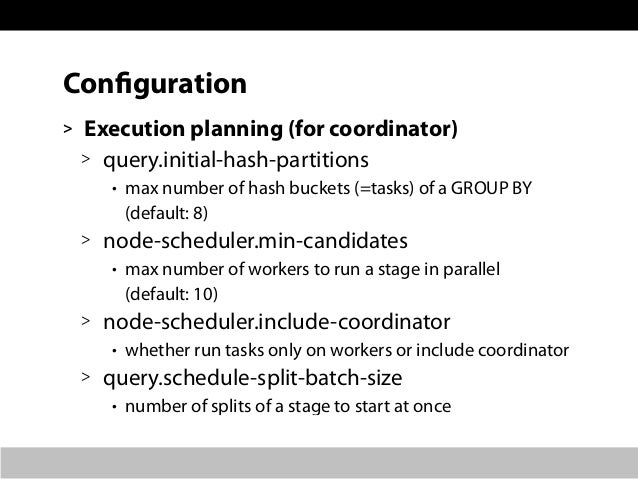

  55. 55. Configuration > Execution planning (for coordinator) > query.initial-hash-partitions • max number of hash buckets (=tasks) of a GROUP BY (default: 8) > node-scheduler.min-candidates • max number of workers to run a stage in parallel (default: 10) > node-scheduler.include-coordinator • whether run tasks only on workers or include coordinator > query.schedule-split-batch-size • number of splits of a stage to start at once

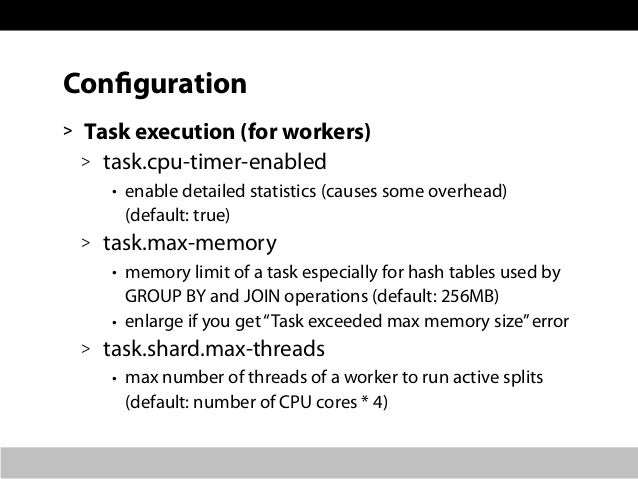

  56. 56. Configuration > Task execution (for workers) > task.cpu-timer-enabled • enable detailed statistics (causes some overhead) (default: true) > task.max-memory • memory limit of a task especially for hash tables used by GROUP BY and JOIN operations (default: 256MB) • enlarge if you get“Task exceeded max memory size”error > task.shard.max-threads • max number of threads of a worker to run active splits (default: number of CPU cores * 4)

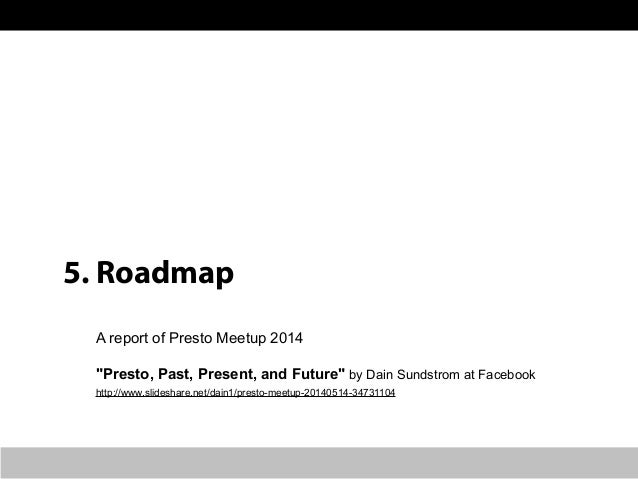

  57. 57. 5. Roadmap A report of Presto Meetup 2014 http://www.slideshare.net/dain1/presto-meetup-20140514-34731104 "Presto, Past, Present, and Future" by Dain Sundstrom at Facebook

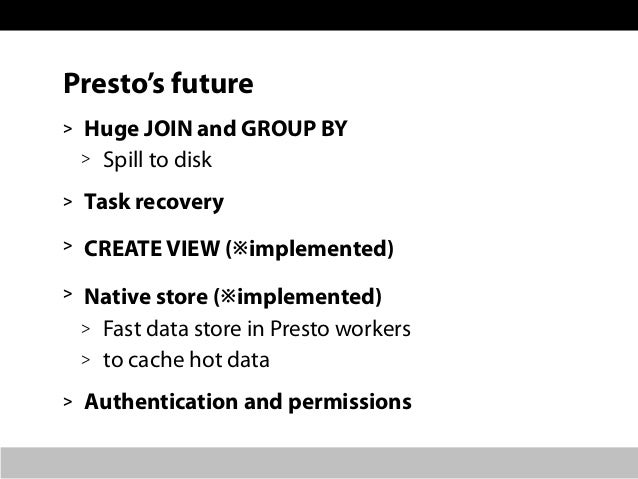

  58. 58. Presto’s future > Huge JOIN and GROUP BY > Spill to disk > Task recovery > CREATE VIEW (※implemented) > Native store (※implemented) > Fast data store in Presto workers > to cache hot data > Authentication and permissions

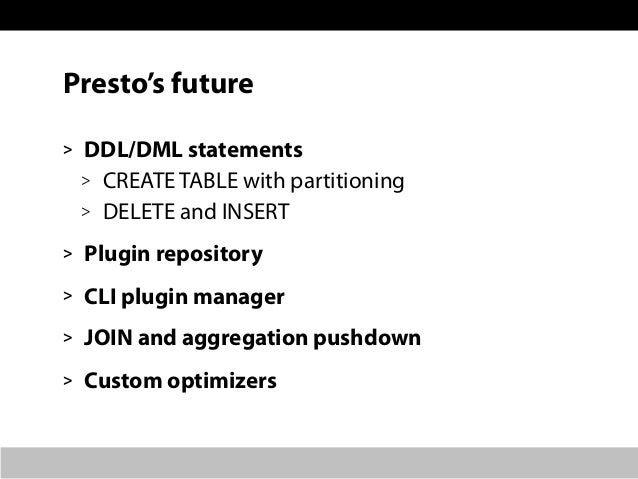

  59. 59. Presto’s future > DDL/DML statements > CREATE TABLE with partitioning > DELETE and INSERT > Plugin repository > CLI plugin manager > JOIN and aggregation pushdown > Custom optimizers
  60. 60. Links > Web site & document > http://prestodb.io > Mailing list > https://groups.google.com/group/presto-users > Github > https://github.com/facebook/presto > Guidelines for contribution > https://github.com/facebook/presto/blob/master/CONTRIBUTING.md
  61. 61. Check: www.treasuredata.com Cloud service for the entire data pipeline, including Presto. We’re hiring!

×
