TUTORIAL LASERCUTTER

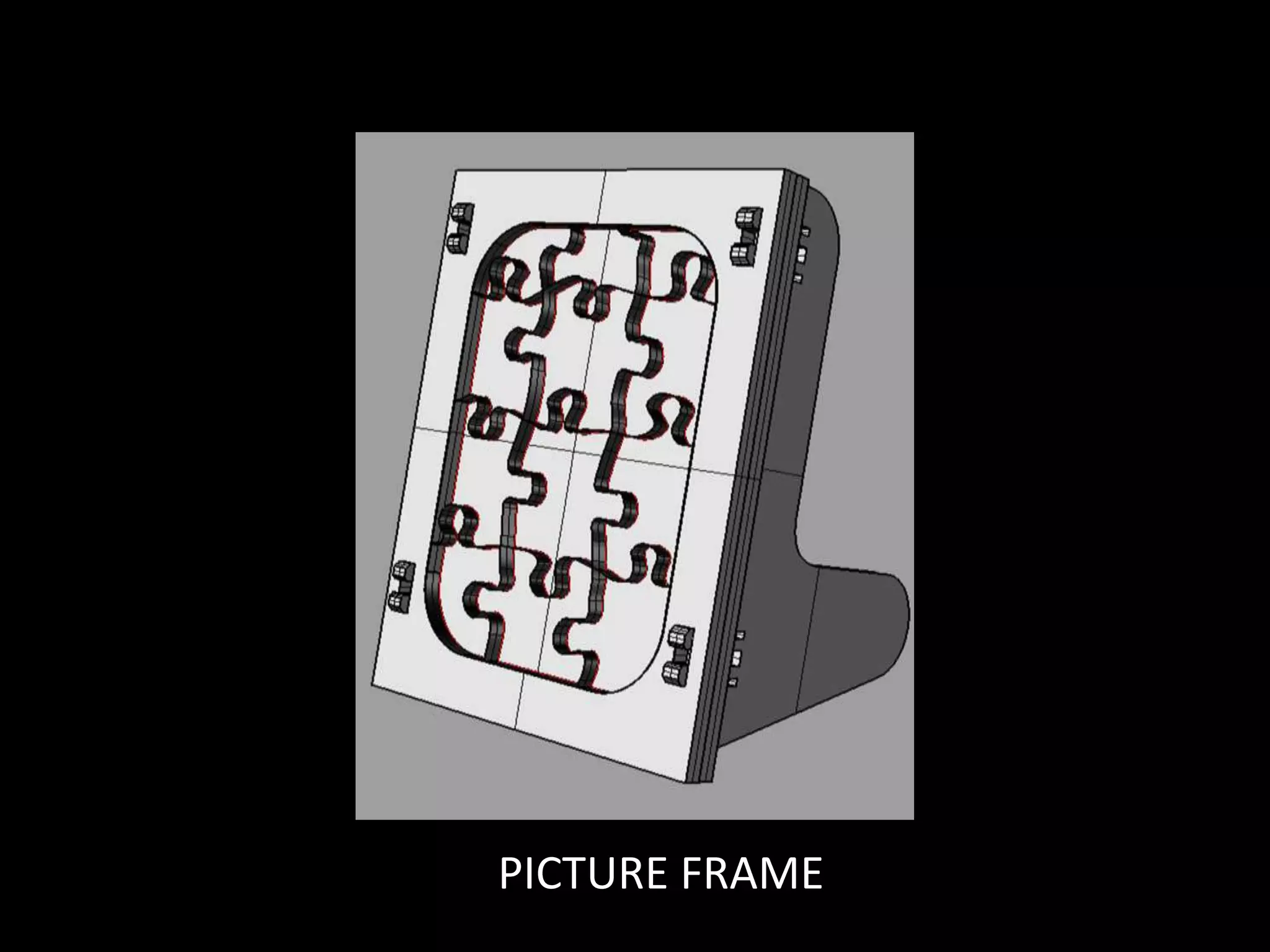

  1. 1. PICTURE FRAME

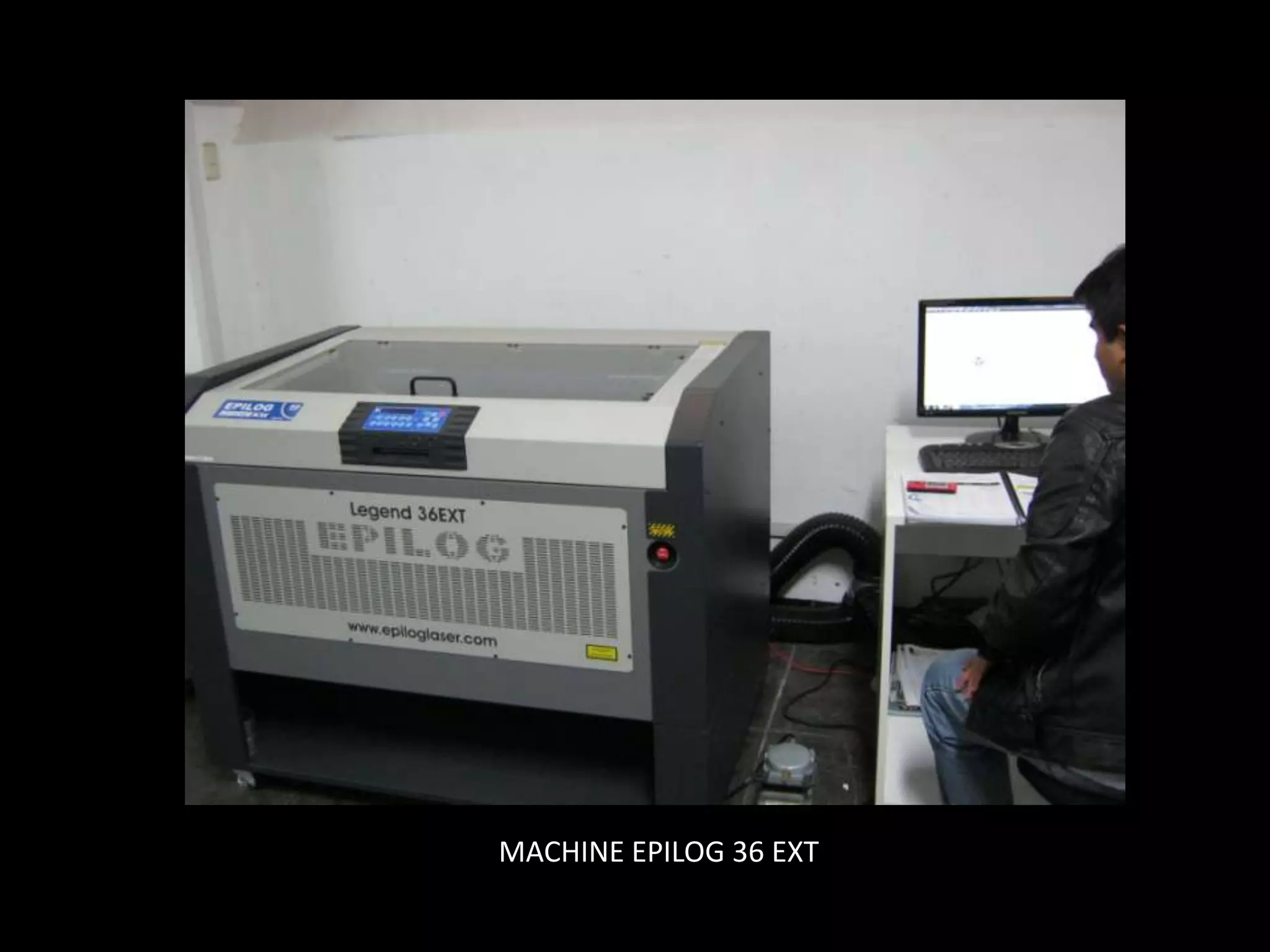

  2. 2. MACHINE EPILOG 36 EXT

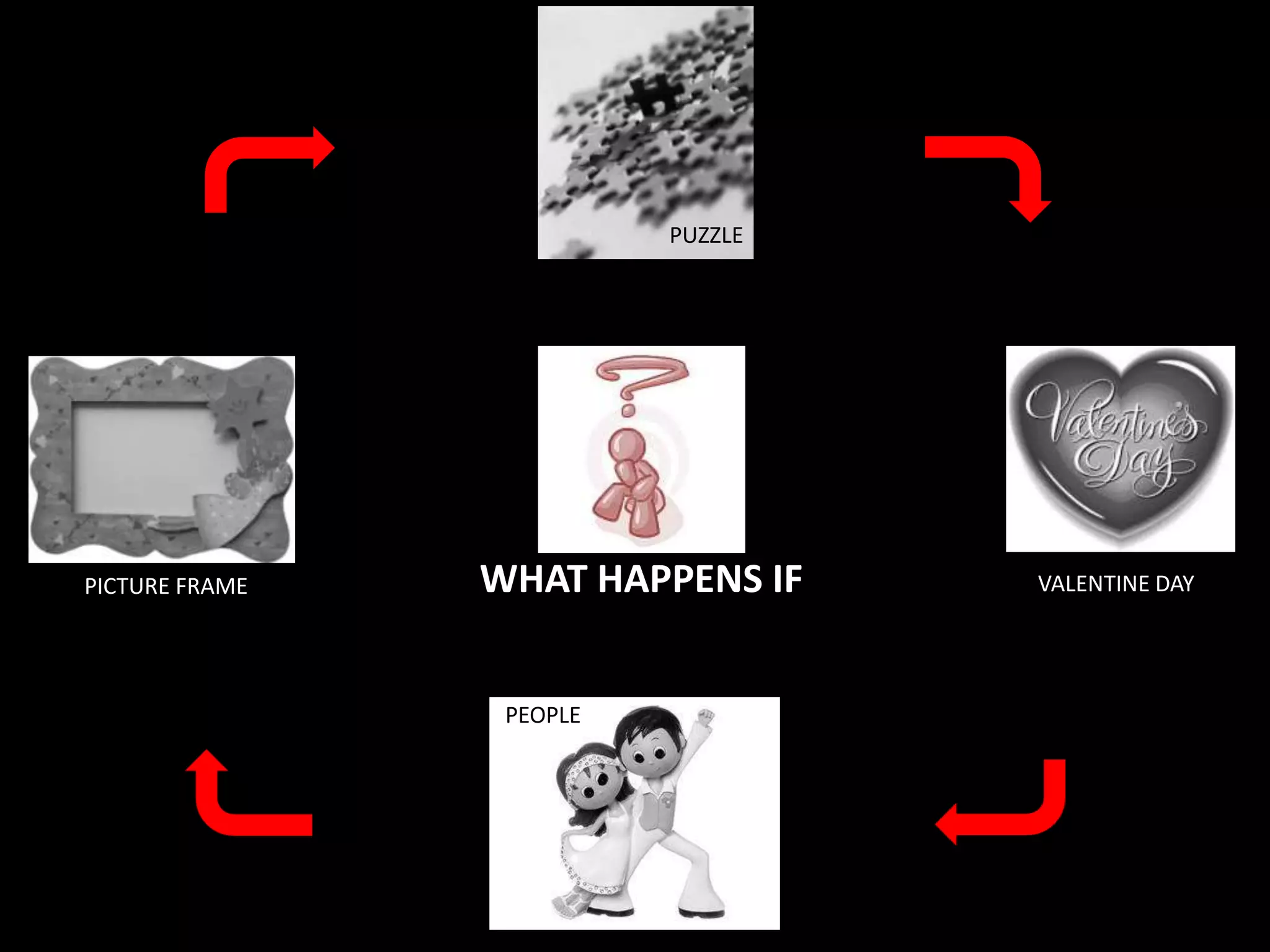

  3. 3. PUZZLEPICTURE FRAME WHAT HAPPENS IF VALENTINE DAY PEOPLE

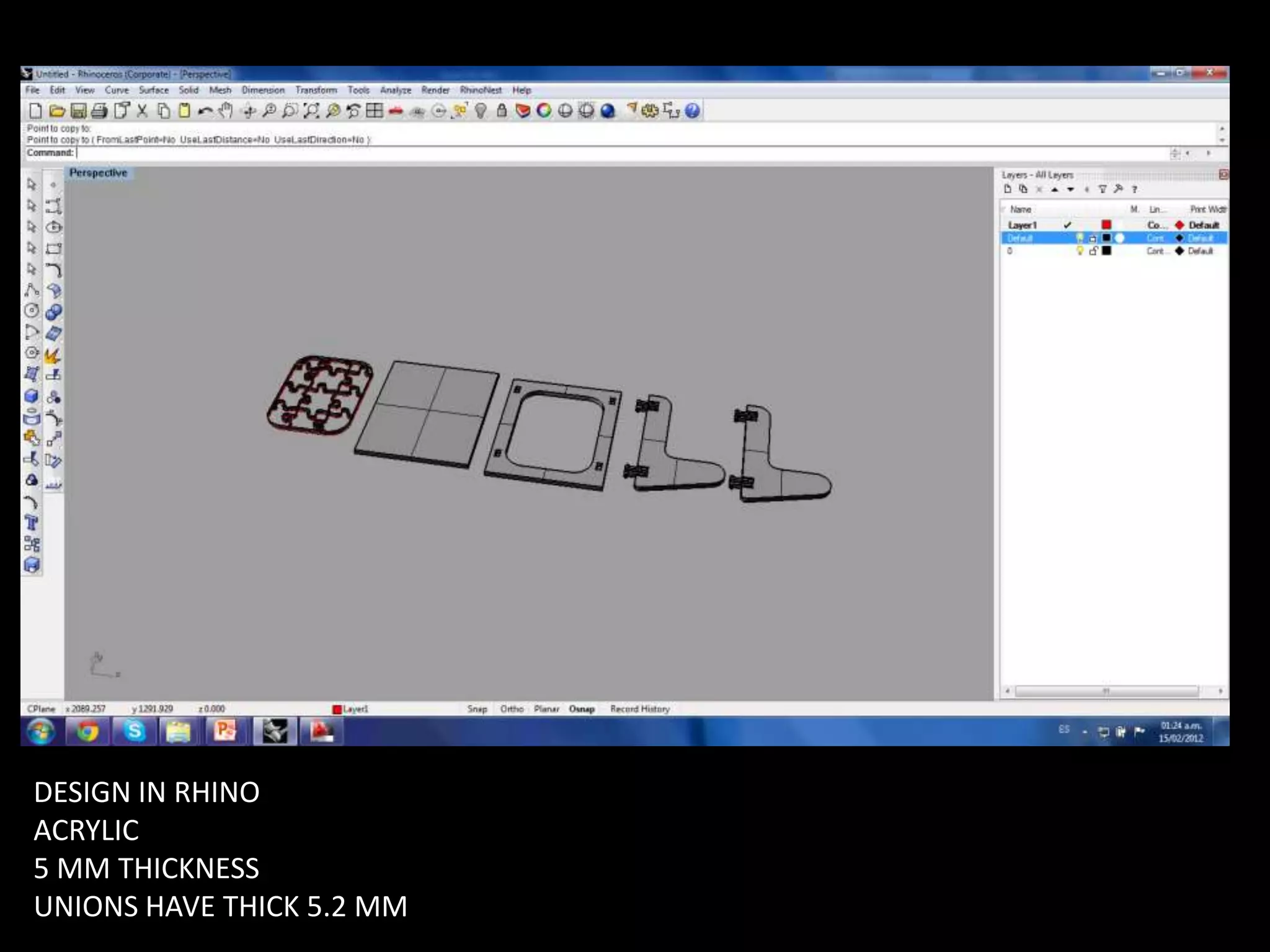

  4. 4. DESIGN IN RHINOACRYLIC5 MM THICKNESSUNIONS HAVE THICK 5.2 MM

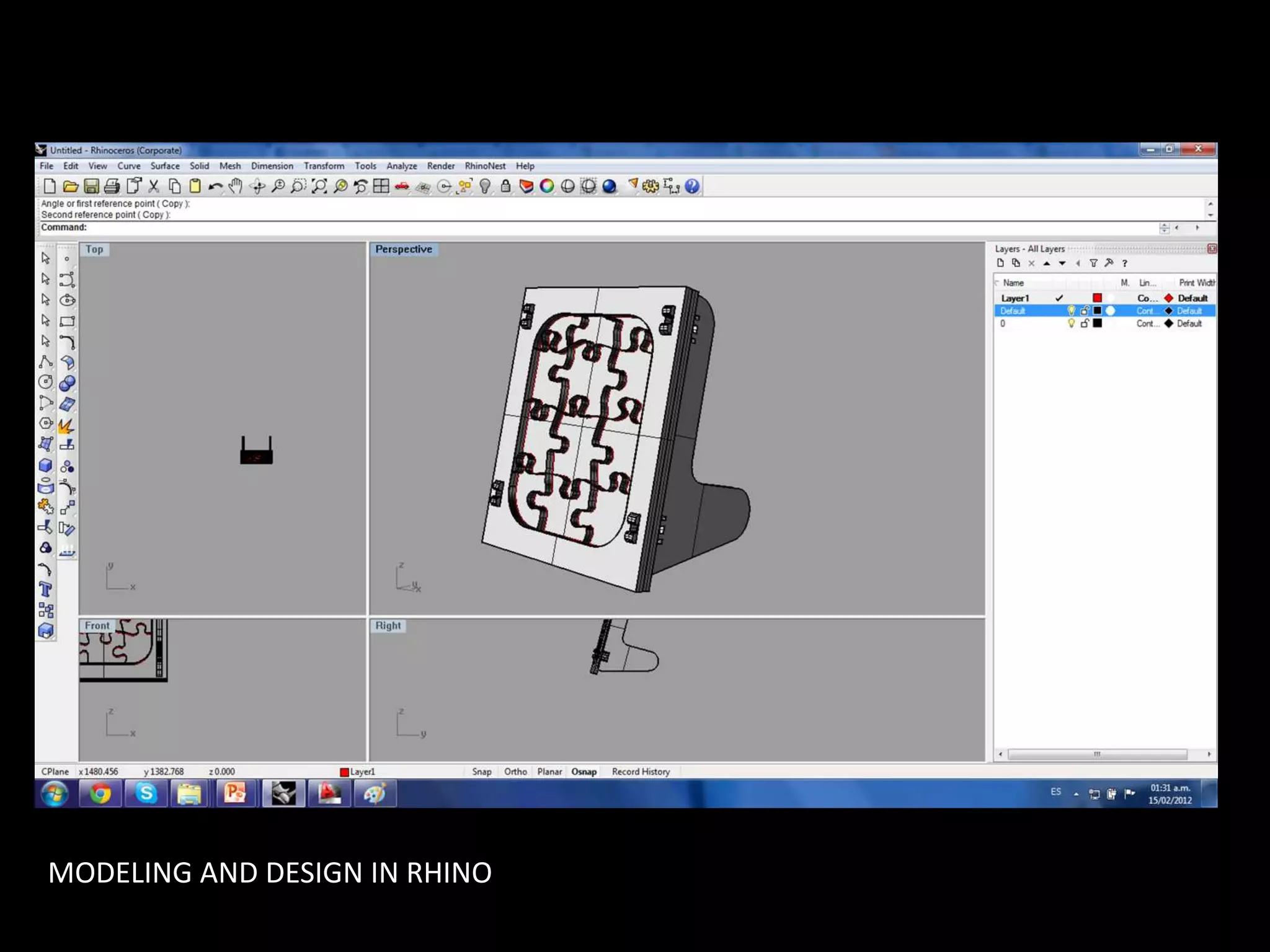

  5. 5. MODELING AND DESIGN IN RHINO

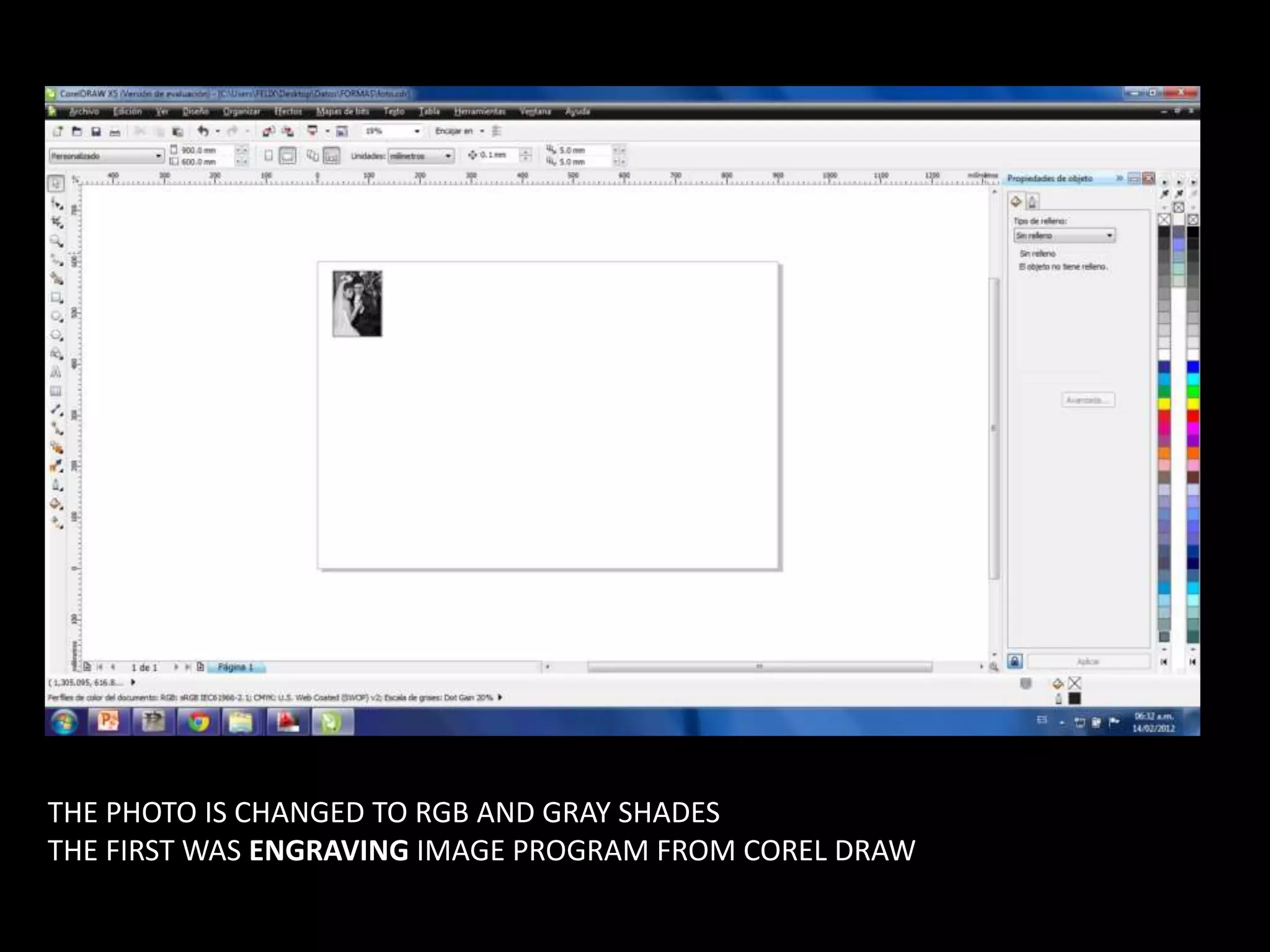

  6. 6. THE PHOTO IS CHANGED TO RGB AND GRAY SHADESTHE FIRST WAS ENGRAVING IMAGE PROGRAM FROM COREL DRAW

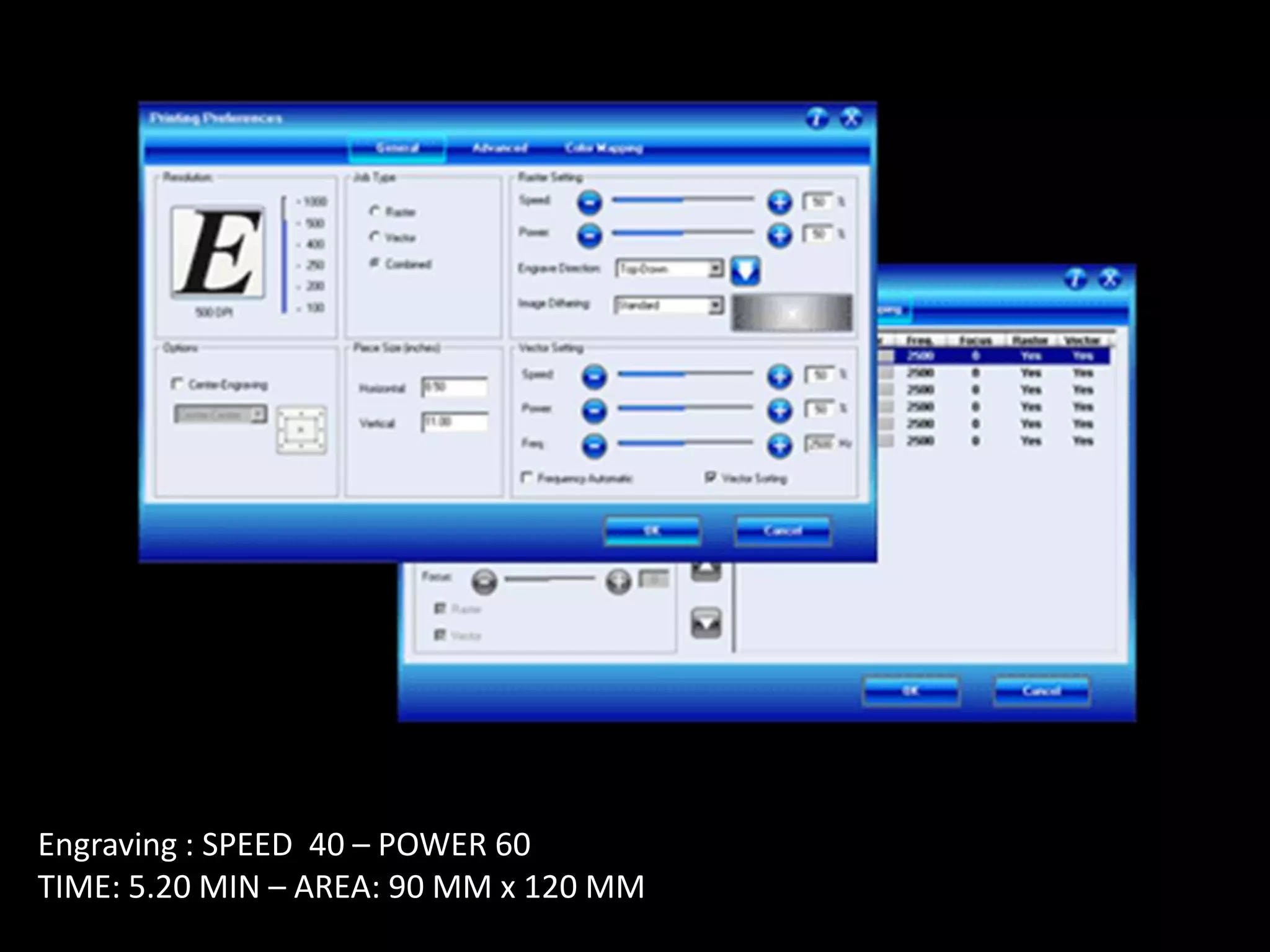

  7. 7. Engraving : SPEED 40 – POWER 60TIME: 5.20 MIN – AREA: 90 MM x 120 MM

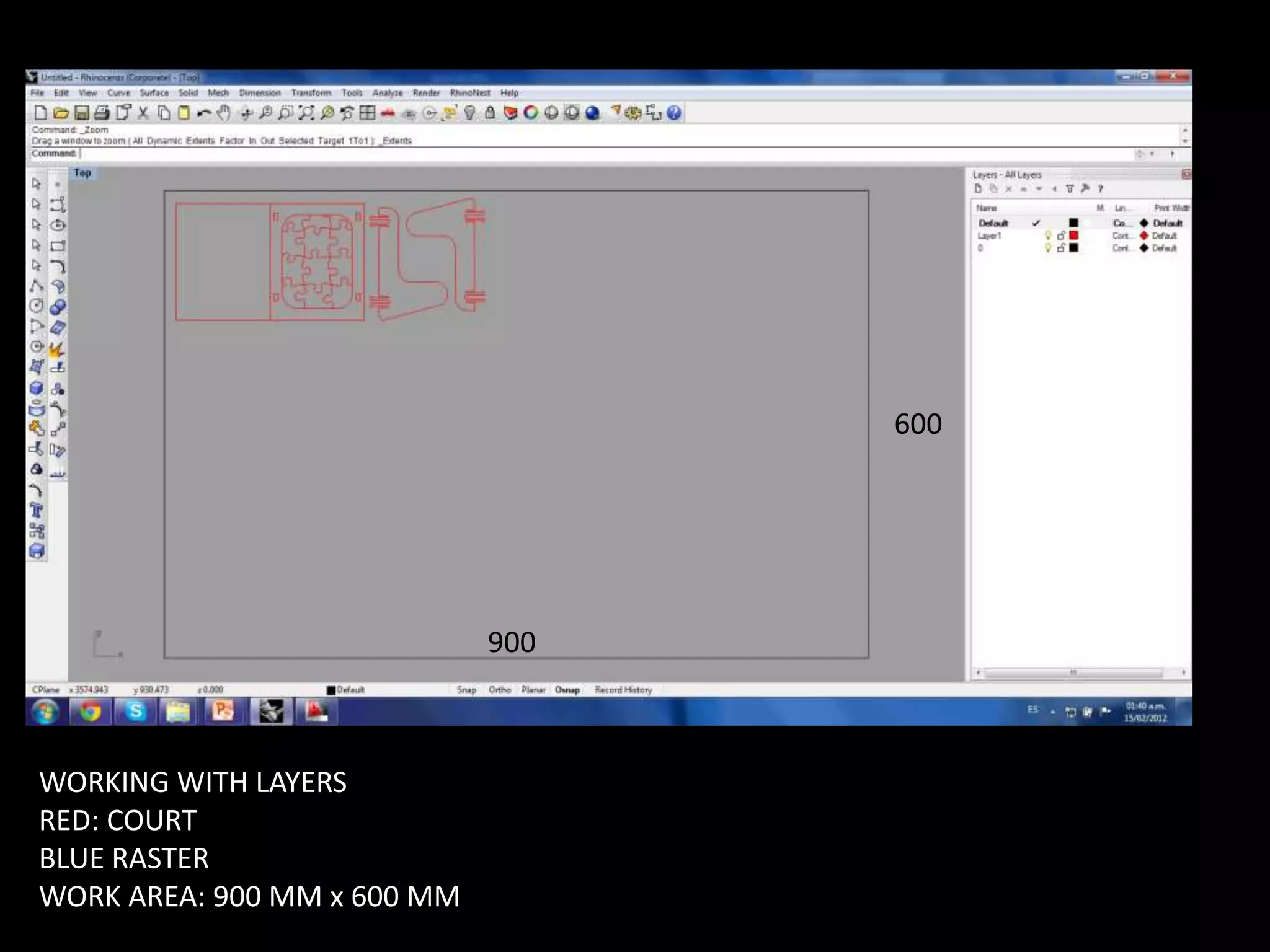

  8. 8. 600 900WORKING WITH LAYERSRED: COURTBLUE RASTERWORK AREA: 900 MM x 600 MM

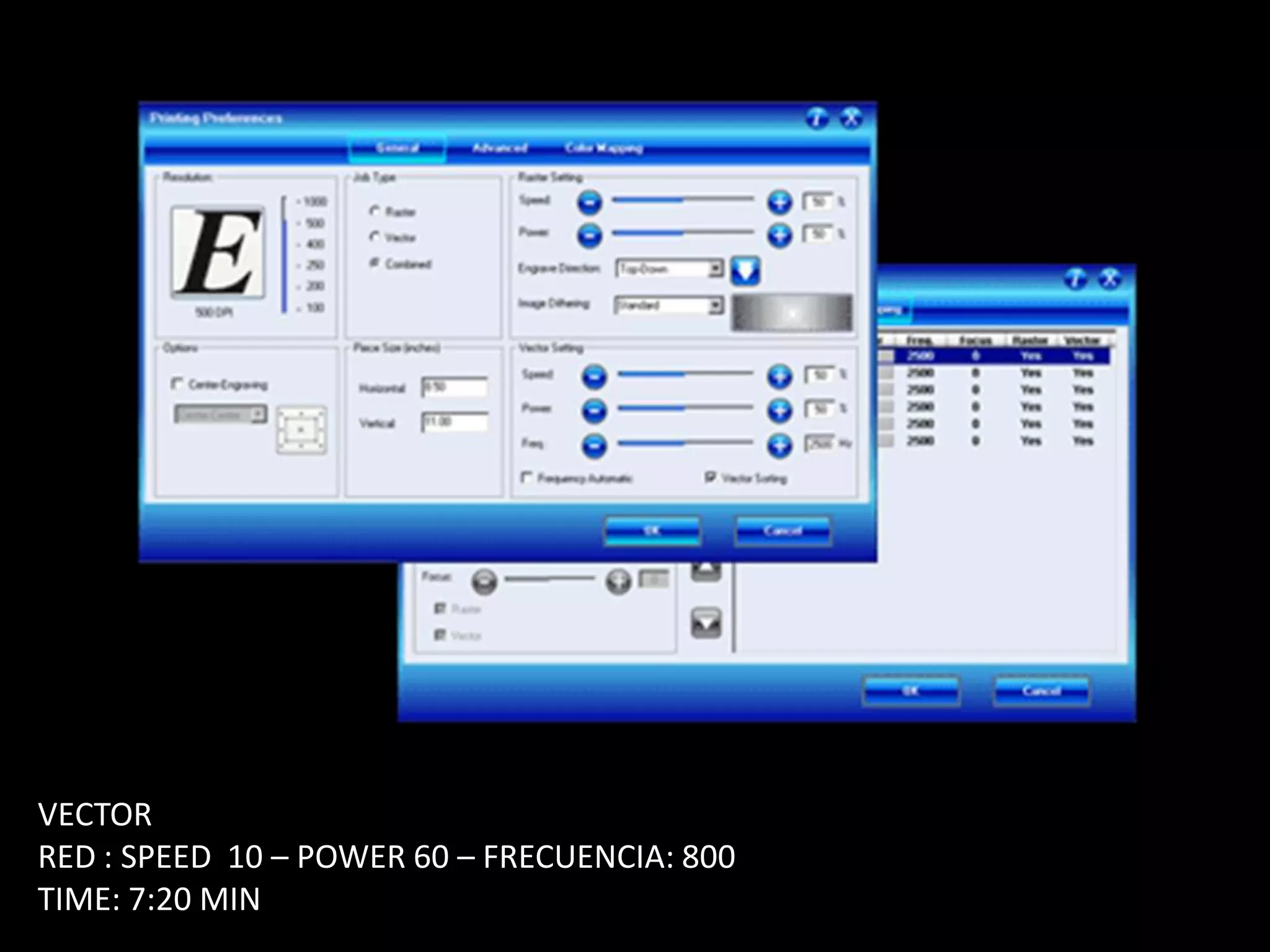

  9. 9. VECTORRED : SPEED 10 – POWER 60 – FRECUENCIA: 800TIME: 7:20 MIN

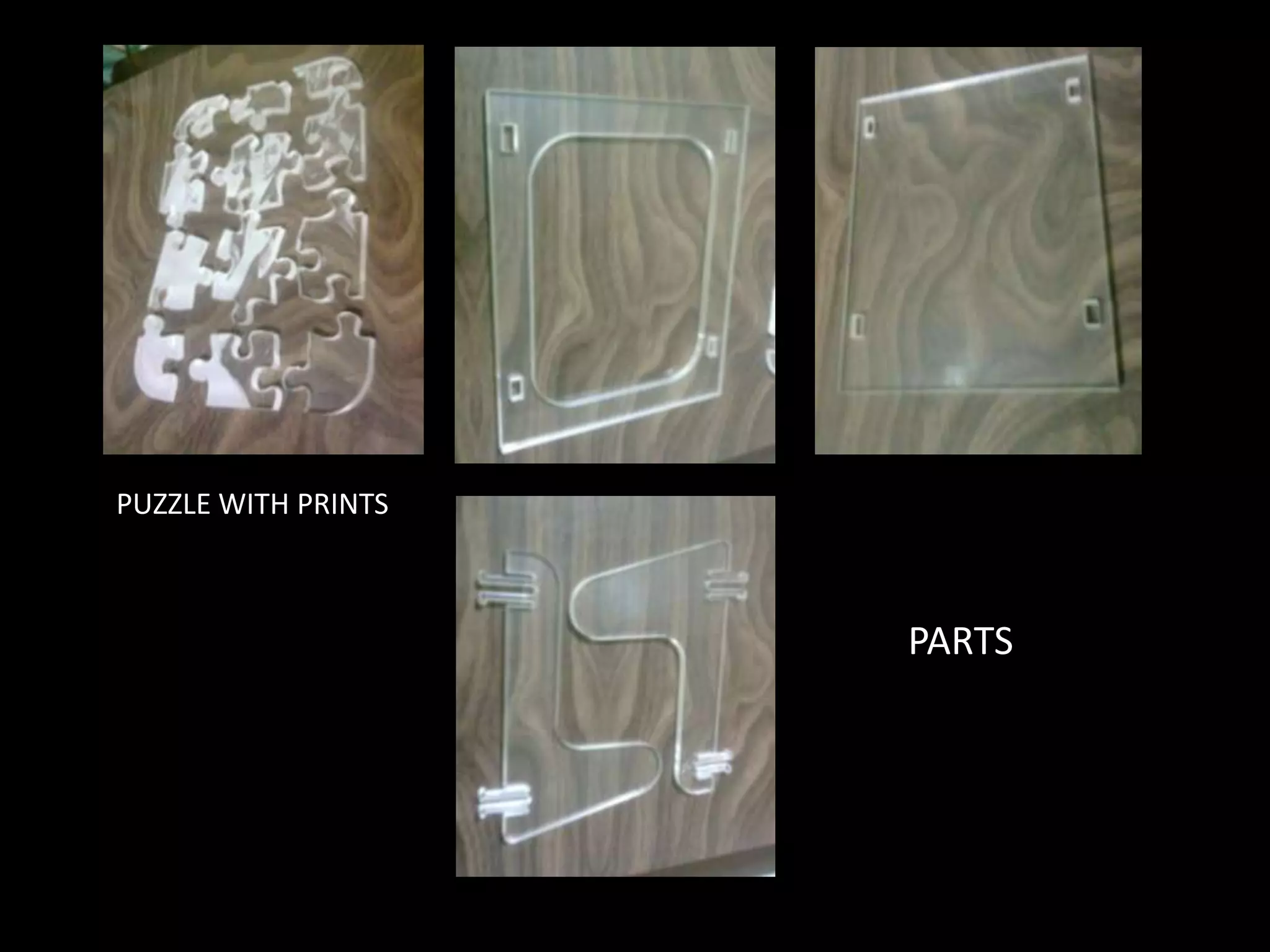

  10. 10. PUZZLE WITH PRINTS PARTS

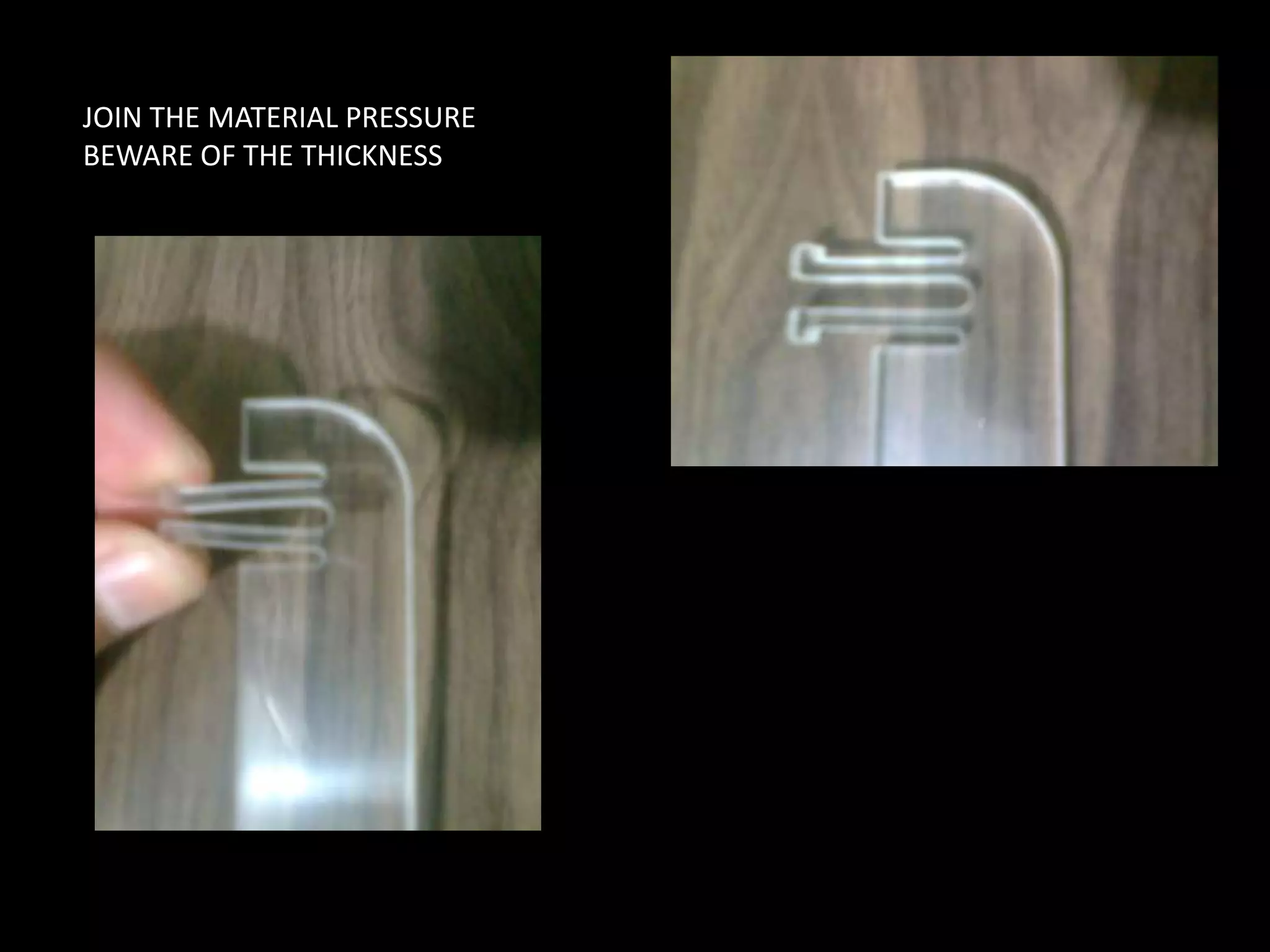

  11. 11. JOIN THE MATERIAL PRESSUREBEWARE OF THE THICKNESS

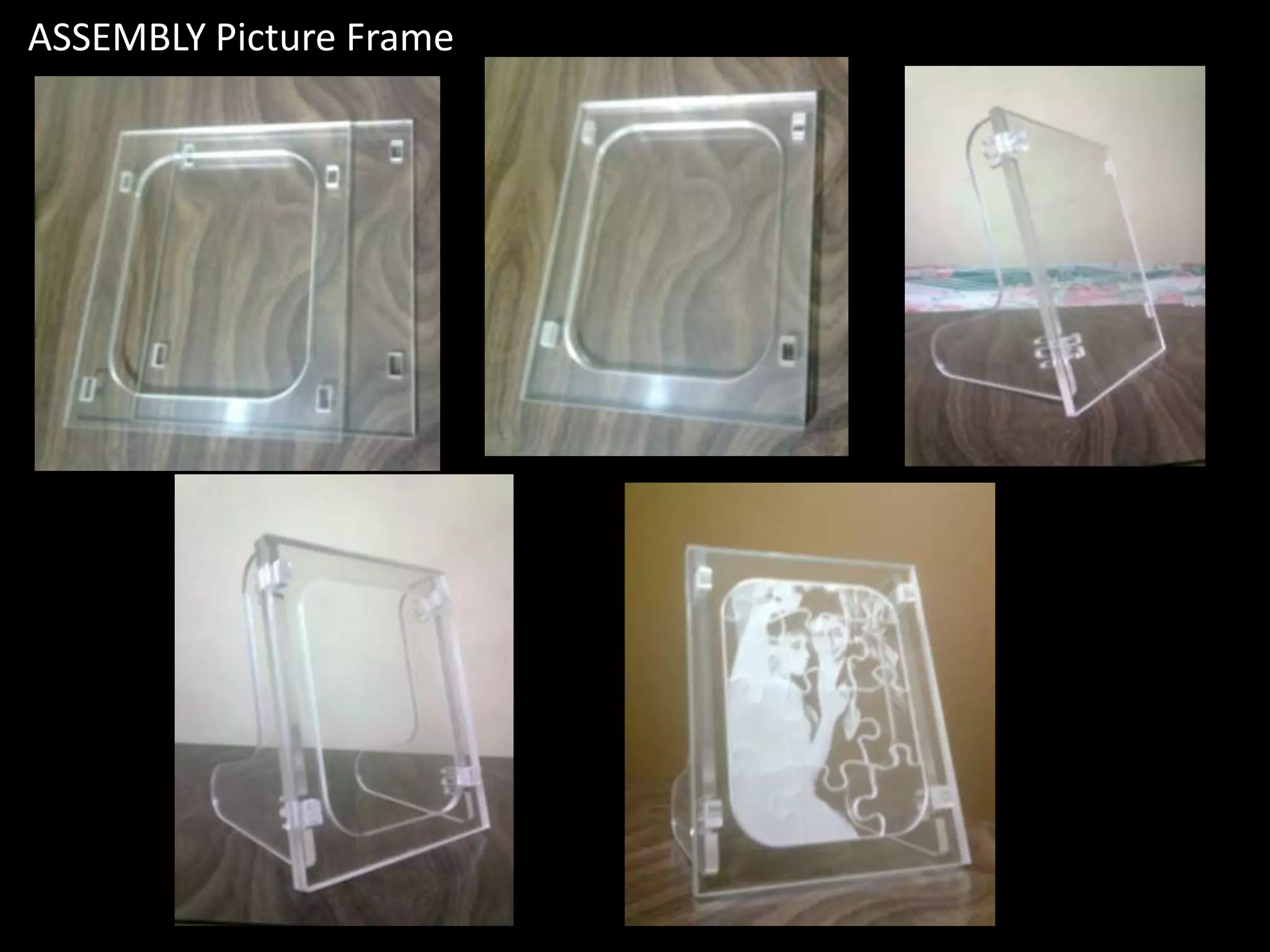

  12. 12. ASSEMBLY Picture Frame

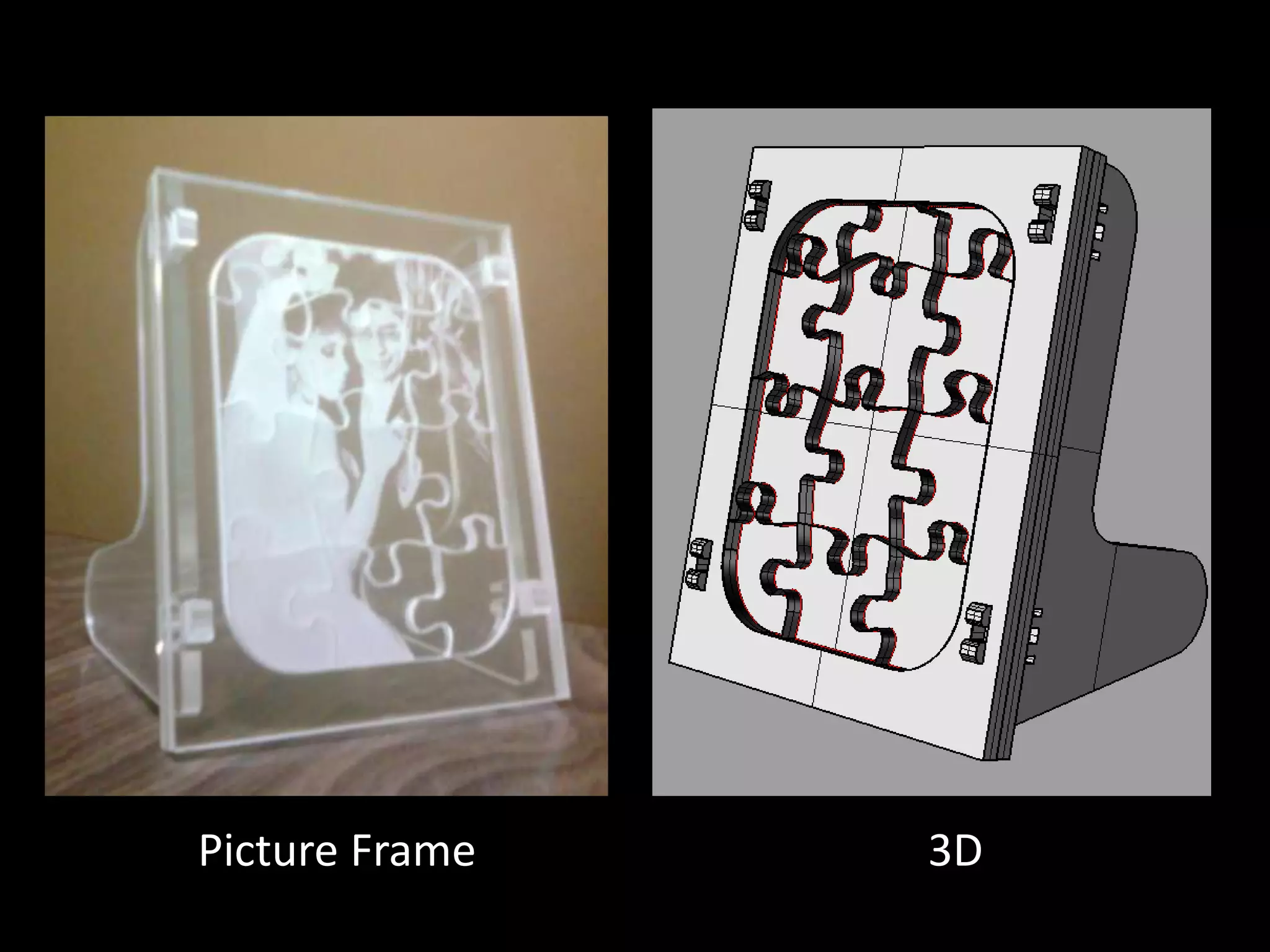

  13. 13. Picture Frame 3D

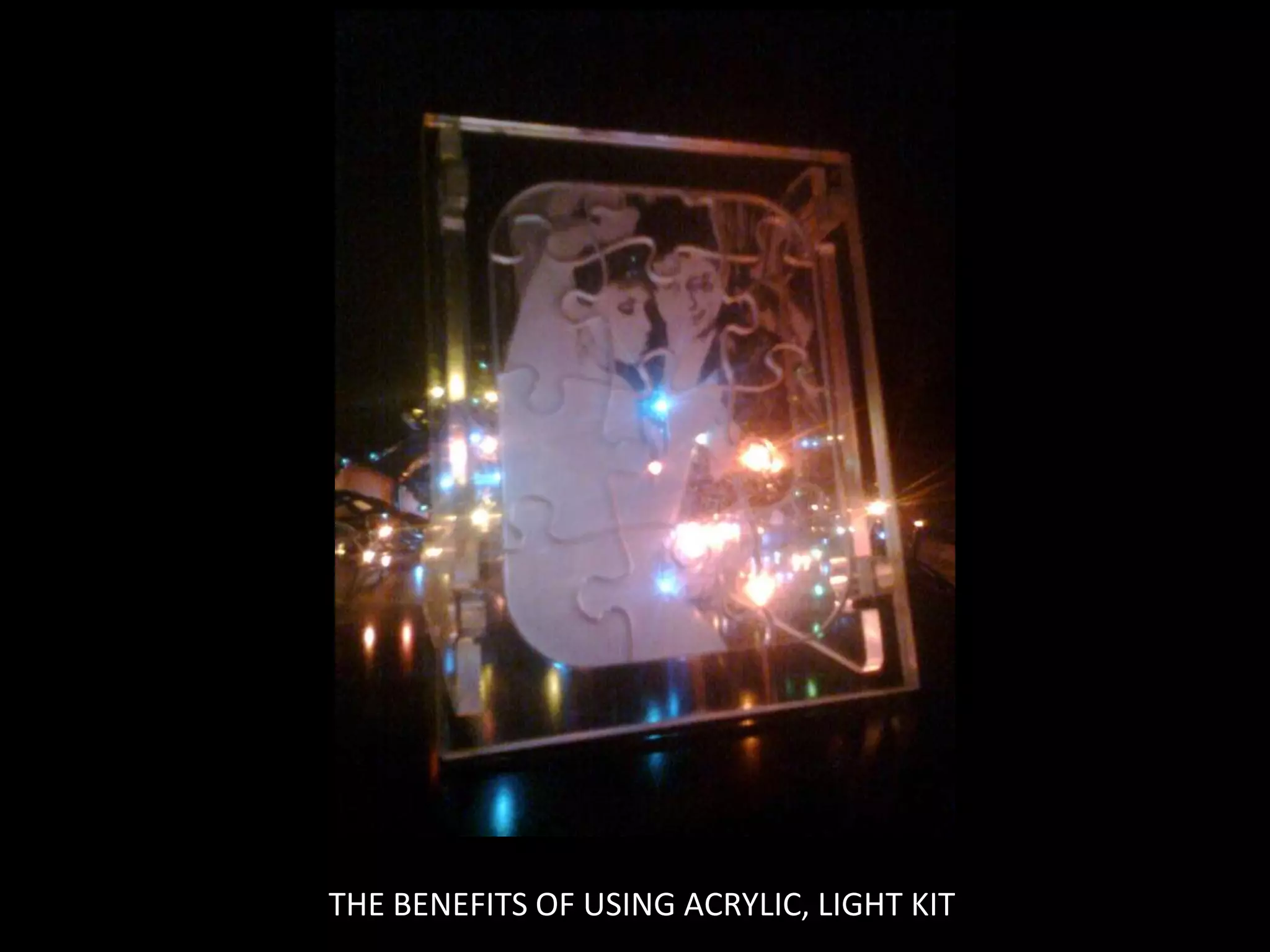

  14. 14. THE BENEFITS OF USING ACRYLIC, LIGHT KIT

×
