1.
LinkedLab Ontology
SPECIFICATION
Reuse swrc + swc + foaf + bibo + org

2.

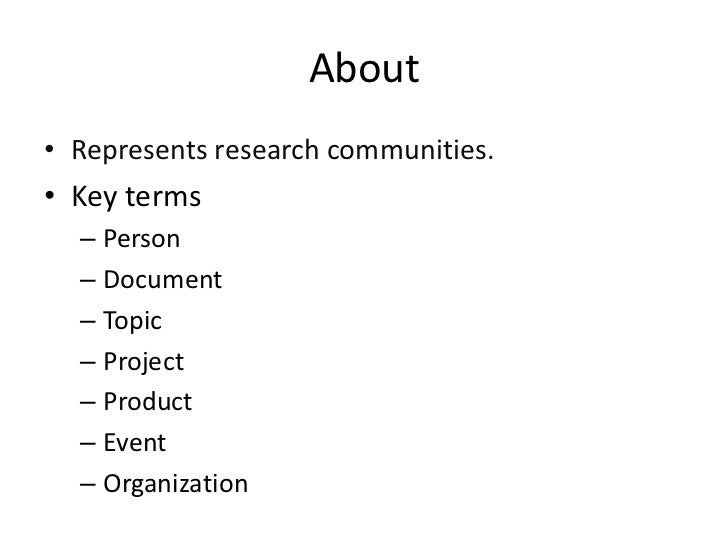

About
• Represents research communities.
• Key terms
– Person
– Document
– Topic
– Project
– Product
– Event
– Organization

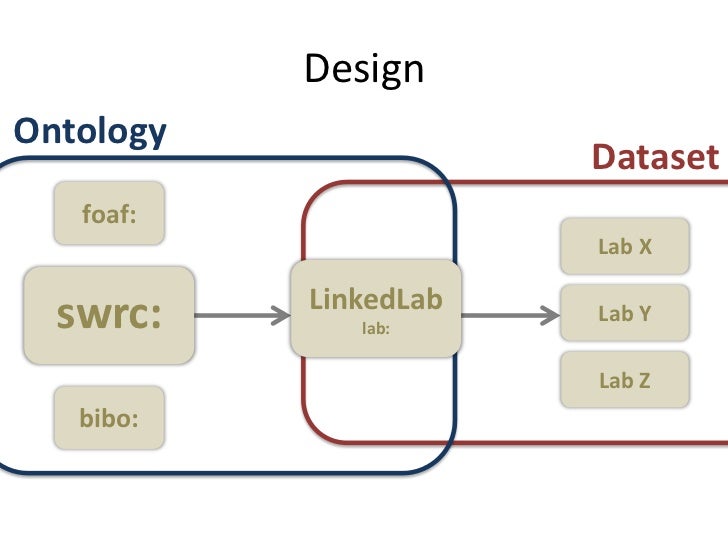

3.
Design
Ontology
Dataset
foaf:
Lab X
LinkedLab
swrc: lab:
Lab Y
Lab Z
bibo:

4.

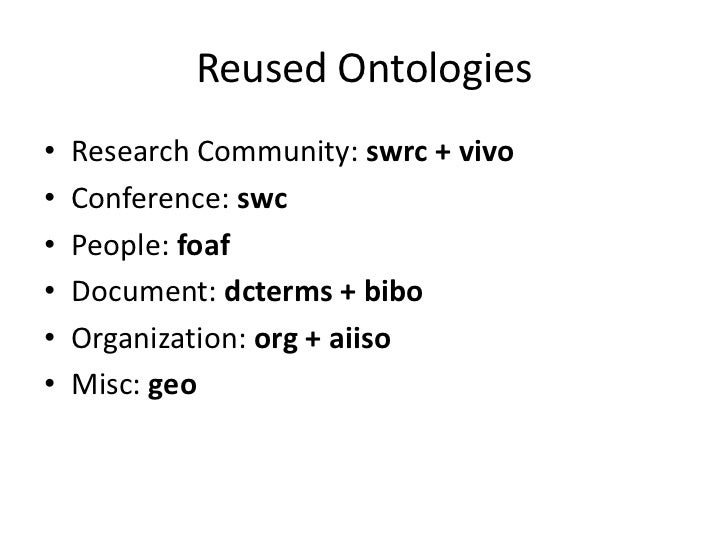

Reused Ontologies
• Research Community: swrc + vivo
• Conference: swc
• People: foaf
• Document: dcterms + bibo
• Organization: org + aiiso
• Misc: geo

5.

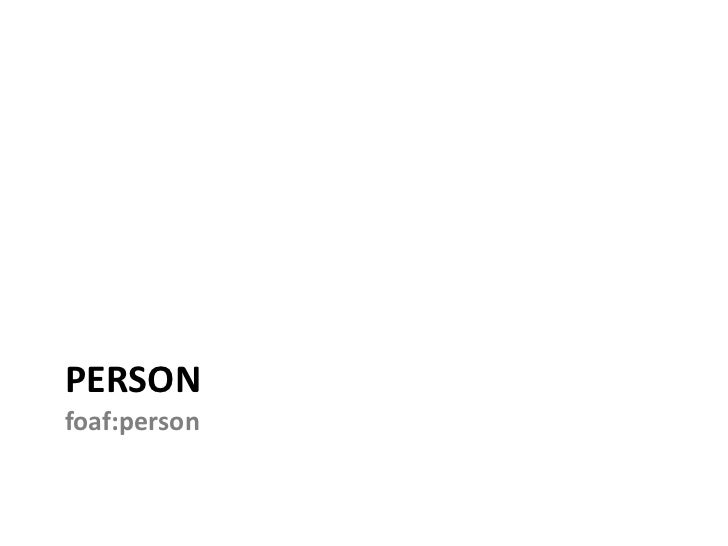

PERSON
foaf:person

6.

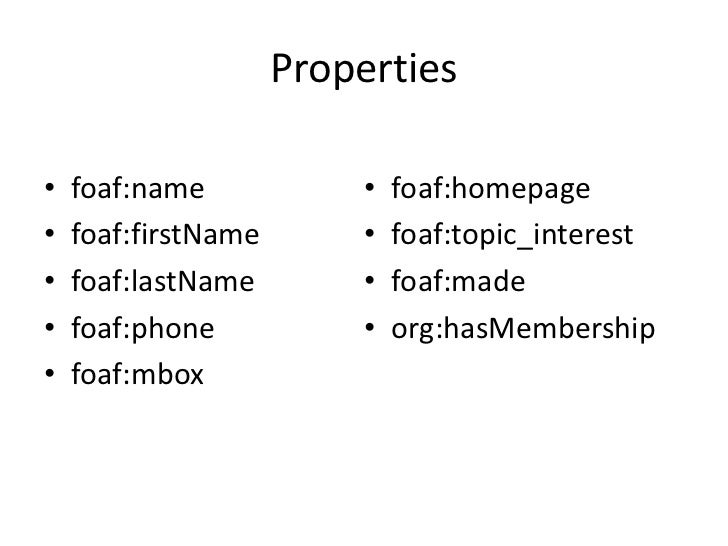

Properties
• foaf:name • foaf:homepage
• foaf:firstName • foaf:topic_interest
• foaf:lastName • foaf:made
• foaf:phone • org:hasMembership
• foaf:mbox

7.
Example
irui:Fariz_Darari a foaf:Person ;
foaf:name “Fariz Darari” ;
foaf:mbox <mailto:far@ui.ac.id> ;
foaf:homepage <http://far.iz/> ;
foaf:topic_interest irui:Semantic_Web ;
org:hasMembership [
a org:Membership ;
org:role lab:Research_Assistant ;
swrc:startDate “2000-01-01” ;
swrc:endDate “2010-12-31” ;
org:organization irui:Lab_IR_UI ] .

8.

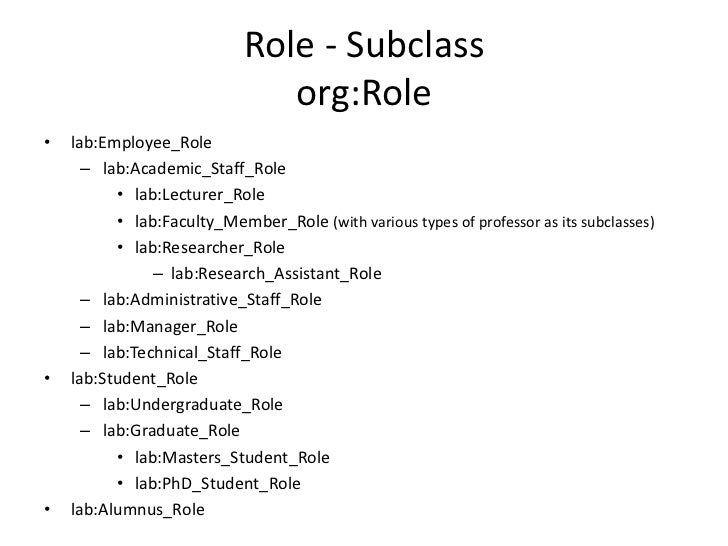

Role - Subclass
org:Role
• lab:Employee_Role
– lab:Academic_Staff_Role
• lab:Lecturer_Role
• lab:Faculty_Member_Role (with various types of professor as its subclasses)
• lab:Researcher_Role
– lab:Research_Assistant_Role
– lab:Administrative_Staff_Role
– lab:Manager_Role
– lab:Technical_Staff_Role
• lab:Student_Role
– lab:Undergraduate_Role
– lab:Graduate_Role
• lab:Masters_Student_Role
• lab:PhD_Student_Role
• lab:Alumnus_Role

9.

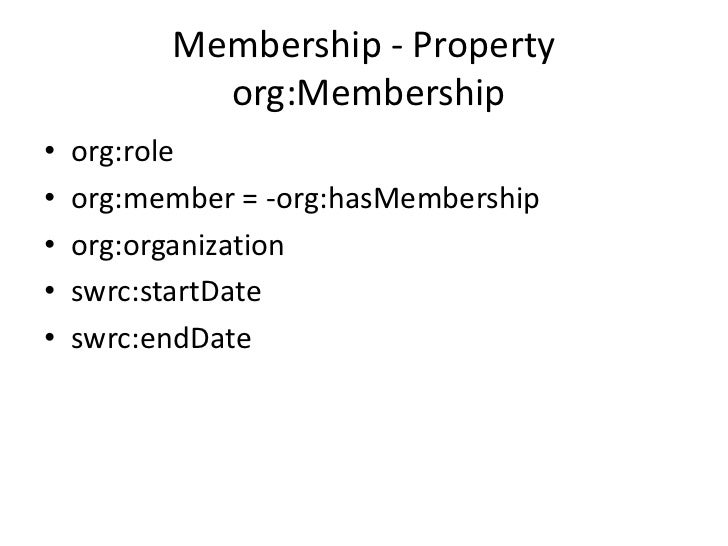

Membership - Property
org:Membership
• org:role
• org:member = -org:hasMembership
• org:organization
• swrc:startDate
• swrc:endDate

10.
DOCUMENT
bibo:Document

11.

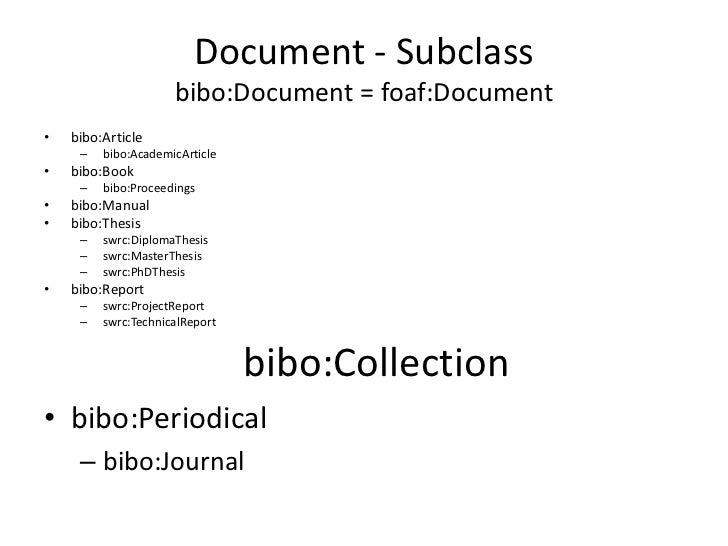

Document - Subclass
bibo:Document = foaf:Document
• bibo:Article
– bibo:AcademicArticle
• bibo:Book
– bibo:Proceedings
• bibo:Manual
• bibo:Thesis
– swrc:DiplomaThesis
– swrc:MasterThesis
– swrc:PhDThesis
• bibo:Report
– swrc:ProjectReport
– swrc:TechnicalReport
bibo:Collection
• bibo:Periodical
– bibo:Journal

12.

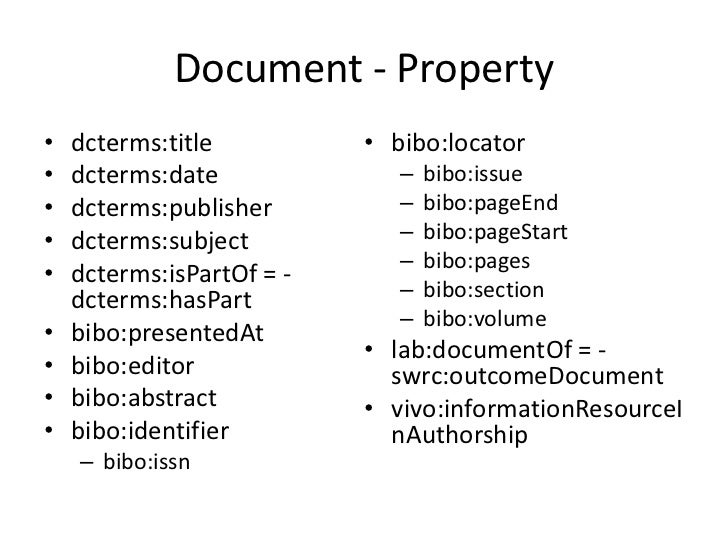

Document - Property
• dcterms:title • bibo:locator
• dcterms:date – bibo:issue
• dcterms:publisher – bibo:pageEnd
• dcterms:subject – bibo:pageStart
– bibo:pages
• dcterms:isPartOf = -
dcterms:hasPart – bibo:section
– bibo:volume
• bibo:presentedAt
• lab:documentOf = -
• bibo:editor swrc:outcomeDocument
• bibo:abstract • vivo:informationResourceI
• bibo:identifier nAuthorship
– bibo:issn

13.
Authorship
vivo:Authorship
• vivo:linkedAuthor
• vivo:linkedInformationResource =
-vivo:informationResourceInAuthorship
• vivo:authorRank

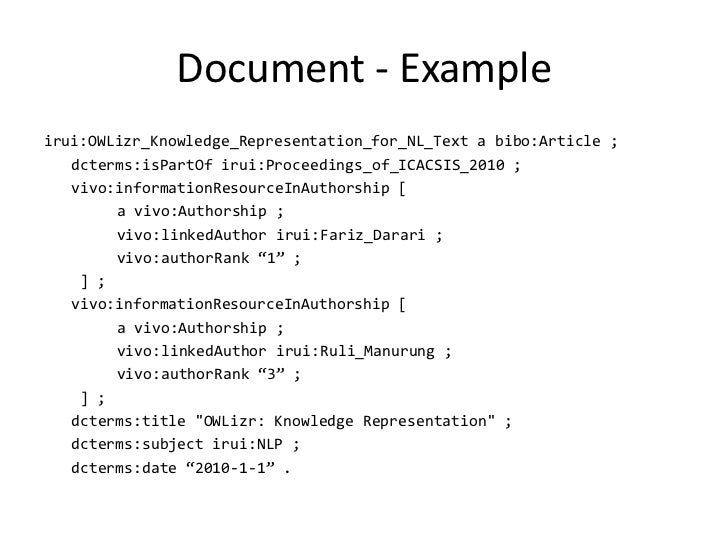

14.
Document - Example
irui:OWLizr_Knowledge_Representation_for_NL_Text a bibo:Article ;
dcterms:isPartOf irui:Proceedings_of_ICACSIS_2010 ;
vivo:informationResourceInAuthorship [
a vivo:Authorship ;
vivo:linkedAuthor irui:Fariz_Darari ;
vivo:authorRank “1” ;
] ;
vivo:informationResourceInAuthorship [
a vivo:Authorship ;
vivo:linkedAuthor irui:Ruli_Manurung ;
vivo:authorRank “3” ;
] ;
dcterms:title "OWLizr: Knowledge Representation" ;
dcterms:subject irui:NLP ;
dcterms:date “2010-1-1” .

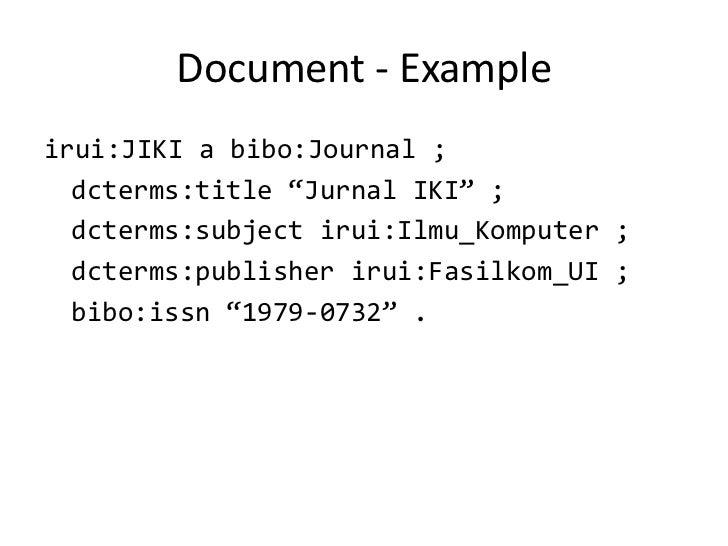

15.
Document - Example
irui:JIKI a bibo:Journal ;
dcterms:title “Jurnal IKI” ;
dcterms:subject irui:Ilmu_Komputer ;
dcterms:publisher irui:Fasilkom_UI ;
bibo:issn “1979-0732” .

16.
Document - Example
irui:Sistem_Ontologi_e-Learning_Berbasis_Semantic_Web a bibo:Article ;
dcterms:isPartOf irui:JIKI ;
vivo:informationResourceInAuthorship [
a vivo:Authorship ;
vivo:linkedAuthor irui:B_R_Suteja ;
vivo:authorRank “1” ;
] ;
vivo:informationResourceInAuthorship [
a vivo:Authorship ;
vivo:linkedAuthor irui:S_Guritno ;
vivo:authorRank “2” ;
] ;
dcterms:title “Sistem Ontologi e-Learning Berbasis Semantic Web” ;
dcterms:subject irui:Semantic_Web ;
dcterms:date “2009-02-01” ;
bibo:volume “2” ;
bibo:issue “4” ;
bibo:pageStart “1” ;
bibo:pageEnd “9”.

17.

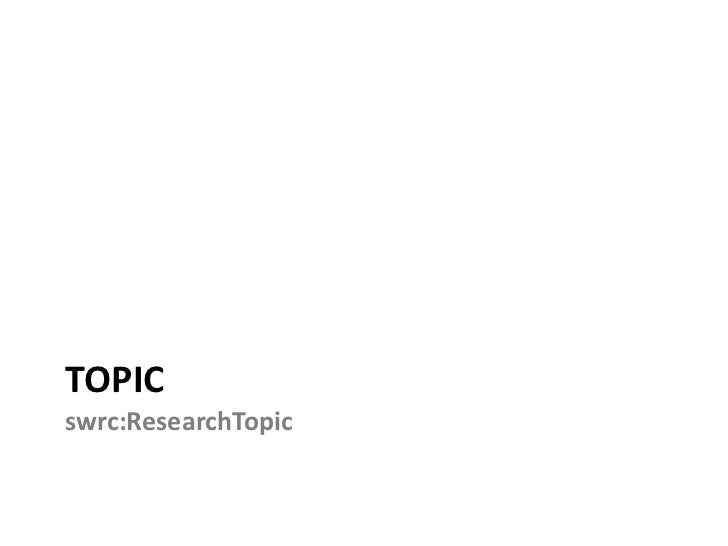

TOPIC
swrc:ResearchTopic

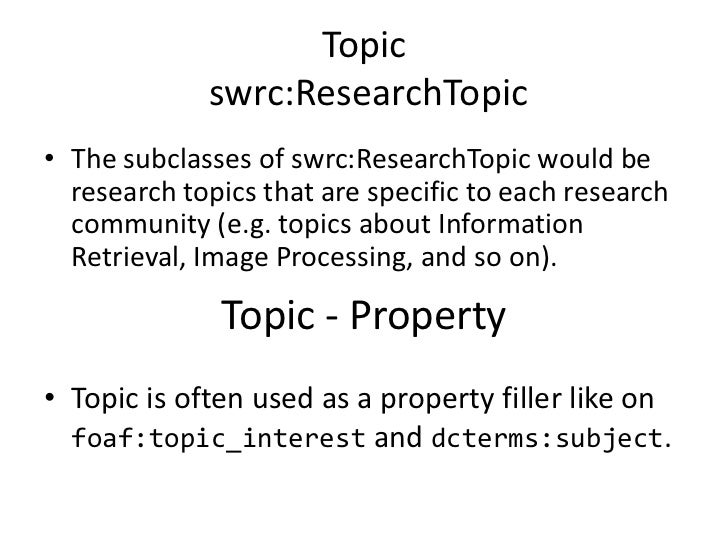

18.
Topic
swrc:ResearchTopic
• The subclasses of swrc:ResearchTopic would be
research topics that are specific to each research
community (e.g. topics about Information
Retrieval, Image Processing, and so on).
Topic - Property
• Topic is often used as a property filler like on
foaf:topic_interest and dcterms:subject.

19.

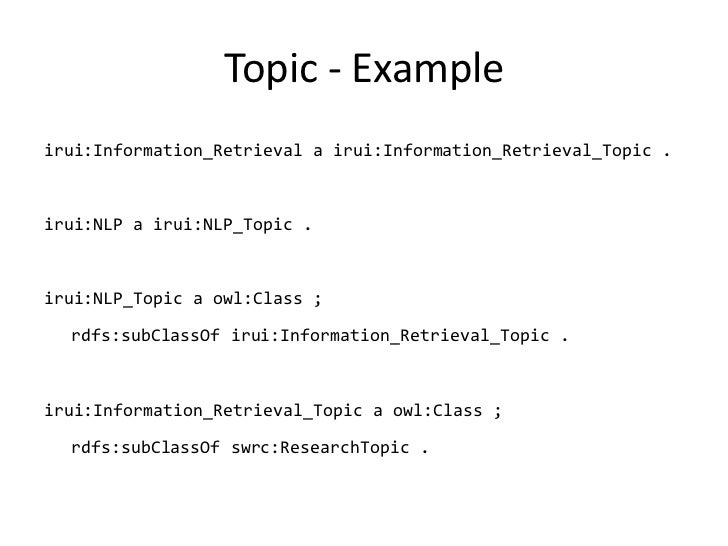

Topic - Example
irui:Information_Retrieval a irui:Information_Retrieval_Topic .
irui:NLP a irui:NLP_Topic .
irui:NLP_Topic a owl:Class ;
rdfs:subClassOf irui:Information_Retrieval_Topic .
irui:Information_Retrieval_Topic a owl:Class ;
rdfs:subClassOf swrc:ResearchTopic .

20.

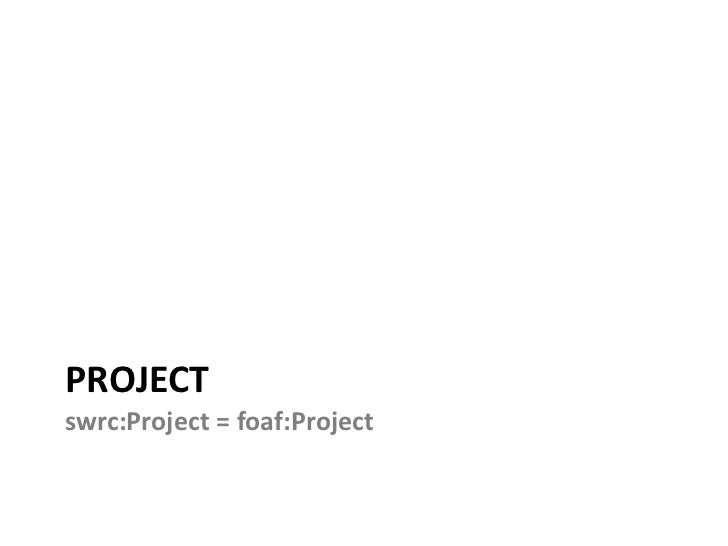

PROJECT
swrc:Project = foaf:Project

21.

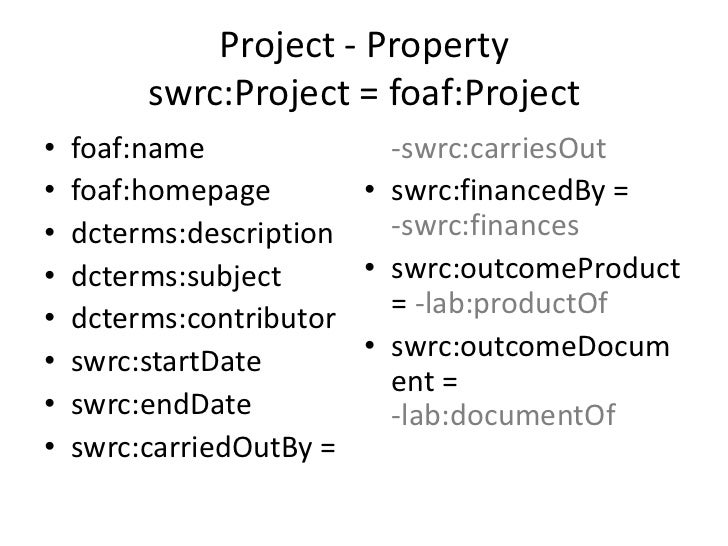

Project - Property
swrc:Project = foaf:Project
• foaf:name -swrc:carriesOut
• foaf:homepage • swrc:financedBy =
• dcterms:description -swrc:finances
• dcterms:subject • swrc:outcomeProduct
• dcterms:contributor = -lab:productOf
• swrc:startDate • swrc:outcomeDocum
ent =
• swrc:endDate -lab:documentOf
• swrc:carriedOutBy =

22.

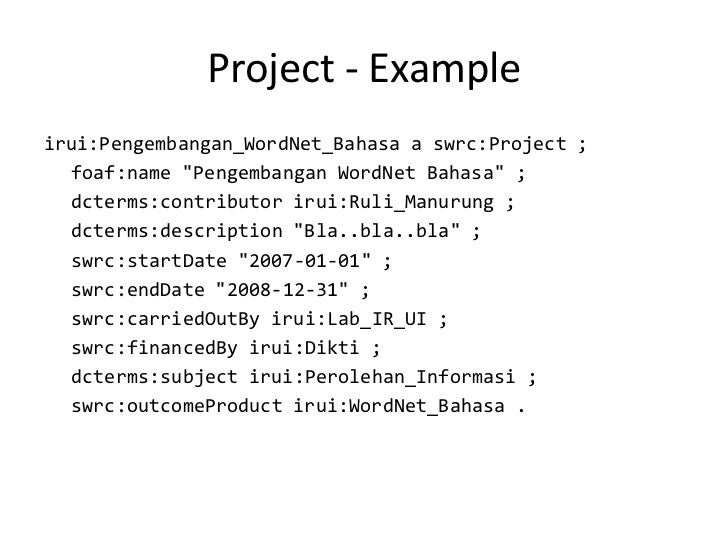

Project - Example
irui:Pengembangan_WordNet_Bahasa a swrc:Project ;
foaf:name "Pengembangan WordNet Bahasa" ;
dcterms:contributor irui:Ruli_Manurung ;
dcterms:description "Bla..bla..bla" ;
swrc:startDate "2007-01-01" ;
swrc:endDate "2008-12-31" ;
swrc:carriedOutBy irui:Lab_IR_UI ;
swrc:financedBy irui:Dikti ;
dcterms:subject irui:Perolehan_Informasi ;
swrc:outcomeProduct irui:WordNet_Bahasa .

23.

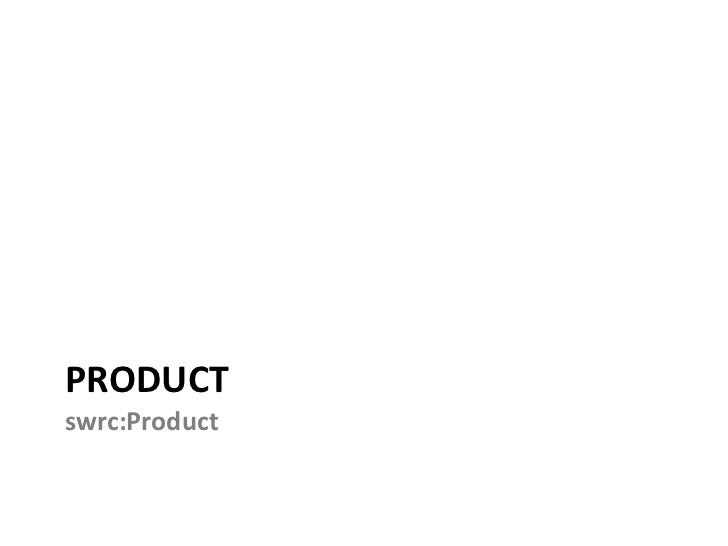

PRODUCT
swrc:Product

24.

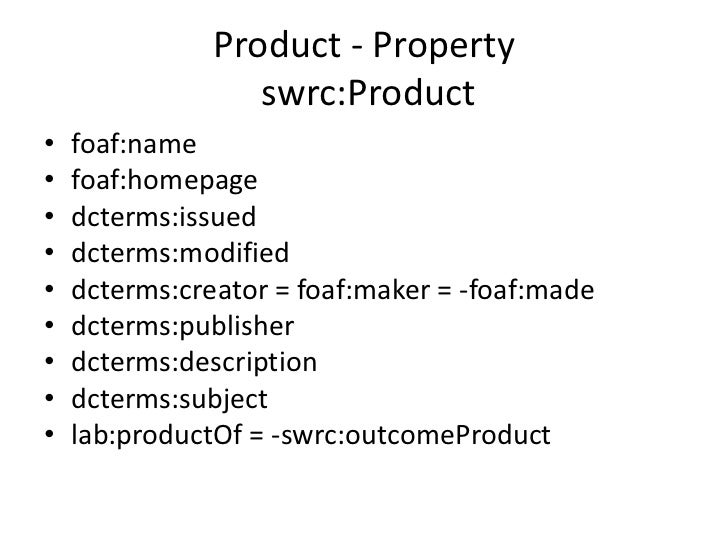

Product - Property
swrc:Product
• foaf:name
• foaf:homepage
• dcterms:issued
• dcterms:modified
• dcterms:creator = foaf:maker = -foaf:made
• dcterms:publisher
• dcterms:description
• dcterms:subject
• lab:productOf = -swrc:outcomeProduct

25.

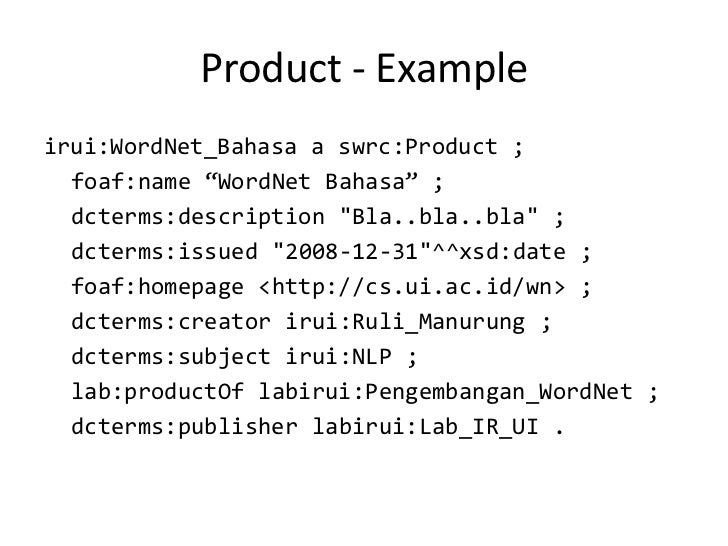

Product - Example
irui:WordNet_Bahasa a swrc:Product ;
foaf:name “WordNet Bahasa” ;
dcterms:description "Bla..bla..bla" ;
dcterms:issued "2008-12-31"^^xsd:date ;
foaf:homepage <http://cs.ui.ac.id/wn> ;
dcterms:creator irui:Ruli_Manurung ;
dcterms:subject irui:NLP ;
lab:productOf labirui:Pengembangan_WordNet ;
dcterms:publisher labirui:Lab_IR_UI .

26.
EVENT
swc:AcademicEvent

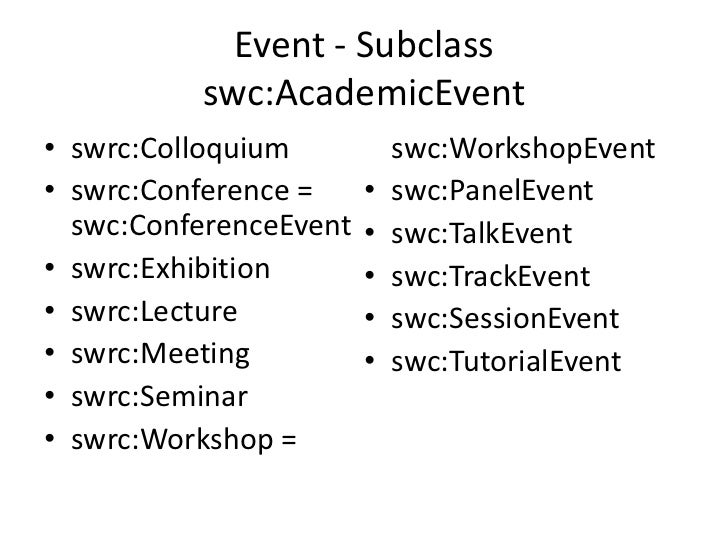

27.
Event - Subclass
swc:AcademicEvent
• swrc:Colloquium swc:WorkshopEvent
• swrc:Conference = • swc:PanelEvent
swc:ConferenceEvent • swc:TalkEvent
• swrc:Exhibition • swc:TrackEvent
• swrc:Lecture • swc:SessionEvent
• swrc:Meeting • swc:TutorialEvent
• swrc:Seminar
• swrc:Workshop =

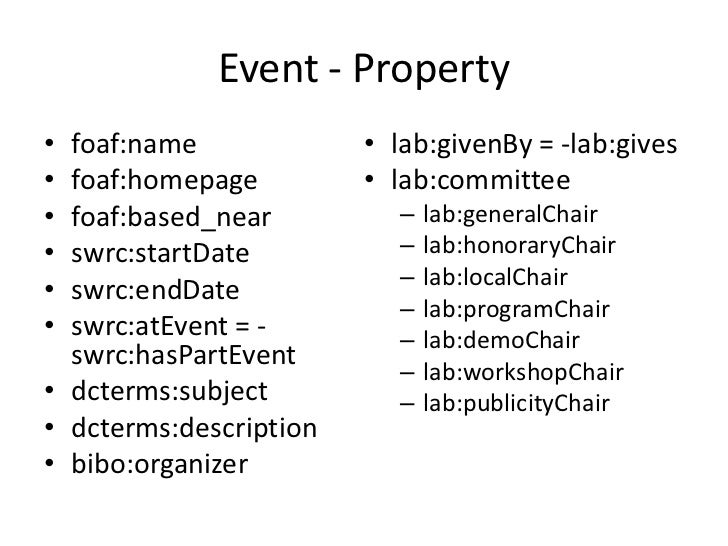

28.
Event - Property
• foaf:name • lab:givenBy = -lab:gives
• foaf:homepage • lab:committee
• foaf:based_near – lab:generalChair
• swrc:startDate – lab:honoraryChair
– lab:localChair
• swrc:endDate
– lab:programChair
• swrc:atEvent = - – lab:demoChair
swrc:hasPartEvent
– lab:workshopChair
• dcterms:subject – lab:publicityChair
• dcterms:description
• bibo:organizer

29.

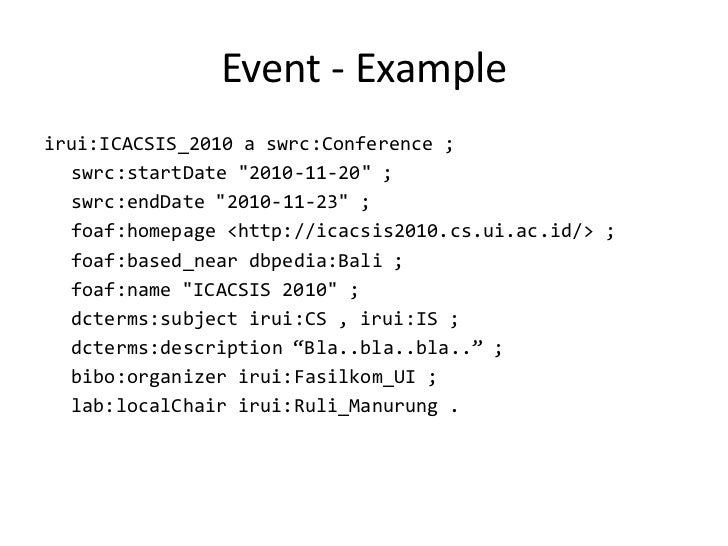

Event - Example
irui:ICACSIS_2010 a swrc:Conference ;
swrc:startDate "2010-11-20" ;
swrc:endDate "2010-11-23" ;
foaf:homepage <http://icacsis2010.cs.ui.ac.id/> ;
foaf:based_near dbpedia:Bali ;
foaf:name "ICACSIS 2010" ;
dcterms:subject irui:CS , irui:IS ;
dcterms:description “Bla..bla..bla..” ;
bibo:organizer irui:Fasilkom_UI ;
lab:localChair irui:Ruli_Manurung .

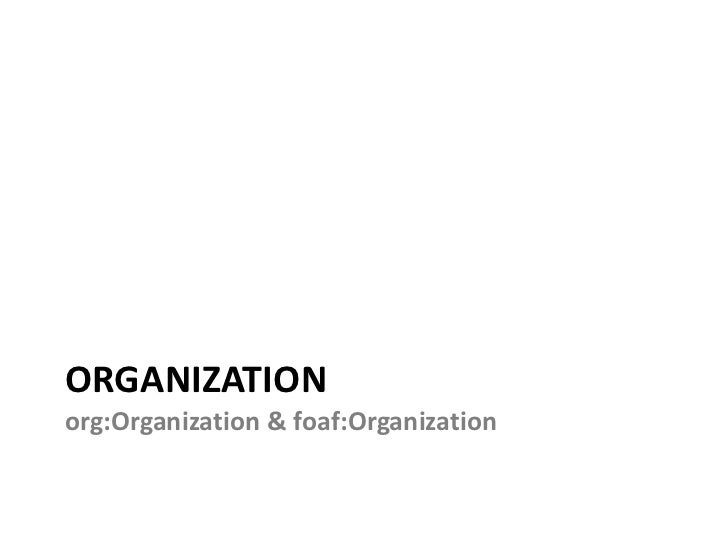

30.
ORGANIZATION
org:Organization & foaf:Organization

31.

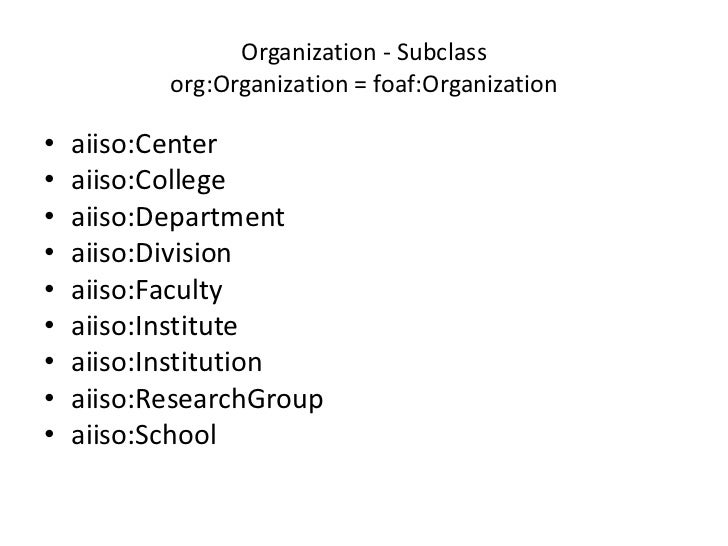

Organization - Subclass
org:Organization = foaf:Organization
• aiiso:Center
• aiiso:College
• aiiso:Department
• aiiso:Division
• aiiso:Faculty
• aiiso:Institute
• aiiso:Institution
• aiiso:ResearchGroup
• aiiso:School

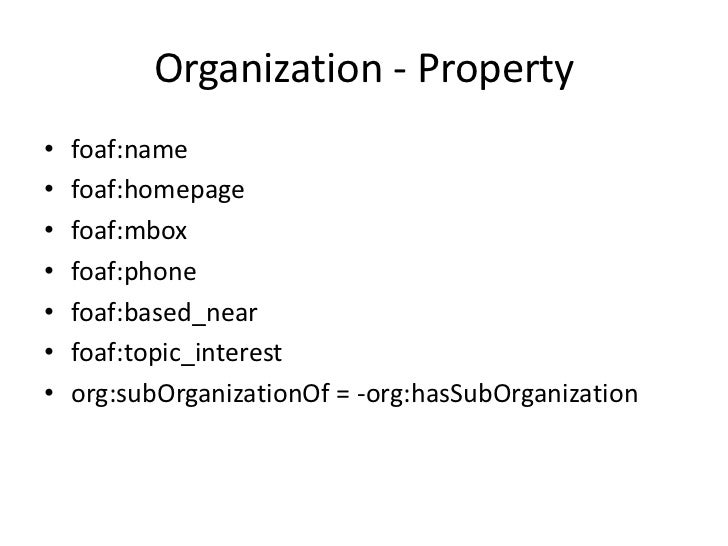

32.
Organization - Property
• foaf:name
• foaf:homepage
• foaf:mbox
• foaf:phone
• foaf:based_near
• foaf:topic_interest
• org:subOrganizationOf = -org:hasSubOrganization

33.

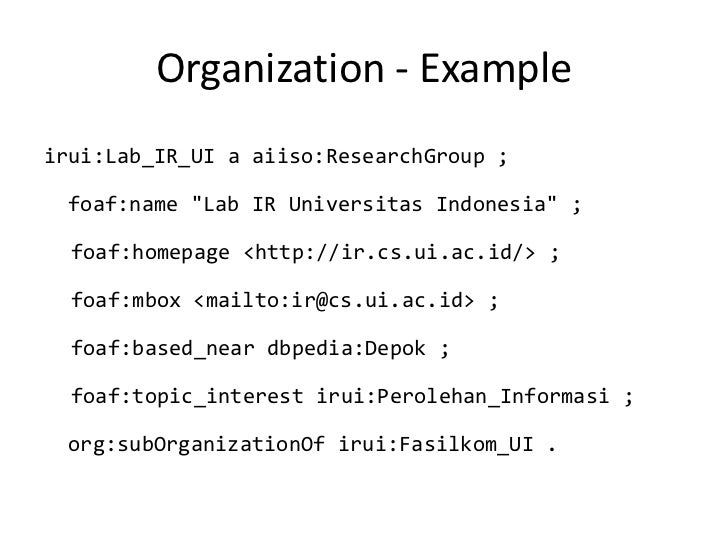

Organization - Example
irui:Lab_IR_UI a aiiso:ResearchGroup ;
foaf:name "Lab IR Universitas Indonesia" ;
foaf:homepage <http://ir.cs.ui.ac.id/> ;
foaf:mbox <mailto:ir@cs.ui.ac.id> ;
foaf:based_near dbpedia:Depok ;
foaf:topic_interest irui:Perolehan_Informasi ;
org:subOrganizationOf irui:Fasilkom_UI .

34.

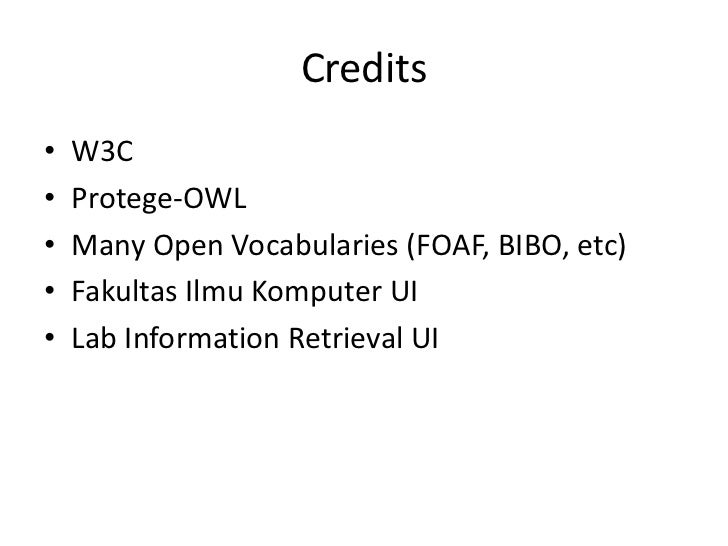

Credits
• W3C
• Protege-OWL
• Many Open Vocabularies (FOAF, BIBO, etc)
• Fakultas Ilmu Komputer UI
• Lab Information Retrieval UI
