1.
OS16

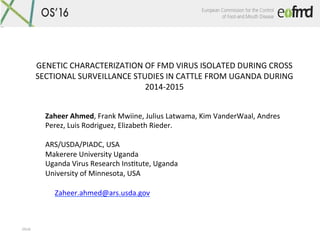

GENETIC CHARACTERIZATION OF FMD VIRUS ISOLATED DURING CROSS
SECTIONAL SURVEILLANCE STUDIES IN CATTLE FROM UGANDA DURING
2014-2015
Zaheer Ahmed, Frank Mwiine, Julius Latwama, Kim VanderWaal, Andres
Perez, Luis Rodriguez, Elizabeth Rieder.
ARS/USDA/PIADC, USA
Makerere University Uganda
Uganda Virus Research InsWtute, Uganda
University of Minnesota, USA
Zaheer.ahmed@ars.usda.gov

2.
OS16

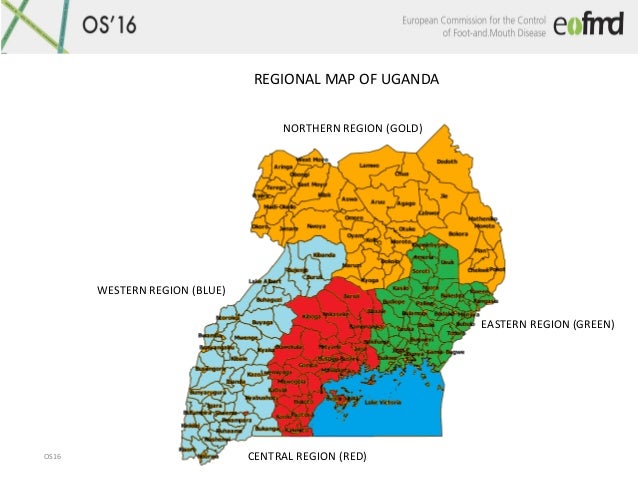

REGIONAL MAP OF UGANDA
NORTHERN REGION (GOLD)
CENTRAL REGION (RED)
EASTERN REGION (GREEN)
WESTERN REGION (BLUE)

3.

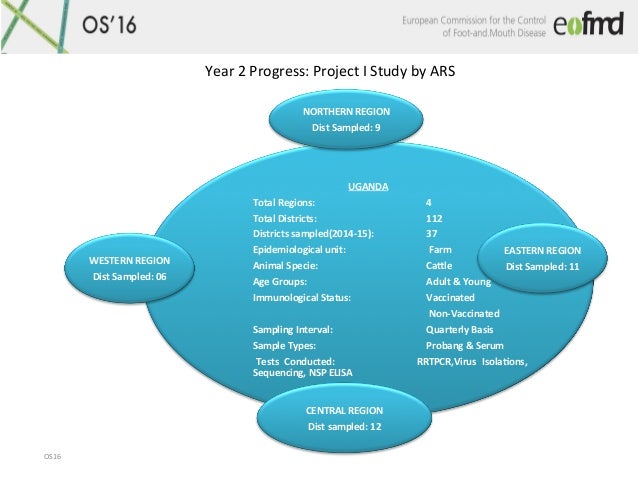

OS16
UGANDA
Total Regions: 4
Total Districts: 112
Districts sampled(2014-15): 37
Epidemiological unit: Farm
Animal Specie: CaIle
Age Groups: Adult & Young
Immunological Status: Vaccinated
Non-Vaccinated
Sampling Interval: Quarterly Basis
Sample Types: Probang & Serum
Tests Conducted: RRTPCR,Virus IsolaUons,
Sequencing, NSP ELISA
CENTRAL REGION
Dist sampled: 12
EASTERN REGION
Dist Sampled: 11
NORTHERN REGION
Dist Sampled: 9
WESTERN REGION
Dist Sampled: 06
Year 2 Progress: Project I Study by ARS

4.
OS16
Sr No
Name of the
District
Region
Sr
No
Name of the
District
Region Sr No
Name of the
District
Region Sr No
Name of the
District
Region
1 Gomba Central 13 Budaka Eastern 24 Albatong Northern 32 Buliisa Western
2 Kayunga Central 14 Bududa Eastern 25 Apac Northern 33 Isingiro Western
3 Mukono Central 15 Bugiri Eastern 26 Kaabong Northern 34 Kasese Western
4 Kyankwanzi Central 16 Bukedea Eastern 27 KoWdo Northern 35 Kiruhura Western
5 Luwero Central 17 Busia Eastern 28 Moroto Northern 36 Kiryandongo Western
6 Mityana Central 18 Kumi Eastern 29 Moyo Northern 37 Masindi Western
7 Mpigi Central 19 Manafwa Eastern 30 Nakapiripirit Northern
8 Mubenda Central 20 Mbale Eastern 31 Napak Northern
9 Nakaseke Central 21 Nagora Eastern
10 Nakasongola Central 22 Palisa Eastern
11 Rakai Central 23 Serere Eastern
12 Sembabule Central

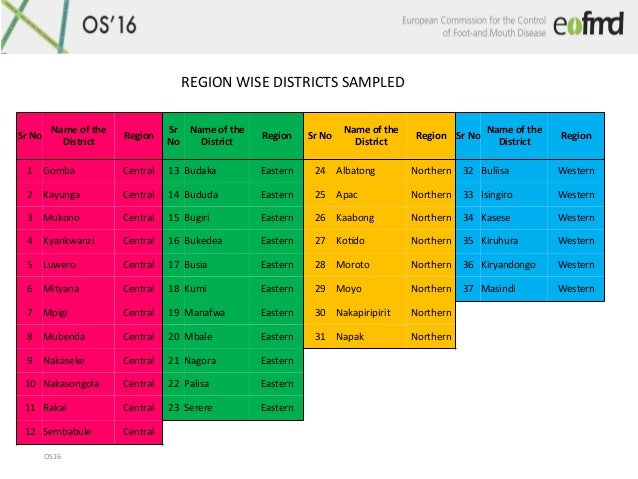

REGION WISE DISTRICTS SAMPLED

5.
OS16

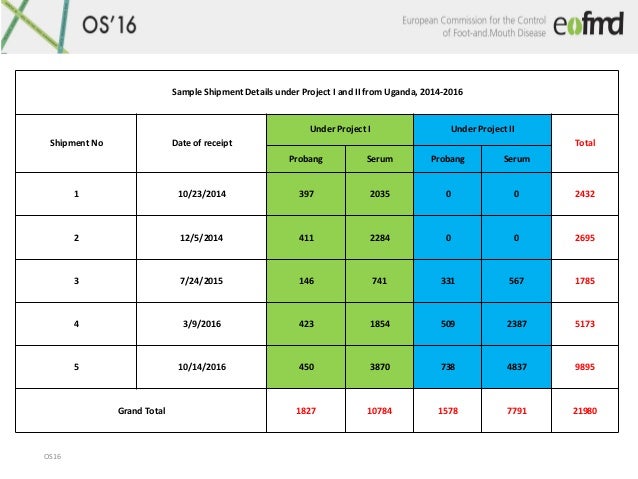

Sample Shipment Details under Project I and II from Uganda, 2014-2016
Shipment No Date of receipt
Under Project I
Under Project II
Total
Probang Serum Probang Serum
1 10/23/2014 397 2035 0 0 2432
2 12/5/2014 411 2284 0 0 2695
3 7/24/2015 146 741 331 567 1785
4 3/9/2016 423 1854 509 2387 5173
5 10/14/2016 450 3870 738 4837 9895
Grand Total 1827 10784 1578 7791 21980

6.
OS16

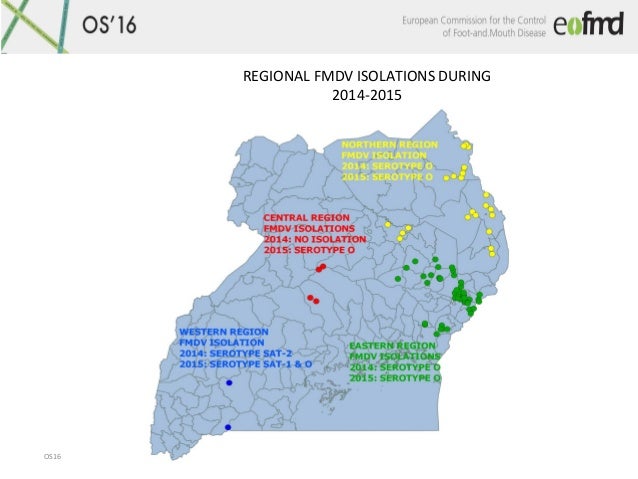

REGIONAL FMDV ISOLATIONS DURING
2014-2015

7.
OS16

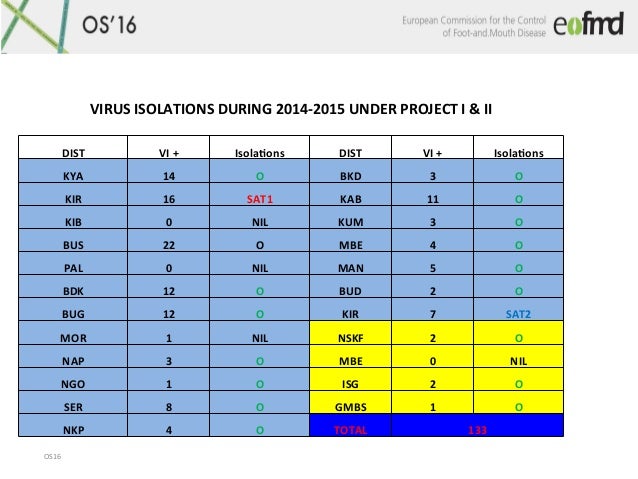

VIRUS ISOLATIONS DURING 2014-2015 UNDER PROJECT I & II
DIST VI + IsolaUons DIST VI + IsolaUons
KYA 14 O BKD 3 O
KIR 16 SAT1 KAB 11 O
KIB 0 NIL KUM 3 O
BUS 22 O MBE 4 O
PAL 0 NIL MAN 5 O
BDK 12 O BUD 2 O
BUG 12 O KIR 7 SAT2
MOR 1 NIL NSKF 2 O
NAP 3 O MBE 0 NIL
NGO 1 O ISG 2 O
SER 8 O GMBS 1 O
NKP 4 O TOTAL 133

8.
OS16
Year of
IsolaUon
Eastern Region Northern Region Western Region Central Region
Serotype
O
Serotype
SAT 1
Serotype
SAT 2
Serotype
O
Serotype
SAT 1
Serotype
SAT 2
Serotype O
Serotype
SAT 1
Serotype
SAT 2
Serotype O
Serotype
SAT 1
Serotype
SAT 2
2014 √ û û √ û û û û √ û û û
2015 √ û û √ û û √ √ û √ û û
Topotype EA-2 N/A N/A EA-2 N/A N/A EA-2 EA-1(IV) Group X EA-2 N/A N/A
REGIONAL PREVALENCE OF FMD VIRUS DURING 2014-2015 WITH THEIR
TOPOTYPES

9.
OS16

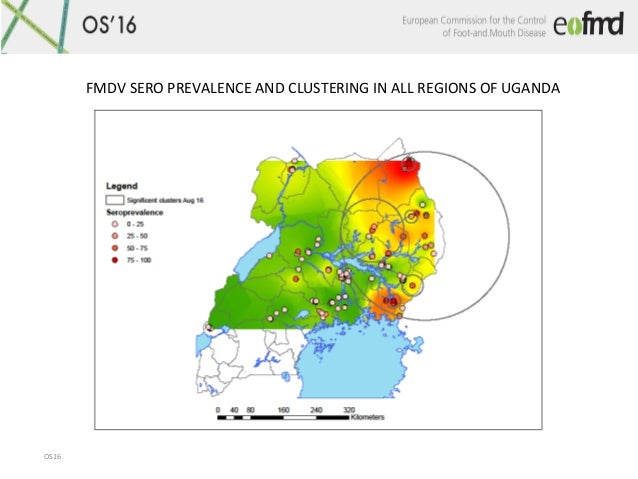

FMDV SERO PREVALENCE AND CLUSTERING IN ALL REGIONS OF UGANDA

10.
OS16
Phylogeny of VP 1 sequences of FMDV
serotype O isolated from Uganda during 2014
1. Circle : Indicates viruses isolated during the current study closely
related to EA-2 topotype.
2. Square: Indicates viruses isolated from Uganda during 2006-09
3. The current isolaWons are closely related to topotype East Africa-2.
4. Comparison of EA-2 topotype with other topotypes world wide.

11.
OS16
Analysis
Analysis ------------------------ Phylogeny ReconstrucWon
StaWsWcal Method -------------- Maximum Likelihood
Phylogeny Test
Test of Phylogeny --------------- Bootstrap method
No. of Bootstrap ReplicaWons --- 1000
SubsWtuWon Model
SubsWtuWons Type -------------- NucleoWde
Model/Method -------------------- Tamura 3-parameter model
Rates and Pagerns
Rates among Sites --------------- Gamma Distributed (G)
No of Discrete Gamma Categories - 5
Data Subset to Use
Gaps/Missing Data Treatment ----- Complete deleWon
Tree Inference OpWons
ML HeurisWc Method ------------- Nearest-Neighbor-Interchange (NNI)
IniWal Tree for ML ------------- Make iniWal tree automaWcally
Codons Included ----------------- 1st+2nd+3rd+Non-Coding
No. of Seqs : 38
No. of Sites : 2805
No Of Bootstrap Reps = 1000

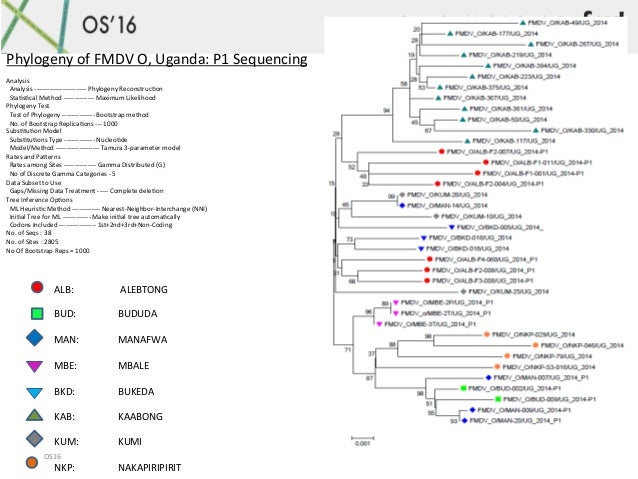

Phylogeny of FMDV O, Uganda: P1 Sequencing
ALB: ALEBTONG
BUD: BUDUDA
MAN: MANAFWA
MBE: MBALE
BKD: BUKEDA
KAB: KAABONG
KUM: KUMI
NKP: NAKAPIRIPIRIT

12.
OS16
Analysis
Analysis ------------------------ Phylogeny ReconstrucWon
StaWsWcal Method -------------- Maximum Likelihood
Phylogeny Test
Test of Phylogeny --------------- Bootstrap method
No. of Bootstrap ReplicaWons --- 1000
SubsWtuWon Model
SubsWtuWons Type -------------- NucleoWde
Model/Method -------------------- Hasegawa-Kishino-Yano model
Rates and Pagerns
Rates among Sites --------------- Gamma distributed with Invariant sites (G+I)
No of Discrete Gamma Categories - 5
Data Subset to Use
Gaps/Missing Data Treatment ----- Complete deleWon
Tree Inference OpWons
ML HeurisWc Method ------------- Nearest-Neighbor-Interchange (NNI)
IniWal Tree for ML ------------- Make iniWal tree automaWcally
Codons Included ----------------- 1st+2nd+3rd+Non-Coding
No. of Seqs : 31
No. of Sites : 635
No Of Bootstrap Reps = 1000

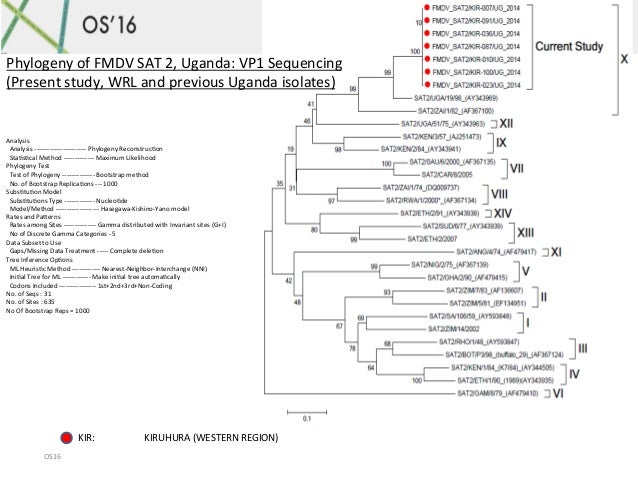

Phylogeny of FMDV SAT 2, Uganda: VP1 Sequencing
(Present study, WRL and previous Uganda isolates)
KIR: KIRUHURA (WESTERN REGION)

13.
OS16

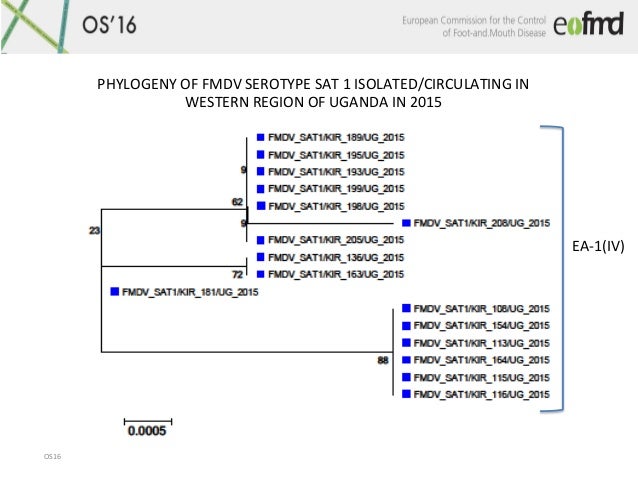

PHYLOGENY OF FMDV SEROTYPE SAT 1 ISOLATED/CIRCULATING IN
WESTERN REGION OF UGANDA IN 2015
EA-1(IV)

14.
OS16

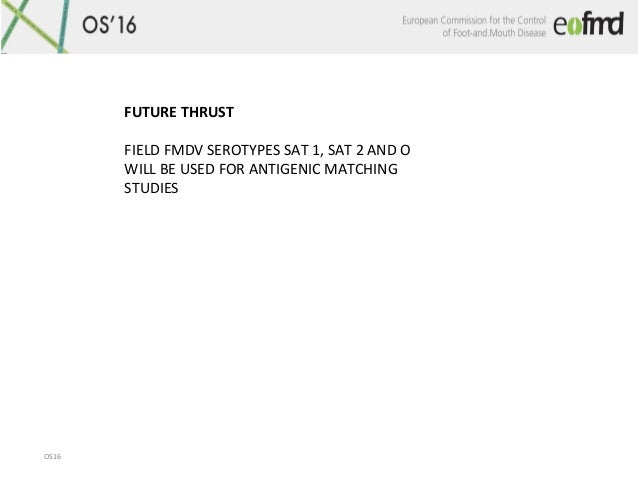

FUTURE THRUST
FIELD FMDV SEROTYPES SAT 1, SAT 2 AND O
WILL BE USED FOR ANTIGENIC MATCHING
STUDIES
