What's new in Cancer Treatment: Radiation

  1. 1. Stereotactic Body Radiation Therapy (SBRT) RadiantCare Radiation Oncology James F Raymond MD

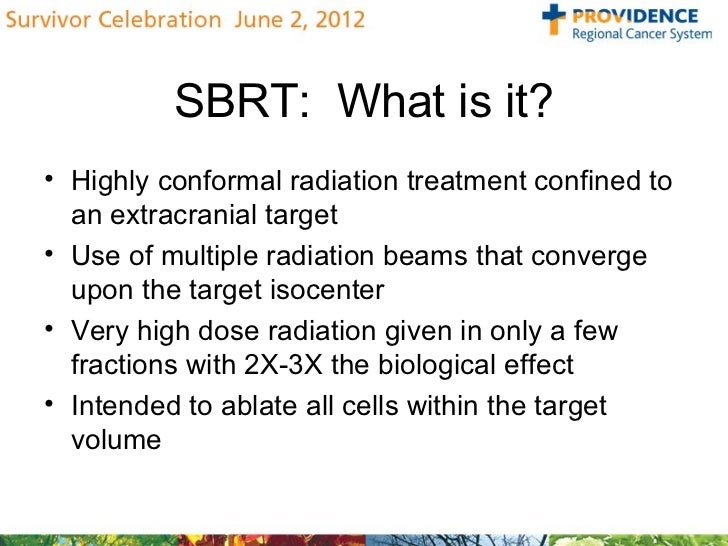

  2. 2. SBRT: What is it?• Highly conformal radiation treatment confined to an extracranial target• Use of multiple radiation beams that converge upon the target isocenter• Very high dose radiation given in only a few fractions with 2X-3X the biological effect• Intended to ablate all cells within the target volume

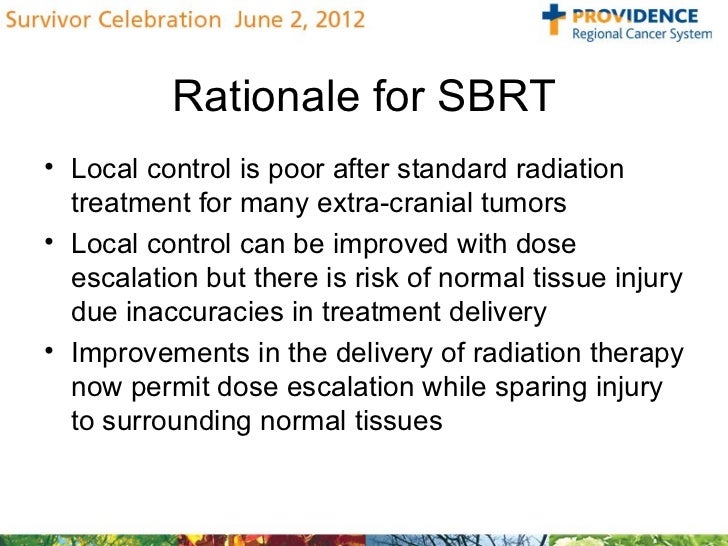

  3. 3. Rationale for SBRT• Local control is poor after standard radiation treatment for many extra-cranial tumors• Local control can be improved with dose escalation but there is risk of normal tissue injury due inaccuracies in treatment delivery• Improvements in the delivery of radiation therapy now permit dose escalation while sparing injury to surrounding normal tissues
  4. 4. Conventional Dose Distribution

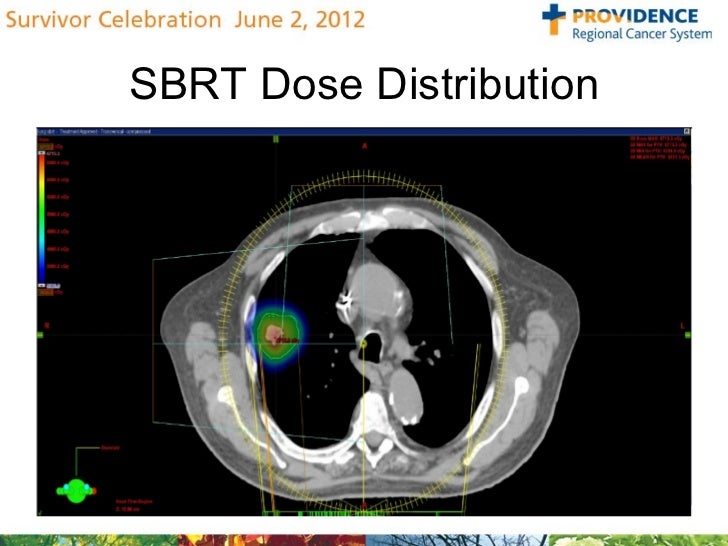

  5. 5. SBRT Dose Distribution

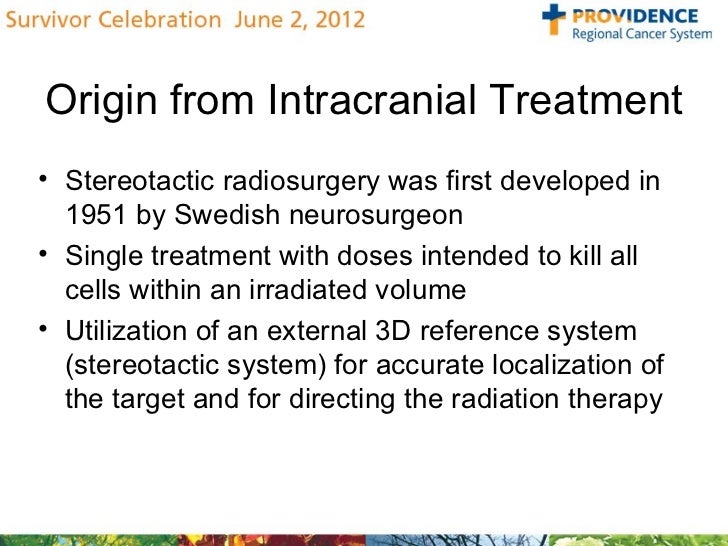

  6. 6. Origin from Intracranial Treatment• Stereotactic radiosurgery was first developed in 1951 by Swedish neurosurgeon• Single treatment with doses intended to kill all cells within an irradiated volume• Utilization of an external 3D reference system (stereotactic system) for accurate localization of the target and for directing the radiation therapy

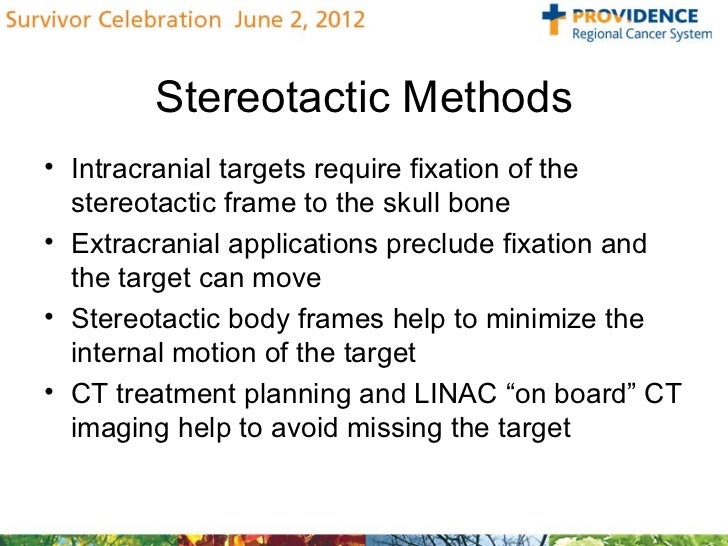

  7. 7. Stereotactic Methods• Intracranial targets require fixation of the stereotactic frame to the skull bone• Extracranial applications preclude fixation and the target can move• Stereotactic body frames help to minimize the internal motion of the target• CT treatment planning and LINAC “on board” CT imaging help to avoid missing the target

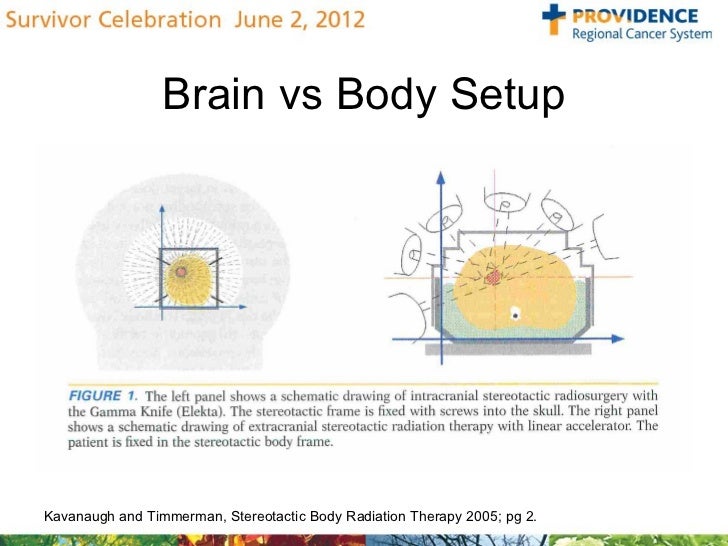

  8. 8. Brain vs Body SetupKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 2.

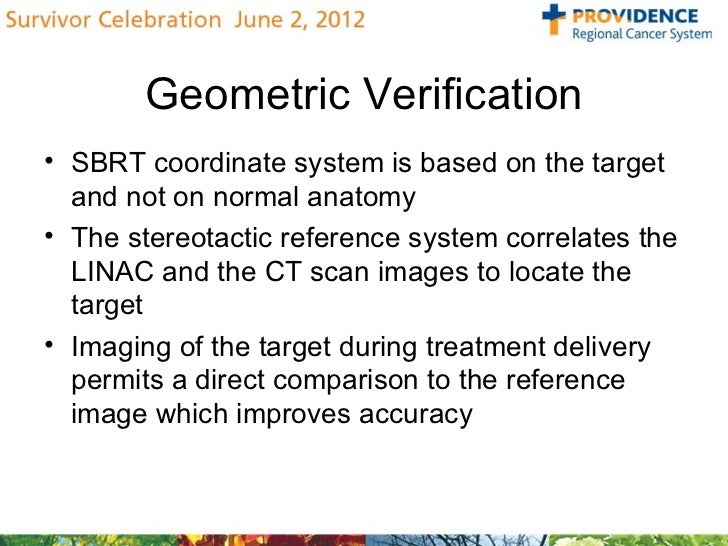

  9. 9. Geometric Verification• SBRT coordinate system is based on the target and not on normal anatomy• The stereotactic reference system correlates the LINAC and the CT scan images to locate the target• Imaging of the target during treatment delivery permits a direct comparison to the reference image which improves accuracy

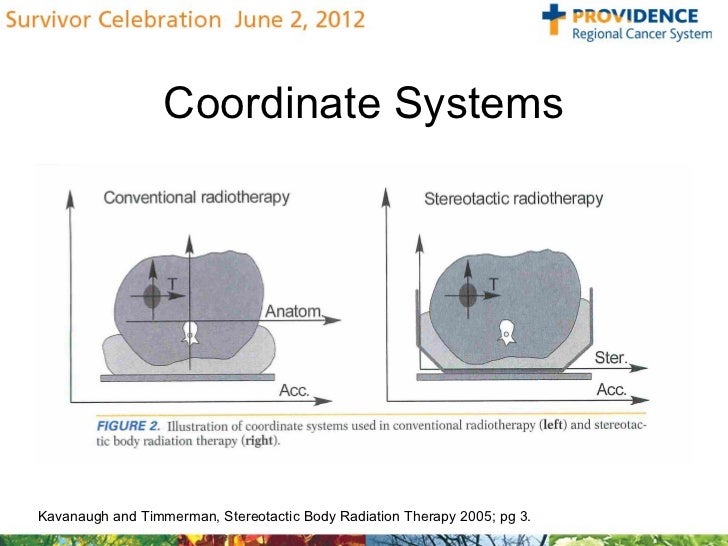

  10. 10. Coordinate SystemsKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 3.

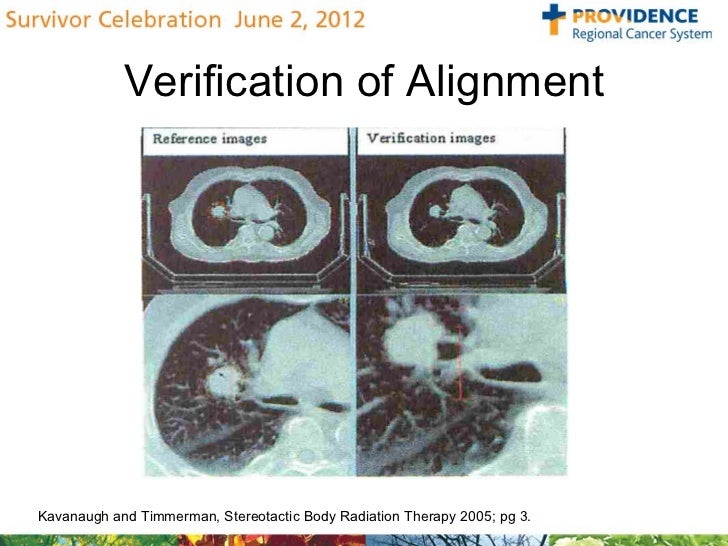

  11. 11. Verification of AlignmentKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 3.

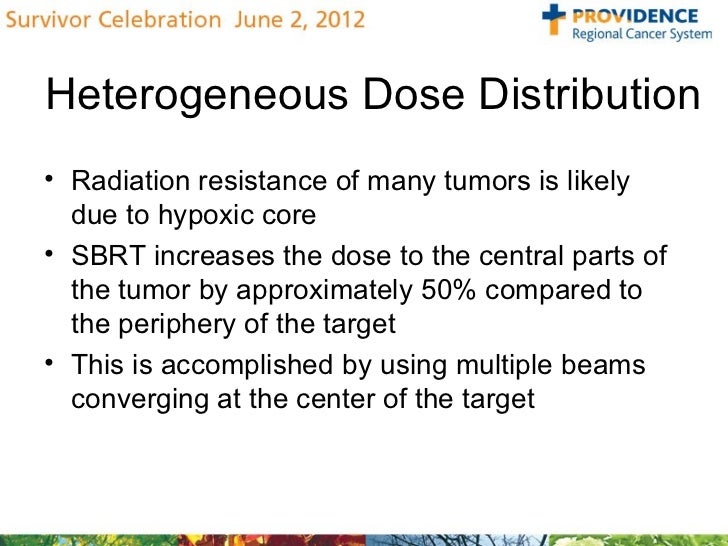

  12. 12. Heterogeneous Dose Distribution• Radiation resistance of many tumors is likely due to hypoxic core• SBRT increases the dose to the central parts of the tumor by approximately 50% compared to the periphery of the target• This is accomplished by using multiple beams converging at the center of the target

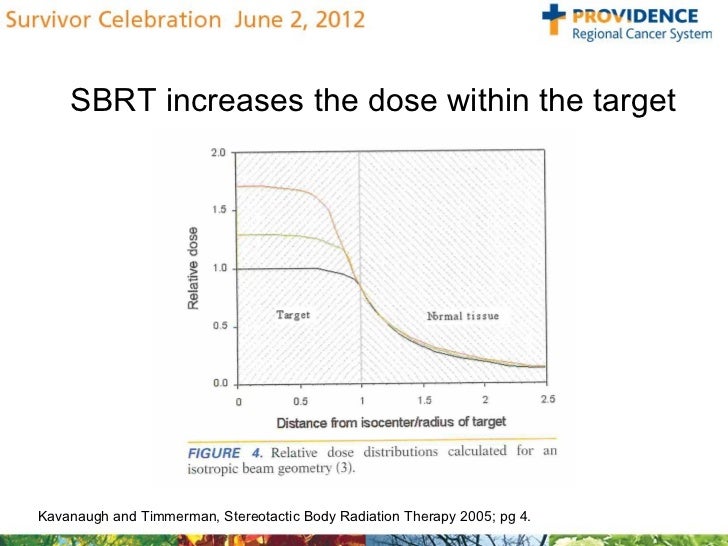

  13. 13. SBRT increases the dose within the targetKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 4.
  14. 14. SBRT utilizes multiple beamsKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 112.

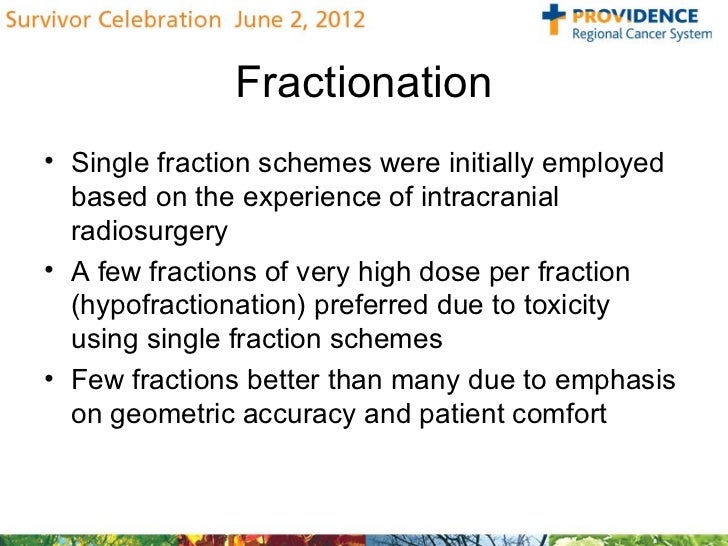

  15. 15. Fractionation• Single fraction schemes were initially employed based on the experience of intracranial radiosurgery• A few fractions of very high dose per fraction (hypofractionation) preferred due to toxicity using single fraction schemes• Few fractions better than many due to emphasis on geometric accuracy and patient comfort

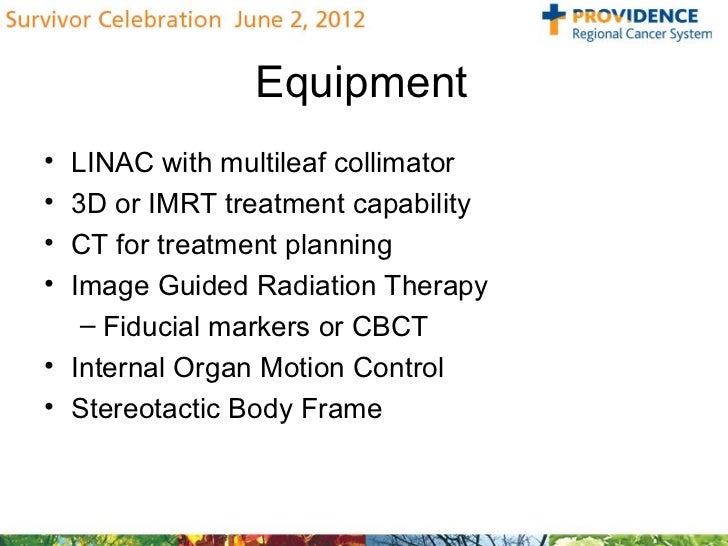

  16. 16. Equipment• LINAC with multileaf collimator• 3D or IMRT treatment capability• CT for treatment planning• Image Guided Radiation Therapy – Fiducial markers or CBCT• Internal Organ Motion Control• Stereotactic Body Frame

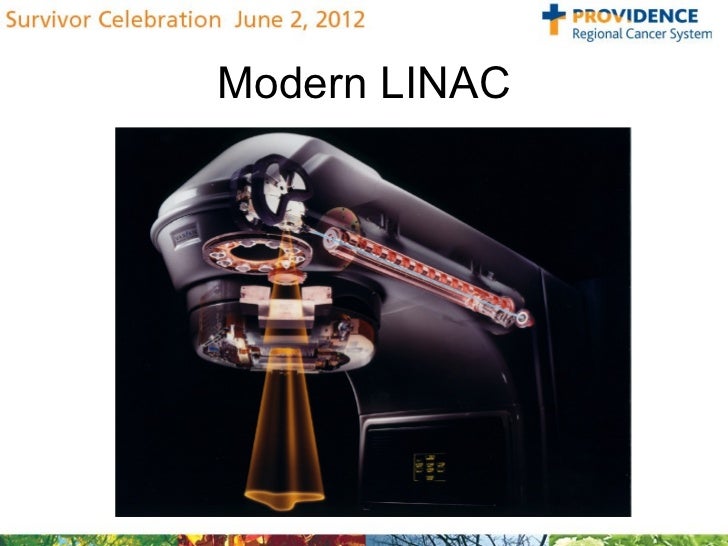

  17. 17. Modern LINAC
  18. 18. LINAC with CBCT

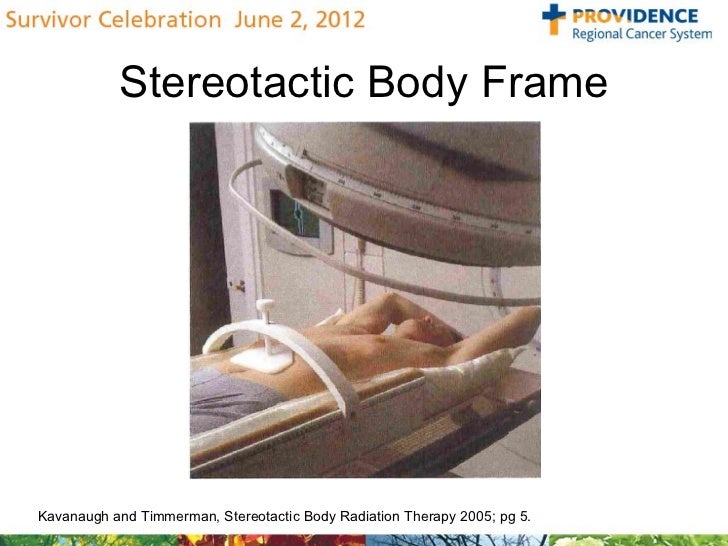

  19. 19. Stereotactic Body FrameKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 5.

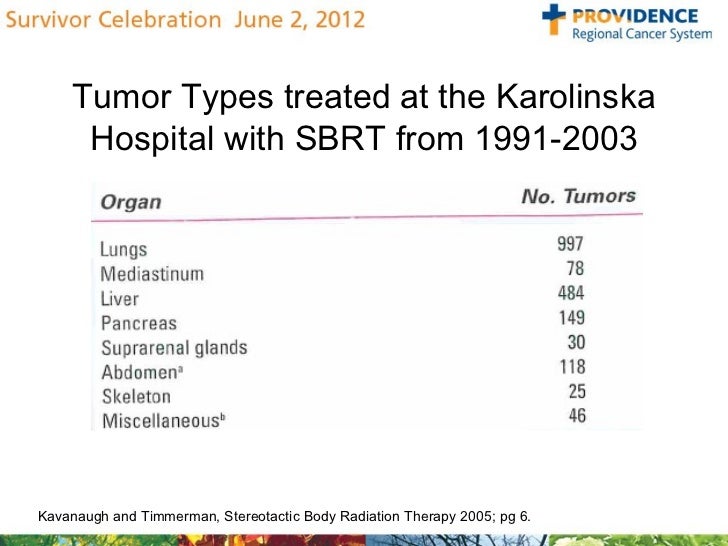

  20. 20. Tumor Types treated at the Karolinska Hospital with SBRT from 1991-2003Kavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 6.

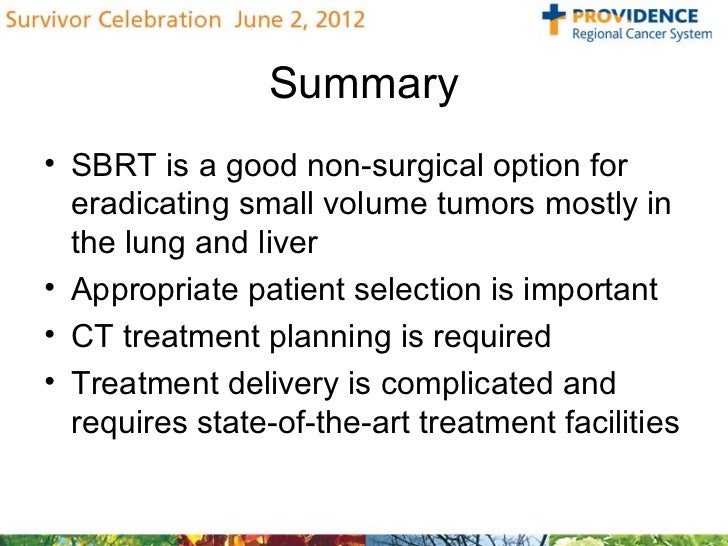

  21. 21. Summary• SBRT is a good non-surgical option for eradicating small volume tumors mostly in the lung and liver• Appropriate patient selection is important• CT treatment planning is required• Treatment delivery is complicated and requires state-of-the-art treatment facilities

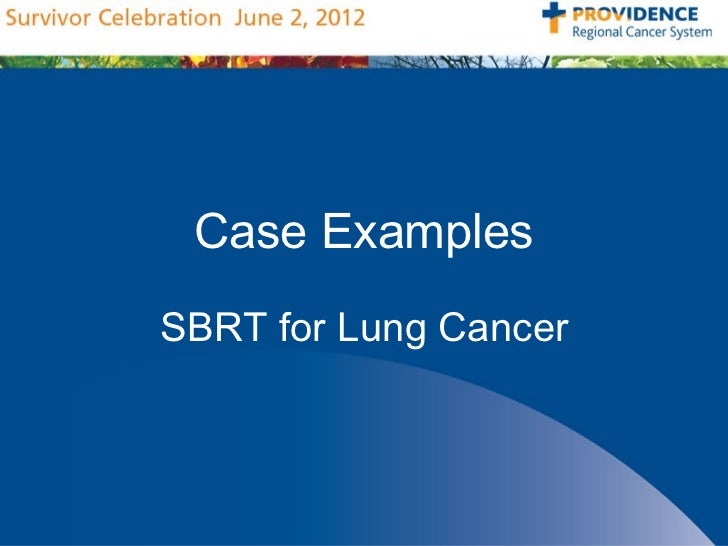

  22. 22. Case ExamplesSBRT for Lung Cancer

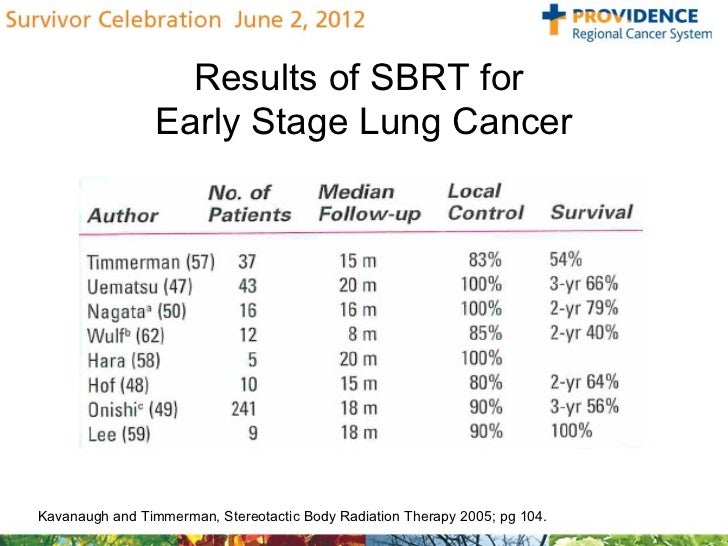

  23. 23. Results of SBRT for Early Stage Lung CancerKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 104.

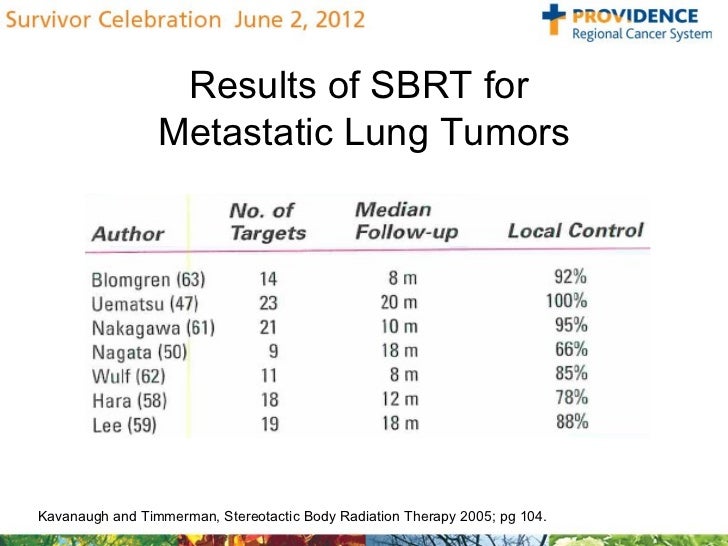

  24. 24. Results of SBRT for Metastatic Lung TumorsKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 104.

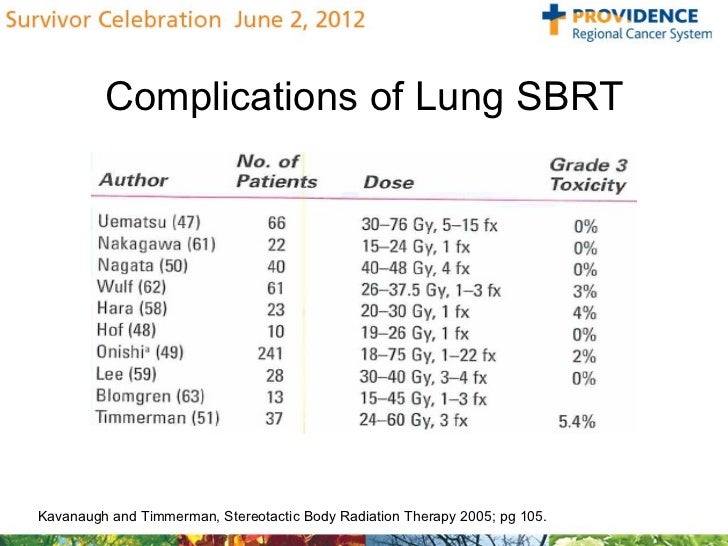

  25. 25. Complications of Lung SBRTKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 105.

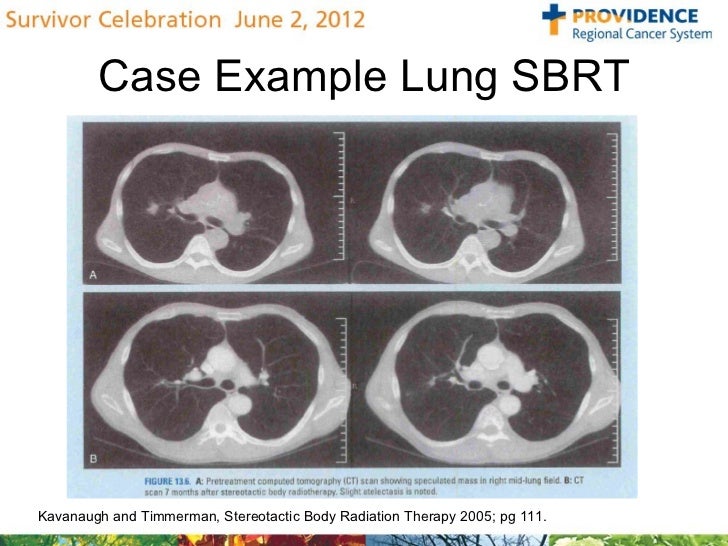

  26. 26. Case Example Lung SBRTKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 111.
  27. 27. Case ExamplesSBRT for Liver Metastases

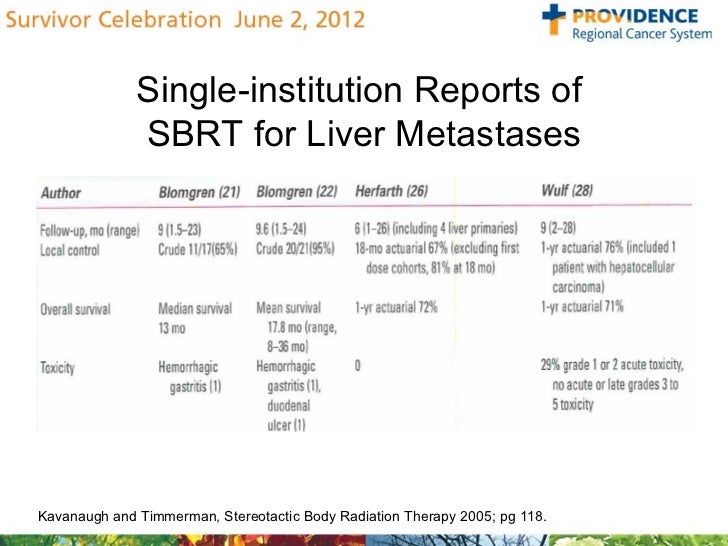

  28. 28. Single-institution Reports of SBRT for Liver MetastasesKavanaugh and Timmerman, Stereotactic Body Radiation Therapy 2005; pg 118.

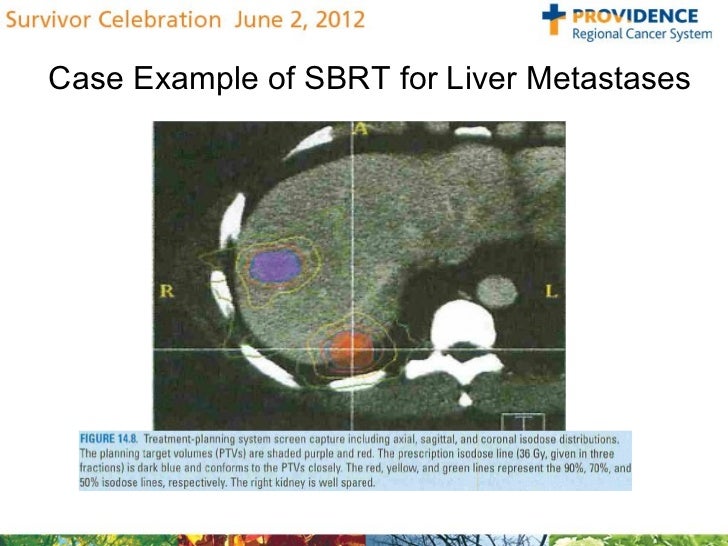

  29. 29. Case Example of SBRT for Liver Metastases

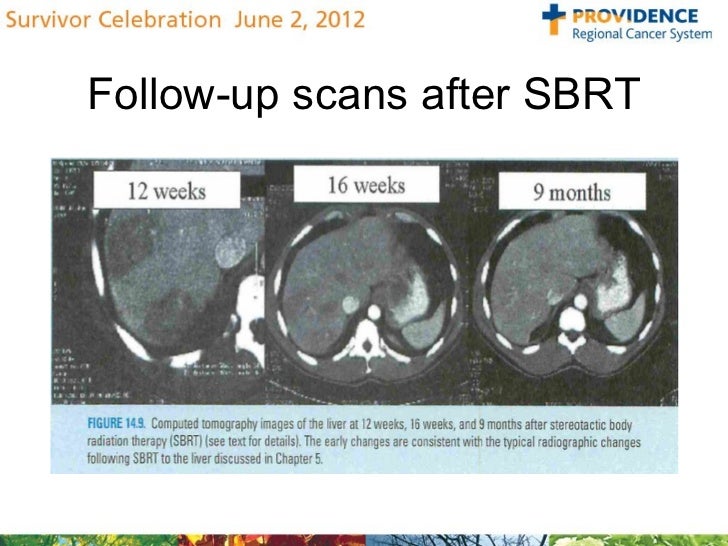

  30. 30. Follow-up scans after SBRT

×
