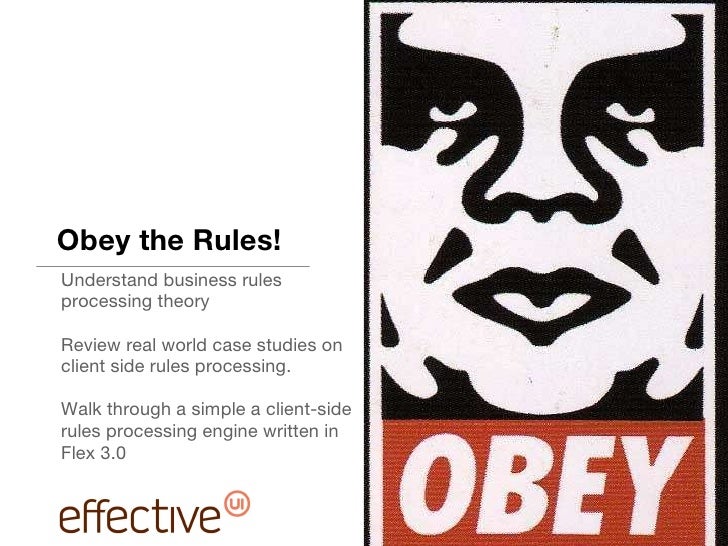

Obey the Rules! <ul><li>Understand business rules processing theory </li></ul><ul><li>Review real world case studies on cl...
What is a rules engine?
Rules engines  <ul><li>are mechanisms for executing  business rules  in a runtime production environment.  </li></ul><ul><...
<ul><ul><li>are  formalized specifications of business processes </li></ul></ul><ul><ul><li>are  statements  that define o...
<ul><li>Business rules change more frequently than the rest of the application code. </li></ul><ul><li>Business rules requ...

Why use a rules engine in your application? <ul><li>Lower the cost in modifying business logic </li></ul><ul><li>Shorten d...
How are rules defined and implemented?
Typical workflow from business to technology The organization defines the business processes.
Typical workflow from business to technology A business analyst translates business practices into business rule statement...
Typical workflow from business to technology The software developer implements the rules engine component in the applicati...
Typical workflow from business to technology The organization changes some business processes.
Typical workflow from business to technology If the business process doesn’t require new actions, anyone, including this s...
Why use a  client-side  rules engine in your Flex RIA? <ul><li>Provide an experience that is more contextual and unique to...
How do rules engines work?
Rules Engine Anatomy <ul><li>Facts  are input to the engine; statements about the system. Often key/value pairs. </li></ul...
Rules Engine Anatomy: t-shirt inventory Facts Rules Conditions Actions <ul><ul><li>shirts.quantity = 10; </li></ul></ul><u...
Rules Engine Anatomy: clown alarm system Facts Rules Conditions Actions <ul><ul><li>clowns.quantity = 10; </li></ul></ul><...
Examples!
Real world use case 1 FormBuilderUI:  AS3 rules engine under the hood <ul><li>A simple AS3-based rules engine to demonstra...


The Stack...
The Rules... < rule  id = &quot;isFemale&quot; > < statement ><![CDATA[  @info.sex equalTo 'Female'  ]]></ statement > < a...
Regular Expressions public   static   var  andOrTrueFalsePattern:RegExp =  /AND|OR|true|false/ gi; public   static   var  ...
Pattern matching a rule...
Boolean parsing using short circuit <ul><li>“ ...the second argument is only executed or evaluated if the first argument d...
Hamcrest API - Matchers: public   static   const  EQUAL_TO:String =  &quot;equalTo&quot; ; public   static   const  NOT_EQ...
Hamcrest API:  Get your facts straight! public   static   function  evaluateCondition(target:*, operator:String, source:*)...
Type of Rules engines <ul><li>There are several types of rules engines.  For the most part they differ in the manner to wh...
<ul><li>Used to represent behaviors of the type IF condition THEN action. </li></ul><ul><li>&quot;Should this customer be ...
Engine types:  reactive <ul><li>Also known as Event Condition Action (ECA) rules engines </li></ul><ul><li>detect and reac...
<ul><li>The core of the rules engine is the algorithm used to process the rules. </li></ul><ul><li>We will discuss  Basic ...
Basic Algorithm <ul><li>The basic or “naive” algorithm runs each new fact through the list of conditions and processes it ...
Basic Algorithm Fact condition A Action Fact cB cC cD AND OR Fact Optimizations can give priority to certain conditions, w...
Rete Algorithm <ul><li>more complex implementation than basic. </li></ul><ul><li>will take more time to implement initiall...
Rete Algorithm <ul><li>divides rules up into pieces </li></ul><ul><li>scatters the pieces along a logical chain </li></ul>...
Rete Algorithm <ul><li>is FAST - trades memory for performance </li></ul><ul><li>stores rules in a network/tree structure ...
Rete Algorithm Fact1 condition A Action Fact3 cB cC cD AND OR <ul><ul><li>clowns.quantity = 10; </li></ul></ul><ul><ul><li...
Real world use case 2: Herff Jones Order Manager <ul><li>EffectiveUI  was hired by Herff Jones to rebuild their sales. rep...


Technical Challenges <ul><li>Class Rings have an “unruly” number of options for customization. The options include name, e...
Core Components <ul><li>Rule Processing engine for defining user pathways in the ring order form </li></ul><ul><li>Due to ...
Core UI <ul><li>The ring order form consists of a standard form with a set of “base” options </li></ul><ul><li>As soon as ...
Rule XML Sample <!-- Rule definition --> < rule > < getValue  key = &quot;Metal Quality&quot; >< containsString  value = &...
Macro XML Sample: pricing a stone <!-- Macro definition --> < defineMacro  name = &quot;priceStone&quot; > < rule > < allO...
Real world use case 3: A Statewide Agency  Government Benefits Application (GBA) <ul><li>EffectiveUI  was hired to help wi...
GBA Overview <ul><li>GBA allows households to apply for state wide benefits including welfare, food stamps, healthcare, in...
Functionality <ul><li>The GBA client should be able to display questions based on previous answers provided in the form. <...
Technical Challenges <ul><li>The State Agency does not allow redeploying SWF files without extensive review and approval c...
Core Components <ul><li>Rules facts and actions that are declared in external XML files </li></ul><ul><li>Parsing logic to...
...Core Components <ul><li>An observer to handle listening for property changes on the data model.  We used Flex data bind...
GBA Rules engine architecture Fact (change event) Conditions Actions User Questions Data Model Binding! Binding! Binding!
Core UI <ul><li>Dynamically define all forms and their fields (questions) in xml </li></ul><ul><li>Allow customization of ...
Question XML < question  id = &quot;362&quot; controlType = &quot;ComboBox&quot; inlineHelp = &quot;Does anyone receive mo...
Condition XML <ul><li>< condition  id = &quot;hasCurrentEmployment&quot;  </li></ul><ul><ul><ul><ul><li>targetProperty = &...
Rule XML < rule  id = &quot;doesAnyoneHasOtherEmployment&quot; > < statement > $hasOtherEmployment </ statement > < action...
Data Abstraction
Dynamic Binding using ObjectProxy <ul><li>The Flex client needed to support data binding,  however the data schema was bas...
What next? <ul><li>Open source Rete and modified basic rules library and form builder library </li></ul><ul><ul><li>Zachar...
Forward Chaining (modus ponens) <ul><li>If  P,  then  Q </li></ul><ul><li>P . </li></ul><ul><li>Therefore ,  Q . </li></ul...
Forward Chaining <ul><li>The argument form has two premises.  </li></ul><ul><li>The first premise is the &quot;if–then&quo...
Forward Chaining:  definition <ul><ul><li>The following example uses forward chaining to determine the color of X based on...
Thanks for obeying. Drew McLean twitter: TunnelVisionary [email_address] RJ Owen twitter: rjowen [email_address]
