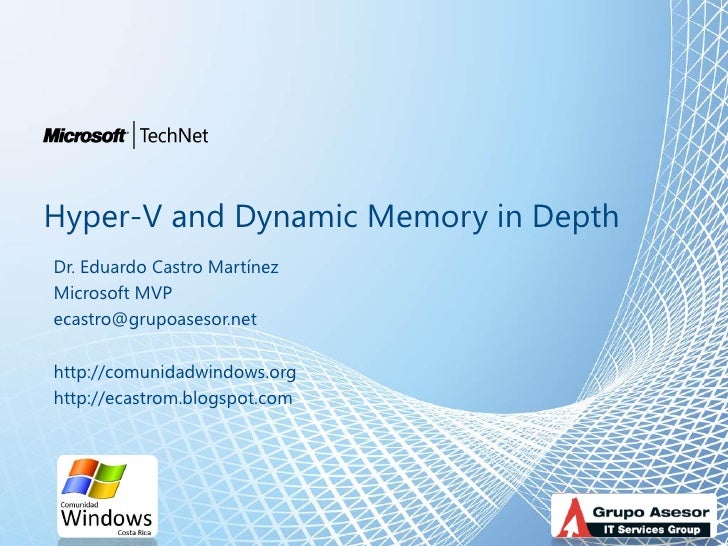

Hyper-V and Dynamic Memory in Depth
Dr. Eduardo Castro Martínez
Microsoft MVP
ecastro@grupoasesor.net

http://comunidadwin...
Agenda

• Windows 2008 R2 SP1 Overview
• Users, Memory & Virtualization
• Dynamic Memory
   – Architecture & Concepts
   –...
Windows 2008 R2 SP1 Overview

• New capabilities that will enhance both virtualized server
  and virtualized desktop deplo...
Users, Memory & Virtualization
No one can size VMs

•   How much memory does an IIS server actually need?
•   SQL Server
•   Print server?
•   File serve...
No one wants to size VMs

“New virtual machines get 1GB of RAM [no matter what the
VM is running]. I only give people more...
Virtualization and memory

• Use physical memory as efficiently and dynamically
  as possible with minimal performance imp...
Virtualization & Memory

• Memory
   – Key factor to the number of running VMs
   – Possibly most expensive asset in syste...
Virtual Machine Performance & Density




 • Hyper-V Dynamic Memory is a memory management
   enhancement for Hyper-V desi...
Hyper-V R2 SP1
Dynamic Memory
Dynamic Memory Goals

• Higher VM consolidation ratios with minimal
  performance impact
   – Dependent on:
      • How mu...
Adding/Removing Memory

• Adding Memory
   – Enlightened fashion
      • Synthetic Memory Driver (VSP/VSC Pair)
   – No ha...
System Requirements

• Parent Requirements:
   – Windows Server 2008 R2 SP1
   – Microsoft Hyper-V Server 2008 R2 SP1
• Wi...
Dynamic Memory Architecture &
Concepts
Provided by:


Dynamic Memory Architecture                                                          OS
                   ...
Example
0                         512 MB                              1024MB



                                          ...
Startup & Max


• Startup: amount of memory to boot
  VM
  – BIOS does not know about DM
  – Guest OS may not know about D...
Availability & Priority

• Availability is a concept
   – How much memory does the VM have?
   – How much memory does the ...
Memory Buffer

• How much “free” memory should we try and keep in the
  VM?
   – Allows for responsiveness to bursty workl...
Dynamic Memory




   • DEMO
System Impact
Changes to Root Reserve

• Hyper-V has always had the concept of a reserve of
  memory that is kept for the parent partiti...
Changes to NUMA management…

• Wait – what is NUMA?
• Why do I care?
• How does this work today?
What is “NUMA”?

• A traditional computer:
What is “NUMA”?

• A NUMA computer:
Why do I care?

• VM memory should come from the “local NUMA node”
Why do I care?

• VM memory should come from the “local NUMA node”
How does this work today?


• Hyper-V tries to get all memory for a virtual machine
  from a single NUMA node
• When it ca...
Changes to NUMA management

• Dynamic memory can result in more virtual machines
  spanning NUMA nodes
   – A virtual mach...
Disabling NUMA Spanning

• Makes the system behave like multiple small computers
Memory Techniques / Competition
Understanding philosophical differences

• Microsoft
  – Understands what guest information to use
      • Building on top...
Dynamic Memory, not Overcommit

• Overloaded Term
   – Page Sharing
   – Second Level Paging
   – Balloon Type Mechanisms
...
External Page Sharing

• How it works:
   1. Hash all memory and store it in a table…
   2. Identify the common hashes and...
Second Level Paging

• Many problems:
   – Swapping Guest Kernel Resources
   – Double Paging
   – Disks are slow
• But it...
Other Techniques

• Guest directed page sharing
• Memory compression
• And on…

• We will continue to invest here and work...
What next?
Test the beta – and talk to us!

• Try Dynamic Memory out – for both server and desktop
  environments
   – Let us know ho...
More Resources

  Virtualization @ Microsoft:
  http://www.microsoft.com/virtualization
  Hyper-V on TechNet:
  http://tec...
Source Info




   www.microsoft.com/teched      www.microsoft.com/learning




  http://microsoft.com/technet   http://mi...
Hyper-V and Dynamic Memory in Depth
Dr. Eduardo Castro Martínez
Microsoft MVP
ecastro@grupoasesor.net

http://comunidadwin...
© 2008 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be...
