Pancreas Cancer
www.aboutcancer.com
Pancreas Cancer
Incidence (2014 Data) Deaths
46,420 (2.8%) 39,590 (6.8%)
The 5 year survival is only 6.7%
Life time ri...

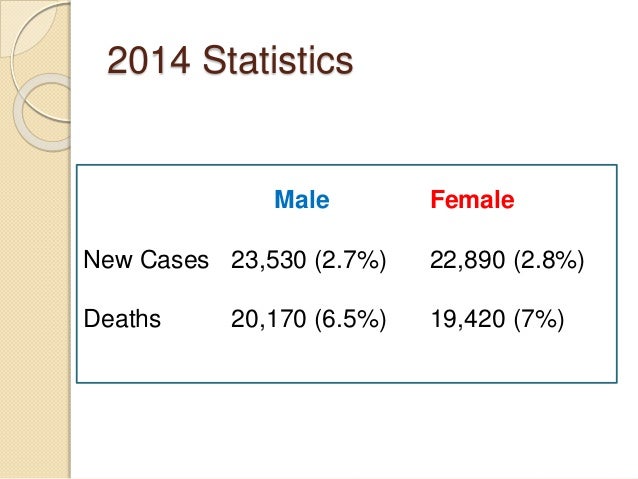

2014 Statistics
Male Female
New Cases 23,530 (2.7%) 22,890 (2.8%)
Deaths 20,170 (6.5%) 19,420 (7%)
Age and Pancreas Cancer
Median age is 71

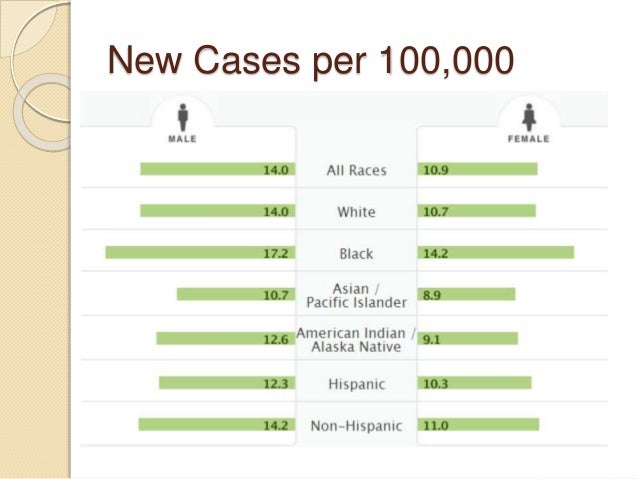

New Cases per 100,000

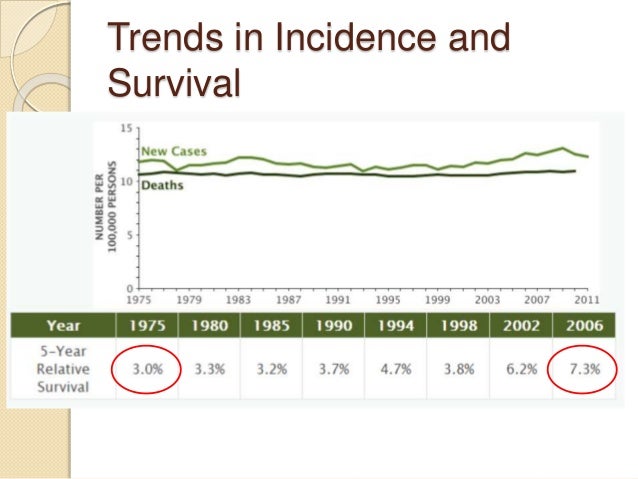

Trends in Incidence and
Survival

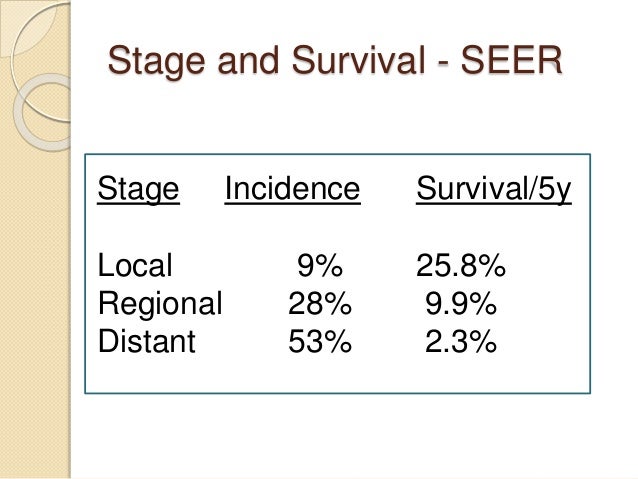

Stage and Survival - SEER
Stage Incidence Survival/5y
Local 9% 25.8%
Regional 28% 9.9%
Distant 53% 2.3%
Risk factors for pancreatic
cancer include the following
- Smoking
- Obesity
- Personal history of diabetes or chronic...
Symptoms
Most patients present with pain (in the back)
weight loss or jaundice
Tumors in the head of the pancreas are m...

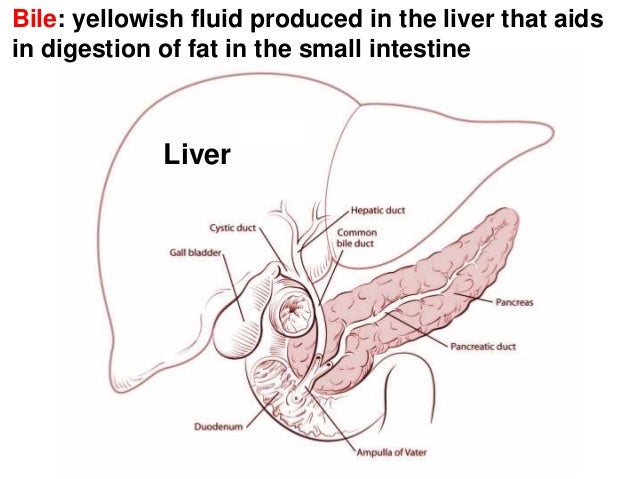

Bile: yellowish fluid produced in the liver that aids
in digestion of fat in the small intestine
Liver

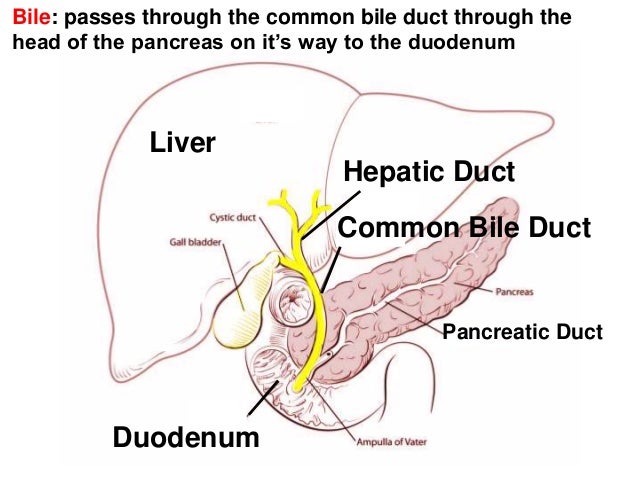

Bile: passes through the common bile duct through the
head of the pancreas on it’s way to the duodenum
Liver
Hepatic Du...
Bile duct carries the bilirubin through the head of the
pancreas on it’s way to the duodenum
Tail of the Pancreas
Commo...
Tumors in the head of the pancreas are more likely
to have jaundice
Tail of the Pancreas
Common Bile Duct
Common Bile ...
Tumors in the head of the pancreas are more likely
to have jaundice
Tail of the Pancreas
Common Bile Duct
Common Bile ...
Head of the Pancreas Tumor
Blocking the pancreatic duct
and common bile duct
Common bile Duct
Pancreatic
duct
Common...
Tail of the Pancreas
Common Bile Duct
Common Bile Duct Body of the Pancreas
Head of the Pancreas
Tumor
Tumors in the ...
Symptoms of Pancreas
Cancer
• Asthenia (weakness) – 86 percent
• Weight loss – 85 percent
• Anorexia (no appetite)– 83...
Signs of Pancreas Cancer
• Jaundice (yellow) – 55 percent
• Hepatomegaly (large liver) - 39 percent
• Right upper quadr...

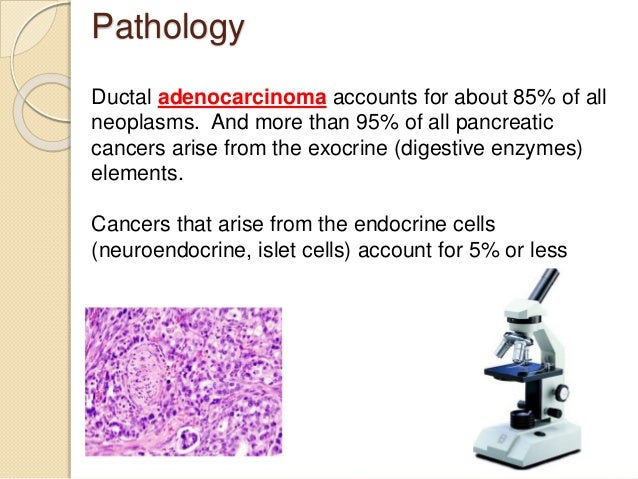

Pathology
Ductal adenocarcinoma accounts for about 85% of all
neoplasms. And more than 95% of all pancreatic
cancers ar...
Parts of the Pancreas
Portal Vein
Aorta
Superior Mesenteric Vein
Head Body Tail
Cancer in the Head of the
Pancreas
Head
Tail
Body
Location of Pancreas Cancer
• 60 to 70 percent of exocrine pancreatic cancers
are localized to the head
• 20 to 25 perc...
Location of Pancreas Cancer
• 60 to 70 percent of exocrine pancreatic cancers
are localized to the head
• 20 to 25 perc...
Tests used to evaluate and stage
pancreas cancer
• Routine blood tests e.g. liver products
like bilirubin
• Elevated t...
CA 19-9
The reported sensitivity and specificity rates of CA 19-9 for pancreatic
cancer range from 70 to 92, and 68 to 9...
Elevated CA 19-9
Cancer
- Pancreas
- Biliary Cancer (gallbladder, cholangiocarcinoma,
ampullary)
- Hepatocellular
- ...
Ultrasound
study of 900 patients who underwent
ultrasound to work up painless jaundice,
anorexia, or unexplained weight...

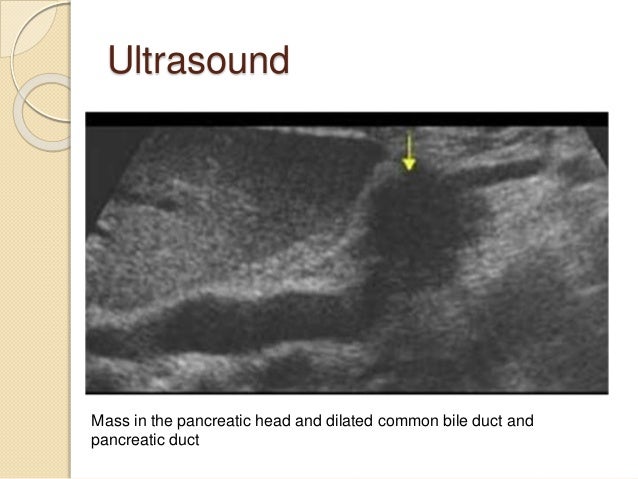

Ultrasound
Mass in the pancreatic head and dilated common bile duct and
pancreatic duct

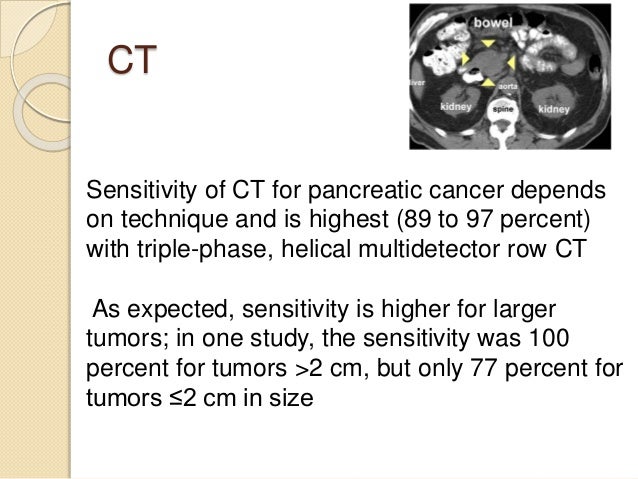

CT
Sensitivity of CT for pancreatic cancer depends
on technique and is highest (89 to 97 percent)
with triple-phase, he...

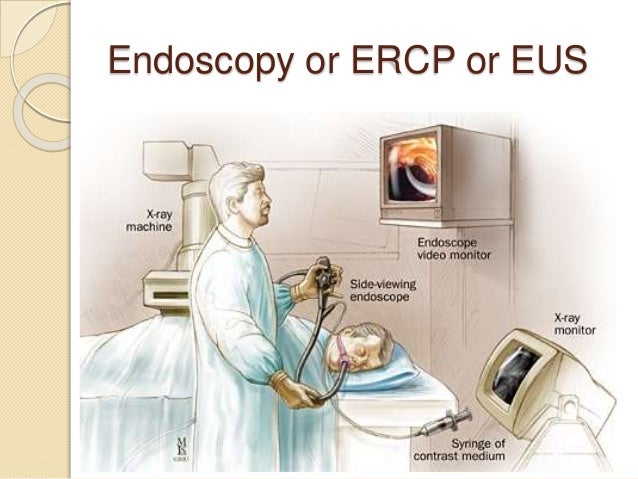

Endoscopy or ERCP or EUS

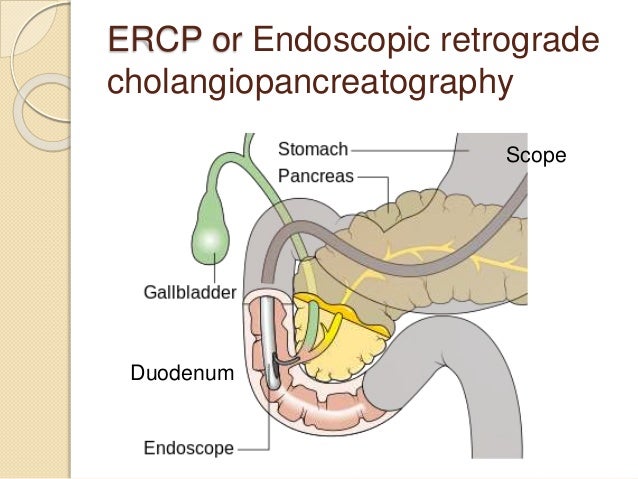

ERCP or Endoscopic retrograde
cholangiopancreatography
Scope
Duodenum

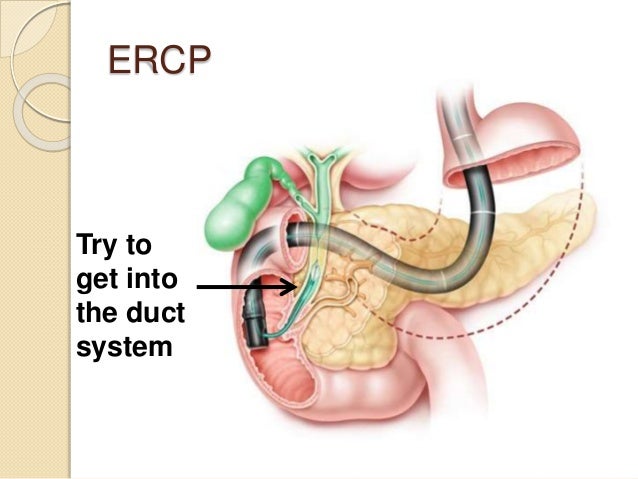

ERCP
Try to
get into
the duct
system
ERCP
Inject dye into
the duct system
and look for
compression
ERCP
Sensitivity of 92 percent and Specificity of 96 percent for
diagnosing cancer of the pancreas by ERCP
ERCP provide...

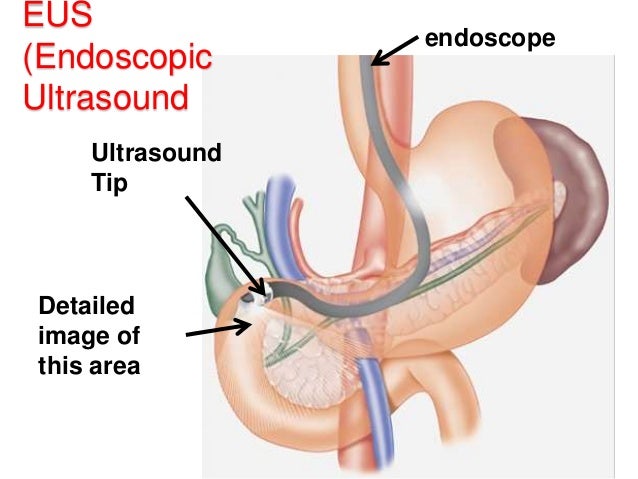

endoscope
EUS
(Endoscopic
Ultrasound
Ultrasound
Tip
Detailed
image of
this area

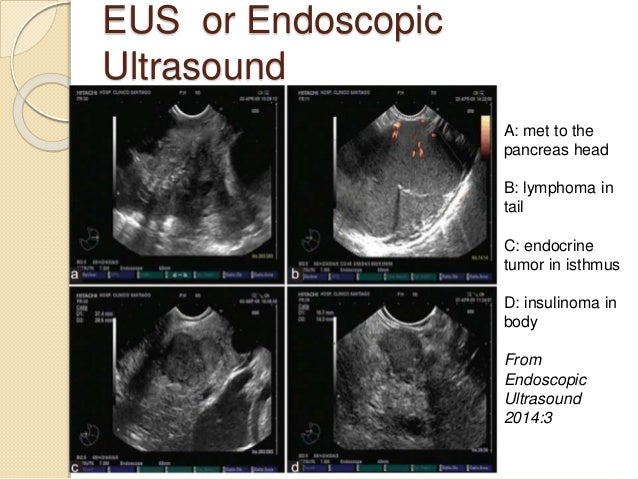

EUS or Endoscopic
Ultrasound
A: met to the
pancreas head
B: lymphoma in
tail
C: endocrine
tumor in isthmus
D: insu...

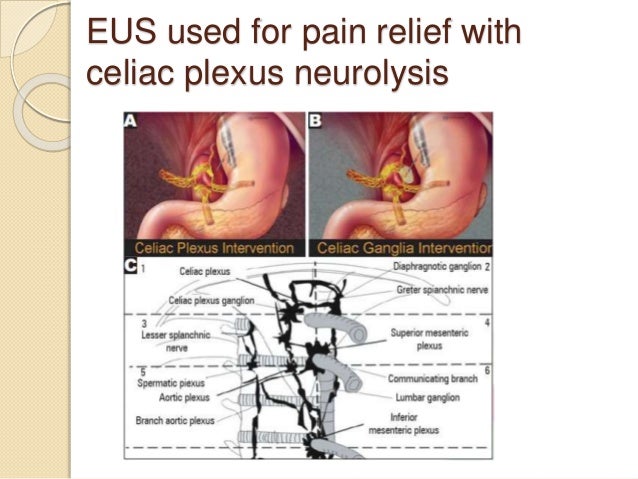

EUS used for pain relief with
celiac plexus neurolysis

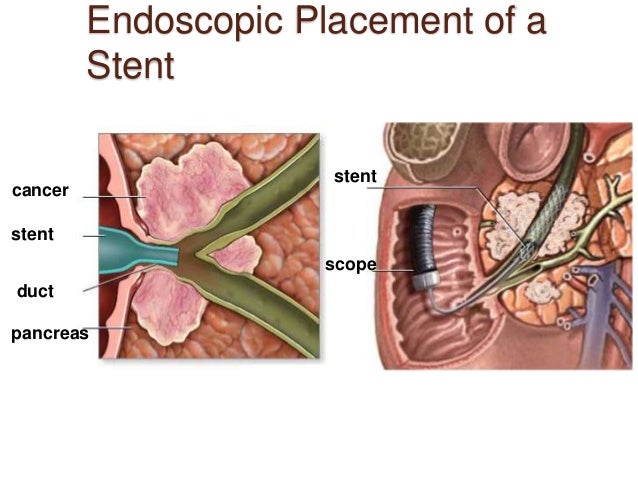

Endoscopic Placement of a
Stent
cancer
stent
duct
pancreas
stent
scope
CT Scan – Pancreas Cancer
CT Scans
CT or PET Scan

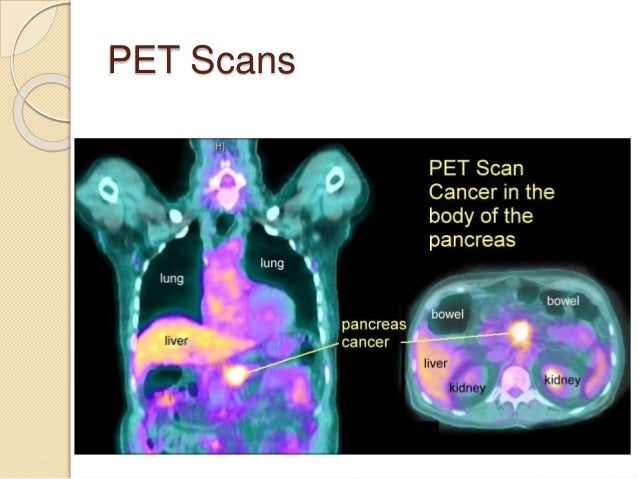

PET Scans

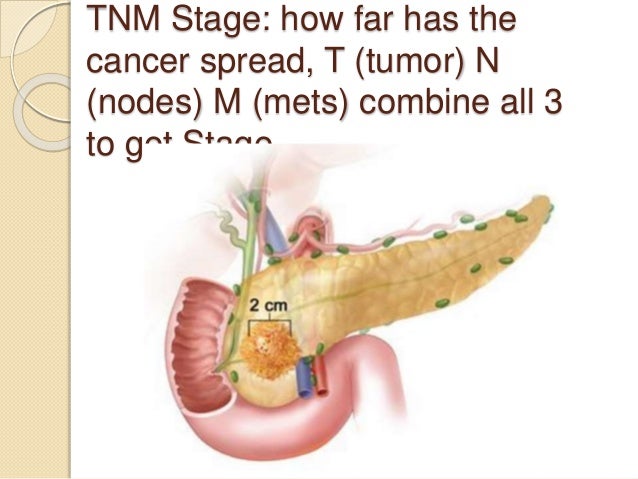

TNM Stage: how far has the
cancer spread, T (tumor) N
(nodes) M (mets) combine all 3
to get Stage

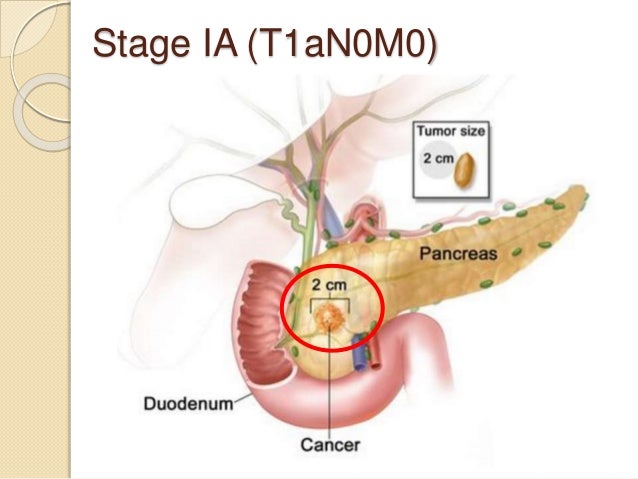

Stage IA (T1aN0M0)
Stage IB (T2N0M0)
over 2cm, limited to pancreas

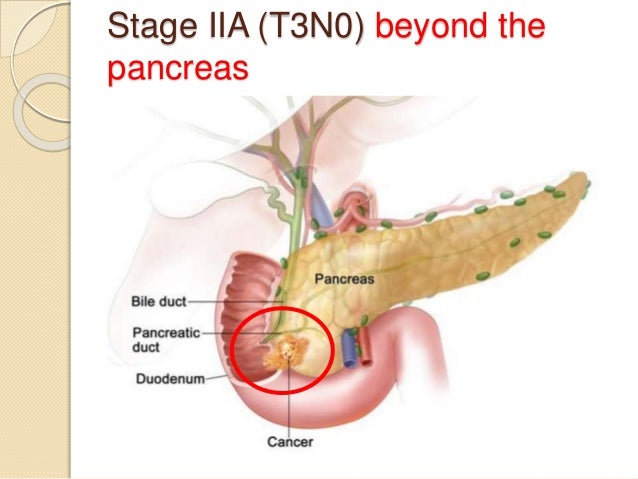

Stage IIA (T3N0) beyond the
pancreas

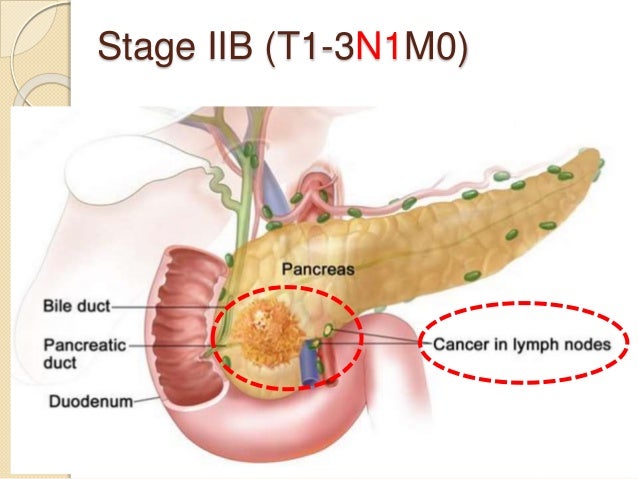

Stage IIB (T1-3N1M0)

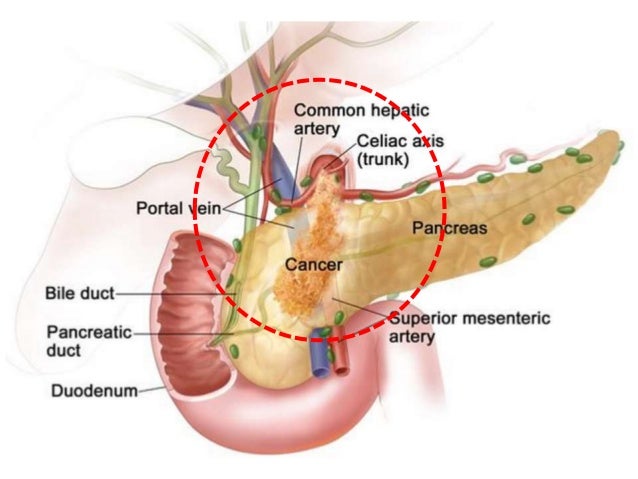

Stage III (T4) Unresectable
Cancer has spread to the major blood
vessels near the pancreas. These include
the superior ...
Stage IV -
Metastasis
Lung
Liver
Peritoneal
Cavity
Cancer in
Pancreas

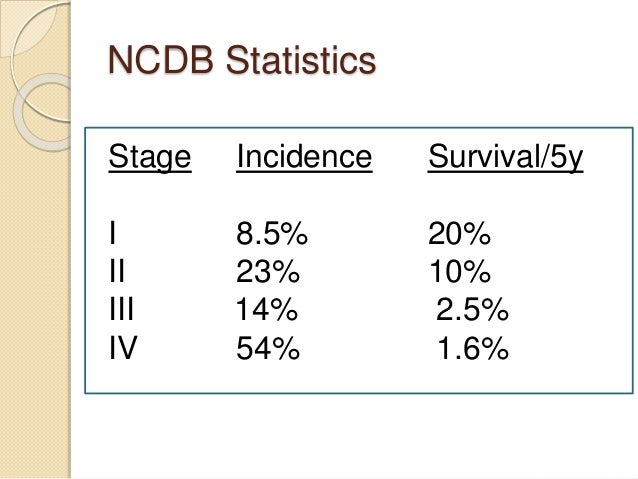

NCDB Statistics
Stage Incidence Survival/5y
I 8.5% 20%
II 23% 10%
III 14% 2.5%
IV 54% 1.6%
1.2
1
0.8
0.6
0.4
0.2
0

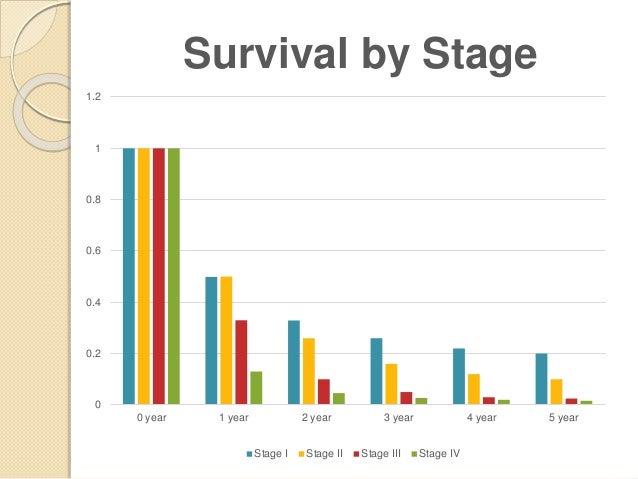

Survival by Stage
0 year 1 year 2 year 3 year 4 year 5 year
Stage I Stage II Stage III St...

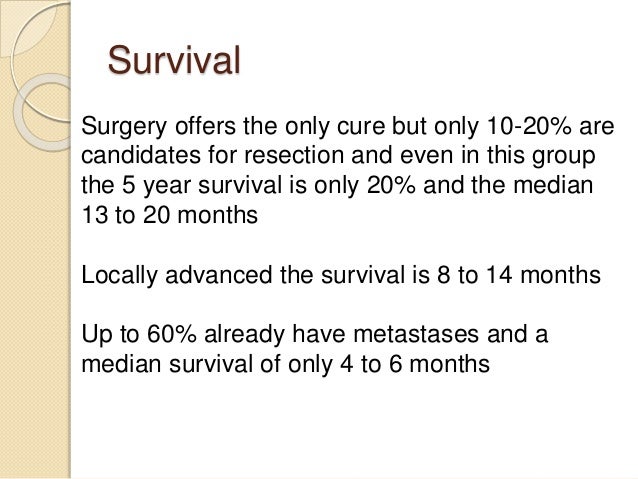

Survival
Surgery offers the only cure but only 10-20% are
candidates for resection and even in this group
the 5 year su...
nccn.org
nccn.org/patients

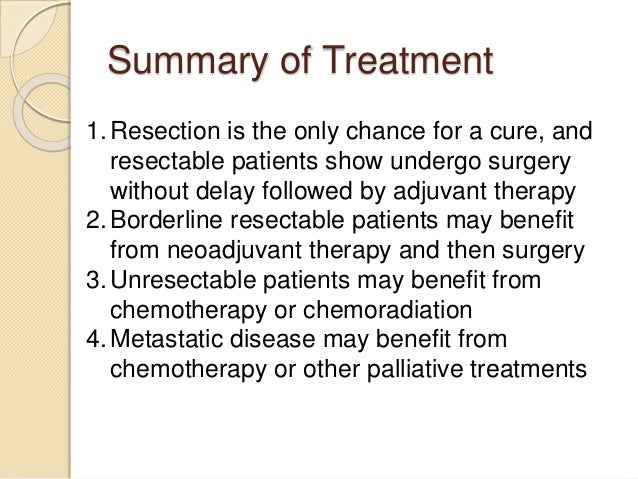

Summary of Treatment
1.Resection is the only chance for a cure, and
resectable patients show undergo surgery
without de...
Allen Oldfather Whipple (1881-
1963)
Surgery professor at Columbia
where he developed the resection
for pancreas cance...

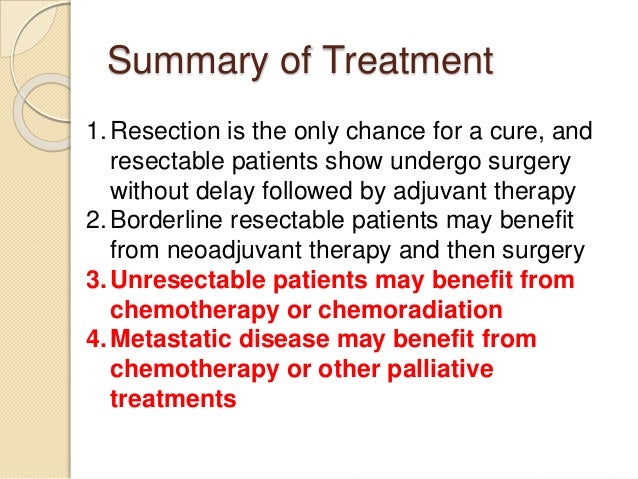

Summary of Treatment
1.Resection is the only chance for a cure, and
resectable patients show undergo surgery
without de...
Chemotherapy
Chemotherapy for Metastatic
Pancreas Cancer
• FOLFIRINOX (oxaliplatin (Eloxatin),
irinotecan (Camptosar) , leucovorin, ...

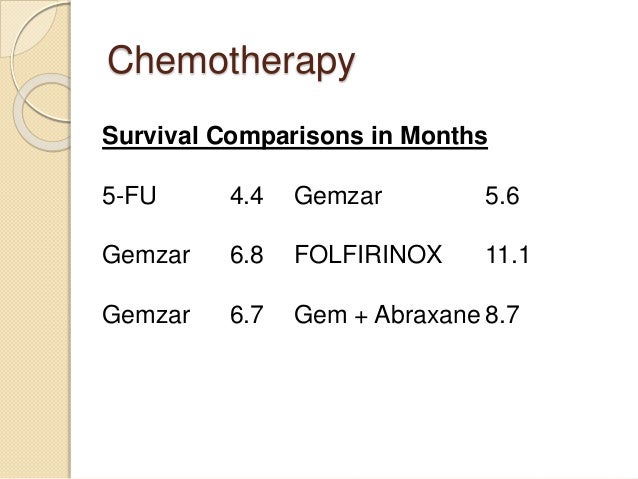

Chemotherapy
Survival Comparisons in Months
5-FU 4.4 Gemzar 5.6
Gemzar 6.8 FOLFIRINOX 11.1
Gemzar 6.7 Gem + Abraxane 8...
Survival with Metastatic
Pancreas Cancer
FOLFIRINOX
Months
Gemzar
NEJM 2011:364:1817
Survival with Metastatic
Pancreas Cancer
Gemzar + Abraxane
Months
Gemzar
NEJM 2013;369:1691
Pancreas Cancer
www.aboutcancer.com
Pancreas Cancer
Pancreas Cancer
Pancreas Cancer
