Cooking Perl with Chef: Real World Tutorial with Jitterbug


Published on

This tutorial provides a command-by-command walk-through for deploying the Jitterbug continuous integration application using the Chef configuration management tool

Published in: Technology, Self Improvement
  • D0WNL0AD FULL ▶ ▶ ▶ ▶ ◀ ◀ ◀ ◀
    Are you sure you want to  Yes  No
    Your message goes here

Cooking Perl with Chef: Real World Tutorial with Jitterbug

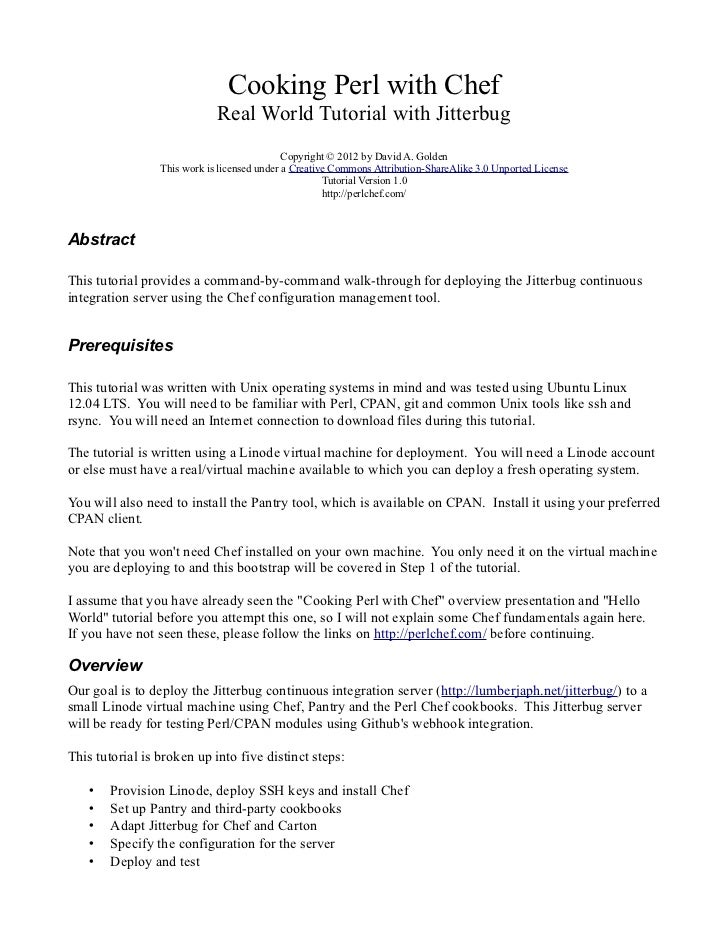

  1. 1. Cooking Perl with Chef Real World Tutorial with Jitterbug Copyright © 2012 by David A. Golden This work is licensed under a Creative Commons Attribution-ShareAlike 3.0 Unported License Tutorial Version 1.0 tutorial provides a command-by-command walk-through for deploying the Jitterbug continuousintegration server using the Chef configuration management tool.PrerequisitesThis tutorial was written with Unix operating systems in mind and was tested using Ubuntu Linux12.04 LTS. You will need to be familiar with Perl, CPAN, git and common Unix tools like ssh andrsync. You will need an Internet connection to download files during this tutorial.The tutorial is written using a Linode virtual machine for deployment. You will need a Linode accountor else must have a real/virtual machine available to which you can deploy a fresh operating system.You will also need to install the Pantry tool, which is available on CPAN. Install it using your preferredCPAN client.Note that you wont need Chef installed on your own machine. You only need it on the virtual machineyou are deploying to and this bootstrap will be covered in Step 1 of the tutorial.I assume that you have already seen the "Cooking Perl with Chef" overview presentation and "HelloWorld" tutorial before you attempt this one, so I will not explain some Chef fundamentals again here.If you have not seen these, please follow the links on before continuing.OverviewOur goal is to deploy the Jitterbug continuous integration server ( to asmall Linode virtual machine using Chef, Pantry and the Perl Chef cookbooks. This Jitterbug serverwill be ready for testing Perl/CPAN modules using Githubs webhook integration.This tutorial is broken up into five distinct steps: • Provision Linode, deploy SSH keys and install Chef • Set up Pantry and third-party cookbooks • Adapt Jitterbug for Chef and Carton • Specify the configuration for the server • Deploy and test
  2. 2. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 2We will deploy these components as our "stack": • Nginx web server • Jitterbug web application (behind the nginx proxy) • Jitterbug builder (the task worker process) • Postfix mail server (to send failure reports) • Perl 5.14.2We will also configure a firewall to restrict everything except ports 22 and 80.You can contact the author with praise, critique or questions at or as @xdg on varioussocial networks.Step 1. Provision a Linode, deploy SSH keys and install ChefThis tutorial uses Linode ( If you dont already have a Linode account you shouldcreate one now. If you dont want to use Linode, you should be able to adapt this provisioning step foranother virtual machine provider you prefer.Add a linode 512 on a month-to-month (MTM) plan. (Linode will pro-rate you a refund when deletethe linode, so youll only pay for a bit of usage if you only plan to use it for this demo.) Use only10,000 MB for the main drive and deploy Ubuntu 12.04LTS. Remember the root password you assign;youll need that to deploy SSH keys (and then you can stop using the password or disable it). Whenthat is complete, boot the linode.If you manage your own domain somewhere, setup a DNS A record mapping a server name to thepublic IP address of the linode. Set linodes reverse DNS to map back to that hostname. If you dontset up your own DNS, youll need to use the default linode-provided hostname instead.NOTE: When you see "" in the tutorial, use your own hostname instead!On your own computer (not the linode), you need to create a directory to hold your configurationinformation. You should keep your configuration under version control, so this tutorial shows how todo that with git. $ mkdir /tmp/jitterbug-config $ cd /tmp/jitterbug-config $ git initNext, youll want to create SSH keys youll use to connect to the jitterbug server. You will beprompted for a passphrase for the private key, and its a good idea to use one. $ ssh-keygen -f jitterbug-key
  3. 3. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 3Then, check the keys into git. $ git add jitterbug-key* $ git commit -m "added jitterbug SSH keys"Now that the keys have been created, deploy them to the server (using the root password). $ ssh-copy-id -i jitterbug-key root@jitterbug.example.comAdd the key to your SSH agent and try it out. $ ssh-add jitterbug-key $ ssh root@jitterbug.example.comOnce youre logged into remote machine, youll need to install the Chef client on it. These steps areadapted from the Opscode Chef wiki: $ echo "deb `lsb_release -cs`-0.10 main" > /etc/apt/sources.list.d/opscode.list $ mkdir -p /etc/apt/trusted.gpg.d $ gpg --keyserver --recv-keys 83EF826A $ gpg --export > /etc/apt/trusted.gpg.d/opscode-keyring.gpg $ apt-get update $ apt-get upgrade -y $ apt-get install -y opscode-keyring $ DEBIAN_FRONTEND=noninteractive apt-get install -y chef $ /etc/init.d/chef-client stop $ update-rc.d -f chef-client remove $ chef-solo --versionThe version you see should be at least 10.4. Note that the regular Chef client is disabled because wellbe using chef-solo instead.Once Chef is installed, log out of the server. $ exitAt this point, you should duplicate the disk drive and keep it as a base image with Chef alreadybootstrapped in case you need to start over for any reason (or for future projects. On the Linodedashboard, "edit" the drive and click "duplicate" to make a copy.Step 2. Set up Pantry and third-party cookbooksWe use the Pantry tool to manage configuration and deploy with chef-solo. Start off by initializing thecurrent directory for Pantry. $ pantry init
  4. 4. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 4Next, you need to download several cookbooks with Chef deployment recipes. Some of these willcome from the Opscode community site, some will come from Opscode Github repositories, and somewill come from the Perl Chef Github repository. Some will be used directly as we configure theJitterbug server and others are dependencies.Here is the list of cookbooks with an explanation of their purpose • apt – ensures apt-get update is run before further configurations • carton – used to deploy the Jitterbug application • firewall – common firewall framework code • hostname – set the hostname • nginx – deploy and configure Nginx • ntp – deploy ntpd • ohai – common framework for Ohai plugins (used by Chef) • perlbrew – deploy Perl intepreters • postfix – deploy Postfix • runit – used by carton for persistent services • ufw – firewall configurationI find it helpful to stage third-party cookbooks in a separate directory first before copying them to thePantry cookbooks directory. This lets me keep the Pantry cookbooks directory under version controlthat is specific to my own configuration, while letting me browse third-party cookbook coderepositories independently. (git submodules could be used for this, but that gets complex.)Start by creating another directory for staging cookbooks. $ mkdir /tmp/jitterbug-src $ cd /tmp/jitterbug-srcOne handy trick is to get all the cookbooks in a similar directory structure, organized by source andunder a cookbooks directory. Some repositories are like this already, others need to be cloned tospecific locations. Afterwords, we can write a simple script to rsync them all to the right place in thePantry directory.First, well get all the Opscode cookbooks, including a custom version from my own repository withsome bug fixes that havent been merged upstream yet. $ mkdir -p opscode/cookbooks $ cd opscode/cookbooks $ git clone git:// $ git clone git:// $ git clone git:// $ git clone git:// $ git clone git:// $ git clone git:// $ git clone git:// -b CHEF-154 $ git clone git:// $ cd ../..
  5. 5. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 5The next cookbooks dont need extra subdirectories, because they already have a "cookbooks" directoryin the repository. Well actually download a Jitterbug cookbook now, as well, even though in Step 3well walk through it as if we were creating it from scratch. $ git clone git:// $ git clone git:// -b carton-chefThe hostname cookbook does not appear to have a repository, so well download a tarball instead.(Apologies for the smaller font, but I wanted to keep "curl ..." all on one line.) $ mkdir -p community/cookbooks $ cd community/cookbooks $ curl -L | tar xz $ rm hostname.tgz $ cd ../..Now that we have all the cookbooks we need, we need to copy them over to the Pantry cookbookdirectory. Create this little shell script to make it easy: $ cat > #!/bin/bash for d in *; do if [[ -d $d ]]; then rsync -av --exclude=.git $d/cookbooks/ /tmp/jitterbug-config/cookbooks fi doneRun that script, then go to the Pantry directory and check everything in. $ chmod +x $ ./ $ cd /tmp/jitterbug-config $ git add cookbooks $ git commit -m "imported cookbooks"Step 3. Adapt Jitterbug for Chef and CartonIn Step 2, we downloaded a cookbook for Jitterbug, but lets pretend it didnt exist and we had to createit. In this section, Ill describe how I did that. If youre not interested in learning how to make acookbook, you can skip ahead to Step 4. (If youre really hard-core, you can delete the jitterbugcookbook you downloaded, and recreate it using these instructions.)To create the Jitterbug cookbook, I started by forking the project on Github(git:// and creating a new branch in my own repository: $ cd ~/git $ git clone git:// $ git checkout -b carton-chef
  6. 6. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 6To adapt Jitterbug for Chef deployment with Carton, I need a carton.lock file to hold dependencyinformation and a Chef cookbook. The cookbook needs these files: • attributes/default.rb – configuration attributes • recipes/default.rb – a deployment recipe • files/default/jitterbug.db – an empty SQLite database with the Jitterbug schema • templates/default/config.yml.erb – Jitterbugs configuration file • templates/default/jitterbug.conf.erb – app-specific Nginx configuration fileIf I were creating a cookbook to upload to Opscodes community site, Id also need to write ametadata.rb file and a README.rdoc file, but I didnt do that for this tutorial.Pantry has a command for creating a blank cookbook under the cookbooks directory. I could have runthat in the Pantry directory, but in this case, I ran it in the Jitterbug branch so I could share it later. $ pantry create cookbook jitterbugThat creates several directories under cookbooks/jitterbug and touches some empty files to fill in. Forthe files under the attributes and recipe directories, I then copied and adapted my Hello World tutorialrecipe.1 For the Nginx configuration file, I created one based on how Fletcher Nichol wrote one forJenkins.2 I still find cookbook creation to be a bit of a black-art, so this is a pretty common pattern forme. I find things similar to what I want to do, use that as a base, and tweak it to my needs. The othercookbook files, I had to create from scratch.Creating the carton.lock file was straightforward. I used Perlbrew to install Perl 5.14.2 (which is whatI plan to deploy with), activated it, and installed the Carton module from CPAN. Then creating thecarton.lock file was just: $ carton installNext, I modified the attributes/default.rb file to contain the configuration attributes I need for therecipe and template files. Heres what it looks like: # perlbrew to execute with (should be a legal perlbrew target) default[jitterbug][perl_version] = perl-5.14.2 # Install directory, repo and tag default[jitterbug][deploy_dir] = /opt/jitterbug default[jitterbug][deploy_repo] = git:// default[jitterbug][deploy_tag] = carton-chef # Service user/group/port default[jitterbug][user] = "jitterbug" default[jitterbug][group] = "jitterbug" default[jitterbug][port] = 3000 # Jitterbug config default[jitterbug][db_dir] = "/var/lib/jitterbug" default[jitterbug][conf_dir] = "/etc/jitterbug" default[jitterbug][on_failure_subject_prefix] = "[jitterbug] FAIL " default[jitterbug][on_failure_to_email] = ""1
  7. 7. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 7 default[jitterbug][on_failure_cc_email] = "" default[jitterbug][on_failure_from_email] = "" default[jitterbug][on_pass_subject_prefix] = "[jitterbug] PASS " default[jitterbug][on_pass_to_email] = "" default[jitterbug][on_pass_cc_email] = "" default[jitterbug][on_pass_from_email] = ""I decided to deploy as the "jitterbug" user and group, so Ill need to remember to configure that userlater in the deployment recipe.After defining attributes, it was time to create the templates for configuration files. The Jitterbugrepository already contains some sample configuration files, config.yml and example.yml, so I copiedthe example.yml file to cookbooks/jitterbug/templates/default/config.yml.erb, tweaked it, and replacedsome of the sample configuration values with entries from the attributes/default.rb file. I only did apartial replacement to demonstrate it for the tutorial. In theory, every one of the config values could beparameterized. Here is the resulting file: layout: "main" logger: "console" appname: "jitterbug" builds_per_feed: 5 template: "xslate" engines: xslate: path: - "<%= node[jitterbug][deploy_dir] %>" type: text cache: 0 jitterbug: reports: dir: /tmp/jitterbug build: dir: /tmp/build build_process: builder: ./scripts/ builder_variables: on_failure: jitterbug::Emailer on_failure_to_email: "<%= node[jitterbug][on_failure_to_email] %>" on_failure_cc_email: "<%= node[jitterbug][on_failure_cc_email] %>" on_failure_from_email: "<%= node[jitterbug][on_failure_from_email] %>" on_failure_subject_prefix: "<%= node[jitterbug][on_failure_subject_prefix] %>" on_failure_header: on_failure_footer: on_pass: jitterbug::Emailer on_pass_to_email: "<%= node[jitterbug][on_pass_to_email] %>" on_pass_cc_email: "<%= node[jitterbug][on_pass_cc_email] %>" on_pass_subject_prefix: "<%= node[jitterbug][on_pass_subject_prefix] %>" on_pass_from_email: "<%= node[jitterbug][on_pass_from_email] %>" on_pass_header: on_pass_footer: reuse_repo: 1 options: email_on_pass: 0 plugins: DBIC: schema: skip_automake: 1 pckg: "jitterbug::Schema" connect_info: - "dbi:SQLite:dbname=<%= node[jitterbug][db_dir] %>/jitterbug.db"
  8. 8. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 8The Nginx configuration file, templates/default/jitterbug.conf.erb is also straightforward: server { listen 80; server_name <%= node[:fqdn] %>; location / { proxy_pass<%= node[jitterbug][port] %>; proxy_set_header X-Real-IP $remote_addr; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header Host $http_host; } error_log <%= node[:nginx][:log_dir] %>/jitterbug-error.log; access_log <%= node[:nginx][:log_dir] %>/jitterbug-access.log; }To create the empty SQLite database, I first ran Jitterbugs schema deployment tool, then moved theresulting database to cookbooks/jitterbug/files/default/jitterbug.db: $ carton exec -I lib -- scripts/jitterbug_db --config config.yml --deploy $ mv jitterbug.db cookbooks/jitterbug/files/default/jitterbug.dbDuring deployment, this file will get deployed as the starting database, but only if it doesnt alreadyexist. This is a naively simple way to deploy an SQLite database. A more sophisticated recipe mightget the deployment database from a backup location to help with future disaster recovery deploymentand wed seed the backup location with the empty database for first deployment.Next, I need the deployment recipe in recipes/default.rb to tie all these components together. Becauseits long, Ill explain it it pieces, but you can see the whole thing in the location cloned during Step 2.The first part of the recipe includes dependency cookboks, ensures that some required OS packages areinstalled, and creates a jitterbug user. include_recipe carton include_recipe perlbrew include_recipe nginx package git-core package libxml2-dev package libexpat-dev package zlib1g-dev user node[jitterbug][user] do home /home/jitterbug endThe next part of the recipe uses git to check out the jitterbug application from the repository. Thedestination, repostory and source tag are all attributes. We also tell Chef to notify the applications(defined later) to restart if anything has changed: git node[jitterbug][deploy_dir] do repository node[jitterbug][deploy_repo] reference node[jitterbug][deploy_tag] notifies :restart, "carton_app[jitterbug]" notifies :restart, "carton_app[jitterbug-builder]"; end
  9. 9. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 9Next, we deploy the Nginx template: template "#{node[:nginx][:dir]}/sites-available/jitterbug.conf" do source "jitterbug.conf.erb" owner root group root mode 0644 if File.exists?("#{node[:nginx][:dir]}/sites-enabled/jitterbug.conf") notifies :restart, service[nginx] end endThen we deploy the Jitterbug configuration file into a specified directory: directory node[jitterbug][conf_dir] do owner node[jitterbug][user] group node[jitterbug][group] end template "#{node[jitterbug][conf_dir]}/config.yml" do source "config.yml.erb" owner node[jitterbug][user] group node[jitterbug][group] mode 0644 notifies :restart, "carton_app[jitterbug]"; notifies :restart, "carton_app[jitterbug-builder]"; endNext, the database is deployed, also into a specific directory. Note the "action :create_if_missing" line– that ensures we dont overwrite an existing database if we re-run the configuration. The extra "file"resource stanza ensures the database has the right user/permissions, even if it does exist. directory node[jitterbug][db_dir] do owner node[jitterbug][user] group node[jitterbug][group] end cookbook_file "#{node[jitterbug][db_dir]}/jitterbug.db" do source "jitterbug.db" mode "0644" owner node[jitterbug][user] group node[jitterbug][group] action :create_if_missing end file "#{node[jitterbug][db_dir]}/jitterbug.db" do mode "0644" owner node[jitterbug][user] group node[jitterbug][group] action :touch endWith the configuration files and database deployed, the final step is to deploy two application services.The first is the Jitterbug web application and the second is the Jitterbug task worker, which actuallydoes the testing.
  10. 10. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 10 carton_app "jitterbug" do perlbrew node[jitterbug][perl_version] command "#{node[jitterbug][deploy_dir]}/ -p #{node[jitterbug][port]}" cwd node[jitterbug][deploy_dir] user node[jitterbug][user] group node[jitterbug][group] environment ({ DANCER_CONFDIR => node[jitterbug][conf_dir] }) action [:enable, :start] end carton_app "jitterbug-builder" do perlbrew node[jitterbug][perl_version] command "perl #{node[jitterbug][deploy_dir]}/scripts/ -c #{node[jitterbug] [conf_dir]}/config.yml" cwd node[jitterbug][deploy_dir] user node[jitterbug][user] group node[jitterbug][group] action [:enable, :start] endFinally, the Jitterbug Nginx configuration is enabled. nginx_site "jitterbug.conf" do enable true notifies :reload, service[nginx] endThen I made sure all this work was checked into git and pushed up to Github, so it was ready for thetutorial.Step 4. Specify the configuration for the serverNow that you have all the cookbooks youll need, its time to create some roles and then apply the rolesand recipes to the server node. (We could do everything without roles, but I want to show how youmight use them.)The first role is a "base" role that we would want to apply to any node. It does some basichousekeeping, enables a firewall, and turns on NTP. (Make sure youre back in the Pantry directorybefore you continue.) $ cd /tmp/jitterbug-config $ pantry create role base $ pantry apply role base -r apt -r ohai -r hostname -r ufw -r ntpNote that we dont apply any firewall rules in the role, we merely ensure that the firewall is enabled (bydefault only port 22 is allowed). Well override that later in a "web" role to open up port 80.The base roles can have attributes we want everywhere. For example, we can make sure that Perlbrewalways builds in parallel and without tests. $ pantry apply role base -d perlbrew.install_options="-j 5 -n"This doesnt cause perlbrew to run on a node, it just sets some default attributes for any node that doesactually configure perlbrew.
  11. 11. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 11Next, well create a "web" role that deploys Nginx and opens up port 80 in the firewall. $ pantry create role web $ pantry apply role web -r nginxWe can also set an attribute that disables the default Nginx web page: $ pantry apply role web -d nginx.default_site_enabled=falseUnfortunately, the data structure the ufw recipe expects for firewall data cant be specified on the Pantrycommand line. Youll need to tell Pantry you want to manually edit the role JSON file and add thenecessary data structure directly.Start by editing the file: $ pantry edit role webThen, edit the "default_attributes" data to add a section for the firewall configuration. The final resultshould look like this: { "json_class" : "Chef::Role", "run_list" : [ "recipe[nginx]" ], "chef_type" : "role", "override_attributes" : {}, "default_attributes" : { "firewall" : { "rules" : [ { "http" : { "port" : 80 } } ] }, "nginx" : { "default_site_enabled" : false } }, "name" : "web" }Since Jitterbug wants to send out email reports when test fail, we need to configure a mail client.Again, well create an "mx" (mail exchange) role, add postfix to that role, and configure postfix to be amaster (i.e. sends mail directly). $ pantry create role mx $ pantry apply role mx -r postfix -d postfix.mail_type=masterWe dont create a firewall rule for the "mx" role, because were only sending mail and not receiving it.(If we needed to receive mail, wed have to open up port 25.)
  12. 12. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 12Now that the "base", "web" and "mx" roles have been created, the next step is to create a node andconfigure it for those roles and the Jitterbug recipe we created. $ pantry create node $ pantry apply node jitterbug -R base -R web -R mx -r jitterbugNote that once the node is created with the fully qualified name, you only need to specify a uniquesubstring when Pantry operates on a node name. (You could even just say "j" instead of "jitterbug",since thats the only node.)The "hostname" recipe requires us to set an attribute for the desired hostname, so we add that: $ pantry apply node jitterbug -d set_fqdn=jitterbug.example.comWe also need to configure Jitterbug itself. For this tutorial, well just configure the addresses used foremail. Well use some shell loops to avoid repetitive typing. Replace "" with yourown email address: $ for i in pass failure; do for j in cc from; do pantry apply node jitterbug -d jitterbug.on_${i}_${j}; done; doneYou can look at the resulting node file to be sure everything was set correctly: $ pantry show node jitterbug { "set_fqdn" : "", "jitterbug" : { "on_pass_from_email" : "", "on_failure_cc_email" : "", "on_failure_from_email" : "", "on_pass_cc_email" : "" }, "run_list" : [ "role[base]", "role[web]", "role[mx]", "recipe[jitterbug]" ], "name" : "" }Once all the configuration is done, we want to check everything into git. $ git add . $ git commit -m "jitterbug node configured"
  13. 13. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 13Step 5. Deploy and testWith all the configuration work done, deployment is easy: $ pantry sync node jitterbugNow comes the hard part... waiting for it to finish.Unfortunately, we have to let it work for a while as each component is installed and configured.Generally, this is the time to go do something else while you wait.3Once its done, switch to a browser and enter the hostname you configured. You should see an emptydashboard like this:Congratulations! Your Jitterbug server has been deployed. Now its time to test it with a Perl modulerepository from Github.Browse to Github and go to one of your repositories with a Perl module in it. For example, I used therepo for my own IO::Prompt::Tiny at This simple moduleis actually a good torture test for Jitterbug because its built with Dist::Zilla, so Jitterbug has to installthe full Dist::Zilla dependency tree in order to be able to test commits to the repository.Under the "Admin" tab, the Service Hooks menu option lets you entire a WebHook URL"" like this:3 If deployment crashes out while building Perl, just try it again. Ive seen some rare transient errors Ive yet to diagnose, but the nice thing about idempotent deployment is that you can just try again and see what happens.
  14. 14. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 14After you "Update Settings", go back to the WebHook and click "Test Hook". Now switch back toyour Jitterbug dashboard and refresh the page.You should see your new repository being tested:Refresh your dashboard every so often until the pending build task is gone. The first time might take along time as prerequisites get installed.4 You should then be able to click into the repository link andsee a "PASS" or "FAIL" notice for that commit:4 If it seems like its taking too long, you can ssh into the box and tail the file deep in the /tmp/jitterbug directory to see whats going on.
  15. 15. Cooking Perl with Chef: Real World Tutorial with Jitterbug Page 15Now, every time you push a commit to that repository, Github will push a task to your Jitterbug serverand tests will be run.Were done — we just deployed a Jitterbug continuous integration server using Chef and Pantry.Happy cooking!
