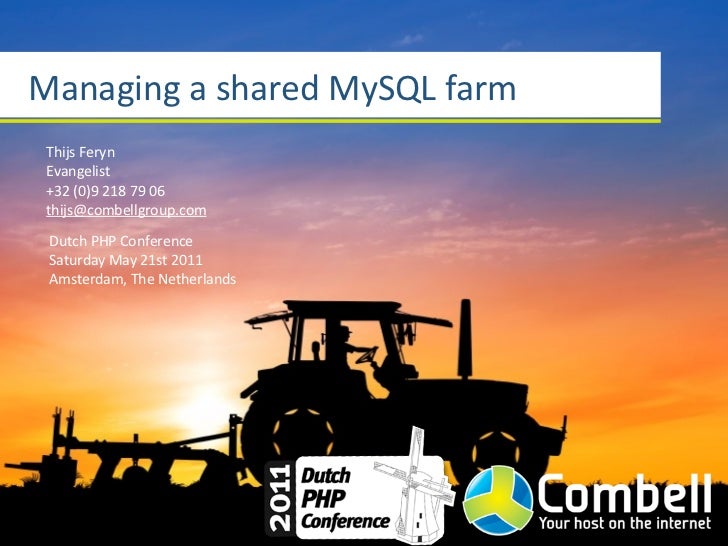

1.
Managing
a
shared
MySQL
farm
Thijs
Feryn
Evangelist
+32
(0)9
218
79
06
thijs@combellgroup.com
Dutch
PHP
Conference
Saturday
May
21st
2011
Amsterdam,
The
Netherlands

2.
About
me
I’m
an
evangelist
at
Combell

3.
About
me
I’m
a
board
member
at
PHPBenelux

4.
I
live
in
the
wonderful
city
of
Bruges
MPBecker
-­‐
Bruges
by
Night
hXp://www.flickr.com/photos/galverson2/3715965933

5.
Follow
me
on
TwiXer:
@ThijsFeryn
Give
me
feedback:
hXp://joind.in/3247
Read
my
blog:
hXp://blog.feryn.eu

6.
Managing a shared MySQL farm
tekst

7.
Provisioning/authentication/
permissions
Managing a shared MySQL farm
tekst

8.
Several clients/apps
connect to it
Managing a shared MySQL farm
tekst

9.
Multiple servers
Managing a shared MySQL farm
tekst

10.
The
farm

11.
Managing
the
farm

12.
Managing
the
farm
User
Permissions
Database

13.
Managing
users
✓Create
user
✓Remove
user
✓Enable/disable
user
✓Reset
password

14.
Managing
databases
✓Create
database
✓Remove
database
✓Enable/disable
database
✓Set
quota

15.
Managing
permissions
✓Grant
permissions
✓Revoke
permissions
✓Enable
wricng
✓Disable
wricng

16.
MySQL
authenccacon
&
privileges

17.
MySQL
privilege
system
Global
privileges
Database
privileges
Table
privileges
Field
privileges

18.
MySQL
privilege
system
Global
privileges mysql.user
Database
privileges mysql.db
Table
privileges mysql.tables_priv
Field
privileges mysql.columns_priv

19.
General
privileges
✓Select ✓Alter
✓Insert ✓Create
tmp
table
✓Update ✓Lock
tables
✓Delete ✓Create
view
✓Create ✓Show
view
✓Drop ✓Create
roucne
✓Grant ✓Alter
roucne
✓References ✓Execute
priv
✓Index

20.
Server
privileges
✓Reload ✓Max
quescons
✓Shutdown ✓Max
updates
✓Process ✓Max
conneccons
✓File ✓Max
user
conneccons
✓Show_db
✓Super

21.
Which
privileges
to
grant?

22.
Which
privileges
to
grant?
✓Select ✓Alter
✓Insert ✓Create
tmp
table
✓Update ✓Lock
tables
✓Reload
✓Delete ✓Create
view
✓Shutdown
✓Create ✓Show
view
✓Process
✓Drop ✓Create
roucne File
✓
✓Grant ✓Alter
roucne
✓Show_db
✓References ✓Execute
priv
✓Super
✓Index

23.
Manage
privileges
✓CREATE
USER
✓DROP
USER
✓GRANT
✓RENAME
USER
✓REVOKE
✓SET
PASSWORD

24.
Manage
privileges
✓Manually
in
mysql.user
✓Manually
in
mysql.db
✓Manually
in
mysql.tables_priv
✓Manually
in
mysql.columns_priv

25.
Challenges

26.
Challenges
✓Management
across
mulcple
nodes
✓Aggregacng
data
from
mulcple
nodes
✓Name
clashes
✓Quota
management

27.
Solucons

28.
Solucons
✓Centralized
provisioning
database
✓GeXers
on
the
provisioning
database
✓Node
mapper
for
user/db/privilege
management
✓INFORMATION_SCHEMA
for
quota
management
✓Prefixes
to
avoid
name
clashes

29.
Provisioning
plan

30.
User Database
✓Id ✓Id
✓Prefix ✓Node
✓Username ✓Prefix
✓Password ✓Database
✓Enabled ✓Quota
✓DatabaseId ✓Enabled
✓Write ✓Down
✓CreateDate ✓Overquota
✓UpdateDate ✓CreateDate
✓UpdateDate

31.
User Database
✓Id ✓Id Mulcple
✓Prefix ✓Node servers
✓Username ✓Prefix
Database
✓Password ✓Database on
single
✓Enabled ✓Quota node
✓DatabaseId ✓Enabled
✓Write ✓Down
✓CreateDate ✓Overquota
✓UpdateDate ✓CreateDate
✓UpdateDate

32.
Mapping
uses
cases
to
SQL

33.
✓Add
user
✓Delete
user
✓Reset
user
password
✓Enable
user
✓Disable
user
✓Get
user

34.
Add
user
INSERT INTO `user`
(`prefix`,`username`,`password`,`createdate`)
VALUES(‘test’,‘test_user’,‘mypass123’,NOW());

35.
Delete
user
DELETE FROM `user`
WHERE username=‘test_user’;
DELETE u.*, db.* FROM `mysql`.`user` u
LEFT JOIN `mysql`.`db` db
ON(db.`User` = u.`User`)
WHERE u.`User` = ‘test_user’;

36.
Reset
user
password
UPDATE `user`
SET `password` = ‘newpass123’
WHERE `username` = ‘test_user’;
UPDATE `mysql`.`user`
SET `Password` = PASSWORD
(‘newpass123’)
WHERE `User`= ‘test_user’;

37.
Enable
user
UPDATE `user`
SET `enabled` = '1'
WHERE `username` = ‘test_user’;
UPDATE `mysql`.`user`
SET `Host` = ‘%’
WHERE `User`= ‘test_user’

38.
Disable
user
UPDATE `user`
SET `enabled` = '0'
WHERE `username` = ‘test_user’;
UPDATE `mysql`.`user`
SET `Host` = ‘localhost’
WHERE `User`= ‘test_user’

39.
Get
user
SELECT * FROM `user`
WHERE `username` = ‘test_user’;

40.
✓Add
database
✓Delete
database
✓Set
database
quota
✓Enable
database
✓Disable
database
✓Get
database

41.
Add
database
INSERT INTO `database`
(`node`,`prefix`,`database`,`quota`,`c
reatedate`) VALUES(1,‘test’,‘test_db’,
10,NOW());
CREATE DATABASE test_db1;

42.
Delete
database
DELETE FROM `database`
WHERE `database` = ‘test_db’;

43.
Delete
database
Are
linked
to
this
database
SELECT u.username
FROM `user` u
WHERE u.databaseId = 123
GROUP BY u.username; Find
deletable
users
to
delete
from
MySQL
privileges
system

44.
Delete
database
DELETE u.*, db.*
FROM `user` u
LEFT JOIN `db` db
ON(db.`User` = u.`User`)
WHERE u.`User` IN('test_user’);
Delete
these
users
from
MySQL
privileges
system

45.
Delete
database
DROP DATABASE test_db;

46.
Set
database
quota
UPDATE `database`
SET `quota` = 100
WHERE `database` = ‘test_db’;

47.
Enable
database
UPDATE `database` SET
`enabled` = '1'
WHERE `database` = ‘test_db’;

48.
Enable
database
SELECT u.username, u.write
FROM user u
WHERE u.databaseId = 123
Find
user
mappings
to
re-­‐enable

49.
Enable
database
INSERT INTO `db`
(Host,Db,User,Select_priv,Insert_priv,
Update_priv,Delete_priv,Create_priv,Drop_pr
iv,Grant_priv,References_priv,
Index_priv,Alter_priv,Create_tmp_table_priv
,Lock_tables_priv,
Create_view_priv,Show_view_priv,Create_rout
ine_priv,
Alter_routine_priv,Execute_priv)

50.
Write
Enable
database permissions
VALUES
(‘%’,‘test_db’,‘test_user’,'Y','Y','Y','Y',
'Y','Y','N','Y','Y','Y'
,'Y','Y','Y','Y','Y','Y','Y'); Read-­‐
only
permissions
VALUES
(‘%’,‘test_db’,‘test_user’,'Y','N','N','N',
'N','N','N','N','N','N','N','N','N','Y','N'
,'N','Y');

51.
Disable
database
UPDATE `database` SET
`enabled` = '0'
WHERE `database` = ‘test_db’;
DELETE FROM `db`
WHERE db = 'test_db’;

52.
Get
database
SELECT * FROM `database`
WHERE `database` = ‘test_db’;

53.
✓Grant
privilege
✓Revoke
privilege
✓Enable
database
wricng
✓Disable
database
wricng

54.
Write
Grant
privilege permissions
UPDATE `user`
SET `databaseId`=123, `write`='1'
WHERE `username`= ‘test_user’;
Read-­‐
only
permissions
UPDATE `user`
SET `databaseId`=123, `write`='0'
WHERE `username`= ‘test_user’;

55.
Grant
privilege
Try
adding
user
or
catch
duplicate
user
error
INSERT INTO `user`(Host,User,Password)
VALUES(‘%’,‘test_user’,PASSWORD
(‘password’));

56.
Grant
privilege
INSERT INTO `db`
(Host,Db,User,Select_priv,Insert_priv,
Update_priv,Delete_priv,Create_priv,Drop_pr
iv,Grant_priv,References_priv,
Index_priv,Alter_priv,Create_tmp_table_priv
,Lock_tables_priv,
Create_view_priv,Show_view_priv,Create_rout
ine_priv,
Alter_routine_priv,Execute_priv)

57.
Write
Grant
privilege permissions
VALUES
(‘%’,‘test_db’,‘test_user’,'Y','Y','Y','Y',
'Y','Y','N','Y','Y','Y'
,'Y','Y','Y','Y','Y','Y','Y'); Read-­‐
only
permissions
VALUES
(‘%’,‘test_db’,‘test_user’,'Y','N','N','N',
'N','N','N','N','N','N','N','N','N','Y','N'
,'N','Y');

58.
Revoke
privilege
UPDATE `user`
SET `databaseId`= NULL, `write`= NULL
WHERE `user`= ‘test_user’;
DELETE u.*, db.* FROM `user` u LEFT JOIN
`db` db ON(db.`User` = u.`User`) WHERE
u.`User` = ‘test_user’;

59.
Enable
database
wricng
UPDATE `user` SET `write`= '1'
WHERE `username` = ‘test_user’;

60.
Enable
database
wricng
UPDATE `db` SET
`Select_priv` = 'Y',`Insert_priv` = 'Y',
UPDATE `user`'Y',`Delete_priv` '1'
`Update_priv` =
SET `write`= = 'Y',
WHERE `username` = ‘test_user’;
`Create_priv` = 'Y',`Drop_priv` = 'Y',
`Grant_priv` = 'N',`References_priv` = 'Y',
`Index_priv` = 'Y',`Alter_priv` = 'Y',
`Create_tmp_table_priv`='Y',`Lock_tables_priv` =
'Y',
`Create_view_priv` = 'Y',`Show_view_priv` =
'Y',`Create_routine_priv` = 'Y',
`Alter_routine_priv` = 'Y',`Execute_priv` = 'Y'
WHERE `db`= ‘test_db’ AND `user` = ‘test_user’;

61.
Disable
database
wricng
UPDATE `user` SET `write`= '0'
WHERE `username` = ‘test_user’;

62.
Disable
database
wricng
UPDATE `db` SET
`Select_priv` = 'Y',`Insert_priv` = 'N',
UPDATE `user`'N',`Delete_priv` '1'
`Update_priv` =
SET `write`= = 'N',
WHERE `username` = ‘test_user’;
`Create_priv` = 'N',`Drop_priv` = 'N',
`Grant_priv` = 'N',`References_priv` = 'N',
`Index_priv` = 'N',`Alter_priv` = 'N',
`Create_tmp_table_priv`='N',`Lock_tables_priv` =
'N',
`Create_view_priv` = 'N',`Show_view_priv` =
'Y',`Create_routine_priv` = 'N',
`Alter_routine_priv` = 'N',`Execute_priv` = 'Y'
WHERE `db`= ‘test_db’ AND `user` = ‘test_user’;

63.
Quota
management

64.
Quota
management
✓Limits
in
provisioning
database
✓Current
usage
stored
in
INFORMATION_SCHEMA
✓Raco
calculated
via
cron
task
✓Write
permissions
disabled
while
over
quota

65.
Quota
management
SELECT `database`,`quota`
FROM `database`
SELECT TABLE_SCHEMA as `database`,
ROUND(SUM(DATA_LENGTH + INDEX_LENGTH)/
1048576,2) as `usage`
FROM `information_schema`.`TABLES`
GROUP BY TABLE_SCHEMA

66.
Quota
management
UPDATE `database`
SET `overquota` = '1'
WHERE `database` = ‘test_db’;

67.
Quota
management
UPDATE `db` SET
`Select_priv` = 'Y',`Insert_priv` = 'N',
`Update_priv` = 'N',`Delete_priv` = 'Y',
`Create_priv` = 'N',`Drop_priv` = 'Y',
`Grant_priv` = 'N',`References_priv` = 'N',
`Index_priv` = 'N',`Alter_priv` = 'N',
`Create_tmp_table_priv` =
'N',`Lock_tables_priv` = 'N',
`Create_view_priv` = 'N',`Show_view_priv` =
'Y',`Create_routine_priv` = 'N',
`Alter_routine_priv` = 'N',`Execute_priv` =
'Y' WHERE `db`= ‘test_database’

68.
Quota
management
UPDATE `database`
SET `overquota` = '0'
WHERE `database` = ‘test_db’;

69.
Quota
management
UPDATE `db` SET
`Select_priv` = 'Y',`Insert_priv` = 'Y',
`Update_priv` = 'Y',`Delete_priv` = 'Y',
`Create_priv` = 'Y',`Drop_priv` = 'Y',
`Grant_priv` = 'N',`References_priv` = 'Y',
`Index_priv` = 'Y',`Alter_priv` = 'Y',
`Create_tmp_table_priv`=
'Y',`Lock_tables_priv` = 'Y',
`Create_view_priv` = 'Y',`Show_view_priv` =
'Y',`Create_routine_priv` = 'Y',
`Alter_routine_priv` = 'Y',`Execute_priv` =
'Y' WHERE `db`= ‘test_db’

70.
Goals

71.
Single
point
of
management

72.
Single
point
of
conneccon

73.
Replicacon
&
loadbalancing

74.
Replicacon
&
loadbalancing
✓Minimizes
risk
✓Ensures
stability,
scalability
&
performance
✓Copies
databases
across
nodes
✓Doesn’t
parccon/shard
databases
✓Will
require
mulcple
independent
clusters

75.
Proxying
strategies

76.
Server
proxy

77.
Server
proxy
MySQL
Proxy
is
a
simple
program
that
sits
between
your
client
and
MySQL
server(s)
that
can
monitor,
analyze
or
transform
their
communicacon.

78.
MySQL
Proxy
features
✓
Load
balancing
✓
Failover
✓
Query
analysis
✓
Query
filtering
and
modificacon

79.
Installacon
APT-­‐GET
INSTALL
✓mysql-­‐proxy
✓lua5.1
✓liblua5.1-­‐0-­‐dev
✓liblua5.1-­‐sql-­‐mysql-­‐2
✓liblua5.1-­‐memcached0
✓liblua5.1-­‐md5-­‐0

80.
Startup
/usr/bin/mysql-­‐proxy
-­‐-­‐proxy-­‐lua-­‐script=/var/www/mysqlproxy.dev/
proxy.lua
-­‐-­‐proxy-­‐address=:3307
-­‐-­‐proxy-­‐backend-­‐addresses=172.16.26.133:3306
-­‐-­‐proxy-­‐backend-­‐addresses=172.16.26.134:3306
-­‐-­‐lua-­‐path=/usr/share/lua/5.1/?.lua
-­‐-­‐lua-­‐cpath=/usr/lib/lua/5.1/?.so
Custom
LUA
library
/etc/default/mysql-­‐proxy

81.
Hooks
✓connect_server
✓read_handshake
✓read_auth
✓read_auth_result
✓read_query
✓read_query_result
✓disconnect_client

82.
Goal

83.
Goal
✓
Accept
conneccon
using
the
proxy
✓Hook
into
the
authenccacon
✓Match
user
to
the
provisioning
DB
✓Fetch
node
from
provisioning
✓Switch
to
the
right
node
➡Effeccve
proxying
solucon

84.
Reality

85.
Reality
✓
Accept
conneccon
using
the
proxy
✓Hook
into
the
authenccacon
✓Match
user
to
the
provisioning
DB
✓Fetch
node
from
provisioning
✓Switch
to
the
right
node
➡Effeccve
proxying
solucon

86.
Reality
Conneccon
switching
only
happens
in
the
connect_server
hook
Auth
info
is
only
available
starcng
from
the
read_auth
hook

87.
Bridge
the
gap

88.
Bridge
the
gap
Redirect
to
node
based
on
client
IP

89.
Let’s
see
some
code
!

90.
Code
require('luarocks.require')
require('md5')
require('Memcached')
require('luasql.mysql')
local
memcache
=
Memcached.Connect()
-­‐-­‐-­‐
config
local
mysqlhost
=
"localhost"
local
mysqluser
=
"myUser"
local
mysqlpassword
=
"MyPwDsesd"
local
mysqldatabase
=
"test"
-­‐-­‐
debug
local
debug
=
true
Dependencies
&
config

91.
Code
function
error_result
(msg)
proxy.response
=
{
type
=
proxy.MYSQLD_PACKET_ERR,
errmsg
=
msg,
errcode
=
7777,
sqlstate
=
'X7777',
}
return
proxy.PROXY_SEND_RESULT
end
Custom
MySQL
errors

92.
function
node_get(ip)
local
node
=
memcache:get(md5.sumhexa(ip))
Code
if
not
node
==
nil
then
return
loadstring('return
'..memcache:get(md5.sumhexa
(ip)))()
end
node
=
sql_get(ip)
if
node
==
nil
then
return
nil
end
memcache:set(md5.sumhexa(ip),
node,
3600)
return
node
end
Get
node
from
cache
or
database

93.
function
sql_get(ip)
env
=
assert
(luasql.mysql())
Code
con
=
assert
(env:connect
(mysqldatabase,mysqluser,mysqlpassword,mysqlhost))
cur
=
assert
(con:execute(string.format("SELECT
n.`id`
FROM
`accesslist`
a
JOIN
`node`
n
ON(n.id=a.node)
WHERE
a.`ip`
=
'%s'",ip)))
row
=
cur:fetch
({},
"a")
if
cur:numrows()
==
0
then
return
nil
end
cur:close()
con:close()
env:close()
return
row.id
end
Get
node
from
provisioning
database

94.
Code
function
connect_server()
selectedNode
=
node_get
(proxy.connection.client.src.address)
if
selectedNode
==
nil
then
return
error_result(string.format("No
info
found
in
the
cluster
for
IP
'%s'",proxy.connection.client.src.address))
end
proxy.connection.backend_ndx
=
selectedNode
end
Retrieve
and
switch
to
node

95.
Reality
MySQL
Proxy
is
not
accvely
supported

96.
Client
proxy

97.
MySQL
Nacve
Driver

98.
MySQL
Nacve
Driver
✓Replacement
for
libmysql
✓Full
client
protocol
as
a
PHP
extension
✓Official
since
PHP
5.3.0
✓No
API
✓Mysql,
Mysqli
&
PDO
use
it
✓Supports
plugins

99.
MySQL
Nacve
Driver Read
these
blog
posts
hXp://blog.ulf-­‐wendel.de/?p=284
hXp://schlueters.de/blog/archives/146-­‐mysqlnd-­‐plugins-­‐
for-­‐PHP-­‐in-­‐praccce.html

100.
MySQL
Nacve
Driver
✓
Accept
conneccon
using
the
proxy
✓Hook
into
the
authenccacon
✓Match
user
to
the
provisioning
DB
✓Fetch
node
from
provisioning
✓Switch
to
the
right
node
✓Doesn’t
work
for
remote
conneccons
➡Effeccve
proxying
solucon

101.
DNS
&
hostnames
Hostname
per
account

102.
What
about
PhpMyAdmin?

103.
What
about
PhpMyAdmin?
✓Use
single
signon
auth
module
✓Use
customized
fallback
auth
module
✓Detect
linked
database
&
node
✓Switch
to
node

104.
config.inc.php
<?php
$cfg['Servers'][1]['auth_type'] = 'httpsoap';
$cfg['Servers'][1]['host'] = '1.2.3.4';
$cfg['Servers'][1]['connect_type'] = 'tcp';
$cfg['Servers'][1]['compress'] = false;
$cfg['Servers'][1]['extension'] = 'mysql';
$cfg['Servers'][1]['AllowNoPassword'] = false;
$cfg['Servers'][2]['auth_type'] = 'httpsoap';
$cfg['Servers'][2]['host'] = '1.2.3.4';
$cfg['Servers'][2]['connect_type'] = 'tcp';
$cfg['Servers'][2]['compress'] = false;
$cfg['Servers'][2]['extension'] = 'mysql';
$cfg['Servers'][2]['AllowNoPassword'] = false;
$cfg['Servers'][3]['extension'] = 'mysql';
$cfg['Servers'][3]['auth_type'] = 'signon';
$cfg['Servers'][3]['SignonSession'] = 'SSOSession';
$cfg['Servers'][3]['SignonURL'] = 'scripts/signon.php';
$cfg['Servers'][3]['LogoutURL'] = 'scripts/signon-logout.php';

105.
scripts/signon.php
<?php
if (isset($_REQUEST['user'])) {
try{
$soap = new SoapClient('http://my.soap-
webservice.net/?WSDL');
$user = $soap->user_getByUsername($_REQUEST['user']);
if(!isset($_REQUEST['hash'])){
die("No hash submitted");
}
if(sha1($user->username.$user-
>password.'azertyuiop') !== $_REQUEST['hash']){
die("Invalid hash");
}
} catch (Exception $e){
die("No such user");
}
...

106.
scripts/signon.php
session_set_cookie_params(0, '/', '', 0);
$session_name = 'SSOSession';
session_name($session_name);
session_start();
$_SESSION['PMA_single_signon_user'] = $user->username;
$_SESSION['PMA_single_signon_password'] = $user-
>password;
$_SESSION['PMA_single_signon_host'] = $user->node;
$_SESSION['PMA_single_signon_port'] = '3306';
$id = session_id();
session_write_close();
header('Location: ../index.php?server=3');
} else {
exit();
header('Location: ../index.php?server=1');
}

107.
scripts/signon-­‐logout.php
<?php
session_set_cookie_params(0, '/', '', 0);
$session_name = 'SSOSession';
session_name($session_name);
session_start();
session_destroy();
header('Location: ../index.php?server=1');

108.
Customized
fallback
auth
module
✓Copy
of
./libraries/auth/h>p.auth.lib.php
✓Modify
PMA_auth_set_user()
funccon
✓Implement
deteccon
logic
✓Communicates
with
provisioning
service
✓Retrieves
database
&
node
✓Switches
to
node

109.
libraries/auth/hXpsoap.auth.lib.php
<?php
function PMA_auth_set_user()
{
global $cfg, $server;
global $PHP_AUTH_USER, $PHP_AUTH_PW;
try{
$soap = new SoapClient('http://my.soap-
webservice.net/?WSDL');
$user = $soap->user_getByUsername
($PHP_AUTH_USER);
$cfg['Server']['host'] = $user->node;
} catch (Exception $e){
PMA_auth();
return true;
}
...

110.
libraries/auth/hXpsoap.auth.lib.php
if ($cfg['Server']['user'] != $PHP_AUTH_USER) {
$servers_cnt = count($cfg['Servers']);
for ($i = 1; $i <= $servers_cnt; $i++) {
if (isset($cfg['Servers'][$i])
&& ($cfg['Servers'][$i]['host'] == $cfg['Server']
['host'] && $cfg['Servers'][$i]
['user'] == $PHP_AUTH_USER)) {
$server = $i;
$cfg['Server'] = $cfg['Servers'][$i];
break;
}
}
}
$cfg['Server']['user'] = $PHP_AUTH_USER;
$cfg['Server']['password'] = $PHP_AUTH_PW;
return true;
}

111.
Q&A
