Mapping Life Science Informatics to the Cloud


Published on

Infrastructure cloud platforms such as those offered by Amazon Web Services are not designed and built with scientific research as the primary use case. These presentation slides cover the current state of mapping life science research and HPC technique onto “the cloud” and how to work around the common engineering, orchestration and data movement problems.

[Note: I've replaced the 2011 version of this talk deck with a slightly updated version as delivered at the AIRI Petabyte Challenge Meeting]

Published in: Technology, Business
  • Be the first to comment

Mapping Life Science Informatics to the Cloud

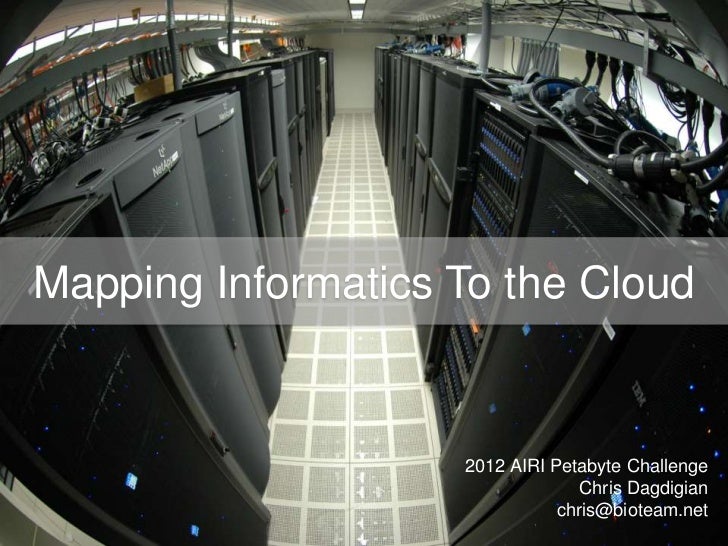

  1. Mapping Informatics To the Cloud 2012 AIRI Petabyte Challenge Chris Dagdigian
  2. I‟m Chris.I‟m an infrastructuregeek.I work for theBioTeam.
  3. The “C” Word.
  4. When I say “cloud” I‟m talking IaaS.
  5. Amazon AWS Is the IaaS cloud. Most others are fooling themselves.(Has-beens, also-rans & delusional marketing zombies)
  6. A message for the pretenders…
  7. No APIs?Not a cloud.
  8. No self-service? Not a cloud.
  9. I have to email a human? Not a cloud.
  10. ~50% failure rate whenprovisioning new servers? Stupid cloud.
  11. Block storageand virtual servers only? (barely) a cloud;
  12. Private Clouds: My $.02
  13. Private Clouds in 2012:• Hype vs. Reality ratio still wacky• Sensible only for certain shops • Have you seen what you have to do to your networks & gear?• There are easier ways
  14. Private Clouds: My Advice for „12• Remain cynical (test vendor claims)• Due Diligence still essential• I personally would not deploy/buy anything that does not explicitly provide Amazon API compatibility
  15. Private Clouds: My Advice for „12• Most people are better off: • Adding VM platforms to existing HPC clusters & environments • Extending enterprise VM platforms to allow user self-service & server catalogs
  16. Enough Bloviating. Advice time.
  17. Tip #1
  18. HPC & Clouds: Whole New World
  19. • We have spent decades learning to tune research HPC systems for shared access & many users.• The cloud upends this model
  20. • Far more common to see … • Dedicated cloud resources spun up for each app or use case • Each system gets individually tuned & optimized
  21. Tip #2
  22. Hybrid Clouds & Cloud Bursting
  23. • Lots of aggressive marketing• Lots of carefully constructed “case studies” and prototypes• The truth? • Less usable than you‟ve been told • Possible? Heck yeah. • Practical? Only sometimes.
  24. • Advice • Be cynical • Demand proof • Test carefully
  25. • Still want to do it? • Buy it, don‟t build it • Cycle Computing • Univa • BrightComputing • …
  26. • Follow the crowd• In the real world we see: • Separation between local and cloud HPC resources • Send your work to the system most suitable
  27. Tip #3
  28. You can‟t rewrite EVERYTHING.
  29. • Salesfolk will just glibly tell you to rewrite your apps so you can use whatever big data analysis framework they happen to be selling today
  30. • They have no clue.
  31. • In life science informatics we have hundreds of codes that will never be rewritten.• We‟ll be needing them for years to come.
  32. • Advice: • MapReduceish methods are the future for big-data informatics • It will take years to get there • We still have to deal with legacy algorithms and codes
  33. • You will need: • A process for figuring out when it‟s worthwhile to rewrite/re-architect • Tested cloud strategies for handling three use cases
  34. You need 3 cloudarchitectures: 1. Legacy HPC 2. “Cloudy” HPC 3. Big Data HPC (Hadoop)
  35. Legacy HPC on the cloud• MIT StarCluster•• This is your baseline • Extend as needed
  36. “Cloudy” HPC• Use this method when …• It makes sense to rewrite or rearchitect an HPC workflow to better leverage modern cloud capabilities
  37. “Cloudy” HPC, continued• Ditch the legacy compute farm model• Leverage elastic scale-out tools (***) • Spot Instances for elastic & cheap compute • SimpleDB for job statekeeping • SQS for job queues & workrflow “glue” • SNS for message passing & monitoring • S3 for input & output data • Etc.
  38. Big Data HPC• It‟s gonna be a MapReduce world• Little need to roll your own• Ecosystem already healthy• Multiple providers today• Often a slam-dunk cloud use case
  39. Tip #4
  40. The Cloud was not designed for “us”
  41. • HPC is an edge case for the hyperscale IaaS clouds• We need to deal with this and engineer around it.
  42. • Many examples • Eventual consistency • Networking & subnets • Latency • Node placement
  43. • Advice • Manage expectations • Benchmark & test • Evangelize • (pester the cloud sales reps …)
  44. Tip #5
  45. Data Movement Is Still Hard
  46. • Consistently getting easier • Amazon is not a bottleneck • AWS Import/Export • AWS Direct Connect • Aspera has some amazing stuff out right now
  47. • Advice • AWS Import/Export works well • Size of pipe is not everything • Sweat the small stuff • Tracking, checksums, disk speed • Dedicated workstations • Secure media storage
  48. Dedicated data movement station
  49. „naked‟ Terabyte-scale data movement
  50. Don‟t overlook media storage …
  51. • Advice for 2012 • BioTeam is dialing down our advocacy of physical data ingestion into the cloud • Why? • Operationally hard, expensive and no longer strictly needed
  52. Real world cross-countryinternet-based data movement March 2012
  53. 700Mb/sec into Amazon, stress-free & zero tuning March 2012
  54. • People trying to move data via physical media quickly realize the operational difficulties• Bandwidth is cheaper than hiring another body to manage physical data ingestion & movement• In 2012 we strongly recommend network-based data movement when at all possible
  55. u r doing it wrong
  56. cool data movement, bro!
  57. Tips #6 & 7
  58. Cloud storage. Still slow.
  59. Big shared storage. Still hard.
  60. • Not much we can do except engineer around it• AWS compute cluster instances are a huge step forward• AWS competitors take note
  61. • We are not database nerds• We care about more than just random IO performance• We need it all • Random I/O • Long sequential read/write
  62. • Faster Storage Options • Software RAID on EBS • Various GlusterFS options• Even if you optimize everything, the virtual NICs are still a bottleneck
  63. • Big Shared Storage • 10GbE nodes and NFS • Software RAID sets • GlusterFS or similar • 2012: pNFS finally?
  64. Tip #8
  65. Things fail differently in the cloud.
  66. • Stuff breaks• It breaks in weird ways• Transient/temporary issues more common than what we see “at home”
  67. • Advice • Pessimism is good • Design for failure • Think hard about • How will you detect? • How will you respond?
  68. • Advice • Remove humans from loop • Automate recovery • Automate your backups
  69. Tip #9
  70. Serial/batch computing at-scale
  71. • Loosely coupled workflows are ideal• Break the pipeline into discrete components• Components should be able to scale up|down independently
  72. • Component = Opportunity to: • … Make a scaling decision • (# nodes in use) • … Make sizing decision • (instance type in use)
  73. Nirvana is …
  74. … independent looselyconnected components thatcan self-scale andcommunicate asynchronously
  75. Advice:• Many people already doing this• Best practices are well known• Steal from the best: • RightScale, Opscode & Cycle Computing
  76. Phew. Think I‟m done now.
  77. Questions? Slides available at
  78. End;
  79. Backup Slides
  80. Private Clouds: Pick Your Poison• OpenStack - • Pro: Super smart developers; significant mindshare; True Open Source • Con: Commitment to AWS API compatibility (?) & stability
  81. Private Clouds: Pick Your Poison• CloudStack- • Pro: Explicit AWS API support; very recent move away from “open-core” model; usability • Con: Developer mindshare? Sudden switch to Apache
  82. Private Clouds: Pick Your Poison• Eucalyptus- • Pro: Direct AWS API compatibility; lots of hypervisor support • Con: Open-core model; mindshare; Recent ressurection
