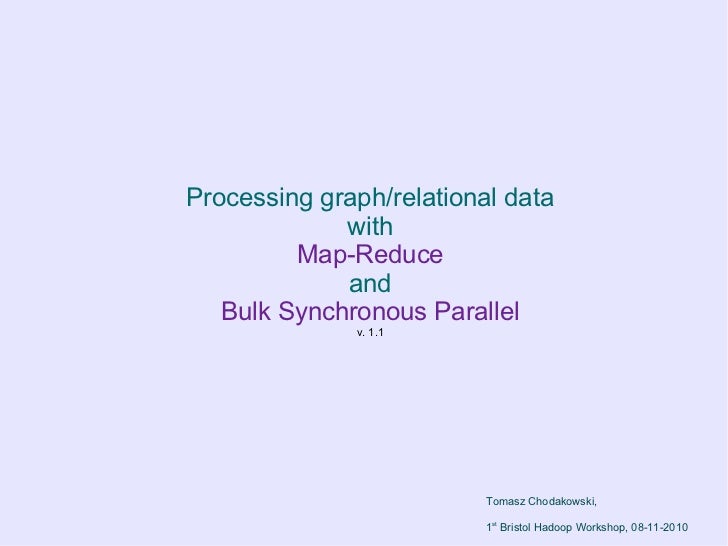

  1. 1. Processing graph/relational data with Map-Reduce and Bulk Synchronous Parallel v. 1.1 Tomasz Chodakowski, 1st Bristol Hadoop Workshop, 08-11-2010
  2. 2. Irregular Algorithms● Map-reduce – a simplified model for “embarasingly parallel” problems – Easily separable into independent tasks – Captured by static dependence graph● Most graph algorithms are irregular, ie.: – Dependencies between tasks arise during execution – “dont care non-determinism” - tasks can be executed in arbitrary order yet still yield correct results.
  3. 3. Irregular Algorithms● Often operate on data structures with complex topologies: – Graphs, trees, grids, ... – Where “data elements” are connected by “relations”● Computations on such structures depend strongly on relations between data elements – primary source of dependencies between tasks more in [ADP] “Amorphous Data-parallelism in Irregular Algorithms”
  4. 4. Relational Data● Example relations between elements: – social interactions (co-authorship, friendship) – web links, document references – linked data or semantic network relations – geo-spatial relations – ...● Different from a relational model – in that relations are arbitrary
  5. 5. Graph Algorithms Rough Classification● Aggregation, feature extraction – Not leveraging latent relations● Network analysis (matrix-based, single relational) – Geodesic (radius, diameter etc.) – Spectral (eigenvector-based, centrality)● Algorithmic/node-based algorithms – Recommender systems, belief/label propagation – Traversal, path detection, interaction networks, etc.
  6. 6. Iterative Vertex-based Graph Algorithms● Iteratively: – Compute local function of a vertex that depends on the vertex state and local graph structure (neighbourhood) – and/or Modify local state – and/or Modify local topology – pass messages to neighbouring nodes● -> “vertex-based computation” Amorphous Data-Parallelism [ADP] operator formulation: “repeated application of neighbourhood operators in a specific order”
  7. 7. Recent applications/developments● Google work on graph-based YouTube recommendations: – Leveraging latent information – Diffusing interest in sparsely labeled video clips● User profiling, sentiment analysis – Facebook likes, Hunch, Gravity, MusicMetric ...
  8. 8. Single Source Shortest Path Time P1 P2 P1 P2 Graph structure work split into two partitions (P1, P2) 0 1 6 This time-space 4 view shows 1 3 workload and 2 communication 9 Turquoise 2 between rectangles show partitions 5 computational 1 work load for a3 partition (work) Directed graph labelled with positive integers
  9. 9. Single Source Shortest Path P1 P2 P1 P2 work comm 0 0+6 0+6 1 6 4 1 3 0+1 0+1 2 9 2 0+9 0+9 5 13 Signals being passed along Thick green linesActive vertices relations are in show, costly, interare in turquoise light green partition communications
  10. 10. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 0+6 0+6 1 6 4 1 3 0+1 0+1 2 9 2 0+9 0+9 5 13 Vertical grey line is a barrier synchronisation to avoid race conditions
  11. 11. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 6 4 1 3 9 2 1 2 1 59 3 Work,comm,barrier form a BSP superstep Vertices become active upon receiving signal in a previous superstep
  12. 12. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 6 4 comm 1+3 1+3 1 3 9 2 1 2 6+2 6+2 1 59 3 1+1 1+1 After performing local computation they send signals to their neighbouring vertices
  13. 13. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 6 4 comm 1+3 1+3 barrier 1 3 9 2 1 2 6+2 6+2 1 59 3 1+1 1+1
  14. 14. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 4 4 comm barrier 1 3 work 9 2 1 2 8 1 59 3
  15. 15. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 4 4 comm barrier 1 3 work 9 2 1 comm 2 4+2 4+2 8 1 59 3
  16. 16. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 4 4 comm barrier 1 3 work 9 2 1 comm 2 4+2 4+2 barrier 8 1 59 3
  17. 17. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 4 4 comm barrier 1 3 work 9 2 1 comm 2 barrier 6 1 59 work 3
  18. 18. Single Source Shortest Path P1 P2 P1 P2 work comm barrier 0 work 1 6 4 4 comm barrier 1 3 work 9 2 1 comm 2 barrier 6 1 59 work comm 3 barrier Computation ends when there are no active vertices left
  19. 19. Bulk Synchronous Parallelsuperstep P1 P2 ... Pn 0 w0 h0 l0 1 w1 h1 l1 2 w2 h2 l2 3 w3 h3 ... l3 ... ... ... ... Time to finish work on slowest partition + superstep n cost = cost of bulk communication + wn + hn + ln barrier synchronization time
  20. 20. Bulk Synchronous Parallel● Advantages – Simple and portable execution model – Clear cost model – No concurrency control, no data races, deadlocks, etc.● Disadvantages – Coarse grained ●Depends on a large “parallel slack” – Requires well-partitioned problem space for efficiency (well balanced partitions) more in [BSP] “A bridging model for parallel computation”
  21. 21. Bulk Synchronous Parallel - extensions● Combiners – minimizing inter-node communication (h factor)● Aggregators – Computing global state (ex. map/reduce) And other extensions...
  22. 22. public void superStep() { Sample code int minDist = this.isStartingElement() ? 0 : Integer.MAX_VALUE; for(DistanceMessage msg: messages()) { // Choose min. proposed distance for(DistanceMessage minDist = Math.min( minDist, msg.getDistance() ); } if( minDist < this.getCurrentDistance() ) { //If improves the path, store and propagate if( this.setCurrentDistance(minDist); IVertex v = this.getElement(); for(IEdge r: v.getOutgoingEdges(DemoRelationshipTypes.KNOWS) ) { for(IEdge IElement recipient = r.getOtherElement(v); int rDist = this.getLengthOf(r); this.sendMessage( new DistanceMessage(minDist+rDist, recipient.getId()) ); }}
  23. 23. SSSP - Map-Reduce Naive● Idea [DPMR]: – In map phase: ● emit both signals and local vertex structure and state – In reduce phase: ● gather signals and local vertex structure messages ● reconstruct vertex structure and state
  24. 24. SSSP - Map-Reduce Naivedef map(Id nId, Node N): def reduce(Id rId, {m1,m2,..} ): //emit state and structure new M; M.deActivateemit(nId, minDist = MAX_VALUEN.graphStateAndStruct) for(m in {m1,m2,..}) if(m is Node) M:=m //stateif(N.isActive) else if(m is Distance) //signals for(nbr :N.adjacencyL) minDist = min( minDist, m ) //local computation dist:= N.currDist+DistToNbr if(M.currDist > minDist) //emit signals M.currDist:=minDist; emit(nbr.id, dist) M.activate emit(rId, M)
  25. 25. SSSP - Map Reduce Naive - issues● Cost associated with marshaling intermediate <k,v> pairs for combiners (which are optional) – -> in-line combiner● Need to pass the whole graph state and structure around – -> “Shimmy trick” -- pin down the structure● Partitions verticies without regard to graph topology – -> cluster highly connected components together
  26. 26. Inline Combiners● In job configure: – Initialize a map<NodeId, Distance>;● In job map operation: – Do not emit interm. pairs ( emit(nbr.id, dist) ) ; – Store them in the local map; – Combine values in the same slots.● In job close: – Emit a value from each slot in the map to a corresponding neighbour ● emit(nbr.id, map[nbr.id])
  27. 27. “Shimmy trick”● Store graph structure in a file system (no shuffle)● Inspired by a parallel merge join partition p1 p1 p2 p2 p3 p3 sorted by join key sorted and partitioned by join key
  28. 28. “Shimmy trick”● Assume: – Graph G representation sorted by node ids; – G partitioned into n parts: G1, G2, .., Gn – Use the same partitioner as in MR – Set number of reducers to n● The above gives us: – Reducer Ri, receives the same intermediate keys as those in Gi graph partition (in sorted order).
  29. 29. “Shimmy trick”def configure( ): def reduce(Id rId, {m1,m2,..} ): P.openGraphPartition() repeat: (id nId, node N) <- P.read() if (nId != rId): N.deact; emit(nId, N) until: nId == rId minDist = MAX_VALUE for(m in {m1,m2,..}):def close( ): minDist = min( minDist, m )repeat: if(N.currDist > minDist) (id nId, node N) <-P.read() N.currDist:=minDist; N.deactivate N.activate emit(nId, N) emit(rId, N)
  30. 30. “Shimmy trick”● Improvements: – Files containing graph structure reside on dfs – Reducers arbitrarily assigned to cluster machines ● -> remote reads.● -> change the scheduler to assign key ranges to the same machines consistently.
  31. 31. Topology-aware Partitioner● Choose a partitioner that: – minimizes inter-block traffic; – maximizes intra-block traffic; – places adjacent nodes in the same block● Difficult to achieve particularly with many real world datasets: – Power-law distributions – Reported that state of the art partitioners (ex. parmetis) fail for such cases (???)
  32. 32. MR Graph Processing Design Pattern● [DPMR] reports 60% 70% improvement over naive implementation● Solution closely resembles the BSP model
  33. 33. BSP (inspired) implementations● Google Pregel: – classic BSP, C++, production● CMU GraphLab – inspired by BSP, java, multi-core – consistency models, custom schedulers● Apache Hama – scientific computation package that runs on top of Hadoop, BSP, MS Dryad (?)● Signal/Collect (Zurich University) – Scala, not yet distributed● ...
  34. 34. Open questions● What problems are particularly suitable for MR and which ones for BSP – where are the boundaries? – Topology-based centrality algorithms (PageRank): ● Algebraic, matrix-based methods vs. vertex-based ones?● When considering graph algorithms: – MR user base vs. BSP ergonomy? – Performance overheads?● Relaxing the BSP synchronous schedule --> “Amorphous data parallelism”
  35. 35. POC, Sample Code● Project Masuria (early stages, 2011-02) – http://masuria-project.org/ – As much POC of BSP framework as it is (distributed) OSGI playground.● Sample code: – https://github.com/tch/Cloud9 * – git@git.assembla.com:tch_sandbox.git – RunSSSPNaive.java – RunSSSPShimmy.java * * - expect (my) bugs Based on Jimmy Lin and Michael Schatz Cloud9 library
  36. 36. References● [ADP] “Amorphous Data-parallelism in Irregular Algorithms”, Keshav Pingali et al.● [BSP] “A bridging model for parallel computation”, Leslie G. Valiant● [DPMR] “Design Patterns for Efficient Graph Algorithms in MapReduce”, Jimmy Lin and Michael Schatz

×
