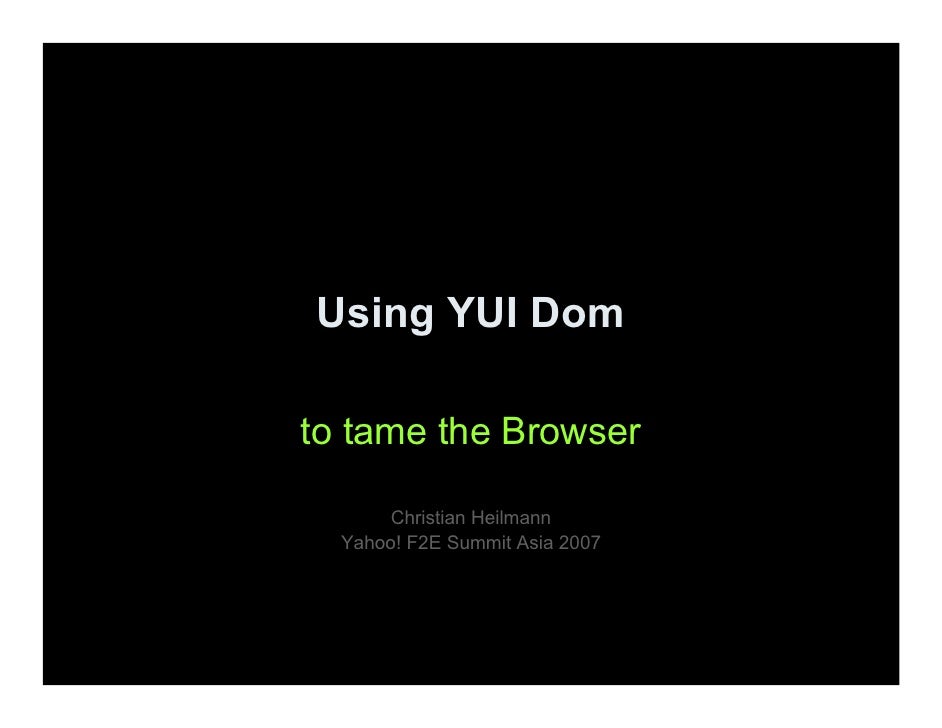

Using YUI Dom

to tame the Browser

       Christian Heilmann
  Yahoo! F2E Summit Asia 2007
Quick reminder

• Development according to web standards
  means first and foremost separation.
• Specifically separation ...
addClass batch generateId get
getAncestorBy getAncestorByClassName
getAncestorByTagName getChildren
getChildrenBy getClien...
Use cases for the DOM utility

•   Using CSS Classes
•   Getting elements from the DOM
•   Using the browser dimensions
• ...
Using CSS Classes


• addClass()
• removeClass()
• hasClass()
• replaceClass()
• getElementsByClassName()
Why?
Why?

• CSS is the supercharged DOM Scripting.
• CSS is much closer connected to the
  HTML
• Therefore it is more likely ...
Why?

• CSS is the supercharged DOM Scripting.
• CSS is much closer connected to the
  HTML
• Therefore it is more likely ...
Why?

• CSS is the supercharged DOM Scripting.
• CSS is much closer connected to the
  HTML
• Therefore it is more likely ...
Why?

• CSS is the supercharged DOM Scripting.
• CSS is much closer connected to the
  HTML
• Therefore it is more likely ...
Example:

Hiding all “trigger” links in a main section
when JS is available.
Example:
var main = document.getElementById('main');
if(main){
  var triggers = main.getElementsByTagName('a');
  for(var ...
Example:
var main = document.getElementById('main');
if(main){
  var triggers = main.getElementsByTagName('a');
  for(var ...
Example:
var main = document.getElementById('main');
if(main){
  var triggers = main.getElementsByTagName('a');
  for(var ...
Example:
var main = document.getElementById('main');
if(main){
  var triggers = main.getElementsByTagName('a');
  for(var ...
Magic JavaScript Pixy Solution

$('#main a.trigger').hide();
My fave:

document.body.className = 'js';

// or
var b = document.body;
var bc = b.className;
b.className = bc ? bc + ' js...
Getting elements from the DOM

• inDocument()
• isAncestor()
• getElementsByClassName
• getElementsBy
• get
• batch
Using the browser dimensions

• getViewportWidth()
• getViewportHeight()
• getDocumentWidth()
• getDocumentHeight()
Using element dimensions

• getX(), getY(), getXY()
• setX(), setY(), setXY()
• getRegion()
 – Region union
 – Region inte...
Using element dimensions
Using element dimensions

• Each of these methods can take an ID, a
  reference of an HTMLelement or an array
  of element...
Using element dimensions

• The Dom utility does not care if the
  element is positioned absolute, relative or
  static.
•...
Using element dimensions

• The get and set methods of x and y are
  very straight forward.
• They return the left, the to...
Using element dimensions

var xy =
  YAHOO.util.Dom.getXY('hd');
// = [128, 0];
YAHOO.util.Dom.setXY('hd',[128,-
  10]);
/...
Using element dimensions

• By using the getRegion() method you
  can read out the screen estate the
  element occupies.
•...
Using element dimensions
var h =
  YAHOO.util.Dom.getRegion('hd');
// h =
// {0:128
// 1:0,
// top:0,
// right:878,
// bot...
Using element dimensions

• top, left, right, bottom are the pixel
  locations on the page.
• There are shortcuts for left...
Using element dimensions

• Using these properties you can also
  calculate the dimensions of the element.
• Simply subtra...
Using element dimensions

• The Region() component does a lot
  more for you though.
• By calculating the region occupied ...
Using element dimensions
YD = YAHOO.util.Dom;
reg1 = YD.getRegion('r1');
reg2 = YD.getRegion('r2');
contains = reg1.contai...
Using element dimensions
YD = YAHOO.util.Dom;
reg1 = YD.getRegion('r1');
reg2 = YD.getRegion('r2');
contains = reg1.contai...
Using element dimensions
YD = YAHOO.util.Dom;
reg1 = YD.getRegion('r1');
reg2 = YD.getRegion('r2');
contains = reg1.contai...
Using element dimensions
YD = YAHOO.util.Dom;
reg1 = YD.getRegion('r1');
reg2 = YD.getRegion('r2');
contains = reg1.contai...
Using element dimensions
YD =   YAHOO.util.Dom;
reg1   = YD.getRegion('r1');
reg2   = YD.getRegion('r2');
is =   reg1.inte...
Using element dimensions
YD =   YAHOO.util.Dom;
reg1   = YD.getRegion('r1');
reg2   = YD.getRegion('r2');
is =   reg1.inte...
Using element dimensions
YD =   YAHOO.util.Dom;
reg1   = YD.getRegion('r1');
reg2   = YD.getRegion('r2');
is =   reg1.unio...
Using element dimensions
YD =   YAHOO.util.Dom;
reg1   = YD.getRegion('r1');
reg2   = YD.getRegion('r2');
is =   reg1.unio...
Styling elements

• getStyle()
• setStyle()
Styling Elements

• You might wonder why you’d need these
  two methods as seemingly
  element.style.property = value
  wo...
Styling Elements

• The other benefit is that you can use the
  CSS selector names instead of the
  camelCased JavaScript ...
CSS normalization

obj.style.marginTop = '10px';

               vs.

YAHOO.util.Dom.setStyle(obj,
'margin-top','10px');
CSS normalization

• Furthermore, opacity is not a nightmare
  any longer:

YAHOO.util.Dom.setStyle(obj, 'opacity','.2');
CSS normalization

• And last but not least, float can be
  used:
YAHOO.util.Dom.setStyle(obj, 'float','left');
Thanks!
