Role of edge gateways in relation to service mesh adoption

2. 2 | Copyright © 2019 @christianposta CHRISTIAN POSTA • Field CTO @ Solo.io • Author of a few books • Contributor to many open-source projects • Architect, blogger, speaker, mentor, leader @christianposta christian@solo.io https://blog.christianposta.com https://slideshare.net/ceposta

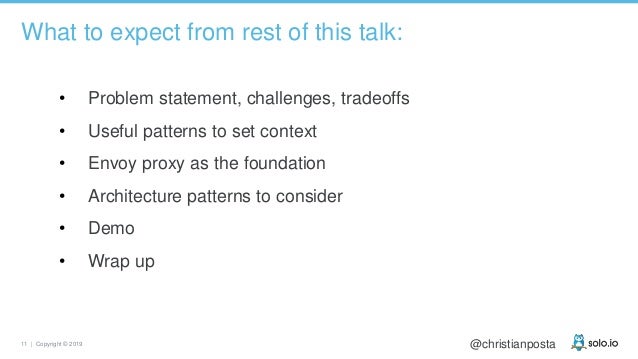

10. 11 | Copyright © 2019 @christianposta • Problem statement, challenges, tradeoffs • Useful patterns to set context • Envoy proxy as the foundation • Architecture patterns to consider • Demo • Wrap up What to expect from rest of this talk:

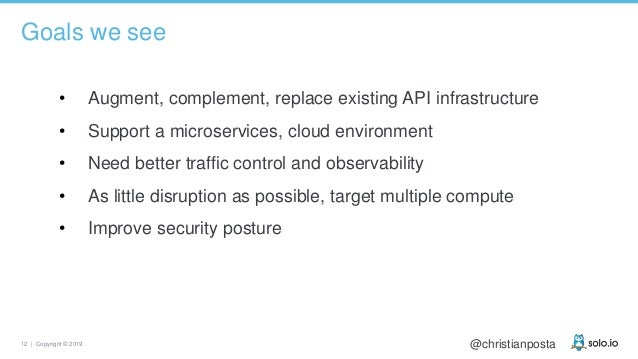

11. 12 | Copyright © 2019 @christianposta • Augment, complement, replace existing API infrastructure • Support a microservices, cloud environment • Need better traffic control and observability • As little disruption as possible, target multiple compute • Improve security posture Goals we see

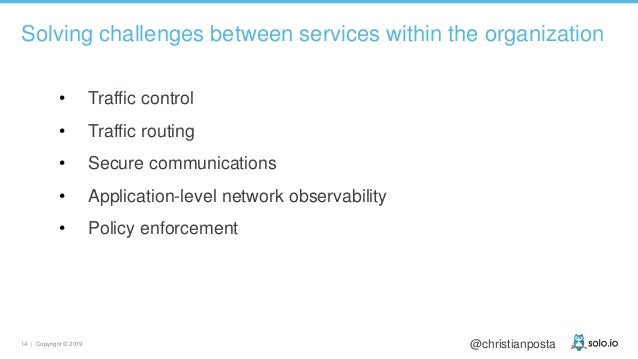

13. 14 | Copyright © 2019 @christianposta • Traffic control • Traffic routing • Secure communications • Application-level network observability • Policy enforcement Solving challenges between services within the organization

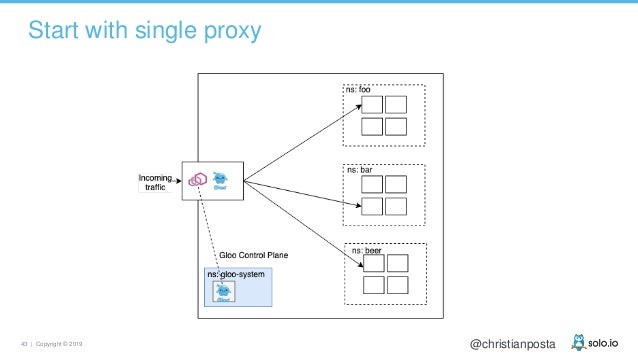

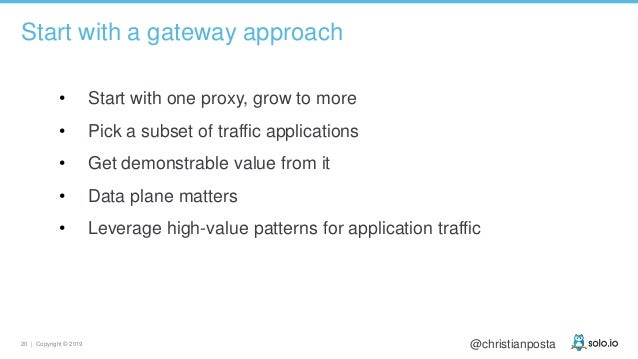

19. 20 | Copyright © 2019 @christianposta • Start with one proxy, grow to more • Pick a subset of traffic applications • Get demonstrable value from it • Data plane matters • Leverage high-value patterns for application traffic Start with a gateway approach

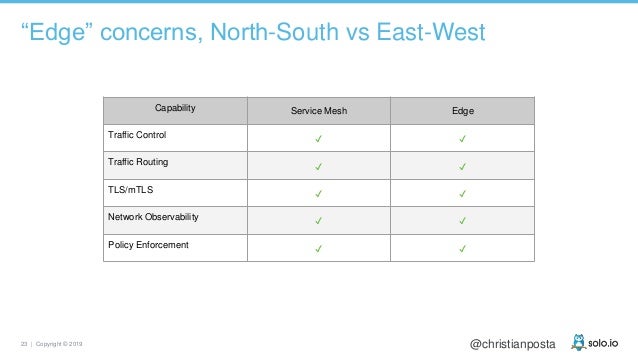

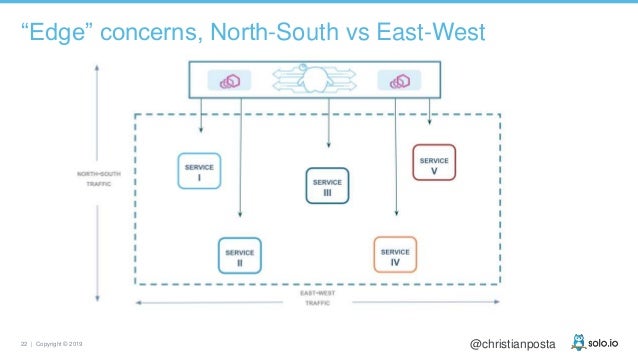

22. 23 | Copyright © 2019 @christianposta “Edge” concerns, North-South vs East-West Capability Service Mesh Edge Traffic Control ✔ ✔ Traffic Routing ✔ ✔ TLS/mTLS ✔ ✔ Network Observability ✔ ✔ Policy Enforcement ✔ ✔

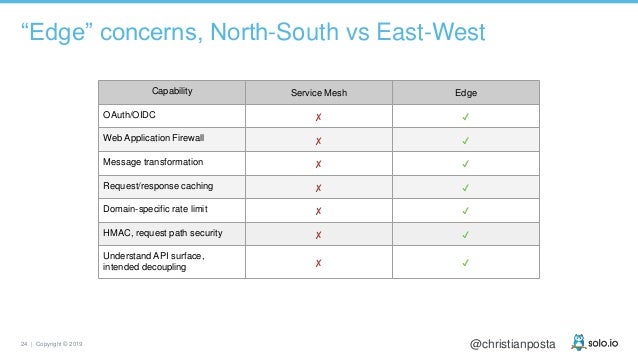

23. 24 | Copyright © 2019 @christianposta “Edge” concerns, North-South vs East-West Capability Service Mesh Edge OAuth/OIDC ✘ ✔ Web Application Firewall ✘ ✔ Message transformation ✘ ✔ Request/response caching ✘ ✔ Domain-specific rate limit ✘ ✔ HMAC, request path security ✘ ✔ Understand API surface, intended decoupling ✘ ✔

24. 25 | Copyright © 2019 @christianposta API Gateway Pattern “A service that’s the entry point into the microservices- based application … is responsible for request routing, API composition, protocol translation … and edge functions like authentication, authorization, rate limiting, caching, et. al.” See also: https://microservices.io/patterns/apigateway.html https://www.manning.com/books/microservices-patterns

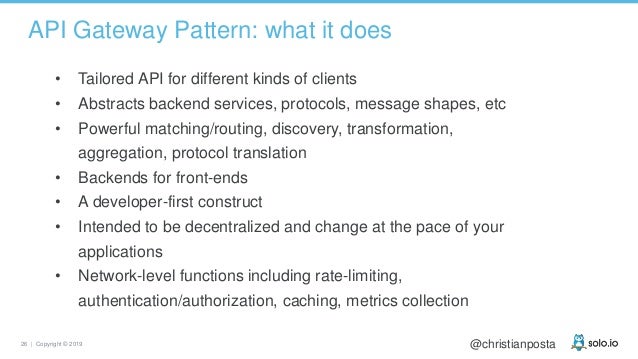

25. 26 | Copyright © 2019 @christianposta API Gateway Pattern: what it does • Tailored API for different kinds of clients • Abstracts backend services, protocols, message shapes, etc • Powerful matching/routing, discovery, transformation, aggregation, protocol translation • Backends for front-ends • A developer-first construct • Intended to be decentralized and change at the pace of your applications • Network-level functions including rate-limiting, authentication/authorization, caching, metrics collection

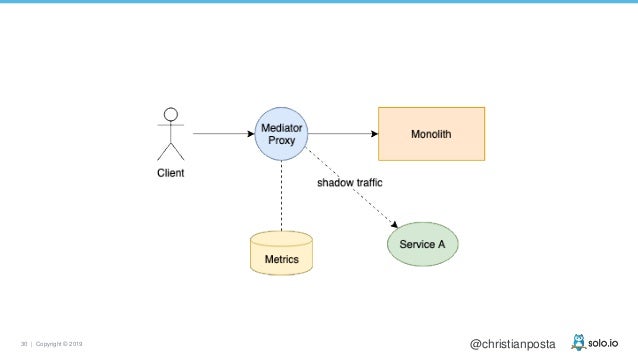

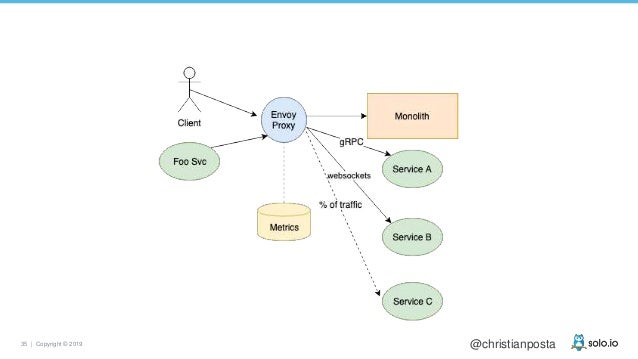

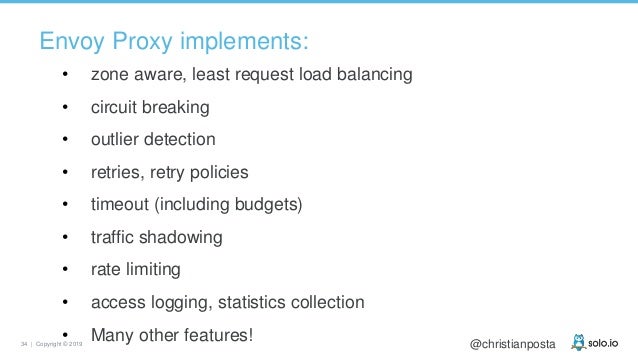

33. 34 | Copyright © 2019 @christianposta Envoy Proxy implements: • zone aware, least request load balancing • circuit breaking • outlier detection • retries, retry policies • timeout (including budgets) • traffic shadowing • rate limiting • access logging, statistics collection • Many other features!

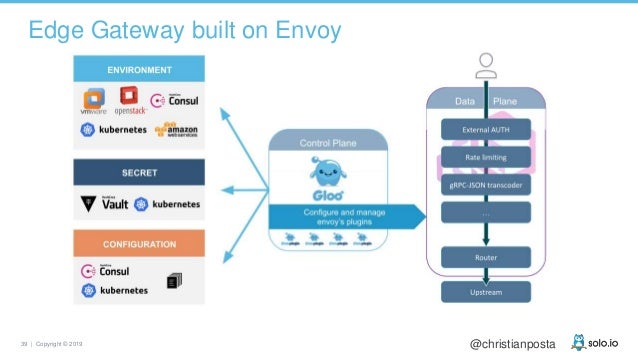

37. 38 | Copyright © 2019 @christianposta What is Gloo? ● Enterprise Envoy Proxy ● API-level routing, decoupling ● Complements any service mesh ● Traffic control, canary releases ● OAuth flows ● TLS termination, passthrough, mTLS ● Rate limiting, Caching ● Request/Response transformation ● Kubernetes CRDs (when deployed to Kubernetes) https://gloo.solo.io

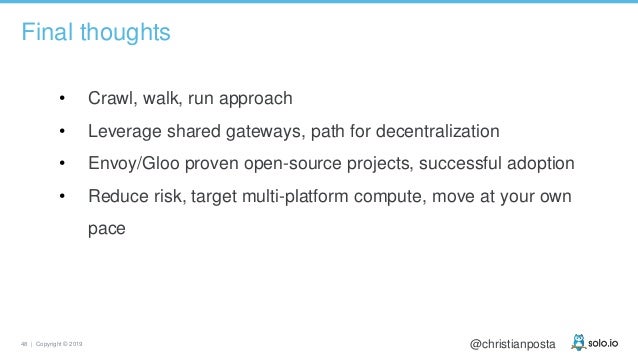

47. 48 | Copyright © 2019 @christianposta • Crawl, walk, run approach • Leverage shared gateways, path for decentralization • Envoy/Gloo proven open-source projects, successful adoption • Reduce risk, target multi-platform compute, move at your own pace Final thoughts
