Polyglot messaging with
Apache ActiveMQ
Christian Posta
Principal Consultant and Architect
11/09/13
1

Agenda
• Polyglot messaging
• Changing landscapes
• Apache ActiveMQ
•
•
•
STOMP
MQTT
Network of Brokers
• Large-scale management
• Questions?
2

Your speaker
Christian Posta
Blog: http://christianposta.com/blog
Twitter: @christianposta
Email: christian@redhat.com
ceposta@apache.org
• Principal Consultant and Architect at Red Hat (FuseSource)
• Based in Phoenix, AZ
• Committer on Apache Camel, ActiveMQ, Apollo
• PMC on ActiveMQ
• Author: Essential Camel Components DZone Refcard
3

Polyglot messaging
4
4

Polyglot Messaging?!
adjective: “knowing or using several languages”
5

Messaging
Message
Broker
P
C
C
Message
C
6

Integration?
7

Why is integration hard?
• Off the shelf? Home Grown? Acquisition?
• Platforms
• Protocols / Data Formats
• Data Formats
• Timing
• Organizational mismatch
8

Integration Options
• Batch file transfers
• Shared Database
• RPC
• Messaging
9

Why messaging?
•
•
•
•
•
10
Asynchronous architectures
Reliable message passing
Loose coupling
Heterogeneous integration
Real-time data

Changing landscapes
11
11

Example of Distributed
Application Integration
Head Office
STORE
Broker
Clusters
24 houra
shop
shop
outlet
STORE
12
STORE

Ingestion for BigData Architecture
Broker
Cluster
Camel
HTTP Log
Reader
ESB
Web Servers
Camel
HBase/HDFS
Camel
HTTP Log
Reader
Web Servers
Broker
Cluster
Camel
HTTP Log
Reader
Web Servers
Camel
Hbase/HDFS
Camel
HTTP Log
Reader
Web Servers
13
ESB
HDFS

M2M Deployments
Arrival
Airport 1
Connecting Things
• mobile devices
• meters
• industrial controls
• smart buildings
• asset tracking
• traffic control
• monitors
• sensors
• actuators
14
Broker
Clusters

Apache ActiveMQ
15
15

Apache ActiveMQ
• The most widely used open-source
messaging broker
•
•
•
•
Highly configurable
Friendly license (no license fees!)
Vibrant community (TLP)
Backbone of top enterprises in retail, e-retail,
financial services, shipping, many others!
16

Broker Architecture
17

Broker Architecture
18

Connectivity: Transports
•
•
•
•
•
•
19
TCP, NIO
UDP
SSL, SSL+NIO
VM
HTTP
WebSockets

Connectivity: Protocols
•
•
•
•
20
OpenWire
STOMP 1.0, 1.1, 1.2
MQTT 3.1
AMQP 1.0

STOMP
21
21

STOMP – what it is?
• http://stomp.github.com
• Simple Text Orientated Messaging Protocol
• HTTP for the messaging realm

STOMP
• “Simple!”
• A lot of “polyglot” APIs
•
•
•
•
•
Ruby - https://rubygems.org/gems/stomp
Python - https://pypi.python.org/pypi/stompy
PHP - http://pecl.php.net/package/stomp
JavaScript - http://jmesnil.net/stomp-websocket/doc/
Perl - http://search.cpan.org/dist/Net-STOMP-Client/
• Implemented
• ActiveMQ
• Apollo
• HornetQ
• RabbitMQ

STOMP Connect
CONNECT!
login: ceposta!
passcode: ActiveMQRocks!
!
^@!

STOMP Sending
SEND!
destination: /queue/order.books!
reply-to: /tempQueue/Christian!
correlation-id: 900145!
amazonSecurityToken: 1bc2345!
amazonCustomerRating: gold!
!
<order id=“123” customer=“ceposta”>!
<book isbn=“1234” />!
<book isbn=“4567” />!
</order>!
^@!

STOMP Subscribe
SUBSCRIBE!
destination: /queue/order.books!
!
^@!

Stomp + ActiveMQ
• Available transports
<transportConnectors>
<transportConnector name=”stomp" uri=”stomp://0.0.0.0:61613"/>
<transportConnector name=”stomp+nio" uri=”stomp+nio://0.0.0.0:61614"/>
<transportConnector name=”stomp+ssl" uri=”stomp+ssl://0.0.0.0:61615"/>
<transportConnector name=”stomp+nio+ssl"
uri=”stomp+nio+ssl://0.0.0.0:61615"/>
</transportConnectors>
• NIO implementation for better scalability
• SSL for secure communication

MQTT
28
28

MQTT
• http://mqtt.org/ - MQ Telemetry Transport
• Developed by IBM for embedded devices telemetry
• IoT (Internet of Things) protocol
• Efficient binary protocol
29

MQTT Features
• Low bandwidth
• Smallest frame 2 bytes
• Unreliable networks
• Small footprint
• Example frames
•
•
•
•
CONNECT
PUBLISH
SUBSCRIBE
PINGREQ/PINGRESP
• DISCONNECT
30

MQTT
• Publish/subscribe protocol – “topics” “subjects”
• 3 QoS Options:
• At Most Once – message loss might occur
• At Least Once – duplicates might occur
• Exactly Once – guaranteed delivery
31

MQTT + ActiveMQ
• Available transports
<transportConnectors>
<transportConnector name=”mqtt"
uri=”mqtt://0.0.0.0:1883"/>
<transportConnector name=”mqtt+nio" uri=”mqtt+nio://0.0.0.0:1884"/>
<transportConnector name=”mqtt+ssl" uri=”mqtt+ssl://0.0.0.0:1885"/>
<transportConnector name=”mqtt+nio+ssl"
uri=”mqtt+nio+ssl://0.0.0.0:1886"/>
</transportConnectors>
• NIO implementation for better scalability
• SSL for secure communication
32

Network of brokers
33
33

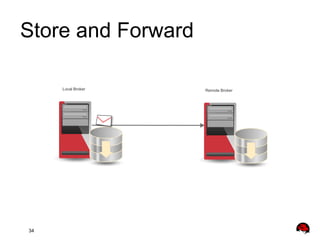

Store and Forward
Local Broker
34
Remote Broker

Store and Forward
35

Store and Forward
36

Example retail topology
Head Office
STORE
Broker
Clusters
24 houra
shop
shop
outlet
STORE
37
STORE

Large-scale management
38
38

Fuse Fabric
39
39

Fuse Fabric
40

Fuse Fabric
41

HawtIO
42
42

Old Web Console
43

HawtIO – http://hawt.io
•
•
•
•
•
Manage integration infrastructure from one dashboard
Customizable
Plugins
• Camel
• ActiveMQ
• Fabric
• Infinispan
• Tomcat
• Many others!
Visualizations
One dashboard to rule them all
44

HawtIO – http://hawt.io
•
Visualization of health
•
Access to operations to make changes
•
Move messages from DLQ to original destinations
•
Visualize Camel routes deployed along with broker
•
Send messages
•
Real-time metrics
45

46

47

Wrap up
•
Checkout the ActiveMQ wiki:
http://activemq.apache.org
•
Mailing list:
users@activemq.apache.org
•
My Blog:
http://christianposta.com/blog
•
Books:
ActiveMQ in Action – Dejan Bosanac, Rob Davies
Instant ActiveMQ Messaging Application Development – Tim Bish
48

Questions?
49
49

Questions?
•
Forums, Mailing list, Stackoverflow
•
ceposta@apache.org
•
christian@redhat.com
