Intro to PECL/mysqlnd_msChris BarberMinnesota PHP User GroupApril 7, 2011
About MeChris BarberLead Software Engineer @ AppceleratorCEO/Technology Consultant @ CB1, INC.JavaScript, PHP, C++http://w...
What is mysqlnd?
What is mysqlnd?MySQL Native Driver for PHPPHP 5.3+Replaces libmysqlUsed by ext/mysql, ext/mysqli, PDO_MYSQLUse configure ...
What is mysqlnd_ms?
What is mysqlnd_ms?A PHP Extension that provides transparent MySQLload balancing across master and slave servers
How it worksCreate a mysqlnd_ms_config.ini with your settingsMake MySQL calls from your PHP codeINSERT, UPDATE, & DELETE s...
Getting started
php.iniextension=mysqlnd_ms.somysqlnd_ms.enable=1mysqlnd_ms.ini_file=mysqlnd_ms_config.ini
mysqlnd_ms_config.ini[myapp]master[]=192.168.1.120slave[]=192.168.1.121slave[]=192.168.1.122
PHP Usage<?php$db = mysqli(“myapp”, “user”, “password”);$results = $db->query(“SELECT ...”);$db->query(“INSERT ...”);?>
Which server to connect to?
Choosing a serverAvailable load balancing algorithms:  random  round-robin  user defined (custom PHP function)  random_onc...
Choosing a server       [myapp]       master[]=192.168.1.120       slave[]=192.168.1.121       slave[]=192.168.1.122      ...
Issues...
IssuesINSERT and immediate SELECT  Replication lagTransactions  Need server stickinessFailover
Hints  Prefix query with a comment!<?php$db = mysqli(“myapp”, “user”, “password”);$results = $db->query(“/* HINT_GOES_HERE...
Built-in Hints MYSQLND_MS_MASTER_SWITCH MYSQLND_MS_SLAVE_SWITCH MYSQLND_MS_LAST_USED_SWITCH MYSQLND_MS_ALL_SERVER_SWITCH M...
Hints<?php$db->query(sprintf(“/*%s*/SET @a=1”, MYSQL_MS_SLAVE_SWITCH));$db->query(sprintf(“/*%s*/SET @a=@a+1”, MYSQL_MS_LA...
Custom Hints<?phpfunction pick_server($connected_host, $query, $master, $slaves, $last_used_connection) {  if (preg_match(...
Server Picking Ideas Geo-load balancing Routing around server maintenance Sharding Dynamically add/override master/slave h...
Failover mysqlnd_ms does not do failover Do it in your application! Retry query N number of times before falling on sword ...
Getting mysqlnd_mssvn co http://svn.php.net/repository/pecl/mysqlnd_ms/trunk mysqlnd_mscd mysqlnd_msphpizeconfiguremakesud...
More InfoAuthors: Andrey Hristov, Ulf Wendel, & JohannesSchlueterhttp://blog.ulf-wendel.dehttp://svn.php.net/viewvc/pecl/m...
ThanksQuestions?
Upcoming SlideShare
Loading in …5
×

Intro to PECL/mysqlnd_ms (4/7/2011)

11,413 views

Published on

I gave this presentation about the totally awesome mysqlnd_ms PHP extension at the Minnesota PHP User Group.

Published in: Technology
  • Be the first to comment

Intro to PECL/mysqlnd_ms (4/7/2011)

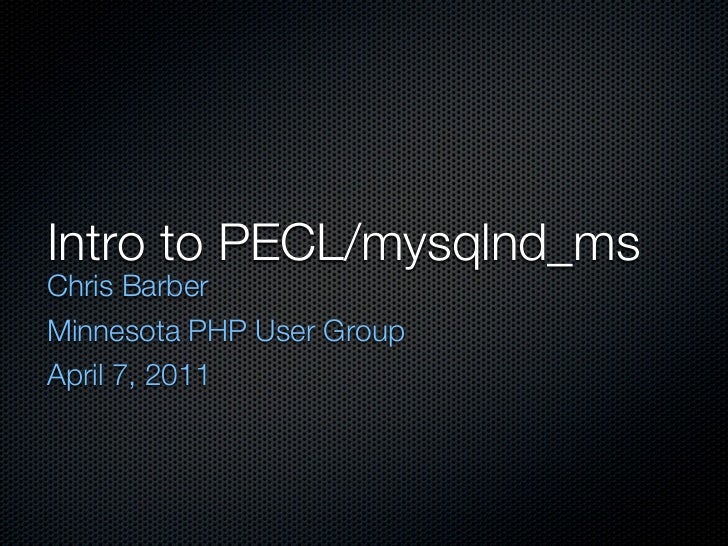

  1. 1. Intro to PECL/mysqlnd_msChris BarberMinnesota PHP User GroupApril 7, 2011
  2. 2. About MeChris BarberLead Software Engineer @ AppceleratorCEO/Technology Consultant @ CB1, INC.JavaScript, PHP, C++http://www.cb1inc.com@cb1kenobi on Twitter, Slideshare
  3. 3. What is mysqlnd?
  4. 4. What is mysqlnd?MySQL Native Driver for PHPPHP 5.3+Replaces libmysqlUsed by ext/mysql, ext/mysqli, PDO_MYSQLUse configure options: --with-mysql=mysqlnd --with-mysqli=mysqlnd --with-pdo-mysql=mysqlndNot compiled into Ubuntu’s PHP 5.3 package :(
  5. 5. What is mysqlnd_ms?
  6. 6. What is mysqlnd_ms?A PHP Extension that provides transparent MySQLload balancing across master and slave servers
  7. 7. How it worksCreate a mysqlnd_ms_config.ini with your settingsMake MySQL calls from your PHP codeINSERT, UPDATE, & DELETE statements go to masterSELECT statements go to slaves
  8. 8. Getting started
  9. 9. php.iniextension=mysqlnd_ms.somysqlnd_ms.enable=1mysqlnd_ms.ini_file=mysqlnd_ms_config.ini
  10. 10. mysqlnd_ms_config.ini[myapp]master[]=192.168.1.120slave[]=192.168.1.121slave[]=192.168.1.122
  11. 11. PHP Usage<?php$db = mysqli(“myapp”, “user”, “password”);$results = $db->query(“SELECT ...”);$db->query(“INSERT ...”);?>
  12. 12. Which server to connect to?
  13. 13. Choosing a serverAvailable load balancing algorithms: random round-robin user defined (custom PHP function) random_once (sticky)Specify algorithm in the mysqlnd_ms_config.ini file
  14. 14. Choosing a server [myapp] master[]=192.168.1.120 slave[]=192.168.1.121 slave[]=192.168.1.122 pick[]=user pick[]=random<?phpfunction pick_server($connected_host, $query, $master, $slaves, $last_used_connection) { if (stristr($query, “FROM table_a”)) return “hostname_of_slave_for_table_a”; return NULL; // resort to random/random-once/round-robin}mysqlnd_ms_set_user_pick_server(“pick_server”);?>
  15. 15. Issues...
  16. 16. IssuesINSERT and immediate SELECT Replication lagTransactions Need server stickinessFailover
  17. 17. Hints Prefix query with a comment!<?php$db = mysqli(“myapp”, “user”, “password”);$results = $db->query(“/* HINT_GOES_HERE */SELECT ...”);?>
  18. 18. Built-in Hints MYSQLND_MS_MASTER_SWITCH MYSQLND_MS_SLAVE_SWITCH MYSQLND_MS_LAST_USED_SWITCH MYSQLND_MS_ALL_SERVER_SWITCH MYSQLND_MS_QUERY_USE_MASTER MYSQLND_MS_QUERY_USE_SLAVE MYSQLND_MS_QUERY_USE_LAST_USED
  19. 19. Hints<?php$db->query(sprintf(“/*%s*/SET @a=1”, MYSQL_MS_SLAVE_SWITCH));$db->query(sprintf(“/*%s*/SET @a=@a+1”, MYSQL_MS_LAST_USED_SWITCH));$db->query(sprintf(“/*%s*/SELECT @a as _a”, MYSQL_MS_LAST_USED_SWITCH));?>
  20. 20. Custom Hints<?phpfunction pick_server($connected_host, $query, $master, $slaves, $last_used_connection) { if (preg_match("@^/*.+*/@ismU", $query, $matches)) { $json = json_decode($matches[1]) if ($json && $json->something_enabled) { return “some_special_hostname”; } } return NULL; // resort to random/random-once/round-robin}mysqlnd_ms_set_user_pick_server(“pick_server”);$db->query(“/* {“something_enabled”:true} */SELECT ...”);?>
  21. 21. Server Picking Ideas Geo-load balancing Routing around server maintenance Sharding Dynamically add/override master/slave hostnames
  22. 22. Failover mysqlnd_ms does not do failover Do it in your application! Retry query N number of times before falling on sword Have pick_server() “disable” dead servers for a minute Perhaps use APC to cache which servers are dead
  23. 23. Getting mysqlnd_mssvn co http://svn.php.net/repository/pecl/mysqlnd_ms/trunk mysqlnd_mscd mysqlnd_msphpizeconfiguremakesudo make install
  24. 24. More InfoAuthors: Andrey Hristov, Ulf Wendel, & JohannesSchlueterhttp://blog.ulf-wendel.dehttp://svn.php.net/viewvc/pecl/mysqlnd_ms
  25. 25. ThanksQuestions?

×
