Aurora TigonGreen, Dense, Standard HPCG. Tecchiolli – CTOCineca, Bologna March, 30th 2013
EurotechHPC R&D and Operations           USA                               J APAN                                         ...
AURORA TIGONUnleash the hybrid power
From 1 node to large petascale systemsNode           Backplane       Chassis   Cooling               System           Rack
The Aurora TigonUnleash the hybrid powerKey Features:High Performance Density – 256 CPUs, 256accelerators, up to 350 TFlop...
The Aurora Tigon node card                    Cooling Plate                   Infiniband QDR                       3D Toru...
The Setup    Energy efficiency measurements according to the Green500 guidelines•   All measurements made with a calibrate...
HPL Benchmark Results                          Performance Vs CPU Frequency                                               ...
30% more efficient than #1 in Green 500Final results                 3150 MFlop/s per WATT        1700 Sustained GFlop/s p...
Tigon: an energy-aware design•   GPUs•   Optimized design:     – No unused components     – No fans     – Soldered compone...
“standard” power distribution conversion steps                        Data from Intel
Moving towards DC reduces steps in power conversion                           Data from Intel
Aurora power distribution                                                      10 V   230 V                            48 ...
Gain DC/DC conversion efficiency•    In the DC/DC conversion a gain of over 2% in efficiency, from     95,5 % to 98%    Ex...
Liquid cooling and efficiency at system level178 nodes – AMD Opteron 6128HE CPUs (Magny Cours) - 16GB RAM Measuremets   ta...
Why liquid cooling is better?  • Heat capacity:      •   Air:        1      •   Water:     3500  •   Control over coolant ...
Ways of cooling car engines                              20
Free cooling and energy re-use   PUE < 1 !!
11000 CO2 tons saved!             1500 cars that do not circulate for 1 year                        11500 saved trees     ...
Eurotech 30 01 2013
Upcoming SlideShare
Loading in …5
×

Eurotech 30 01 2013

18,653 views

Published on

0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
18,653
On SlideShare
0
From Embeds
0
Number of Embeds
17,695
Actions
Shares
0
Downloads
10
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Eurotech 30 01 2013

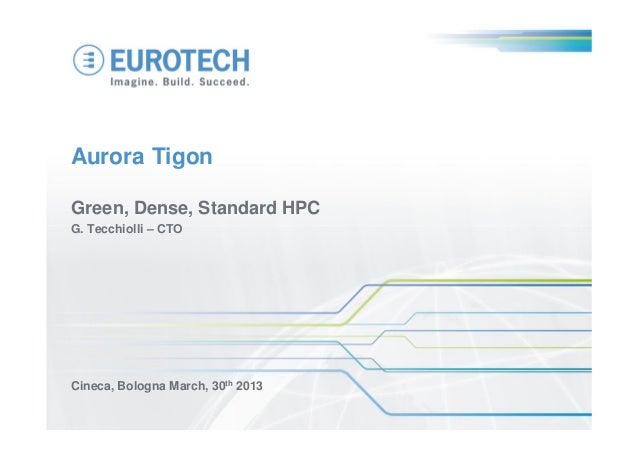

  1. 1. Aurora TigonGreen, Dense, Standard HPCG. Tecchiolli – CTOCineca, Bologna March, 30th 2013
