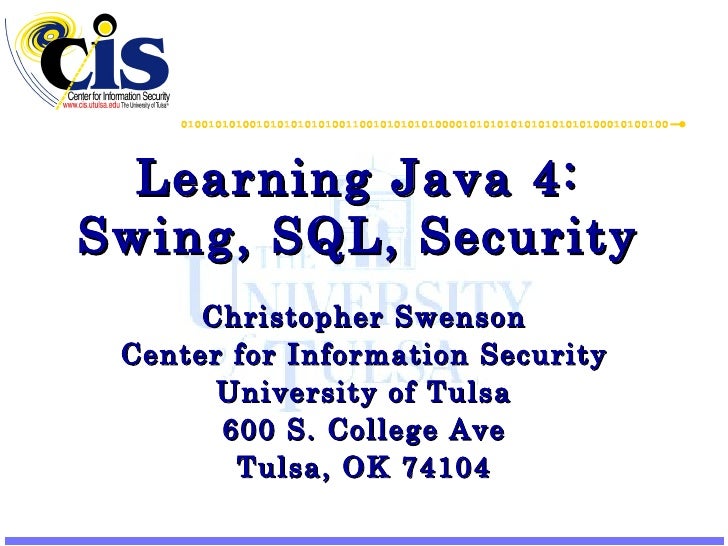

  1. 1. Learning Java 4: Swing, SQL, Security Christopher Swenson Center for Information Security University of Tulsa 600 S. College Ave Tulsa, OK 74104
  2. 2. Overview <ul><li>SQL </li></ul><ul><li>Security API </li></ul><ul><li>Swing </li></ul>
  3. 3. SQL <ul><li>Load a runtime driver for the database you want to connect to </li></ul><ul><ul><li>Class.forName(“com.microsoft.jdbc.sqlserver.SQLServerDriver”) </li></ul></ul><ul><ul><li>Make sure that the class is in your ClassPath </li></ul></ul><ul><li>java.sql.DriverManager.getConnection() </li></ul><ul><ul><li>Pass it a URL, name and password to connect </li></ul></ul><ul><li>Get a Statement object from the connection </li></ul><ul><ul><li>Use this to execute queries and updates </li></ul></ul><ul><li>Tons of Exception s: catch them all </li></ul>
  4. 4. Code <ul><li>Class.forName(“com.microsoft.jdbc.sqlserver.SQLServerDriver”) </li></ul><ul><li>Connection conn = java.sql.DriverManager.getConnection(“jdbc:microsoft:sqlserver://127.0.0.1:1433”, “sa”, “123”); </li></ul><ul><li>Statement stmt = conn.createStatement(); </li></ul>
  5. 5. Queries / Updates <ul><li>Use the Connection methods execQuery(“…”) and execUpdate(“…”) </li></ul><ul><ul><li>Return ResultSet object </li></ul></ul><ul><li>Queries – SELECT </li></ul><ul><ul><li>rs.next() – moves one row down to the next object and returns true, or returns false when you are out of rows </li></ul></ul><ul><ul><li>rs.getObject(int i) – gets the object in the specified column number </li></ul></ul><ul><ul><ul><li>i starts at 1 </li></ul></ul></ul><ul><ul><ul><li>Often, columns must be accessed IN ORDER (can’t go back) </li></ul></ul></ul><ul><li>Updates </li></ul><ul><ul><li>INSERT, DELETE, UPDATE </li></ul></ul><ul><ul><li>Returns number of rows affected </li></ul></ul>
  6. 6. Code <ul><li>ResultSet rs = stmt.executeQuery(“select name from person”); </li></ul><ul><li>while (rs.next()) </li></ul><ul><li>{ </li></ul><ul><li>System.out.println(rs.getObject(1)); </li></ul><ul><li>} </li></ul>
  7. 7. Security API <ul><li>Cryptography architecture, provided by Cryptographic Services </li></ul><ul><li>Message digest, digital signatures, key generation and management, encryption, decryption </li></ul><ul><li>java.security, javax.crypto </li></ul><ul><li>http://java.sun.com/j2se/1.5.0/docs/guide/security/CryptoSpec.html </li></ul>
  8. 8. Digest Example <ul><li>MessageDigest sha = MessageDigest.getInstance(&quot;SHA-1&quot;); </li></ul><ul><li>sha.update(i1); sha.update(i2); sha.update(i3); byte[] hash = sha.digest(); </li></ul>
  9. 9. Digest Types <ul><li>MD2 </li></ul><ul><li>MD5 </li></ul><ul><li>SHA-1 </li></ul><ul><li>SHA-256 </li></ul><ul><li>SHA-384 </li></ul><ul><li>SHA-512 </li></ul>
  10. 10. Cipher Example <ul><li>KeyGenerator keygen = KeyGenerator.getInstance(&quot;DES&quot;); </li></ul><ul><li>SecretKey desKey = keygen.generateKey(); </li></ul><ul><li>Cipher desCipher = Cipher.getInstance(&quot;DES/ECB/PKCS5Padding&quot;); </li></ul><ul><li>desCipher.init(Cipher.ENCRYPT_MODE, desKey); </li></ul><ul><li>byte[] cleartext = &quot;This is just an example&quot;.getBytes(); </li></ul><ul><li>byte[] ciphertext = desCipher.doFinal(cleartext); </li></ul><ul><li>desCipher.init(Cipher.DECRYPT_MODE, desKey); </li></ul><ul><li>byte[] cleartext1 = desCipher.doFinal(ciphertext); </li></ul>
  11. 11. Cipher Types <ul><li>Algorithms </li></ul><ul><ul><li>AES </li></ul></ul><ul><ul><li>RC2/RC4/RC5 </li></ul></ul><ul><ul><li>RSA – actually, PKCS #1 </li></ul></ul><ul><ul><li>DES </li></ul></ul><ul><ul><li>DESede </li></ul></ul><ul><li>Modes </li></ul><ul><ul><li>NONE </li></ul></ul><ul><ul><li>CBC </li></ul></ul><ul><ul><li>CFB </li></ul></ul><ul><ul><li>ECB </li></ul></ul><ul><ul><li>OFB </li></ul></ul><ul><ul><li>PCBC </li></ul></ul><ul><li>Padding </li></ul><ul><ul><li>NoPadding </li></ul></ul><ul><ul><li>PKCS5Padding </li></ul></ul>
  12. 12. RSA <ul><li>Will need Bouncy Castle provider </li></ul><ul><li>KeyPairGenerator keyGen = KeyPairGenerator.getInstance(&quot;RSA&quot;); </li></ul><ul><li>keyGen.initialize(1024); </li></ul><ul><li>KeyPair key = keyGen.generateKeyPair(); </li></ul><ul><li>Cipher cipher = Cipher.getInstance(&quot;RSA/ECB/PKCS1Padding&quot;); </li></ul><ul><li>cipher.init(Cipher.ENCRYPT_MODE, key.getPublic()); </li></ul><ul><li>byte[] cipherText = cipher.doFinal(plainText); </li></ul><ul><li>cipher.init(Cipher.DECRYPT_MODE, key.getPrivate()); </li></ul><ul><li>byte[] newPlainText = cipher.doFinal(cipherText); </li></ul>
  13. 13. Swing <ul><li>Swing is a platform-independent GUI-building kit </li></ul><ul><ul><li>javax.swing </li></ul></ul><ul><li>Very easy to use </li></ul><ul><ul><li>Most constructs are simple </li></ul></ul><ul><li>Clean for most uses </li></ul><ul><li>Event-driven </li></ul><ul><li>Based on the AWT, the original GUI package for Java </li></ul><ul><ul><li>java.awt </li></ul></ul>
  14. 14. JFrame <ul><li>JFrame is the basic class </li></ul><ul><ul><li>Creates a window </li></ul></ul><ul><ul><li>Extend it, and override the constructor </li></ul></ul><ul><ul><li>Make a new JFrame, add stuff to it </li></ul></ul><ul><ul><li>Starts out invisible by default </li></ul></ul><ul><li>JFrame f = new JFrame(“Title here”); </li></ul><ul><li>f.setVisible(true); </li></ul>
  15. 15. Close Window <ul><li>Closing the window should exit your program, right? </li></ul><ul><ul><li>Use “actions” to do this </li></ul></ul><ul><ul><li>Also for keystrokes, mouse clicks </li></ul></ul><ul><li>WindowAdapter is a skeleton class to capture Window actions (like, clicking the close button) </li></ul><ul><li>Catches ActionEvent s, and figures out what to do with them </li></ul><ul><li>Also InputEvent s </li></ul>
  16. 16. Example <ul><li>JFrame f = new JFrame(“Test”); </li></ul><ul><li>f.setVisible(true); </li></ul><ul><li>f.addWindowListener(new WindowAdapter() </li></ul><ul><li>{ </li></ul><ul><li>public void windowClosing(WindowEvent we) </li></ul><ul><li>{ </li></ul><ul><li>System.exit(0); </li></ul><ul><li>} </li></ul><ul><li>}); </li></ul>
  17. 17. Let’s add stuff <ul><li>Some basic classes to mess with </li></ul><ul><ul><li>Most everything subclasses JComponent </li></ul></ul><ul><li>JLabel </li></ul><ul><ul><li>Text (can use simple HTML, like <b>text</b>) </li></ul></ul><ul><li>JTextField </li></ul><ul><ul><li>An line of text input </li></ul></ul><ul><li>JButton </li></ul><ul><ul><li>A clickable button </li></ul></ul><ul><ul><li>Anything implementing AbstractButton is “clickable” </li></ul></ul><ul><ul><li>JRadioButton – set a group with ButtonGroup </li></ul></ul><ul><li>JProgressBar </li></ul>
  18. 18. Adding objects <ul><li>Pre-Java 1.5 </li></ul><ul><ul><li>Container c = frame.getContentPane(); </li></ul></ul><ul><ul><li>c.add(new JLabel(“Text”)); </li></ul></ul><ul><li>Now, just frame.add(…) </li></ul><ul><li>By default, uses an empty FlowLayout </li></ul><ul><ul><li>Change the Layout via setLayout(…) </li></ul></ul><ul><ul><li>BorderLayout, BoxLayout, CardLayout, FlowLayout, GridBagLayout, GridLayout, SpringLayout </li></ul></ul>
  19. 19. Layouts
  20. 20. Menus <ul><li>JMenuBar is the bar at the top (setJMenuBar) </li></ul><ul><ul><li>Add JMenus, which have JMenuItems </li></ul></ul><ul><ul><li>addMenuListener to catch stuff </li></ul></ul><ul><ul><ul><li>menuCanceled </li></ul></ul></ul><ul><ul><ul><li>menuDeselected </li></ul></ul></ul><ul><ul><ul><li>menuSelected </li></ul></ul></ul>
  21. 21. Panes <ul><li>JPanel – create a new container to work with </li></ul><ul><ul><li>A sub-frame </li></ul></ul><ul><li>Allow you to do more complicated things </li></ul><ul><ul><li>JTabbedPane – tabs </li></ul></ul><ul><li>Most JComponent extended objects can have borders added </li></ul><ul><ul><li>setBorder(BorderFactory.createEtchedBorder(EtchedBorder.LOWERED, Color.GRAY, Color.WHITE)) </li></ul></ul><ul><ul><li>setBorder(BorderFactory.createTitledBorder(“Stuff&quot;)); </li></ul></ul>
  22. 22. Extra tips for Swing <ul><li>UIManager.setLookAndFeel(&quot;com.sun.java.swing.plaf.windows.WindowsLookAndFeel&quot;); </li></ul><ul><ul><li>Makes things more native looking </li></ul></ul><ul><li>GridBagLayout </li></ul><ul><ul><li>Powerful, difficult to use layout </li></ul></ul>
