OSGi Versioning & Testing

4,932 views

Published on

Presentation given at Eclipse Summit Europe 2009.

OSGi Versioning & Testing

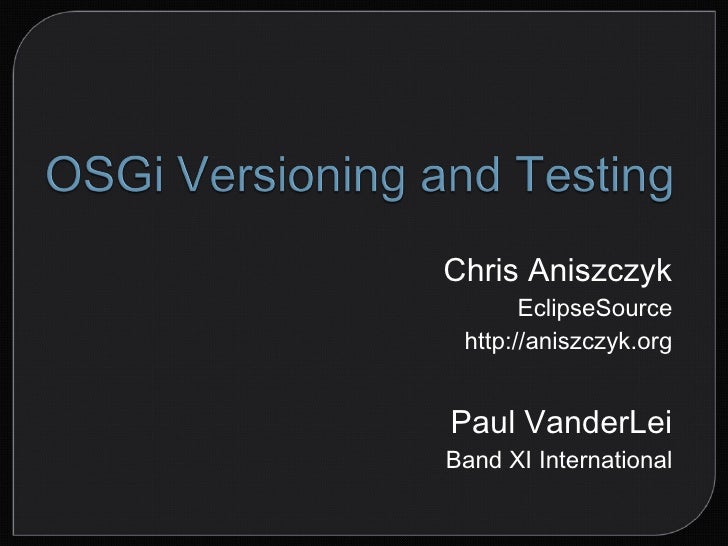

  1. 1. Chris Aniszczyk EclipseSource http://aniszczyk.org Paul VanderLei Band XI International
  2. 2. <ul><li>T elematics - O n- A - ST ick </li></ul><ul><li>Sample from upcoming book equinoxosgi.org </li></ul><ul><li>Example project in EclipseRT wiki.eclipse.org/Toast </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  3. 3. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 Emergency Monitor Emergency Servlet GPS Channel Airbag Log
  4. 4. log get location OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 Log Emergency Servlet Channel GPS Emergency Monitor Airbag
  5. 5. <ul><li>Versioning </li></ul><ul><li>Evolving API </li></ul><ul><li>Tools </li></ul><ul><li>Issues </li></ul><ul><li>Summary </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  6. 6. <ul><li>“ Software versioning is the process of assigning either unique version names or unique version numbers to unique states of computer software.” </li></ul><ul><li>Versioning is relative though… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  7. 7. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  8. 8. <ul><li>Versioning is a marketing thing… </li></ul><ul><li>User’s don’t really care about versions… </li></ul><ul><li>Users just want to know if the version of the software they are running is current… </li></ul><ul><li>e.g., Ubuntu </li></ul><ul><ul><li>Feisty Fawn – 7.04 </li></ul></ul><ul><ul><li>Gutsy Gibbon – 7.10 </li></ul></ul><ul><ul><li>Hardy Heron – 8.04 </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  9. 9. <ul><li>Version numbers are like dog tags * </li></ul><ul><li>Primarily used in an event of emergency… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 * http://www.codinghorror.com/blog/archives/000793.html
  10. 10. <ul><li>Dependencies are defined on the module and package level </li></ul><ul><ul><li>Import-Package </li></ul></ul><ul><ul><li>Require-Bundle </li></ul></ul><ul><li>Ranges allow for flexibility </li></ul><ul><ul><li>Import-Package: org.easymock;version=[2.4.0,3.0.0) </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  11. 11. <ul><li>major.minor.micro.qualifier </li></ul><ul><ul><li>major – An incompatible update; breaking API </li></ul></ul><ul><ul><li>minor – A backward compatible update; API stable </li></ul></ul><ul><ul><li>micro – A bug fix; no API changes </li></ul></ul><ul><ul><li>qualifier – build date; lexigraphic </li></ul></ul><ul><li>Versions should encode compatibility* at the bundle and package level </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 *http://wiki.eclipse.org/Version_Numbering
  12. 12. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 Notice how the version numbers don’t necessarily match the 3.6 release?
  13. 13. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Let’s evolve our GPS API… </li></ul>
  14. 14. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Toast on a plane… we add height… </li></ul>
  15. 15. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Management now wants an altimeter! </li></ul>
  16. 16. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>We broke API, need to fix versions! </li></ul>
  17. 17. <ul><li>Managing versions is important and painful </li></ul><ul><li>At Eclipse, we learned this lesson and have many experiences in dealing with maintaining and evolving API </li></ul><ul><li>Other projects eventually learn the importance of versioning… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  18. 18. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 “ I still believe a an official compatibility statement are in order. It includes a definition of the API and a separate definition of the SPI, and possible a third definition of the Configuration. I bet everyone would back such statement, would clarify the &quot;unbreakable“ parts, and what is &quot;features of your own risk&quot; and so on.”
  19. 19. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 http://commons.apache.org/collections/compatibility.html “ Commons collections 3.0 is binary compatible with version 2.1 and 2.0 except for certain methods on one class. As the release was a major version, this is permitted, however it was unintentional and an error … the chosen solution is to provide a work around by releasing v2.1.1 and v3.1.”
  20. 20. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  21. 21. <ul><li>Users need to understand the contract when using your software… </li></ul><ul><li>Good fences make for good neighbors! </li></ul><ul><li>Binary compatibility is important </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  22. 22. <ul><li>Binary compatibility is important </li></ul><ul><li>Maintaining binary compatibility is complex </li></ul><ul><li>Eclipse puts API on an altar… </li></ul><ul><li>Since Eclipse 3.4, Eclipse uses tools to manage and evolve API… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 *http://java.sun.com/docs/books/jls/second_edition/html/binaryComp.doc.html
  23. 23. <ul><li>Assists developers in API maintenance by reporting API defects such as binary incompatibilities, incorrect bundle version numbers and API usage. </li></ul><ul><li>Let’s revisit the GPS example… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  24. 24. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  25. 25. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Version number problems and quickfixes… </li></ul>
  26. 26. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Let’s unknowingly break API… </li></ul>
  27. 27. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Never break API again unless you want to! </li></ul>
  28. 28. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  29. 29. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 <ul><li>Understand API changes… </li></ul>
  30. 30. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  31. 31. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  32. 32. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  33. 33. <ul><li>Getting proper version ranges correct is difficult if there’s no consistent semantics </li></ul><ul><ul><li>e.g., log4j case… [1.2.0,1.3.0) or [1.2.0,2.0.0) ? </li></ul></ul><ul><li>Not all bundles are versioned properly in repositories </li></ul><ul><li>Tooling doesn’t cover packages yet… </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  34. 34. <ul><li>OSGi versions encode compatibility! </li></ul><ul><li>Don’t treat bundle versions like a marketing number </li></ul><ul><li>Scope your version ranges properly </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  35. 35. <ul><li>Good Practices </li></ul><ul><li>Sample Application </li></ul><ul><li>Unit Testing </li></ul><ul><li>System Testing </li></ul><ul><li>Remaining Issues </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  36. 36. <ul><li>Write your application as POJOs (plain-old-java-objects) </li></ul><ul><ul><li>No Service Trackers! </li></ul></ul><ul><ul><li>Whiteboard Pattern is tricky </li></ul></ul><ul><ul><li>Pay attention to dependencies </li></ul></ul><ul><ul><li>Unit testing depends on getting this right </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  37. 37. <ul><li>Use Junit </li></ul><ul><li>Use mock objects (EasyMock, jMock...) </li></ul><ul><li>Minimize delays </li></ul><ul><li>No human interaction </li></ul><ul><li>Do TDD </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 “… I think that developers who can’t cope with any level of TDD shouldn’t be coding at all…”
  38. 38. <ul><li>Terminology </li></ul><ul><ul><li>Unit under test (UUT) </li></ul></ul><ul><ul><li>Test harness </li></ul></ul><ul><li>Test each POJO on its own (no OSGi) </li></ul><ul><li>Mock each dependency </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  39. 39. log get location OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 Log Emergency Servlet Channel GPS Emergency Monitor Airbag
  40. 40. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 get location Log Emergency Servlet GPS Channel Airbag Mock GPS Mock Channel Emergency Monitor Mock Airbag
  41. 41. <ul><li>Keep the test case in a separate project </li></ul><ul><ul><li>But POJO is not visible </li></ul></ul><ul><ul><li>Solution: </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  42. 42. <ul><li>Dependencies </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  43. 43. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  44. 44. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  45. 45. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  46. 46. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  47. 47. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  48. 48. <ul><li>Test as much of system as possible </li></ul><ul><li>OSGi is present </li></ul><ul><li>Test full system flow </li></ul><ul><li>Test bundles coming and going </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  49. 49. log get location OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0 deploy Log Mock Log Emergency Servlet Channel GPS Emergency Monitor Airbag Mock Airbag Test Case
  50. 50. <ul><li>Normal Plug-in Project </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  51. 51. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  52. 52. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  53. 53. <ul><li>PDE Junit test infrastructure </li></ul><ul><ul><li>uses Equinox extensions </li></ul></ul><ul><li>Declarative Services </li></ul><ul><ul><li>uses OSGi services </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  54. 54. <ul><li>Junit instantiates the test case as usual </li></ul><ul><ul><li>setup() </li></ul></ul><ul><ul><li>testEmergency() </li></ul></ul><ul><li>Problem: no way to obtain: </li></ul><ul><ul><li>bundle context </li></ul></ul><ul><ul><li>mock airbag </li></ul></ul><ul><ul><li>mock log </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  55. 55. <ul><li>Instantiates the test case as a component </li></ul><ul><li>DS dependency injection </li></ul><ul><ul><li>setAirbag(<our mock airbag>) </li></ul></ul><ul><ul><li>setLog(<our mock log>) </li></ul></ul><ul><ul><li>startup() </li></ul></ul><ul><li>Problem: </li></ul><ul><ul><li>This instance is never used by Junit! </li></ul></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  56. 56. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  57. 57. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  58. 58. OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  59. 59. <ul><li>Still very tricky </li></ul><ul><li>Not well-supported by PDE tooling </li></ul><ul><li>Validation by logging is fragile </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0
  60. 60. <ul><li>Get the slides: tinyurl.com/osgiVT </li></ul><ul><li>Get the code: wiki.eclipse.org/Toast </li></ul><ul><li>Get the book: equinoxosgi.org </li></ul>OSGi Versioning and Testing | © Copyright 2009 EclipseSource & Band XI International; made available under EPL v1.0

×
