1. Using The FLaNK Stack for Edge AI
Timothy Spann
Principal DataFlow Field Engineer
Cloudera
@PaasDev

2. 2© 2020 Cloudera, Inc. All rights reserved.

3. © 2020 Cloudera, Inc. All rights reserved. 3
FLaNK Speaker
Who am I?
Principal DataFlow Field Engineer
@PaasDev
DZone Zone Leader and Big Data MVB
Future of Data Meetup Leader
ex-Pivotal Field Engineer
https://github.com/tspannhw https://www.datainmotion.dev/

4. © 2020 Cloudera, Inc. All rights reserved. 4
Welcome to Future of Data - Princeton - Virtual
@PaasDev
https://www.meetup.com/futureofdata-princeton/
From Big Data to AI to Streaming to Containers to
Cloud to Analytics to Cloud Storage to Fast Data to
Machine Learning to Microservices to ...

5. © 2020 Cloudera, Inc. All rights reserved. 5

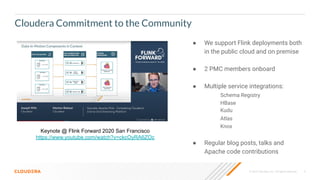

Cloudera Commitment to the Community
Keynote @ Flink Forward 2020 San Francisco
https://www.youtube.com/watch?v=ckcOyRA6ZOc
● We support Flink deployments both
in the public cloud and on premise
● 2 PMC members onboard
● Multiple service integrations:
Schema Registry
HBase
Kudu
Atlas
Knox
● Regular blog posts, talks and
Apache code contributions

6. 6
Analyze
Streaming OLAP Analytics &
Time Series Store Powered
by
Druid & Kudu
Buffer
Apache Kafka
Topics
Ingest Gateway
Powered by Kafka
Distribute
Apache NiFi
Data Flow Apps
Powered by NiFi
Buffer
Apache Kafka
Syndicate
topics
Syndicate Services
Powered by Kafka
Collect
Syndicate
topics
Syndicate Services
Powered by Kafka
Replication /
Data Deployment
Analyze
Streaming Analytics Apps
Stream Processing
Powered by Flink

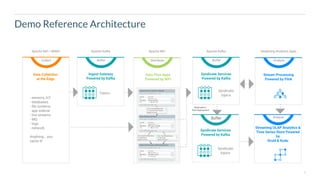

Demo Reference Architecture
Data Collection
at the Edge
Apache NiFi / MiNiFi
- sensors, IoT
- databases
- file systems
- app sidecar
- live streams
- MQ
- logs
- network
Anything… you
name it!

7. © 2020 Cloudera, Inc. All rights reserved. 7

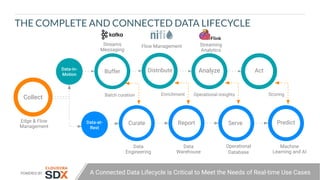

THE COMPLETE AND CONNECTED DATA LIFECYCLE
Collect
Edge & Flow
Management
ActData-in-
Motion
Curate
Data
Engineering
Report
Data
Warehouse
Serve
Operational
Database
Predict
Machine
Learning and AI
Data-at-
Rest
A Connected Data Lifecycle is Critical to Meet the Needs of Real-time Use CasesPOWERED BY
Distribute
Flow Management
Buffer
Streams
Messaging
Analyze
Streaming
Analytics
Enrichment Operational insights ScoringBatch curation

8. © 2020 Cloudera, Inc. All rights reserved. 8
End-to-End Schema and Lineage Management

9. © 2020 Cloudera, Inc. All rights reserved. 9

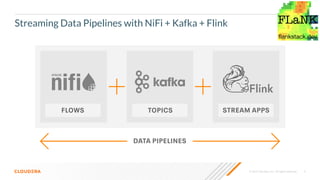

Streaming Data Pipelines with NiFi + Kafka + Flink

10. © 2020 Cloudera, Inc. All rights reserved. 10

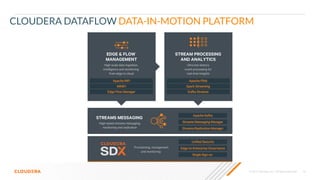

CLOUDERA DATAFLOW DATA-IN-MOTION PLATFORM

11. 11

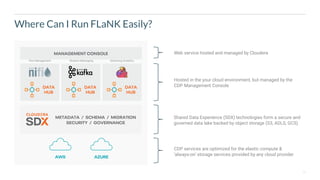

Where Can I Run FLaNK Easily?
CDP services are optimized for the elastic compute &
‘always-on’ storage services provided by any cloud provider
Web service hosted and managed by Cloudera
Hosted in the your cloud environment, but managed by the
CDP Management Console
Shared Data Experience (SDX) technologies form a secure and
governed data lake backed by object storage (S3, ADLS, GCS)
Flow Management Streams Messaging Streaming Analytics

12. 12

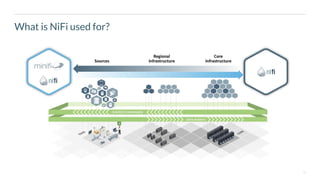

What is NiFi used for?

13. © 2020 Cloudera, Inc. All rights reserved. 13

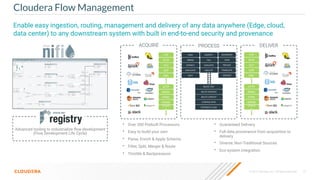

Cloudera Flow Management
Enable easy ingestion, routing, management and delivery of any data anywhere (Edge, cloud,
data center) to any downstream system with built in end-to-end security and provenance
ACQUIRE PROCESS DELIVER
• Over 300 Prebuilt Processors
• Easy to build your own
• Parse, Enrich & Apply Schema
• Filter, Split, Merger & Route
• Throttle & Backpressure
• Guaranteed Delivery
• Full data provenance from acquisition to
delivery
• Diverse, Non-Traditional Sources
• Eco-system integration
Advanced tooling to industrialize flow development
(Flow Development Life Cycle)

14. © 2020 Cloudera, Inc. All rights reserved. 14

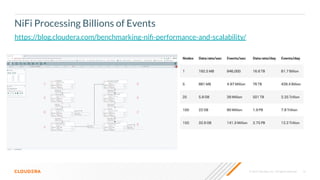

https://blog.cloudera.com/benchmarking-nifi-performance-and-scalability/
NiFi Processing Billions of Events

15. © 2020 Cloudera, Inc. All rights reserved. 15

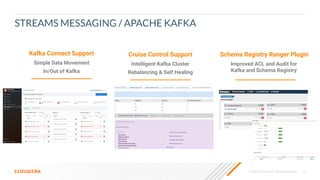

STREAMS MESSAGING / APACHE KAFKA
Kafka Connect Support
Simple Data Movement
In/Out of Kafka
Schema Registry Ranger Plugin
Improved ACL and Audit for
Kafka and Schema Registry
Cruise Control Support
Intelligent Kafka Cluster
Rebalancing & Self Healing

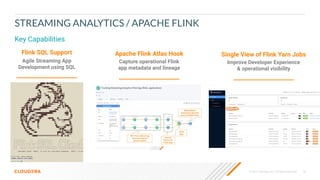

16. © 2020 Cloudera, Inc. All rights reserved. 16
Key Capabilities
STREAMING ANALYTICS / APACHE FLINK
Flink SQL Support
Agile Streaming App
Development using SQL
Apache Flink Atlas Hook
Capture operational Flink
app metadata and lineage
Single View of Flink Yarn Jobs
Improve Developer Experience
& operational visibility

17. Demo

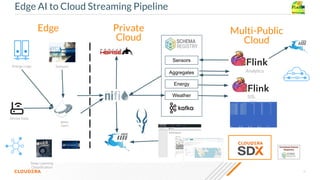

18. 18
Edge AI to Cloud Streaming Pipeline
Device Data
SensorsEnergy Logs
Weather
Sensors
Aggregates
Energy
SQL
Analytics
MiNiFi
Agent
Deep Learning
Classification
Edge Private
Cloud
Multi-Public
Cloud

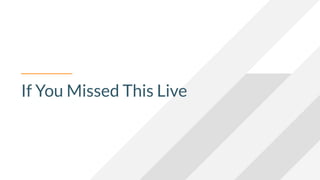

19. If You Missed This Live

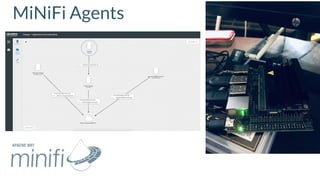

20. MiNiFi Agents

21. © 2020 Cloudera, Inc. All rights reserved. 21

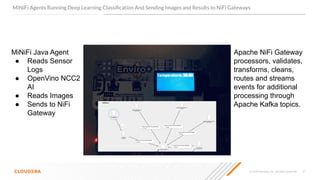

MiNiFi Java Agent
● Reads Sensor
Logs
● OpenVino NCC2
AI
● Reads Images
● Sends to NiFi
Gateway
Apache NiFi Gateway
processors, validates,
transforms, cleans,
routes and streams
events for additional
processing through
Apache Kafka topics.
MiNiFi Agents Running Deep Learning Classification And Sending Images and Results to NiFi Gateways

22. 22© 2020 Cloudera, Inc. All rights reserved.

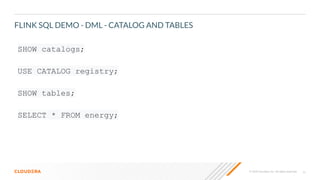

FLINK SQL DEMO - DML - CATALOG AND TABLES
SHOW catalogs;
USE CATALOG registry;
SHOW tables;
SELECT * FROM energy;

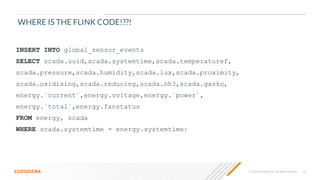

23. © 2020 Cloudera, Inc. All rights reserved. 23
INSERT INTO global_sensor_events
SELECT scada.uuid,scada.systemtime,scada.temperaturef,
scada.pressure,scada.humidity,scada.lux,scada.proximity,
scada.oxidising,scada.reducing,scada.nh3,scada.gasko,
energy.`current`,energy.voltage,energy.`power`,
energy.`total`,energy.fanstatus
FROM energy, scada
WHERE scada.systemtime = energy.systemtime;
WHERE IS THE FLINK CODE!??!

24. 24© 2020 Cloudera, Inc. All rights reserved.

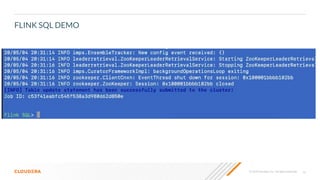

FLINK SQL DEMO

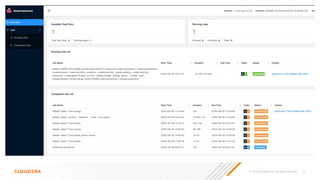

25. 25© 2020 Cloudera, Inc. All rights reserved.

26. 26© 2020 Cloudera, Inc. All rights reserved.

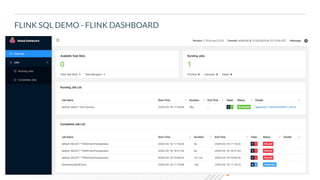

FLINK SQL DEMO - FLINK DASHBOARD

27. 27© 2020 Cloudera, Inc. All rights reserved.

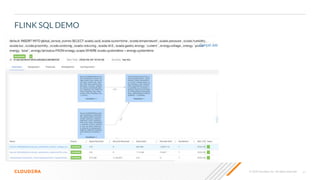

FLINK SQL DEMO

28. 28© 2020 Cloudera, Inc. All rights reserved.

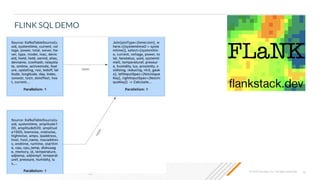

FLINK SQL DEMO

29. © 2020 Cloudera, Inc. All rights reserved. 29
{"uuid": "rpi4_uuid_jfx_20200826203733", "amplitude100": 1.2, "amplitude500": 0.6, "amplitude1000": 0.3, "lownoise": 0.6,
"midnoise": 0.2, "highnoise": 0.2, "amps": 0.3, "ipaddress": "192.168.1.76", "host": "rp4", "host_name": "rp4", "macaddress":
"6e:37:12:08:63:e1", "systemtime": "08/26/2020 16:37:34", "endtime": "1598474254.75", "runtime": "28179.03", "starttime":
"08/26/2020 08:47:54", "cpu": 48.3, "cpu_temp": "72.0", "diskusage": "40219.3 MB", "memory": 24.3, "id":
"20200826203733_28ce9520-6832-4f80-b17d-f36c21fd8fc9", "temperature": "47.2", "adjtemp": "35.8", "adjtempf": "76.4",
"temperaturef": "97.0", "pressure": 1010.0, "humidity": 8.3, "lux": 67.4, "proximity": 0, "oxidising": 77.9, "reducing": 184.6, "nh3":
144.7, "gasKO": "Oxidising: 77913.04 OhmsnReducing: 184625.00 OhmsnNH3: 144651.47 Ohms"}
SHOW ME THE DATA

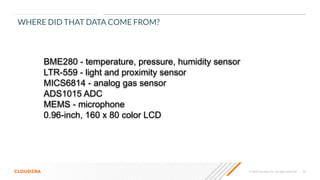

30. © 2020 Cloudera, Inc. All rights reserved. 30
BME280 - temperature, pressure, humidity sensor
LTR-559 - light and proximity sensor
MICS6814 - analog gas sensor
ADS1015 ADC
MEMS - microphone
0.96-inch, 160 x 80 color LCD
WHERE DID THAT DATA COME FROM?

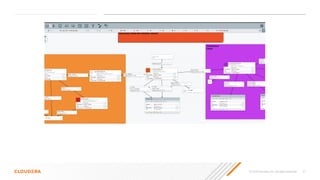

31. © 2020 Cloudera, Inc. All rights reserved. 31

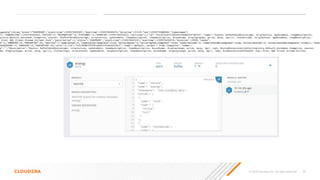

32. © 2020 Cloudera, Inc. All rights reserved. 32

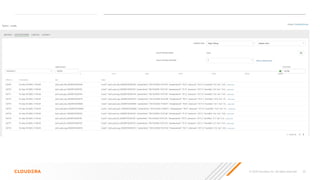

33. © 2020 Cloudera, Inc. All rights reserved. 33

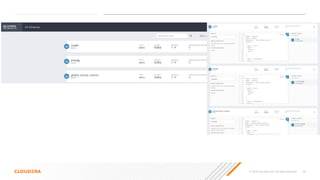

34. © 2020 Cloudera, Inc. All rights reserved. 34

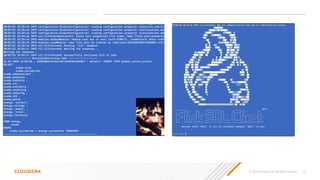

35. © 2020 Cloudera, Inc. All rights reserved. 35

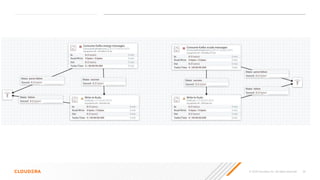

36. © 2020 Cloudera, Inc. All rights reserved. 36

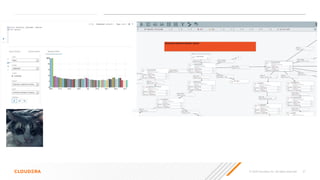

37. © 2020 Cloudera, Inc. All rights reserved. 37

38. Learn More

39. 39© 2020 Cloudera, Inc. All rights reserved.

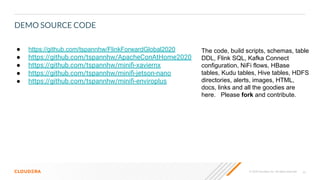

DEMO SOURCE CODE
● https://github.com/tspannhw/FlinkForwardGlobal2020
● https://github.com/tspannhw/ApacheConAtHome2020
● https://github.com/tspannhw/minifi-xaviernx
● https://github.com/tspannhw/minifi-jetson-nano
● https://github.com/tspannhw/minifi-enviroplus
The code, build scripts, schemas, table
DDL, Flink SQL, Kafka Connect
configuration, NiFi flows, HBase
tables, Kudu tables, Hive tables, HDFS
directories, alerts, images, HTML,
docs, links and all the goodies are
here. Please fork and contribute.

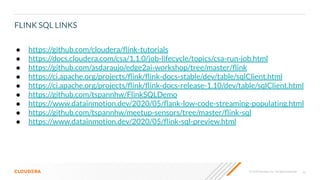

40. 40© 2020 Cloudera, Inc. All rights reserved.
FLINK SQL LINKS
● https://github.com/cloudera/flink-tutorials
● https://docs.cloudera.com/csa/1.1.0/job-lifecycle/topics/csa-run-job.html
● https://github.com/asdaraujo/edge2ai-workshop/tree/master/flink
● https://ci.apache.org/projects/flink/flink-docs-stable/dev/table/sqlClient.html
● https://ci.apache.org/projects/flink/flink-docs-release-1.10/dev/table/sqlClient.html
● https://github.com/tspannhw/FlinkSQLDemo
● https://www.datainmotion.dev/2020/05/flank-low-code-streaming-populating.html
● https://github.com/tspannhw/meetup-sensors/tree/master/flink-sql
● https://www.datainmotion.dev/2020/05/flink-sql-preview.html

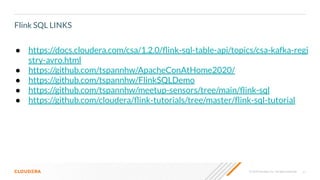

41. 41© 2020 Cloudera, Inc. All rights reserved.
Flink SQL LINKS
● https://docs.cloudera.com/csa/1.2.0/flink-sql-table-api/topics/csa-kafka-regi
stry-avro.html
● https://github.com/tspannhw/ApacheConAtHome2020/
● https://github.com/tspannhw/FlinkSQLDemo
● https://github.com/tspannhw/meetup-sensors/tree/main/flink-sql
● https://github.com/cloudera/flink-tutorials/tree/master/flink-sql-tutorial

42. © 2020 Cloudera, Inc. All rights reserved. 42
TH N Y U
