The Dream Stream Team for Pulsar and Spring

The Dream
Stream Team for
Pulsar & Spring
Tim Spann | Developer Advocate

Tim Spann
Developer Advocate
● FLiP(N) Stack = Flink, Pulsar and NiFi Stack
● Streaming Systems/ Data Architect
● Experience:
○ 15+ years of experience with batch and streaming
technologies including Pulsar, Flink, Spark, NiFi, Spring,
Java, Big Data, Cloud, MXNet, Hadoop, Datalakes, IoT
and more.

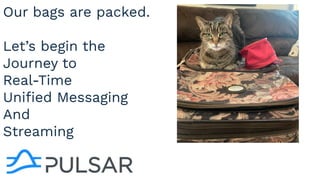

Our bags are packed.
Let’s begin the
Journey to
Real-Time
Uniﬁed Messaging
And
Streaming

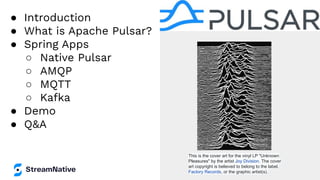

● Introduction
● What is Apache Pulsar?
● Spring Apps
○ Native Pulsar
○ AMQP
○ MQTT
○ Kafka
● Demo
● Q&A
This is the cover art for the vinyl LP "Unknown
Pleasures" by the artist Joy Division. The cover
art copyright is believed to belong to the label,
Factory Records, or the graphic artist(s).

101
Uniﬁed
Messaging
Platform
Guaranteed
Message
Delivery
Resiliency Inﬁnite
Scalability

Streaming
Consumer
Consumer
Consumer
Subscription
Shared
Failover
Consumer
Consumer
Subscription
In case of failure in
Consumer B-0
Consumer
Consumer
Subscription
Exclusive
X
Consumer
Consumer
Key-Shared
Subscription
Pulsar
Topic/Partition
Messaging

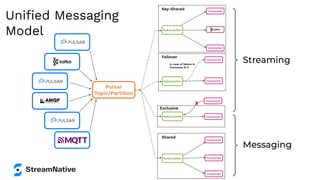

Uniﬁed Messaging
Model

Tenants / Namespaces / Topics
Tenants
(Compliance)
Tenants
(Data Services)
Namespace
(Microservices)
Topic-1
(Cust Auth)
Topic-1
(Location Resolution)
Topic-2
(Demographics)
Topic-1
(Budgeted Spend)
Topic-1
(Acct History)
Topic-1
(Risk Detection)
Namespace
(ETL)
Namespace
(Campaigns)
Namespace
(ETL)
Tenants
(Marketing)
Namespace
(Risk Assessment)
Pulsar Instance
Pulsar Cluster

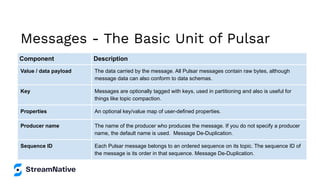

Component Description
Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although
message data can also conform to data schemas.
Key Messages are optionally tagged with keys, used in partitioning and also is useful for
things like topic compaction.
Properties An optional key/value map of user-defined properties.
Producer name The name of the producer who produces the message. If you do not specify a producer
name, the default name is used. Message De-Duplication.
Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of
the message is its order in that sequence. Message De-Duplication.
Messages - The Basic Unit of Pulsar

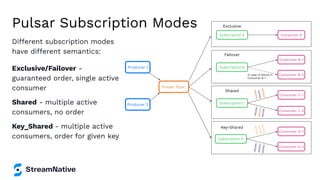

Pulsar Subscription Modes
Different subscription modes
have different semantics:
Exclusive/Failover -
guaranteed order, single active
consumer
Shared - multiple active
consumers, no order
Key_Shared - multiple active
consumers, order for given key
Producer 1
Producer 2
Pulsar Topic
Subscription D
Consumer D-1
Consumer D-2
Key-Shared
<
K
1,
V
10
>
<
K
1,
V
11
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
2
,V
2
1>
<
K
2
,V
2
2
>
Subscription C
Consumer C-1
Consumer C-2
Shared
<
K
1,
V
10
>
<
K
2,
V
21
>
<
K
1,
V
12
>
<
K
2
,V
2
0
>
<
K
1,
V
11
>
<
K
2
,V
2
2
>
Subscription A Consumer A
Exclusive
Subscription B
Consumer B-1
Consumer B-2
In case of failure in
Consumer B-1
Failover

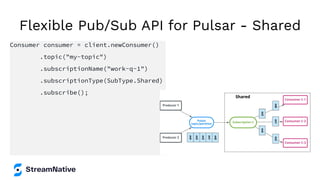

Flexible Pub/Sub API for Pulsar - Shared
Consumer consumer = client.newConsumer()
.topic("my-topic")
.subscriptionName("work-q-1")
.subscriptionType(SubType.Shared)
.subscribe();

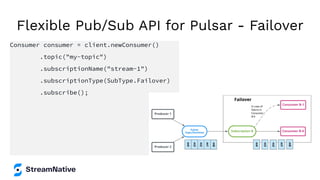

Flexible Pub/Sub API for Pulsar - Failover
Consumer consumer = client.newConsumer()
.topic("my-topic")
.subscriptionName("stream-1")
.subscriptionType(SubType.Failover)
.subscribe();

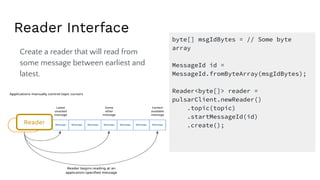

Reader Interface
byte[] msgIdBytes = // Some byte
array
MessageId id =
MessageId.fromByteArray(msgIdBytes);
Reader<byte[]> reader =
pulsarClient.newReader()
.topic(topic)
.startMessageId(id)
.create();
Create a reader that will read from
some message between earliest and
latest.
Reader

Connectivity
• Libraries - (Java, Python, Go, NodeJS,
WebSockets, C++, C#, Scala, Kotlin,...)
• Functions - Lightweight Stream
Processing (Java, Python, Go)
• Connectors - Sources & Sinks
(Cassandra, Kafka, …)

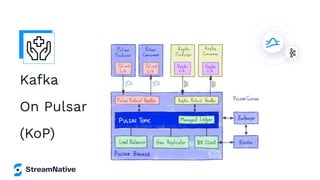

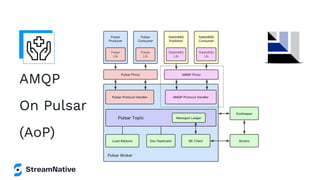

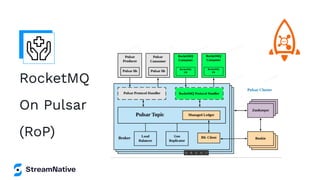

• Protocol Handlers - AoP (AMQP), KoP
(Kafka), MoP (MQTT), RoP (RocketMQ)
• Processing Engines - Flink, Spark,
Presto/Trino via Pulsar SQL
• Data Ofﬂoaders - Tiered Storage - (S3)
hub.streamnative.io

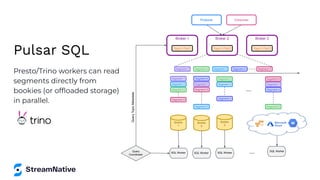

Pulsar SQL
Presto/Trino workers can read
segments directly from
bookies (or ofﬂoaded storage)
in parallel.
Bookie
1
Segment 1
Producer Consumer
Broker 1
Topic1-Part1
Broker 2
Topic1-Part2
Broker 3
Topic1-Part3
Segment 2 Segment 3 Segment 4 Segment X
Segment 1
Segment 1 Segment 1
Segment 3 Segment 3
Segment 3
Segment 2
Segment 2
Segment 2
Segment 4
Segment 4
Segment 4
Segment X
Segment X
Segment X
Bookie
2
Bookie
3
Query
Coordinator
...
...
SQL Worker SQL Worker SQL Worker
SQL Worker
Query
Topic
Metadata

Schema Registry
Schema Registry
schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3
(value=Avro/Protobuf/JSON)
Schema
Data
ID
Local Cache
for Schemas
+
Schema
Data
ID +
Local Cache
for Schemas
Send schema-1
(value=Avro/Protobuf/JSON) data
serialized per schema ID
Send (register)
schema (if not in
local cache)
Read schema-1
(value=Avro/Protobuf/JSON) data
deserialized per schema ID
Get schema by ID (if
not in local cache)
Producers Consumers

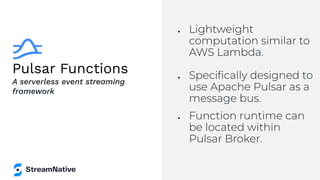

Pulsar Functions
● Lightweight
computation similar to
AWS Lambda.
● Speciﬁcally designed to
use Apache Pulsar as a
message bus.
● Function runtime can
be located within
Pulsar Broker.
A serverless event streaming
framework

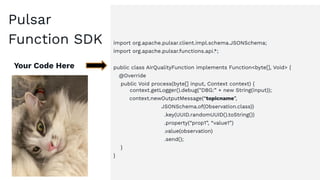

import org.apache.pulsar.client.impl.schema.JSONSchema;
import org.apache.pulsar.functions.api.*;
public class AirQualityFunction implements Function<byte[], Void> {
@Override
public Void process(byte[] input, Context context) {
context.getLogger().debug("DBG:” + new String(input));
context.newOutputMessage(“topicname”,
JSONSchema.of(Observation.class))
.key(UUID.randomUUID().toString())
.property(“prop1”, “value1”)
.value(observation)
.send();
}
}
Your Code Here
Pulsar
Function SDK

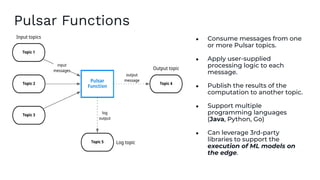

● Consume messages from one
or more Pulsar topics.
● Apply user-supplied
processing logic to each
message.
● Publish the results of the
computation to another topic.
● Support multiple
programming languages
(Java, Python, Go)
● Can leverage 3rd-party
libraries to support the
execution of ML models on
the edge.
Pulsar Functions

You can start really
small!
● A Docker container
● A Standalone Node
● Small MiniKube Pods
● Free Tier SN Cloud

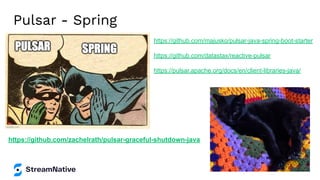

Pulsar - Spring
https://github.com/majusko/pulsar-java-spring-boot-starter
https://github.com/datastax/reactive-pulsar
https://pulsar.apache.org/docs/en/client-libraries-java/
https://github.com/zachelrath/pulsar-graceful-shutdown-java

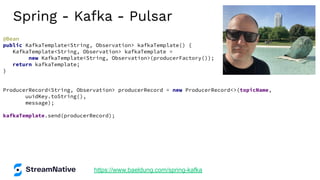

Spring - Kafka - Pulsar
https://www.baeldung.com/spring-kafka
@Bean
public KafkaTemplate<String, Observation> kafkaTemplate() {
KafkaTemplate<String, Observation> kafkaTemplate =
new KafkaTemplate<String, Observation>(producerFactory());
return kafkaTemplate;
}
ProducerRecord<String, Observation> producerRecord = new ProducerRecord<>(topicName,
uuidKey.toString(),
message);
kafkaTemplate.send(producerRecord);

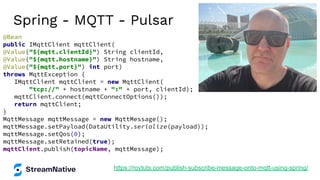

Spring - MQTT - Pulsar
https://roytuts.com/publish-subscribe-message-onto-mqtt-using-spring/
@Bean
public IMqttClient mqttClient(
@Value("${mqtt.clientId}") String clientId,
@Value("${mqtt.hostname}") String hostname,
@Value("${mqtt.port}") int port)
throws MqttException {
IMqttClient mqttClient = new MqttClient(
"tcp://" + hostname + ":" + port, clientId);
mqttClient.connect(mqttConnectOptions());
return mqttClient;
}
MqttMessage mqttMessage = new MqttMessage();
mqttMessage.setPayload(DataUtility.serialize(payload));
mqttMessage.setQos(0);
mqttMessage.setRetained(true);
mqttClient.publish(topicName, mqttMessage);

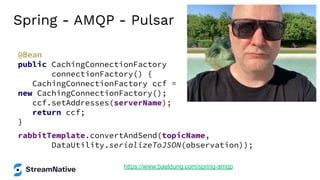

Spring - AMQP - Pulsar
https://www.baeldung.com/spring-amqp
rabbitTemplate.convertAndSend(topicName,
DataUtility.serializeToJSON(observation));
@Bean
public CachingConnectionFactory
connectionFactory() {
CachingConnectionFactory ccf =
new CachingConnectionFactory();
ccf.setAddresses(serverName);
return ccf;
}

Spring - Websockets - Pulsar
https://www.baeldung.com/websockets-spring
https://docs.streamnative.io/cloud/stable/connect/client/connect-websocket

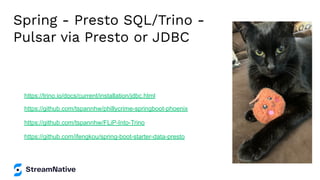

Spring - Presto SQL/Trino -
Pulsar via Presto or JDBC
https://github.com/ifengkou/spring-boot-starter-data-presto
https://github.com/tspannhw/phillycrime-springboot-phoenix
https://github.com/tspannhw/FLiP-Into-Trino
https://trino.io/docs/current/installation/jdbc.html

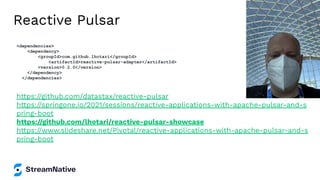

Reactive Pulsar
https://github.com/datastax/reactive-pulsar
https://springone.io/2021/sessions/reactive-applications-with-apache-pulsar-and-s
pring-boot
https://github.com/lhotari/reactive-pulsar-showcase
https://www.slideshare.net/Pivotal/reactive-applications-with-apache-pulsar-and-s
pring-boot
<dependencies>
<dependency>
<groupId>com.github.lhotari</groupId>
<artifactId>reactive-pulsar-adapter</artifactId>
<version>0.2.0</version>
</dependency>
</dependencies>

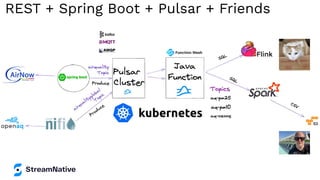

REST + Spring Boot + Pulsar + Friends

StreamNative Hub
StreamNative Cloud
Uniﬁed Batch and Stream STORAGE
Offload
(Queuing + Streaming)
Apache Pulsar - Spring <-> Events <-> Spring <-> Anywhere
Tiered Storage
Pulsar
---
KoP
---
MoP
---
AoP
---
Websocket
Pulsar
Sink
Pulsar
Sink
Data Apps
Protocols
Data Driven Apps
Micro
Service

Let’s Keep
in Touch!
Tim Spann
Developer Advocate
@PaaSDev
https://www.linkedin.com/in/timothyspann
https://github.com/tspannhw

Apache Pulsar Training
● Instructor-led courses
○ Pulsar Fundamentals
○ Pulsar Developers
○ Pulsar Operations
● On-demand learning with labs
● 300+ engineers, admins and
architects trained!
StreamNative Academy
Now Available
On-Demand
Pulsar Training
Academy.StreamNative.io

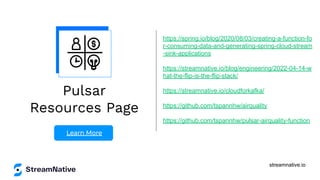

streamnative.io
Pulsar
Resources Page
Learn More
https://spring.io/blog/2020/08/03/creating-a-function-fo
r-consuming-data-and-generating-spring-cloud-stream
-sink-applications
https://streamnative.io/blog/engineering/2022-04-14-w
hat-the-flip-is-the-flip-stack/
https://streamnative.io/cloudforkafka/
https://github.com/tspannhw/airquality
https://github.com/tspannhw/pulsar-airquality-function

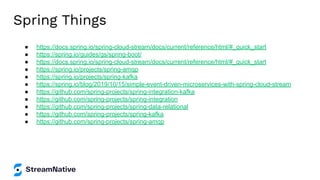

Spring Things
● https://docs.spring.io/spring-cloud-stream/docs/current/reference/html/#_quick_start
● https://spring.io/guides/gs/spring-boot/
● https://docs.spring.io/spring-cloud-stream/docs/current/reference/html/#_quick_start
● https://spring.io/projects/spring-amqp
● https://spring.io/projects/spring-kafka
● https://spring.io/blog/2019/10/15/simple-event-driven-microservices-with-spring-cloud-stream
● https://github.com/spring-projects/spring-integration-kafka
● https://github.com/spring-projects/spring-integration
● https://github.com/spring-projects/spring-data-relational
● https://github.com/spring-projects/spring-kafka
● https://github.com/spring-projects/spring-amqp

FLiP Stack Weekly
This week in Apache Flink, Apache Pulsar, Apache
NiFi, Apache Spark, Java and Open Source friends.
https://bit.ly/32dAJft

● Buffer
● Batch
● Route
● Filter
● Aggregate
● Enrich
● Replicate
● Dedupe
● Decouple
● Distribute

streamnative.io
Passionate and dedicated team.
Founded by the original developers of
Apache Pulsar.
StreamNative helps teams to capture,
manage, and leverage data using Pulsar’s
uniﬁed messaging and streaming
platform.

Founded By The
Creators Of Apache Pulsar
Sijie Guo
ASF Member
Pulsar/BookKeeper PMC
Founder and CEO
Jia Zhai
Co-Founder
Matteo Merli
ASF Member
CTO
Data veterans with extensive industry experience

Notices
Apache Pulsar™
Apache®, Apache Pulsar™, Pulsar™, Apache Flink®, Flink®, Apache Spark®, Spark®, Apache
NiFi®, NiFi® and the logo are either registered trademarks or trademarks of the Apache
Software Foundation in the United States and/or other countries. No endorsement by The
Apache Software Foundation is implied by the use of these marks.
Copyright © 2021-2022 The Apache Software Foundation. All Rights Reserved. Apache,
Apache Pulsar and the Apache feather logo are trademarks of The Apache Software
Foundation.

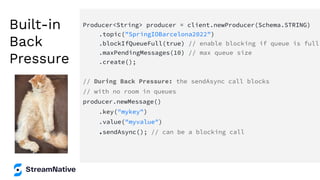

Built-in
Back
Pressure
Producer<String> producer = client.newProducer(Schema.STRING)
.topic("SpringIOBarcelona2022")
.blockIfQueueFull(true) // enable blocking if queue is full
.maxPendingMessages(10) // max queue size
.create();
// During Back Pressure: the sendAsync call blocks
// with no room in queues
producer.newMessage()
.key("mykey")
.value("myvalue")
.sendAsync(); // can be a blocking call

Producing Object Events From Java
ProducerBuilder<Observation> producerBuilder =
pulsarClient.newProducer(JSONSchema.of(Observation.class))
.topic(topicName)
.producerName(producerName).sendTimeout(60,
TimeUnit.SECONDS);
Producer<Observation> producer = producerBuilder.create();
msgID = producer.newMessage()
.key(someUniqueKey)
.value(observation)
.send();

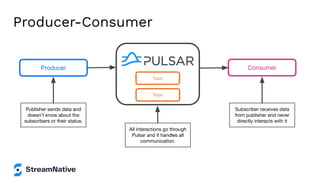

Producer-Consumer
Producer Consumer
Publisher sends data and
doesn't know about the
subscribers or their status.
All interactions go through
Pulsar and it handles all
communication.
Subscriber receives data
from publisher and never
directly interacts with it
Topic
Topic

Apache Pulsar: Messaging vs Streaming
Message Queueing - Queueing
systems are ideal for work queues
that do not require tasks to be
performed in a particular order.
Streaming - Streaming works
best in situations where the
order of messages is important.

56

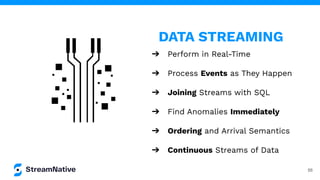

➔ Perform in Real-Time
➔ Process Events as They Happen
➔ Joining Streams with SQL
➔ Find Anomalies Immediately
➔ Ordering and Arrival Semantics
➔ Continuous Streams of Data
DATA STREAMING

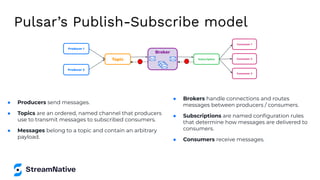

Pulsar’s Publish-Subscribe model
Broker
Subscription
Consumer 1
Consumer 2
Consumer 3
Topic
Producer 1
Producer 2
● Producers send messages.
● Topics are an ordered, named channel that producers
use to transmit messages to subscribed consumers.
● Messages belong to a topic and contain an arbitrary
payload.
● Brokers handle connections and routes
messages between producers / consumers.
● Subscriptions are named conﬁguration rules
that determine how messages are delivered to
consumers.
● Consumers receive messages.

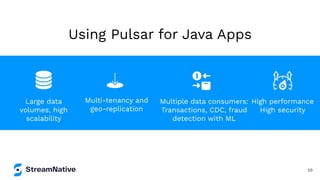

Using Pulsar for Java Apps
58
High performance
High security
Multiple data consumers:
Transactions, CDC, fraud
detection with ML
Large data
volumes, high
scalability
Multi-tenancy and
geo-replication

streamnative.io
Accessing historical as well as real-time data
Pub/sub model enables event streams to be sent from
multiple producers, and consumed by multiple consumers
To process large amounts of data in a highly scalable way

streamnative.io
Sensors <->
Streaming Java Apps
StreamNative Hub
StreamNative Cloud
Uniﬁed Batch and Stream COMPUTING
Batch
(Batch + Stream)
Offload
Tiered Storage
Pulsar
---
KoP
---
MoP
---
Websocket
Pulsar
Sink
Streaming
Edge Gateway
Protocols
<-> Sensors <->
Apps

streamnative.io
StreamNative Hub
StreamNative Cloud
Uniﬁed Batch and Stream COMPUTING
Batch
(Batch + Stream)
Offload
Apache Flink - Apache Pulsar - Apache NiFi <-> Devices
Tiered Storage
Pulsar
---
KoP
---
MoP
---
Websocket
---
HTTP
Pulsar
Sink
Streaming
Edge Gateway
Protocols
End-to-End Streaming Edge App

https://github.com/tspannhw/airquality
https://github.com/tspannhw/FLiPN-AirQuality-REST
https://github.com/tspannhw/pulsar-airquality-function
https://github.com/tspannhw/FLiPN-DEVNEXUS-2022
https://github.com/tspannhw/FLiP-Pi-BreakoutGarden
Source
Code

import java.util.function.Function;
public class MyFunction implements Function<String, String> {
public String apply(String input) {
return doBusinessLogic(input);
}
}
Your Code Here
Pulsar Function
Java

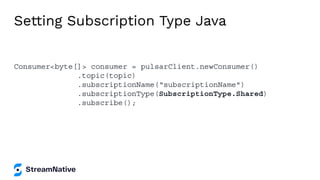

Setting Subscription Type Java
Consumer<byte[]> consumer = pulsarClient.newConsumer()
.topic(topic)
.subscriptionName(“subscriptionName")
.subscriptionType(SubscriptionType.Shared)
.subscribe();

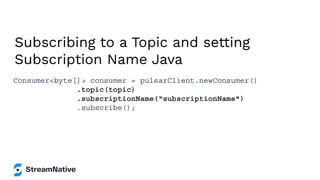

Subscribing to a Topic and setting
Subscription Name Java
Consumer<byte[]> consumer = pulsarClient.newConsumer()
.topic(topic)
.subscriptionName(“subscriptionName")
.subscribe();

Run a Local Standalone Bare Metal
wget
https://archive.apache.org/dist/pulsar/pulsar-2.10.0/apache-pulsar-2.10.0-
bin.tar.gz
tar xvfz apache-pulsar-2.10.0-bin.tar.gz
cd apache-pulsar-2.10.0
bin/pulsar standalone
(For Pulsar SQL Support)
bin/pulsar sql-worker start
https://pulsar.apache.org/docs/en/standalone/

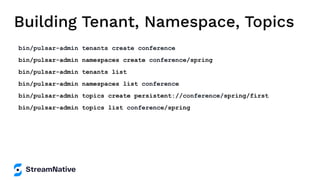

Building Tenant, Namespace, Topics
bin/pulsar-admin tenants create conference
bin/pulsar-admin namespaces create conference/spring
bin/pulsar-admin tenants list
bin/pulsar-admin namespaces list conference
bin/pulsar-admin topics create persistent://conference/spring/first
bin/pulsar-admin topics list conference/spring

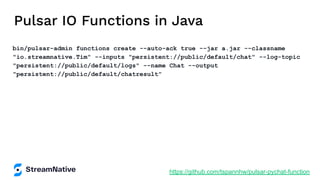

Pulsar IO Functions in Java
bin/pulsar-admin functions create --auto-ack true --jar a.jar --classname
"io.streamnative.Tim" --inputs "persistent://public/default/chat" --log-topic
"persistent://public/default/logs" --name Chat --output
"persistent://public/default/chatresult"
https://github.com/tspannhw/pulsar-pychat-function

Pulsar Producer
import java.util.UUID;
import java.net.URL;
import org.apache.pulsar.client.api.Producer;
import org.apache.pulsar.client.api.ProducerBuilder;
import org.apache.pulsar.client.api.PulsarClient;
import org.apache.pulsar.client.api.MessageId;
import org.apache.pulsar.client.impl.auth.oauth2.AuthenticationFactoryOAuth2;
PulsarClient client = PulsarClient.builder()
.serviceUrl(serviceUrl)
.authentication(
AuthenticationFactoryOAuth2.clientCredentials(
new URL(issuerUrl), new URL(credentialsUrl.), audience))
.build();

Pulsar Simple Producer
String pulsarKey = UUID.randomUUID().toString();
String OS = System.getProperty("os.name").toLowerCase();
ProducerBuilder<byte[]> producerBuilder = client.newProducer().topic(topic)
.producerName("demo");
Producer<byte[]> producer = producerBuilder.create();
MessageId msgID = producer.newMessage().key(pulsarKey).value("msg".getBytes())
.property("device",OS).send();
producer.close();
client.close();

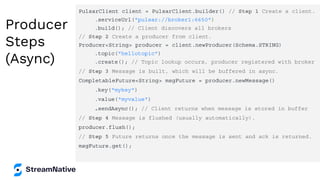

Producer
Steps
(Async)
PulsarClient client = PulsarClient.builder() // Step 1 Create a client.
.serviceUrl("pulsar://broker1:6650")
.build(); // Client discovers all brokers
// Step 2 Create a producer from client.
.topic("hellotopic")
.create(); // Topic lookup occurs, producer registered with broker
// Step 3 Message is built, which will be buffered in async.
CompletableFuture<String> msgFuture = producer.newMessage()
.key("mykey")
.value("myvalue")
.sendAsync(); // Client returns when message is stored in buffer
// Step 4 Message is flushed (usually automatically).
producer.flush();
// Step 5 Future returns once the message is sent and ack is returned.
msgFuture.get();

Producer
Steps
(Sync)
// Step 1 Create a client.
PulsarClient client = PulsarClient.builder()
.serviceUrl("pulsar://broker1:6650")
.build(); // Client discovers all brokers
// Step 2 Create a producer from client.
.topic("persistent://public/default/hellotopic")
.create(); // Topic lookup occurs, producer registered with
broker.
// Step 3 Message is built, which will be sent immediately.
.key("mykey")
.value("myvalue")
.send(); // client waits for send and ack

Fanout, Queueing, or Streaming
In Pulsar, you have ﬂexibility to use different subscription modes.
If you want to... Do this... And use these subscription
modes...
achieve fanout messaging
among consumers
specify a unique subscription name
for each consumer
exclusive (or failover)
achieve message queuing
among consumers
share the same subscription name
among multiple consumers
shared
allow for ordered consumption
(streaming)
distribute work among any number of
consumers
exclusive, failover or key shared

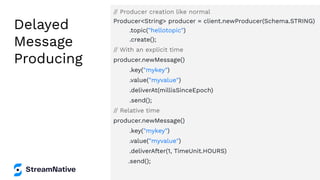

Delayed
Message
Producing
// Producer creation like normal
.topic("hellotopic")
.create();
// With an explicit time
.key("mykey")
.value("myvalue")
.deliverAt(millisSinceEpoch)
.send();
// Relative time
.key("mykey")
.value("myvalue")
.deliverAfter(1, TimeUnit.HOURS)
.send();

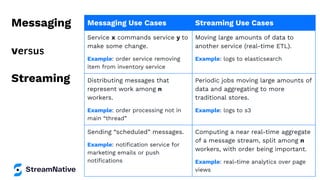

Messaging
versus
Streaming
Messaging Use Cases Streaming Use Cases
Service x commands service y to
make some change.
Example: order service removing
item from inventory service
Moving large amounts of data to
another service (real-time ETL).
Example: logs to elasticsearch
Distributing messages that
represent work among n
workers.
Example: order processing not in
main “thread”
Periodic jobs moving large amounts of
data and aggregating to more
traditional stores.
Example: logs to s3
Sending “scheduled” messages.
Example: notiﬁcation service for
marketing emails or push
notiﬁcations
Computing a near real-time aggregate
of a message stream, split among n
workers, with order being important.
Example: real-time analytics over page
views

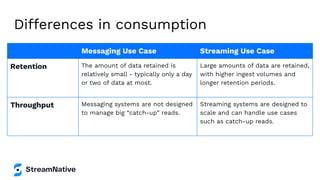

Differences in consumption
Messaging Use Case Streaming Use Case
Retention The amount of data retained is
relatively small - typically only a day
or two of data at most.
Large amounts of data are retained,
with higher ingest volumes and
longer retention periods.
Throughput Messaging systems are not designed
to manage big “catch-up” reads.
Streaming systems are designed to
scale and can handle use cases
such as catch-up reads.

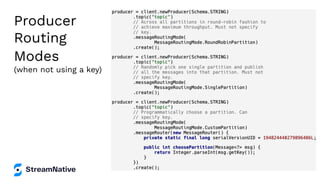

Producer
Routing
Modes
(when not using a key)

### --- Kafka-on-Pulsar KoP (Example from standalone.conf)
messagingProtocols=mqtt,kafka
allowAutoTopicCreationType=partitioned
kafkaListeners=PLAINTEXT://0.0.0.0:9092
brokerEntryMetadataInterceptors=org.apache.pulsar.common.intercept.AppendIndexMetad
ataInterceptor
brokerDeleteInactiveTopicsEnabled=false
kopAllowedNamespaces=true
requestTimeoutMs=60000
groupMaxSessionTimeoutMs=600000
### --- Kafka-on-Pulsar KoP (end)
87

Cleanup
bin/pulsar-admin topics delete persistent://meetup/newjersey/first
bin/pulsar-admin namespaces delete meetup/newjersey
bin/pulsar-admin tenants delete meetup
https://github.com/tspannhw/Meetup-YourFirstEventDrivenApp

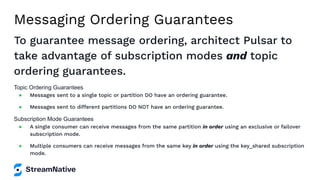

Messaging Ordering Guarantees
To guarantee message ordering, architect Pulsar to
take advantage of subscription modes and topic
ordering guarantees.
Topic Ordering Guarantees
● Messages sent to a single topic or partition DO have an ordering guarantee.
● Messages sent to different partitions DO NOT have an ordering guarantee.
Subscription Mode Guarantees
● A single consumer can receive messages from the same partition in order using an exclusive or failover
subscription mode.
● Multiple consumers can receive messages from the same key in order using the key_shared subscription
mode.

streamnative.io

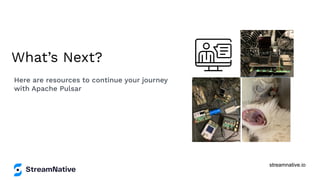

What’s Next?
Here are resources to continue your journey
with Apache Pulsar

The Dream Stream Team for Pulsar and Spring

The Dream Stream Team for Pulsar and Spring

Recommended

More Related Content

What's hot

What's hot(20)

Similar to The Dream Stream Team for Pulsar and Spring

Similar to The Dream Stream Team for Pulsar and Spring(20)

More from Timothy Spann

More from Timothy Spann(20)

Recently uploaded

Recently uploaded(20)

The Dream Stream Team for Pulsar and Spring
