Reactive Applications with akka.Net Anthony Brown @bruinbrown93 me@anthonyjbrown.co.uk
HI, I’m Anthony Software engineer at Adbrain me@anthonyjbrown.co.uk @bruinbrown93
Computers have changed… A lot
Some of the changes Faster processors More processor cores More RAM Faster networks with more bandwidth
We need to make sure applications are responsive to user actions

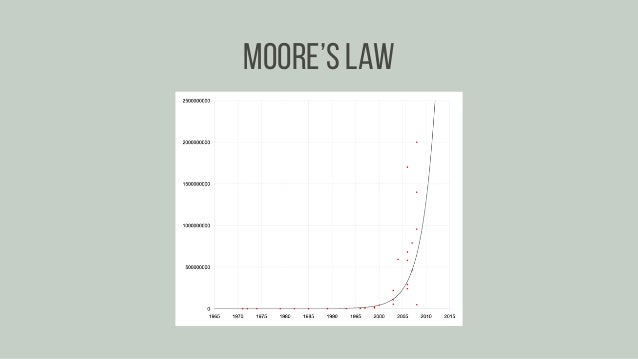

Moore’s Law
Scale up no longer possible
What’s the options?
CPUs have more cores Networks are faster
Scale out is now possible
Scale out relies on doing lots of work simultaneously
To do work simultaneously, we need either parallelism or concurrency
Parallelism is easy for Embarrassingly parallel tasks
For more complex tasks, we need concurrency
Is there a difference?
Concurrency Parallelism Thread 1 Thread 2 Thread 1 Thread 2
Concurrency is hard
MULTITHREADING THEORY PRACTICE
CHECK OUT MY MULTITHREADED CODE
HOW MANY THREADS DOES IT TAKE TO CHANGE A LIGHTBULB?
We don’t want to write multithreaded code
Use concurrency abstractions instead
You’ve probably used one Tasks
There’s another - actors
Why are tasks bad?
They’re not, they solve a different problem
Promote isolation over co- ordination
Actors are independent entities
Why does this matter?
We said we need applications to be responsive
What does it mean for an application to be responsive?

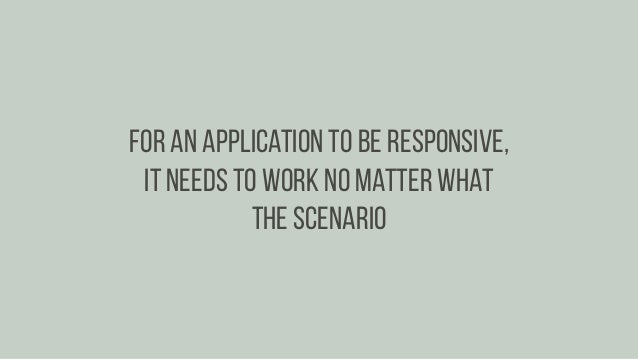

For an application to be responsive, it needs to work no matter what the scenario
Heavy load
Service failure
If we want to manage these, we need loose coupling
Common language for these applications

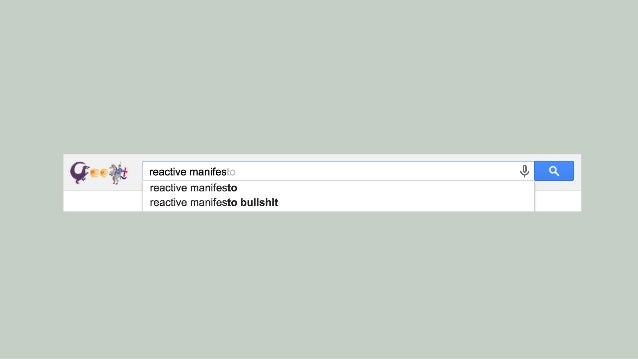

Reactive reactivemanifesto.org

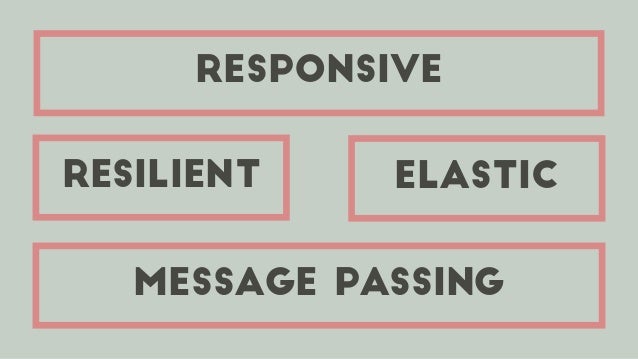

RESPONSIVE RESILIENT ELASTIC MESSAGE PASSING

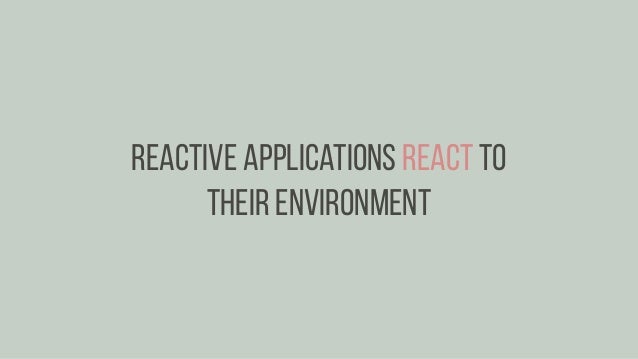

Reactive applications React to their environment
using actors to write reactive applications

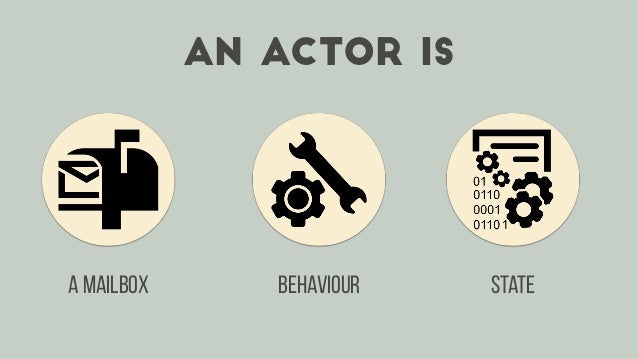

an actor is A mailbox behaviour state

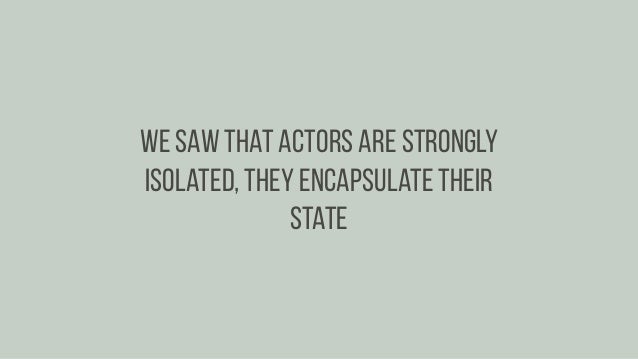

We saw that actors are strongly isolated, they encapsulate their state
To modify the state, we have a behaviour which is responsible for it
We invoke the behaviour by sending it a message
Messages are processed serially but on separate threads
An actor can send a finite number of messages
An actor can spawn a finite number of actors
An actor can change how it responds to the next message
How can we write actors?
Using akka.Net
Step 1 Define an actor
class  GreetingActor  :  ReceiveActor   {          public  GreetingActor()          {   ...
Step 2 Create an actor system

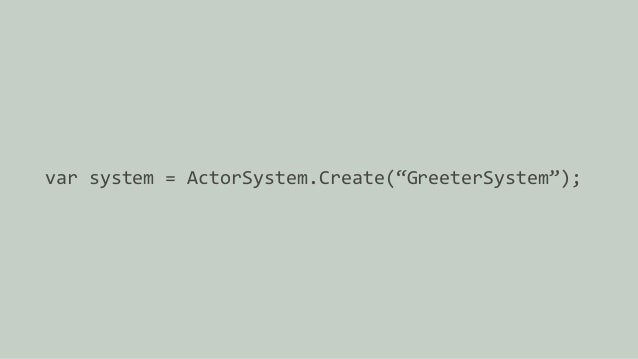

var  system  =  ActorSystem.Create(“GreeterSystem”);
Step 3 Spawn the actor
var  greeterActor  =  system.ActorOf<GreeterActor>();

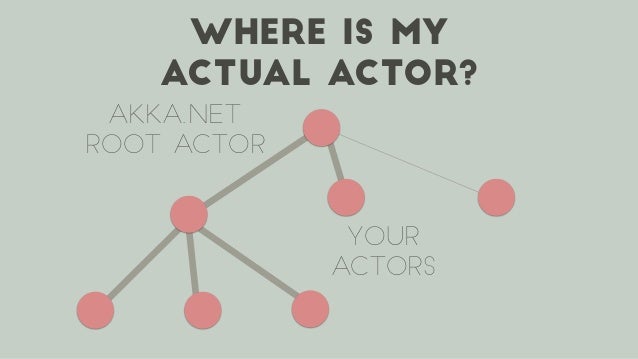

where is my actual actor? AKKA.net root actor your actors
Step 4 Talk to the actor

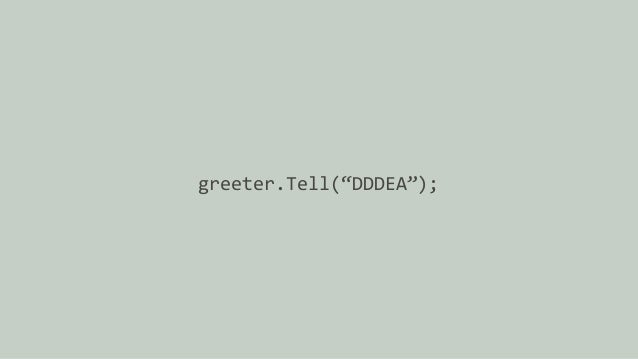

greeter.Tell(“DDDEA”);
What about F#?
Full F# API

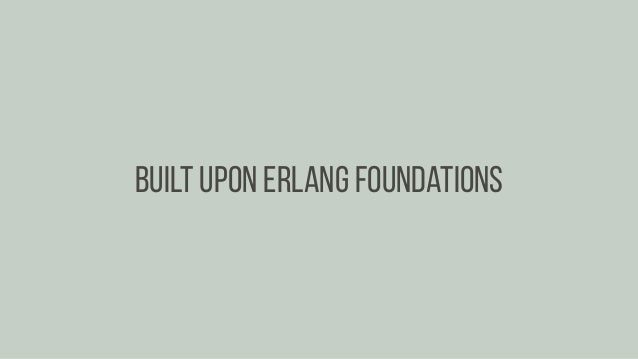

Built upon Erlang foundations

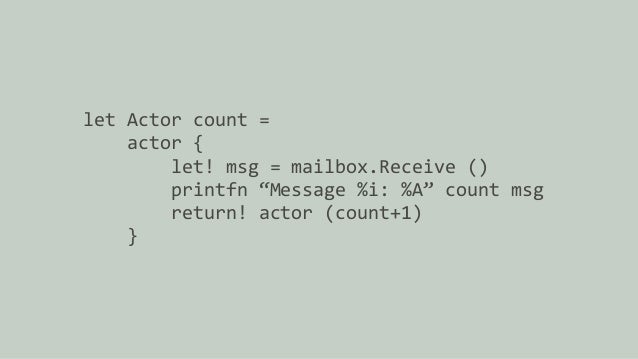

let  Actor  count  =          actor  {                  let!  msg  =  mailbox....
Resilience in distributed systems
Cloud brings about failure

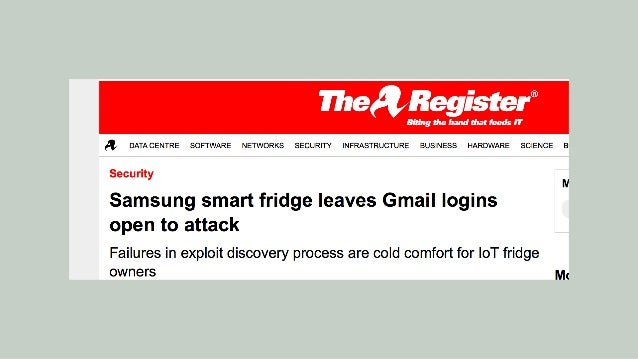

your users don’t want to see THIS
Need to isolate failures quickly and automatically recover from them
How can we isolate errors?
Separate error channels
Service aService B supervisor Request Response user error error action
Handling increased load in a distributed system
Easiest way to scale is to make the servers bigger
Scale up has a limit, scale out doesn't
Scale out is easy with isolation
Actors give us isolation therefore scalability is easy with actors

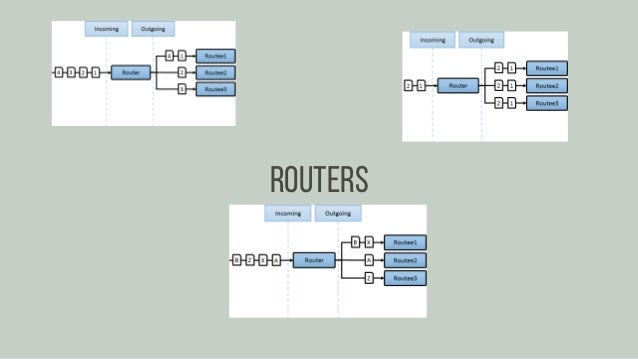

Routers
Taking akka.Net to the next level

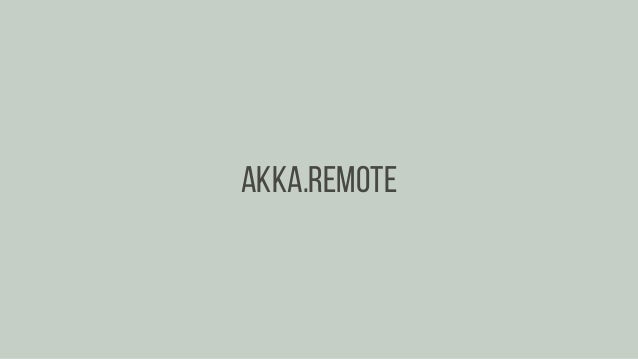

Akka.Remote
Connecting 2 actor systems in a client-server architecture
Akka.Cluster
Takes remoting to the next level
Treat multiple machines as one actor system
Cluster aware routers
Cluster sharding
Akka.Persistence

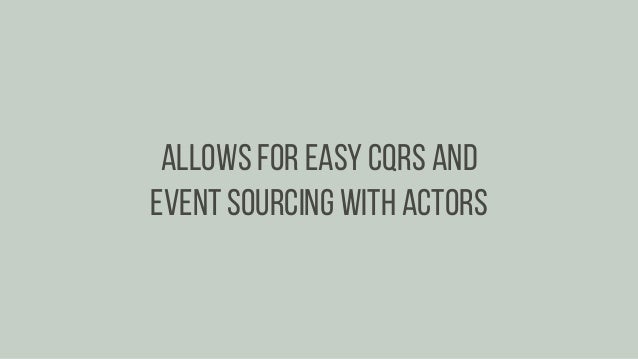

Allows for easy CQRS and Event sourcing with actors
Akka.DistributedData
Allows for sharing data between actors with strong eventual consistency
Where can I use akka.Net?
IoT applications
Job scheduling / cluster management
Gaming
User interfaces

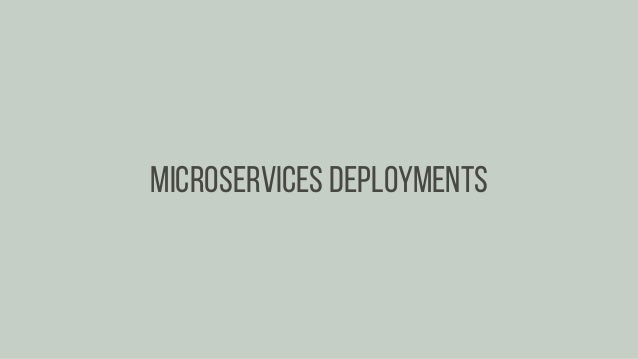

Microservices deployments
akka.Net provides a solid foundation for the stronger constraints being imposed today and in the future
Want to learn more?
akka.Net bootcamp github.com/petabridge/akka-bootcamp
Reactive applications with akka.Net MEAP soon
StackOverflow stackoverflow.com/tags/akka.net
Want to contribute?
Plenty of up for grabs issues github.com/akkadotnet/akka.net
gitter.im/akkadotnet/akka.net
Q & A
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Reactive applications with Akka.Net - DDD East Anglia 2015
Upcoming SlideShare
Loading in …5
×

Reactive applications with Akka.Net - DDD East Anglia 2015

2,618 views

Published on

Application requirements have changed significantly over the past 20 years and we’re now building software which has to handle potentially millions of users and billions of devices. The reactive manifesto is a set of common traits shared by applications capable of handling these new requirements. Akka is the canonical example of a toolkit for building such applications, but thanks to a team of dedicated developers, Akka has arrived on the CLR in the form of Akka.Net. This session looks at the key principles of Akka.Net and how using these you can build applications which handle potentially massive traffic.
