1.
Scaling Workshop
Provisioning and Capacity Planning
Brian Brazil
Founder

2.
Who am I?
Engineer passionate about running software reliably in production.
● TCD CS Degree
● Google SRE for 7 years, working on high-scale reliable systems such as
Adwords, Adsense, Ad Exchange, Billing, Database
● Boxever TL Systems&Infrastructure, applied processes and technology to let
allow company to scale and reduce operational load
● Contributor to many open source projects, including Prometheus, Ansible,
Python, Aurora and Zookeeper.
● Founder of Robust Perception, making scalability and efficiency available to
everyone

3.

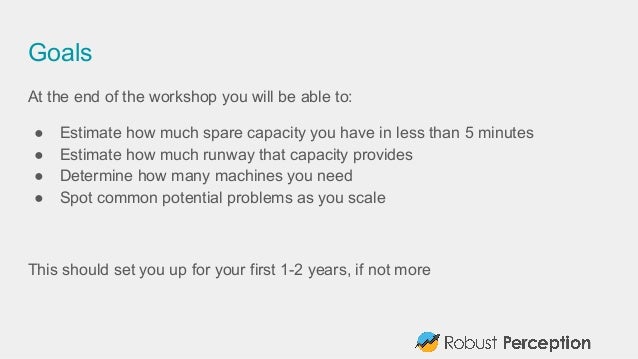

Goals
At the end of the workshop you will be able to:
● Estimate how much spare capacity you have in less than 5 minutes
● Estimate how much runway that capacity provides
● Determine how many machines you need
● Spot common potential problems as you scale
This should set you up for your first 1-2 years, if not more

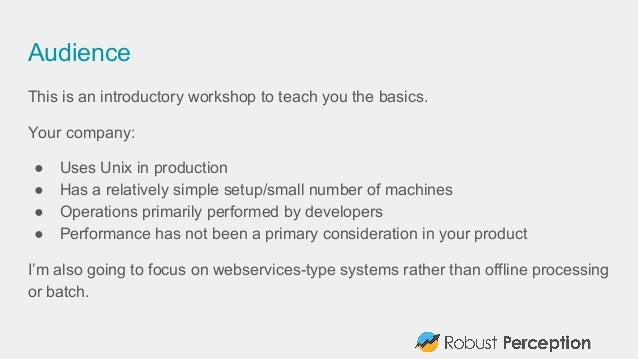

4.
Audience
This is an introductory workshop to teach you the basics.
Your company:
● Uses Unix in production
● Has a relatively simple setup/small number of machines
● Operations primarily performed by developers
● Performance has not been a primary consideration in your product
I’m also going to focus on webservices-type systems rather than offline processing
or batch.

5.
Capacity

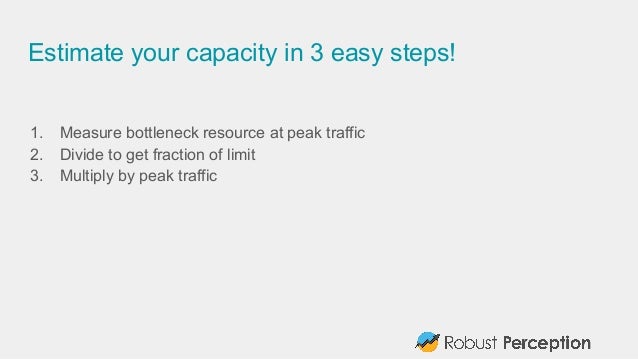

6.
Estimate your capacity in 3 easy steps!
1. Measure bottleneck resource at peak traffic
2. Divide to get fraction of limit
3. Multiply by peak traffic

7.

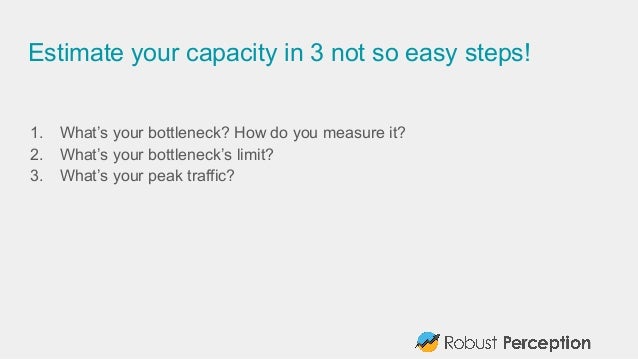

Estimate your capacity in 3 not so easy steps!
1. What’s your bottleneck? How do you measure it?
2. What’s your bottleneck’s limit?
3. What’s your peak traffic?

8.
Step 1: What’s the bottleneck?
The most common bottlenecks:
1. CPU
2. Disk I/O
Less common: network, disk space, external resources, quotas, hardcoded limits,
contention/locking, memory, file descriptors, port numbers, humans

9.

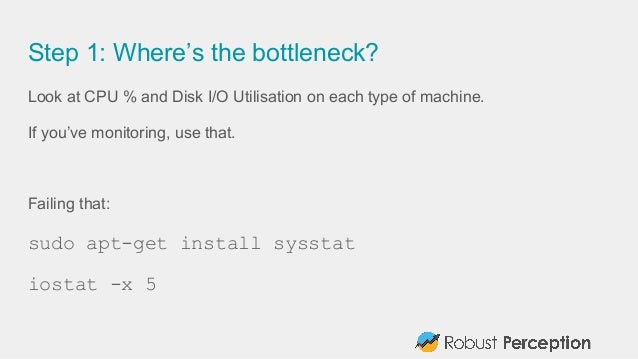

Step 1: Where’s the bottleneck?
Look at CPU % and Disk I/O Utilisation on each type of machine.
If you’ve monitoring, use that.
Failing that:
sudo apt-get install sysstat
iostat -x 5

10.

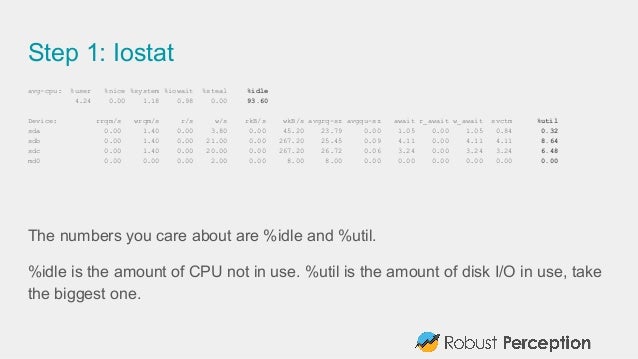

Step 1: Iostat
avg-cpu: %user %nice %system %iowait %steal %idle
4.24 0.00 1.18 0.98 0.00 93.60
Device: rrqm/s wrqm/s r/s w/s rkB/s wkB/s avgrq-sz avgqu-sz await r_await w_await svctm %util
sda 0.00 1.40 0.00 3.80 0.00 45.20 23.79 0.00 1.05 0.00 1.05 0.84 0.32
sdb 0.00 1.40 0.00 21.00 0.00 267.20 25.45 0.09 4.11 0.00 4.11 4.11 8.64
sdc 0.00 1.40 0.00 20.00 0.00 267.20 26.72 0.06 3.24 0.00 3.24 3.24 6.48
md0 0.00 0.00 0.00 2.00 0.00 8.00 8.00 0.00 0.00 0.00 0.00 0.00 0.00
The numbers you care about are %idle and %util.
%idle is the amount of CPU not in use. %util is the amount of disk I/O in use, take
the biggest one.

11.

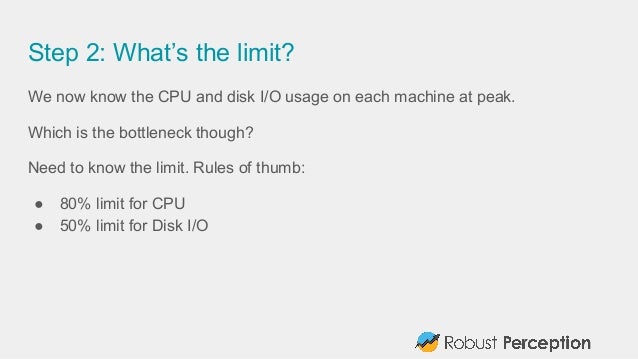

Step 2: What’s the limit?
We now know the CPU and disk I/O usage on each machine at peak.
Which is the bottleneck though?
Need to know the limit. Rules of thumb:
● 80% limit for CPU
● 50% limit for Disk I/O

12.

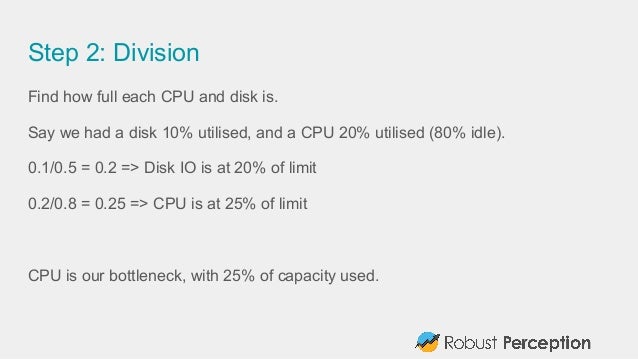

Step 2: Division
Find how full each CPU and disk is.
Say we had a disk 10% utilised, and a CPU 20% utilised (80% idle).
0.1/0.5 = 0.2 => Disk IO is at 20% of limit
0.2/0.8 = 0.25 => CPU is at 25% of limit
CPU is our bottleneck, with 25% of capacity used.

13.
Step 2: Utilisation Visualisation

14.

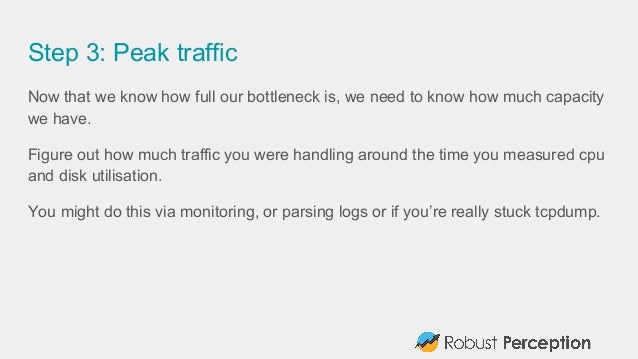

Step 3: Peak traffic
Now that we know how full our bottleneck is, we need to know how much capacity
we have.
Figure out how much traffic you were handling around the time you measured cpu
and disk utilisation.
You might do this via monitoring, or parsing logs or if you’re really stuck tcpdump.

15.

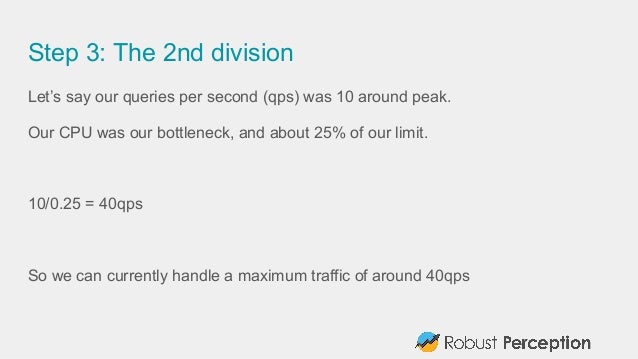

Step 3: The 2nd division
Let’s say our queries per second (qps) was 10 around peak.
Our CPU was our bottleneck, and about 25% of our limit.
10/0.25 = 40qps
So we can currently handle a maximum traffic of around 40qps

16.

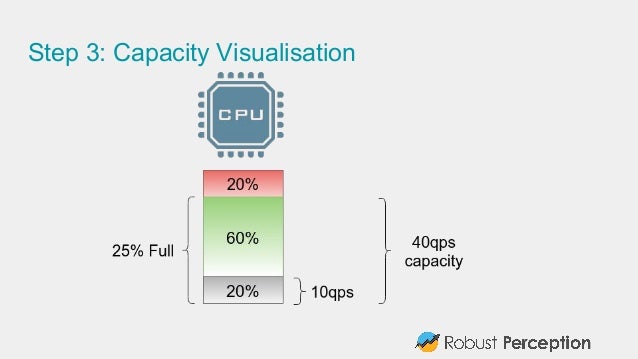

Step 3: Capacity Visualisation

17.

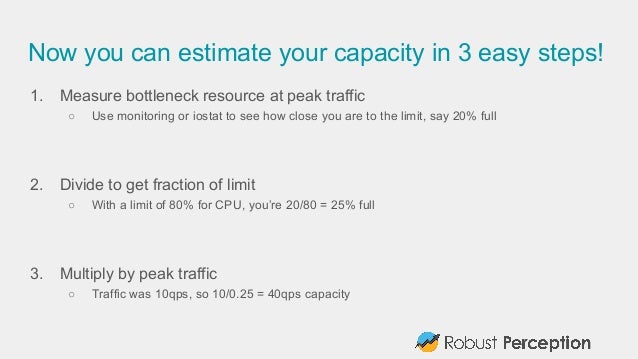

Now you can estimate your capacity in 3 easy steps!
1. Measure bottleneck resource at peak traffic
○ Use monitoring or iostat to see how close you are to the limit, say 20% full
2. Divide to get fraction of limit
○ With a limit of 80% for CPU, you’re 20/80 = 25% full
3. Multiply by peak traffic
○ Traffic was 10qps, so 10/0.25 = 40qps capacity

18.
Runway

19.

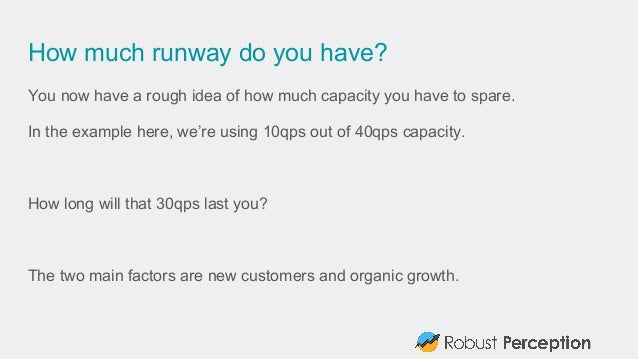

How much runway do you have?
You now have a rough idea of how much capacity you have to spare.
In the example here, we’re using 10qps out of 40qps capacity.
How long will that 30qps last you?
The two main factors are new customers and organic growth.

20.

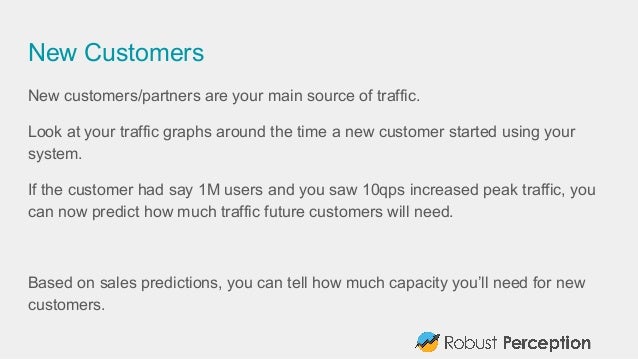

New Customers
New customers/partners are your main source of traffic.
Look at your traffic graphs around the time a new customer started using your
system.
If the customer had say 1M users and you saw 10qps increased peak traffic, you
can now predict how much traffic future customers will need.
Based on sales predictions, you can tell how much capacity you’ll need for new
customers.

21.
Organic growth
Over time your existing customers/partners will use the system more and more,
new employees are hired, they get new customers etc.
Look at your monitoring’s traffic graphs over a few months to see what the trend is
like. Do your best to ignore the impact of launches.
Calculate your % growth month on month.
Starting out, it’s likely that organic growth will not be your main consideration.

22.

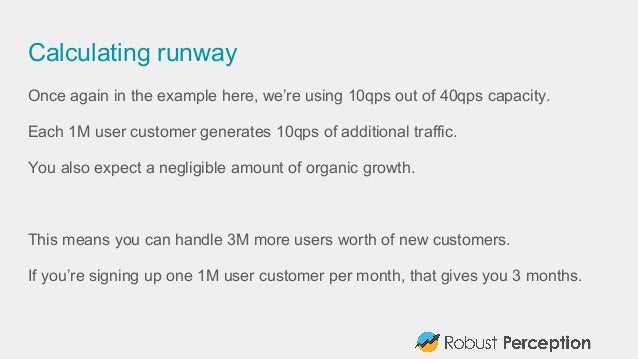

Calculating runway
Once again in the example here, we’re using 10qps out of 40qps capacity.
Each 1M user customer generates 10qps of additional traffic.
You also expect a negligible amount of organic growth.
This means you can handle 3M more users worth of new customers.
If you’re signing up one 1M user customer per month, that gives you 3 months.

23.

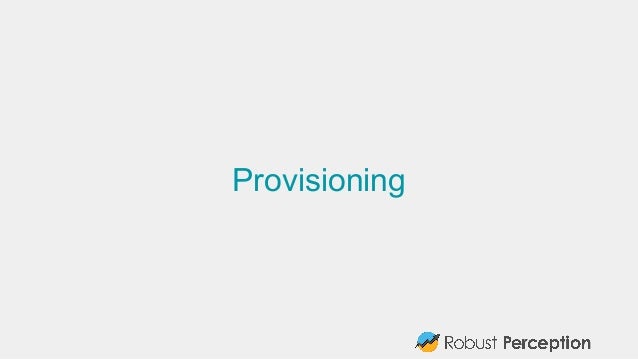

Provisioning

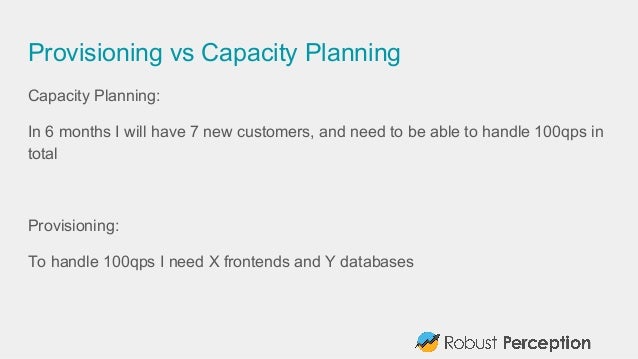

24.
Provisioning vs Capacity Planning
Capacity Planning:
In 6 months I will have 7 new customers, and need to be able to handle 100qps in
total
Provisioning:
To handle 100qps I need X frontends and Y databases

25.

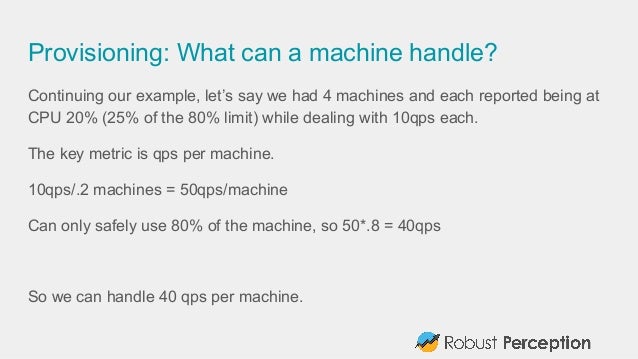

Provisioning: What can a machine handle?
Continuing our example, let’s say we had 4 machines and each reported being at
CPU 20% (25% of the 80% limit) while dealing with 10qps each.
The key metric is qps per machine.
10qps/.2 machines = 50qps/machine
Can only safely use 80% of the machine, so 50*.8 = 40qps
So we can handle 40 qps per machine.

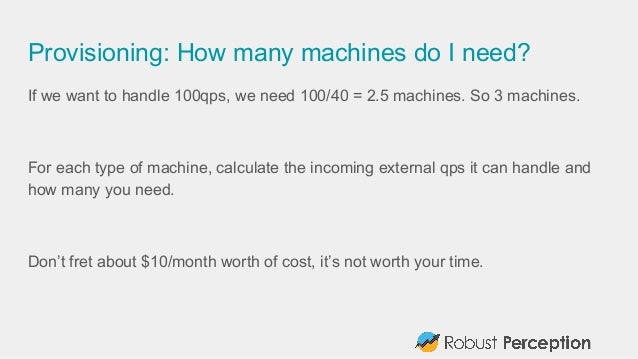

26.
Provisioning: How many machines do I need?
If we want to handle 100qps, we need 100/40 = 2.5 machines. So 3 machines.
For each type of machine, calculate the incoming external qps it can handle and
how many you need.
Don’t fret about $10/month worth of cost, it’s not worth your time.

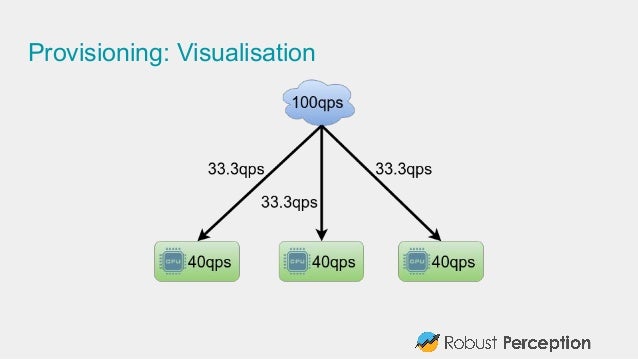

27.
Provisioning: Visualisation

28.
Review: The Basics
● Estimating capacity:
○ Measure bottleneck at peak
○ Find how near bottleneck is to the limit
○ Calculate spare capacity based on peak traffic
● Keep an eye on new customers/partners and organic growth to track runway
● For provisioning, calculate qps/machine for each type of machine

29.
Life is not Basic

30.

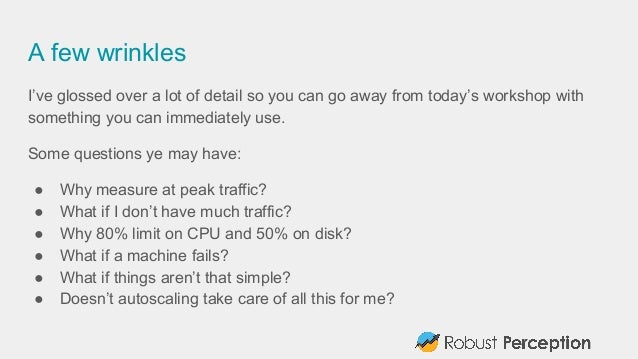

A few wrinkles
I’ve glossed over a lot of detail so you can go away from today’s workshop with
something you can immediately use.
Some questions ye may have:
● Why measure at peak traffic?
● What if I don’t have much traffic?
● Why 80% limit on CPU and 50% on disk?
● What if a machine fails?
● What if things aren’t that simple?
● Doesn’t autoscaling take care of all this for me?

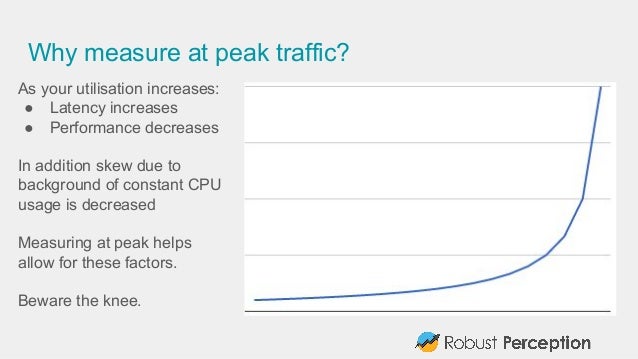

31.
Why measure at peak traffic?
As your utilisation increases:
● Latency increases
● Performance decreases
In addition skew due to
background of constant CPU
usage is decreased
Measuring at peak helps
allow for these factors.
Beware the knee.

32.

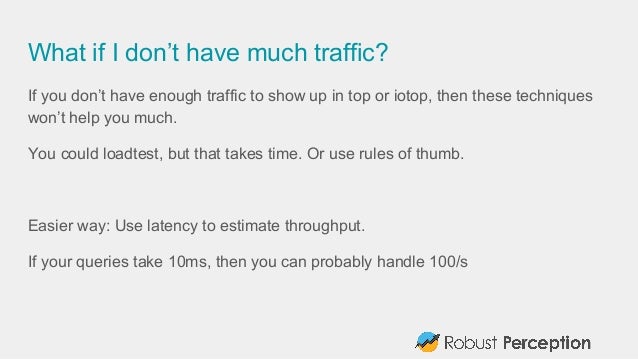

What if I don’t have much traffic?
If you don’t have enough traffic to show up in top or iotop, then these techniques
won’t help you much.
You could loadtest, but that takes time. Or use rules of thumb.
Easier way: Use latency to estimate throughput.
If your queries take 10ms, then you can probably handle 100/s

33.

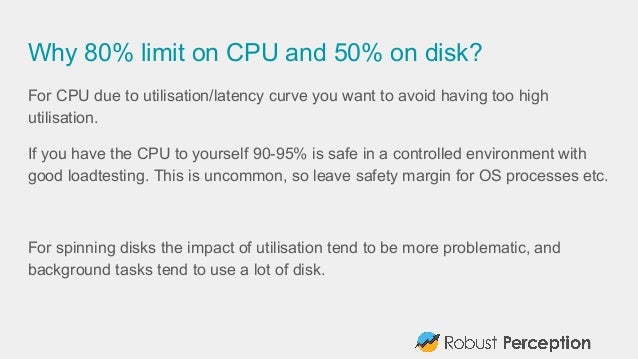

Why 80% limit on CPU and 50% on disk?
For CPU due to utilisation/latency curve you want to avoid having too high
utilisation.
If you have the CPU to yourself 90-95% is safe in a controlled environment with
good loadtesting. This is uncommon, so leave safety margin for OS processes etc.
For spinning disks the impact of utilisation tend to be more problematic, and
background tasks tend to use a lot of disk.

34.

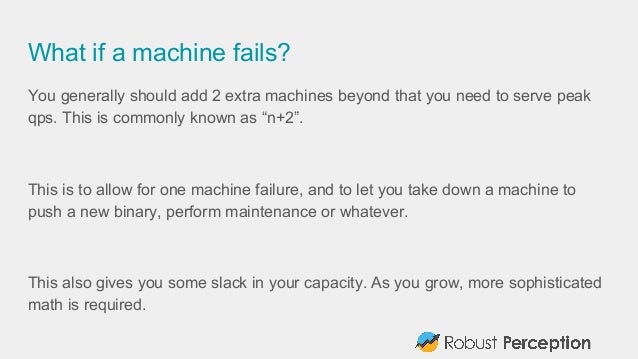

What if a machine fails?
You generally should add 2 extra machines beyond that you need to serve peak
qps. This is commonly known as “n+2”.
This is to allow for one machine failure, and to let you take down a machine to
push a new binary, perform maintenance or whatever.
This also gives you some slack in your capacity. As you grow, more sophisticated
math is required.

35.

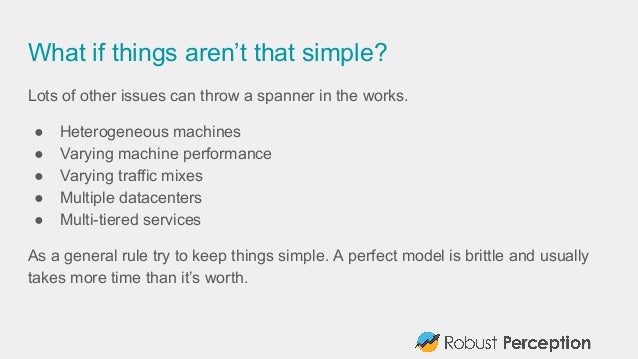

What if things aren’t that simple?
Lots of other issues can throw a spanner in the works.
● Heterogeneous machines
● Varying machine performance
● Varying traffic mixes
● Multiple datacenters
● Multi-tiered services
As a general rule try to keep things simple. A perfect model is brittle and usually
takes more time than it’s worth.

36.

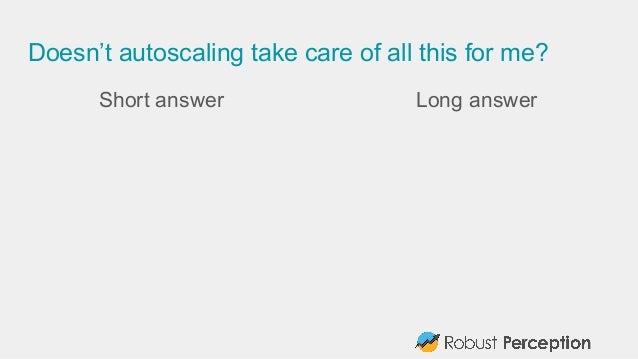

Doesn’t autoscaling take care of all this for me?
Short answer Long answer

37.

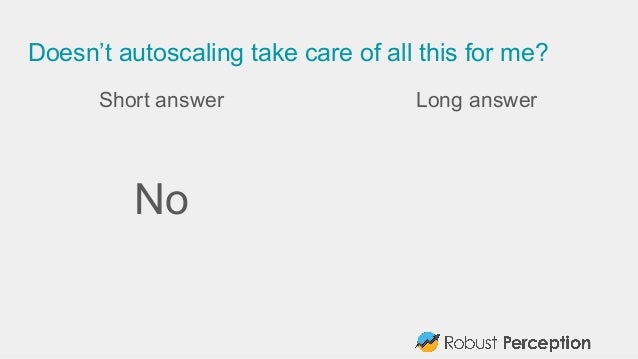

Doesn’t autoscaling take care of all this for me?
Short answer
No
Long answer

38.

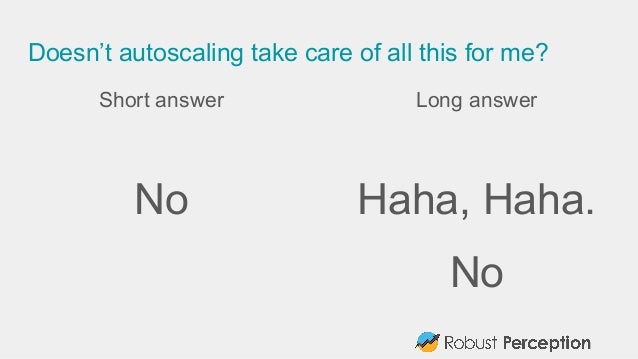

Doesn’t autoscaling take care of all this for me?
Short answer
No
Long answer
Haha, Haha.
No

39.

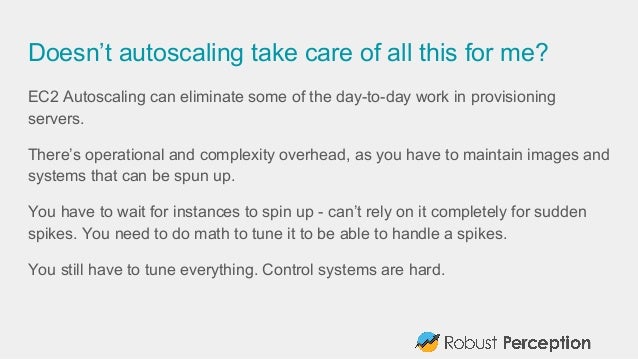

Doesn’t autoscaling take care of all this for me?
EC2 Autoscaling can eliminate some of the day-to-day work in provisioning
servers.
There’s operational and complexity overhead, as you have to maintain images and
systems that can be spun up.
You have to wait for instances to spin up - can’t rely on it completely for sudden
spikes. You need to do math to tune it to be able to handle a spikes.
You still have to tune everything. Control systems are hard.

40.
Wrapping Up

41.

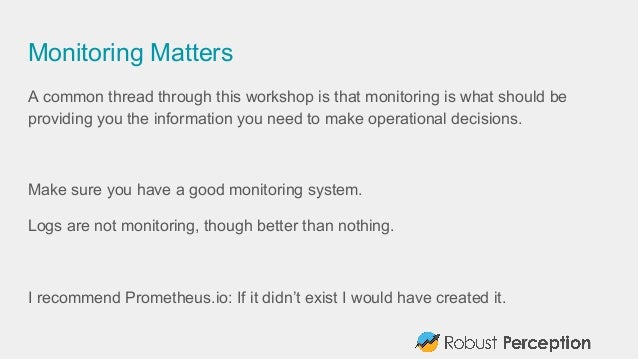

Monitoring Matters
A common thread through this workshop is that monitoring is what should be
providing you the information you need to make operational decisions.
Make sure you have a good monitoring system.
Logs are not monitoring, though better than nothing.
I recommend Prometheus.io: If it didn’t exist I would have created it.

42.

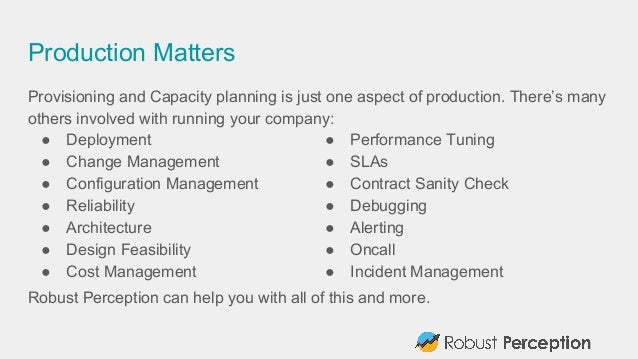

Production Matters
Provisioning and Capacity planning is just one aspect of production. There’s many
others involved with running your company:
Robust Perception can help you with all of this and more.
● Deployment
● Change Management
● Configuration Management
● Reliability
● Architecture
● Design Feasibility
● Cost Management
● Performance Tuning
● SLAs
● Contract Sanity Check
● Debugging
● Alerting
● Oncall
● Incident Management

43.

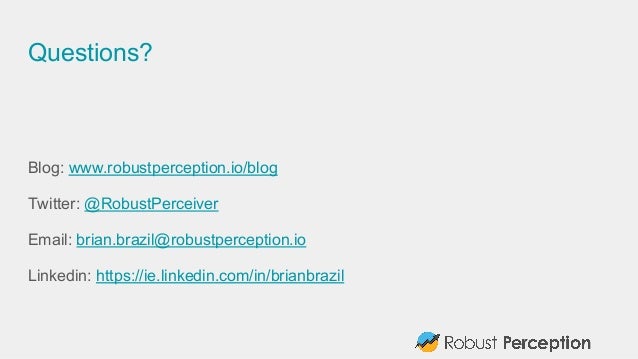

Questions?
Blog: www.robustperception.io/blog
Twitter: @RobustPerceiver
Email: brian.brazil@robustperception.io
Linkedin: https://ie.linkedin.com/in/brianbrazil
