FRC (FIRST Robotics Challenge) is switching from Java ME 1.4 to Java SE 8 along with switching from NetBeans to Eclipse for the 2014-2015 school year. I gave this presentation to representatives from teams 2601 (Townsend Harris) and 694 (Stuyvesant) today.

Team 2601 recorded my presentation which is available on youtube (https://www.youtube.com/watch?v=AgreKkRjFgU&feature=youtu.be) and at the end of my presentation on slideshare.

Published in: Technology, News & Politics
  • Be the first to comment

Get ready for FRC 2015: Intro to Java 5 through 8 updates and Eclipse

  1. 1. Intro to Java 5-8 and Eclipse 6/8/14 Jeanne Boyarsky Programming Mentor FRC Team 694 Twitter @jeanneboyarsky Blog: http://www.selikoff.net Moderator on Java forums at: http://www.coderanch.com

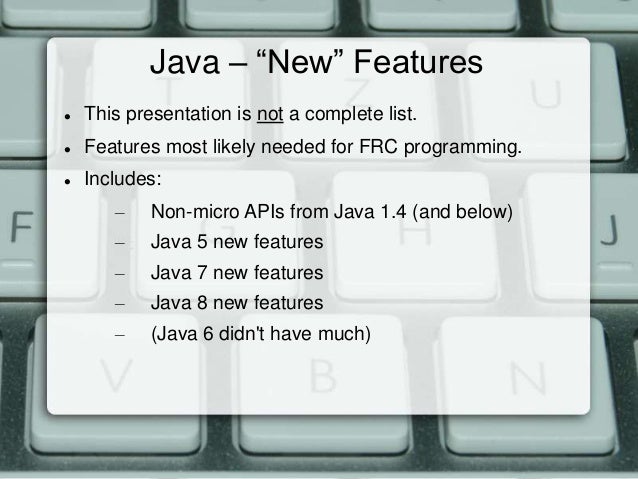

  2. 2. Java – “New” Features  This presentation is not a complete list.  Features most likely needed for FRC programming.  Includes: – Non-micro APIs from Java 1.4 (and below) – Java 5 new features – Java 7 new features – Java 8 new features – (Java 6 didn't have much)
  3. 3. Java 1.4 non-Micro APIs  java.util.ArrayList – like an array, but grows dynamically (faster than a Vector)  java.lang.Math – more methods  java.util.Properties – read file in format key=value (example in Java 7 section)
  4. 4. Java 5 – Generics/Autoboxing  Generics – you specify the type of the ArrayList and the compiler tells you if you use it wrong  Autoboxing – Java converts primitives (int, double, etc) to Objects and back for you

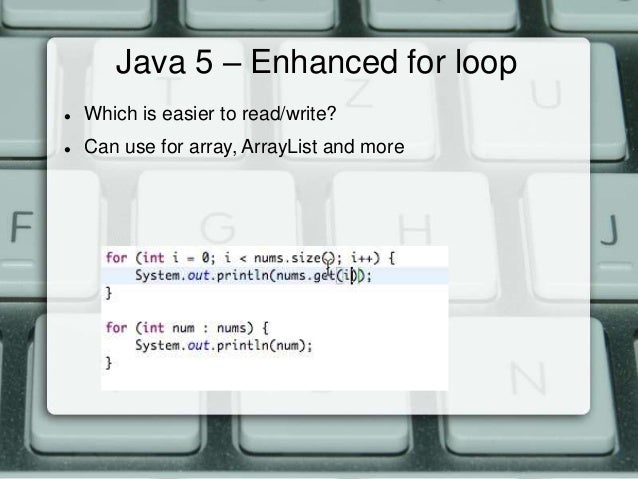

  5. 5. Java 5 – Enhanced for loop  Which is easier to read/write?  Can use for array, ArrayList and more

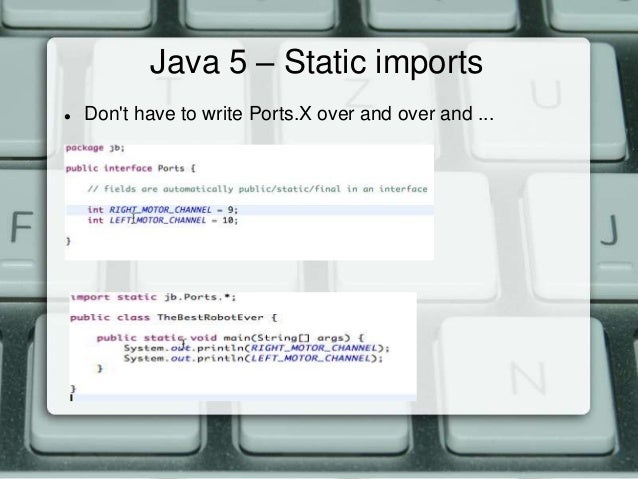

  6. 6. Java 5 – Static imports  Don't have to write Ports.X over and over and ...

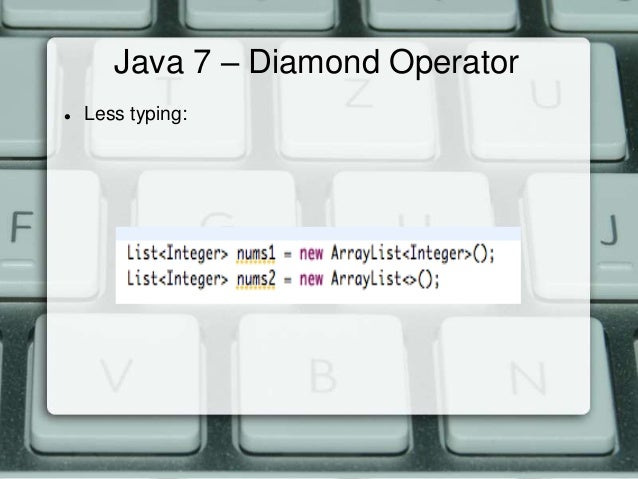

  7. 7. Java 7 – Diamond Operator  Less typing:

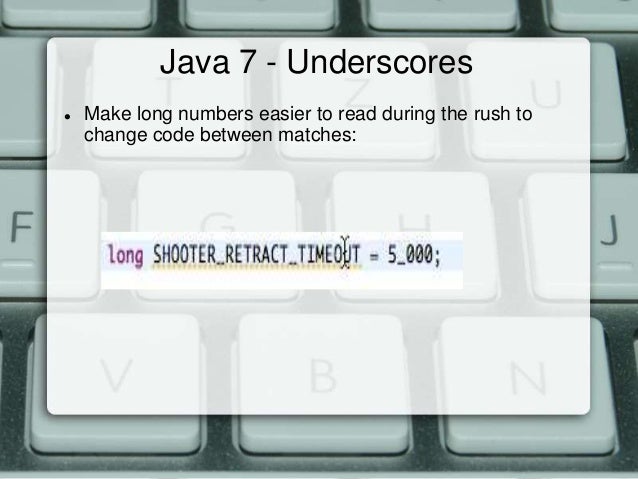

  8. 8. Java 7 - Underscores  Make long numbers easier to read during the rush to change code between matches:

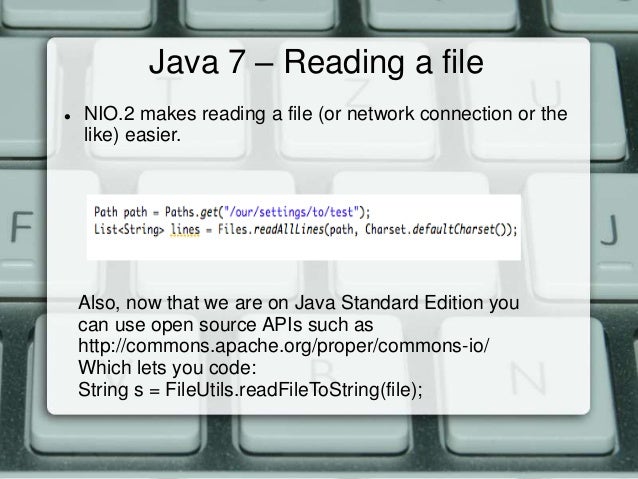

  9. 9. Java 7 – Reading a file  NIO.2 makes reading a file (or network connection or the like) easier. Also, now that we are on Java Standard Edition you can use open source APIs such as http://commons.apache.org/proper/commons-io/ Which lets you code: String s = FileUtils.readFileToString(file);

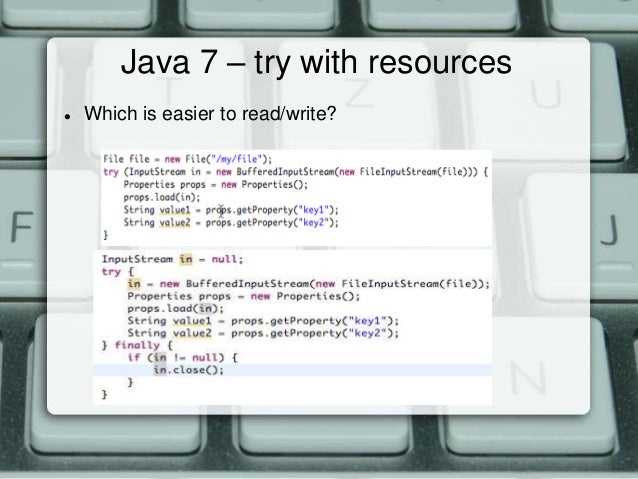

  10. 10. Java 7 – try with resources  Which is easier to read/write?

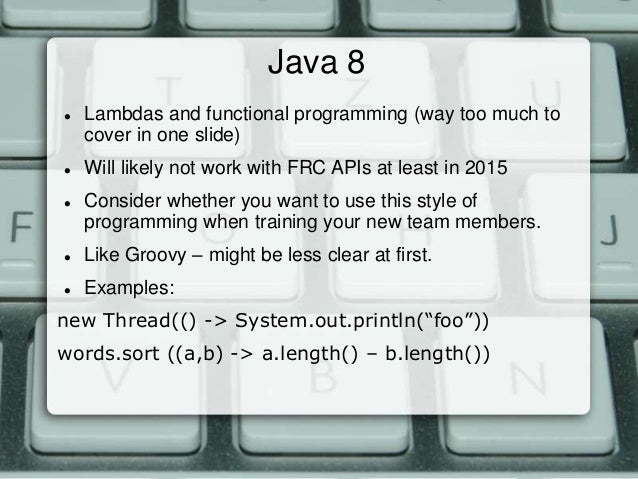

  11. 11. Java 8  Lambdas and functional programming (way too much to cover in one slide)  Will likely not work with FRC APIs at least in 2015  Consider whether you want to use this style of programming when training your new team members.  Like Groovy – might be less clear at first.  Examples: new Thread(() -> System.out.println(“foo”)) words.sort ((a,b) -> a.length() – b.length())
  12. 12. Multi-threading  Remember we have 2 CPUs now.  What can the second one do? – Vision – Logging – Long running calculations – Poll a sensor until some event happens – Use your imagination!
  13. 13. Installing Java  Java Platform (JDK) 8 http://www.oracle.com/technetwork/java/javase/downloads/i ndex.html (Or) Not the micro edition anymore!

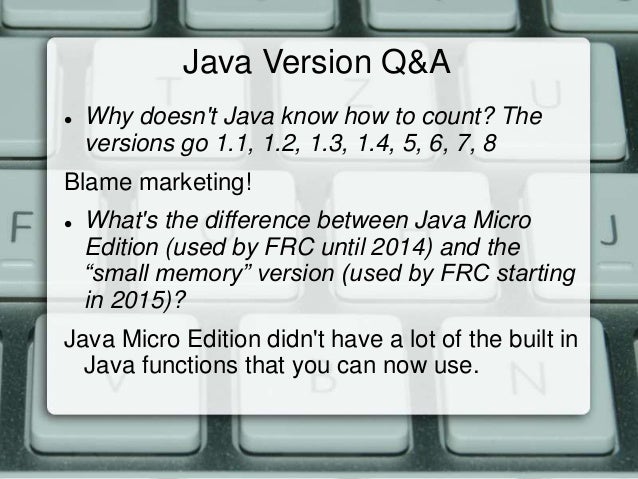

  14. 14. Java Version Q&A  Why doesn't Java know how to count? The versions go 1.1, 1.2, 1.3, 1.4, 5, 6, 7, 8 Blame marketing!  What's the difference between Java Micro Edition (used by FRC until 2014) and the “small memory” version (used by FRC starting in 2015)? Java Micro Edition didn't have a lot of the built in Java functions that you can now use.

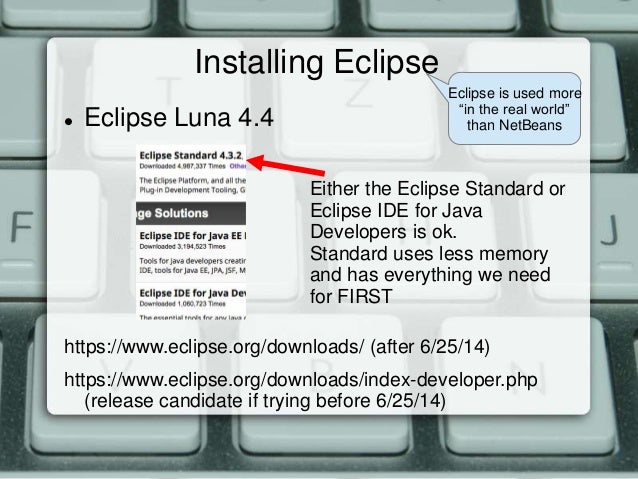

  15. 15. Installing Eclipse  Eclipse Luna 4.4 https://www.eclipse.org/downloads/ (after 6/25/14) https://www.eclipse.org/downloads/index-developer.php (release candidate if trying before 6/25/14) Eclipse is used more “in the real world” than NetBeans Either the Eclipse Standard or Eclipse IDE for Java Developers is ok. Standard uses less memory and has everything we need for FIRST

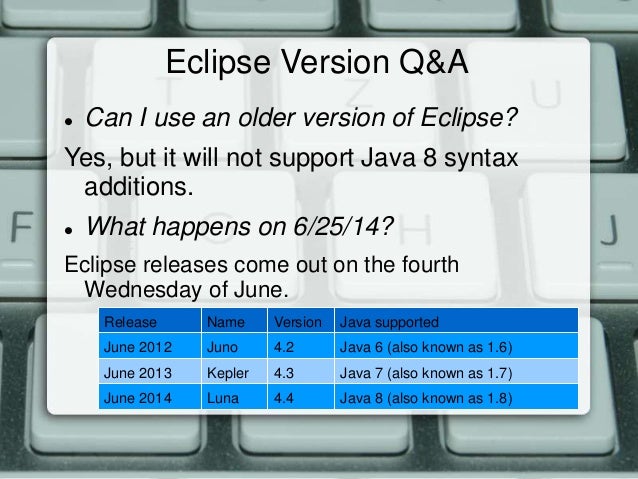

  16. 16. Eclipse Version Q&A  Can I use an older version of Eclipse? Yes, but it will not support Java 8 syntax additions.  What happens on 6/25/14? Eclipse releases come out on the fourth Wednesday of June. Release Name Version Java supported June 2012 Juno 4.2 Java 6 (also known as 1.6) June 2013 Kepler 4.3 Java 7 (also known as 1.7) June 2014 Luna 4.4 Java 8 (also known as 1.8)

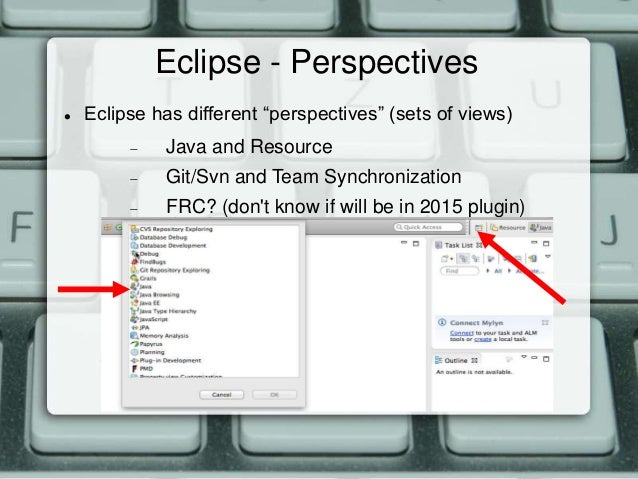

  17. 17. Eclipse - Perspectives  Eclipse has different “perspectives” (sets of views)  Java and Resource  Git/Svn and Team Synchronization  FRC? (don't know if will be in 2015 plugin)

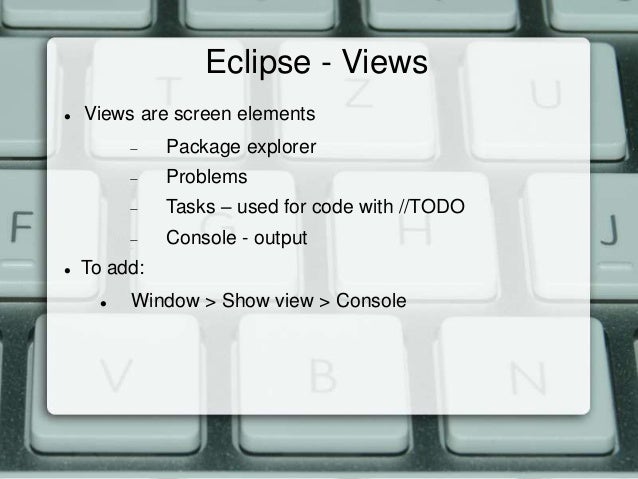

  18. 18. Eclipse - Views  Views are screen elements  Package explorer  Problems  Tasks – used for code with //TODO  Console - output  To add:  Window > Show view > Console

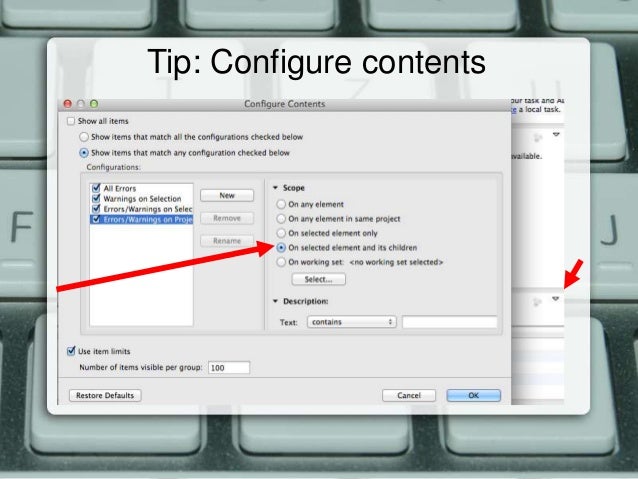

  19. 19. Tip: Configure contents

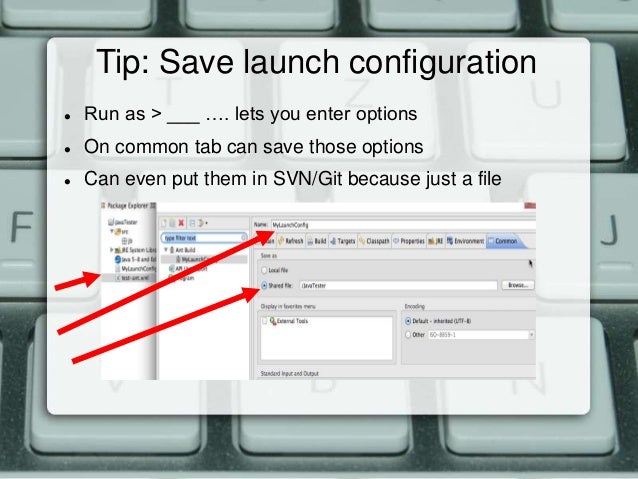

  20. 20. Tip: Save launch configuration  Run as > ___ …. lets you enter options  On common tab can save those options  Can even put them in SVN/Git because just a file

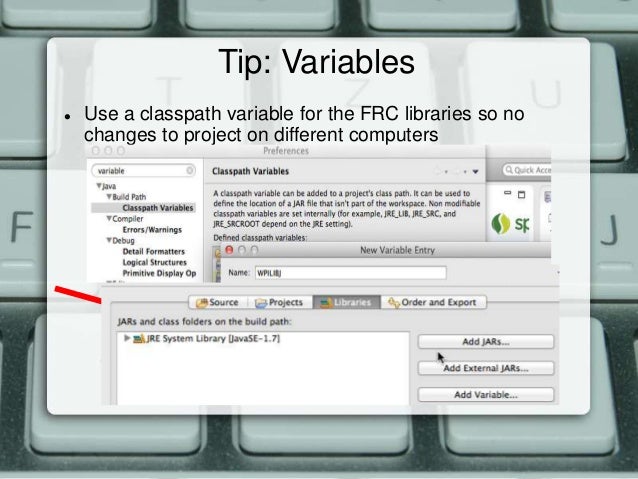

  21. 21. Tip: Variables  Use a classpath variable for the FRC libraries so no changes to project on different computers
  22. 22. Eclipse – Autocomplete  Control + space
  23. 23. Warnings about FRC Eclipse plugin  This is NOT the official plugin we will use in the 2014- 2015 season.  It is the experimental version from 2011.  I don't recommend installing it; this is just to get an idea of the process

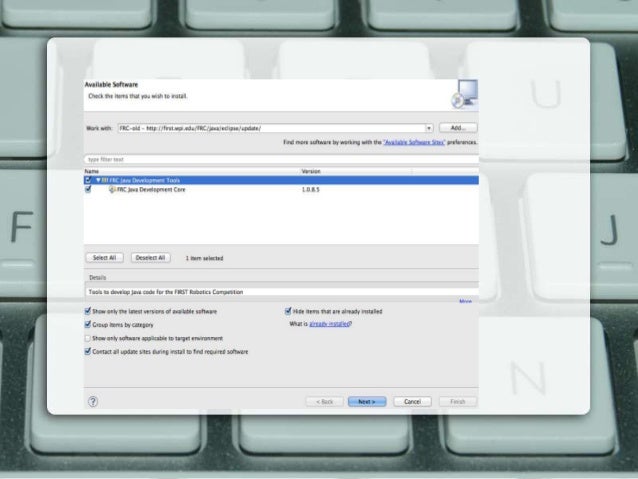

  24. 24. Installing the FRC Eclipse Plugin  Help > Install New Software  Enter URL http://first.wpi.edu/FRC/java/eclipse/update/  Click add button  Give it a name. I used “FRC-old” so I remember to uninstall it before the season starts.  Check FRC box  Click next/accept license/next/finish. Restart Eclipse when finishes download (This step uses the internet to download the plugin)

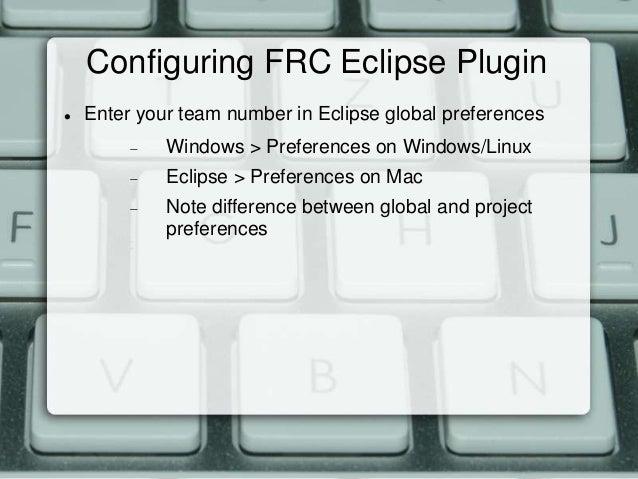

  25. 25. Configuring FRC Eclipse Plugin  Enter your team number in Eclipse global preferences  Windows > Preferences on Windows/Linux  Eclipse > Preferences on Mac  Note difference between global and project preferences

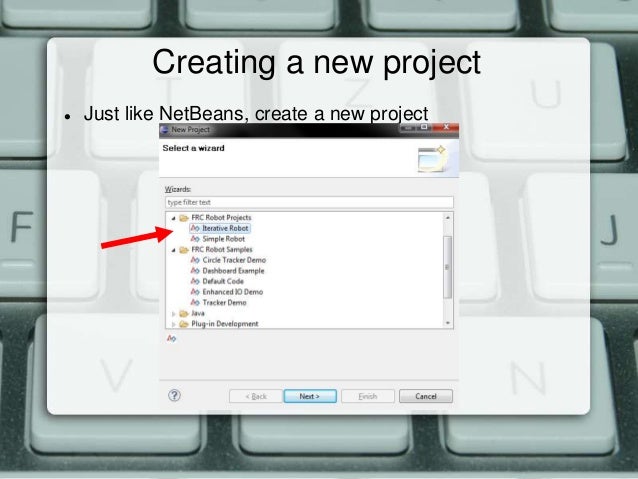

  26. 26. Creating a new project  Just like NetBeans, create a new project

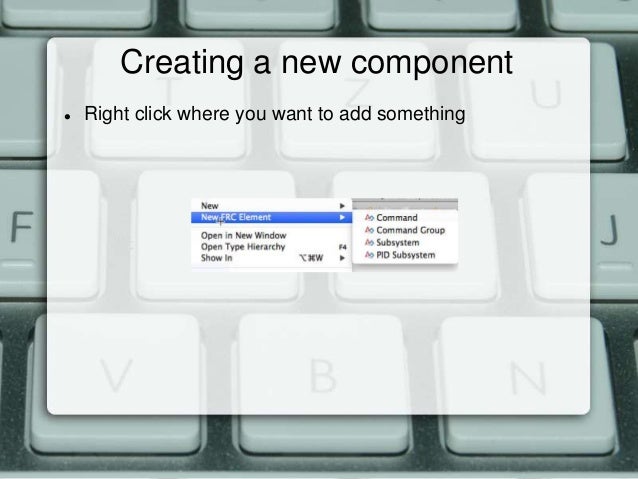

  27. 27. Creating a new component  Right click where you want to add something

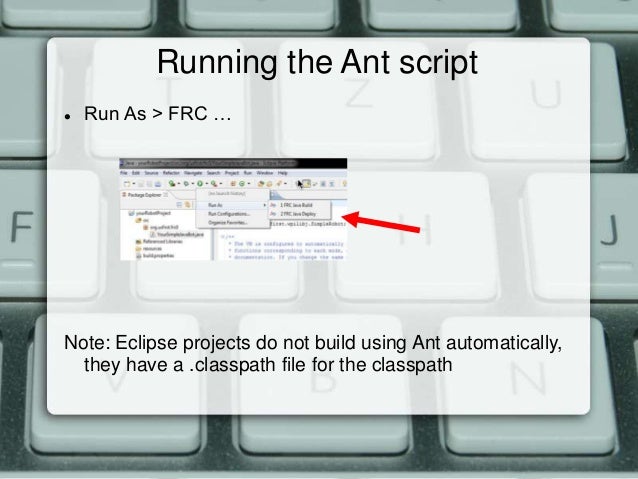

  28. 28. Running the Ant script  Run As > FRC … Note: Eclipse projects do not build using Ant automatically, they have a .classpath file for the classpath
  29. 29. How to migrate NetBeans project?  There isn't a generic way  I recommend: – Create a new Eclipse FRC project – Copy the source code from the NetBeans source directory

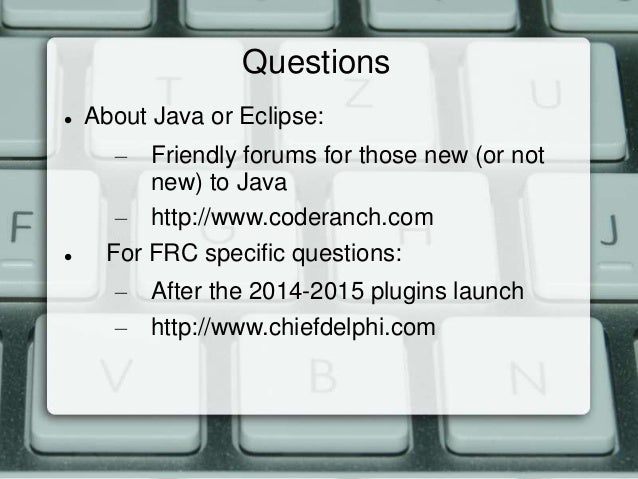

  30. 30. Questions  About Java or Eclipse: – Friendly forums for those new (or not new) to Java – http://www.coderanch.com  For FRC specific questions: – After the 2014-2015 plugins launch – http://www.chiefdelphi.com
  31. 31. References  Blog posts from Championships:  http://www.selikoff.net/2014/04/25/first-wpilib-in-2015/  How to get around the problem launching Eclipse on a Mac: http://www.selikoff.net/2013/06/29/eclipse-kepler-4-3-mac/  Old plugin docs:  https://subversion.assembla.com/svn/blue- cheese/branches/2012/docs/Tutorials/FRCEclipsePluginS etup.pdf

×
