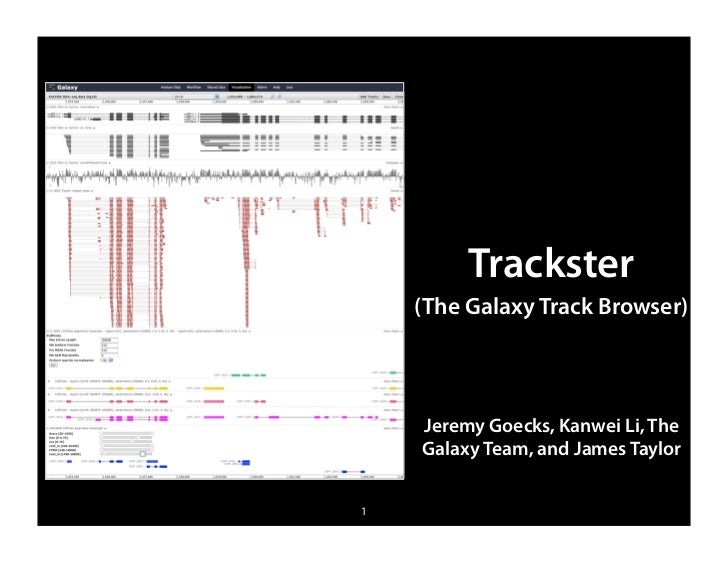

  1. 1. Trackster (The Galaxy Track Browser) Jeremy Goecks, Kanwei Li, The Galaxy Team, and James Taylor 1
  2. 2. Why another Genome Browser? Galaxy (http://usegalaxy.org) ✦ Web-based, uses open standards ✦ tool integration framework ✦ sharing, publication framework ✦ HTS/NGS focused Trackster Genome Browser ✦ physical depiction of data ✦ visually identify correlations ✦ find interesting regions, features 2
  3. 3. What is Galaxy? Web-based GUI for genomics that requires only a Web browser for everything: analysis, workflows, sharing, publication, and visualization A public web service (http://usegalaxy.org) integrating a wealth of tools, compute resources, terabytes of reference data and permanent storage Open source software that makes integrating your own tools and data and customizing for your own site simple 3
  4. 4. Trackster Simple, dynamic Web-based visualization for your HTS/NGS data Supports visual analytics Can share & publish working visualizations 4
  5. 5. HTS Datasets on the Web HTS datasets are often GBs, so cannot load them all at once Multiple indices needed to load data on demand at different levels of detail ✦ IGV and Savant on the desktop... ...and now Trackster on the Web 5
  6. 6. 6
  7. 7. 7
  8. 8. 8
  9. 9. Supporting Visual Analytics Visual analytics: using interactive visualization to reason about and solve problems Increasingly complex genomic tools require parameter experimentation ✦ visual feedback aids exploration Galaxy provides abstract interfaces to tools 9
  10. 10. Dynamic filtering on element properties here, FPKM for putative transcripts
  11. 11. Modifying Cufflinks parameters and locally reassembling
  12. 12. Compatible Tools Filtering tools Genomic interval tools Modified Cufflinks Key requirement: ✦ local model or ✦ access to global model 12
  13. 13. Your Tools with Trackster Integrate tools with Galaxy using simple, XML definition Local model ✦ just add <trackster_conf/> to tool definition Global model ✦ store and retrieve global model ✦ support filtering -- decorate data with attributes 13
  14. 14. Sharing Visualizations Communication paramount ✦ biomedical/genomics research is collaborative ✦ majority of publications use visualization “A picture is worth a 1000 words.” A fully-interactive visualization is worth many more words 14
  15. 15. Sharing Trackster Visualizations 15
  16. 16. Implementation Client: OO JavaScript, HTML5 canvas ✦ Web standards ✦ dynamic, customizable, tools, filters, ... Server: uses existing Galaxy functionality ✦ tool integration ✦ data indexing and aggregation ✦ sharing and publication Custom Builds! 16
  17. 17. Modular and Extensible Data exchange uses JSON, not tied to Galaxy datatypes Client UI (browser) components not tied to Galaxy UI ✦ rendering components are CommonJS modules that can be reused in any JS environment Everything is extensible: displays, track types, element rendering, data providers... 17
  18. 18. Trackster Summary Dynamic, configurable Web-based visualization for your HTS/NGS data Supports visual analytics Can share & publish working visualizations 18
