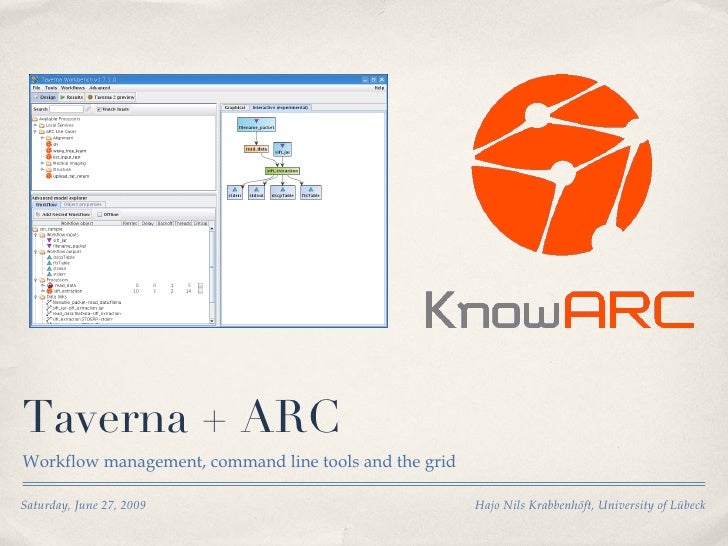

  1. 1. Taverna + ARC <ul><li>Workflow management, command line tools and the grid </li></ul>Saturday, June 27, 2009 Hajo Nils Krabbenhöft, University of Lübeck
  2. 2. Why use a grid? <ul><li>cpu power </li></ul><ul><li>storage space </li></ul><ul><li>node redundancy </li></ul>
  3. 3. Why use a grid? <ul><li>resource sharing </li></ul><ul><ul><li>tit-for-tat </li></ul></ul><ul><ul><li>buy cpu power </li></ul></ul><ul><li>shared maintenance </li></ul><ul><ul><li>software development </li></ul></ul><ul><ul><li>package deployment </li></ul></ul><ul><ul><li>configuration </li></ul></ul>
  4. 4. Why use Taverna 2 ? <ul><li>knowledge sharing </li></ul><ul><ul><li>web services </li></ul></ul><ul><ul><li>plug-ins </li></ul></ul><ul><ul><li>myExperiment </li></ul></ul>
  5. 5. Why use Taverna 2 ? <ul><ul><li>myExperiment </li></ul></ul>
  6. 6. Why use Taverna 2 ? <ul><li>dependency management </li></ul><ul><li>data management & conversion </li></ul><ul><li>easy tweaking </li></ul><ul><li>database integration </li></ul>
  7. 7. shell script pitfalls <ul><li>command line ambiguities </li></ul><ul><ul><li>no specific program version </li></ul></ul><ul><ul><li>unaware of changes to syntax </li></ul></ul>
  8. 8. manual grid usage <ul><li>upload & download data </li></ul><ul><li>xrsl difficult to write </li></ul><ul><li>no failure recovery </li></ul>
  9. 9. proposed solution Workflow plug-in submits ARC executes use cases runtime environments out of through
  10. 10. proposed solution <ul><li>ARC grid middleware </li></ul><ul><ul><li>homogeneous interface </li></ul></ul><ul><ul><li>security certificates </li></ul></ul><ul><ul><li>data management </li></ul></ul><ul><ul><li>scalable </li></ul></ul>
  11. 11. proposed solution <ul><li>runtime environments </li></ul><ul><ul><li>specify program & version </li></ul></ul><ul><ul><li>installation on demand </li></ul></ul><ul><li>use cases </li></ul><ul><ul><li>require RE </li></ul></ul><ul><ul><li>no command line </li></ul></ul><ul><ul><li>shared repository </li></ul></ul>
  12. 12. proposed solution <ul><li>Taverna plug-in </li></ul><ul><ul><li>job submission </li></ul></ul><ul><ul><ul><li>use cases => run in parallel </li></ul></ul></ul><ul><ul><li>storage management </li></ul></ul><ul><ul><ul><li>data references => fast </li></ul></ul></ul><ul><ul><li>silent failover </li></ul></ul><ul><ul><li>SSH + local for testing </li></ul></ul>
  13. 13. proposed solution <ul><li>Taverna </li></ul><ul><ul><li>easy to present </li></ul></ul><ul><ul><li>embedded workflows </li></ul></ul><ul><ul><li>parameter tweaking </li></ul></ul><ul><ul><li>managed dependencies </li></ul></ul><ul><ul><li>easy retry </li></ul></ul><ul><ul><li>easy parallelization </li></ul></ul>X. Zhou et al.: An Easy Setup for Parallel Medical Image Processing: Using Taverna and ARC
  14. 14. reality check <ul><li>dynamic RE still experimental </li></ul><ul><ul><li>use common tools </li></ul></ul><ul><ul><li>send binaries </li></ul></ul><ul><ul><li>call administrators </li></ul></ul><ul><li>firewall </li></ul><ul><ul><li>need LDAP and GSIFTP ports </li></ul></ul><ul><ul><li>proxy support </li></ul></ul>
  15. 15. reality check <ul><li>disk caching since Taverna 2.0 </li></ul><ul><li>programs not locally installable </li></ul><ul><ul><li>use as web service </li></ul></ul><ul><li>upload is slow </li></ul><ul><ul><li>upload static files to SE </li></ul></ul>
  16. 16. neat toys <ul><li>Taverna as web service </li></ul><ul><li>Taverna on grid node </li></ul><ul><li>embedded Taverna </li></ul><ul><li>NestedVM </li></ul><ul><ul><li>package arbitrary C program into JAR </li></ul></ul>
  17. 17. neat toys <ul><li>Amazon S3 </li></ul><ul><ul><li>upload from Taverna </li></ul></ul><ul><ul><li>grid URL </li></ul></ul><ul><ul><li>good for static data </li></ul></ul><ul><li>Amazon EC </li></ul><ul><ul><li>on-demand grid nodes </li></ul></ul><ul><ul><li>control from Taverna </li></ul></ul>
  18. 18. neat toys <ul><li>use case java API </li></ul><ul><ul><li>submit, receive, monitor </li></ul></ul><ul><ul><li>data references </li></ul></ul><ul><ul><li>silent failover </li></ul></ul><ul><ul><li>but NO dependency management </li></ul></ul><ul><li>GridRunnable </li></ul><ul><ul><li>e.g. clustering based on different criteria </li></ul></ul>
  19. 19. Thank you for your attention http://
