Software Supply Chain Management with Grafeas and Kritis

1. Software Supply Chain Management with Grafeas and Kritis Aysylu Greenberg May 20 2019 @aysylu22

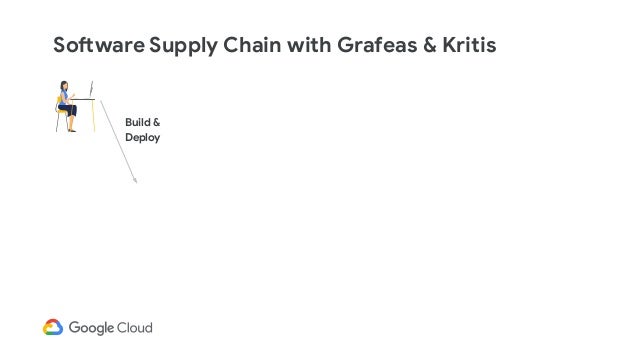

2. Software Supply Chain with Grafeas & Kritis Build & Deploy

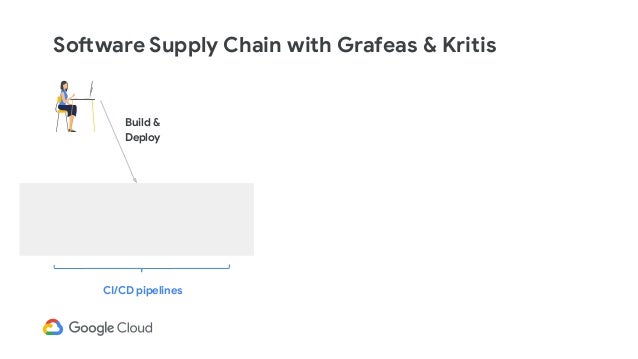

3. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy

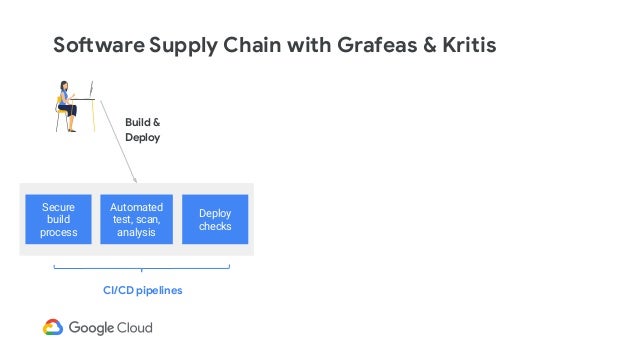

4. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks

5. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Grafeas backed storage vulnerabilities, build info, etc.

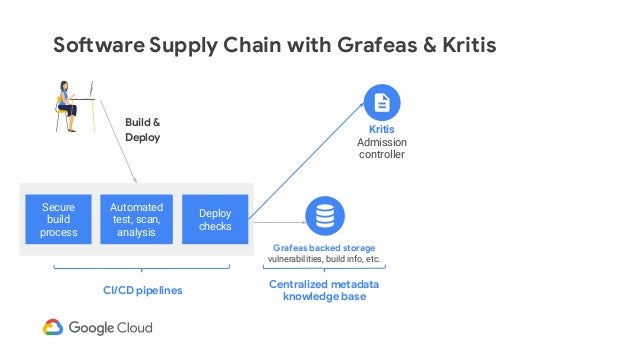

6. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Grafeas backed storage vulnerabilities, build info, etc.

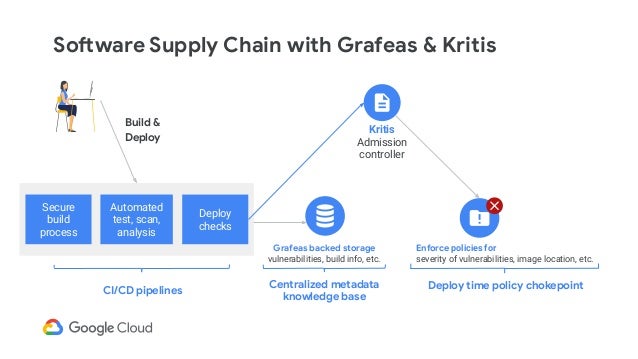

7. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Grafeas backed storage vulnerabilities, build info, etc.

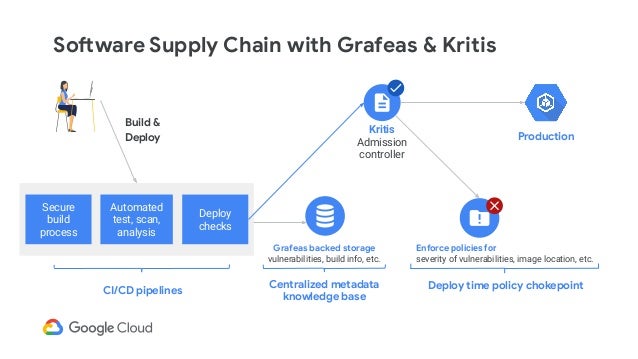

8. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Production Grafeas backed storage vulnerabilities, build info, etc.

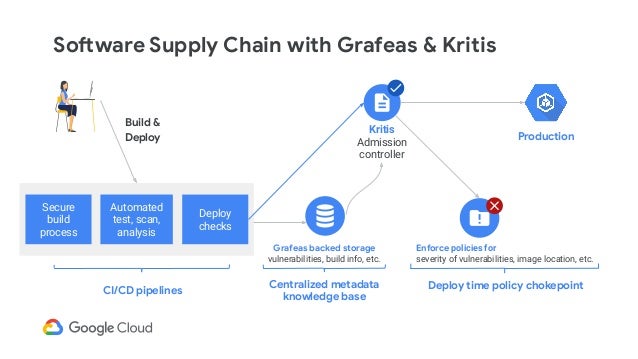

9. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Grafeas backed storage vulnerabilities, build info, etc. Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Production

10. Grafeas & Kritis Binary Authorization Container Registry Vulnerability Scanning

11. Grafeas: Artifact Metadata API

12. Grafeas: Artifact Metadata API = images, binaries, packages...

13. Grafeas: Artifact Metadata API = build, deployment, vulnerability, ...

14. Grafeas: Artifact Metadata API = store & retrieve metadata about artifacts

15. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note

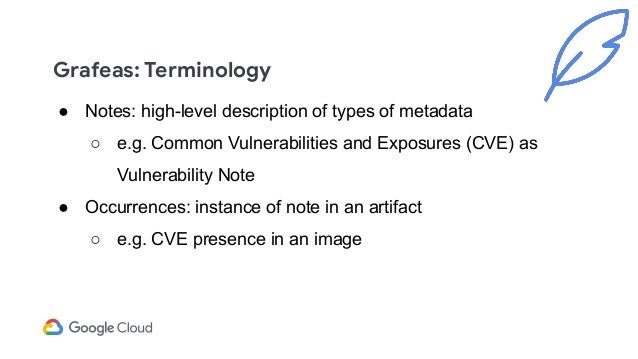

16. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note ● Occurrences: instance of note in an artifact ○ e.g. CVE presence in an image

17. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence

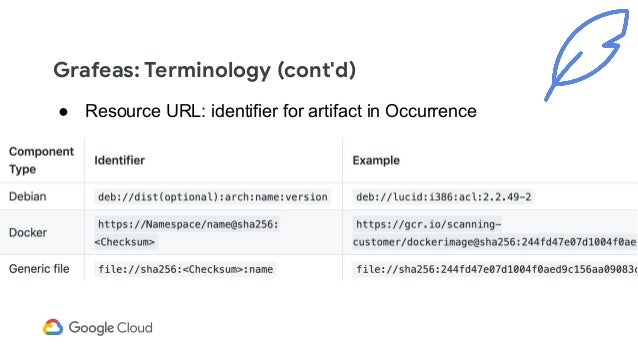

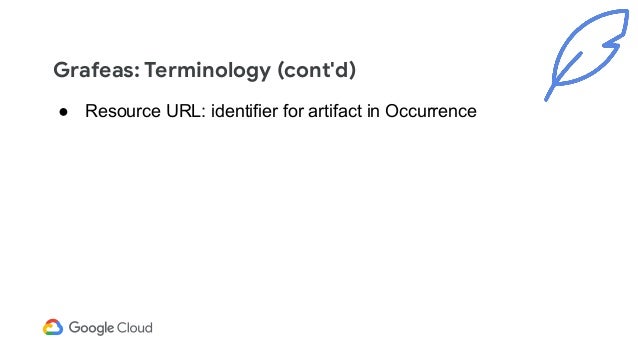

18. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence

19. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence ● Kind specific schemas

20. Grafeas: Deployment Note // An artifact that can be deployed in some runtime. message DeploymentNote { // Required. Resource URI for the artifact being deployed. repeated string resource_uri = 1; }

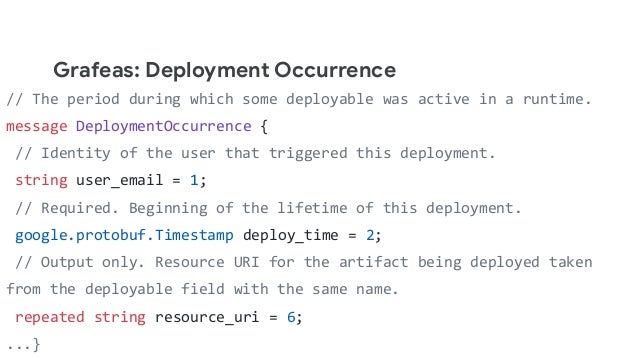

21. Grafeas: Deployment Occurrence // The period during which some deployable was active in a runtime. message DeploymentOccurrence { // Identity of the user that triggered this deployment. string user_email = 1; // Required. Beginning of the lifetime of this deployment. google.protobuf.Timestamp deploy_time = 2; // Output only. Resource URI for the artifact being deployed taken from the deployable field with the same name. repeated string resource_uri = 6; ...}

22. Grafeas Open artifact metadata standard with contributions from the industry Audit and govern your software supply chain Knowledge base for on-premises and cloud clusters API with pluggable storage backendsgithub.com/grafeas/grafeas grafeas-users@googlegroups.com grafeas-dev@googlegroups.com @Grafeasio

23. Kritis: Deploy-Time Policy Verifier

24. Let's deploy our e-commerce website...

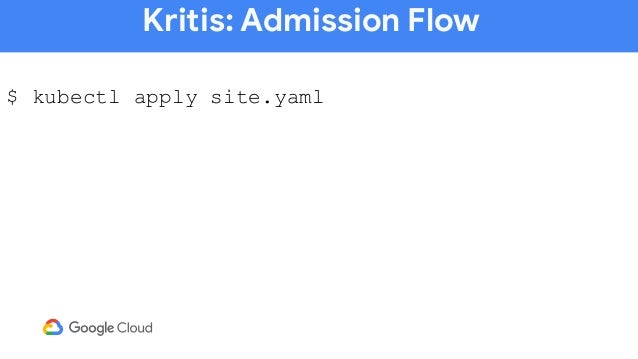

25. Kritis: Admission Flow $ kubectl apply site.yaml

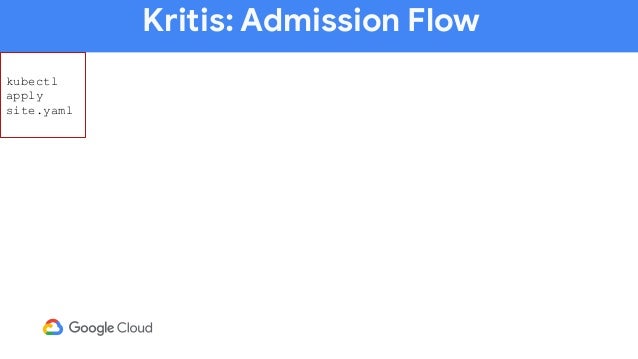

26. Kritis: Admission Flow kubectl apply site.yaml

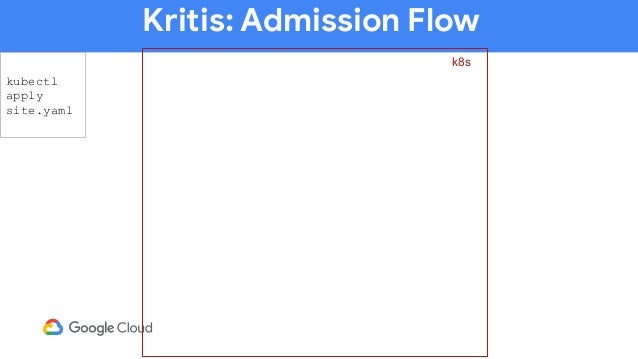

27. Kritis: Admission Flow k8s kubectl apply site.yaml

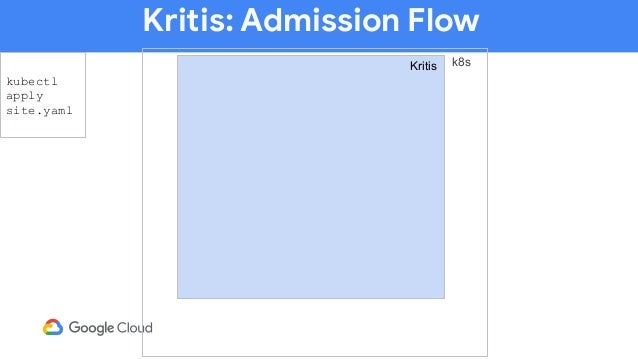

28. Kritis: Admission Flow k8sKritis kubectl apply site.yaml

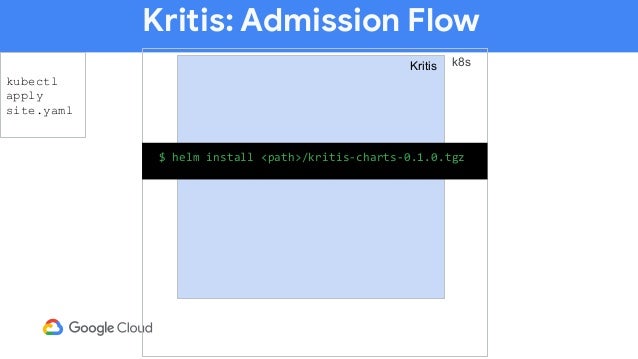

29. Kritis: Admission Flow k8sKritis kubectl apply site.yaml $ helm install <path>/kritis-charts-0.1.0.tgz

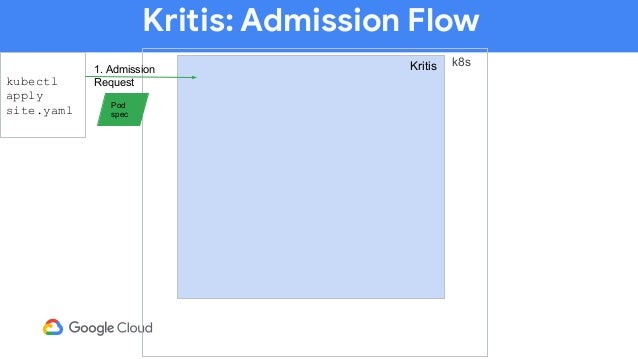

30. Kritis: Admission Flow kubectl apply site.yaml k8s Pod spec 1. Admission Request Kritis

31. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis

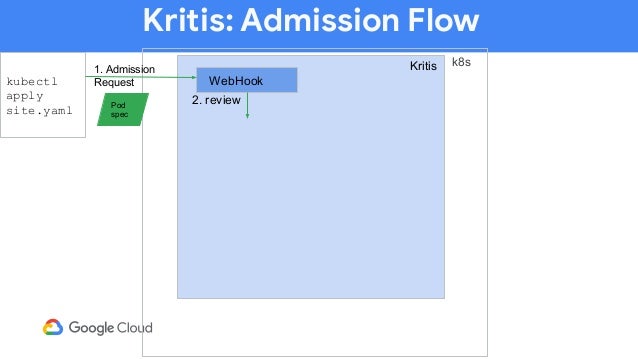

32. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review

33. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies

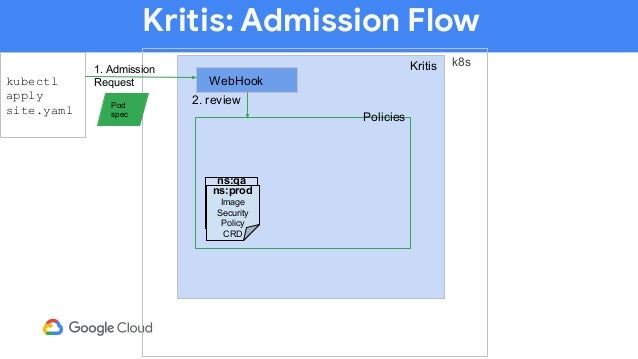

34. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD

35. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator

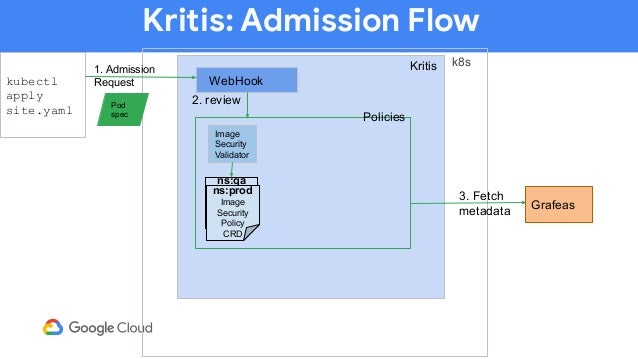

36. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas

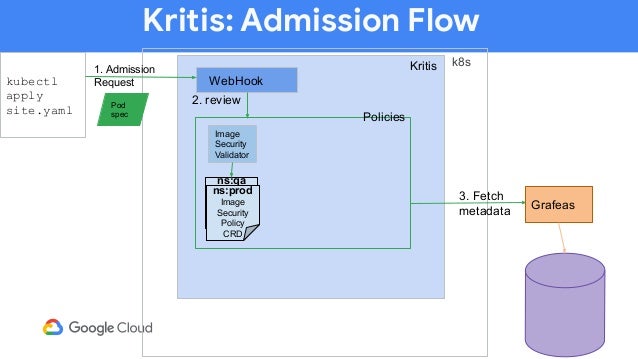

37. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas

38. Oh no! Vulnerability scan isn't finished...

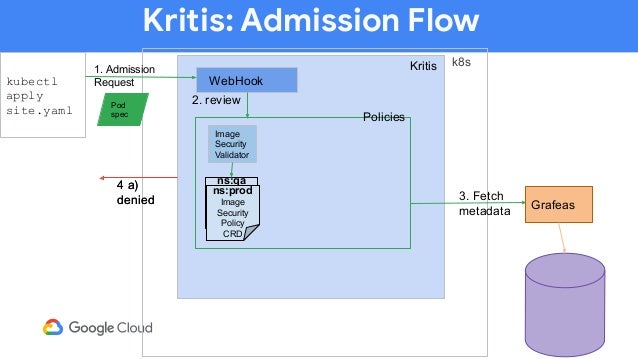

39. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied 4 a) denied

40. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied 4 a) denied Pod

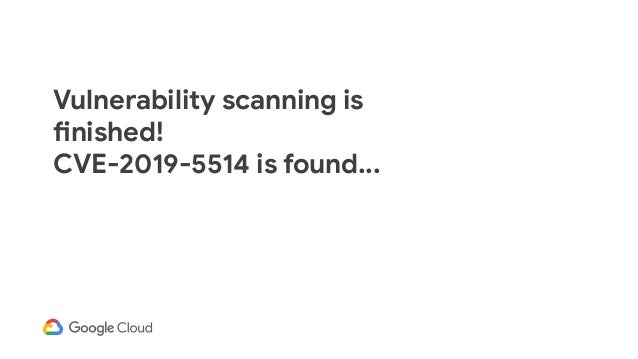

41. Vulnerability scanning is finished! CVE-2019-5514 is found...

42. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln

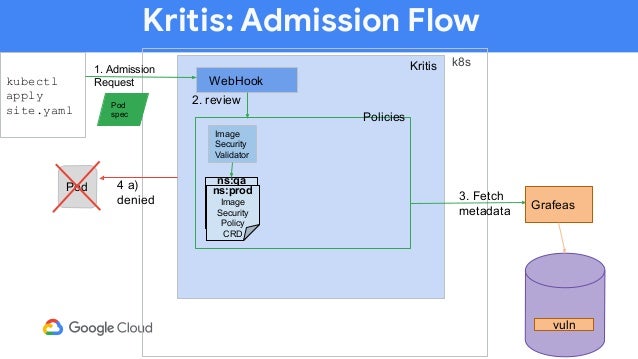

43. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied Pod vuln

44. Whitelist CVE-2019-5514 because it doesn't affect the website...

45. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln

46. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod vuln

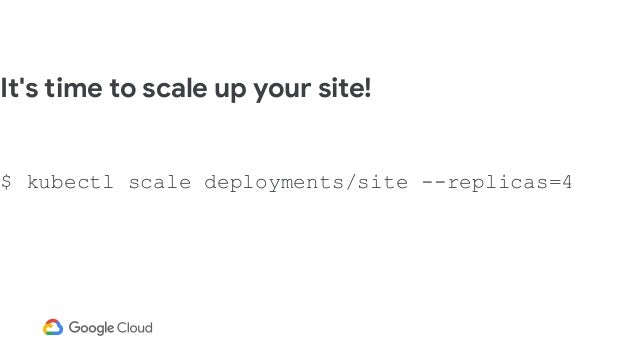

47. It's time to scale up your site! $ kubectl scale deployments/site --replicas=4

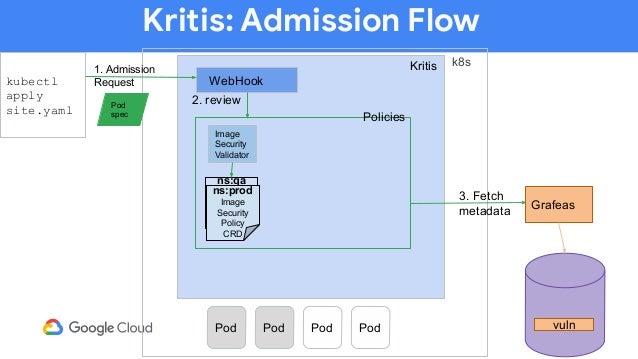

48. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas Pod PodPod Pod vuln

49. A new vulnerability is found during scale up... CVE-2019-9919

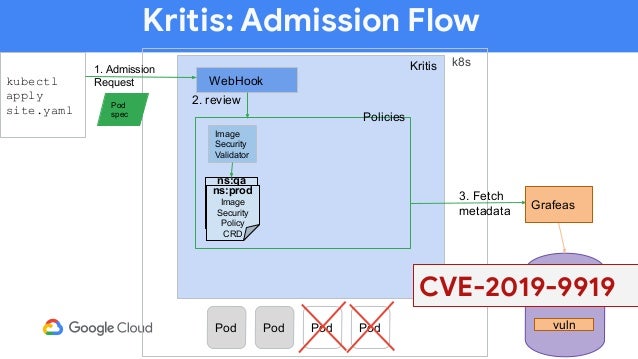

50. vuln Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas Pod PodPod Pod CVE-2019-9919

51. Kritis attestations to the rescue...

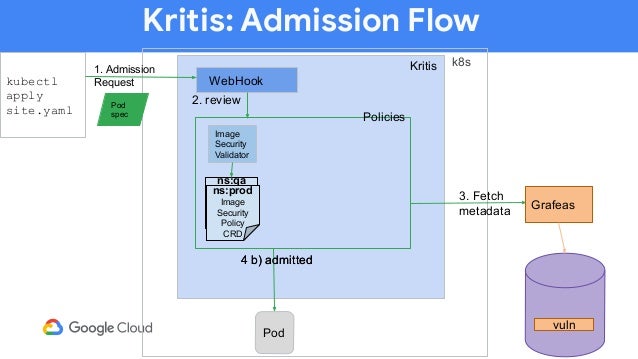

52. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod vuln

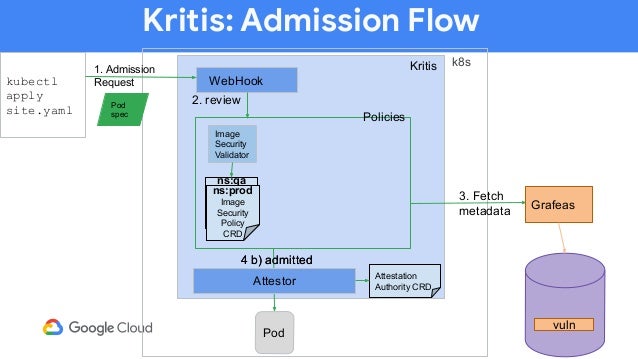

53. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD vuln

54. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images vuln

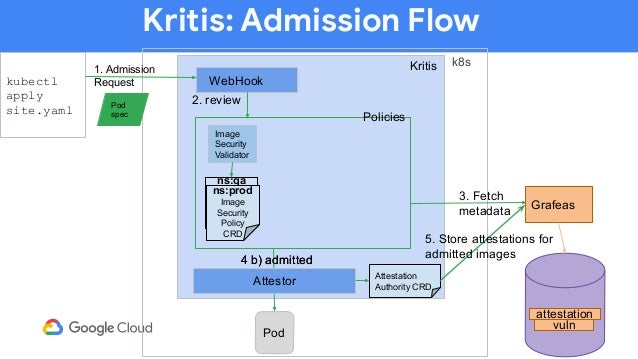

55. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation

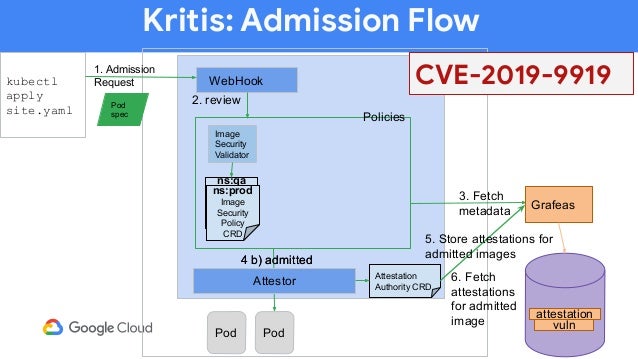

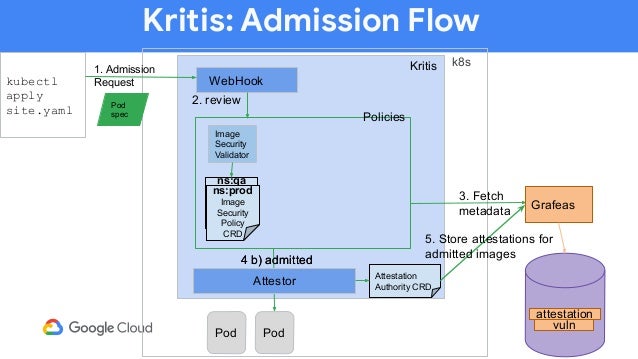

56. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod

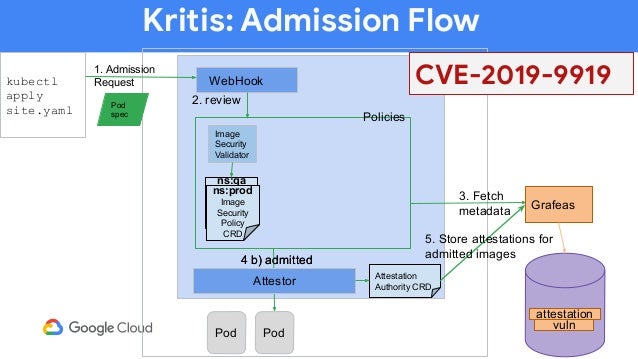

57. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919

58. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919 6. Fetch attestations for admitted image

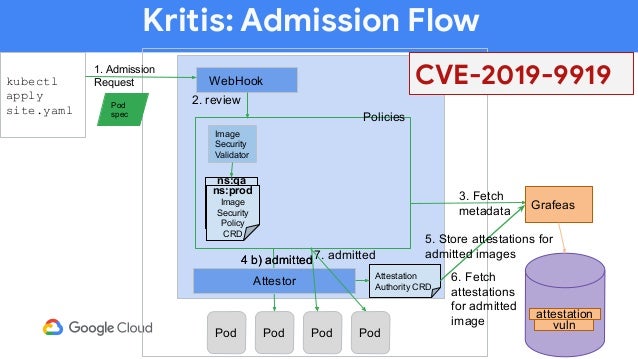

59. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919 6. Fetch attestations for admitted image Pod Pod 7. admitted

60. Discovering new vulnerabilities in admitted containers ...

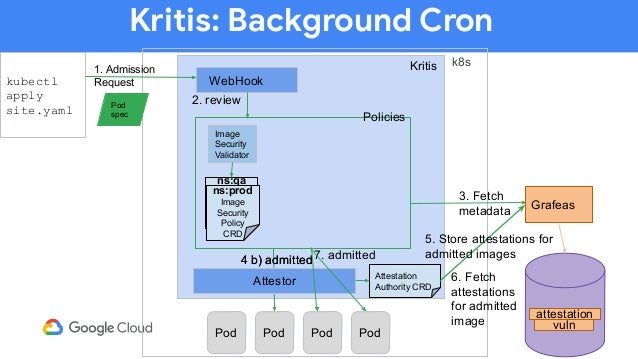

61. Kritis: Background Cron kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod 6. Fetch attestations for admitted image Pod Pod 7. admitted

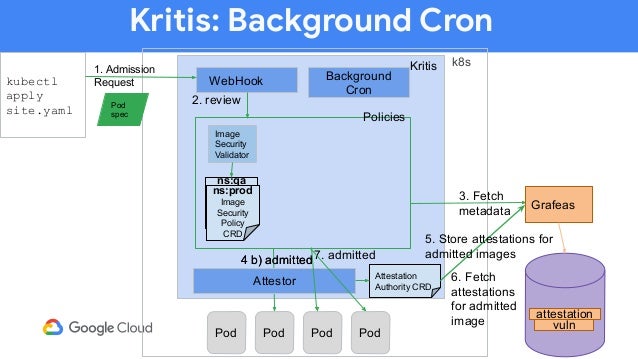

62. Kritis: Background Cron kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod 6. Fetch attestations for admitted image Pod Pod Background Cron 7. admitted

65. Kritis Terminology ● Custom Resource Definitions (CRDs) ○ Extension of k8s API ○ Used to store enforcement policies as k8s objects ● Validating Admission Webhook ○ HTTP callbacks receive admission request: accept/reject to enforce custom admission policies

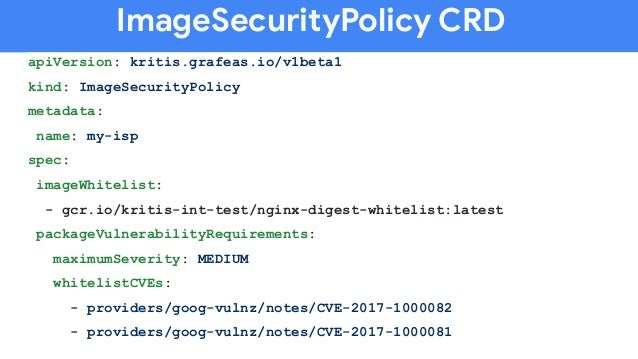

66. ImageSecurityPolicy CRD apiVersion: kritis.grafeas.io/v1beta1 kind: ImageSecurityPolicy metadata: name: my-isp spec: imageWhitelist: - gcr.io/kritis-int-test/nginx-digest-whitelist:latest packageVulnerabilityRequirements: maximumSeverity: MEDIUM whitelistCVEs: - providers/goog-vulnz/notes/CVE-2017-1000082 - providers/goog-vulnz/notes/CVE-2017-1000081

67. Kritis Open source, built with the community Plugs into the k8s admission controller Ensure vulnerability scanning before deployment Attest images and verify before deployment Apply consistent deploy policy across k8s environmentsgithub.com/grafeas/kritis kritis-users@googlegroups.com

68. Coming soon... 0.1.0

69. Goals Enable users to start experimenting with Kritis and Grafeas Move towards hybrid-cloud support Gather community feedback 0.1.0

70. 0.1.0 Scope Standalone Kritis on Kubernetes with standalone Grafeas

71. 0.1.0User Journeys Allow deployment of a container to Kubernetes cluster Block deployment of an unadmitted container to the cluster

72. ● Grafeas: ○ Helm chart for Grafeas & published image ○ Standalone Grafeas server with Postgres storage backend ○ Basic support for Go client library Features 0.1.0

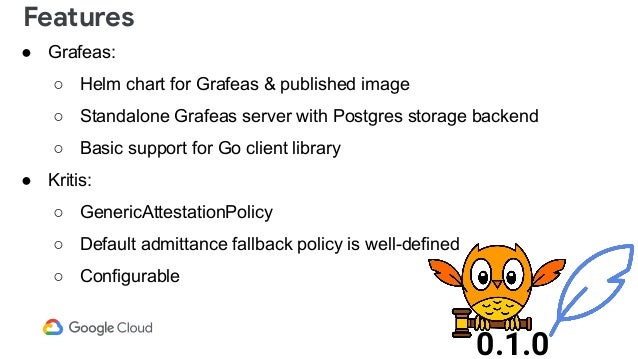

73. ● Grafeas: ○ Helm chart for Grafeas & published image ○ Standalone Grafeas server with Postgres storage backend ○ Basic support for Go client library ● Kritis: ○ GenericAttestationPolicy ○ Default admittance fallback policy is well-defined ○ Configurable Features 0.1.0

74. Learn more and follow along! github.com/grafeas/{grafeas,kritis} Google Groups: {grafeas,kritis}-users, grafeas-dev @grafeasio Gracias! 0.1.0
