Software Supply Chain Management with Grafeas and Kritis

1. Software Supply Chain Management with Grafeas and Kritis Aysylu Greenberg May 8 2019 Photo via https://www.goodfreephotos.com/

2. Aysylu Greenberg

3. Aysylu Greenberg - Sr Software Engineer @Google

4. Aysylu Greenberg - Sr Software Engineer @Google - Eng Lead of open-source Grafeas and Kritis

5. Aysylu Greenberg - Sr Software Engineer @Google - Eng Lead of open-source Grafeas and Kritis - @aysylu22

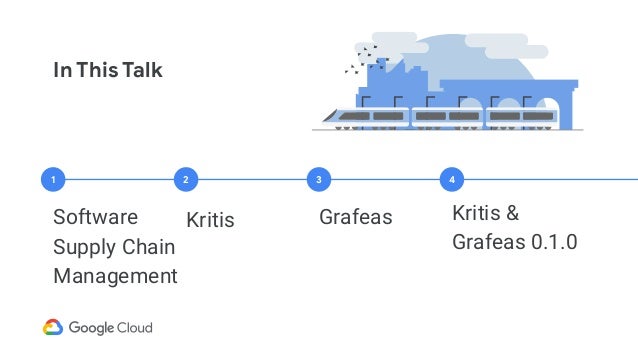

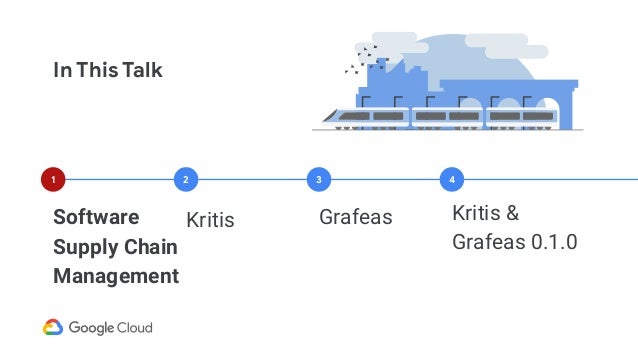

6. In This Talk Software Supply Chain Management Kritis Grafeas Kritis & Grafeas 0.1.0 1 2 3 4

8. Google runs in containers In any given week, we launch over two billion containers.

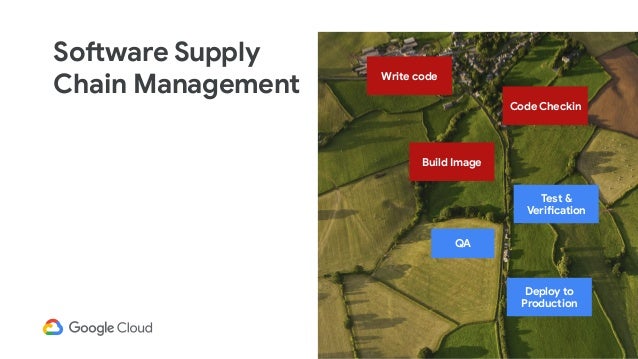

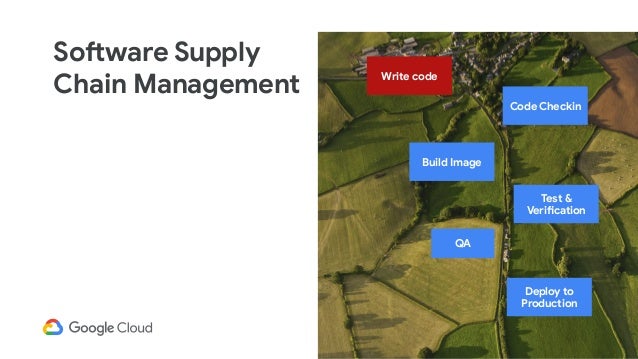

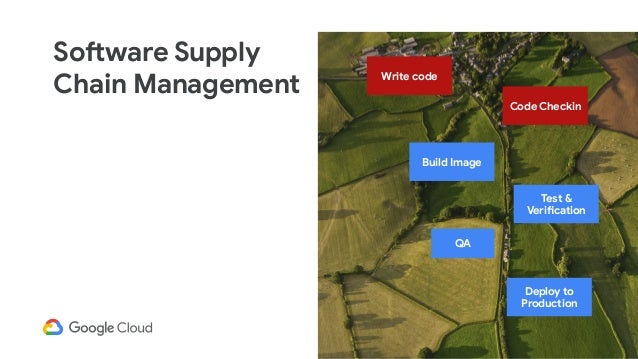

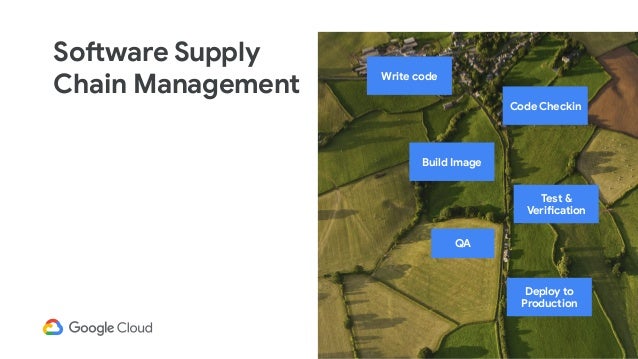

9. Software Supply Chain Management Code Checkin Test & Verification Write code Build Image Deploy to Production QA

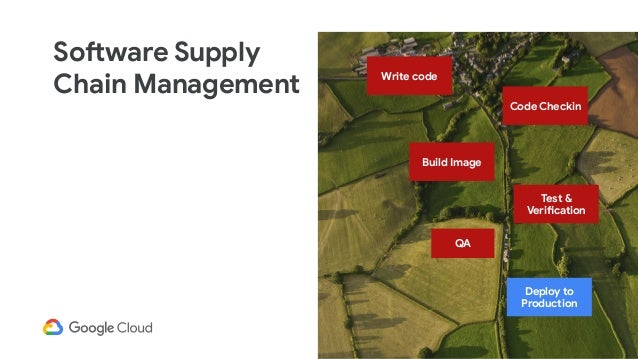

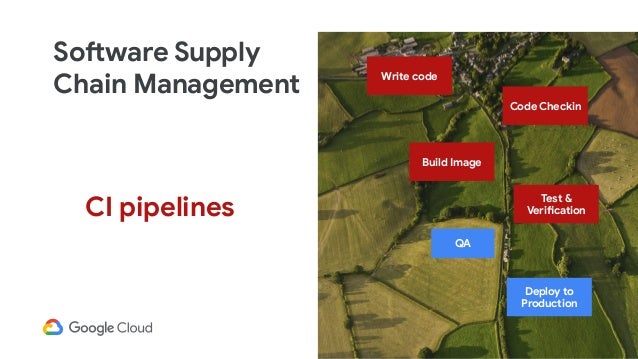

13. Software Supply Chain Management Code Checkin Test & Verification Write code Build Image Deploy to Production QA CI pipelines

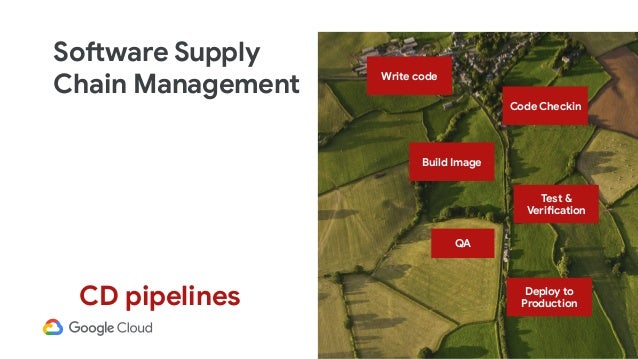

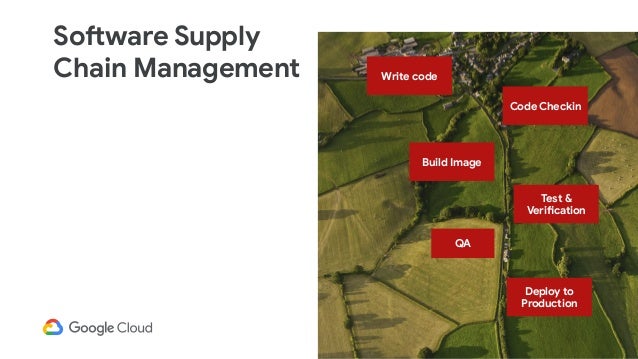

15. Software Supply Chain Management Code Checkin Test & Verification Write code Build Image Deploy to Production QA CD pipelines

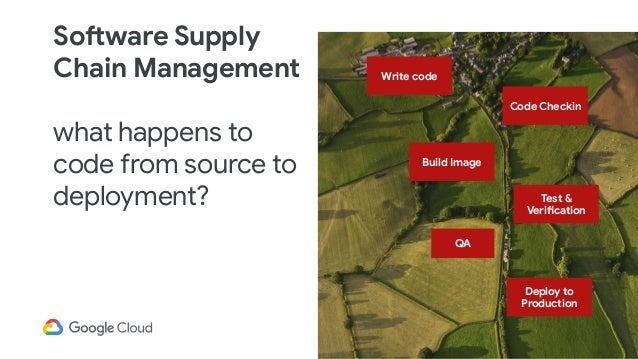

17. Software Supply Chain Management what happens to code from source to deployment? Code Checkin Test & Verification Write code Build Image Deploy to Production QA

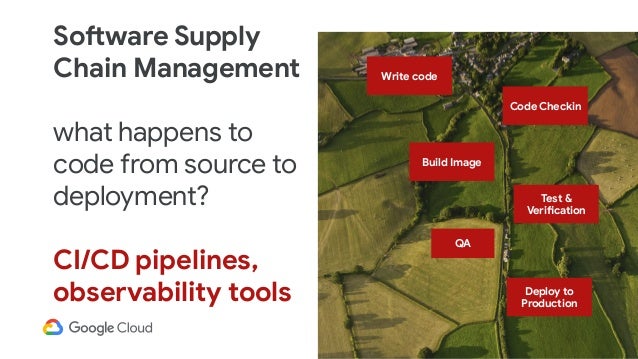

18. Software Supply Chain Management what happens to code from source to deployment? CI/CD pipelines, observability tools Code Checkin Test & Verification Write code Build Image Deploy to Production QA

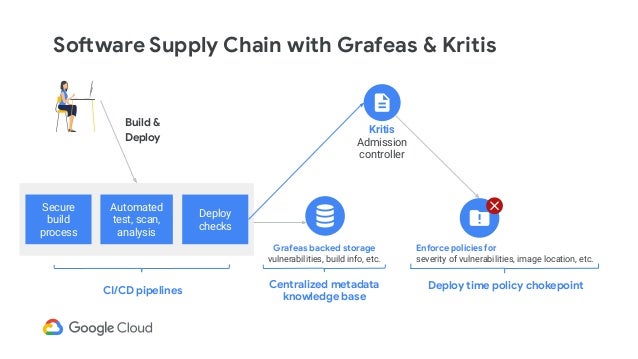

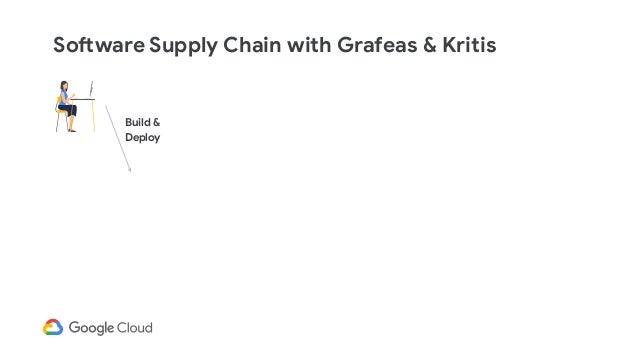

19. Software Supply Chain with Grafeas & Kritis Build & Deploy

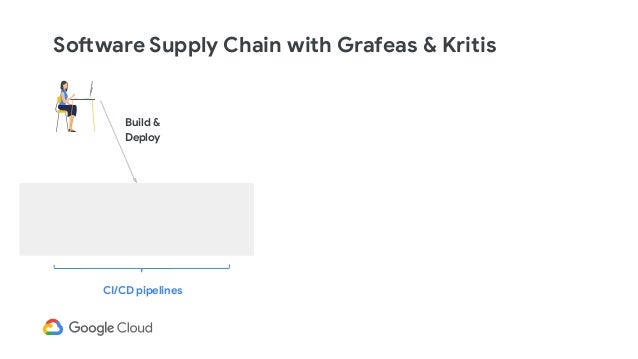

20. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy

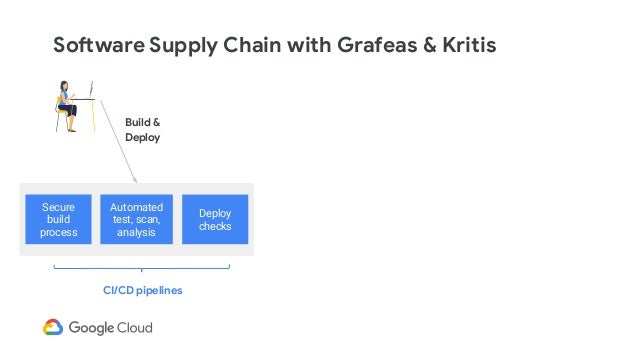

21. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks

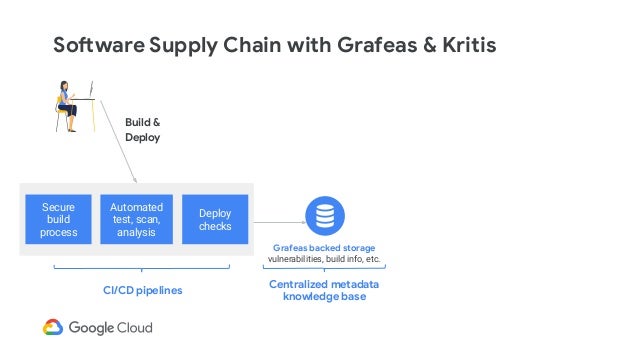

22. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Grafeas backed storage vulnerabilities, build info, etc.

23. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Grafeas backed storage vulnerabilities, build info, etc.

24. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Grafeas backed storage vulnerabilities, build info, etc.

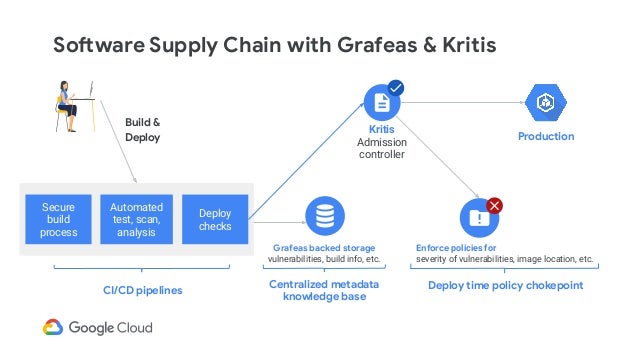

25. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Production Grafeas backed storage vulnerabilities, build info, etc.

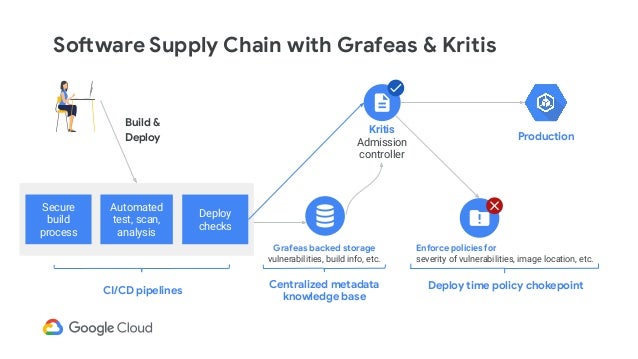

26. Software Supply Chain with Grafeas & Kritis CI/CD pipelines Build & Deploy Secure build process Automated test, scan, analysis Deploy checks Grafeas backed storage vulnerabilities, build info, etc. Centralized metadata knowledge base Kritis Admission controller Deploy time policy chokepoint Enforce policies for severity of vulnerabilities, image location, etc. Production

27. Grafeas & Kritis Binary Authorization Container Registry Vulnerability Scanning

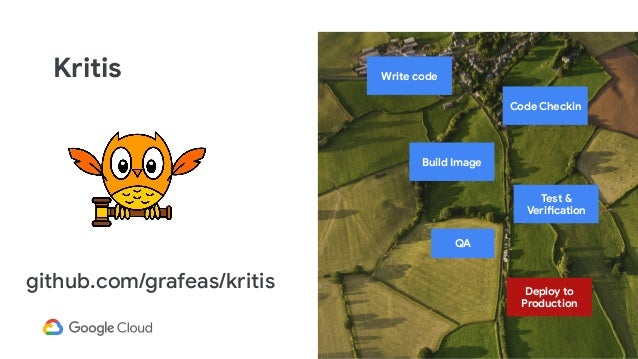

30. Kritis Code Checkin Test & Verification Write code Build Image Deploy to Production QA github.com/grafeas/kritis

31. Let's deploy our e-commerce website...

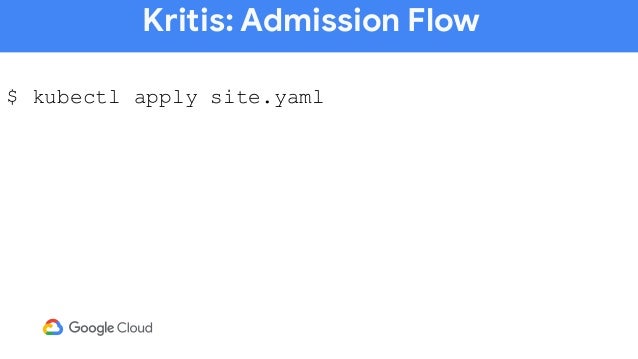

32. Kritis: Admission Flow $ kubectl apply site.yaml

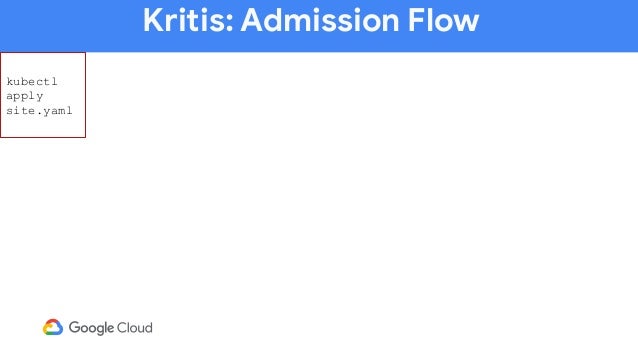

33. Kritis: Admission Flow kubectl apply site.yaml

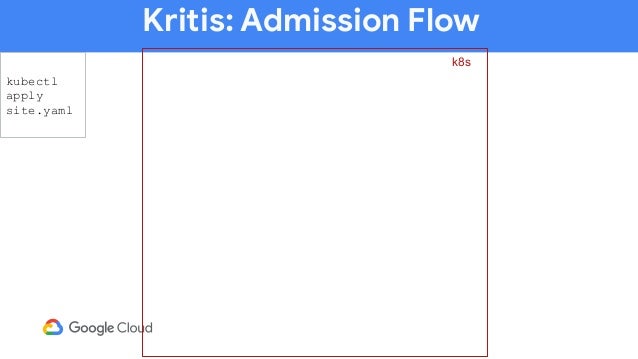

34. Kritis: Admission Flow k8s kubectl apply site.yaml

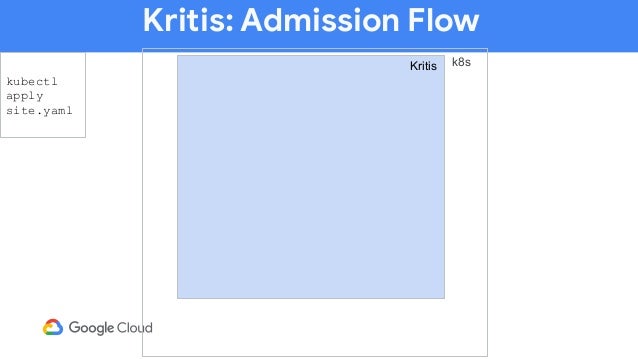

35. Kritis: Admission Flow k8sKritis kubectl apply site.yaml

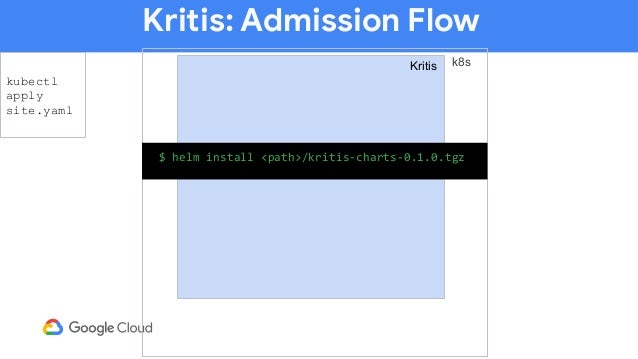

36. Kritis: Admission Flow k8sKritis kubectl apply site.yaml $ helm install <path>/kritis-charts-0.1.0.tgz

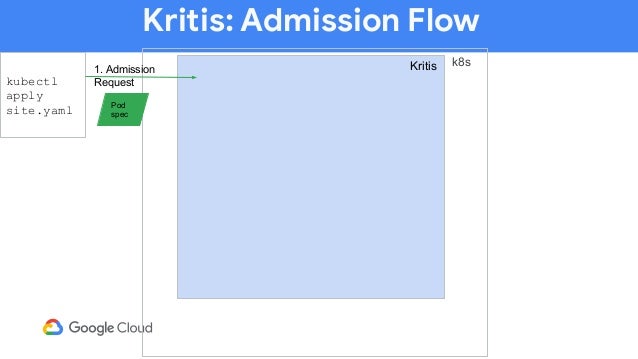

37. Kritis: Admission Flow kubectl apply site.yaml k8s Pod spec 1. Admission Request Kritis

38. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis

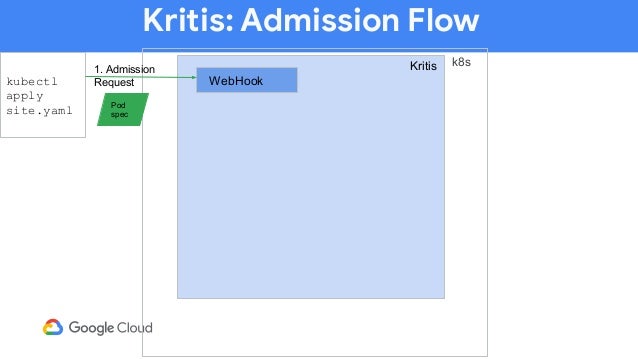

39. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis

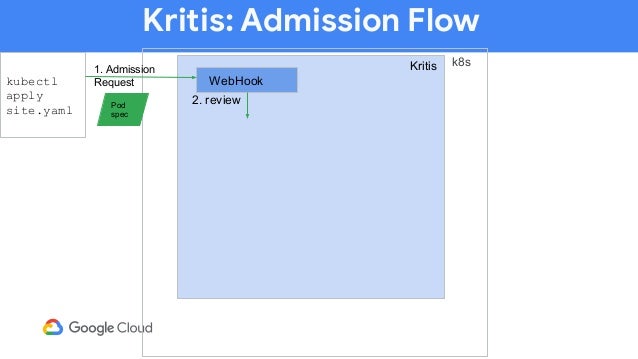

40. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review

41. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies

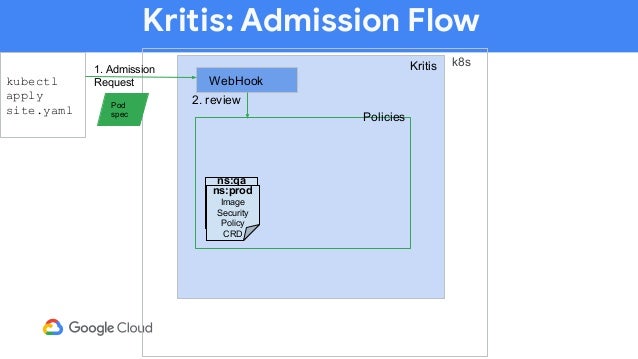

42. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD

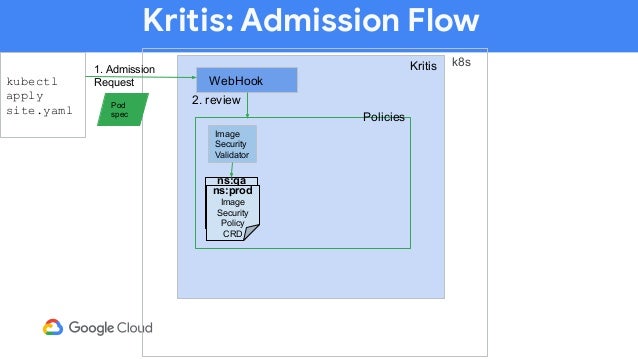

43. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator

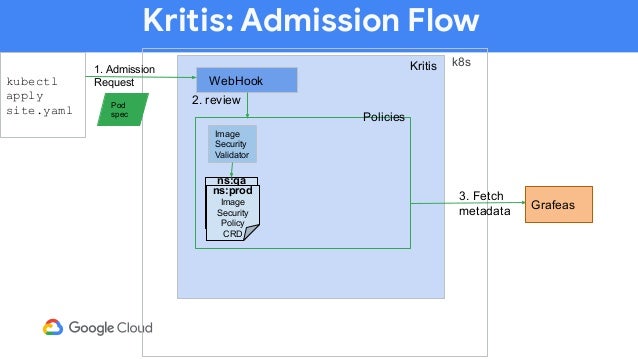

44. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas

45. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas

46. Oh no! Vulnerability scan isn't finished...

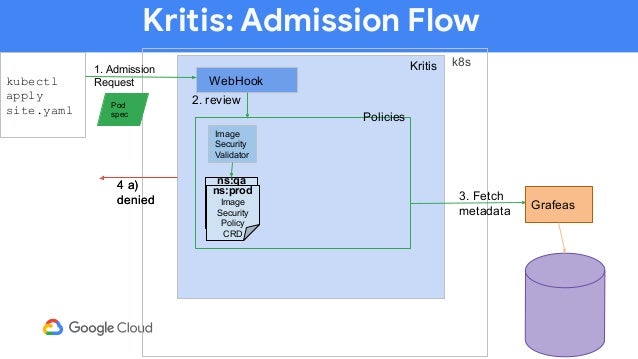

47. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied 4 a) denied

48. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied 4 a) denied Pod

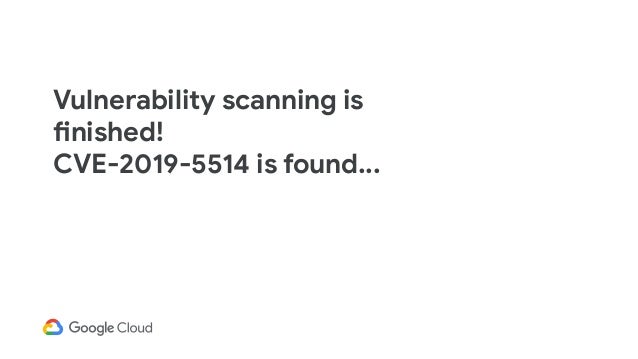

49. Vulnerability scanning is finished! CVE-2019-5514 is found...

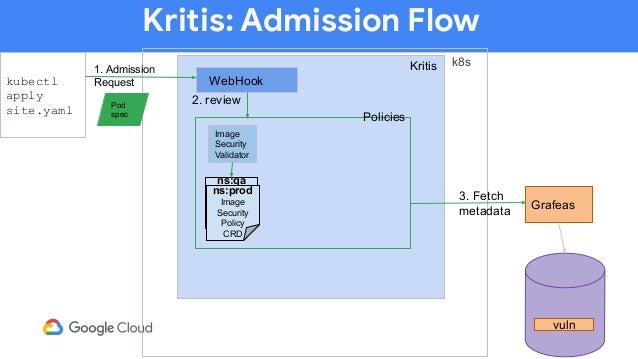

50. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln

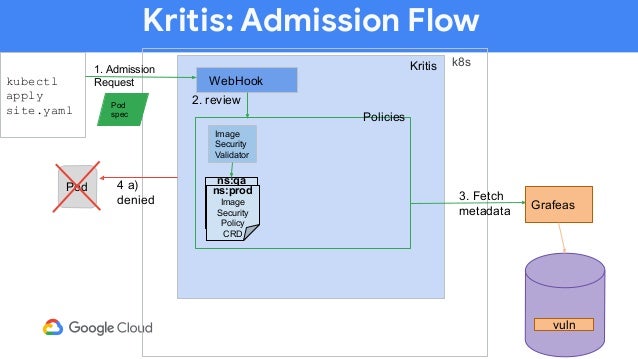

51. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 a) denied Pod vuln

52. Whitelist CVE-2019-5514 because it doesn't affect the website...

53. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln

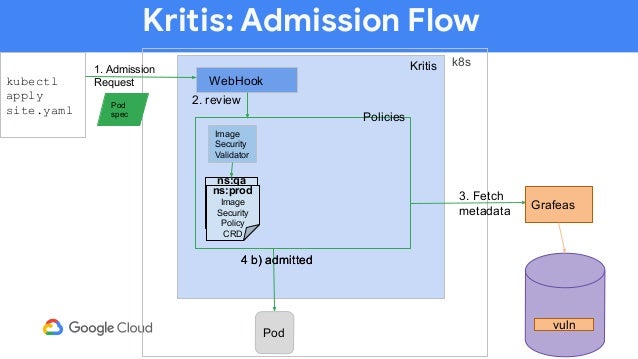

54. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod vuln

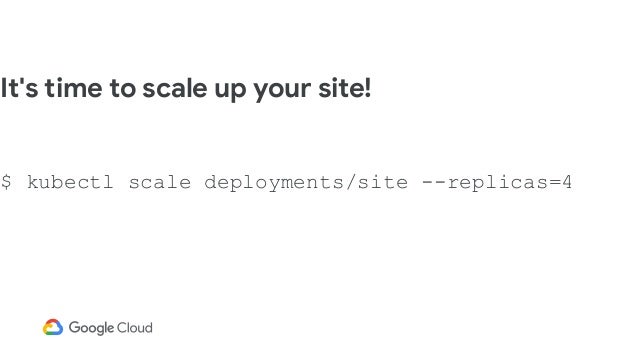

55. It's time to scale up your site! $ kubectl scale deployments/site --replicas=4

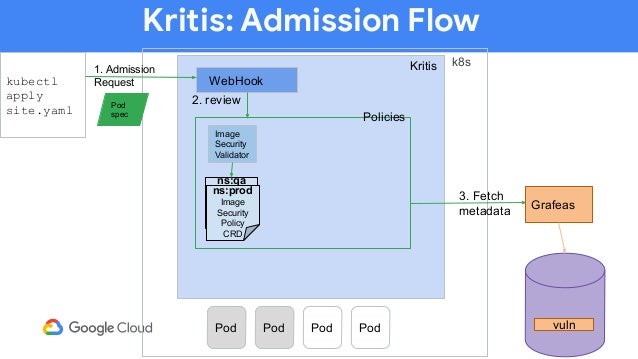

56. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas Pod PodPod Pod vuln

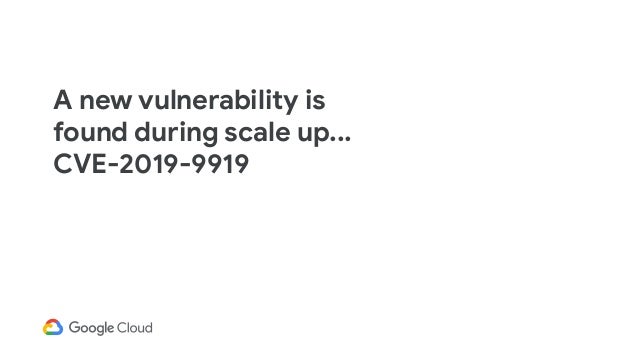

57. A new vulnerability is found during scale up... CVE-2019-9919

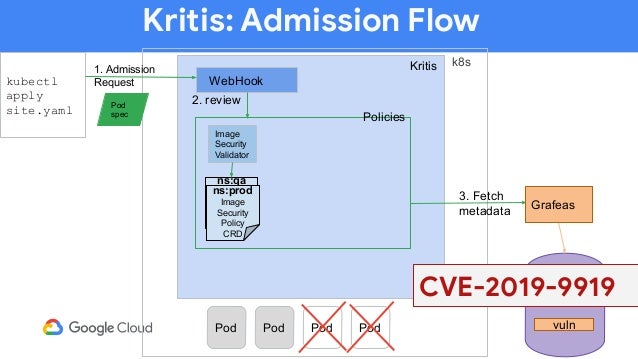

58. vuln Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas Pod PodPod Pod CVE-2019-9919

59. Kritis attestations to the rescue...

60. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod vuln

61. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD vuln

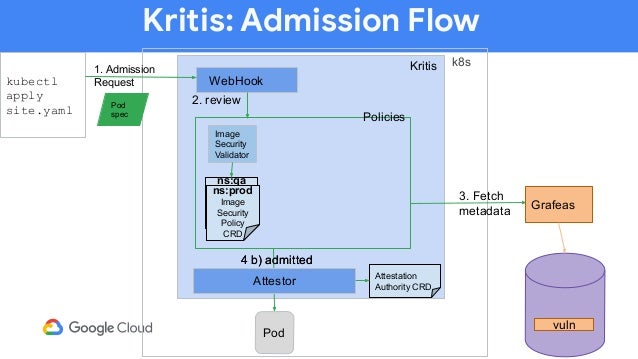

62. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images vuln

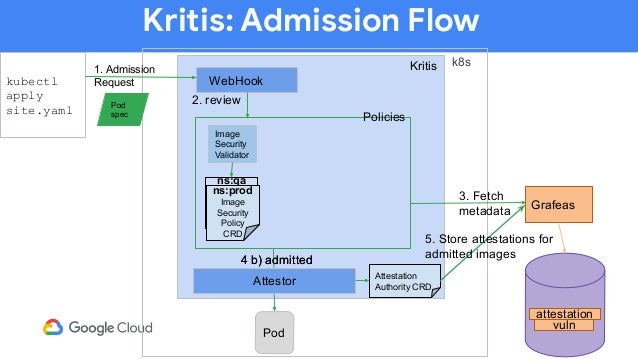

63. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation

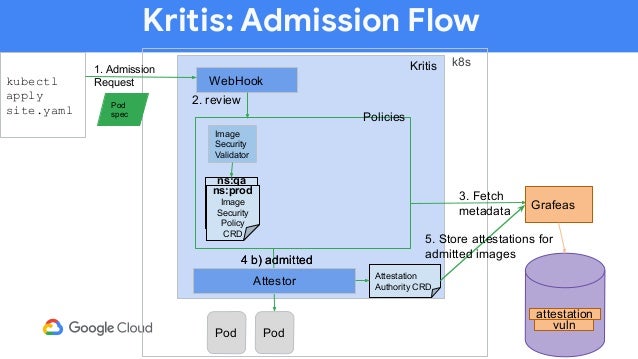

64. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod

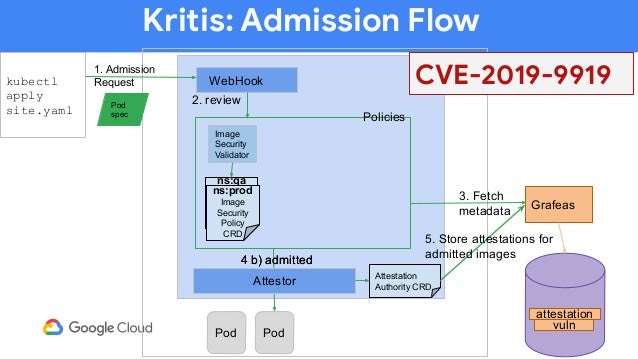

65. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919

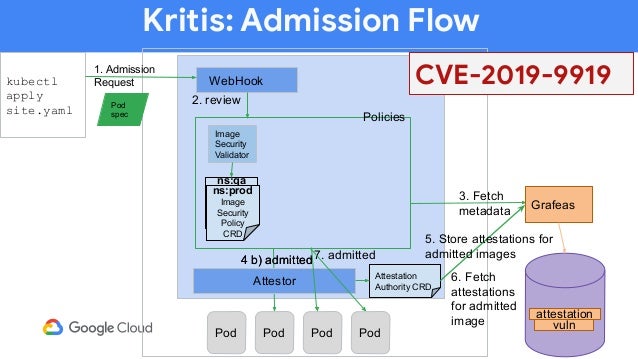

66. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919 6. Fetch attestations for admitted image

67. Kritis: Admission Flow kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod CVE-2019-9919 6. Fetch attestations for admitted image Pod Pod 7. admitted

68. Discovering new vulnerabilities in admitted containers ...

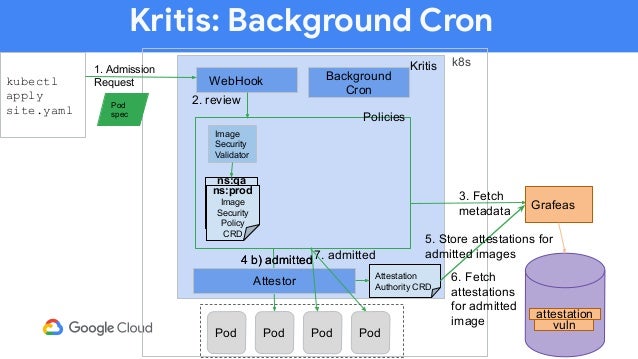

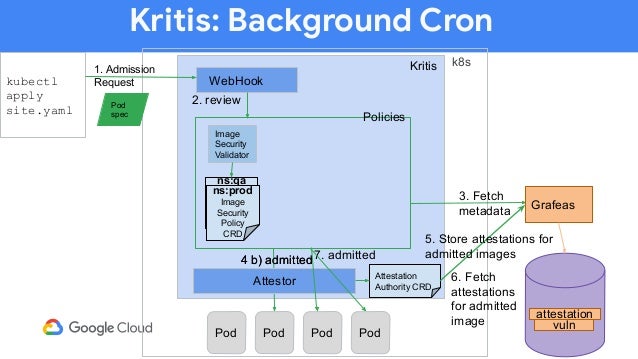

69. Kritis: Background Cron kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod 6. Fetch attestations for admitted image Pod Pod 7. admitted

70. Kritis: Background Cron kubectl apply site.yaml k8s WebHook Pod spec 1. Admission Request Kritis 2. review Policies ns:prod Image Security Policy CRD ns:qa Image Security Policy CRD ns:prod Image Security Policy CRD Image Security Validator 3. Fetch metadata Grafeas vuln 4 b) admitted4 b) admitted Pod Attestor Attestation Authority CRD 5. Store attestations for admitted images attestation Pod 6. Fetch attestations for admitted image Pod Pod Background Cron 7. admitted

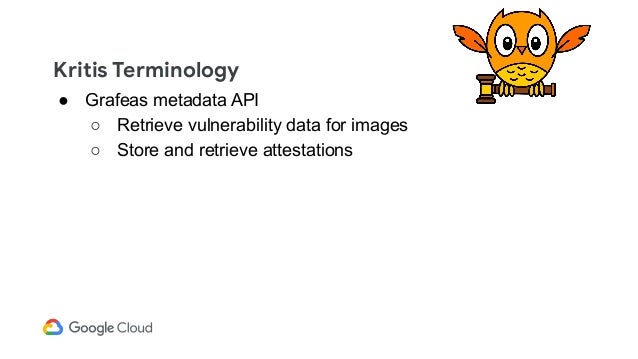

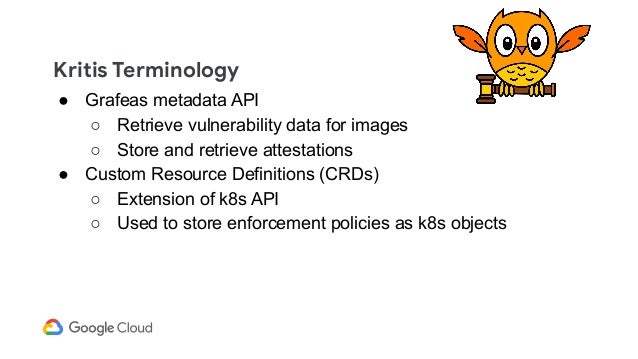

73. Kritis Terminology ● Grafeas metadata API ○ Retrieve vulnerability data for images ○ Store and retrieve attestations

74. Kritis Terminology ● Grafeas metadata API ○ Retrieve vulnerability data for images ○ Store and retrieve attestations ● Custom Resource Definitions (CRDs) ○ Extension of k8s API ○ Used to store enforcement policies as k8s objects

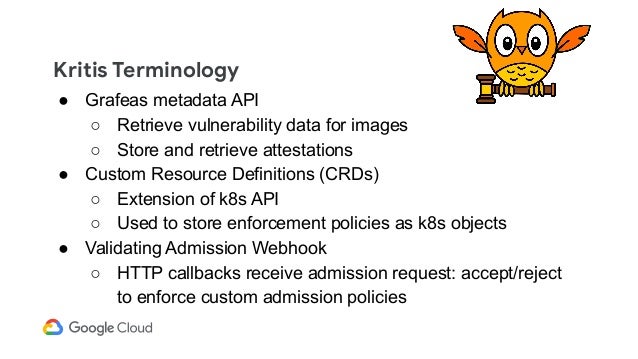

75. Kritis Terminology ● Grafeas metadata API ○ Retrieve vulnerability data for images ○ Store and retrieve attestations ● Custom Resource Definitions (CRDs) ○ Extension of k8s API ○ Used to store enforcement policies as k8s objects ● Validating Admission Webhook ○ HTTP callbacks receive admission request: accept/reject to enforce custom admission policies

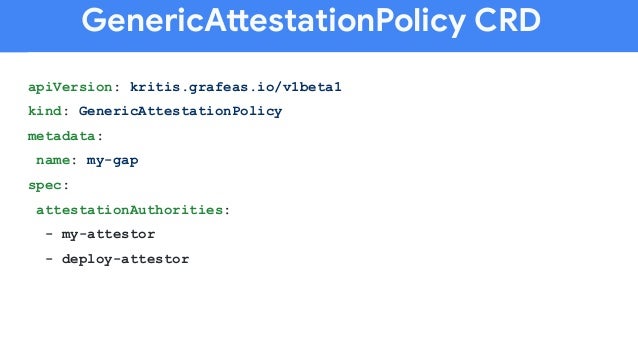

76. GenericAttestationPolicy CRD apiVersion: kritis.grafeas.io/v1beta1 kind: GenericAttestationPolicy metadata: name: my-gap spec: attestationAuthorities: - my-attestor - deploy-attestor

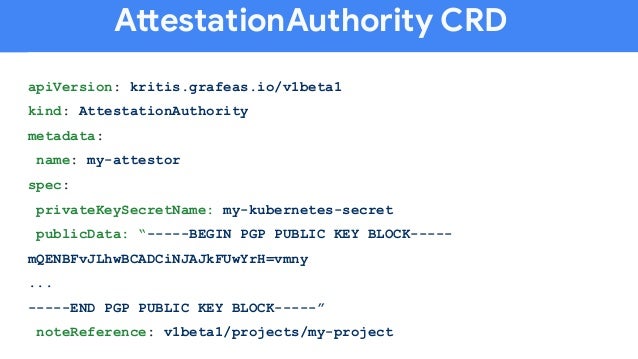

77. AttestationAuthority CRD apiVersion: kritis.grafeas.io/v1beta1 kind: AttestationAuthority metadata: name: my-attestor spec: privateKeySecretName: my-kubernetes-secret publicData: “-----BEGIN PGP PUBLIC KEY BLOCK----- mQENBFvJLhwBCADCiNJAJkFUwYrH=vmny ... -----END PGP PUBLIC KEY BLOCK-----” noteReference: v1beta1/projects/my-project

78. ImageSecurityPolicy CRD apiVersion: kritis.grafeas.io/v1beta1 kind: ImageSecurityPolicy metadata: name: my-isp spec: imageWhitelist: - gcr.io/kritis-int-test/nginx-digest-whitelist:latest packageVulnerabilityRequirements: maximumSeverity: MEDIUM whitelistCVEs: - providers/goog-vulnz/notes/CVE-2017-1000082 - providers/goog-vulnz/notes/CVE-2017-1000081

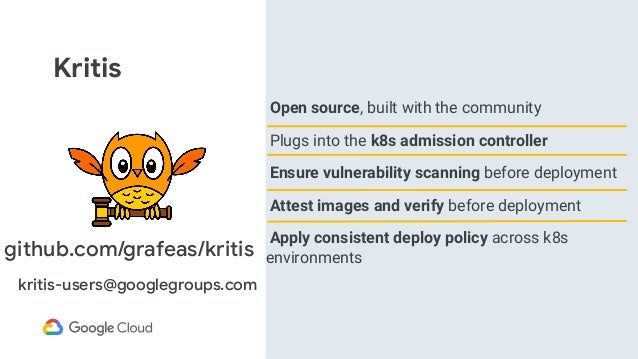

79. Kritis Open source, built with the community Plugs into the k8s admission controller Ensure vulnerability scanning before deployment Attest images and verify before deployment Apply consistent deploy policy across k8s environmentsgithub.com/grafeas/kritis kritis-users@googlegroups.com

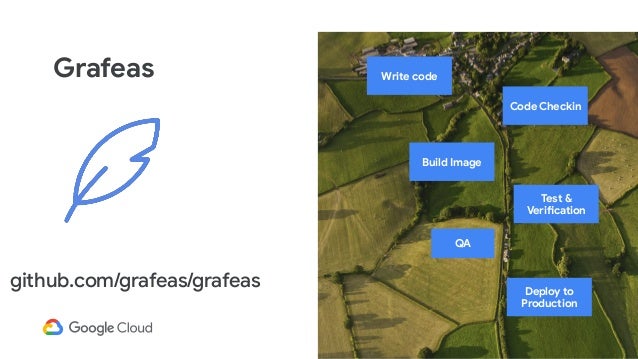

82. Grafeas Code Checkin Test & Verification Write code Build Image Deploy to Production QA github.com/grafeas/grafeas

83. Grafeas: Artifact Metadata API

84. Grafeas: Artifact Metadata API = images, binaries, packages...

85. Grafeas: Artifact Metadata API = build, deployment, vulnerability, ...

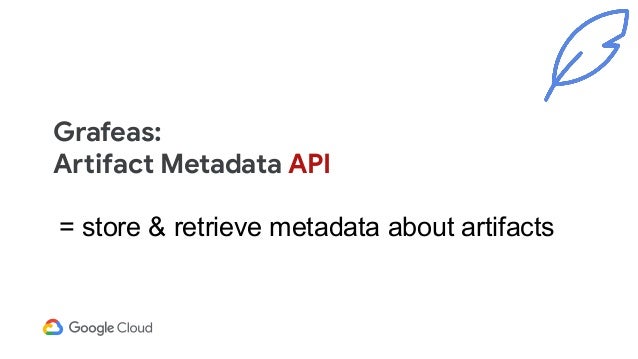

86. Grafeas: Artifact Metadata API = store & retrieve metadata about artifacts

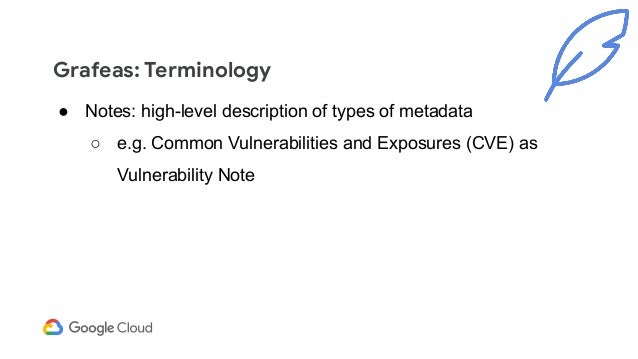

87. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note

88. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note ● Occurrences: instance of note in an artifact ○ e.g. CVE presence in an image

89. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note ● Occurrences: instance of note in an artifact ○ e.g. CVE presence in an image ● Providers and Consumers

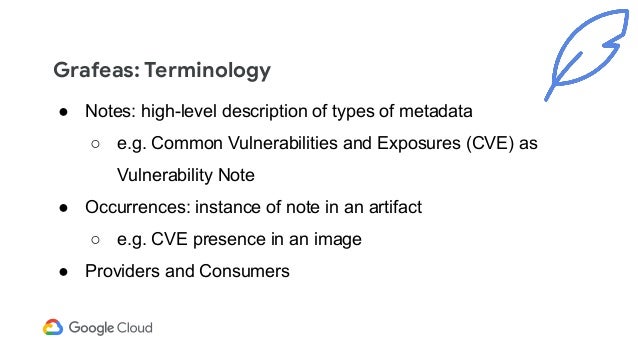

90. Grafeas: Terminology ● Notes: high-level description of types of metadata ○ e.g. Common Vulnerabilities and Exposures (CVE) as Vulnerability Note ● Occurrences: instance of note in an artifact ○ e.g. CVE presence in an image ● Providers and Consumers

91. Grafeas: Providers and Consumers Grafeas

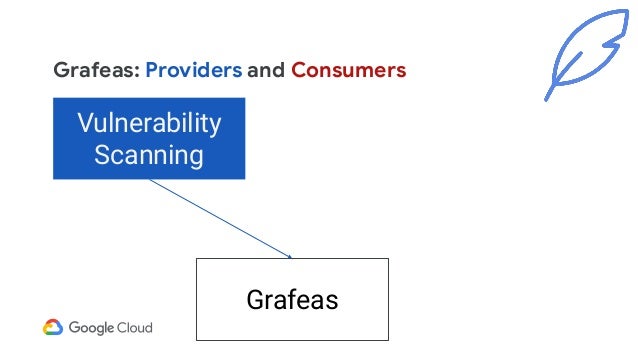

92. Grafeas: Providers and Consumers Vulnerability Scanning Grafeas

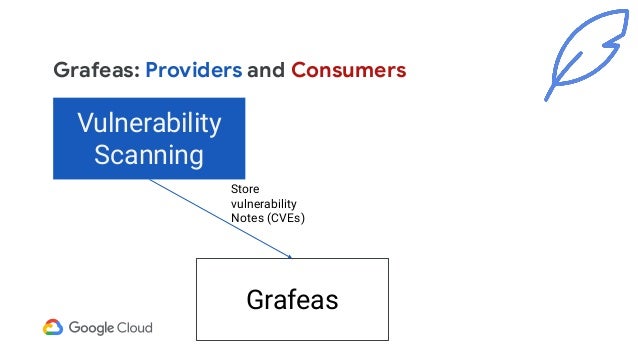

93. Grafeas: Providers and Consumers Vulnerability Scanning Store vulnerability Notes (CVEs) Grafeas

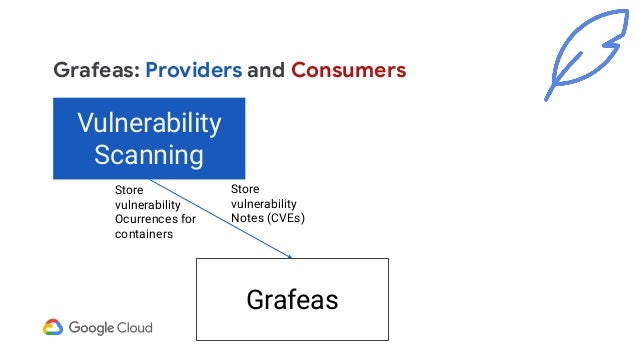

94. Grafeas: Providers and Consumers Vulnerability Scanning Store vulnerability Ocurrences for containers Store vulnerability Notes (CVEs) Grafeas

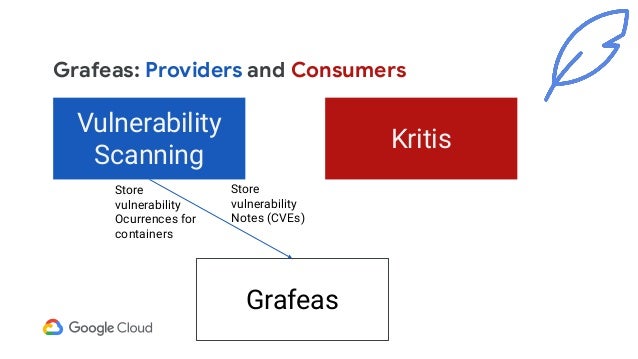

95. Grafeas: Providers and Consumers Vulnerability Scanning Store vulnerability Ocurrences for containers Store vulnerability Notes (CVEs) Kritis Grafeas

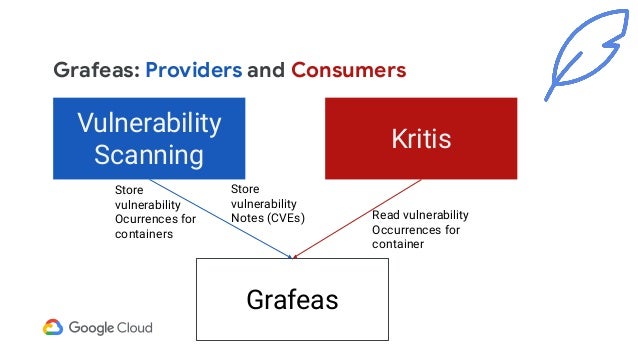

96. Grafeas: Providers and Consumers Vulnerability Scanning Store vulnerability Ocurrences for containers Store vulnerability Notes (CVEs) Kritis Read vulnerability Occurrences for container Grafeas

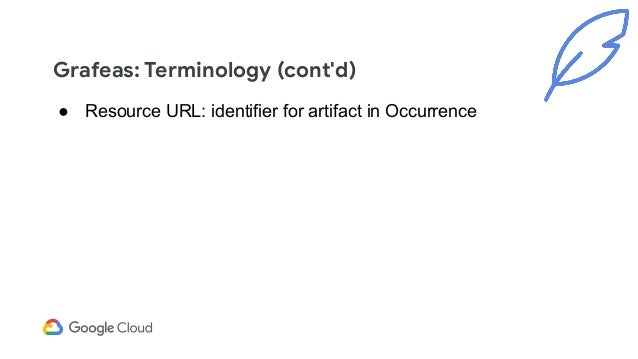

97. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence

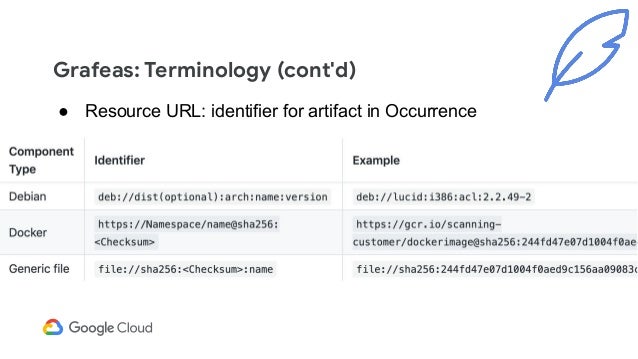

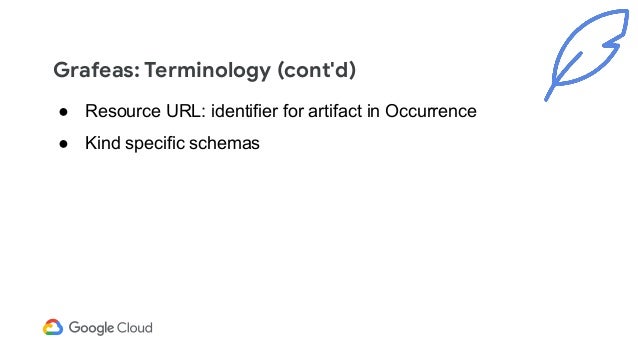

98. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence

99. Grafeas: Terminology (cont'd) ● Resource URL: identifier for artifact in Occurrence ● Kind specific schemas

100. Grafeas: Deployment Note // An artifact that can be deployed in some runtime. message DeploymentNote { // Required. Resource URI for the artifact being deployed. repeated string resource_uri = 1; }

101. Grafeas: Deployment Occurrence // The period during which some deployable was active in a runtime. message DeploymentOccurrence { // Identity of the user that triggered this deployment. string user_email = 1; // Required. Beginning of the lifetime of this deployment. google.protobuf.Timestamp deploy_time = 2; // Output only. Resource URI for the artifact being deployed taken from the deployable field with the same name. repeated string resource_uri = 6; ...}

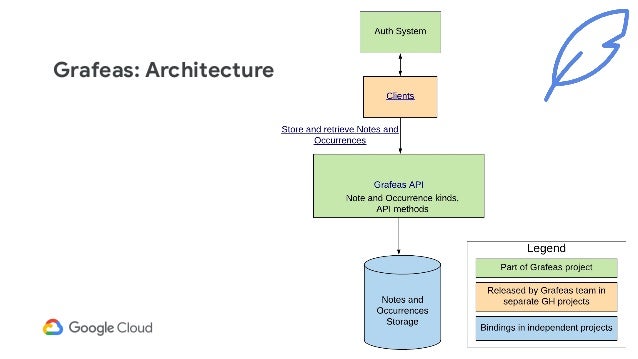

102. Grafeas: Architecture

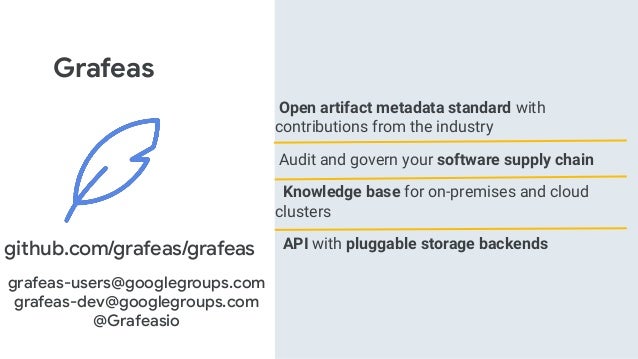

103. Grafeas Open artifact metadata standard with contributions from the industry Audit and govern your software supply chain Knowledge base for on-premises and cloud clusters API with pluggable storage backendsgithub.com/grafeas/grafeas grafeas-users@googlegroups.com grafeas-dev@googlegroups.com @Grafeasio

106. Coming soon... 0.1.0

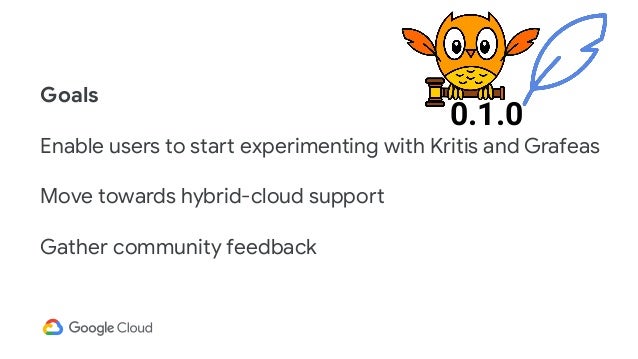

107. Goals Enable users to start experimenting with Kritis and Grafeas Move towards hybrid-cloud support Gather community feedback 0.1.0

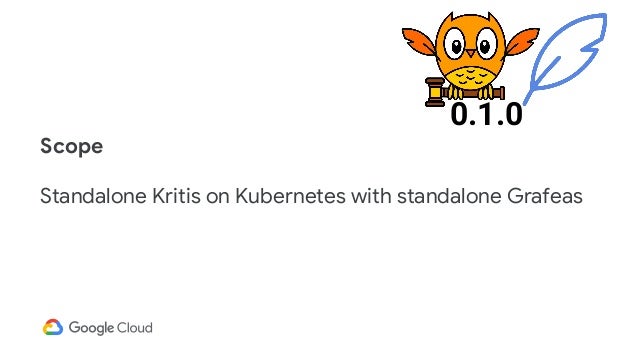

108. 0.1.0 Scope Standalone Kritis on Kubernetes with standalone Grafeas

109. 0.1.0 User Journeys Allow deployment of a container to Kubernetes cluster Block deployment of a unadmitted container to the cluster

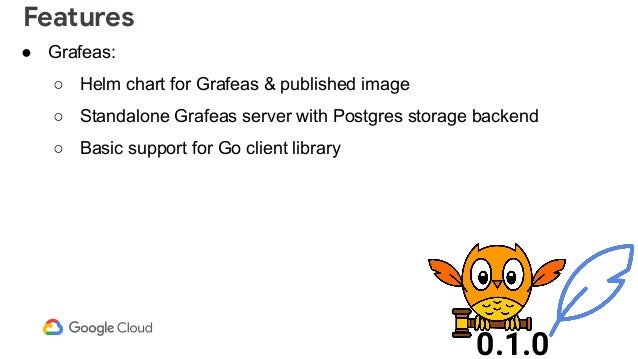

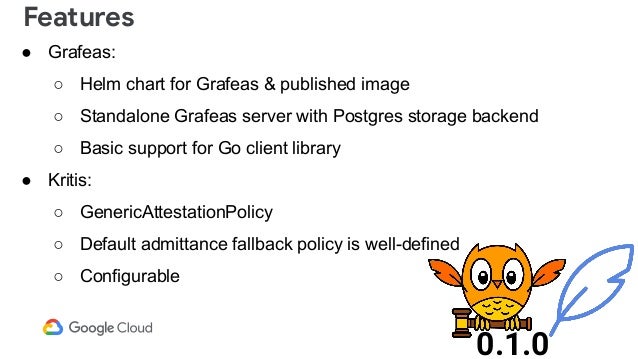

110. ● Grafeas: ○ Helm chart for Grafeas & published image ○ Standalone Grafeas server with Postgres storage backend ○ Basic support for Go client library Features 0.1.0

111. ● Grafeas: ○ Helm chart for Grafeas & published image ○ Standalone Grafeas server with Postgres storage backend ○ Basic support for Go client library ● Kritis: ○ GenericAttestationPolicy ○ Default admittance fallback policy is well-defined ○ Configurable Features 0.1.0

112. Learn more and follow along! github.com/grafeas/{grafeas,kritis} Google Groups: {grafeas,kritis}-users, grafeas-dev @grafeasio Obrigada! 0.1.0
