1.
Aysylu Greenberg, Google
Liron Levin, Palo Alto Networks
Binary Authorization in
Kubernetes

2.
Who are we
Aysylu Greenberg
Sr Software Engineer @ Google
Eng Lead of open-source Grafeas and Kritis
@aysylu22
Liron Levin
Chief software architect @ Prisma Cloud Compute
Grafeas and Kritis contributor

3.

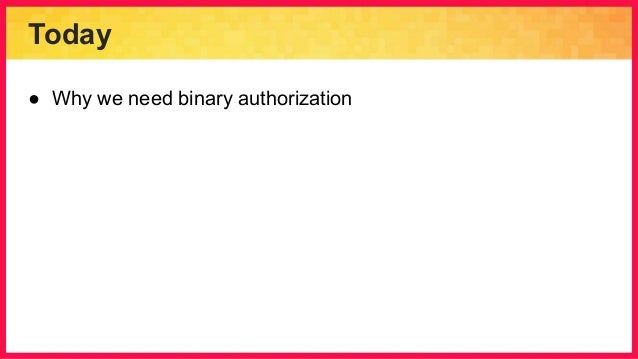

Today
● Why we need binary authorization

4.

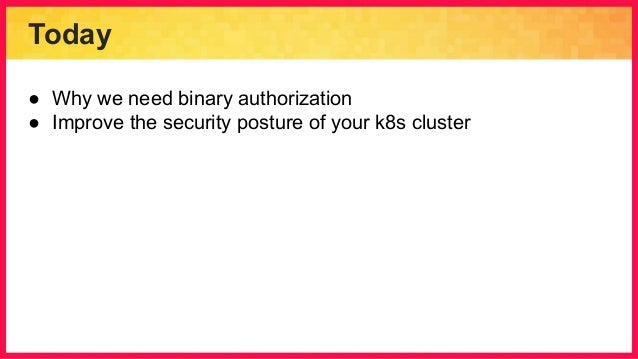

Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster

5.
Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster
● Learn about exciting open source security technologies

6.
Today
● Why we need binary authorization
● Improve the security posture of your k8s cluster
● Learn about exciting open source security technologies
● Have fun and see cool demos

7.
Software supply chain
Code

8.
Software supply chain
Build &
Test
(CI/CD)
Code

9.

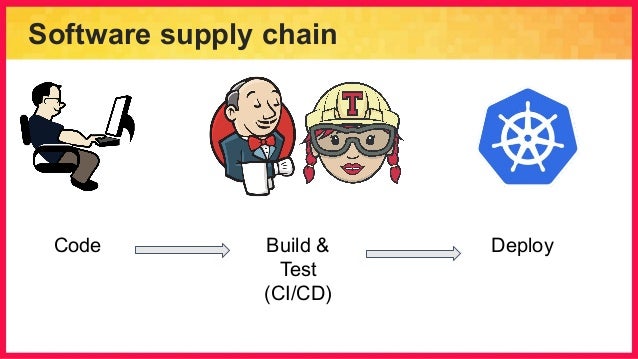

Software supply chain
Build &
Test
(CI/CD)
Code Deploy

10.

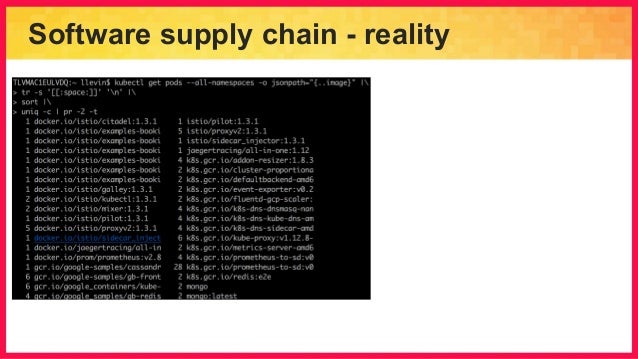

Software supply chain - reality

11.

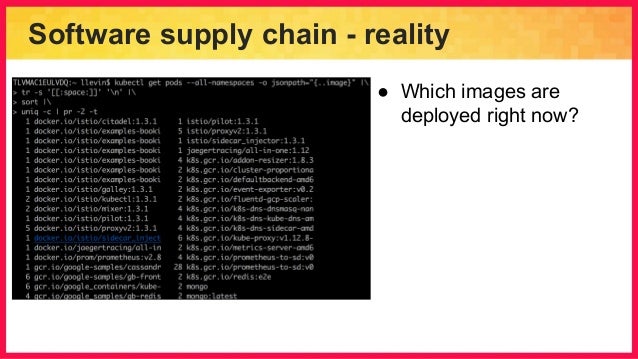

Software supply chain - reality
● Which images are
deployed right now?

12.

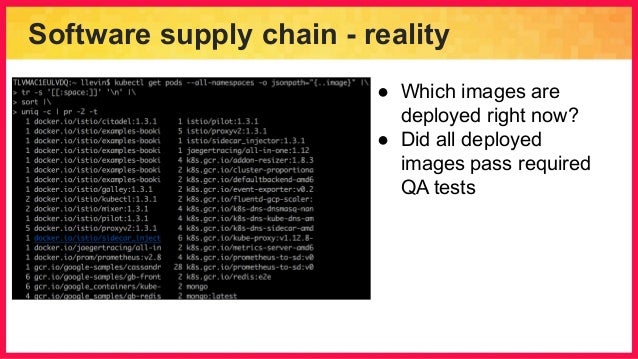

Software supply chain - reality
● Which images are
deployed right now?
● Did all deployed
images pass required
QA tests

13.

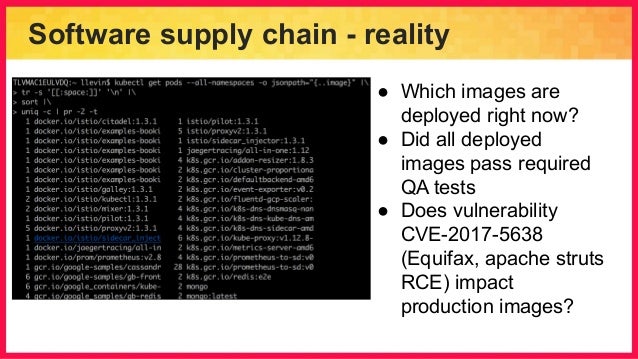

Software supply chain - reality
● Which images are
deployed right now?
● Did all deployed
images pass required
QA tests
● Does vulnerability
CVE-2017-5638
(Equifax, apache struts
RCE) impact
production images?

14.
Software supply chain
Build &
Test
(CI/CD)
Code Deploy

15.

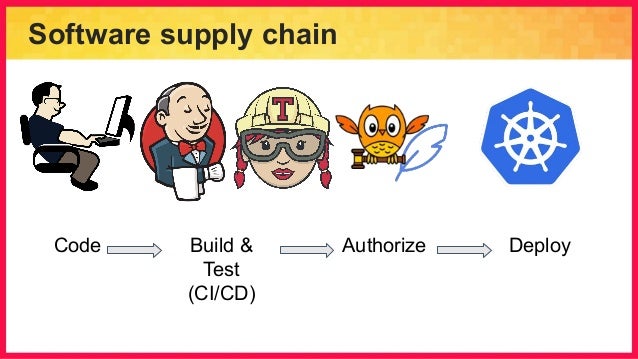

Software supply chain
Build &
Test
(CI/CD)
Code DeployAuthorize

16.

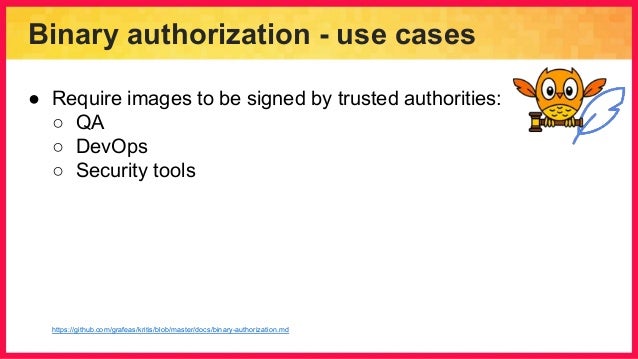

Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

17.
Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
● Require images to pass some restrictive security criteria
(e.g., no critical severity unpatched vulnerabilities)
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

18.

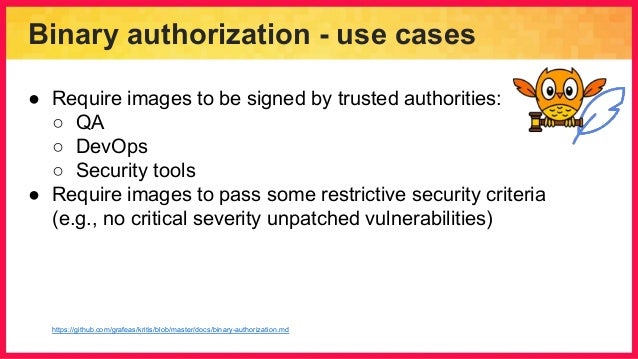

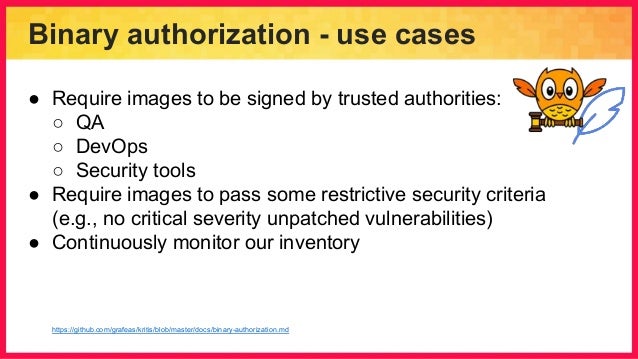

Binary authorization - use cases
● Require images to be signed by trusted authorities:
○ QA
○ DevOps
○ Security tools
● Require images to pass some restrictive security criteria
(e.g., no critical severity unpatched vulnerabilities)
● Continuously monitor our inventory
https://github.com/grafeas/kritis/blob/master/docs/binary-authorization.md

19.

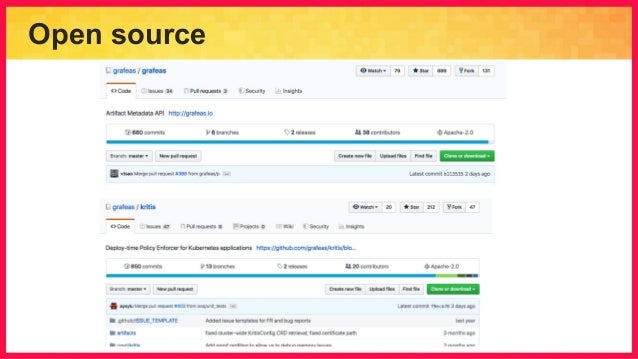

Open source

20.
Open source

21.

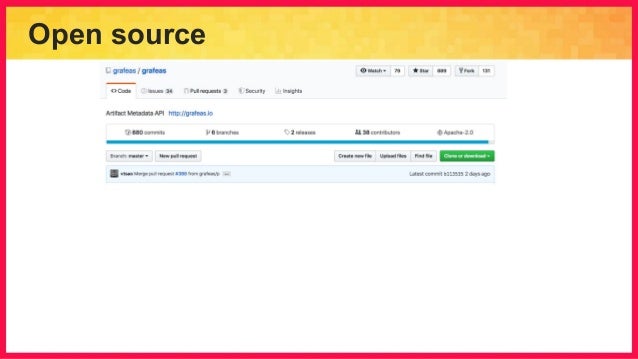

Open source

22.

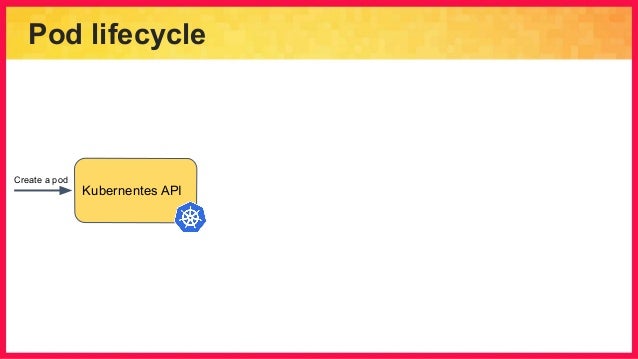

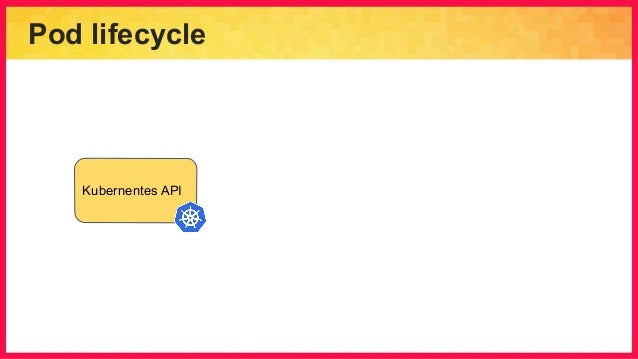

Pod lifecycle
Kubernentes API

23.
Pod lifecycle
Kubernentes API
Create a pod

24.

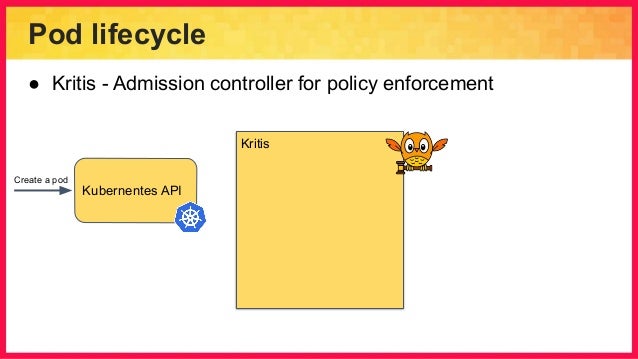

Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Kritis
Create a pod

25.

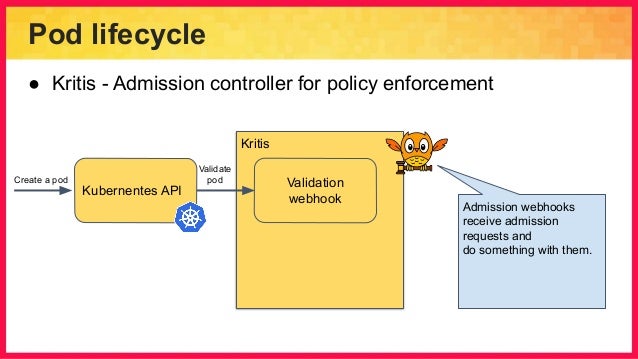

Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Kritis
Create a pod
Validate
pod
Admission webhooks
receive admission
requests and
do something with them.

26.
Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Create a pod
Validate
pod

27.

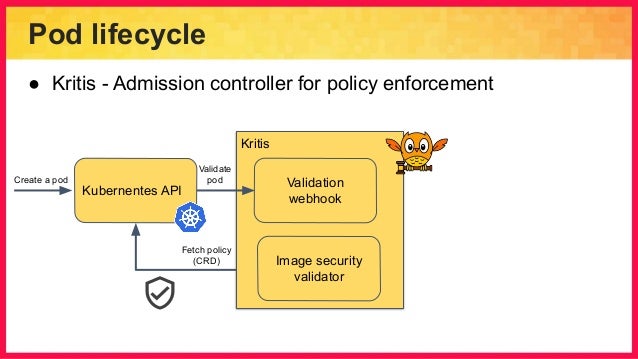

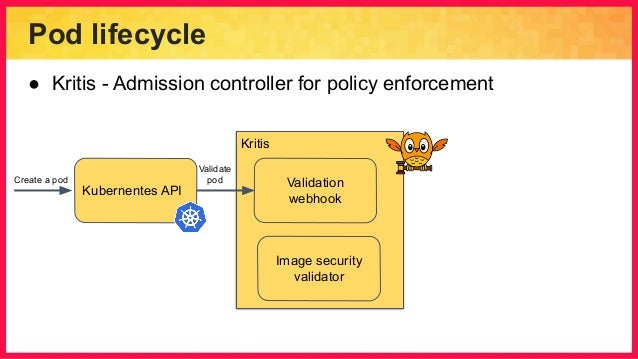

Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod

28.

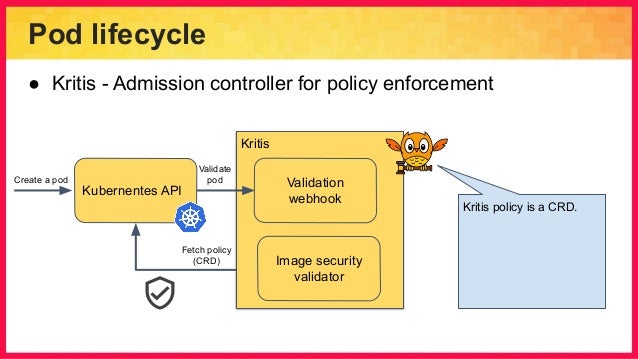

Pod lifecycle
● Kritis - Admission controller for policy enforcement
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Kritis policy is a CRD.

29.
Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081

30.

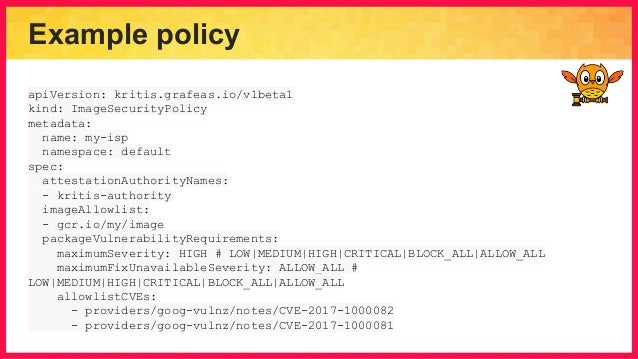

Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
The Custom Resource
Definition.
Supported values:
ImageSecurityPolicy
GenericAttestationPolicy

31.

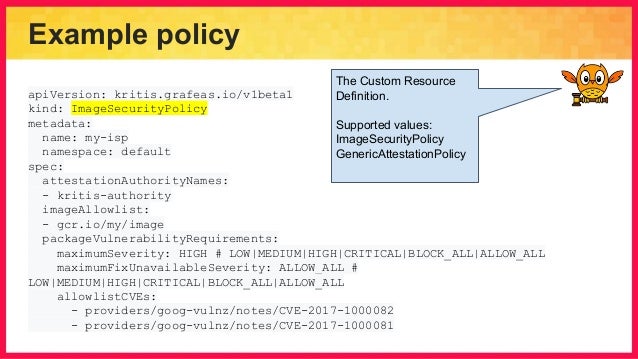

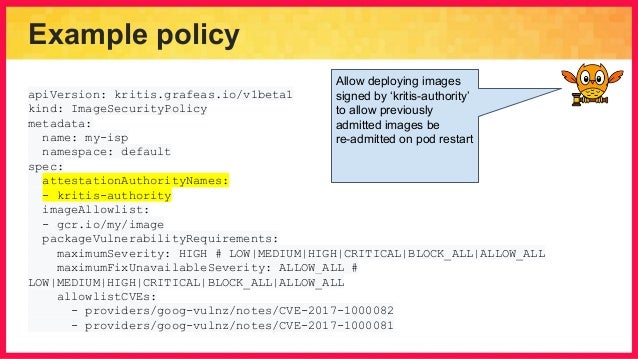

Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Allow deploying images
signed by ‘kritis-authority’
to allow previously
admitted images be
re-admitted on pod restart

32.
Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Allow specific
external/infrastructure
images

33.

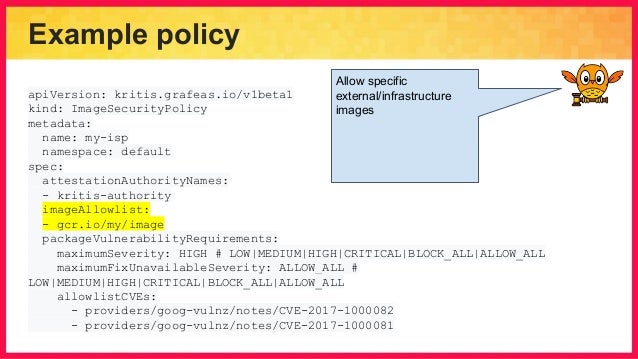

Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Constraint on
vulnerability:
vuln severity <= policy
severity

34.

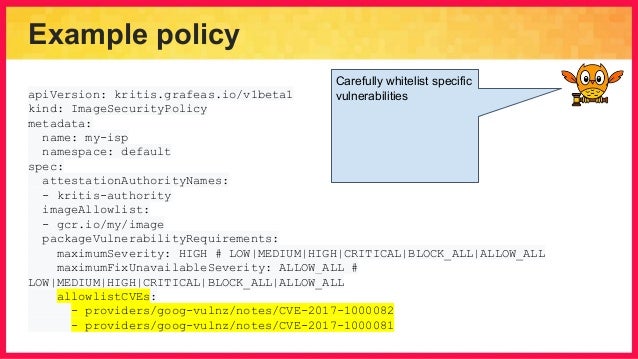

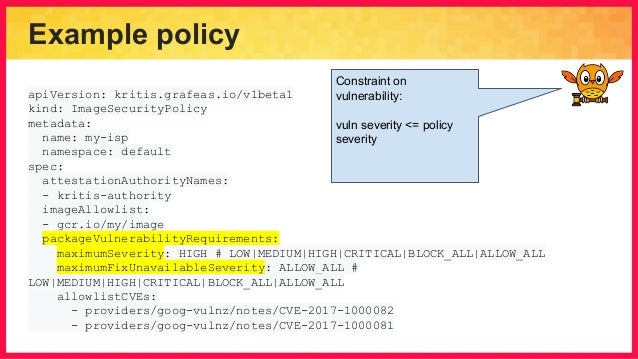

Example policy
apiVersion: kritis.grafeas.io/v1beta1
kind: ImageSecurityPolicy
metadata:
name: my-isp
namespace: default
spec:
attestationAuthorityNames:
- kritis-authority
imageAllowlist:
- gcr.io/my/image
packageVulnerabilityRequirements:
maximumSeverity: HIGH # LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
maximumFixUnavailableSeverity: ALLOW_ALL #
LOW|MEDIUM|HIGH|CRITICAL|BLOCK_ALL|ALLOW_ALL
allowlistCVEs:
- providers/goog-vulnz/notes/CVE-2017-1000082
- providers/goog-vulnz/notes/CVE-2017-1000081
Carefully whitelist specific
vulnerabilities

35.

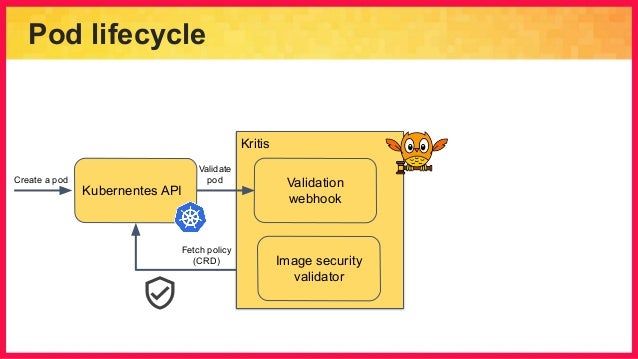

Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod

36.

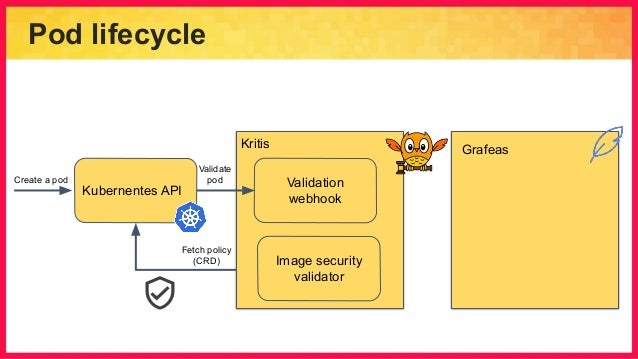

Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas

37.

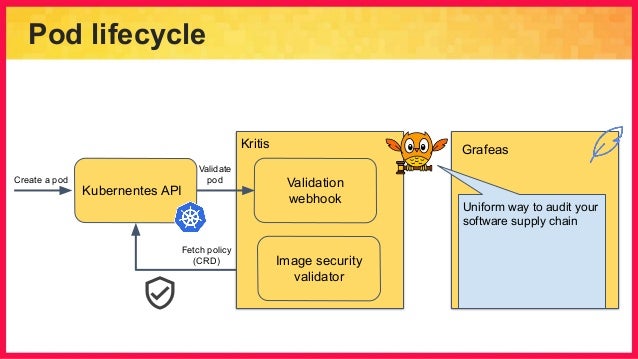

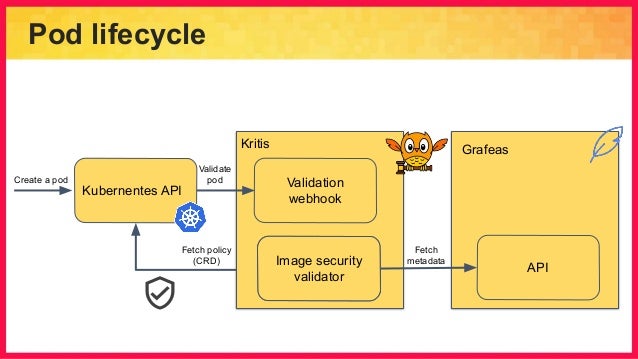

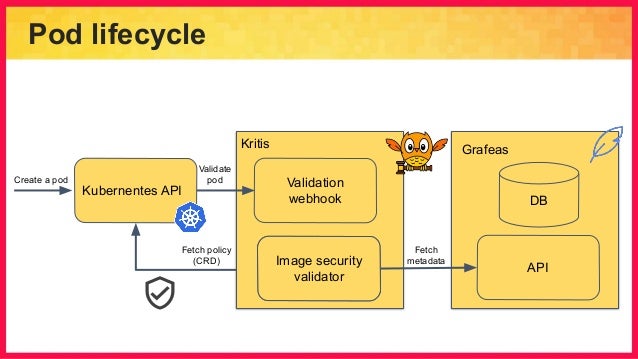

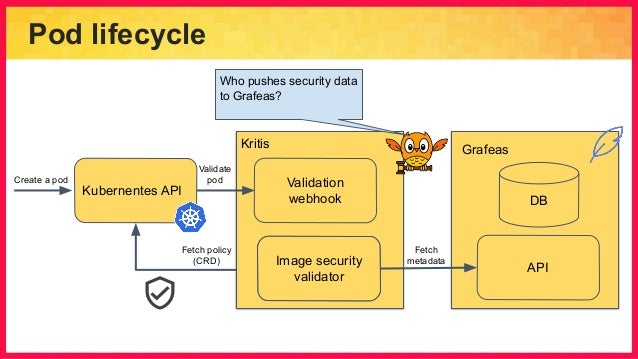

Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Uniform way to audit your
software supply chain

38.

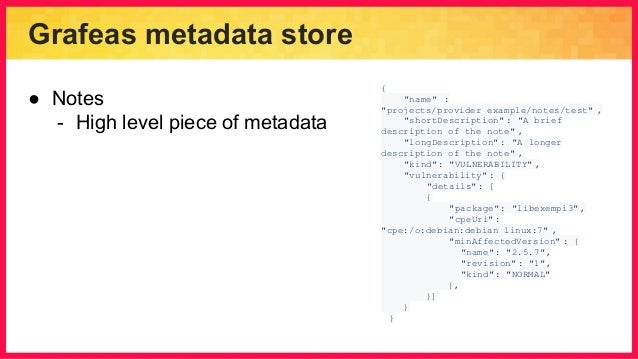

Grafeas metadata store
● Notes
- High level piece of metadata
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}

39.
Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description

40.

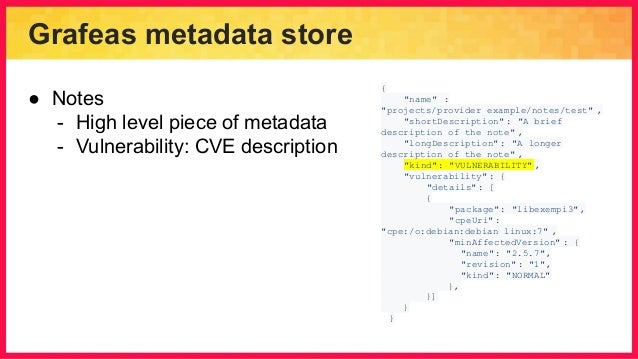

Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details

41.
Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details

42.

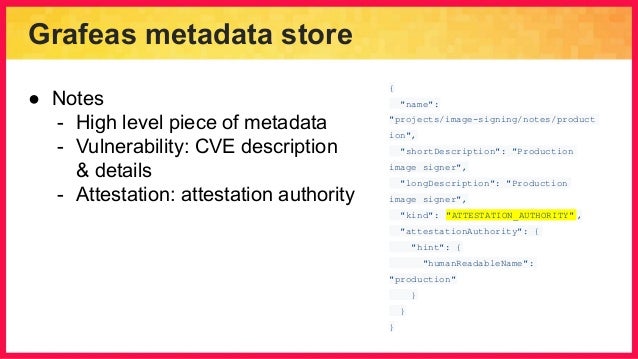

Grafeas metadata store
{
"name":
"projects/image-signing/notes/product
ion",
"shortDescription": "Production
image signer",
"longDescription": "Production
image signer",
"kind": "ATTESTATION_AUTHORITY" ,
"attestationAuthority": {
"hint": {
"humanReadableName":
"production"
}
}
}
● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details
- Attestation: attestation authority

43.
Grafeas metadata store
{
"name" :
"projects/provider_example/notes/test" ,
"shortDescription" : "A brief
description of the note" ,
"longDescription" : "A longer
description of the note" ,
"kind": "VULNERABILITY" ,
"vulnerability" : {
"details": [
{
"package": "libexempi3",
"cpeUri":
"cpe:/o:debian:debian_linux:7" ,
"minAffectedVersion" : {
"name": "2.5.7",
"revision": "1",
"kind": "NORMAL"
},
}]
}
}

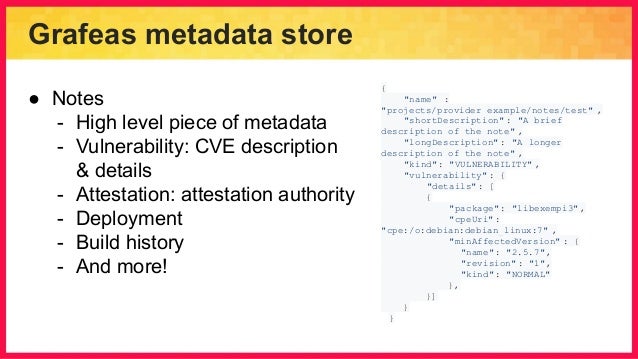

● Notes
- High level piece of metadata
- Vulnerability: CVE description
& details
- Attestation: attestation authority
- Deployment
- Build history
- And more!

44.

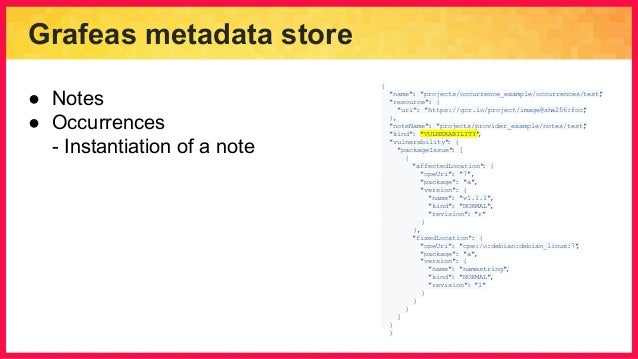

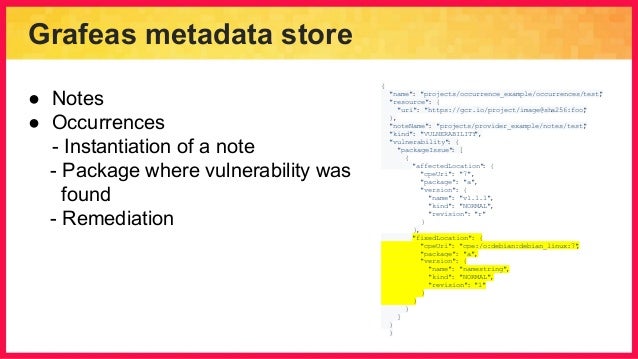

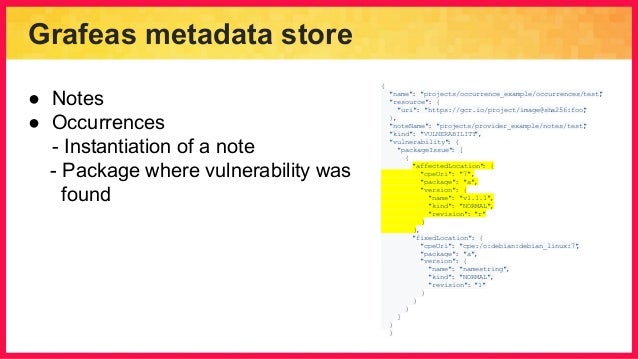

Grafeas metadata store
● Notes
● Occurrences
- Instantiation of a note
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}

45.
Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note

46.
Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note

47.
Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note
- Package where vulnerability was
found

48.
Grafeas metadata store
{
"name": "projects/occurrence_example/occurrences/test",
"resource": {
"uri": "https://gcr.io/project/image@sha256:foo",
},
"noteName": "projects/provider_example/notes/test",
"kind": "VULNERABILITY",
"vulnerability": {
"packageIssue": [
{
"affectedLocation": {
"cpeUri": "7",
"package": "a",
"version": {
"name": "v1.1.1",
"kind": "NORMAL",
"revision": "r"
}
},
"fixedLocation": {
"cpeUri": "cpe:/o:debian:debian_linux:7",
"package": "a",
"version": {
"name": "namestring",
"kind": "NORMAL",
"revision": "1"
}
}
}
]
}
}
● Notes
● Occurrences
- Instantiation of a note
- Package where vulnerability was
found
- Remediation

49.
Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API

50.
Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB

51.
Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB
Who pushes security data
to Grafeas?

52.
Pod lifecycle
Kubernentes API
Validation
webhook
Image security
validator
Kritis
Fetch policy
(CRD)
Create a pod
Validate
pod
Grafeas
Image security
validator
Fetch
metadata
API
DB

53.

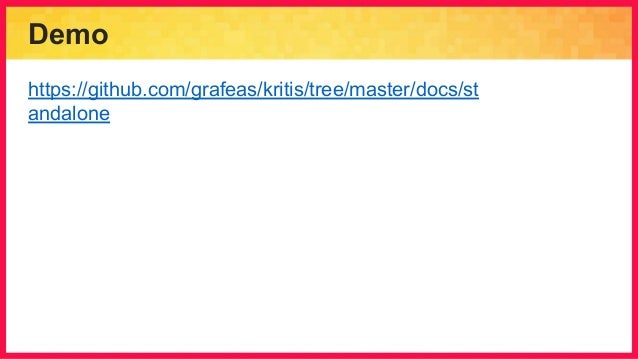

Demo
https://github.com/grafeas/kritis/tree/master/docs/st
andalone

54.
Roadmap
● Grafeas

55.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community

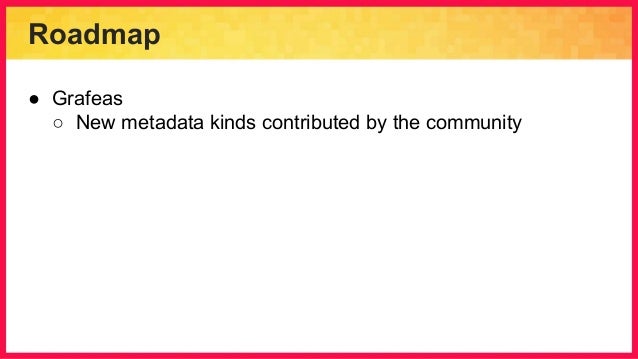

56.

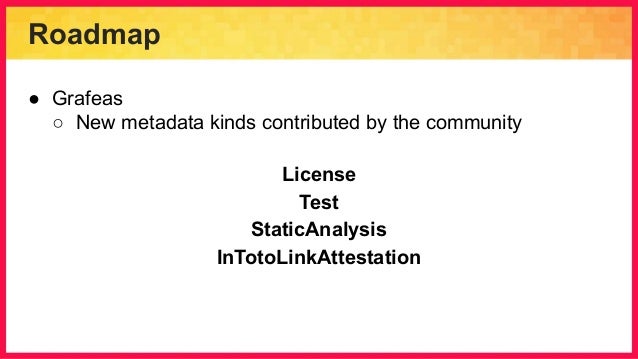

Roadmap
● Grafeas
○ New metadata kinds contributed by the community
License
Test
StaticAnalysis
InTotoLinkAttestation

57.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0

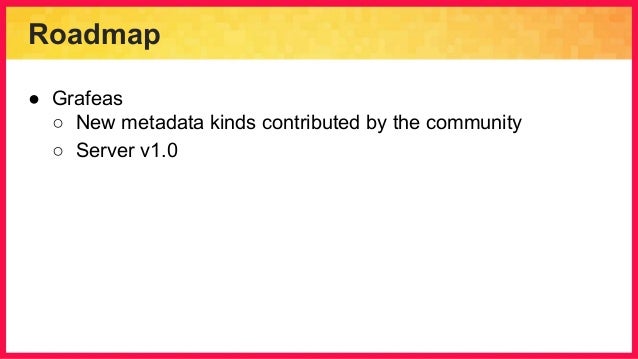

58.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership

59.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
■ Designate client owners for each language

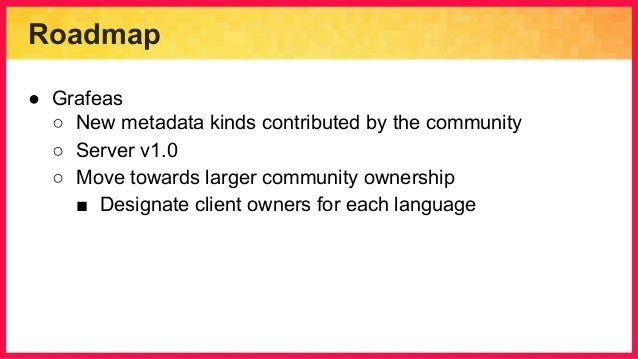

60.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
■ Designate client owners for each language
■ Maintenance of the reference server v1.0

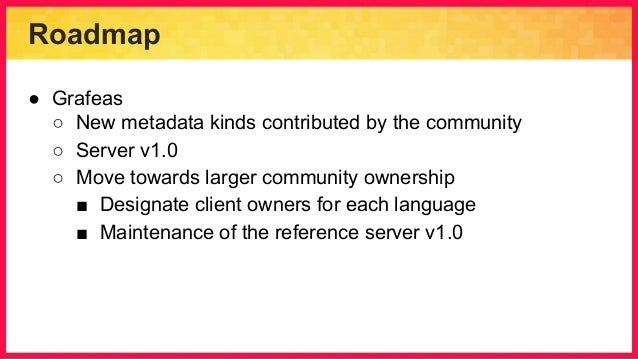

61.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis

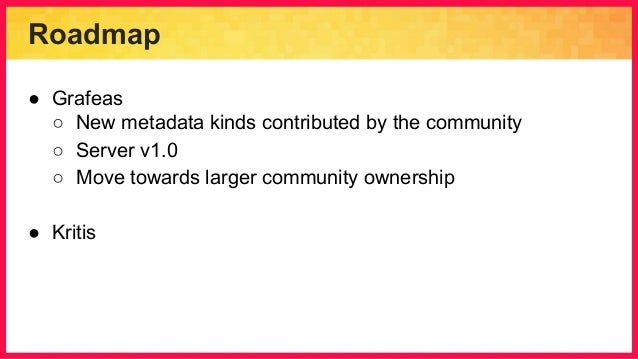

62.
Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis

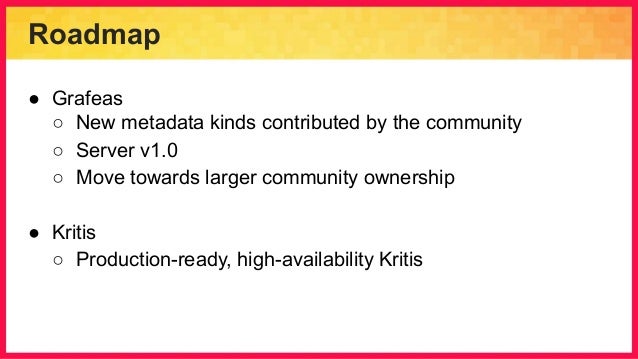

63.

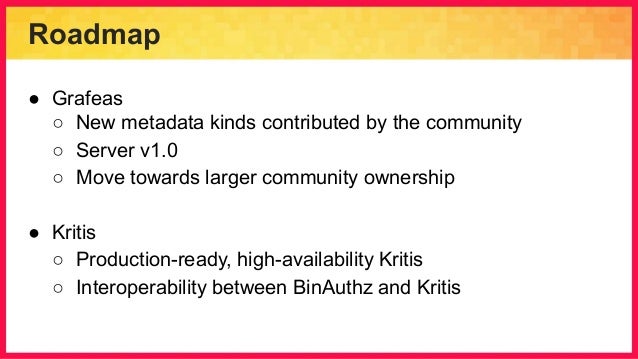

Roadmap
● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis
○ Interoperability between BinAuthz and Kritis

64.
Roadmap

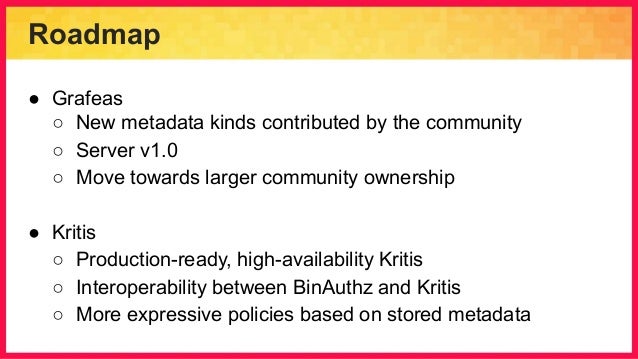

● Grafeas
○ New metadata kinds contributed by the community
○ Server v1.0
○ Move towards larger community ownership
● Kritis
○ Production-ready, high-availability Kritis
○ Interoperability between BinAuthz and Kritis
○ More expressive policies based on stored metadata

65.
References
● Deploy standalone Kritis + Grafeas in GKE
● Grafeas: github.com/grafeas/grafeas
● Kritis github repo: github.com/grafeas/kritis
● Mailing lists @googlegroups.com:
○ grafeas-users
○ grafeas-dev
○ kritis-users
● @Grafeasio
