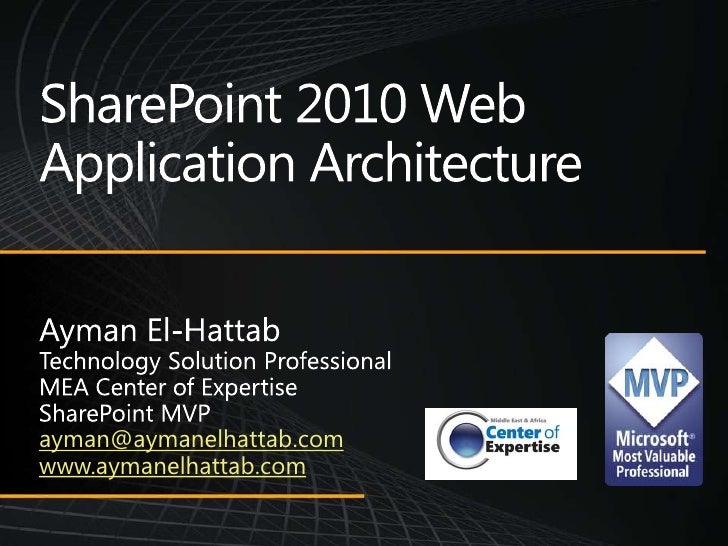

  1. 1. SharePoint 2010 Web Application Architecture<br />Ayman El-Hattab<br />Technology Solution Professional<br />MEA Center of Expertise<br />SharePoint MVP<br />ayman@aymanelhattab.com<br />www.aymanelhattab.com<br />
  2. 2. Session Objectives<br />Learn about different server roles.<br />Learn about web application architecture.<br />Understand Customized Vs. Uncustomized Pages.<br />
  3. 3. SharePoint Server Roles<br />Web Front End: Is a server that hosts web applications that users access with a browser or other types of clients. A large farm will contain multiple Web Front Ends.<br />

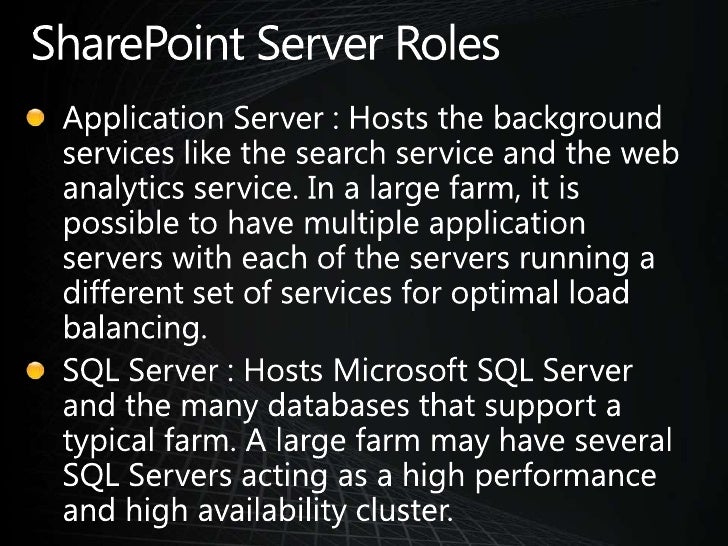

  4. 4. SharePoint Server Roles<br />Application Server : Hosts the background services like the search service and the web analytics service. In a large farm, it is possible to have multiple application servers with each of the servers running a different set of services for optimal load balancing.<br />SQL Server : Hosts Microsoft SQL Server and the many databases that support a typical farm. A large farm may have several SQL Servers acting as a high performance and high availability cluster.<br />

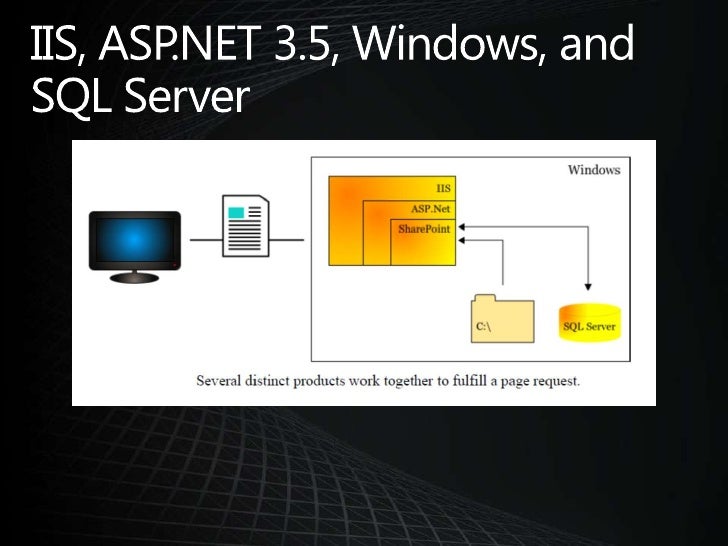

  5. 5. IIS, ASP.NET 3.5, Windows, and SQL Server<br />

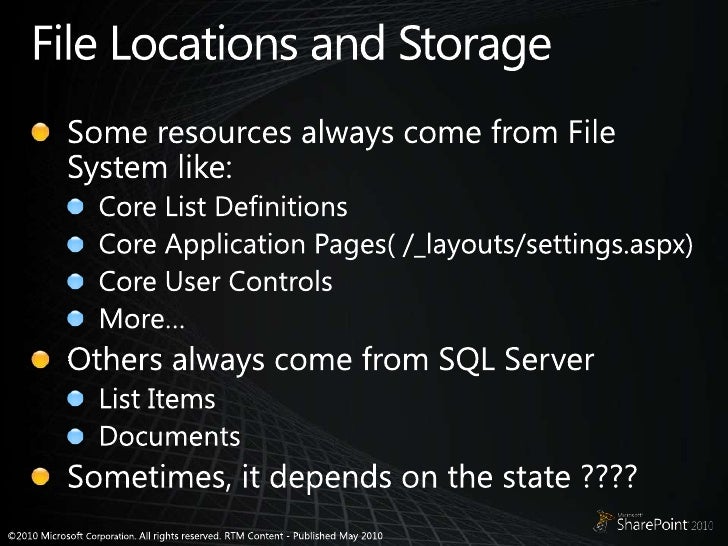

  6. 6. File Locations and Storage<br />Some resources always come from File System like:<br />Core List Definitions<br />Core Application Pages( /_layouts/settings.aspx)<br />Core User Controls<br />More…<br />Others always come from SQL Server<br />List Items<br />Documents<br />Sometimes, it depends on the state ????<br />

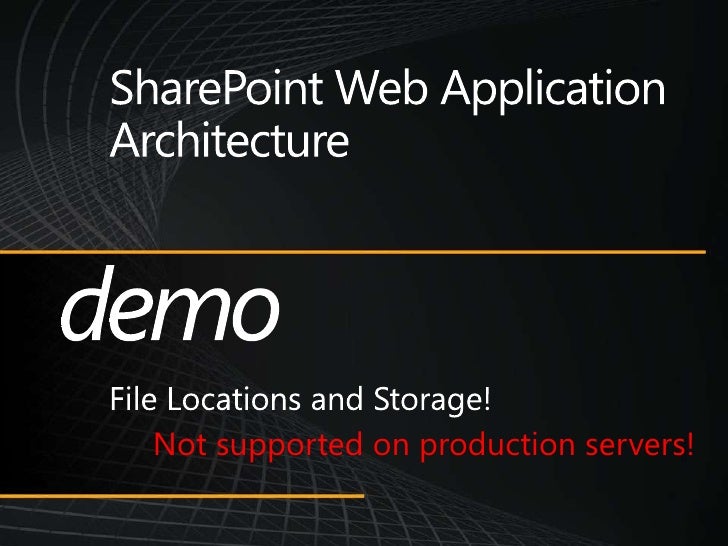

  7. 7. SharePoint Web Application Architecture<br />File Locations and Storage!<br />demo<br />Not supported on production servers!<br />
  8. 8. Configuration Management<br />Everything in the previous demo is not recommended.<br />Modifying files that ships with SharePoint is not supported and leads to an out-of-sync farm servers.<br />Do not add files directly to SharePoint root, instead use Solutions Packages (WSPs).<br />

×
