  1. 1. Real Time Django Applications Avinash Prasad Python developer Xoriant Solutions

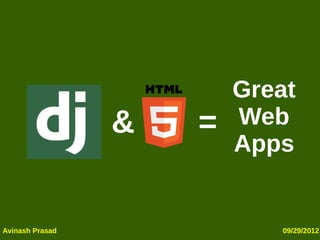

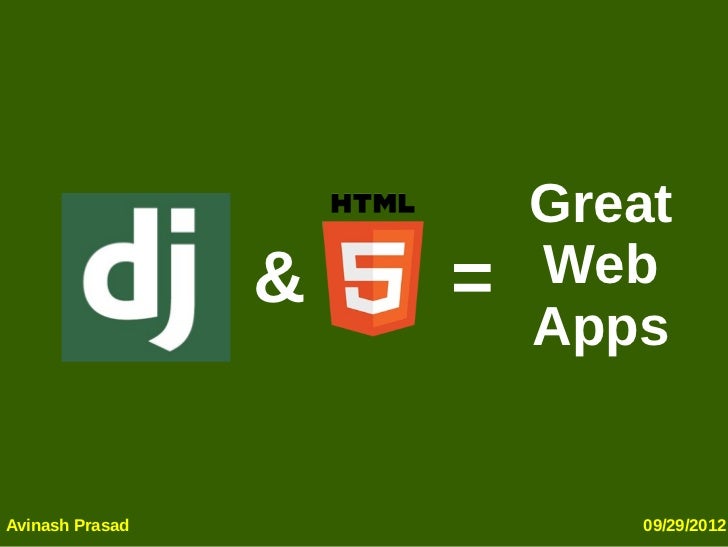

  2. 2. Great & = Web AppsAvinash Prasad 09/29/2012

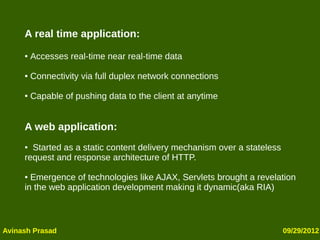

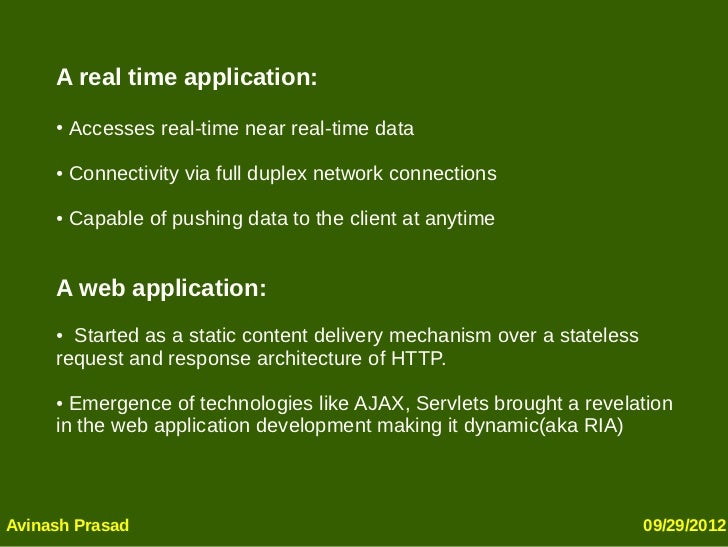

  3. 3. A real time application: ● Accesses real-time near real-time data ● Connectivity via full duplex network connections ● Capable of pushing data to the client at anytime A web application: ● Started as a static content delivery mechanism over a stateless request and response architecture of HTTP. ● Emergence of technologies like AJAX, Servlets brought a revelation in the web application development making it dynamic(aka RIA)Avinash Prasad 09/29/2012

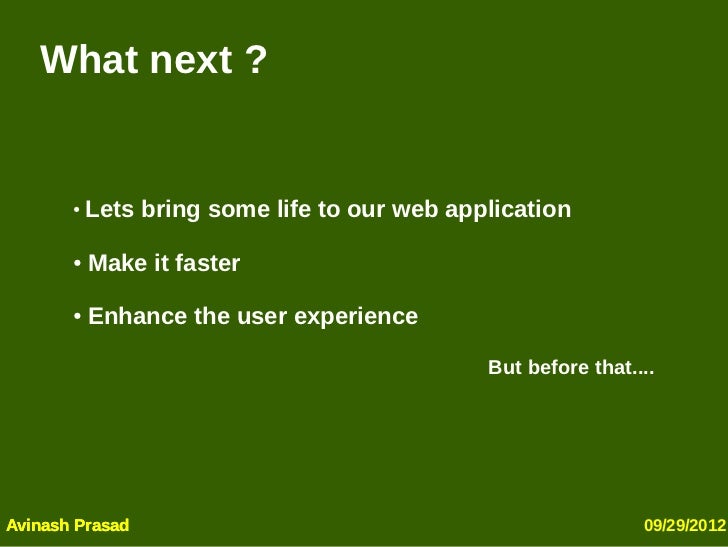

  4. 4. What next ? ● Lets bring some life to our web application ● Make it faster ● Enhance the user experience But before that....Avinash Prasad 09/29/2012

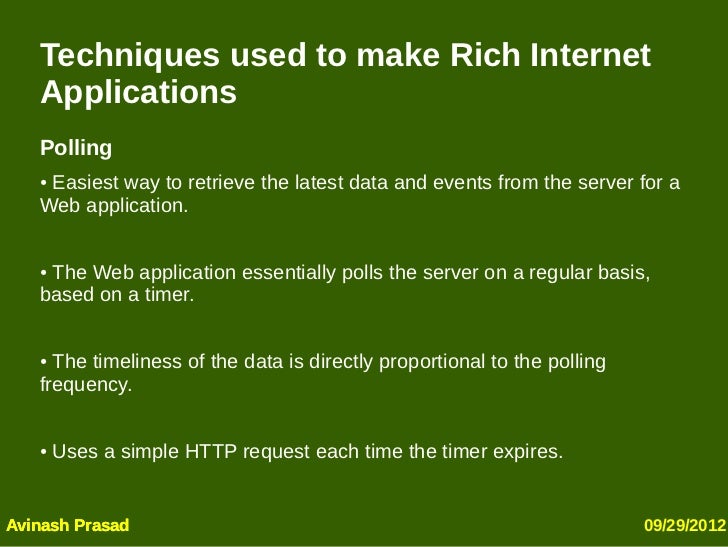

  5. 5. Techniques used to make Rich Internet Applications Polling ●Easiest way to retrieve the latest data and events from the server for a Web application. ●The Web application essentially polls the server on a regular basis, based on a timer. ● The timeliness of the data is directly proportional to the polling frequency. ● Uses a simple HTTP request each time the timer expires.Avinash Prasad 09/29/2012

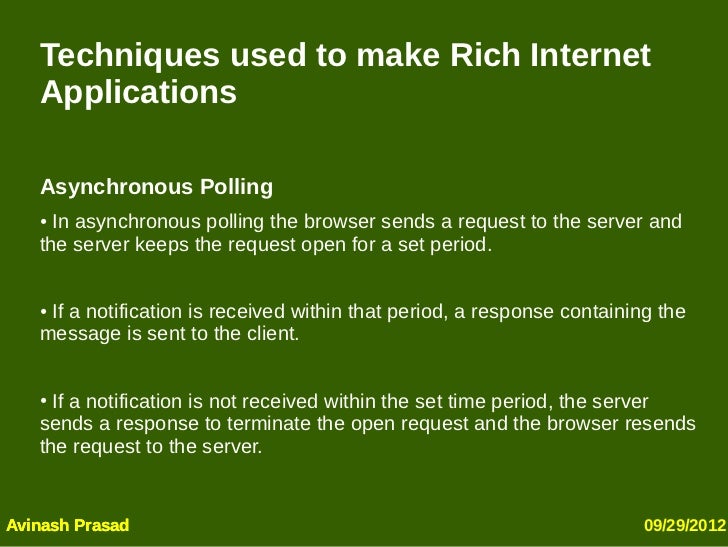

  6. 6. Techniques used to make Rich Internet Applications Asynchronous Polling ● In asynchronous polling the browser sends a request to the server and the server keeps the request open for a set period. ●If a notification is received within that period, a response containing the message is sent to the client. ● If a notification is not received within the set time period, the server sends a response to terminate the open request and the browser resends the request to the server.Avinash Prasad 09/29/2012

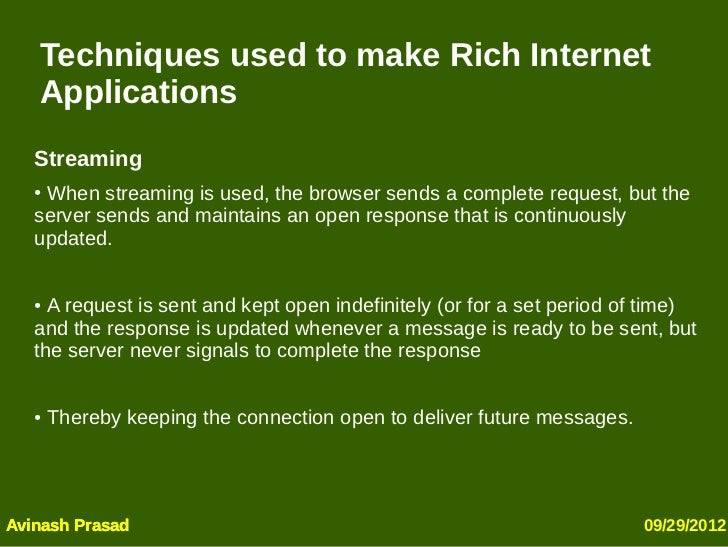

  7. 7. Techniques used to make Rich Internet Applications Streaming ●When streaming is used, the browser sends a complete request, but the server sends and maintains an open response that is continuously updated. ● A request is sent and kept open indefinitely (or for a set period of time) and the response is updated whenever a message is ready to be sent, but the server never signals to complete the response ● Thereby keeping the connection open to deliver future messages.Avinash Prasad 09/29/2012

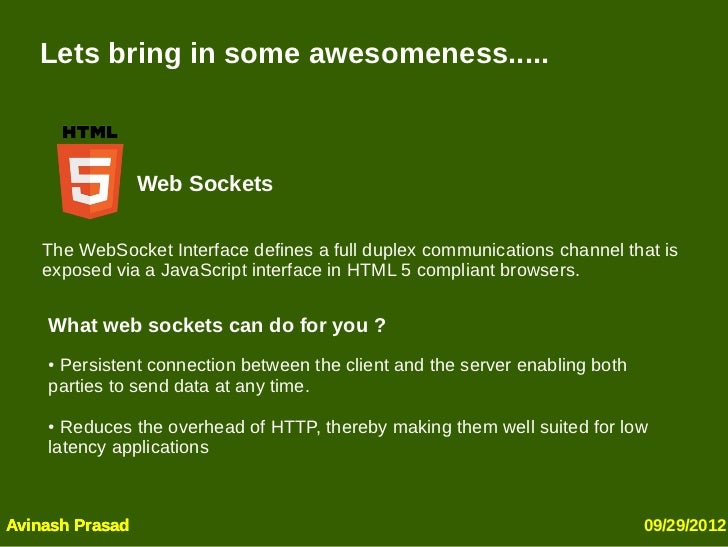

  8. 8. Lets bring in some awesomeness..... Web Sockets The WebSocket Interface defines a full duplex communications channel that is exposed via a JavaScript interface in HTML 5 compliant browsers. What web sockets can do for you ? ●Persistent connection between the client and the server enabling both parties to send data at any time. ● Reduces the overhead of HTTP, thereby making them well suited for low latency applicationsAvinash Prasad 09/29/2012

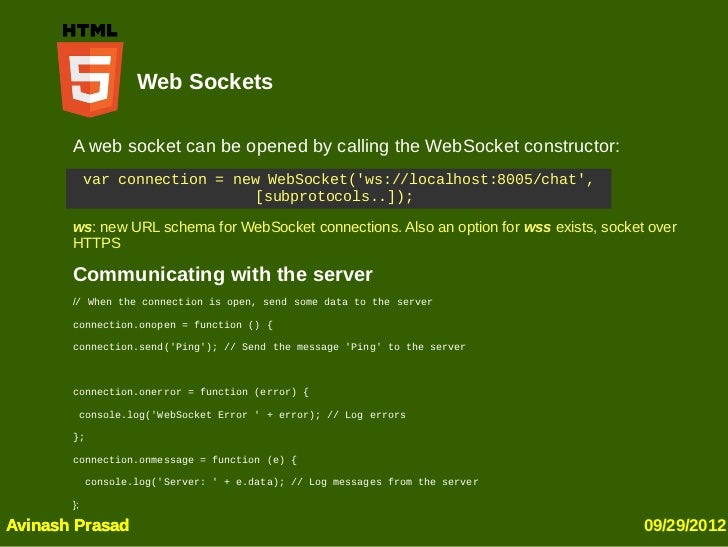

  9. 9. Web Sockets A web socket can be opened by calling the WebSocket constructor: var connection = new WebSocket(ws://localhost:8005/chat, [subprotocols..]); ws: new URL schema for WebSocket connections. Also an option for wss exists, socket over HTTPS Communicating with the server // When the connection is open, send some data to the server connection.onopen = function () { connection.send(Ping); // Send the message Ping to the server connection.onerror = function (error) { console.log(WebSocket Error + error); // Log errors }; connection.onmessage = function (e) { console.log(Server: +; // Log messages from the server };Avinash Prasad 09/29/2012

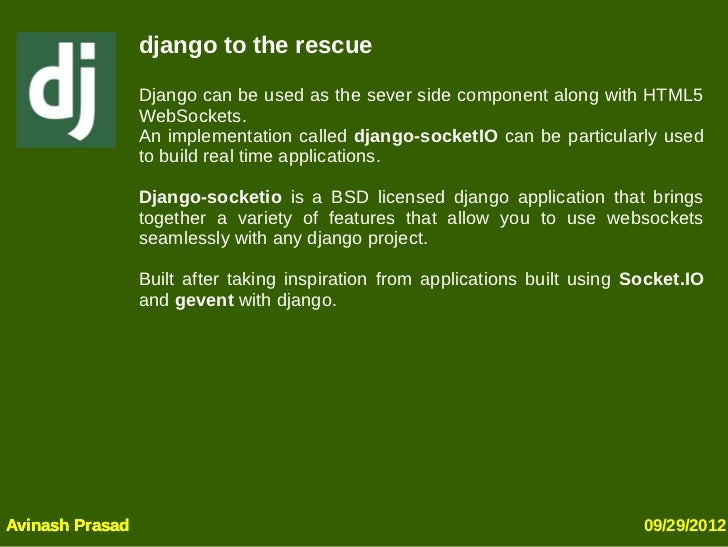

  10. 10. django to the rescue Django can be used as the sever side component along with HTML5 WebSockets. An implementation called django-socketIO can be particularly used to build real time applications. Django-socketio is a BSD licensed django application that brings together a variety of features that allow you to use websockets seamlessly with any django project. Built after taking inspiration from applications built using Socket.IO and gevent with django.Avinash Prasad 09/29/2012

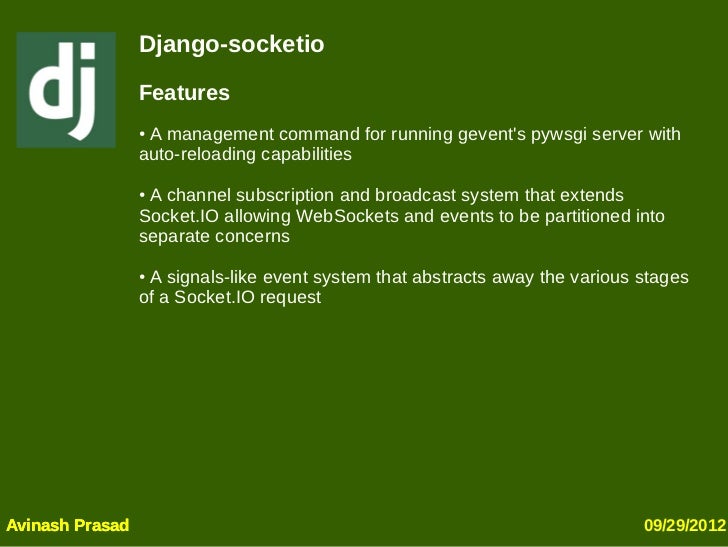

  11. 11. Django-socketio Features ●A management command for running gevents pywsgi server with auto-reloading capabilities ●A channel subscription and broadcast system that extends Socket.IO allowing WebSockets and events to be partitioned into separate concerns ●A signals-like event system that abstracts away the various stages of a Socket.IO requestAvinash Prasad 09/29/2012

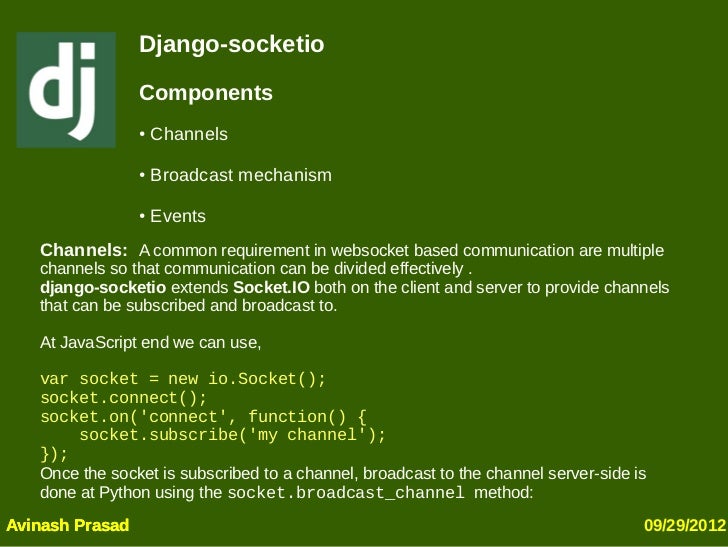

  12. 12. Django-socketio Components ● Channels ● Broadcast mechanism ● Events Channels: A common requirement in websocket based communication are multiple channels so that communication can be divided effectively . django-socketio extends Socket.IO both on the client and server to provide channels that can be subscribed and broadcast to. At JavaScript end we can use, var socket = new io.Socket(); socket.connect(); socket.on(connect, function() { socket.subscribe(my channel); }); Once the socket is subscribed to a channel, broadcast to the channel server-side is done at Python using the socket.broadcast_channel method:Avinash Prasad 09/29/2012

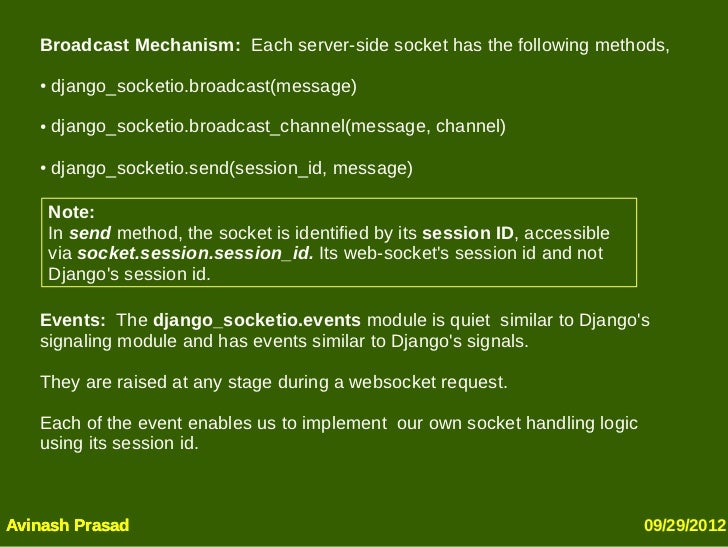

  13. 13. Broadcast Mechanism: Each server-side socket has the following methods, ● django_socketio.broadcast(message) ● django_socketio.broadcast_channel(message, channel) ● django_socketio.send(session_id, message) Note: In send method, the socket is identified by its session ID, accessible via socket.session.session_id. Its web-sockets session id and not Djangos session id. Events: The module is quiet similar to Djangos signaling module and has events similar to Djangos signals. They are raised at any stage during a websocket request. Each of the event enables us to implement our own socket handling logic using its session id.Avinash Prasad 09/29/2012

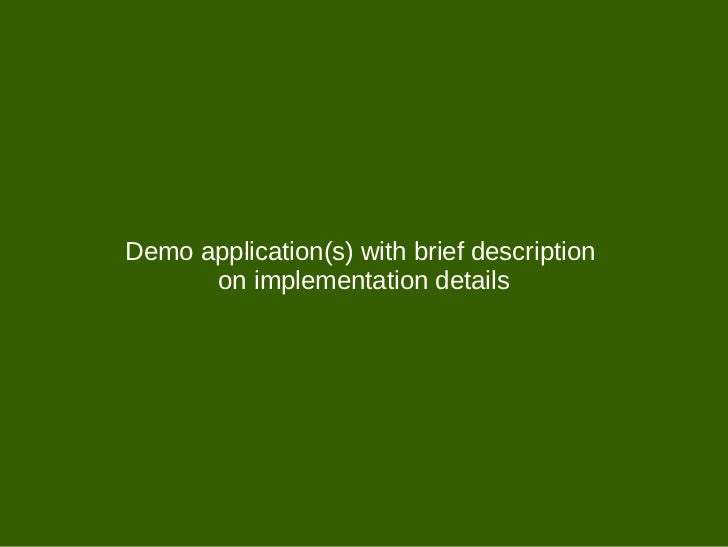

  14. 14. Demo application(s) with brief description on implementation details
  15. 15. Thank You!
