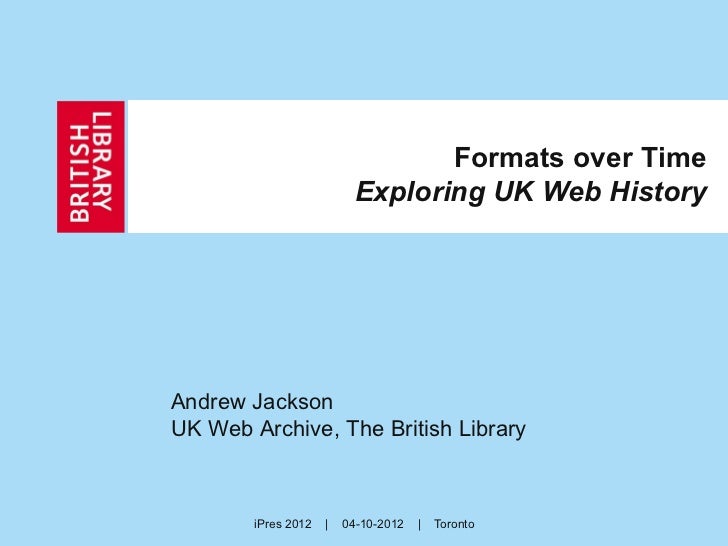

1.
Formats over Time
Exploring UK Web History
Andrew Jackson
UK Web Archive, The British Library
iPres 2012 | 04-10-2012 | Toronto

2.
Formats over Time
DEBATING OBSOLESCENCE

3.
Rothenberg & Rosenthal On Format Obsolescence
 Jeff Rothenberg:
 “Digital Information Lasts Forever –
Or Five Years, Whichever Comes First.” (1997)
 “…still apt…” (2012)
 David Rosenthal:
 “when challenged, proponents of [format migration strategies]
have failed to identify even one format in wide use when
Rothenberg [made that assertion] that has gone obsolete in the
intervening decade and a half.” (2010)
 That network effects inhibit obsolescence
 Where is the evidence?

4.
Formats over Time
AN EXPERIMENT

5.
UK Web Domain Dataset (1994-2010)
 UK Web Domain Dataset (1994-2010)
 From the Internet Archive
 Millions of websites
 > 2.5 billion resources
 > 400,000 ARC/WARC files
 > 35TB
 Execution at Scale
 Stored on HDFS
 Map-Reduce

6.
Identification Tools
 DROID
 Well-known in digital preservation community
 Format version level identification
 Minor problem concerning file handles
 Only binary signature part (DROID-B) could be embedded
 Apache Tika
 Widely used identification and data extraction tool
 Identifies many formats at the MIME type level
 Easy to embed and extend
 Added ability to extract e.g. software identifiers
 Minor bug concerning identification buffer size

7.
A Common Language For Format Identifiers
 Comparison and combination requires a common model
 Map PRONOM IDs to extended MIME Types
 fmt/18
becomes
application/pdf; version=1.4
 Allows easy comparison at sub-type level
 Can easily extend to cover other properties:
 text/plain; charset=UTF-8
 application/pdf;
software=“Adobe Acrobat 6.0”
 Also extended Tika to output details from PDFs

8.
Format Profile Dataset
 Server, Tika & DROID-B format profiles, over time:
image/png image/png image/png; version=1.0 2004 102
!
application/pdf !
application/pdf; version=1.2; software="Acrobat
Distiller 4.0 for Windows";
source="Adobe PageMaker 6.0" !
application/pdf; version=1.2 !2004 !1
 CC0 – free to download and reuse
 http://data.webarchive.org.uk/opendata/ukwa.ds.2/fmt/
 Please cite us and/or let us know if you use it
 Source code of all tools and modifications also available
 https://github.com/openplanets/nanite

9.
Results
COMPARING TOOLS

10.
Percentage)of)resources)
uniden0fied)
0%#
1%#
10%#
19 100%#
96
19 #
97
Coverage & Depth
19 #
98
19 #
99
20 #
00
20 #
01
20 #
02
20 #
03
Year) 20 #
04
20 #
05
20 #
06
20 #
07
20 #
No format-version-level information from Apache Tika.
08
20 #
09
20 #
10
DROID1B#v.59#
#
Apache#Tika#1.1#

11.
Inconsistencies
 Gaps
 37 formats spotted by DROID-B but not Tika
 Notably includes earlier Office formats
 129 formats spotted by Tika but not DROID-B
 But at least 20 are due to not using the full DROID
 Conflicts
 Failed MIME type mapping, e.g. PDF 1.7 (since fixed)
 ‘Soft’ signatures – e.g. PICT matching 3M JPG (gone)
 DROID strictness – 9M GIF, 4M JPG, 1.3M PDF…
 Both tools bad at non-HTML/XML text formats
 CSS, scripting languages like JS, CSV, TSV, etc.

12.
Results
FORMATS OVER TIME

13.
Image Formats Over Time
100.00000%%
10.00000%%
Percentage)of)crawl)
JPEG%
1.00000%%
1996%
1997%
1998%
1999%
2000%
2001%
2002%
2003%
2004%
2005%
2006%
2007%
2008%
2009%
2010%
GIF%
0.10000%%
PNG%
0.01000%% ICON%
0.00100%% XBM%
0.00010%% TIFF%
0.00001%%
Year)

14.
HTML Versions Over Time
100%%
Percentage)of)HTML)Resources)
90%%
80%%
XHTML%1.0%
70%%
60%%
HTML%4.01%
50%% HTML%4.0%
40%% HTML%3.2%
30%%
20%%
10%% HTML%2.0%
0%%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
%
96
97
98
99
00
01
02
03
04
05
06
07
08
09
10
19
19
19
19
20
20
20
20
20
20
20
20
20
20
20
Year)

15.
Percentage)of)PDF)Resources)
0%$
10%$
20%$
30%$
40%$
50%$
60%$
70%$
80%$
90%$
100%$
19
96
$
19
1.0$
97
$
19
1.1$
98
$
19
99
$
20
00
PDF Versions Over Time
$
20
01
1.2$
$
20
02
$
20
03
$
Year)
20
04
$
1.3$
20
05
$
20
06
$
20
07
$
1.4$
20
08
$
20
1.5$
09
$
20
1.6$
10
$

16.
Format Usage Versus Time
10,000,000,000"
Number'of'Resources'in'Archive'
1,000,000,000"
100,000,000"
10,000,000"
1,000,000"
100,000"
10,000"
1,000"
100"
10"
1"
0" 2" 4" 6" 8" 10" 12" 14" 16" 18"
Timespan'[Years]'

17.
Results
IMPLEMENTATIONS

18.
PDF Software Over Time
100%(
Percentage)of)PDF)Resources)
90%(
80%(
Acrobat( Acrobat(
70%(
PDFWriter(
60%(
50%(
40%(
30%(
20%(
10%( Acrobat(Dis,ller(
0%(
(
(
(
(
(
(
(
(
(
(
(
(
(
(
(
96
99
00
01
02
03
05
06
09
10
97
98
04
07
08
19
19
20
20
20
20
20
20
20
20
19
19
20
20
20
Year)
Over 2100 Distinct PDF Software IDs

19.
JPEG Hardware Over Time
100%$
Percentage)of)Harware)IDs)
90%$ NIKON$D40$
80%$
70%$
60%$ MX1700$
50%$
40%$
30%$
20%$ E990$
10%$ DS5$ CYBERSHOT$
0%$
19 $
19 $
20 $
20 $
20 $
20 $
20 $
20 $
20 $
20 $
$
19 $
19 $
19 $
20 $
20 $
20 $
95
96
99
00
01
02
03
05
06
09
10
94
97
98
04
07
08
19
Year)
Over 2100 Distinct JPEG Hardware IDs

20.
Formats over Time
CONCLUSIONS

21.
Summary
 Format obsolescence is complex
 Network effects do appear to stabilize formats
 But once popular formats are fading nevertheless
 More sophisticated approach required
 Please re-use our data, or ask for more
 Firmer conclusions need:
 Richer, more detailed results
 From a wider range of corpora
 This approach only gives creator information
 A different approach will be needed to understand
resource consumption (e.g. PPT 4, RealAudio 1)

22.
Questions?
