The James Webb Space Telescope

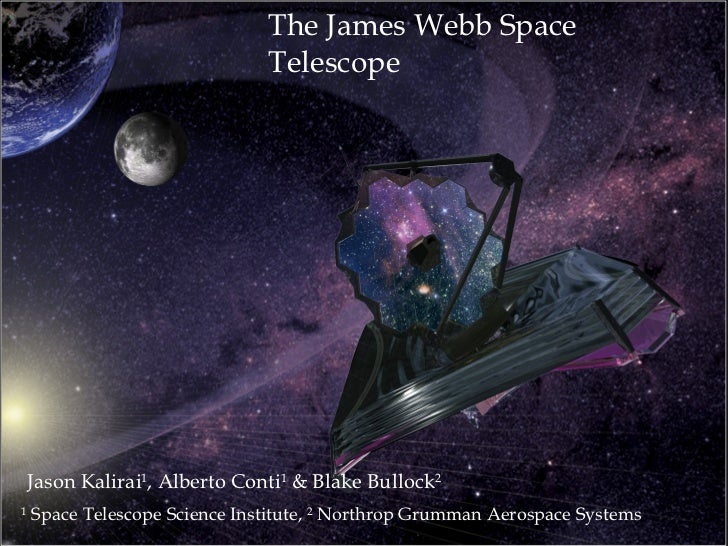

  1. The James Webb Space Telescope Jason Kalirai1, Alberto Conti1 & Blake Bullock21 Space Telescope Science Institute, 2 Northrop Grumman Aerospace Systems
  2. The JWST Full Scale Model NY City Florida IrelandWashington Seattl , DC e! ny Germa
  3. JWST Science Themes 1.) The End of the Dark Ages 2.) The Assembly and Evolution of Galaxies 3.) The Birth of Stars and Planets 4.) The Origins of LifeFundamental Q’s for Humankind1.) How did the Universe form?2.) Is our Solar System unique?3.) Are we alone?
  4. The James Webb Space TelescopeJames Webb (1906 – 1992)- Second Administrator of NASA (1961 – 1968)- Oversaw first manned spaceflight program (Mercury)- Oversaw second manned spaceflight program (Gemini)- Oversaw Mariner and Pioneer planetary exploration programs- Oversaw Apollo program
  5. The James Webb Space TelescopeNot your Average Looking Telescope!
  6. The James Webb Space TelescopeThe Next Big Telescope after Hubble: JWSTHST- Size of a school bus- Distance = 350 miles- Orbital time (earth) = 97 minutes- Weight = 24,500 lbs- Length = 43.5 feet www.jwst.nasa.govJWST- Size of a tennis court- Distance = 930,000 miles- Orbital time (Sun) = 1 year- Weight = 14,000 lbs- Length = 72 feet- Operating temperature = 40 K
  7. Light gathering power The James Webb Space Telescope (Mirror Area) JWST HST Spitzer 0.1 microns 1 microns 10 microns 100 microns Wavelength
  8. The James Webb Space TelescopeNot your Average Looking Telescope!
  9. JWST Instruments: Imaging, Spectroscopy, & CoronographyThe Near Infrared Camera (NIRCam)- Visible and near infrared camera (0.6 – 5 micron)- 2.2’ x 4.4’ field of view, diffraction limited- Coronographs NIRCamThe Near Infrared Spectrograph (NIRSpec)- Multi-object spectrograph (1 – 5 micron)- 3.4’ x 3.4’ FOV, 0.1” pixels- R = 1000 and 2700 gratings; R = 100 prism- 3” x 3” IFU NIRSpec
  10. JWST Instruments: Imaging, Spectroscopy, & CoronographyThe Mid Infrared Instrument (MIRI)- Mid-infrared camera and spectrograph (5 – 28 microns)- 1.9’ x 1.4’ imaging FOV, 0.11” pixels- R = 100 slit spectrograph (5 – 10 micron) and IFU (R = 3000)- Coronographs MIRIThe Near Infrared Imager and Slitless Spectrograph (NIRISS)- Infrared imager and slitless spectrograph- 2.2’ x 2.2’ FOVThe Fine Guidance Sensor (FGS)- 2.4’ x 2.4’ imager for target acquisition- Rapid readout of subarray for ACS control- 95% probability of finding a guide star anywhere in sky NIRISS and FGS
  11. The James Webb Space TelescopeTelescopes can see Different Types of Light- Hubble primarily sees “visible” light, similar to our eyes- JWST will see “Infrared” light, light that our eyes can not see- Infrared observations can unveil hidden objects behind gas and dust
  12. The James Webb Space TelescopeJWST Launch- Launch vehicle is an Ariane 5 rocket, supplied by ESA- Site will be Arianespace’s ELA-3 launch complex near Kourou, French Guiana Arianespace – ESA - NASA
  13. JWST: Finding Life-Bearing Planets Searching for the Goldilocks Planet!
  14. JWST: Finding Life-Bearing PlanetsDetermining Robust Physical Parameters Doppler Method Transit Method Determine Planet Mass Determine Planet Diameter Calculate Planet Density and Infer Composition: Gas giant (Jupiter), Ice giant (Neptune), or Rocky planet (Earth)
  15. JWST: Finding Life-Bearing PlanetsTransits Allow Studies of Atmospheres Secondary Eclipse See thermal radiation and reflected light from planet disappear and reappear See radiation from star transmitted through the planet’s atmosphere Transit Detection of: -Atoms & Molecules -Stratospheres -Clouds -Winds
  16. JWST: Finding Life-Bearing Planets What Would the Earth’s Spectrum Look Like? - Every planet has a unique fingerprint, produced by its atmosphere. - The Earth shows nitrogen, oxygen, carbon dioxide, and water vapor.JWST WILL PENETRATE THE ATMOSPHERES OF EXOPLANETS The F inger prints of Pla nets O2 ,O3 H2O CO2 CH4
  17. JWST: Finding Life-Bearing PlanetsA “Wish List” for Exoplanet Spectroscopy Platform …Dr. David Charbonneau’s (CfA/Harvard) 1.) Orbit that assures thermal stability and low background 2.) Orbit that assures long dwell times 3.) A stable PSF and excellent pointing 4.) Infrared sensitivity (planetary temperatures; molecules) 5.) Aperture sufficient to permit med resolution spectroscopy These are obtained with a large aperture, cryogenic telescope placed at L2, with a detailed error budget and careful instrument characterization prior to launch “JWST is an excellent platform for Exoplanet Spectroscopy”
  18. JWST: Finding Life-Bearing PlanetsA Simulated JWST/NIRSpec Observation- Hydrogen-Rich Super Earth (1.4 REARTH, 5 MEARTH) NIRSpec – 20 transits (Binned to R ~ 300) M. Clampin – Model by E. Kempton
  19. JWST and First Galaxies JWST will Study the First Galaxies Why measure galaxies in the Universe’s first billion years?•Seeds of today’s galaxies started growing.•Dark matter halos of massive galaxies first formed.•Significant metals first formed.•When the Universe was reionized.
  20. The Hubble UDF(F105W, F125W, F160W)Simulated JWST
  21. Scientific Discovery Potential The Extragalactic Source of Gamma Dark Energy and the Distance Scale and Ray Bursts Universe’s Expansion Science Goals Hubble Constant Science Discoveries Origin and evolution Supermassive of Solar System Black Holes The Age of Gravitational Lensing The Universe and Dark Matter ??? Imaging and Intensities of Spectroscopy Supernovae T of Exoplanets H S ST JW ??? Find Water on Other Planets Gas in Galaxies and Quasar Absorption LinesAges of Stellar Pops Unveil NewbornBeyond Milky Way Solar Systems ??? ??? ??? Find the First Stars Map the Evolution and Galaxies of Galaxies
