Using Logstash, ElasticSearch and Kibana
Alejandro E Brito Monedero
@ae_bm
2013 / 05 / 23
Business as usual
So many hosts to check
Is there life out there?
http://upload.wikimedia.org/wikipedia/commons/a/aa/ESO-The_Milky_Way_above...
Time to play whack a log
http://i102.photobucket.com/albums/m109/niceperson907/121331d1253497450-animated-gif-thre.gif
http://brotality.com/wp-content/uploads/2012/12/madness.jpg
I need a new toy
http://www.youtube.com/watch?v=8L6Dpq5kY_A
Video time

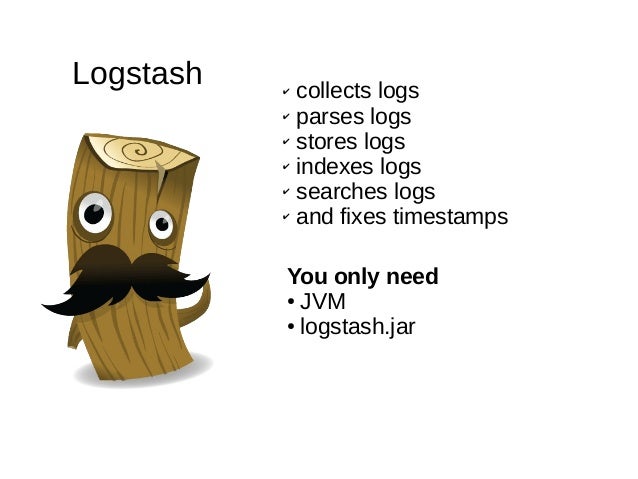

Logstash ✔ collects logs
✔ parses logs
✔ stores logs
✔ indexes logs
✔ searches logs
✔ and fixes timestamps
You only need
●...
$ log_producer | grep ... | sed … | awk … | tee output
| sort | uniq -c | sort -n
Log source Logstash
Logstash
(optional)...
Inputs Filters Outputs
File
Redis
Syslog
Lumberjack
Rabbitmq
SQS
…
Alter
Date
Grok
Multiline
Grep
...
AMQP
Cloudwatch
Elas...
ElasticSearch
Distributed RESTful search server
● Near real-time search
● RESTful API
● Easy to scale horizontally
● HA
● ...
Kibana
✔ Nice UI
✔ Better than the old frontend logstash
included
✔ Ruby / framework Sinatra
Web frontend to search / grap...
Original plan
Apache
(ligthweight shipper)
Tomcat
(ligthweight shipper)
broker logstash
ElasticSearch
Kibana
After a few workarounds
Apache
(logstash shipper)
Tomcat
(logstash shipper)
Logstash ElasticSearch
Kibana
SSH tunnels
Example config 1/3
Logstash-httpd.conf
input {
file {
type => "httpd"
path => ["/var/log/httpd/*-logstash.log"]
exclude =>...
Example config 2/3
Logstash-tomcat.conf
filter {
# Tomcat
# Remove blank lines
grep {
type => "tomcat"
match => [ "@messag...
Example config 3/3
Logstash-tomcat.conf
# mark the exceptions (multiline)
grep {
type => "tomcat"
tags => [ "multiline" ]
...

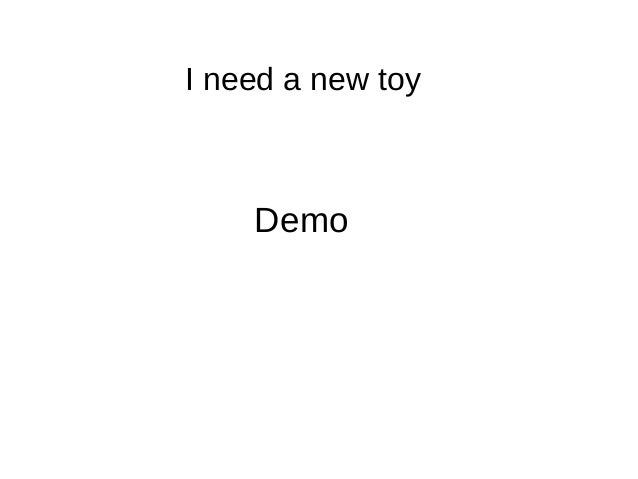

I need a new toy
Demo

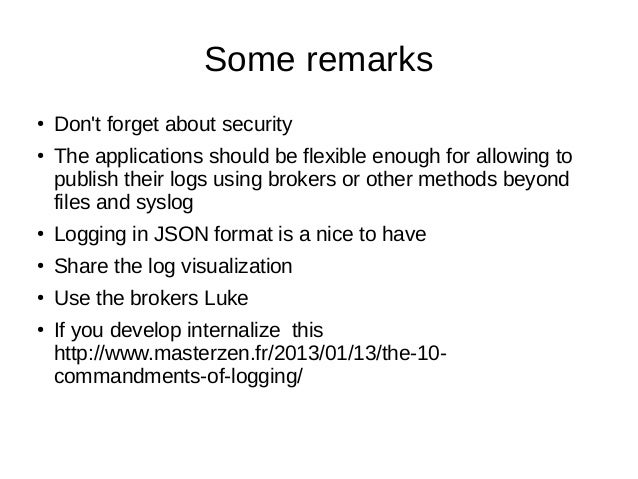

Some remarks
● Don't forget about security
● The applications should be flexible enough for allowing to
publish their logs...
Extras
● http://logstash.net/
● http://www.logstashbook.com/code/ only $10.09
● https://github.com/logstash/logstash/blob/...
Do you want to join the <some fancy words here> team?
I am not hiring, but I can tell you about some places where
it is be...
Using Logstash, elasticsearch & kibana
You’ve finished this document.
Download and read it offline.
Upcoming SlideShare
使用 Elasticsearch 及 Kibana 進行巨量資料搜尋及視覺化-曾書庭
Next
Upcoming SlideShare
使用 Elasticsearch 及 Kibana 進行巨量資料搜尋及視覺化-曾書庭
Next
Download to read offline and view in fullscreen.

41

Share

Using Logstash, elasticsearch & kibana

Download to read offline

A tale of my adventures to process logs in a production environment. Soon I will link the demo video (in spanish)

Related Books

Free with a 30 day trial from Scribd

See all

Using Logstash, elasticsearch & kibana

  1. 1. Using Logstash, ElasticSearch and Kibana Alejandro E Brito Monedero @ae_bm 2013 / 05 / 23
  2. 2. Business as usual
  3. 3. So many hosts to check Is there life out there? http://upload.wikimedia.org/wikipedia/commons/a/aa/ESO-The_Milky_Way_above_La_Silla-phot-27-04-hires.jpg
  4. 4. Time to play whack a log http://i102.photobucket.com/albums/m109/niceperson907/121331d1253497450-animated-gif-thre.gif
  5. 5. http://brotality.com/wp-content/uploads/2012/12/madness.jpg
  6. 6. I need a new toy http://www.youtube.com/watch?v=8L6Dpq5kY_A Video time
  7. 7. Logstash ✔ collects logs ✔ parses logs ✔ stores logs ✔ indexes logs ✔ searches logs ✔ and fixes timestamps You only need ● JVM ● logstash.jar

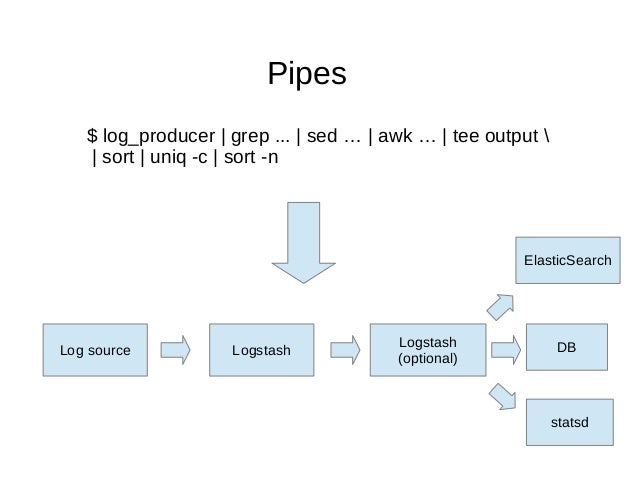

  8. 8. $ log_producer | grep ... | sed … | awk … | tee output | sort | uniq -c | sort -n Log source Logstash Logstash (optional) ElasticSearch DB statsd Pipes

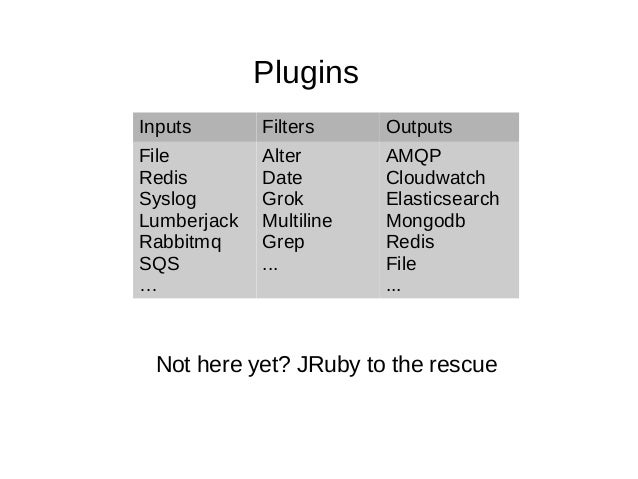

  9. 9. Inputs Filters Outputs File Redis Syslog Lumberjack Rabbitmq SQS … Alter Date Grok Multiline Grep ... AMQP Cloudwatch Elasticsearch Mongodb Redis File ... Plugins Not here yet? JRuby to the rescue

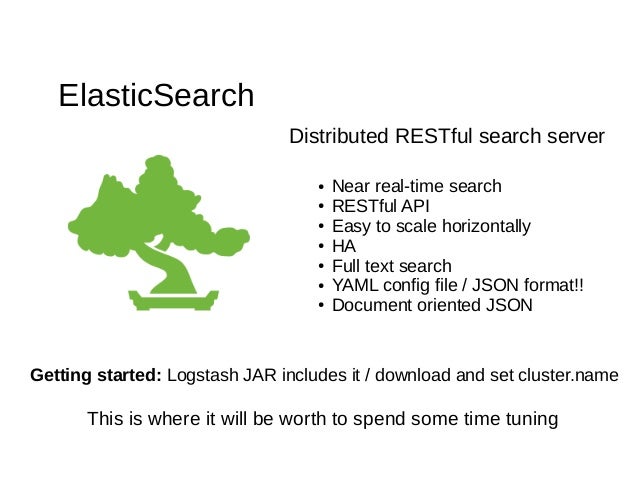

  10. 10. ElasticSearch Distributed RESTful search server ● Near real-time search ● RESTful API ● Easy to scale horizontally ● HA ● Full text search ● YAML config file / JSON format!! ● Document oriented JSON Getting started: Logstash JAR includes it / download and set cluster.name This is where it will be worth to spend some time tuning

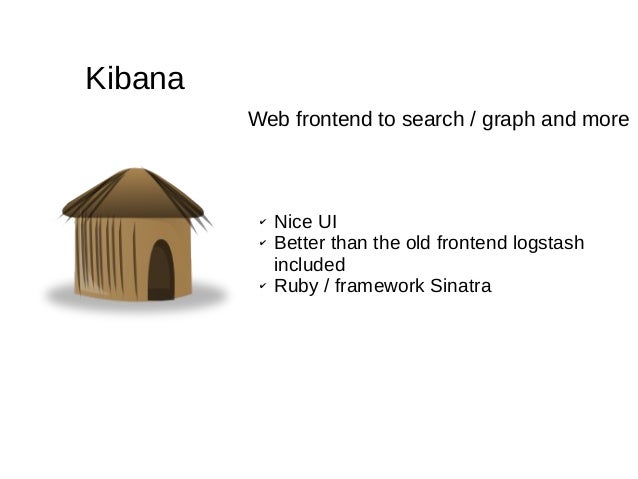

  11. 11. Kibana ✔ Nice UI ✔ Better than the old frontend logstash included ✔ Ruby / framework Sinatra Web frontend to search / graph and more
  12. 12. Original plan Apache (ligthweight shipper) Tomcat (ligthweight shipper) broker logstash ElasticSearch Kibana

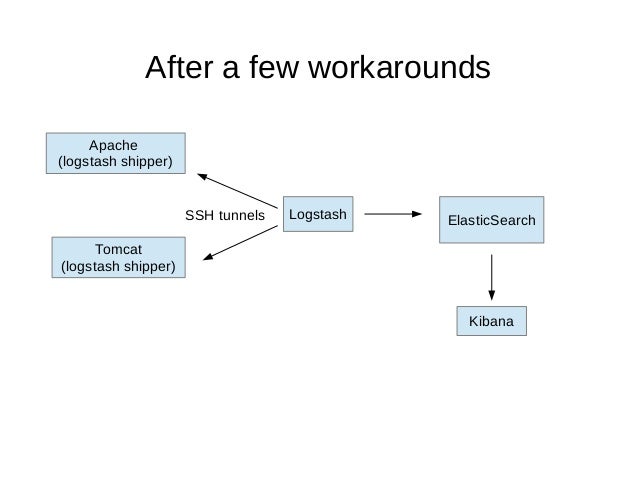

  13. 13. After a few workarounds Apache (logstash shipper) Tomcat (logstash shipper) Logstash ElasticSearch Kibana SSH tunnels

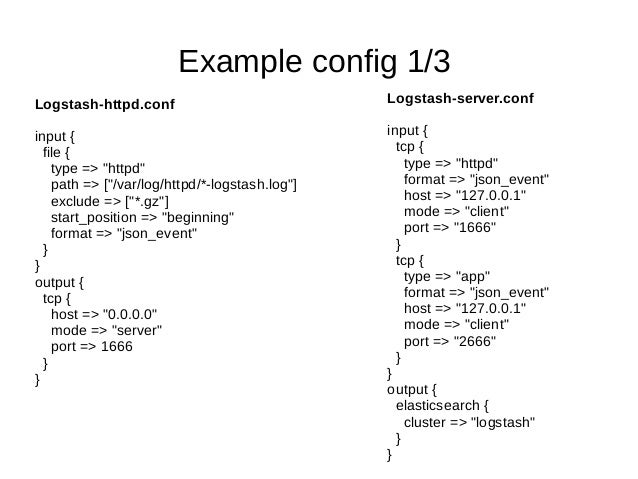

  14. 14. Example config 1/3 Logstash-httpd.conf input { file { type => "httpd" path => ["/var/log/httpd/*-logstash.log"] exclude => ["*.gz"] start_position => "beginning" format => "json_event" } } output { tcp { host => "0.0.0.0" mode => "server" port => 1666 } } Logstash-server.conf input { tcp { type => "httpd" format => "json_event" host => "127.0.0.1" mode => "client" port => "1666" } tcp { type => "app" format => "json_event" host => "127.0.0.1" mode => "client" port => "2666" } } output { elasticsearch { cluster => "logstash" } }

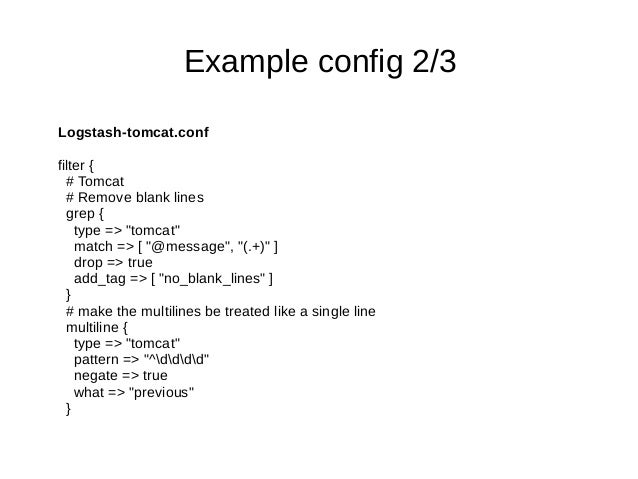

  15. 15. Example config 2/3 Logstash-tomcat.conf filter { # Tomcat # Remove blank lines grep { type => "tomcat" match => [ "@message", "(.+)" ] drop => true add_tag => [ "no_blank_lines" ] } # make the multilines be treated like a single line multiline { type => "tomcat" pattern => "^dddd" negate => true what => "previous" }

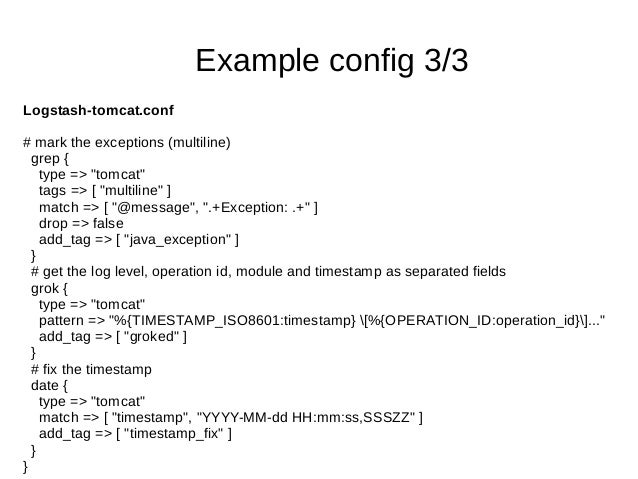

  16. 16. Example config 3/3 Logstash-tomcat.conf # mark the exceptions (multiline) grep { type => "tomcat" tags => [ "multiline" ] match => [ "@message", ".+Exception: .+" ] drop => false add_tag => [ "java_exception" ] } # get the log level, operation id, module and timestamp as separated fields grok { type => "tomcat" pattern => "%{TIMESTAMP_ISO8601:timestamp} [%{OPERATION_ID:operation_id}]..." add_tag => [ "groked" ] } # fix the timestamp date { type => "tomcat" match => [ "timestamp", "YYYY-MM-dd HH:mm:ss,SSSZZ" ] add_tag => [ "timestamp_fix" ] } }
  17. 17. I need a new toy Demo
  18. 18. Some remarks ● Don't forget about security ● The applications should be flexible enough for allowing to publish their logs using brokers or other methods beyond files and syslog ● Logging in JSON format is a nice to have ● Share the log visualization ● Use the brokers Luke ● If you develop internalize this http://www.masterzen.fr/2013/01/13/the-10- commandments-of-logging/
  19. 19. Extras ● http://logstash.net/ ● http://www.logstashbook.com/code/ only $10.09 ● https://github.com/logstash/logstash/blob/v1.1.12/patterns/grok-patterns ● http://grokdebug.herokuapp.com/ ● http://www.infoq.com/articles/review-the-logstash-book (better diagrams) ● http://www.elasticsearch.org/tutorials/using-elasticsearch-for-logs/ ● http://kibana.org/ ● https://lucene.apache.org/core/old_versioned_docs/versions/3_5_0/queryparsersyntax.html ● http://www.elasticsearch.org/tutorials/elasticsearch-on-ec2/ ● http://blog.lusis.org/blog/2012/01/31/load-balancing-logstash-with-amqp/
  20. 20. Do you want to join the <some fancy words here> team? I am not hiring, but I can tell you about some places where it is better to stay away Have a nice day All the images, videos and stuff are property of their respective owners, look at the cat and don't sue me http://stuffpoint.com/cats/image/41633/cute-cat-picture/
