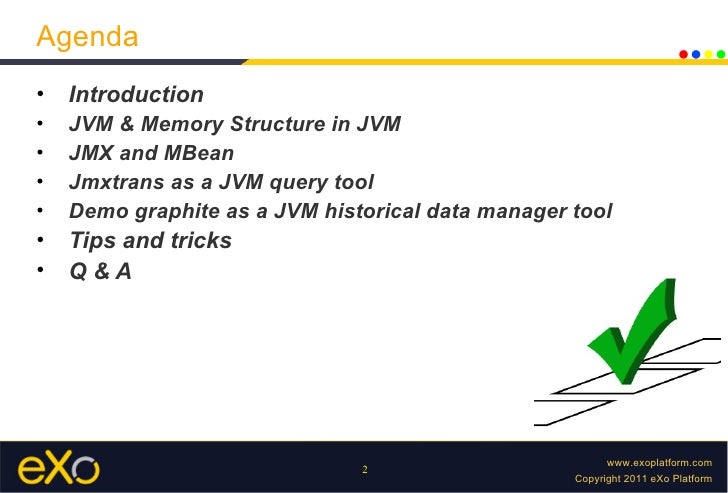

2. Agenda ●●●●• Introduction• JVM & Memory Structure in JVM• JMX and MBean• Jmxtrans as a JVM query tool• Demo graphite as a JVM historical data manager tool• Tips and tricks• Q&A www.exoplatform.com 2 Copyright 2011 eXo Platform

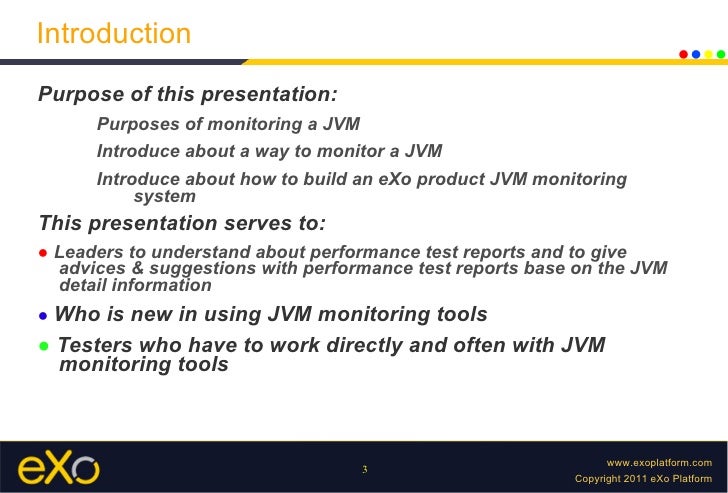

3. Introduction ●●●●Purpose of this presentation: Purposes of monitoring a JVM Introduce about a way to monitor a JVM Introduce about how to build an eXo product JVM monitoring systemThis presentation serves to:● Leaders to understand about performance test reports and to give advices & suggestions with performance test reports base on the JVM detail information● Who is new in using JVM monitoring tools● Testers who have to work directly and often with JVM monitoring tools www.exoplatform.com 3 Copyright 2011 eXo Platform

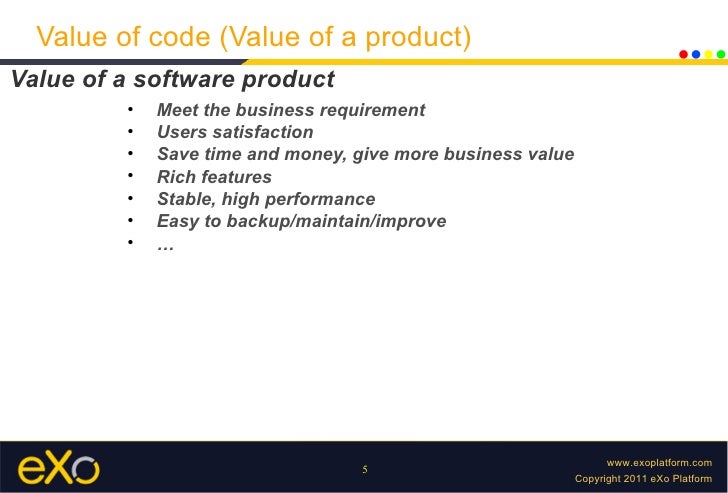

5. Value of code (Value of a product) ●●●●Value of a software product • Meet the business requirement • Users satisfaction • Save time and money, give more business value • Rich features • Stable, high performance • Easy to backup/maintain/improve • … www.exoplatform.com 5 Copyright 2011 eXo Platform

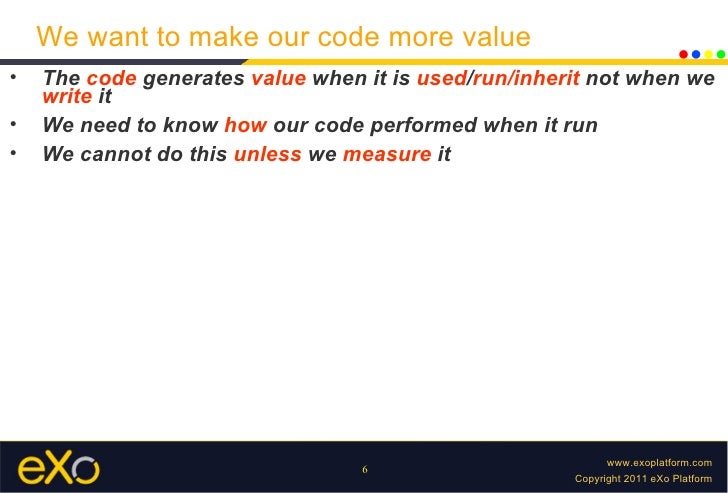

6. We want to make our code more value ●●●●• The code generates value when it is used/run/inherit not when we write it• We need to know how our code performed when it run• We cannot do this unless we measure it www.exoplatform.com 6 Copyright 2011 eXo Platform

7. Why measure ●●●●• map ≠ territory• map of Ha noi ≠ city of Ha noi• the way we talk ≠ the way it is• the way we think of ≠ the way itself• perception ≠ reality www.exoplatform.com 7 Copyright 2011 eXo Platform

8. Why measure – mental model, its not the code ●●●●• We have mental model of the code• mental model, its not the code• Sometime, its wrong• Sometime, it’s a big mistake www.exoplatform.com 8 Copyright 2011 eXo Platform

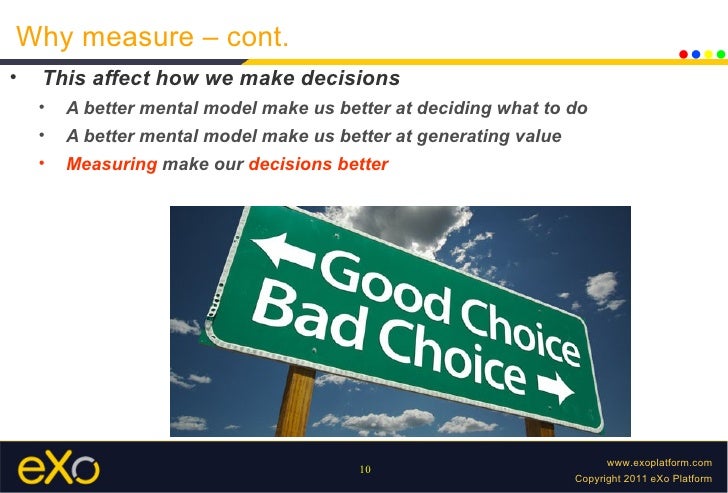

10. Why measure – cont. ●●●●• This affect how we make decisions • A better mental model make us better at deciding what to do • A better mental model make us better at generating value • Measuring make our decisions better www.exoplatform.com 10 Copyright 2011 eXo Platform

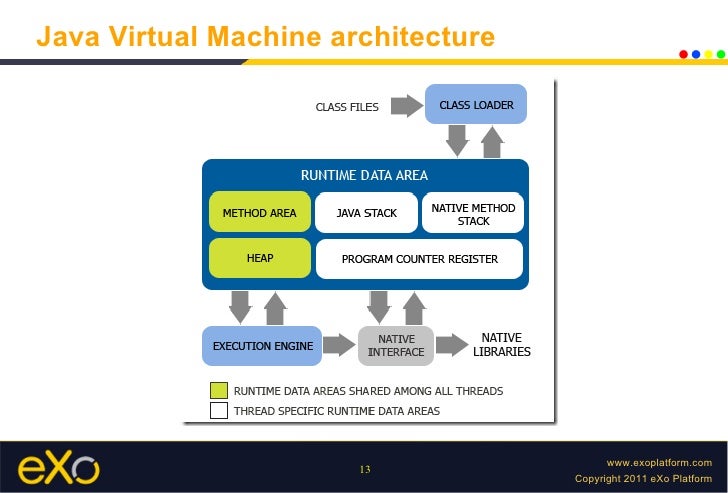

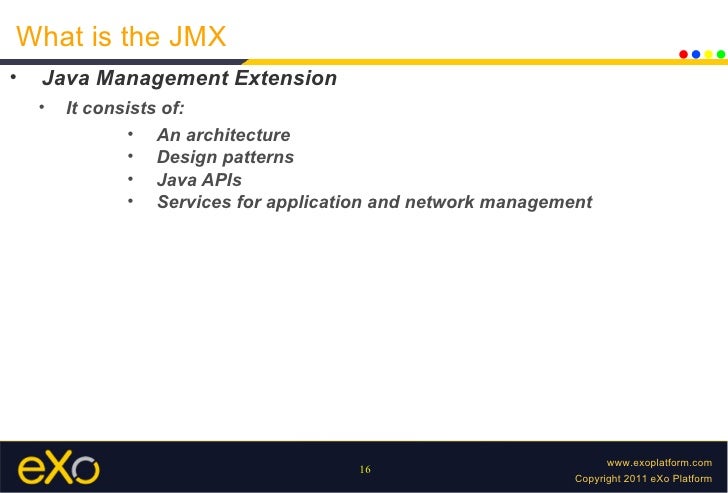

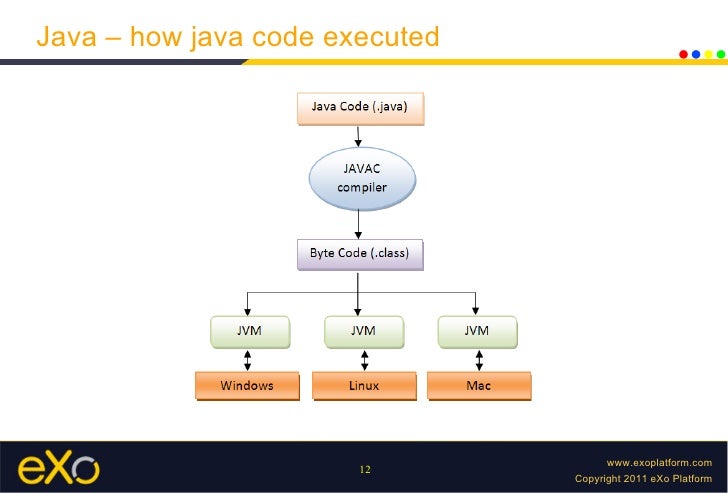

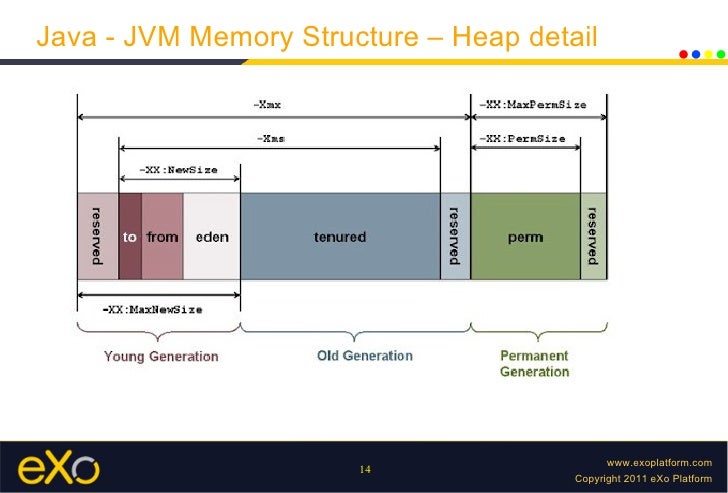

16. What is the JMX ●●●●• Java Management Extension • It consists of: • An architecture • Design patterns • Java APIs • Services for application and network management www.exoplatform.com 16 Copyright 2011 eXo Platform

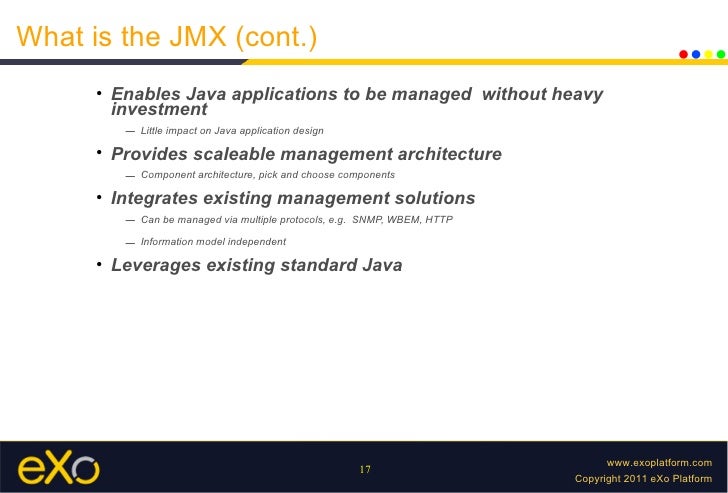

17. What is the JMX (cont.) ●●●● • Enables Java applications to be managed without heavy investment – Little impact on Java application design • Provides scaleable management architecture – Component architecture, pick and choose components • Integrates existing management solutions – Can be managed via multiple protocols, e.g. SNMP, WBEM, HTTP – Information model independent • Leverages existing standard Java www.exoplatform.com 17 Copyright 2011 eXo Platform

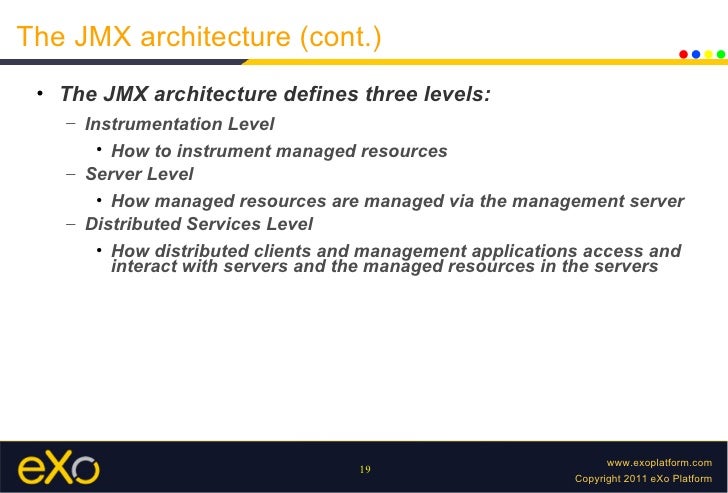

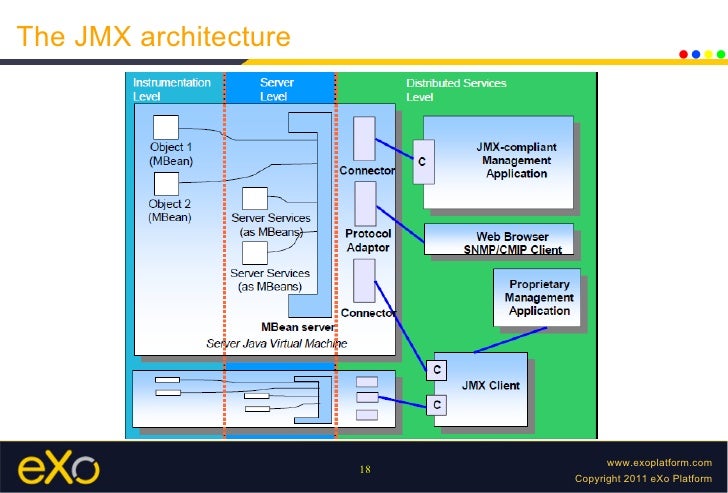

19. The JMX architecture (cont.) ●●●● • The JMX architecture defines three levels: – Instrumentation Level • How to instrument managed resources – Server Level • How managed resources are managed via the management server – Distributed Services Level • How distributed clients and management applications access and interact with servers and the managed resources in the servers www.exoplatform.com 19 Copyright 2011 eXo Platform

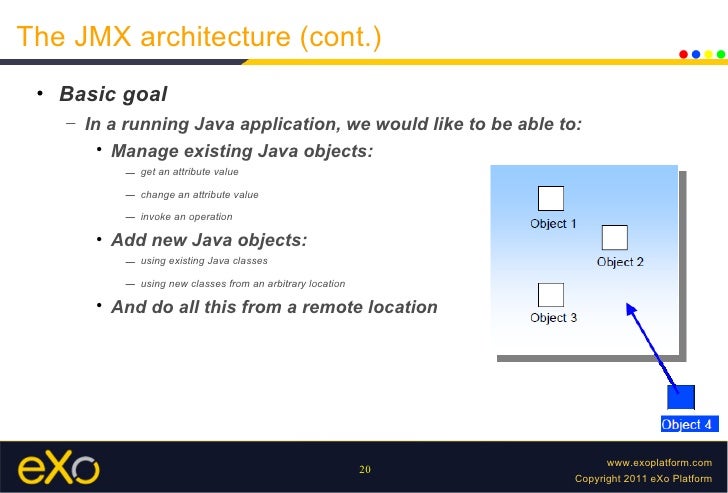

20. The JMX architecture (cont.) ●●●● • Basic goal – In a running Java application, we would like to be able to: • Manage existing Java objects: – get an attribute value – change an attribute value – invoke an operation • Add new Java objects: – using existing Java classes – using new classes from an arbitrary location • And do all this from a remote location www.exoplatform.com 20 Copyright 2011 eXo Platform

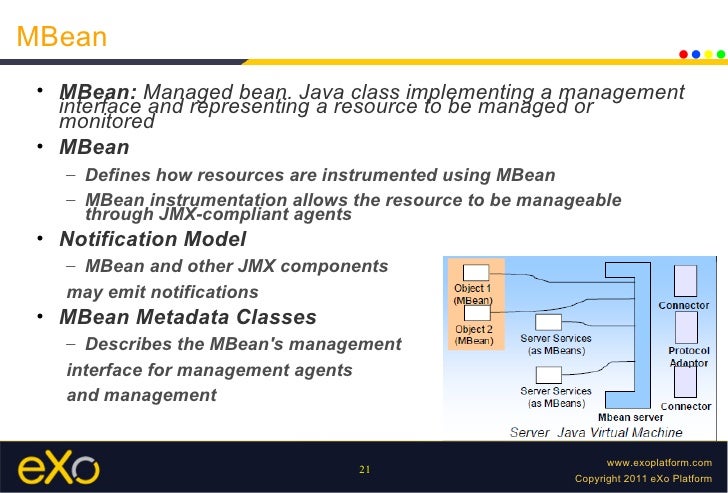

21. MBean ●●●● • MBean: Managed bean. Java class implementing a management interface and representing a resource to be managed or monitored • MBean – Defines how resources are instrumented using MBean – MBean instrumentation allows the resource to be manageable through JMX-compliant agents • Notification Model – MBean and other JMX components may emit notifications • MBean Metadata Classes – Describes the MBeans management interface for management agents and management www.exoplatform.com 21 Copyright 2011 eXo Platform

22. MBean (cont.) ●●●● • An MBean exposes the management interface of the managed resource/object – The management interface is the set of information and controls that a management application uses to operate on the resource www.exoplatform.com 22 Copyright 2011 eXo Platform

23. MBean (cont.) ●●●● • An MBean exposes the management interface as: – Attributes which may be accessed – Operations which may be invoked – Notifications which may be emitted (optional) – Constructors for the MBeans Java class • An MBean follows design patterns – The way an attribute or operation to be exposed has to be declared • An MBean must be registered in the MBean server to be visible remotely • An MBean does not know about its MBean www.exoplatform.com 23 Copyright 2011 eXo Platform

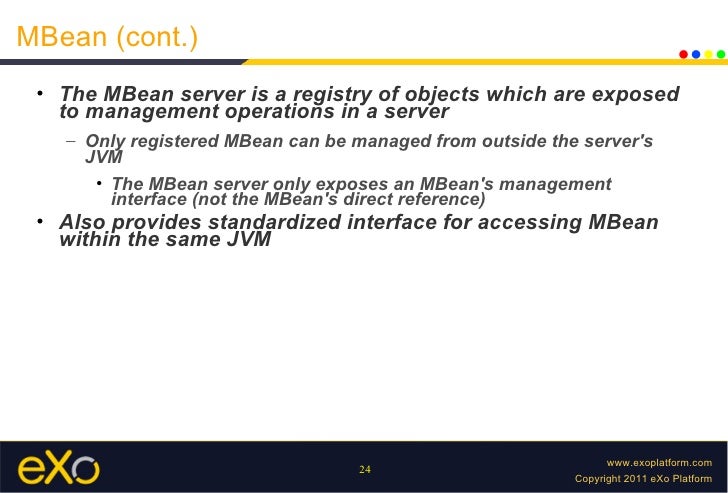

24. MBean (cont.) ●●●● • The MBean server is a registry of objects which are exposed to management operations in a server – Only registered MBean can be managed from outside the servers JVM • The MBean server only exposes an MBeans management interface (not the MBeans direct reference) • Also provides standardized interface for accessing MBean within the same JVM www.exoplatform.com 24 Copyright 2011 eXo Platform

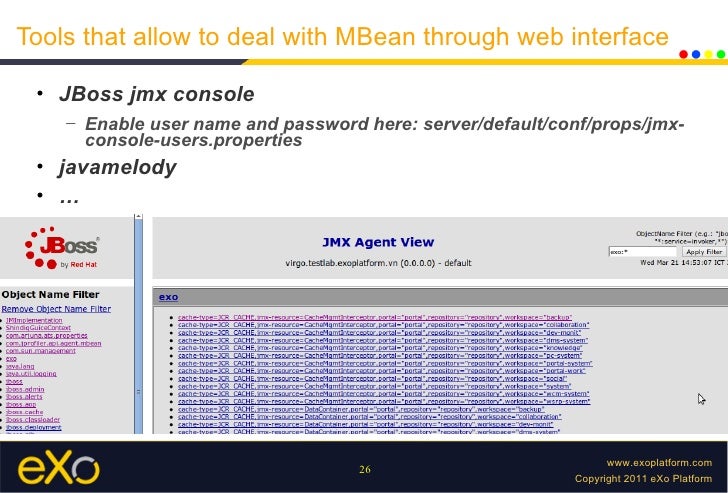

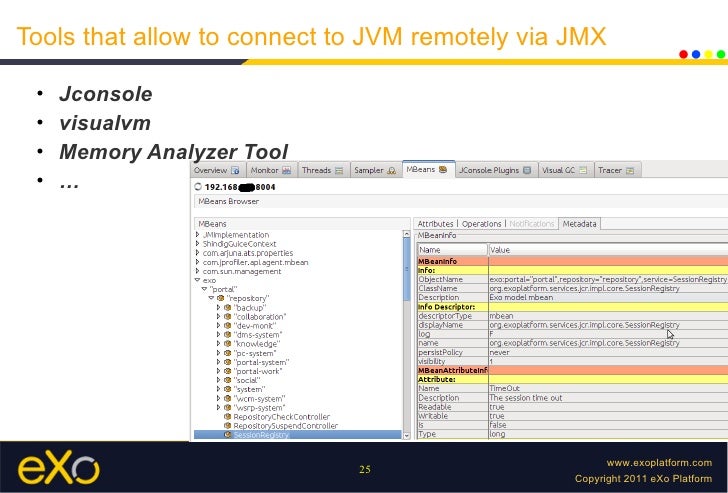

26. Tools that allow to deal with MBean through web interface ●●●● • JBoss jmx console – Enable user name and password here: server/default/conf/props/jmx- console-users.properties • javamelody • … www.exoplatform.com 26 Copyright 2011 eXo Platform

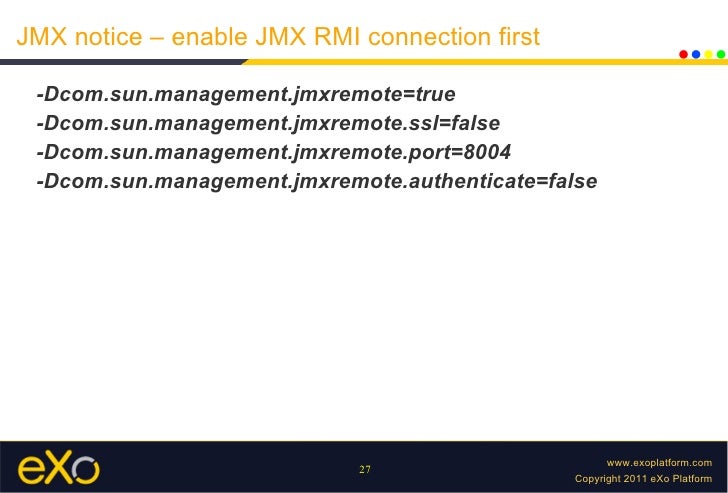

27. JMX notice – enable JMX RMI connection first ●●●● -Dcom.sun.management.jmxremote=true -Dcom.sun.management.jmxremote.ssl=false -Dcom.sun.management.jmxremote.port=8004 -Dcom.sun.management.jmxremote.authenticate=false www.exoplatform.com 27 Copyright 2011 eXo Platform

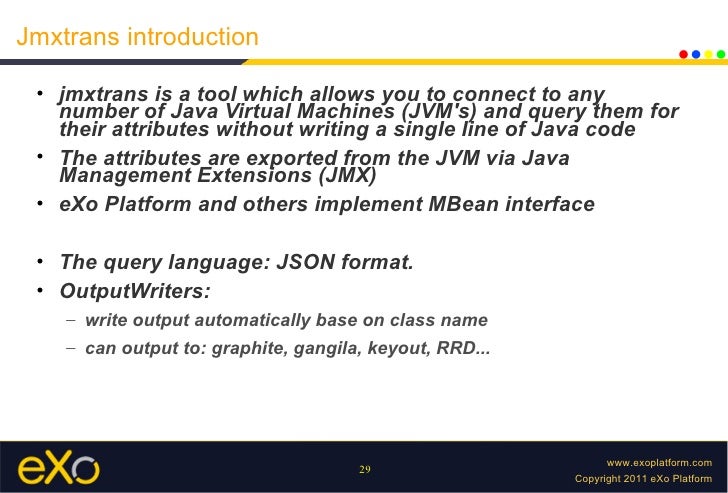

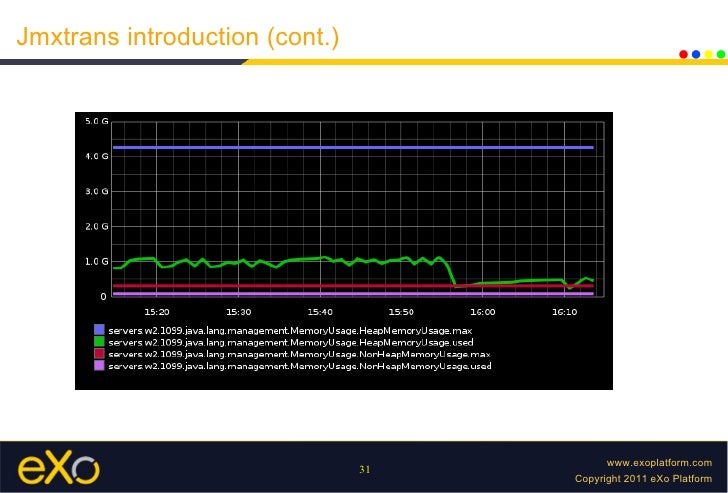

29. Jmxtrans introduction ●●●● • jmxtrans is a tool which allows you to connect to any number of Java Virtual Machines (JVMs) and query them for their attributes without writing a single line of Java code • The attributes are exported from the JVM via Java Management Extensions (JMX) • eXo Platform and others implement MBean interface • The query language: JSON format. • OutputWriters: – write output automatically base on class name – can output to: graphite, gangila, keyout, RRD... www.exoplatform.com 29 Copyright 2011 eXo Platform

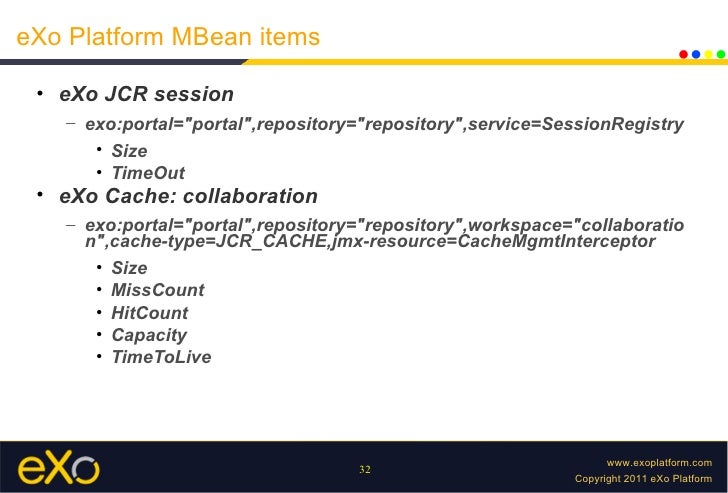

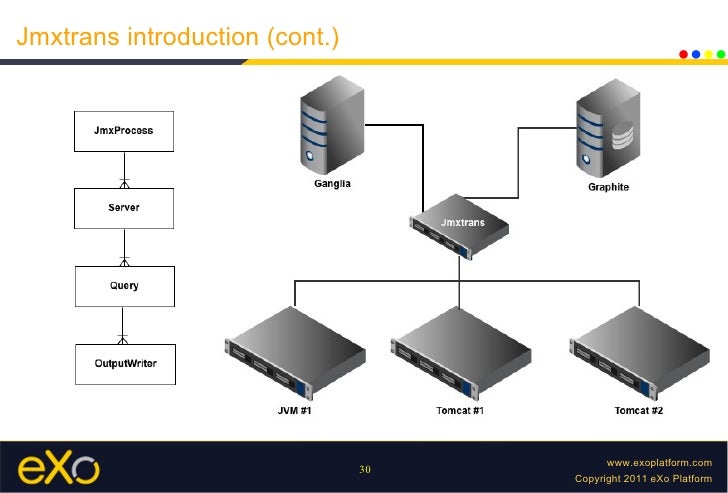

32. eXo Platform MBean items ●●●● • eXo JCR session – exo:portal="portal",repository="repository",service=SessionRegistry • Size • TimeOut • eXo Cache: collaboration – exo:portal="portal",repository="repository",workspace="collaboratio n",cache-type=JCR_CACHE,jmx-resource=CacheMgmtInterceptor • Size • MissCount • HitCount • Capacity • TimeToLive www.exoplatform.com 32 Copyright 2011 eXo Platform

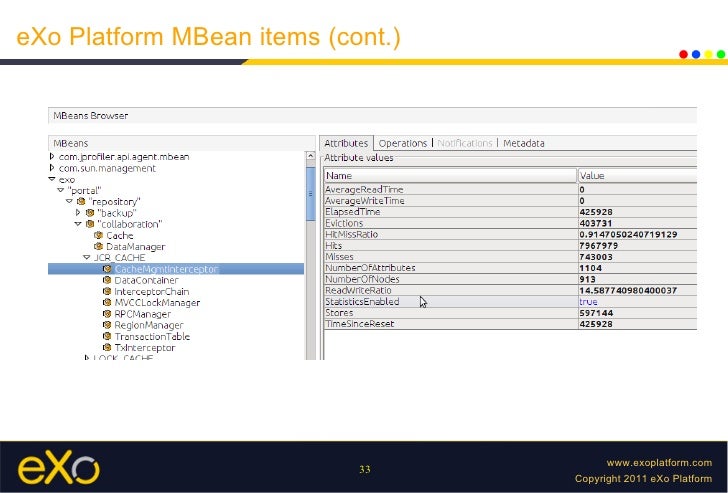

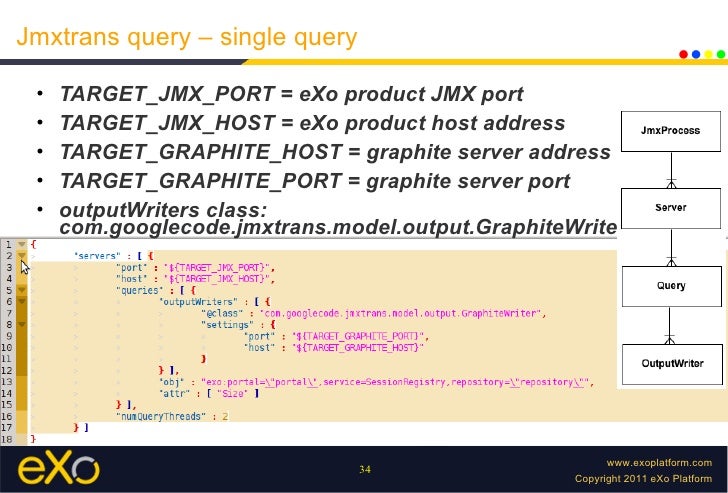

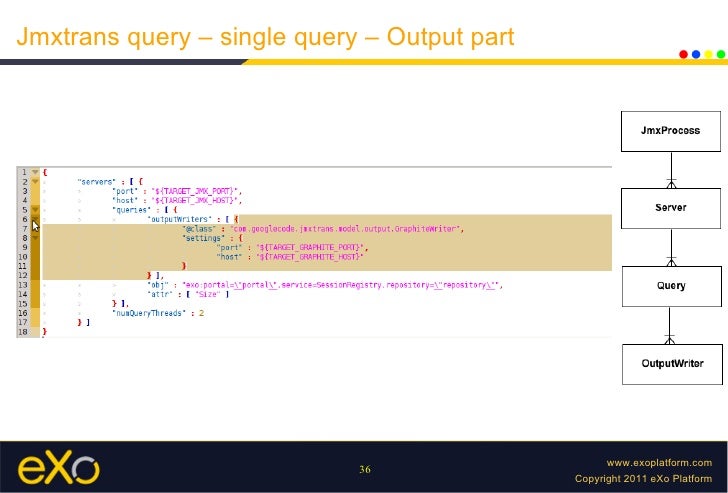

34. Jmxtrans query – single query ●●●● • TARGET_JMX_PORT = eXo product JMX port • TARGET_JMX_HOST = eXo product host address • TARGET_GRAPHITE_HOST = graphite server address • TARGET_GRAPHITE_PORT = graphite server port • outputWriters class: com.googlecode.jmxtrans.model.output.GraphiteWriter www.exoplatform.com 34 Copyright 2011 eXo Platform

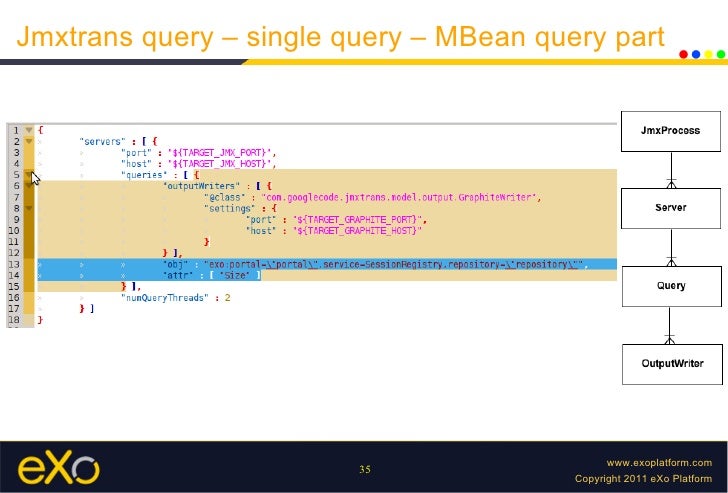

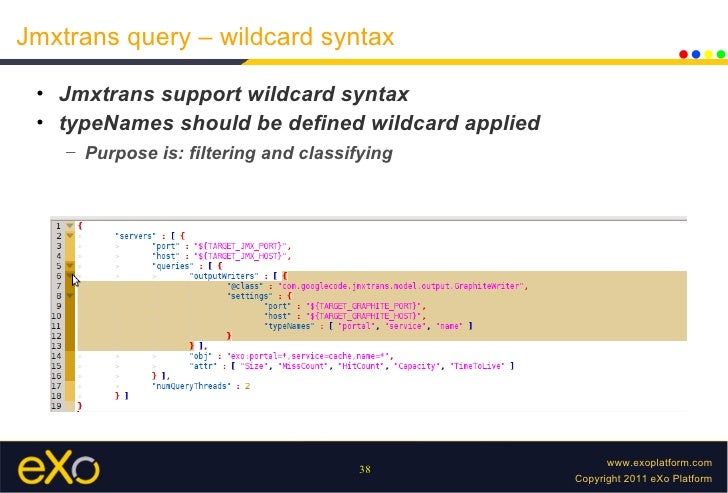

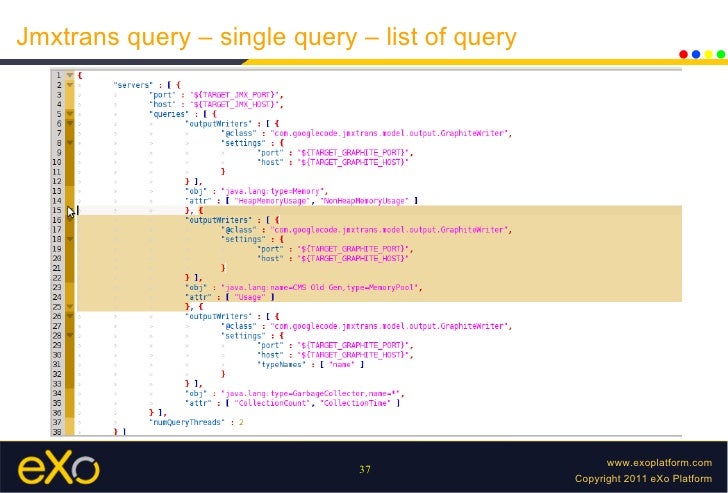

38. Jmxtrans query – wildcard syntax ●●●● • Jmxtrans support wildcard syntax • typeNames should be defined wildcard applied – Purpose is: filtering and classifying www.exoplatform.com 38 Copyright 2011 eXo Platform

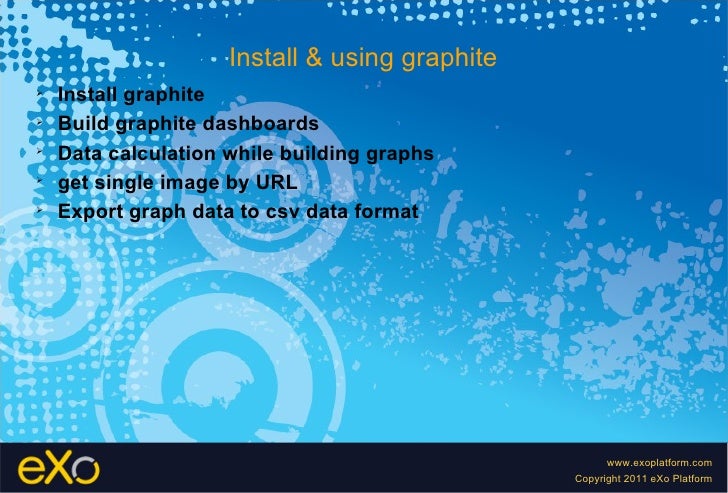

40. Install & using graphite Install graphite Build graphite dashboards Data calculation while building graphs get single image by URL Export graph data to csv data format www.exoplatform.com Copyright 2011 eXo Platform

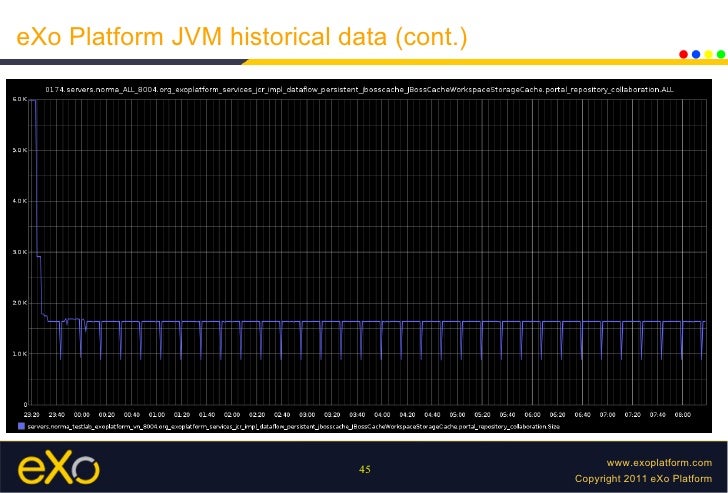

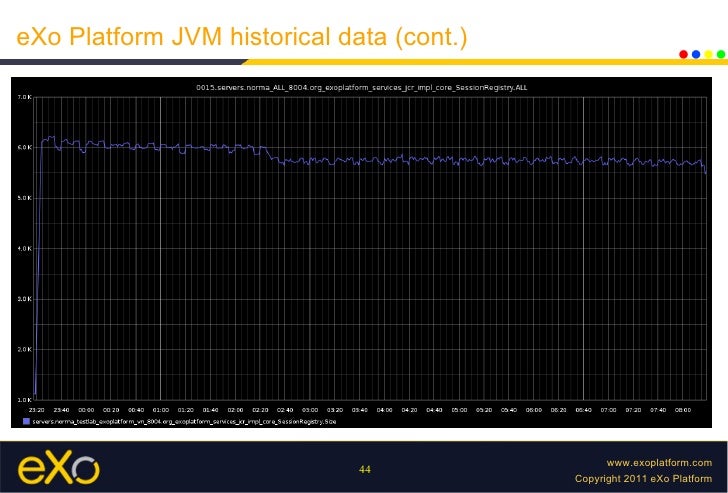

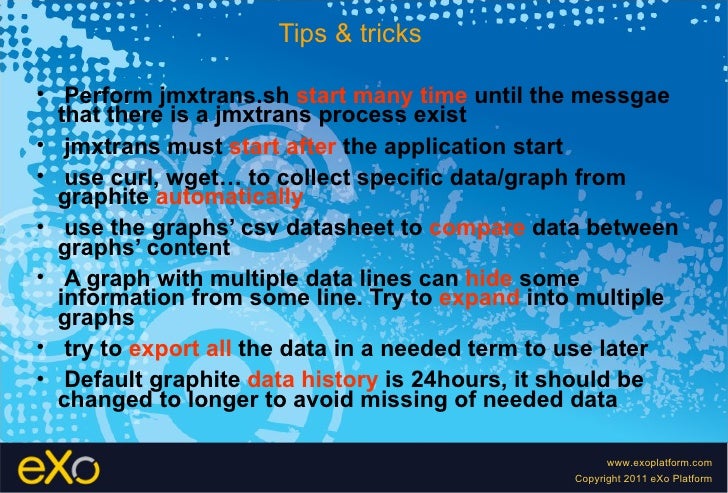

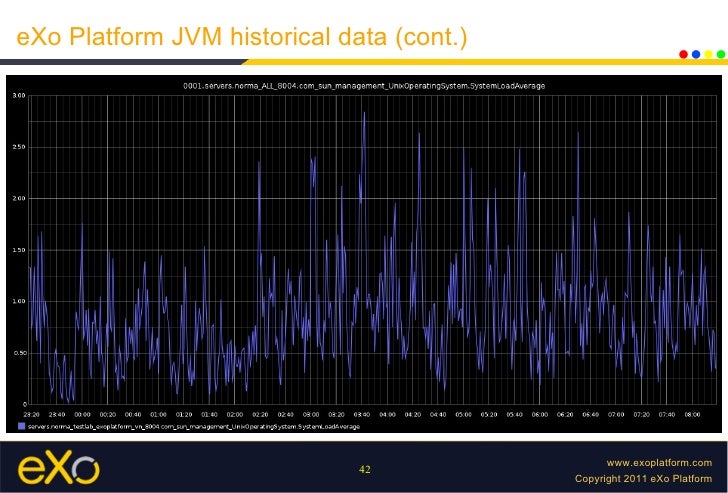

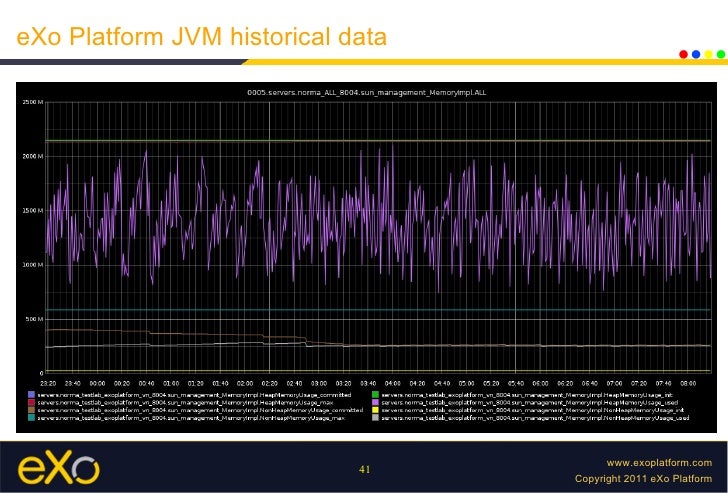

46. Tips & tricks• Perform jmxtrans.sh start many time until the messgae that there is a jmxtrans process exist• jmxtrans must start after the application start• use curl, wget… to collect specific data/graph from graphite automatically• use the graphs’ csv datasheet to compare data between graphs’ content• A graph with multiple data lines can hide some information from some line. Try to expand into multiple graphs• try to export all the data in a needed term to use later• Default graphite data history is 24hours, it should be changed to longer to avoid missing of needed data www.exoplatform.com Copyright 2011 eXo Platform

47. Links1. http://code.google.com/p/jmxtrans2. http://graphite.wikidot.com/3. https://wiki-int.exoplatform.org/display/QAF/Graphite4. http://www.oracle.com/technetwork/java/javase/tech/doc5. http:// docs.oracle.com/javase/tutorial/jmx/MBean/index.html6. http://docs.oracle.com/javase/specs/jls/se5.0/html/j3TOC www.exoplatform.com Copyright 2011 eXo Platform
