Measuring Coverage From E2E Tests

1. Measuring Coverage From e2e Tests @BagmarAnand Anand Bagmar Software Quality Evangelist, Essence Of Testing

2. About Me Anand Bagmar EssenceOfTesting.com @BagmarAnand

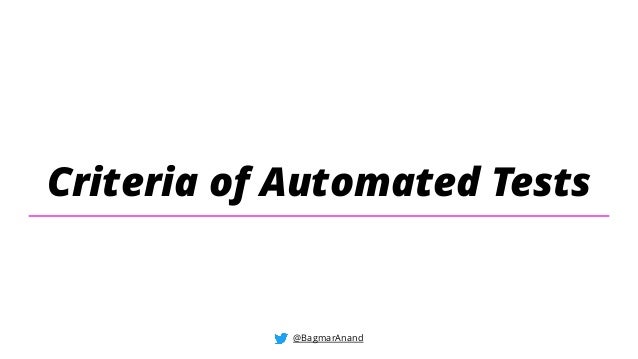

3. Criteria of Automated Tests @BagmarAnand

4. • Tests are “testing” the “right functionality / behavior”! • Tests give quick feedback • IF Tests fail, the correct reason of failure is provided • Tests are optimized & efficient @BagmarAnand Criteria of Automated Tests https://i.pinimg.com/474x/ec/8a/17/ec8a176036490a3338f806172a23e4b3.jpg

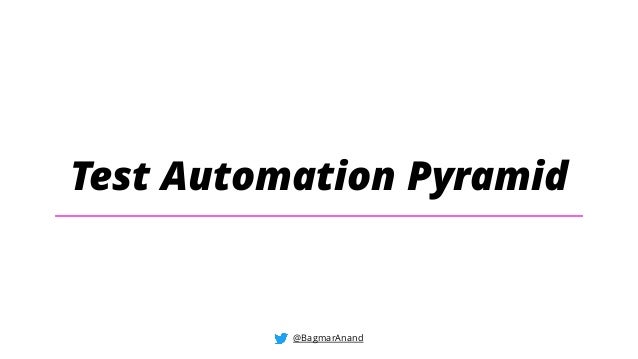

5. Test Automation Pyramid @BagmarAnand

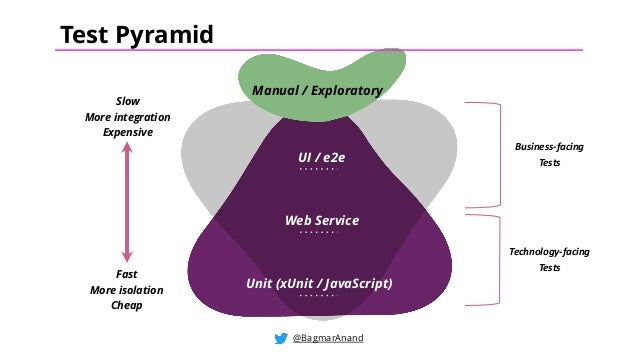

6. Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2e Business-facing Tests Technology-facing Tests @BagmarAnand Test Pyramid Slow More integration Expensive Fast More isolation Cheap

7. @BagmarAnand Test Pyramid – Includes NFRs Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2e Performance Security Accessibility Analytics

8. Given you have all these tests…. @BagmarAnand

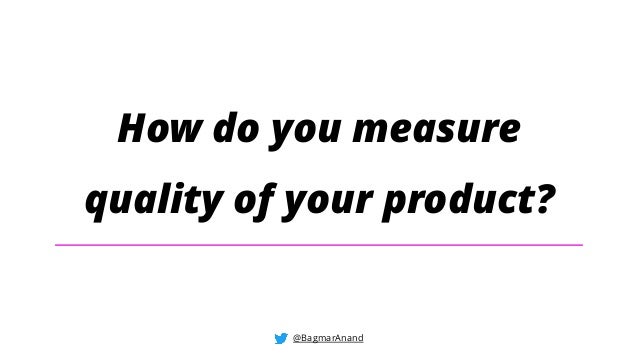

9. How do you measure quality of your product? @BagmarAnand

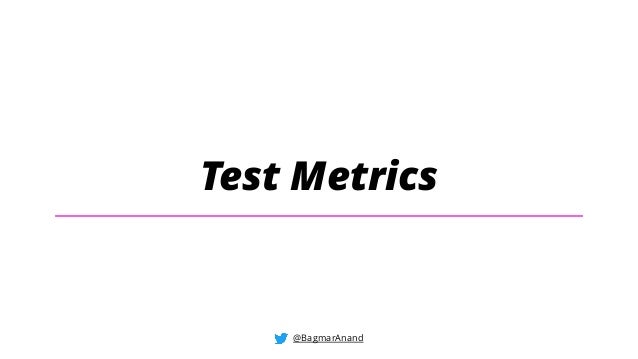

10. Test Metrics @BagmarAnand

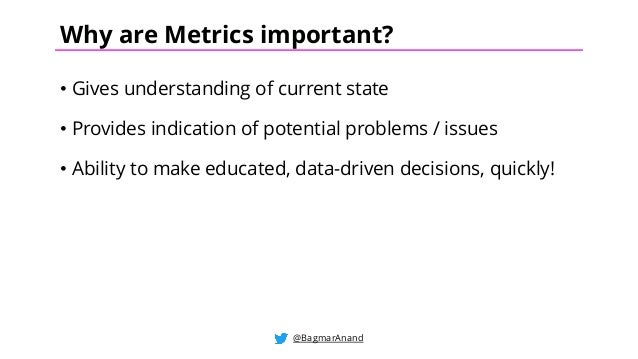

11. • Gives understanding of current state • Provides indication of potential problems / issues • Ability to make educated, data-driven decisions, quickly! @BagmarAnand Why are Metrics important?

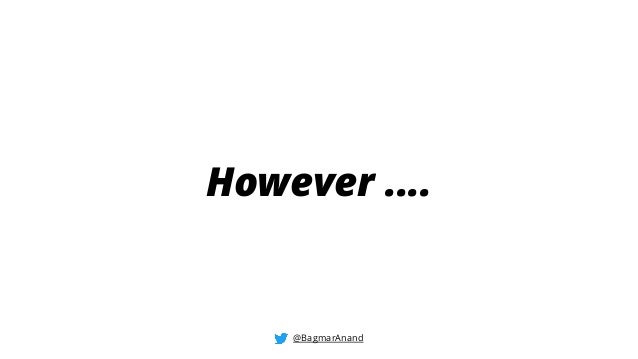

12. However …. @BagmarAnand

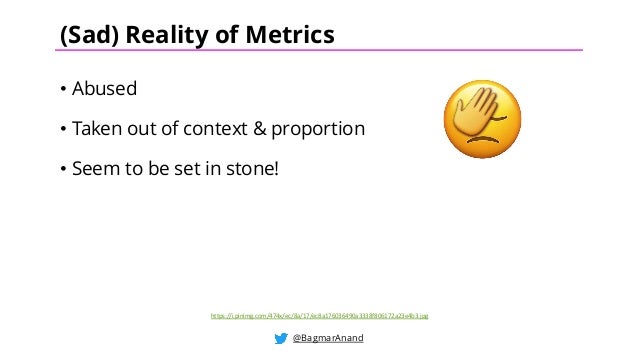

13. • Abused • Taken out of context & proportion • Seem to be set in stone! @BagmarAnand (Sad) Reality of Metrics https://i.pinimg.com/474x/ec/8a/17/ec8a176036490a3338f806172a23e4b3.jpg

14. @BagmarAnand Way of working has evolved https://upload.wikimedia.org/wikipedia/commons/1/1c/Evolution-des-wissens.jpg

15. @BagmarAnand We are still stuck in the past in measuring Quality! https://previews.123rf.com/images/riedjal/riedjal1403/riedjal140300005/26549722-prehistoric-age-of-beardy-caveman-surprised-to-find-a-laptop.jpg

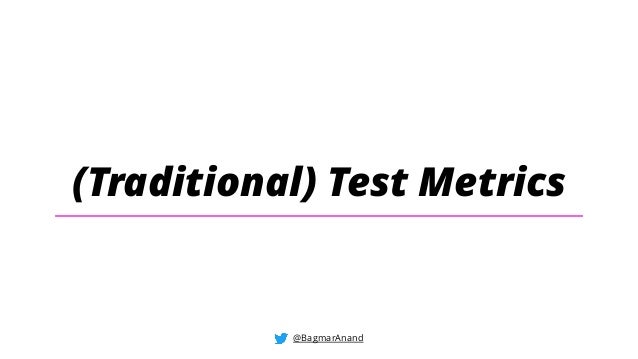

16. (Traditional) Test Metrics @BagmarAnand

17. • Test Case Effectiveness = (Number of defects detected / Number of test cases run) x 100 • Test Case Productivity = (Number of Test Cases / Efforts Spent for Test Case Preparation) • Test Coverage = Number of detected faults/number of predicted defects. • Test Code Coverage = Produce code coverage by e2e / UI tests • Requirement Coverage = (Number of requirements covered / Total number of requirements) x 100 • Test Design Coverage = (Total number of requirements mapped to test cases / Total number of requirements) x 100 • Test Execution Coverage = (Total number of executed test cases or scripts / Total number of test cases or scripts planned to be executed) x 100 • %ge of work completed & yet to be completed • Time to complete the remaining work @BagmarAnand (Traditional) Test Metrics

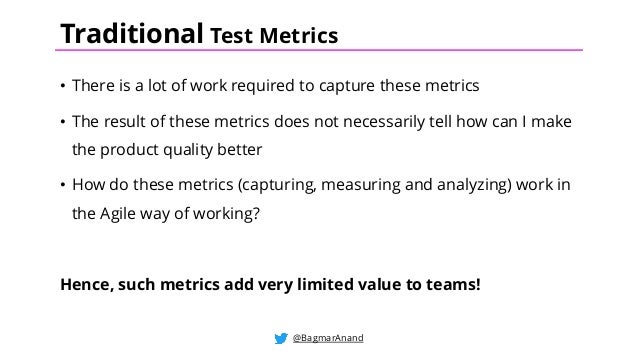

18. • There is a lot of work required to capture these metrics • The result of these metrics does not necessarily tell how can I make the product quality better • How do these metrics (capturing, measuring and analyzing) work in the Agile way of working? Hence, such metrics add very limited value to teams! @BagmarAnand Traditional Test Metrics

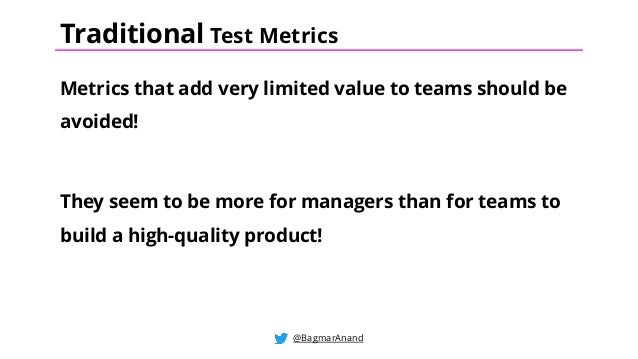

19. Metrics that add very limited value to teams should be avoided! They seem to be more for managers than for teams to build a high-quality product! @BagmarAnand Traditional Test Metrics

20. @BagmarAnand How to find better ways? https://previews.123rf.com/images/bosecher/bosecher1509/bosecher150900020/45695557-vector-cartoon-illustration-of-a-stoneage-man-sitting-on-a-stone-wheel.jpg

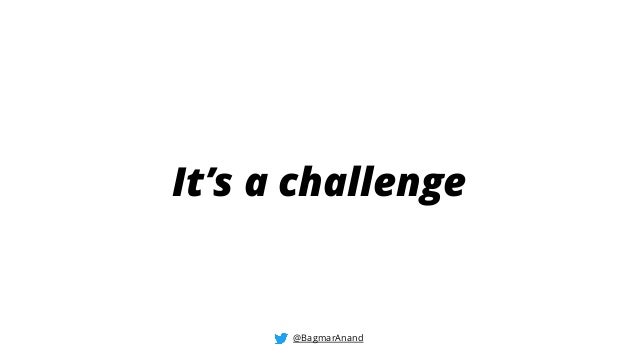

21. It’s a challenge @BagmarAnand

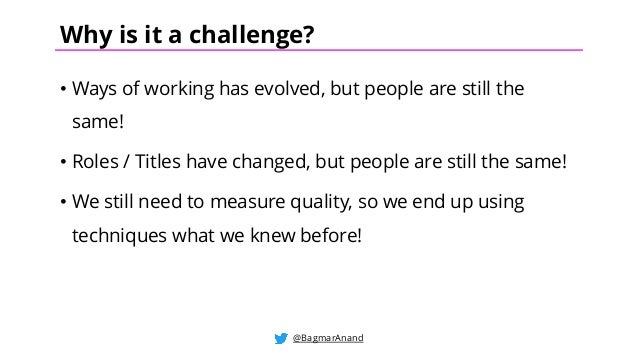

22. • Ways of working has evolved, but people are still the same! • Roles / Titles have changed, but people are still the same! • We still need to measure quality, so we end up using techniques what we knew before! @BagmarAnand Why is it a challenge?

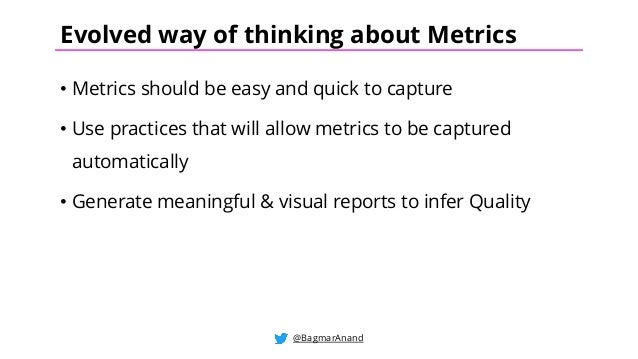

23. • Metrics should be easy and quick to capture • Use practices that will allow metrics to be captured automatically • Generate meaningful & visual reports to infer Quality @BagmarAnand Evolved way of thinking about Metrics

24. @BagmarAnand 80-20 Rule / Pareto Principle https://en.wikipedia.org/wiki/Pareto_principle

25. http://textbook.stpauls.br/Business_Organization/images/pic311.jpg @BagmarAnand So, how do you measure quality of your product?

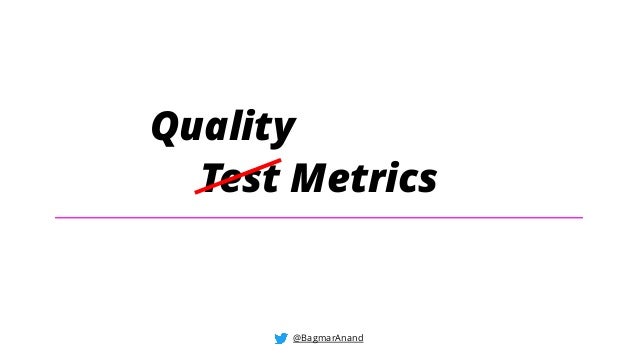

26. Test Metrics @BagmarAnand Quality

27. What indicates quality of your product? @BagmarAnand

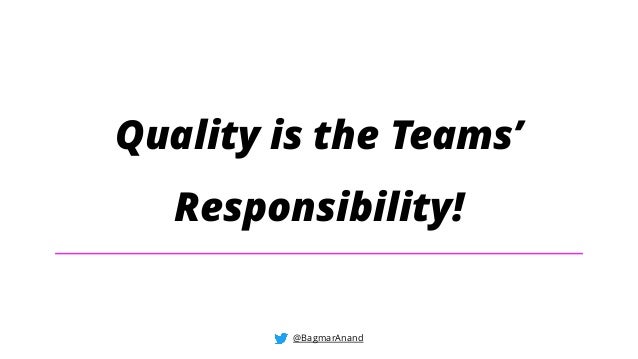

28. Quality is the Teams’ Responsibility! @BagmarAnand

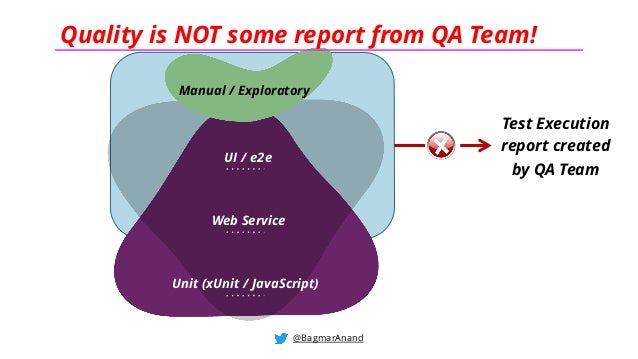

30. Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2e @BagmarAnand Quality is NOT some report from QA Team! Test Execution report created by QA Team

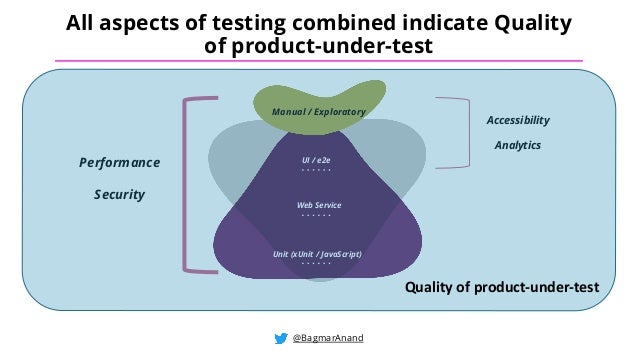

31. @BagmarAnand All aspects of testing combined indicate Quality of product-under-test Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2ePerformance Security Accessibility Analytics Quality of product-under-test

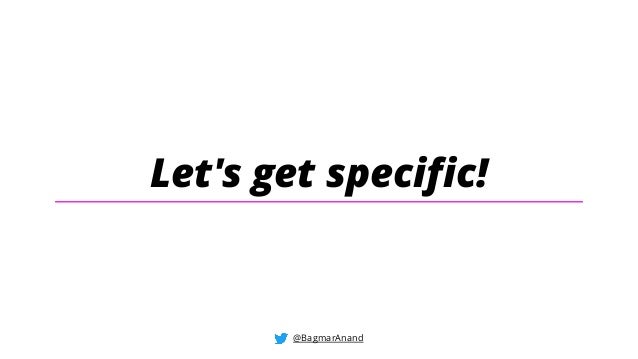

32. Let's get specific! @BagmarAnand

33. • Test Case Effectiveness = (Number of defects detected / Number of test cases run) x 100 • Test Case Productivity = (Number of Test Cases / Efforts Spent for Test Case Preparation) • Test Coverage = Number of detected faults/number of predicted defects. • Test Code Coverage = Produce code coverage by e2e / UI tests • Requirement Coverage = (Number of requirements covered / Total number of requirements) x 100 • Test Design Coverage = (Total number of requirements mapped to test cases / Total number of requirements) x 100 • Test Execution Coverage = (Total number of executed test cases or scripts / Total number of test cases or scripts planned to be executed) x 100 • %ge of work completed & yet to be completed • Time to complete the remaining work @BagmarAnand (Traditional) Test Metrics

34. I often get asked …. @BagmarAnand https://lh3.googleusercontent.com/proxy/3JFWJGTlmTym_g9xCZpHIFNLN3rQZu3js8f7iJDHFc6CCeTDb4hpLJaaQm1YCe2BfxyuA_7Lv3B4Clt7MpICbe_Ay09TY8k

35. How can you capture code coverage from e2e / UI tests? @BagmarAnand https://lh3.googleusercontent.com/proxy/3JFWJGTlmTym_g9xCZpHIFNLN3rQZu3js8f7iJDHFc6CCeTDb4hpLJaaQm1YCe2BfxyuA_7Lv3B4Clt7MpICbe_Ay09TY8k

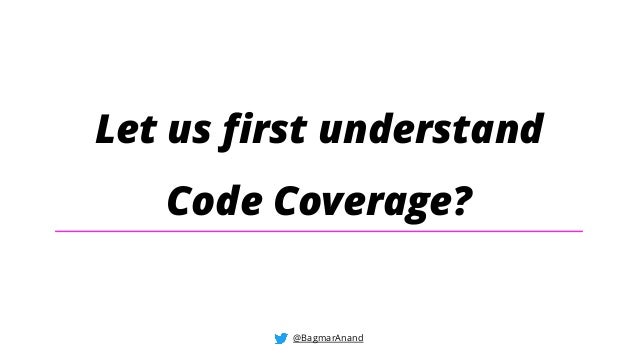

36. Let us first understand Code Coverage? @BagmarAnand

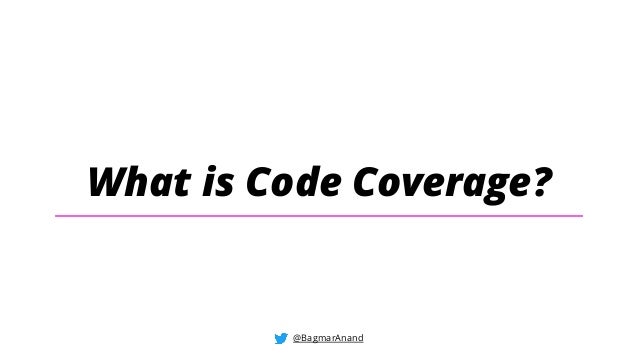

37. What is Code Coverage? @BagmarAnand

38. https://en.wikipedia.org/wiki/Code_coverage @BagmarAnand

39. https://w0.pngwave.com/png/522/439/quail-eggs-hot-pot-common-quail-quail-eggs-png-clip-art.png @BagmarAnand We want to have high code coverage for all types of tests!

40. But, does it really make sense? @BagmarAnand https://lh3.googleusercontent.com/proxy/3JFWJGTlmTym_g9xCZpHIFNLN3rQZu3js8f7iJDHFc6CCeTDb4hpLJaaQm1YCe2BfxyuA_7Lv3B4Clt7MpICbe_Ay09TY8k

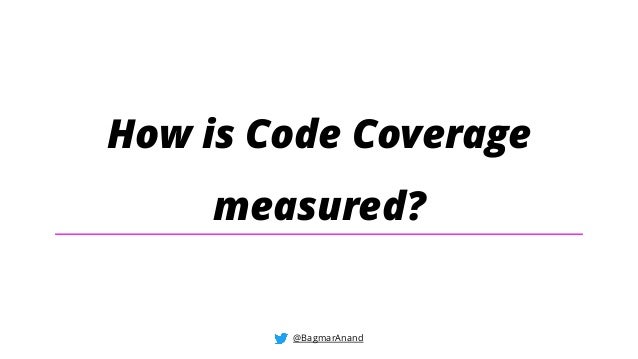

41. How is Code Coverage measured? @BagmarAnand

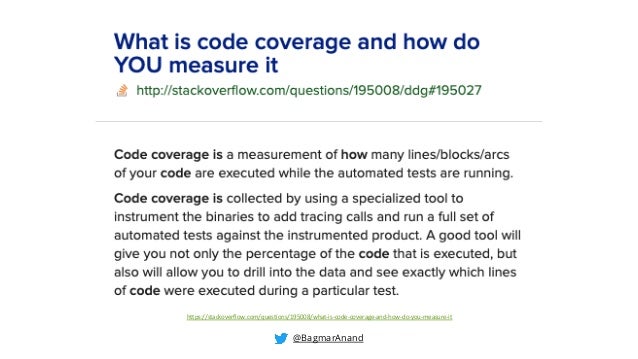

42. https://stackoverflow.com/questions/195008/what-is-code-coverage-and-how-do-you-measure-it @BagmarAnand

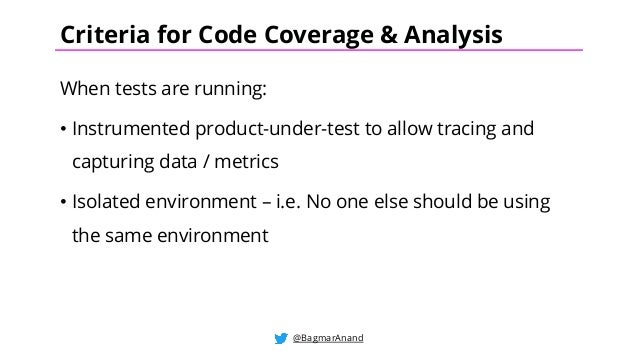

43. When tests are running: • Instrumented product-under-test to allow tracing and capturing data / metrics • Isolated environment – i.e. No one else should be using the same environment @BagmarAnand Criteria for Code Coverage & Analysis

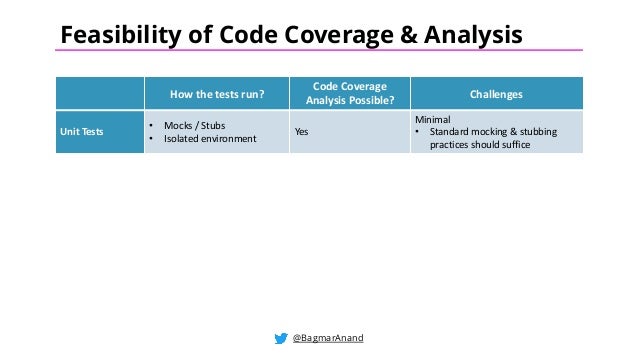

44. @BagmarAnand Feasibility of Code Coverage & Analysis How the tests run? Code Coverage Analysis Possible? Challenges Unit Tests • Mocks / Stubs • Isolated environment Yes Minimal • Standard mocking & stubbing practices should suffice

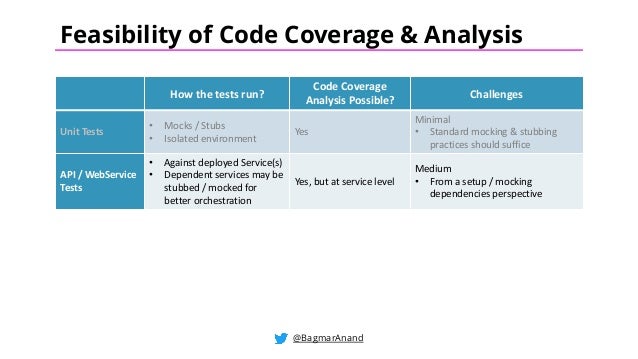

45. @BagmarAnand Feasibility of Code Coverage & Analysis How the tests run? Code Coverage Analysis Possible? Challenges Unit Tests • Mocks / Stubs • Isolated environment Yes Minimal • Standard mocking & stubbing practices should suffice API / WebService Tests • Against deployed Service(s) • Dependent services may be stubbed / mocked for better orchestration Yes, but at service level Medium • From a setup / mocking dependencies perspective

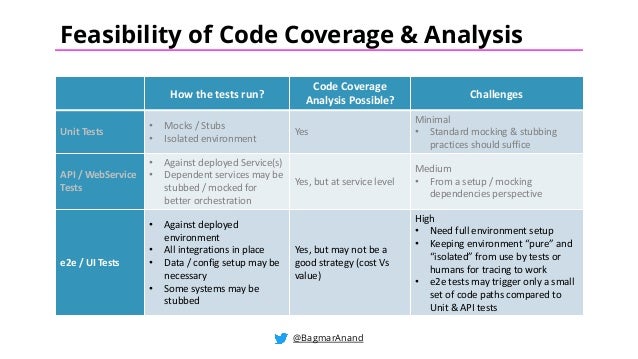

46. @BagmarAnand Feasibility of Code Coverage & Analysis How the tests run? Code Coverage Analysis Possible? Challenges Unit Tests • Mocks / Stubs • Isolated environment Yes Minimal • Standard mocking & stubbing practices should suffice API / WebService Tests • Against deployed Service(s) • Dependent services may be stubbed / mocked for better orchestration Yes, but at service level Medium • From a setup / mocking dependencies perspective e2e / UI Tests • Against deployed environment • All integrations in place • Data / config setup may be necessary • Some systems may be stubbed Yes, but may not be a good strategy (cost Vs value) High • Need full environment setup • Keeping environment “pure” and “isolated” from use by tests or humans for tracing to work • e2e tests may trigger only a small set of code paths compared to Unit & API tests

48. @BagmarAnand Feasibility of Code Coverage & Analysis How the tests run? Code Coverage Analysis Possible? Challenges Unit Tests • Mocks / Stubs • Isolated environment Yes Minimal • Standard mocking & stubbing practices should suffice API / WebService Tests • Against deployed Service(s) • Dependent services may be stubbed / mocked for better orchestration Yes, but at service level Medium • From a setup / mocking dependencies perspective e2e / UI Tests • Against deployed environment • All integrations in place • Data / config setup may be necessary • Some systems may be stubbed Yes, but may not be a good strategy (cost Vs value) High • Need full environment setup • Keeping environment “pure” and “isolated” from use by tests or humans for tracing to work • e2e tests may trigger only a small set of code paths compared to Unit & API tests Value Easy Feasibility Difficult

49. How to measure quality? @BagmarAnand

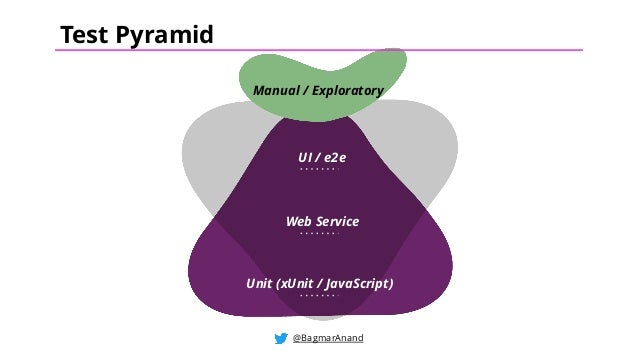

50. Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2e @BagmarAnand Test Pyramid

51. Unit (xUnit / JavaScript) Manual / Exploratory Web Service UI / e2e @BagmarAnand Measuring Quality from each Test Type Feature Coverage User Experience / Usability Accessibility Feature Coverage Visual Coverage Accessibility Product-deployment & setup time Test Execution time Code Coverage Contract Tests Load / Performance / Security API / Service Deployment & Setup time Execution time Code Coverage Static Code Analysis Execution time

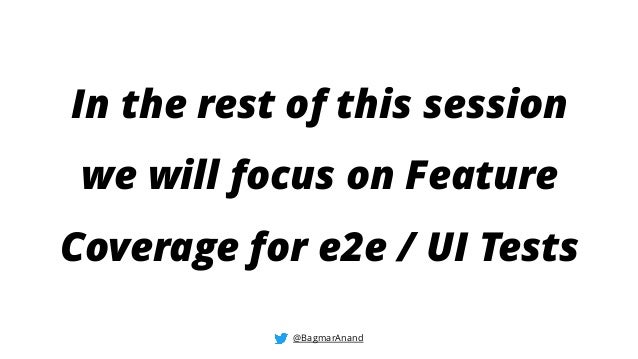

52. In the rest of this session we will focus on Feature Coverage for e2e / UI Tests @BagmarAnand

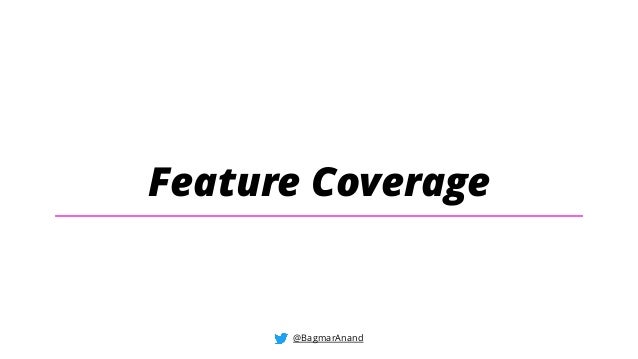

53. Feature Coverage @BagmarAnand

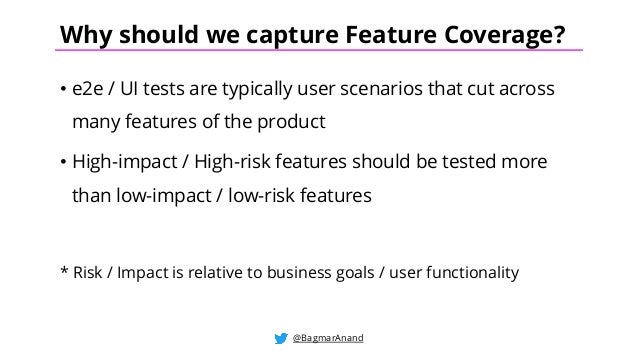

54. • e2e / UI tests are typically user scenarios that cut across many features of the product • High-impact / High-risk features should be tested more than low-impact / low-risk features * Risk / Impact is relative to business goals / user functionality @BagmarAnand Why should we capture Feature Coverage?

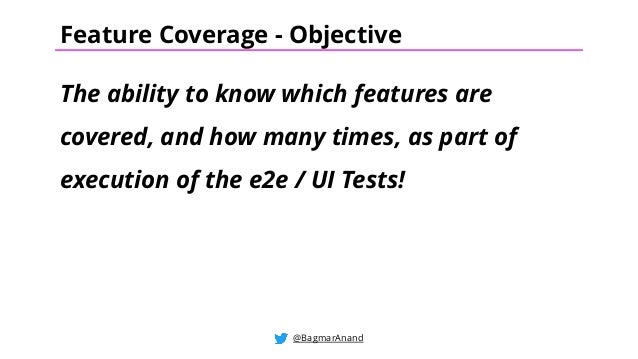

55. The ability to know which features are covered, and how many times, as part of execution of the e2e / UI Tests! @BagmarAnand Feature Coverage - Objective

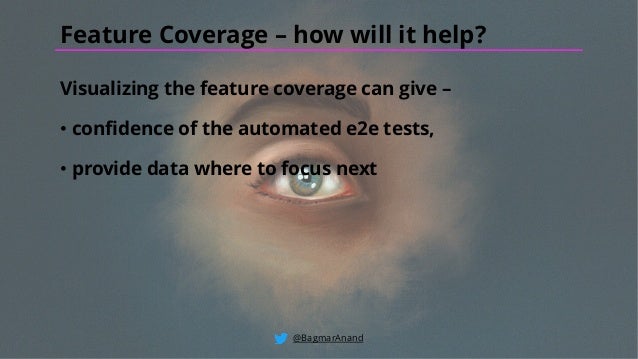

56. Visualizing the feature coverage can give – • confidence of the automated e2e tests, • provide data where to focus next @BagmarAnand Feature Coverage – how will it help?

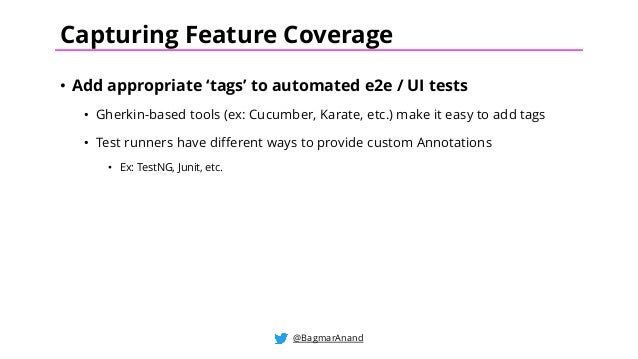

57. • Add appropriate ‘tags’ to automated e2e / UI tests • Gherkin-based tools (ex: Cucumber, Karate, etc.) make it easy to add tags • Test runners have different ways to provide custom Annotations • Ex: TestNG, Junit, etc. @BagmarAnand Capturing Feature Coverage

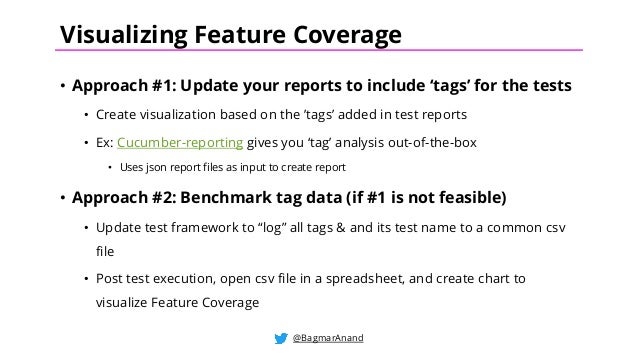

58. • Approach #1: Update your reports to include ‘tags’ for the tests • Create visualization based on the ’tags’ added in test reports • Ex: Cucumber-reporting gives you ‘tag’ analysis out-of-the-box • Uses json report files as input to create report • Approach #2: Benchmark tag data (if #1 is not feasible) • Update test framework to “log” all tags & and its test name to a common csv file • Post test execution, open csv file in a spreadsheet, and create chart to visualize Feature Coverage @BagmarAnand Visualizing Feature Coverage

59. https://cdnb.artstation.com/p/assets/images/images/020/039/203/large/wesam-ab-img-20190814-163328-163.jpg?1566108077 @BagmarAnand Demo

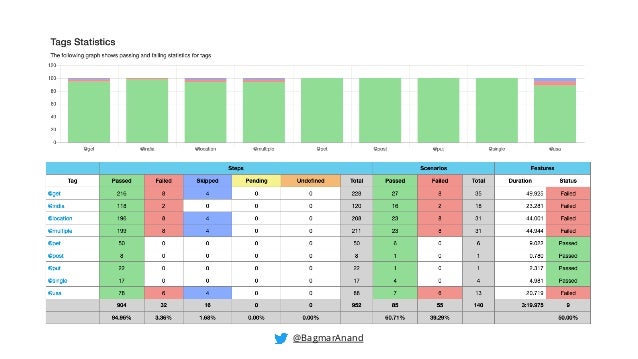

60. @BagmarAnand

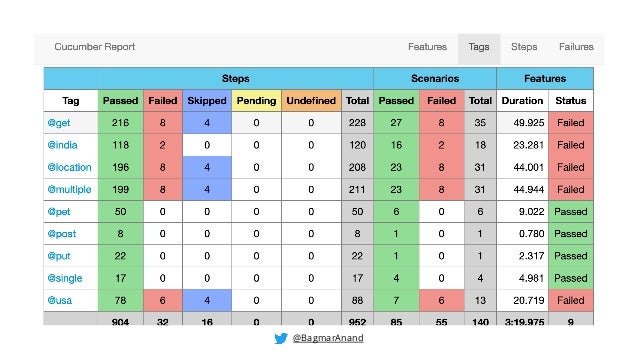

61. @BagmarAnand

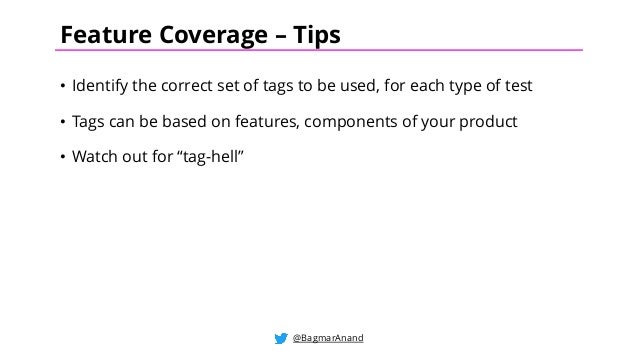

62. • Identify the correct set of tags to be used, for each type of test • Tags can be based on features, components of your product • Watch out for “tag-hell” @BagmarAnand Feature Coverage – Tips

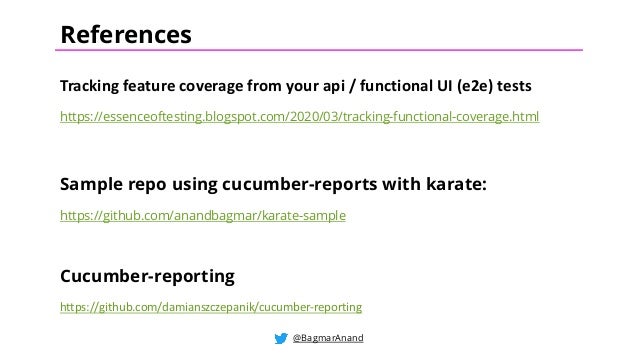

63. Tracking feature coverage from your api / functional UI (e2e) tests https://essenceoftesting.blogspot.com/2020/03/tracking-functional-coverage.html Sample repo using cucumber-reports with karate: https://github.com/anandbagmar/karate-sample Cucumber-reporting https://github.com/damianszczepanik/cucumber-reporting @BagmarAnand References

64. Thank you! Anand Bagmar EssenceOfTesting.com @BagmarAnand
