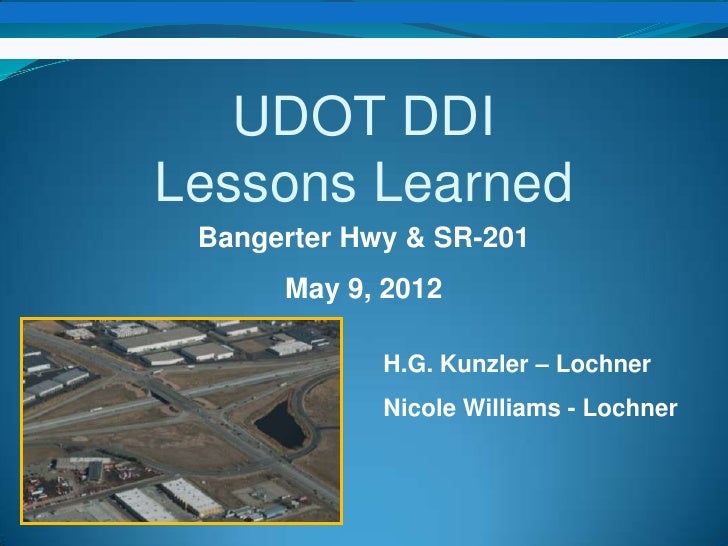

UDOT DDILessons Learned Bangerter Hwy & SR-201      May 9, 2012             H.G. Kunzler – Lochner             Nicole Will...
Bangerter Hwy & SR-201 DDIBenefits:• Reduced total delay and stops by 41%  •   Improve 2020 LOS from E to C (WB ramps)• Ut...
Bangerter Hwy & SR-201 DDI                              Design Considerations:                              • Design Speed...
Bangerter Hwy & SR-201 DDI              Operational Analysis Guidelines:              • DDI fails if PHV (A,B,C) is > 2100...
DDI Signal Guidelines• Combined Signal Pole & Mast Arm• Directional Arrows• Right Turn Signal• Detection Cable
DDI Signing GuidelinesSource: UDOT DDI Guidelines                              • Directional Arrow Sign by Signal Head    ...
DDI Striping Guidelines                      • Directional Arrow at Stop Bar                      • Dotted Lines through  ...
Bangerter Hwy & SR-201 DDIBangerter Hwy & SR-201, UtahI-44 & SR 13 in Springfield, Missouri
DDI Glare Screen Guidelines
Bangerter Hwy & SR-201 DDILessons Learned:Design Issues:                       Signing & Striping:• Cross slope           ...
Bangerter Hwy & SR-201 DDILessons Learned: Signal: • One signal pole / mast arm • Directional arrow sign by signal   head
Bangerter Hwy & SR-201 DDILessons Learned: Construction:                  Maintenance: • MOT                          •   ...
Bangerter Hwy & SR-201 DDI
Bangerter Hwy & SR-201      QUESTIONS?
Upcoming SlideShare
Loading in …5
×

DDI Presentation

1,484 views

Published on

Published in: Business, Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total views
1,484
On SlideShare
0
From Embeds
0
Number of Embeds
134
Actions
Shares
0
Downloads
6
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide
  • Safety: 21 conflict points vs 45 urban diamond – unopposed left turnsCost: $2.8M for the DDI portion of the project. Whole project cost was $10M
  • Design Speed – 10 mph less than posted, not less than 25 mphCrossing Angle – 30 degrees minimum – greater the betterRamp/Crossover spacing – 850 ft recommended – VISSIM analysis – what is needed for storageLane width – turning radius’ – Sharper left turning radius vs sweeping WB-67 tracking – smiley faces
  • Combined signal pole and mast arm at cross over (reduced cost)MOT – ease of construction – one location out of existing diamond config trafficDirectional Arrow in the Signal HeadRight Turn signalHave the detection cable installed and operational
  • ConstructionMOT – the switch overLocation of signal poleWeekend closurePI – Education on new and how to drive News releases video clip in movie theatresInstallation of Detection cableSignal timingMaintenance
  • Use video clip from 2:00 sec to 2:25
  • DDI Presentation

    1. 1. UDOT DDILessons Learned Bangerter Hwy & SR-201 May 9, 2012 H.G. Kunzler – Lochner Nicole Williams - Lochner
    2. 2. Bangerter Hwy & SR-201 DDIBenefits:• Reduced total delay and stops by 41% • Improve 2020 LOS from E to C (WB ramps)• Utilized existing structure vs. full reconstruct• Improved safety (reduced conflict points)• Cost effective solution – • Bangerter Hwy & SR-201 ($2.8M)
    3. 3. Bangerter Hwy & SR-201 DDI Design Considerations: • Design Speed: 10 mph less through DDI • Bangerter Hwy = 50 mph, DDI = 40 mph • Low speed urban used • Cross Angle: 30 degree (minimum) • 30 degrees • Ramp/ Crossover Spacing: adequate for storage • 824 feet • Lane Width: turning radiusSource: UDOT DDI Guidelines
    4. 4. Bangerter Hwy & SR-201 DDI Operational Analysis Guidelines: • DDI fails if PHV (A,B,C) is > 2100 vph (4 thru lanes) • A= 550 vph, B= 1400 vph, C= 2800 vph (3 turn lanes, 5 thru lanes) • Sum of 2 of 3 not exceed 1900 vph (4 thru lanes) • LOS C (not typical D/E) • 2020 No Build LOS E (LOS F – NBL, SBT), PI = 299 • 2020 Build LOS C (No LOS F), PI = 175
    5. 5. DDI Signal Guidelines• Combined Signal Pole & Mast Arm• Directional Arrows• Right Turn Signal• Detection Cable
    6. 6. DDI Signing GuidelinesSource: UDOT DDI Guidelines • Directional Arrow Sign by Signal Head • Sign clutter – Critical Signs Only • Powder Coat back of Signal Heads
    7. 7. DDI Striping Guidelines • Directional Arrow at Stop Bar • Dotted Lines through Crossover • Grooved in Pavement Markings in Concrete /Reduced Maintenance
    8. 8. Bangerter Hwy & SR-201 DDIBangerter Hwy & SR-201, UtahI-44 & SR 13 in Springfield, Missouri
    9. 9. DDI Glare Screen Guidelines
    10. 10. Bangerter Hwy & SR-201 DDILessons Learned:Design Issues: Signing & Striping:• Cross slope • Reduce sign clutter – critical only• Vertical/ horizontal curves • Lane width/turning movement• Low speed urban design radii• Pedestrians • Dotted lines through crossover• Glare screens vs. sight distance • Directional Arrow at Stop Bar
    11. 11. Bangerter Hwy & SR-201 DDILessons Learned: Signal: • One signal pole / mast arm • Directional arrow sign by signal head
    12. 12. Bangerter Hwy & SR-201 DDILessons Learned: Construction: Maintenance: • MOT • Grooved in pavement markings • Public Education • Snow removal • Installation of • Curb painting / glare screen detection cable repair • Signal timing – simulate
    13. 13. Bangerter Hwy & SR-201 DDI
    14. 14. Bangerter Hwy & SR-201 QUESTIONS?

    ×
